TS300A51 - Shower head TOTO - Free user manual and instructions

Product Type	Shower Head
Brand	TOTO
Model	TS300A51
Collection	Transitional Collection, Series A
Minimum Dynamic Pressure	20 psi (0.14 MPa)
Maximum Static Pressure	80 psi (0.55 MPa)
Maximum Hot Water Temperature	160 °F (71 °C)
Minimum Ambient Temperature	32 °F (0 °C)
Recommended Maintenance	Mild soap, warm water, soft cloth
Prohibited Cleaning Products	Abrasive cleaners, steel wool, corrosive chemicals
Residential Warranty	Lifetime for original purchaser
Commercial Warranty	1 year
Residential Warranty Region	North, Central, and South America
Tools Required for Installation	Plumber's tape, adjustable wrench
Included Accessories	Escutcheon, arm, gasket/strainer
Installation Method	Hand tighten then tighten with wrench
Installation Precaution	Do not turn the shower head to install the arm
Prohibited Water Supply	Steam
Manual Pages for Rough-In Dimensions	12-13
Manual Pages for Replacement Parts	15

Frequently Asked Questions - TS300A51 TOTO

How to clean the TOTO TS300A51 shower head?

Clean it regularly with a mild soap, rinse with warm water and wipe with a soft cloth. Never use abrasive cleaners, steel wool, or corrosive chemicals.

What are the recommended water pressures?

The minimum dynamic pressure is 20 psi (0.14 MPa) and the maximum static pressure is 80 psi (0.55 MPa).

What maximum hot water temperature can I use?

The hot water supply temperature must not exceed 160°F (71°C). Do not use steam.

How to install the TS300A51 shower head?

Slide the escutcheon onto the arm, wrap the arm threads with plumber's tape, screw the arm into the supply elbow, ensure the gasket/strainer is in the ball joint, then screw on the shower head by hand and tighten with an adjustable wrench.

Is the warranty transferable if I sell the product?

No, the limited warranty is for the original purchaser and is not transferable to a third party.

What to do if there is a leak after installation?

Check that the gasket/strainer is properly seated and that the shower head is sufficiently tightened onto the arm. If necessary, retighten with an adjustable wrench.

Can I use abrasive cleaners on the shower head?

No, abrasive cleaners, steel wool, and corrosive chemicals will tarnish the finish and may void the warranty.

How to maintain the like-new appearance of the shower head?

Clean it regularly with a mild soap, rinse thoroughly with warm water, and dry with a soft cloth to prevent water spots.

Where can I find replacement parts?

Replacement parts are listed on page 15 of the manual. Contact a TOTO distributor or an authorized repair center.

Does the warranty cover damage from sediment in water?

No, damage caused by sediment or foreign matter in the water supply system is excluded from the warranty.

USER MANUAL TS300A51 TOTO

Line drawing of a pipe fitting with threaded end and flange (no text or symbols)

TS200N6

TRADITIONAL COLLECTION SERIES A

Line drawing of a pipe fitting with threaded end and flange (no text or symbols)

TS300N6

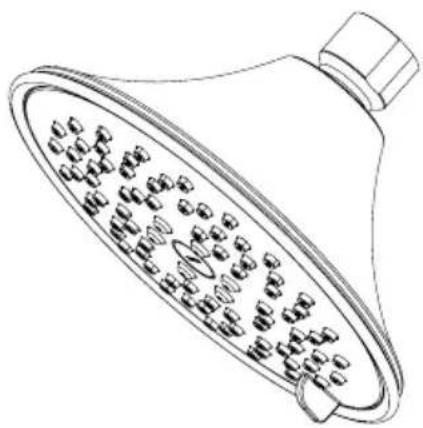

Line drawing of a showerhead with multiple teeth and a bulb (no text or symbols)

Line drawing of a showerhead with multiple teeth and a handle (no text or symbols)

TS300A(L)51
TS300A(L)55
TS300A(L)61
TS300A(L)65

TABLE OF CONTENTS

Thanks for Choosing TOTO! 3

Care & Cleaning....3

Warnings....3

Common Tools Needed 3

Before Installation 4

Installation Procedure 4

Warranty....5

Rough-In Dimensions 12-13

Replacement Parts 15

THANKS FOR CHOOSING TOTO!

The mission of TOTO is to provide the world with healthy, hygienic and more comfortable lifestyles. We design every product with the balance of form and function as a guiding principle. Congratulations on your choice.

CARE & CLEANING

Your new showerhead is designed for years of trouble-free performance. Keep it looking new by cleaning it periodically with mild soap, rinsing thoroughly with warm water and drying with a clean, soft cloth. Do not use abrasive cleaners, steel wool or harsh chemicals, as these will dull the finish. Failure to follow these instructions may void your warranty. If any nozzles become clogged with mineral build up, rub gently with finger tips to clean.

WARNINGS

For safe operation, please observe the following:

■ Recommended operating pressure:
■ Minimum pressure......20 psi (0.14 MPa), dynamic
■ Maximum pressure......80 psi (0.55 MPa), static
■ Hot water supply temperature must not exceed 160^ F ( 71^ C).
■ Do not use steam for hot water supply.
■ Do not use the product at an ambient temperature below 32^ F ( 0^ C)

COMMON TOOLS NEEDED

Pipe Tape

Line drawing of an adjustable wrench tool (no text or symbols)

Adjustable Wrench

BEFORE INSTALLATION

■ Observe all local plumbing codes.
■ Make sure the water supply is shut off.
- Read these instructions carefully to ensure proper installation.
■ TOTO reserves the right to update product design without notice.

INSTALLATION PROCEDURE

NO TE: Thoroughly clean and remove debris from the water supply pipe before installation to prevent clogging the spray outlet.

NOTE: Do NOT twist showerhead to install shower arm.

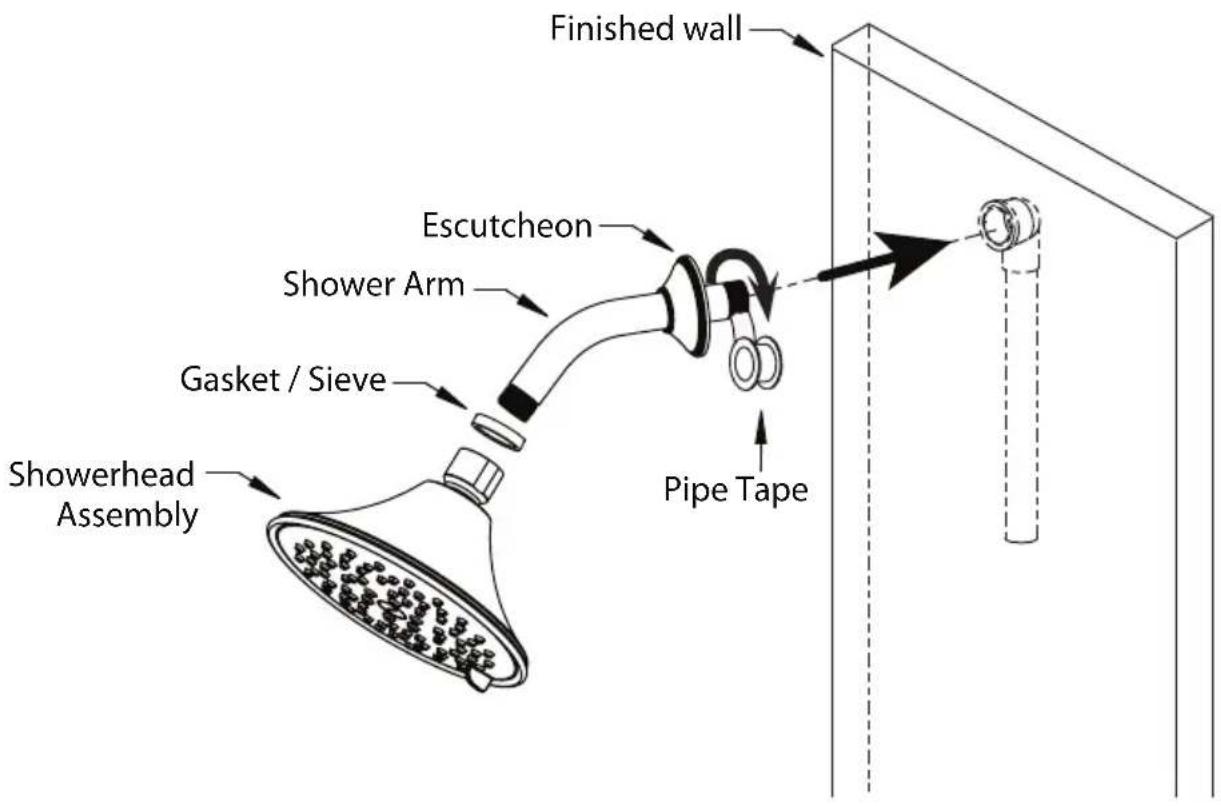

• Slide escutcheon onto the shower arm.
• Wrap the shower arm threads with pipe tape. Screw the shower arm into the supply elbow.
• Ensure the gasket/sieve is in the pivot ball before installation.
• Thread the showerhead onto the shower arm by hand.
• Use an adjustable wrench to tighten the showerhead to the shower arm firmly enough to seat the gasket and prevent leaking.

WARRANTY

1. TOTO® warrants its residential faucets and bathroom accessories ("Product) to be free from defects in materials and workmanship during normal use when properly installed and serviced, for the lifetime of the Product from date of purchase. This limited warranty is extended only to the ORIGINAL PURCHASER of the Product and is not transferable to any third party, including but not limited to any subsequent purchaser or owner of the Product. This warranty applies only to TOTO Product purchased and installed in North, Central and South America.
2. TOTO's obligations under this warranty are limited to repair, replacement or other appropriate adjustment, at TOTO's option, of the Product or parts found to be defective in normal use, provided that such Product was properly installed, used and serviced in accordance with instructions. TOTO reserves the right to make such inspections as may be necessary in order to determine the cause of the defect. TOTO will not charge for labor or parts in connection with warranty repairs or replacements. TOTO is not responsible for the cost of removal, return and/or reinstallation of the Product.
3. This warranty does not apply to the following items:

a. Damage or loss sustained in a natural calamity such as fire, earthquake, flood, thunder, electrical storm, etc.
b. Damage or loss resulting from any accident, unreasonable use, misuse, abuse, negligence, or improper care, cleaning, or maintenance of the Product.
c. Damage or loss resulting from sediments or foreign matter contained in a water system.
d. Damage or loss resulting from improper installation or from installation of the Product in a harsh and/or hazardous environment, or improper removal, repair or modification of the Product.
e. Damage or loss resulting from electrical surges or lightning strikes or other acts which are not the fault of TOTO or which the Product is not specified to tolerate.
f. Damage or loss resulting from normal and customary wear and tear, such as gloss reduction, scratching or fading over time due to use, cleaning practices or water or atmospheric conditions, including but not limited to, the use of bleach, alkali, acid cleaners, dry (powder) cleaners or any other abrasive cleaners or the use of metal or nylon scrubbers.

1. In order for this limited warranty to be valid, proof of purchase is required. TOTO encourages warranty registration upon purchase to create a record of Product ownership at http://www.totousa.com. Product registration is completely voluntary and failure to register will not diminish your limited warranty rights.
2. If the Product is used commercially or is installed outside of North, Central or South America, TOTO warrants the Product to be free from defects in materials and workmanship during normal use for one (1) year from the date of installation of the Product, and all other terms of this warranty shall be applicable except the duration of the warranty.
3. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE, PROVINCE TO PROVINCE OR COUNTRY TO COUNTRY.
4. To obtain warranty repair service under this warranty, you must take the Product or deliver it prepaid to a TOTO service facility together with proof of purchase (original sales receipt) and a letter stating the problem, or contact a TOTO distributor or products service contractor, or write directly to TOTO U.S.A., INC., 1155 Southern Road, Morrow, GA 30260 [phone] or [phone], if outside the U.S.A. If, because of the size of the Product or nature of the defect, the Product cannot be returned to TOTO, receipt by TOTO of written notice of the defect together with proof of purchase (original sales receipt) shall constitute delivery. In such case, TOTO may choose to repair the Product at the purchaser's location or pay to transport the Product to a service facility.

THIS WRITTEN WARRANTY IS THE ONLY WARRANTY MADE BY TOTO. REPAIR, REPLACEMENT OR OTHER APPROPRIATE ADJUSTMENT AS PROVIDED UNDER THIS WARRANTY SHALL BE THE EXCLUSIVE REMEDY AVAILABLE TO THE ORIGINAL PURCHASER. TOTO SHALL NOT BE RESPONSIBLE FOR LOSS OF THE PRODUCT OR FOR OTHER INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OR EXPENSES INCURRED BY THE ORIGINAL PURCHASER, OR FOR LABOR OR OTHER COSTS DUE TO INSTALLATION OR REMOVAL, OR COSTS OF REPAIRS BY OTHERS, OR FOR ANY OTHER EXPENSE NOT SPECIFICALLY STATED ABOVE. IN NO EVENT WILL TOTO'S RESPONSIBILITY EXCEED THE PURCHASE PRICE OF THE PRODUCT. EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY IMPLIED WARRANTIES, INCLUDING THAT OF MERCHANTABILITY OR FITNESS FOR USE OR FOR A PARTICULAR PURPOSE, ARE EXPRESSLY DISCLAIMED. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, OR THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION AND EXCLUSION MAY NOT APPLY TO YOU.

Line drawing of an adjustable wrench (no text or symbols)

Llave Ajustable

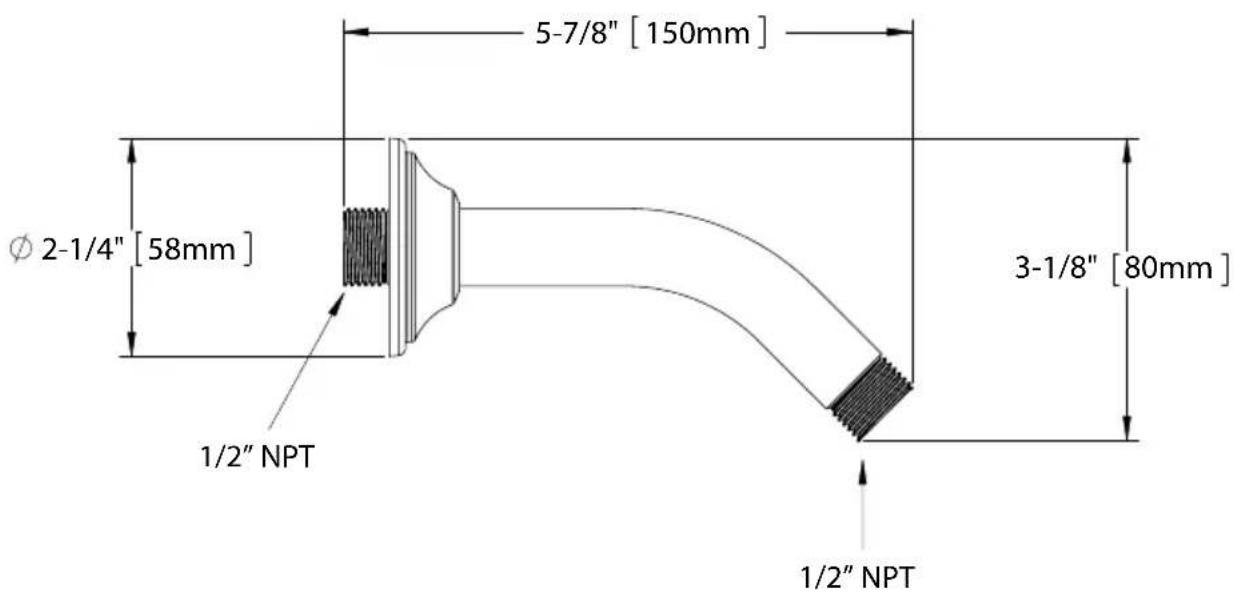

AVANT DE COMMENCER

Traditional TS300N6

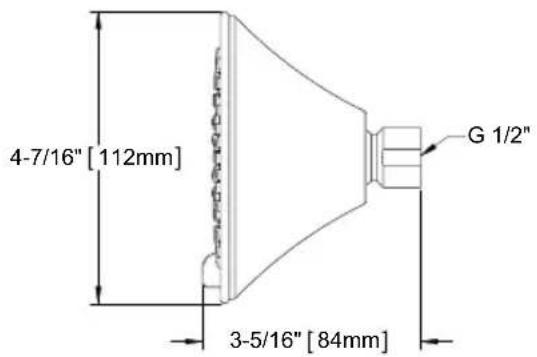

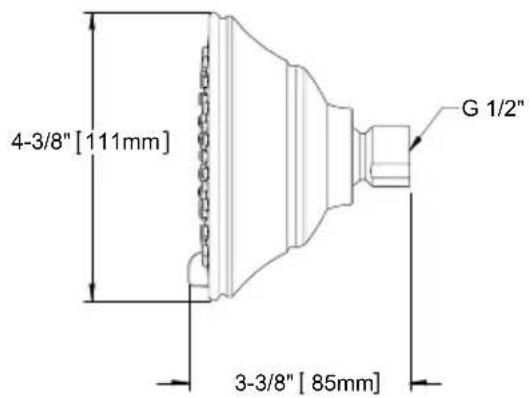

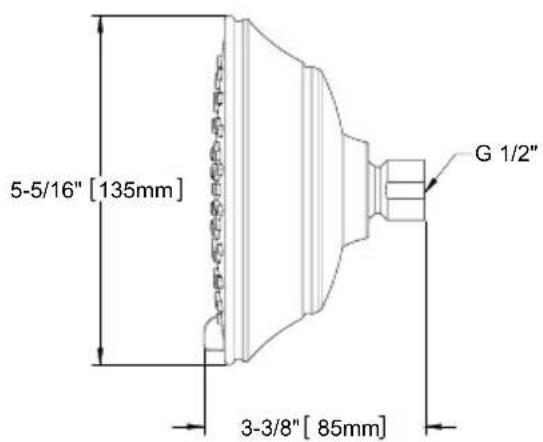

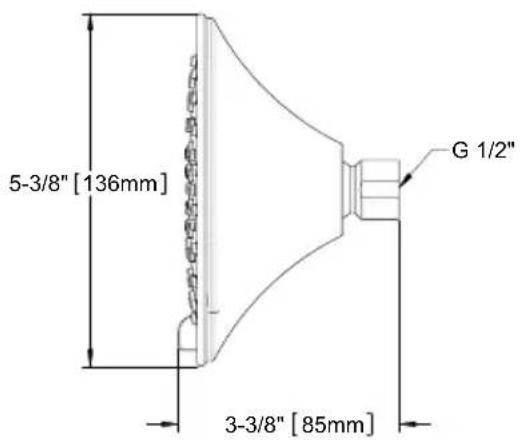

ROUGH-IN DIMENSIONS / DIMENSIONES PRELIMINARES / DIMENSIONS BRUTE

Transitional 4.5" TS200A(L)51 TS200A(L)55

Transitional 5.5" TS200A(L)61 TS200A(L)65

Traditional 4.5" TS300A(L)51 TS300A(L)55

Traditional 5.5" TS300A(L)61 TS300A(L)65

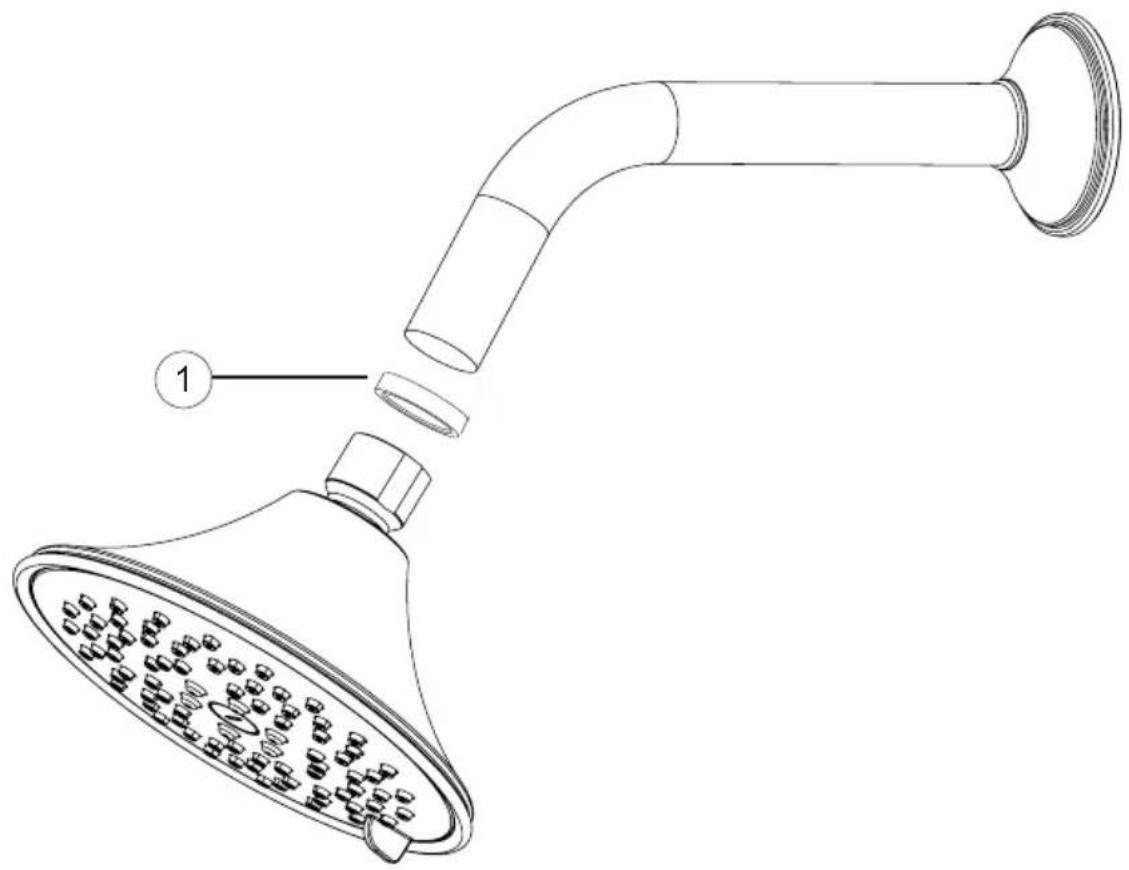

REPLACEMENT PARTS / PIEZAS DE REPUESTO / PIÈCES DE RECHANGE

No.	Description Descripción	Description
1	Gasket / Sieve Junta / Colador Joint / Passoire

TOTO®

TOTO® U.S.A., Inc. 1155 Southern Road, Morrow, Georgia 30260

Tel: [phone] Fax: [phone]

www.totousa.com

0GU4212

Rev Date: 09/11
