Brand	Progress Lighting
Model	P250012
Product Type	Ceiling fan with integrated light
Blade Span	35.56 cm (14 inches)
Net Weight	11.24 kg (24.8 lb)
Gross Weight	13.04 kg (28.76 lb)
Power Supply	120 V ~ 60 Hz
Power Consumption (fan only, high speed)	39.05 W
Airflow (high speed)	1297.28 CFM
Energy Efficiency (high speed)	32.99 CFM/W
Fan Speeds	3 speeds (low, medium, high)
Number of LED Bulbs	3 (included)
LED Bulb Wattage	Not specified
Light Dimmer	Yes (integrated into remote control)
Reversing Function (Summer/Winter)	Yes, switch on motor housing
Control Type	Wireless remote control (transmitter + receiver)
Remote Battery	9 V (included)
Minimum Clearance Height	3.05 m (10 ft) between bottom of grill and floor
Mounting Type	Ceiling, compatible with sloped ceiling (max 18.5°)
Blade Material	Wood (or plastic, not specified)
Motor Warranty	Lifetime for original purchaser
LED and Component Warranty	5 years (single-family residential) / 3 years (multi-family and commercial)
Recommended Maintenance	Cleaning with dry or slightly damp cloth, biannual inspection of fasteners
Certifications	cUL, ENERGY STAR (depending on model)

Frequently Asked Questions - P250012 Progress Lighting

How to install the Progress Lighting P250012 ceiling fan?

First, turn off the power at the breaker. Attach the mounting bracket to a certified outlet box that can support at least 35 lb (15.9 kg). Follow the steps to hang the motor, connect the wires according to the diagram (black, white, blue, green) using the provided wire nuts. Insert the receiver into the bracket, then attach the canopy and blades. Refer to the manual for details.

How to set up the fan remote control?

The remote and receiver must use the same DIP code. Open the battery compartment of the transmitter and set the 4 DIP switches to the same position as those on the receiver (located on the housing). Insert a 9V battery. Use the HI, MED, LOW buttons for speed, OFF to stop, and LIGHT to turn on/off or dim (long press).

What to do if the fan does not start?

Check fuses/circuit breakers. Ensure electrical connections are correct and that the DIP switches on the transmitter and receiver match. Replace the remote battery. Caution: Always turn off power before inspecting wiring.

The fan is noisy, what to do?

Check that all motor housing screws are tight. Ensure wire nuts are not rubbing against each other or the housing. Allow a 24-hour break-in period for new noises. Also check that the light bulb is screwed in tightly. If noise persists, it may be due to a semiconductor speed control: do not use this type of control with this fan.

How to reverse the fan direction (summer/winter)?

The reversing switch is located on the motor housing. Wait for the fan to come to a complete stop, then slide the switch to the left for downward airflow (summer) or to the right for upward airflow (winter). This optimizes comfort seasonally.

What maintenance does the fan require?

Clean the blades regularly with a soft, lint-free cloth (dry or slightly damp). Never use water or harsh detergents. Twice a year, inspect connections and screws to ensure they are tight. The motor is permanently lubricated and does not require oil.

What is the minimum ceiling height required?

The bottom of the fan grill must be at least 3.05 m (10 ft) from the floor. For sloped ceilings, the angle must not exceed 18.5 degrees, and a longer downrod may be needed to maintain clearance.

Can I use a wall speed control?

No, using a semiconductor speed control (dimmer) is prohibited as it may cause fire or electric shock. Use only the provided remote control to adjust speed.

What is the warranty for the Progress Lighting P250012?

The motor is warranted for life for the original purchaser. Switches, capacitors, and finishes are warranted for 1 year. LED modules and electrical components are warranted for 5 years (single-family residential) or 3 years (multi-family/commercial). LED bulbs follow the manufacturer's warranty. Wood blades are not covered against warping.

How to contact customer service?

For returns within 30 days, return the fan to the place of purchase. After 30 days, contact Progress Lighting at 864-678-1000 for repair or replacement. Keep proof of purchase. Labor and shipping costs are not covered.

USER MANUAL P250012 Progress Lighting

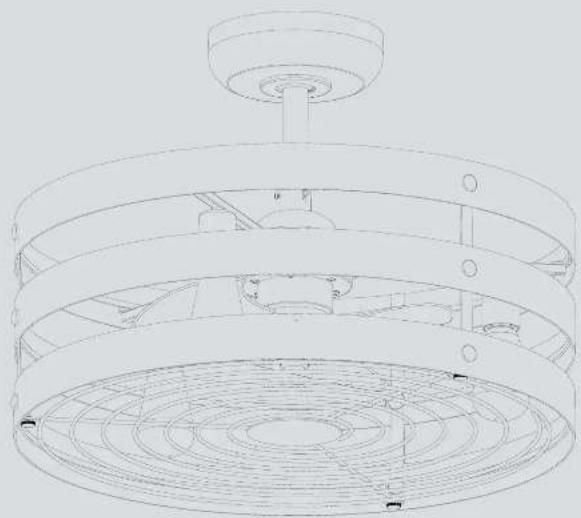

GULLIVER Ceiling Fan Installation Manual

Technical line drawing of a mechanical fan or turbine assembly (no text or symbols)

93099818_B

P250012

Limited Lifetime Warranty

Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and metal finishes are warranted to be free from defects in materials or workmanship for a period of 1 year from the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/or deterioration of any finishes for fans installed within ten miles of any sea coast. Extended warranties for ENERGY STAR ^® qualified products may apply.

Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal conditions of use, are warranted to be free from defects in material and workmanship which cause the light sources to fail to operate in accordance with the specifications for (i) five (5) years from the date of purchase on the LED Light modules and electrical components for fans used in single family residences, and (ii) three (3) years from the date of purchase on the LED Light modules and electrical components for fans used in multi-family or commercial applications. LED bulbs supplied by Progress Lighting carry no warranty other than manufacturer's warranty. Non-LED bulbs carry no warranty.

With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the first 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at [phone] for repair or replacement which shall be determined in Progress Lighting's sole discretion and shall be purchaser's sole and exclusive remedy.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor (including, but not limited to, electrician's fees) required to install, remove, or replace a fan or any fan parts.

This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration, misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser or a third party, including without limitation improper voltage supply or power surge, use of improper parts or accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.

THE FOREGOING WARRANTIES STATE PROGRESS LIGHTING'S ENTIRE WARRANTY OBLIGATION AND ORIGINAL PURCHASER'S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS. PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL, INCIDENTAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTIES, WHETHER EXPRESSED OR IMPLIED, INCLUDING THOSE OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific rights and you may have other rights which vary from state to state.

Date Purchased

Store Purchased ____

Model No. ____

Serial No. ____

VendorNo. 111041

UPC □

PROGRESS LIGHTING™

Safety Rules....1.

Unpacking Your Fan 2.

Installing Your Fan ....3.

Operating Your Transmitter 7.

Care of Your Fan 9.

Troubleshooting 10.

Specifications 11.

Table of Contents

1. To reduce the risk of electric shock, insure electricity has been turned off at the circuit breaker or fuse box before beginning.
2. All wiring must be in accordance with the National Electrical Code and local electrical codes. Electrical installation should be performed by a qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do not use this fan with any solid-state fan speed control device.

4. WARNING: To reduce the risk of fire, electric shock, or personal injury, mount to outlet box marked "Acceptable for Fan Support of 15.9 kg (35 lbs.) Or Less" and use mounting screws provided with the outlet box. Most outlet boxes commonly used for the support of light fixtures are not acceptable for fan support and may need to be replaced. Due to the complexity of the installation of this fan, a qualified licensed electrician is strongly recommended.

5. To avoid personal injury or damage to the fan and other items, be cautious when working around or cleaning the fan.

6. Do not use water or detergents when cleaning the fan or fan blades. A dry dust cloth or lightly dampened cloth will be suitable for most cleaning.
7. After making electrical connections, spliced conductors should be turned upward and pushed carefully up into the outlet box. The wires should be spread apart with the grounded conductor and the equipment-grounding conductor on one side of the outlet box.
8. Electrical diagrams are for reference only. Light kits that are not packed with the fan must be eUL Listed and marked suitable for use with the model fan you are installing. Switches must be eUL General Use Switches. Refer to the Instructions packaged with the light kits

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT.

1. The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less. Use only cUL-listed outlet boxes marked FOR FAN SUPPORT.
2. The fan must be mounted with a minimum of 10 ft (3.05m) clearance from the bottom of the fan guard to the floor.
3. Avoid placing objects in the path of the blades.

WARNING

TO REDUCE THE RISK OF PERSONAL INJURY, DO NOT BEND THE BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

1. Safety Rules

NOTE

READ AND SAVE ALL INSTRUCTIONS!

1 2 3 4 5 6 7

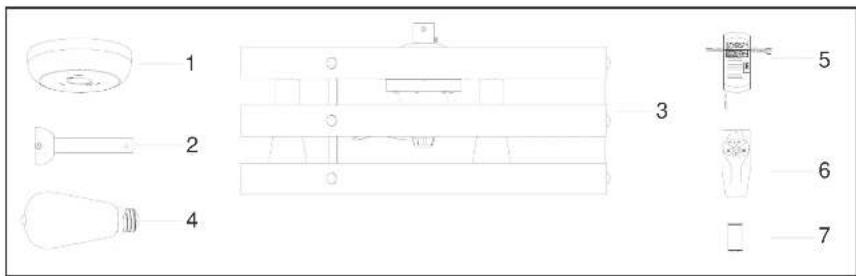

Unpack your fan and check the contents. You should have the following items:

1. Canopy assembly

2. Receiver

3. Ball/downrod assembly

4. Transmitter

5. Fixture assembly

7.9V battery

1. LED bulbs (3)

Simple line drawing of a skirt inside a dashed rectangular border (no text or symbols)

1. Loose parts bag containing:

a. Mounting hardware Wire nuts (6)

Unpacking Your Fan 2.

Tools Required

Phillips screw driver, straight slot screw driver, adjustable wrench, step ladder, and wire cutters.

Mounting Options

If there isn't an existing cUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.

Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 35 lbs). Do not use plastic outlet boxes.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR OTHER PERSONAL INJURY,

MOUNT FAN ONLY TO AN OUTLET BOX

MARKED ACCEPTABLE FOR FAN SUPPORT

AND USE THE MOUNTING SCREWS

PROVIDED WITH THE OUTLET BOX. OUTLET

BOXES COMMONLY USED FOR THE

SUPPORT OF LIGHTING FIXTURES MAY NOT

BE ACCEPTABLE FOR FAN SUPPORT AND

MAY NEED TO BE REPLACED. CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

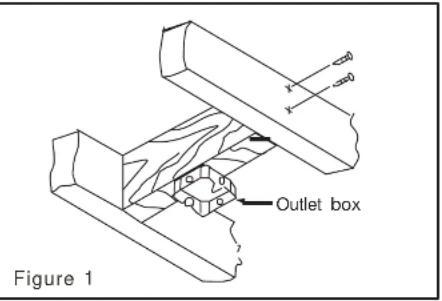

Figure 1 Outlet box

Figure 2 Outlet box

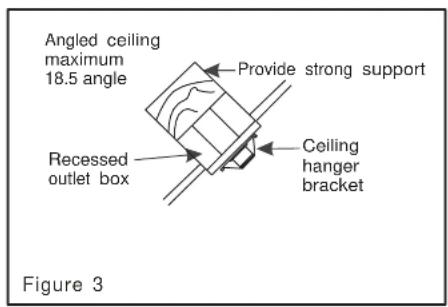

Angled ceiling maximum 18.5 angle Provide strong support Recessed outlet box Ceiling hanger bracket Figure 3

Note: You may need a longer downrod to maintain proper clearance when installing on a steep, sloped ceiling.

Figure 4 Outlet box

To hang your fan where there is an existing fixture but no ceiling joist, you may need an installation hanger bar as shown in Figure 4.

3. Installing Your Fan

Hanging the Fan

REMEMBER to turn off the power. Follow the steps below to hang your fan properly:

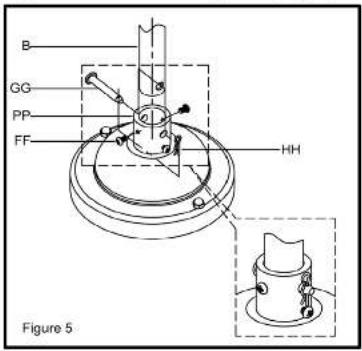

Step 1. Insert the end of downrod (B) through the connector (PP), align the two holes in the downrod (B) and the connector (PP). (Fig.5)

Step 2. Insert a plug pin (GG) through the two holes in the downrod (B) and the connector (PP). (Fig.5)

Step 3. Insert the R-shaped pin (HH) though the hole near the end of the plug pin (GG) until it snaps into its locked position. (Fig.5)

Step 4. Install the screw (FF) to the connector (PP), and make sure it's tighten. (Fig.5)

B GG PP FF a HH Figure 5

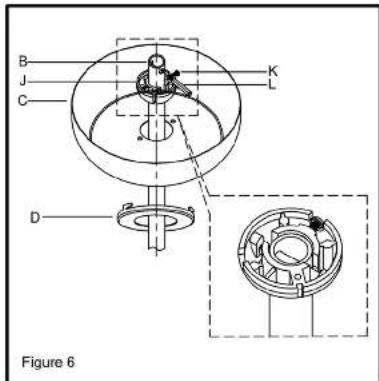

Step 5. Insert the canopy (C) and metal cover (D) through the downrod (B). (Fig.6)

Step 6. Insert the hanger ball (J) through the downrod (B), and then insert a plug pin (L) through the hole in the downrod (B). (Fig.6)

Step 7. Insert the plug pin to the slot cut off in the hanger ball (J) until it snaps into its locked position. (Fig.6)

B J C K L D Figure 6

Step 8. Install the Hanger bracket (A) on the outlet box by using the washer and screws provided with the junction box. (Fig.7)

Step 9. Put the hanger ball (J) through the open side of the ceiling mounting bracket, and then insert the hanger ball to the slot cut off in the ceiling mounting bracket. (Fig.7)

A BB AA J B Figure 7

Make the Electric Connections

WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.

CODE SWITCH: Codes are set by pushing dip switches up or down. It is imperative that the code used for both transmitter and receiver is exactly the same, otherwise remote controller will not work. Please note the code switch will enable you to operate a second remote controller independently. For example, if you have two ceiling fans with 2 remote control units, set 2 different codes for each set of transmitter/receivers. This means you can operate each ceiling fan independently. Your remote control is ready for use after battery installation. (Fig.8)

Step 1. Fan motor to Receiver Electrical Connections: Connect the Black wire from the fan to Black wire marked "TO MOTOR L". Connect the White wire from the fan to the White wire marked "TO MOTOR N" from the receiver Connect the blue wire from the light to the blue wire from the receiver. Secure wire connections with the plastic wire nuts provided. (Fig. 9)

Step 2. Receiver to House Supply Wires Electrical Connections: Connect the black (hot) wire from the ceiling to the black wire marked "AC in L" from the receiver. Connect the white (neutral) wire from the ceiling to the white wire marked "AC in N" from the Receiver. Secure the wire connections with the plastic wire nuts provided. (Fig. 9)

Step 3. If your outlet box has a ground wire (green or bare copper) connect it to the fan ground wires; otherwise connect the hanging

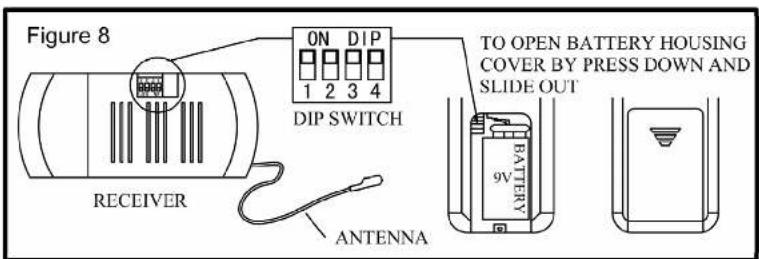

Figure 8 ON DIP 1 2 3 4 DIP SWITCH RECEIVER TO OPEN BATTERY HOUSING COVER BY PRESS DOWN AND SLIDE OUT 9V BATTERY ANTENNA

bracket ground wire to the mounting bracket. Secure the wire connection with a plastic nut provided. After connecting the wires spread them apart so that the green and white wires are on one side of the outlet box and black and blue wires are on the other side. Carefully tuck the wire connections up into the outlet box. (Fig. 9)

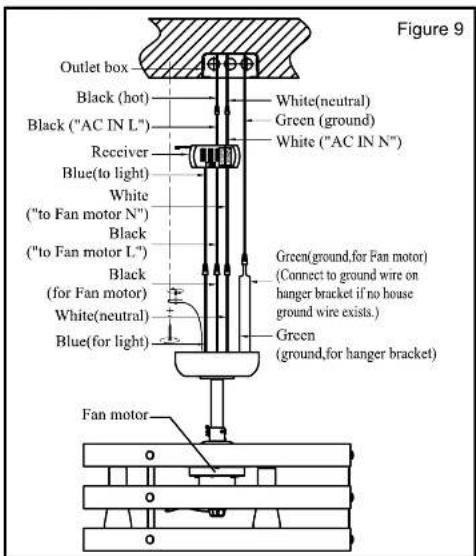

Figure 9 Outlet box Black (hot) Black ("AC IN L") Receiver Blue(to light) White ("to Fan motor N") Black ("to Fan motor L") Black (for Fan motor) White(neutral) Blue(for light) Fan motor White(neutral) Green (ground) White ("AC IN N") Green(ground,for Fan motor) (Connect to ground wire on hanger bracket if no house ground wire exists.) Green (ground,for hanger bracket)

5.

An additional safety support is provided to prevent the fan from falling. Secure the safety cable to the ceiling joist with screw and washer. (Fig. 10)

Figure 10 Safety cable Flat washer Spring washer 48 X 1-1/2 Screw

Step 4. Once the connection has been made, the receiver inserts into the down rod hanging bracket. The canopy comes up to cover the receiver and bracket. (Fig. 11)

RECEIVER HANGER BRACKET CANOPY Figure 11

A C FF D Figure 12

Installing the canopy:

Step 1. Align the locking slots of the canopy (C) with the two screws (FF) in the mounting bracket (A). Push up to engage the slots and to lock in place. (Fig. 12)

Step 2. Rotate the metal cover (D) clockwise to lock in the bottom of the canopy. (Fig. 12)

Installing metal mesh and bulbs: Step 1. Insert the fan blades (M) onto the shaft (U), install lock nut (Q) onto the fan shaft after the blade assembly (M) is installed. (Fig. 13)

Step 2. Screw light bulbs (F) into the fixture sockets. (Fig. 13)

Step 3. Align the locking slots of the metal grill (G) with three Knurled screw (H) in the fixture (E). Push up to engage the slots and to lock in place. (Fig. 13)

Figure 13 U E M Q F G H

FUNCTIONS OF TRANSMITTER:

OFF : Turn off the ceiling fan.

HI : Turn on the fan at high speed.

MED : Turn on the fan at medium speed.

LOW : Turn on the fan at low speed.

LIGHT : ON/OFF- Press and release immediately to turn on or off the light.

DIMMER(If any)- Press and hold on to dimmer or brighten the light.

MED LOW HI OFF

Technical line drawing of a mechanical component with two protruding pins (no text or symbols)

Installation of Transmitter Wall Mount Holder with two screws.

7. Operating Your Transmitter

The Reverse switch is located on the motor housing. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. (Fig. 13)

NOTE: Wait for fan to stop before changing the setting of the slide switch.

Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number of fans, etc.

Warm weather - (Forward) A downward air flow creates a cooling effect as shown in Figure 14. This allows you to set your air conditioner on a higher setting without affecting your comfort.

Cool weather - (Reverse) An upward airflow moves warm air off the ceiling area as shown in Figure 15. This allows you to set your heating unit on a lower setting without affecting your comfort.

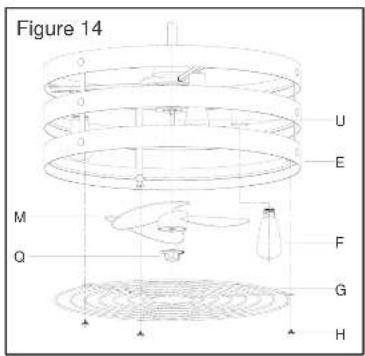

Figure 14 U E M Q F G H

Disassembling Your Fan

This fan comes with a pre-assembled blade and front guard for your easy installation. Check that all screws are tight and securely in place.

Use a lint free lightly damp cloth or duster to remove dust from the blades.

Here are some suggestions to help you maintain your fan

1. Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are secure. (It is not necessary to remove fan from ceiling.)

2. Clean your fan periodically to help maintain its new appearance over the years. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer to minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the motor, or the wood, or possibly cause an electrical shock.

3. Cover small scratches with a light application of shoe polish.

4. There is no need to oil your fan. The motor has permanently lubricated bearings.

IMPORTANT MAKE SURE THE POWER IS OFF AT THE ELECTRICAL PANEL BOX BEFORE YOU ATTEMPT ANY REPAIRS. REFER TO THE SECTION "MAKING ELECTRICAL CONNECTIONS"

9. Care of Your Fan

Problem Solution

Fan will not start. 1. Check circuit fuses or breakers.

1. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main power is off.

2. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.

3. Check the battery in the transmitter.

Fan sounds noisy. 1. Make sure all motor housing screws are snug.

1. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing. CAUTION: Make sure main power is off.

2. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.

3. Check that light bulb is also secure.

4. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this type of control, choose and install another type of control.

5. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.

Remote control malfunction 1. Do not connect the fan with wall mounted variable speed control (s).

1. Make sure the dip switches are set correctly.

Troubleshooting 10.

Size	Speed Volts		Fan Power Consumption (without lights) WATT	Airflow CFM	Airflow Efficiency (Higher Is Better) CFM/WATT	Net Weight	Gross Weight	Cubic Feet
14in.	Low	120	22.93	873.41	38.01	24.8 lb (11.27kg)	28.76 lb (13.06kg)	5.89cu. Ft.
	Medium		31.95	1099.56	34.41
	High		39.05	1297.28	32.99

These are approximate measures. They do not include Amps and Wattage used by the light kit.

© 2018 Progress Lighting, Inc.

701 Millennium Blvd.,

Greenville, SC 29607

All Rights Reserved

11. Specifications

Technical line drawing of a multi-tiered mechanical fan or turbine assembly (no text or symbols)

Simple line drawing of a skirt inside a dashed rectangular border (no text or symbols)

B J C K L D Figure 6

A C FF D Figure 12

Figure 13 U E M Q F G H

MED LOW HI OFF

Technical line drawing of a mechanical component with two protruding pins (no text or symbols)

Installation du support

de fixation murale

Figure 14 M Q U E F G H

© 2018 Progress Lighting, Inc.

701 Millennium Blvd.,

Greenville, SC 29607

Technical line drawing of a multi-tiered cylindrical fan or turbine assembly (no text or symbols)

93099818_B

P250012

Technical diagram of a mechanical assembly with numbered components and labeled parts

Simple line drawing of a rectangular object inside a dashed square frame (no text or symbols)

MARCADA "ACCEPTABLE PARA SOPORTAR

B J C K L D Figura 6

A BB AA J B Figura 7

MED LOW H1 OFF

Technical line drawing of a mechanical component with two protruding pins (no text or symbols)

Diagram of a mechanical or fluid system with curved arrows indicating flow, labeled 'Figura 16' (no text or symbols on diagram itself)

© 2018 Progress Lighting, Inc.

701 Millennium Blvd.,

Greenville, SC 29607
