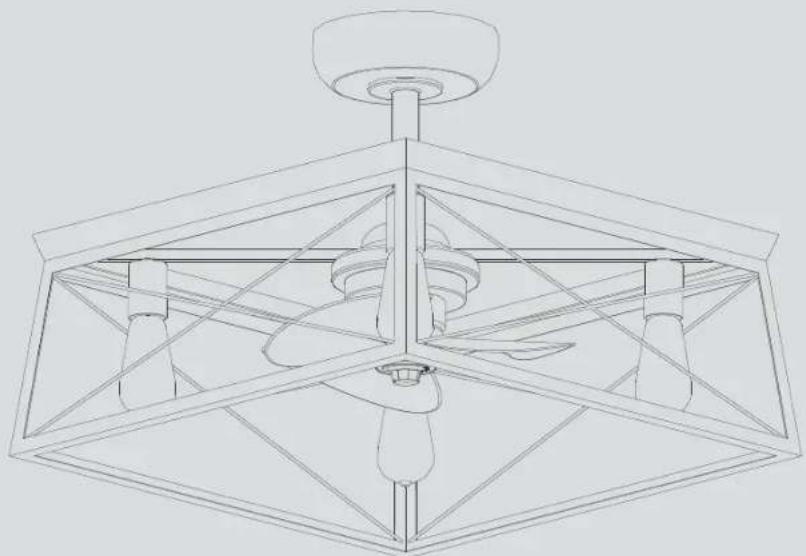

BRIARWOOD Ceiling Fan Installation Manual

93138710_B

P250067

Limited Lifetime Warranty

Progress Lighting fan motors are warranted to the original purchaser to be free of electrical and/or mechanical defects for so long as the original purchaser owns the fan. Pull chain switches, reverse switches, capacitors and metal finishes are warranted to be free from defects in materials or workmanship for a period of 1 year from the date of purchase. Warping of wooden or plastic blades is not covered by this warranty nor is corrosion and/or deterioration of any finishes for fans installed within ten miles of any sea coast. Extended warranties for ENERGY® qualified products may apply.

Date Pu rchased

Progress Lighting ceiling fans with built-in LED light sources, when properly installed and under normal conditions of use, are warranted to be free from defects in material and workmanship which cause the light sources to fail to operate in accordance with the specifications for (i) five (5) years from the date of purchase on the LED Light modules and electrical components for fans used in single family residences, and (ii) three (3) years from the date of purchase on the LED Light modules and electrical components for fans used in multi-family or commercial applications. LED bulbs supplied by Progress Lighting warranty other than manufacturer's warranty. Non-LED bulbs carry no warranty.

StorePu rchas ed

With proof of purchase, the original purchaser may return the defective fan to the place of purchase during the first 30 days for replacement. After 30 days, the original purchaser MUST contact Progress Lighting at [phone] for repair or replacement which shall be determined in Progress Lighting's sole discretion and shall be purchaser's sole and exclusive remedy.

Model No.

Labor and Shipping Excluded. This warranty does not cover any costs or fees associated with the labor (including, but not limited to, electrician's fees) required to install, remove, or replace a fan or any fan parts.

Serial No

Vendo No. 111041

This warranty shall not apply to any loss or damage resulting from (i) normal wear and tear or alteration, misuse, abuse or neglect, or (ii) improper installation, operation, repair or maintenance by original purchaser or a third party, including without limitation improper voltage supply or power surge, use of improper parts or accessories, unauthorized repair (made or attempted) or failure to provide maintenance to the fan.

THE FOREGOING WARRANTY STATE PROGRESS LIGHTING'S ENTIRE WARRANTY OBLIGATION AND ORIGINAL PURCHASER'S SOLE AND EXCLUSIVE REMEDY RELATED TO SUCH PRODUCTS. PROGRESS LIGHTING IS NOT RESPONSIBLE FOR DAMAGES (INCLUDING INDIRECT, SPECIAL, INCIDENTTIAL OR CONSEQUENTIAL), DUE TO PRODUCT FAILURE, WIHETHER ARISING OUT OF BREACH OF WARRANTY, BREACH OF CONTRACT, OR OTHERWISE. THIS WARRANTY IS GIVEN IN LIEU OF ALL OTHER WARRANTYES, WIHETHER EXPRESSED OR IMplied, INCLUDING THOSE OF MERCIANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT.

Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitations of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific rights and you may have other rights which vary from state to state.

PROGRESS LIGHTING

Safety Rules. 1
Unpacking Your Fan 2.
Installing Your Fan 3.
Operating Your Transmitter 7.
Care of Your Fan 9.
Troubleshooting 10
Specifications 11.

Table of Contents

1. To reduce the risk of electric shock, insure electricity has been turned off or avoided personal injury or damage to the fan and other items, be at the circuit breaker or fuse box before beginning. cautious when working around or cleaning the fan.
2. All wiring must be in accordance with the National Electrical Code not use water or detergents when cleaning the fan or fan blade local electrical codes. Electrical installation should be performed by a dry dust cloth or lightly dampened cloth will be suitable for most qualified licensed electrician.
3. WARNING: To reduce the risk of electrical shock and fire, do n00. After making electrical connections, spliced conductors should be this fan with any solid-state fan speed control device. turned upward and pushed carefully up into the outlet box. The wi should be spread apart with the grounded conductor and the
4. WARNING: To reduce the risk of fire, electric shock, or personal injuipment-grounding conductor on one side of the outlet box. mount to outlet box marked "Acceptable for Fan Support of 15.9 kg (35 lbs.) Or Less" and use mounting screws provided with the outlet box. Most Electrical diagrams are for reference only. Light kits that are not p boxes commonly used for the support of light fixtures are not acceptabithefhe fan must be UL Listed and marked suitable for use with fan support and may need to be replaced. Due to the complexity of model fan you are installing. Switches must be UL General Use installation of this fan, a qualified licensed electrician is strongly Switches. Refer to the Instructions packaged with the light kits

WARNING TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY, MOUNT FAN TO OUTLET BOX MARKED ACCEPTABLE FOR FAN SUPPORT.

WARNING TO REDUCE THE RISK PERSONAL INJURY DO NOT BEND THE BLADE ARMS (ALSO REFERRED TO AS BRACKETS) DURING ASSEMBLY OR AFTER INSTALLATION. DO NOT INSERT OBJECTS IN THE PATH OF THE BLADES.

1. The outlet box and support structure must be securely mounted and capable of reliably supporting a minimum of 35 lbs (15.9 kg) or less. Use only UL-listed outlet boxes marked FORSEIRRORT.
2. The fan must be mounted with a minimum of 10 ft (3.05m) clearance from the bottom of the fan guard to the floor.
3. Avoid placing objects in the path of the blades.

NOTE READ AND SAVE ALL INSTRUCTIONS!

1. Safety Rules

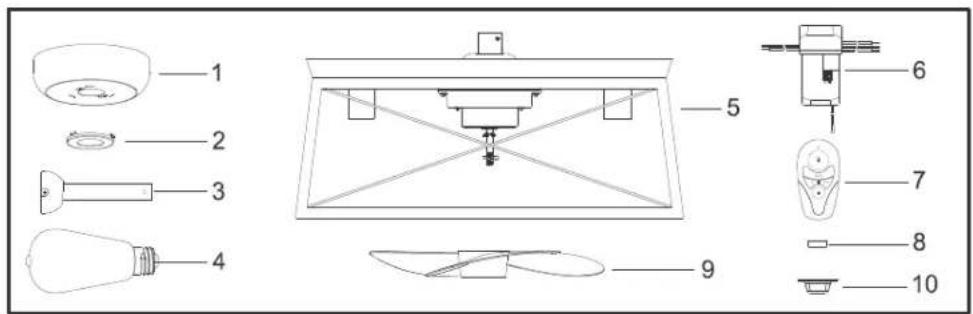

Unpack your fan and check the contents. You should have the following items:

1. Canopy assembly

2. Remote Control Transmitter

3. Cover

4. 12V battery

5. Ball/downrod assembly

6. Fan blade

7. LED bulbs (4)

8. Final

9. Loose parts bag containing:

a. Mounting hardware Wire nuts (6)

Unpacking Your Fan 2.

Tools Required

Phillips screw driver, straight slot screw driver, adjustable wrench, step ladder, and wire cutters.

Mounting Options

If there isn't an existing cUL listed mounting box, then read the following instructions. Disconnect the power by removing fuses or turning off circuit breakers.

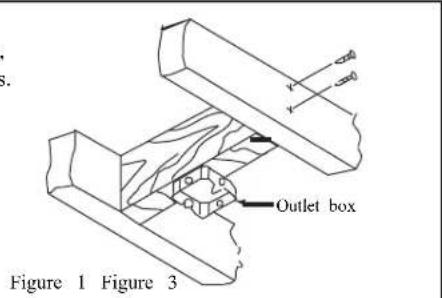

Secure the outlet box directly to the building structure. Use appropriate fasteners and building materials. The outlet box and its support must be able to fully support the moving weight of the fan (at least 35 lbs). Do not use plastic outlet boxes.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRIC

SHOCK, OR OTTHER PERSONAL INJURY.

MOUNT FAN ONLY TO AN OUTLET BOX

MARKED ACCEPTABLE FOR FAN SUPPORT

AND USE THE MOUNTING SCREWS

PROVIDED WITH THE OUTLET BOX. OUTLET

BOXES COMMONLY USED FOR THE

SUPPORT OF LIGHTING FIXTURES MAY NOT

BE ACCEPTABLE FOR FAN SUPPORT AND

MAY NEED TO BE REPLACED, CONSULT A

QUALIFIED ELECTRICIAN IF IN DOUBT.

Figure 2

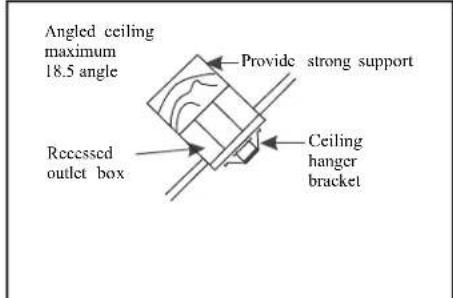

Note: You may need a longer downrod to maintain proper clearance when installing on a steep, sloped ceiling.

To hang your fan where there is an existing fixture but no ceiling joist, you may need an installation hanger bar as shown in Figure 4

3. Installing Your Fan

Hanging the Fan

REMEMBER to turn off the power. Follow the steps below to hang your fan properly:

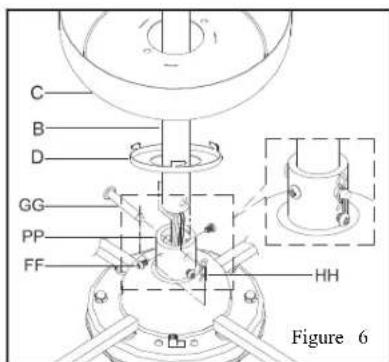

Step 1. Route the wires exiting the top of the fan motor through the cover (D) and then through the canopy (C), downrod (B) and hanger ball (J) assembly.(Fig.5)

Step 2. Insert the downrod (B) through the metal cover (D) and canopy (C). (Fig 6)

Step 3. Insert the end of downrod (B) through the connector (PP), align the two holes in the downrod (B) and the connector (PP).(Fig.6)

Step 4. Insert a plug pin (GG) through the holes in the downrod (B) and the connector (PP). (Fig.6)

Step 5. Insert the R-shaped pin (HH) though the hole near the end of the plug pin (GG) it snaps into its locked position. (Fig.6)

Step 6. Install the screw (FF) to the connec (PP), and make sure it's tighten, Screws (FF) should be tight against the downrod (B). (Fi

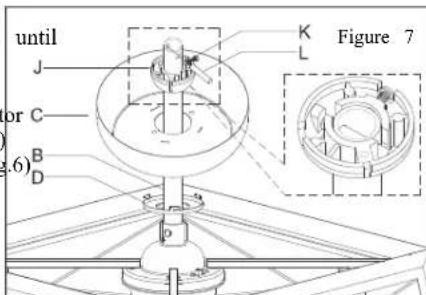

Step 7. Insert the hanger ball (J) onto the downrod (B), and then insert a plug pin (L) through the hole in the downrod (B). (Fig.7)

Step 8. Insert the plug pin to the slot cut the hanger ball (J) until it snaps into its lo position. (Fig.6) two

Step 9. Use the Screw(K) to lock the hanger ball (J) to the downrod (B). (Fig.7)

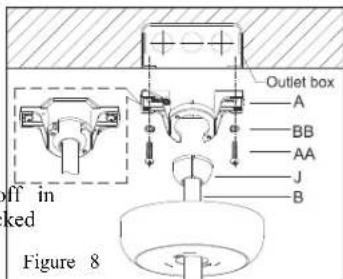

Step 10. Install the Hanger bracket (A) on the outlet box by using the washer (BB) and screws(AA) provided with the outlet box. (Fig.8)

Step 11. Put the hanger ball (J) through the open side of the ceiling mounting bracket (A), and then insert the hanger ball(J) to the slot cut off in the ceiling mounting bracket(A). (Fig.8)

Make the Electric Connections

WARNING: To avoid possible electrical shock, be sure electricity is turned off at the main fuse box before wiring.

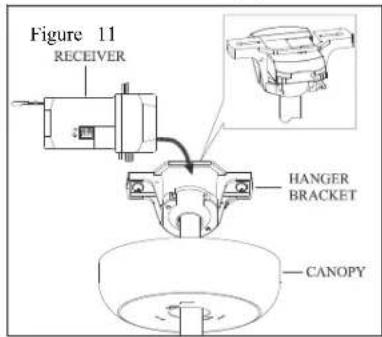

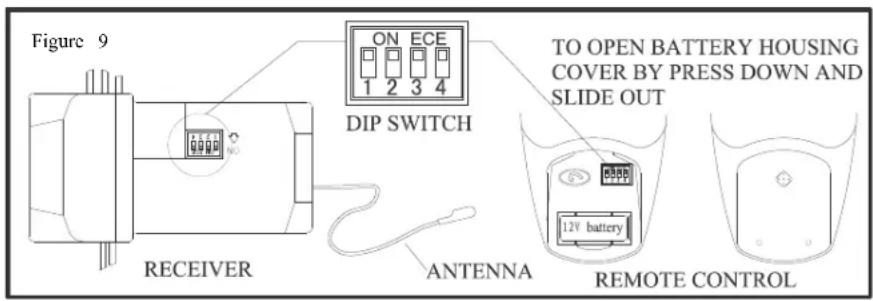

CODE SWITCH: Codes are set by pushing switches up or down. It is imperative that code used for both transmitter and receiver exactly the same, otherwise remote controller will not work. Please note the code switch enable you to operate a second remote controller independently. For example, if you have two ceiling fans with 2 remote control units, set 2 different codes for each set of transmitter/receivers. This means you can operate each ceiling fan independently. Your remote control is ready for use after battery installation. (Fig.9)

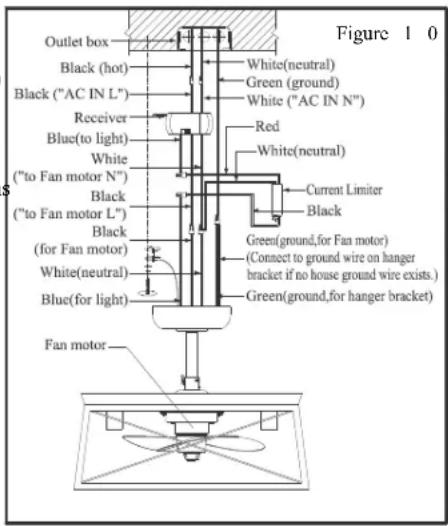

Step 1. Fan motor to Receiver Electrical and Step 3. If your outlet box has a ground wire Current Limiter Connections: Connect the (green or bare copper) connect it to the fan Black wire from the fan to Black wire markground wires; otherwise connect the hanging "TO MOTOR L". Connect the White wire from bracket ground wire to the mounting bracket. the fan to the White wire marked "TO Secure the wire connection with plastic wire MOTOR N" from the receiver and the Whitenuts provided. After connecting the wires wire from the Current limiter. Connect the spread them apart so that the green and white blue (light) wire to the black wire from the wires are on one side of the outlet box and current Limiter. Connect the Red wire from Black and blue wires are on the other side. hCurrent Limiter to the Blue wire from the Carefully tuck the wire connections up into the Receiver. Secure wire connections with the outlet box. (Fig. 10)

plastic wire nuts provided. (Fig. 10)
Step 2. Receiver to House Supply Wires Electrical Connections: Connect the black (hot) wire from the ceiling to the black wire marked "AC in L" from the receiver. Connect the white (neutral) wire from the ceiling to the white wire marked "AC in N" from the Receiver. Secure the wire connection with the plastic wire nuts provided. (Fig. 10)

Step 4. Once the connection has been made, Installing the canopy:

to the receiver inserts into the down rod hanging Step 1. Align the locking slots of the canopy bracket. The canopy comes up to cover the (C) with the two screws (FF) in the mounting receiver and bracket. (Fig. 11) bracket. (A). Push up to engage the slots and

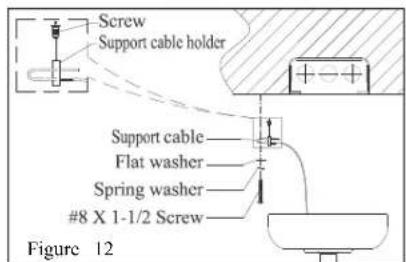

An additional safety support is provided to prevent the fan from falling. Secure the Support cable to the ceiling joist with screw and washer. Screw and Support cable holder lock the fixed Support cable. (Fig. 12)

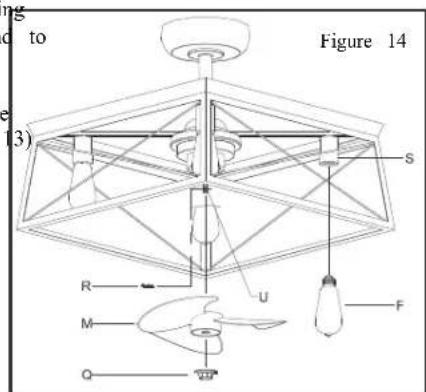

Step 2. Screw light bulbs (F) into the fixture Sockets(S). (Fig. 14)

Step 2. Rotate the metal cover (D) clockwise to lock in the bottom of the canopy. (Fig. 1)

Installing the Fan blades and bulbs:

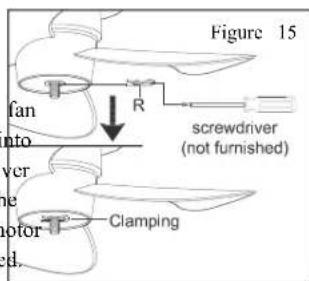

Step 1: Install the fan blades (M) onto the motor shaft (U). Put the R-shaped pin (R) to the motor shaft (U) to lock with a screwdriver pliers. (Fig. 15) Left handed thread on lock nut (Q). Install lock nut (Q) onto the shaft (U) after the fan blades (M) is installed (Fig. 14)

Installing thbattery

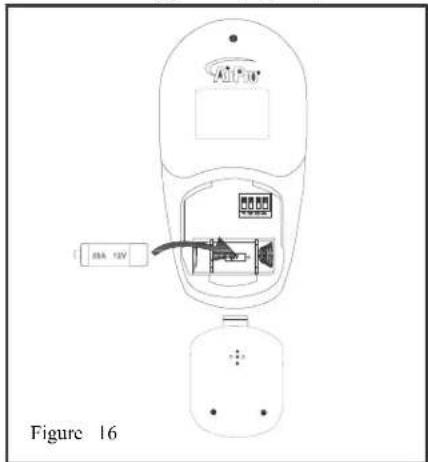

Install 12VA23 battery (included), To prevent damage to transmitter, remove the battery if not used long periods(Fig. 16)

Restore power to ceiling fan and testprper operation.

1. 0,00,000,"buttons: These three buttons are used for fan speed as follow(Fig. 17):

O -Low speed

OO = Medium speed

O O = High speedd

1. " " button: This button turns the offin

2. The " button turnthe light ONor OFF andalso controls the brightness setting. Press and release the button to turn the light ON or OFF. Press and hold the button to set thesired brightness. The light keyahhas auto-resume, it will stay at the same brightness as the last timet was turned off.

Installation of Transmitter Wall Mount Holder with one screw.

7. OperatingYour Transmitter

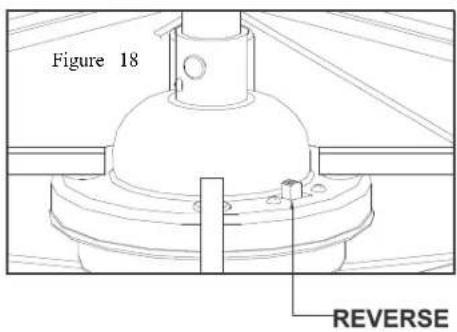

The Reverse switch is located on the top of the motor housing. Slide the switch to the Left for warm weather operation. Slide the switch to the Right for cool weather operation. (Fig. 18)

NOTE: Wait for fan to stop before changing the setting of the slide switch.

Speed settings for warm or cool weather depend on factors such as the room size, ceiling height, number fans, etc.

Warm weather - (Forward) A downward air flow creates a cooling effect as shown in Figure 19. This allows you to set your air conditioner on a higher setting without affecting your comfort.

Cool weather - (Reverse) An upward airflow moves warm air off the ceiling area as shown in Figure 20. This allows you to set your heating unit on a lower setting without affecting your comfort.

Here are some suggestions to help you maintain small scratches with a light application of your fan of shoe polish.

1.Because of the fan's natural movement, some connections may become loose. Check the support connections, brackets, and blade attachments twice a year. Make sure they are front guard for your easy installation. Check that secure. (It is not necessary to remove fan from screws are tight and securely in place. ceiling.)

6.Use a lint free lightly damp cloth or duster to 2.Clean your fan periodically to help maintainremove dust from the blades.

its new appearance over the years. Use only a soft brush or lint-free cloth to avoid scratching the finish. The plating is sealed with a lacquer

to minimize discoloration or tarnishing. Do not use water when cleaning. This could damage the motor or possibly cause an electrical shock.

IMPORTANT

Fan will not start. 1. Check circuit fuses or breakers.

1. Check line wire connections to the fan and switch wire connections in the switch housing. CAUTION: Make sure main poweff.is
2. Check to make sure the dip switches from the transmitter and receiver are set to the same frequency.
3. Check the battery in the transmitter.

Fan sounds noisy. I. Make sure all motor housing screws are snug.

1. Make sure wire nut connections are not rubbing against each other or the interior wall of the switch housing. CAUTION: Make sure main poweff.is
2. Allow a 24-hour "breaking-in" period. Most noise associated with a new fan disappear during this time.
3. Check that light bulb is also secure.
4. Some fan motors are sensitive to signals from solid-state variable speed controls. If you have installed this type of control, choose and install another type of control.

Remote control malfunction

1. Make sure the upper canopy is a short distance from the ceiling. It should not touch the ceiling.

2. Do not connect the fan with wall mounted variable speed control (s).

3. Make sure the dip switches are set correctly.

Troubleshooting 10.

Size	Speed Volts		Fan Power Consumption (without lights) WATT	Airflow CFM	Airflow Efficiency (Higher Is Better) CFM/WATT	Net Weight	Gross Weight	Cubic Feet
14in.	Low	30129 1	22.20 910.9	2 41.00		12.76 lb (5.79kg)	18.06 lb (8.2kg)	5.165cu. Ft.
	Medium		131.12 37.62
	High 37	7.81 135	1.49 35		.75

These are approximate measures. They do not include Amps and Wattage used by the light kit.
