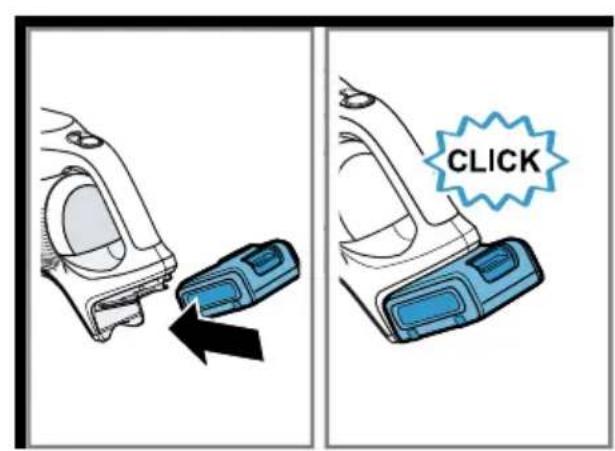

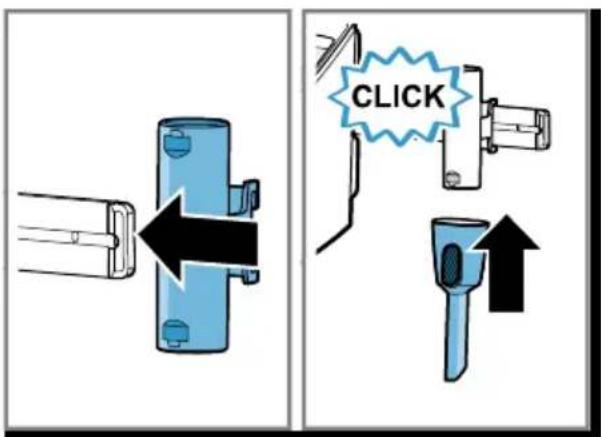

10

CLICK

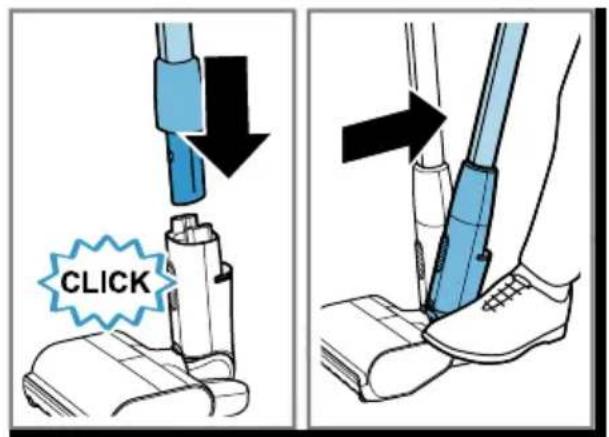

11

CLICK CLICK

12

Diagram illustrating a device operation step with labeled components and a confirmation dialog box showing a warning symbol.

13

Diagram showing a device being inserted into an electrical socket, with labeled steps ① and ② indicating installation or connection.

14

Diagram showing two steps of a device shift or repair process, labeled ① and ② with arrows indicating direction.

15

Two-step diagram showing a device being inserted into a battery, with arrows indicating the process (no text or symbols present)

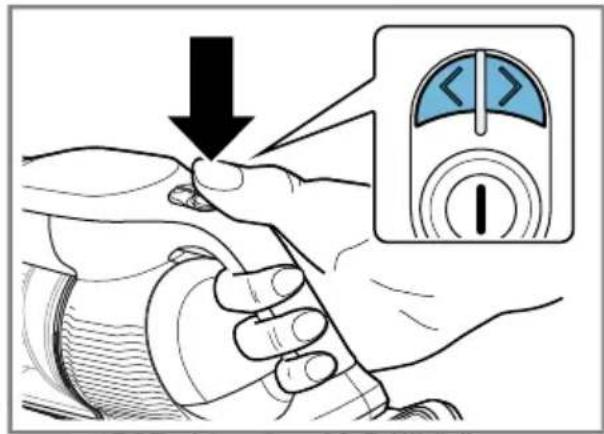

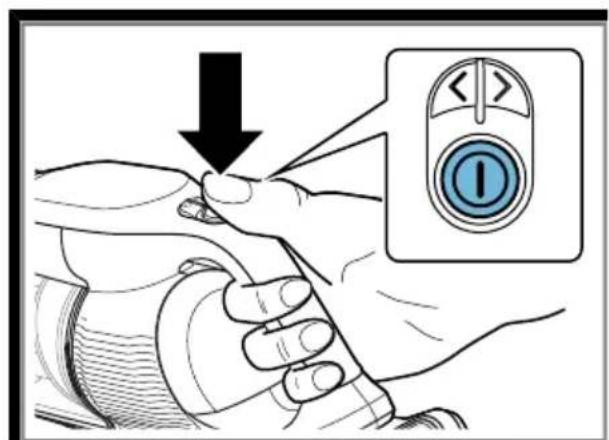

16

Diagram illustrating a hand operating a device with an icon labeled 'I', showing a downward arrow and magnified view.

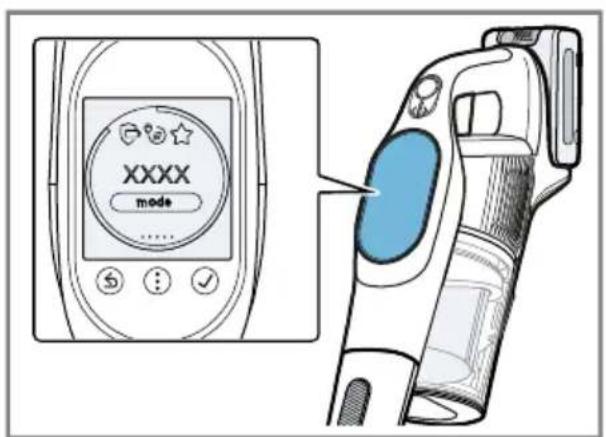

17

XXXX mode ......

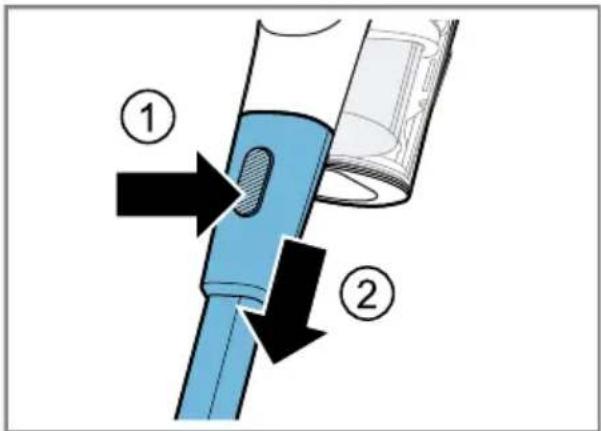

18

Diagram illustrating a hand operating a device with an inset showing a dial indicator and directional arrow, likely illustrating a diagnostic or testing procedure.

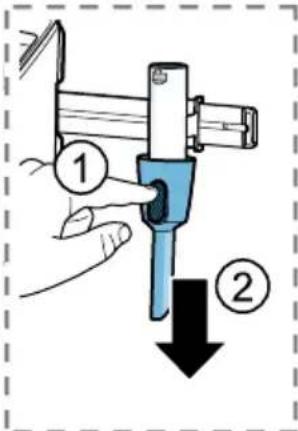

19

Diagram showing a hand holding a blue mechanical component with numbered callouts (1 and 2) and a downward arrow indicating process or direction.

20

Diagram showing a hand using a caliper with labeled parts and directional arrow indicating force or movement.

Diagram showing a hand using a caliper with labeled parts and directional arrow indicating process flow

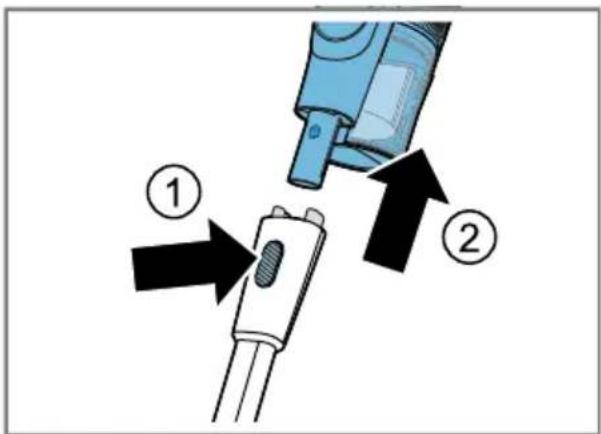

CLICK

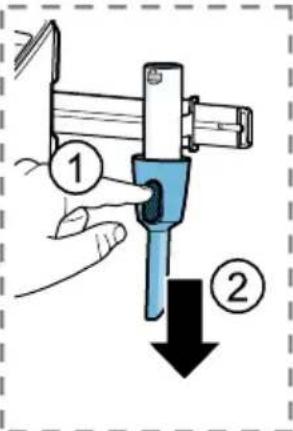

21

CLICK

CLICK

Diagram showing a medical device with two blue cylindrical components and a tool inserted into a small blue component, with arrows indicating direction (no text or symbols)

22

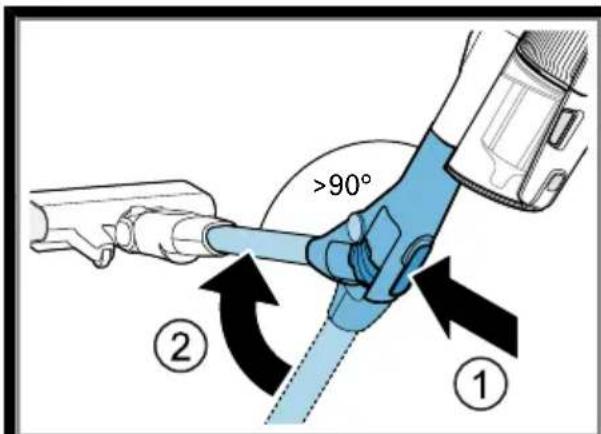

>90° ② ①

23

Line drawing of a hand holding a vacuum cleaner next to a cabinet (no text or symbols)

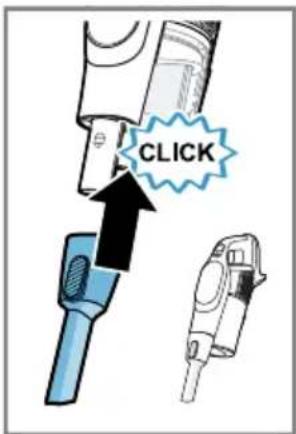

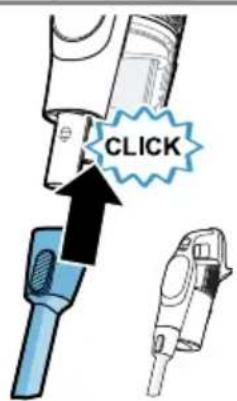

24

CLICK

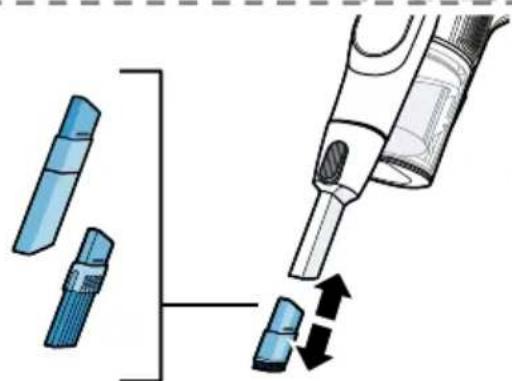

25

Diagram showing a medical device with labeled parts, including a numbered step and directional arrows indicating process flow.

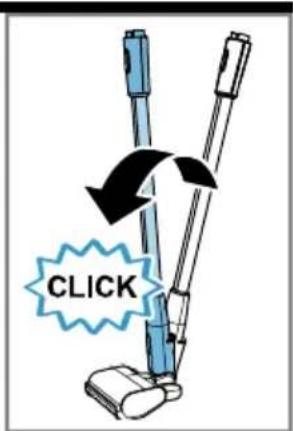

26

CLICK

CLICK

Illustration of a person's foot using a blue tool to lift a white athletic shoe, with an arrow indicating the motion (no text or symbols present)

27

CLICK CLICK

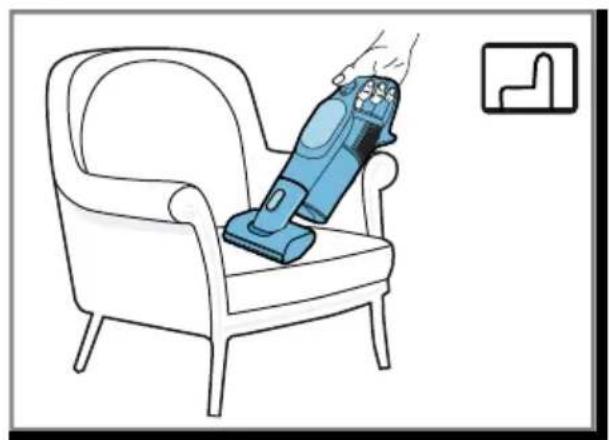

28

Line drawing of a blue vacuum cleaner placed on an armchair, with a small inset showing a staircase (no text or symbols)

29

CLICK ① ②

30

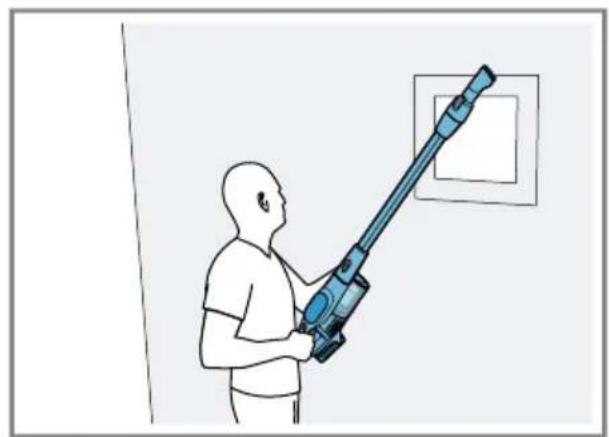

Line drawing of a person using a handheld vacuum cleaner to clean or spray the ceiling (no text or symbols)

31

CLICK

32

max

33

PT-AS

CLICK ① ②

35

Diagram showing two labeled parts (① and ②) of a mechanical or fluidic device with directional arrows indicating movement or flow.

36

Diagram showing two steps of a device shift or repair process, labeled ① and ②, with arrows indicating the direction of change.

37

Diagram illustrating a hand operating a device with an inset showing a close-up of the screen and control knob.

38

Diagram showing a device with a blue circular component and a control panel with three buttons labeled 'S', ':', and '✓'.

39

Illustration showing three hand-drawn scenarios: cleaning a tool, cleaning a plastic bag, and cleaning a spray bottle with blue X marks.

40

max

41

Diagram showing a device being inserted into a plug, labeled with parts ① and ②

42

Diagram illustrating a waste sorting process with labeled components and directional arrows

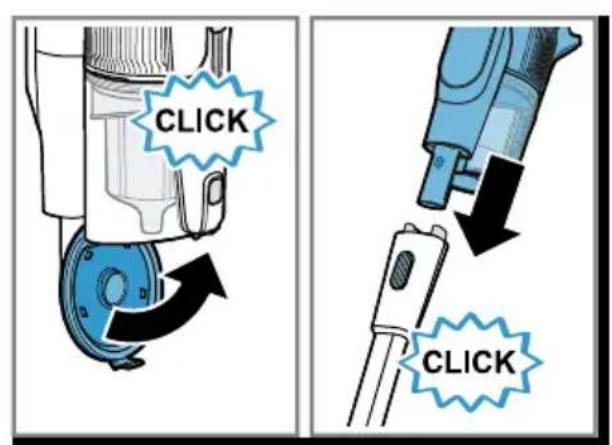

43

CLICK CLICK

44

Diagram illustrating a hand operating a device with labeled parts and a 3x ratio indicator

45

Diagram illustrating a hand pouring liquid into a container with an arrow indicating the process, alongside a close-up of the container being inserted.

46

Diagram illustrating two steps of a lock mechanism: adding keys to a container and adding an upward arrow to a water-filled cylindrical component.

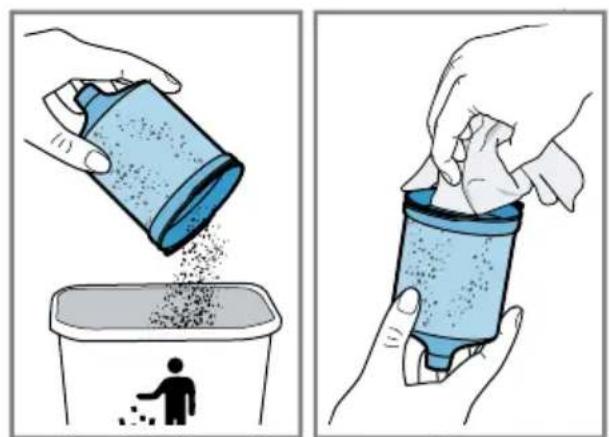

47

Illustration showing a hand pouring granular material into a trash bin with multiple crossed-out cleaning tools below.

m = 311

Illustration showing two steps of a hand pouring granular material into a trash bin, with no text or symbols present.

49

Diagram illustrating two steps of installing a lock mechanism on a device, labeled ① and ② with directional arrows.

50

CLICK ① ②

51

Diagram illustrating a mechanical device with labeled parts and directional arrows indicating movement or assembly.

52

CLICK ① ②

53

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating movement or flow.

54

Illustration of scissors cutting a blue cylindrical object with visible fibers, showing a mechanical component (no text or symbols)

55

Diagram illustrating a lock mechanism with labeled parts and directional arrows indicating sequence

56

Diagram illustrating a device lock mechanism with labeled parts and directional arrows indicating sequence.

57

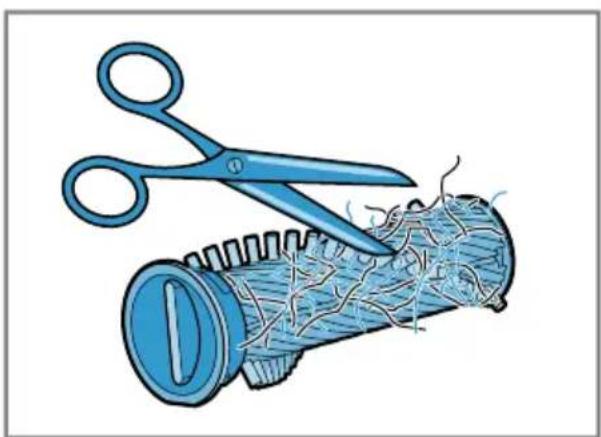

Illustration of scissors cutting through a cylindrical pipe with visible fibers (no text or symbols)

58

① ② CLICK

59

Diagram illustrating the process of cleaning a car air conditioner, showing step-by-step installation and lock mechanism.

60

Line drawing of a hand holding a cylindrical object with visible internal fibers and blue lines, no text or symbols present.

61

Diagram illustrating the process of removing a blue plastic component into a fan, with an arrow indicating the removal step.

62

Sicherheit

■ Read this instruction manual carefully.
- Keep the instruction manual and the product information safe for future reference or for the next owner.
■ Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

■ with genuine parts and accessories. Damage caused by using third-party products is not covered under the warranty.
■ for cleaning surfaces.
■ in private households and in enclosed spaces in a domestic environment at room temperature.
■ up to an altitude of max. 2000 m above sea level.

Do not use the appliance:

■ for vacuum-cleaning persons or animals.
■ for vacuuming up harmful, sharp-edged, hot or burning substances.
■ for vacuuming up damp substances or liquids.
■ for vacuuming up highly flammable or explosive materials and gases.
■ for vacuuming up ash or soot from stoves and central heating systems.
■ for vacuuming up toner dust from printers and photocopiers.
■ for vacuuming up building rubble.

Disconnect the appliance from the power supply when:

■ cleaning the appliance.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Cleaning and user maintenance must not be performed by children unless they are being supervised.

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  ▶ Never operate a damaged appliance.
  ▶ Never operate an appliance with a cracked or fractured surface.

▶ Call customer services.→Page 25

▶ Only use the appliance in enclosed spaces.

▶ Never expose the appliance to intense heat or humidity.

- Do not use steam- or high-pressure cleaners to clean the appliance.

▶ Never let the power cord come into contact with hot appliance parts or heat sources.

- Never let the power cord come into contact with sharp points or edges.

▶ Never kink, crush or modify the power cord.

- Connect and operate the charging cable ^1 , and the quick charger ^1 only in accordance with the specifications on the rating plate.

- Connect the charging cable ^1 , and the quick charger ^1 to a power supply with alternating current only via a properly installed socket with earthing.

- Do not apply flammable substances or substances containing alcohol to the filter.

- When cleaning the appliance, do not use flammable substances or substances that contain alcohol.

- Keep clothing, hair, fingers and other body parts away from the openings on the appliance and the moving parts.

▶ Never point the pipe or the nozzles towards eyes, hair, ears or mouths.

- Before attempting any maintenance or cleaning of the appliance, remove the battery and disconnect the appliance from the power supply.

▶ Only store the appliance lying on the floor or in the base station.

- Ensure that children do not play with the appliance, even when it is in the base station ^1 .

▶ Never use the free-standing function of the floor nozzle with the appliance attached.

▶ Persons with electronic implants must stand at least 10 cm away from the appliance.

- Keep packaging material away from children.

- Do not let children play with packaging material.

- Protect the battery against fire, heat and constant sunlight.

• Protect the battery against water and penetrating moisture.
  ▶ Never open the battery.
• When not in use, keep the battery away from metal objects, e.g. paper clips, coins, keys, nails or screws.
  ▶ If fumes are escaping from a damaged battery, supply fresh air.
  ▶ If there are any problems, seek medical advice from a doctor.
  ▶ If liquids are escaping from a damaged battery and they come into contact with the skin, rinse immediately with water.
  ▶ If these come into contact with the eyes, seek medical help.

Preventing material damage

▶ Check and clean any wet objects.
▶ Replace damaged objects.
▶ Regularly check the running surfaces of the nozzles for wear.
▶ Replace worn nozzles.
▶ Never use the nozzle without the brush roller in place.
▶ Never operate the appliance without the filter unit.
▶ Never lean the appliance against walls or the edges of tables.
- Retain the packaging material for transport purposes.

Included with the appliance

After unpacking all parts, check for any damage in transit and completeness of the delivery.

Note: The appliance comes with additional accessories depending on its features.

→Fig. 1

A	Hand-held cordless vacuum cleaner
B	Base station ^1
C	Accessory holder ^1 , with rail ^1 for base station
D	Universal floor nozzle ^1
E	Hard floor nozzle ^1
F	Flexible suction pipe
G	Crevice nozzle and adapter for other accessories
H	Extension for long, flexible crevice nozzle ^1

I	Extension for keyboard and drawer nozzle ^1
J	Extension for narrow furniture brush ^1
K	Rotatable furniture brush ^1
L	Battery ^1
M	Charging cableD□K Power supply model identifier■ S018BUz2350065 for 650 mA charging cable■ S023BUz2350100 for 1 mA charging cable
N	Rotating XXL upholstery nozzle ^1
O	Mini electro-nozzle ^1
P	Quick charger ^1

Overview

You can find an overview of the parts of your appliance here.

→Fig. 2

1	Universal floor nozzle with free-standing function
2	Floor nozzle release button
3	Flexible suction pipe
4	Suction pipe release button
5	Display with control panel
6	Operating buttons
7	Battery
8	MicroClean and status display
9	Dust container
10	RotationClean
11	Cartridge filter

12 Fluff filter
13 Sliding switch
14 Dust container release
15 Release button for dust container lid
16 Dust container lid

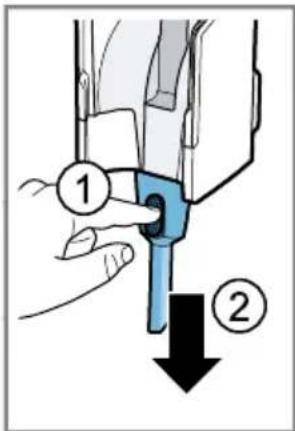

17 Foot release

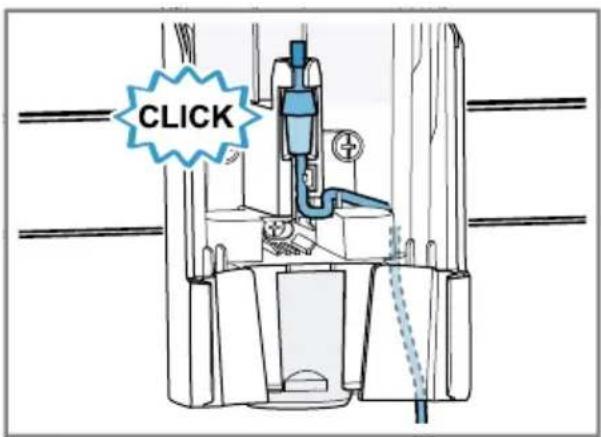

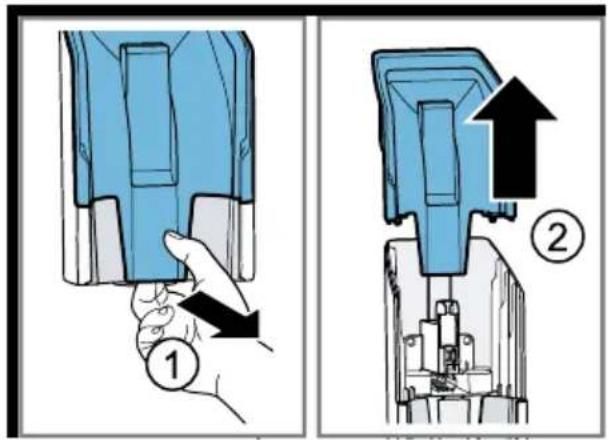

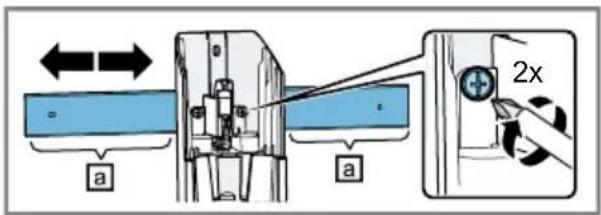

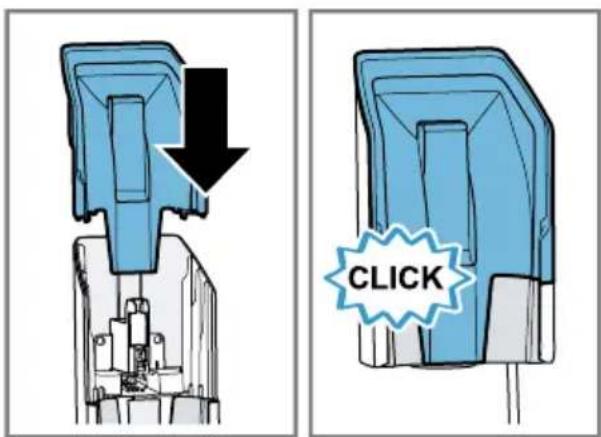

Installing the base station

• Check whether any household wiring could be damaged in the installation area.
• Do not install the base station horizontally or vertically above, below or next to a socket.

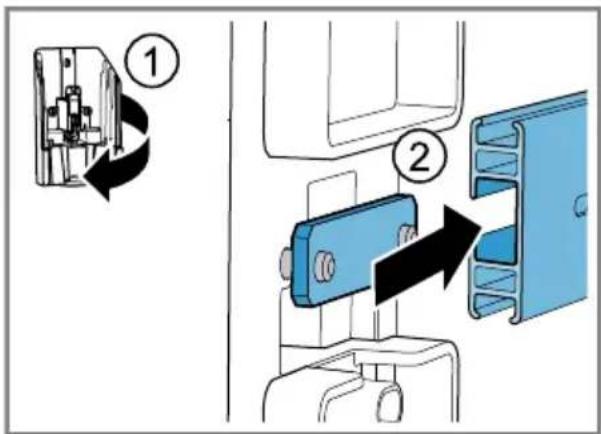

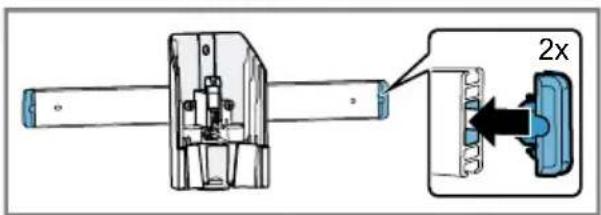

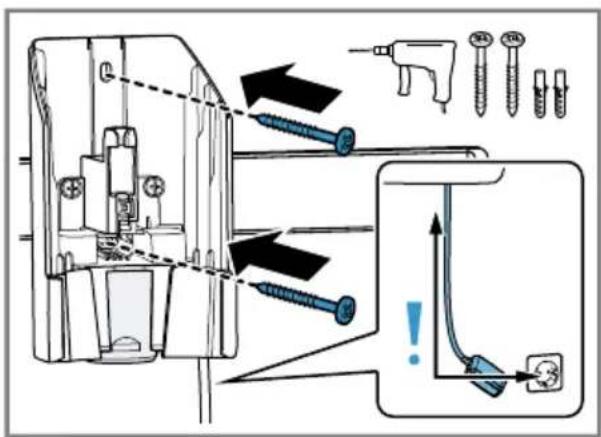

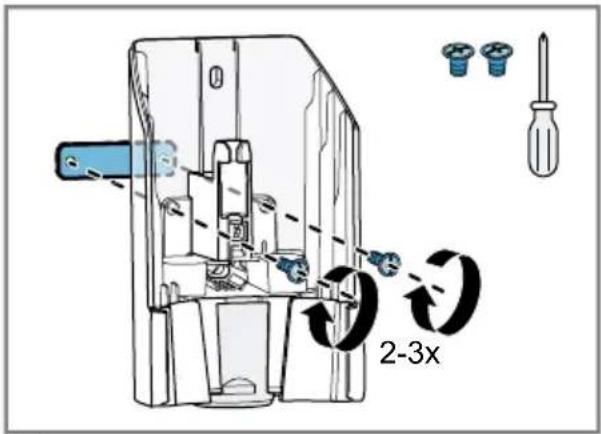

→Fig. 3 - 10

Operation

Installing the appliance

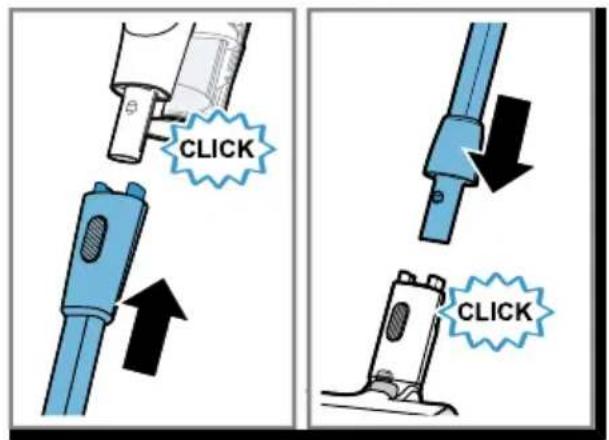

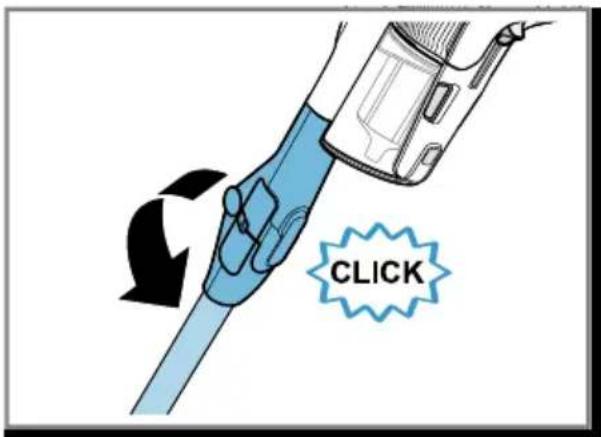

→Fig. 11 - 12

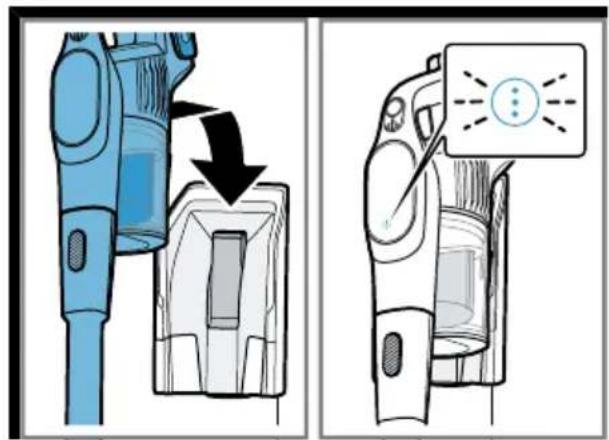

Charging the appliance

▶ Only use the battery in connection with the Bosch appliance.
▶ Only charge the battery using the original charging cable.
▶ Only use batteries from the Power for ALL 18 V series.
▶ Follow the instructions for the batteries and the quick charger ^1 .
- Ensure that children do not play with the appliance, even when it is in the base station ^1 .

Notes

• For a rapid charge, use the quick charger.
• The symbol ⚙slowly flashes white while the battery is charging.
  To check the current battery charge status, briefly tap the ⏻symbol on the control panel.
  ■ To save energy, the appliance switches off once the battery is fully charged.

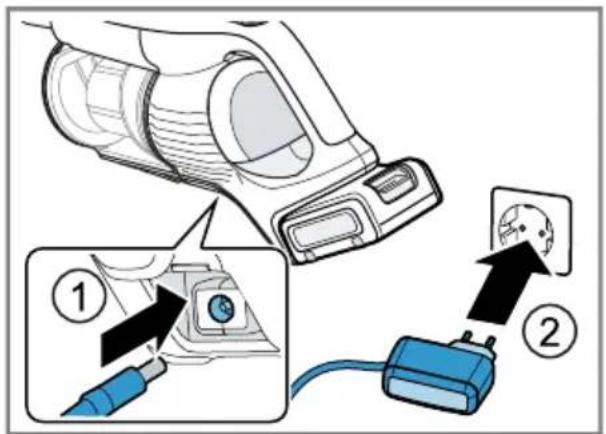

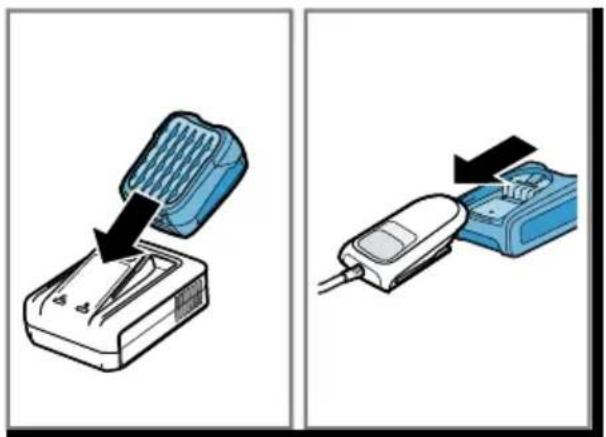

→Fig. 13 - 16

Battery runtimes

Here you can find information about battery runtimes depending on the battery that is in use.

Note: The maximum battery runtimes refer to operation in Eco mode with non-electric accessories.

The use of other vacuuming modes and accessories reduce the appliance's battery runtime.

Battery Maximum battery runtime

3,0 Ah 60 min

4,0 Ah Power+ 80 min

5,0 Ah 100 min

Notes

■ The display shows the battery charge level in per cent and the resulting remaining appliance runtime in minutes. Actual values may vary.
■ Like every Li-ion battery, the batteries from the Power for ALL 18 V series wear out over time, meaning that the battery capacity and the runtime decrease. This is a natural aging process and not the result of a material error, manufacturing error or material defect.
■ You can delay natural wear by taking the following measures:
- Activate the battery protection function on your appliance.
- Do not store the battery for an extended period of time if it is fully charged or fully discharged.

Operating the appliance

Note: Use Turbo mode (normal mode) for best results when cleaning hard floors and deep cleaning rugs and carpets. Switch to Auto mode or Eco mode when it is too difficult to push the nozzle on rugs or carpets.

→Fig. 17 - 22

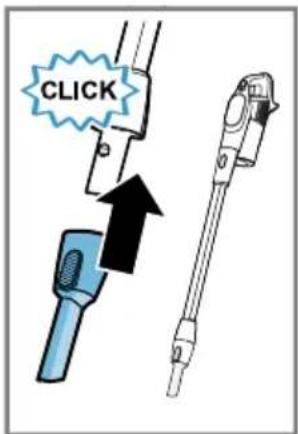

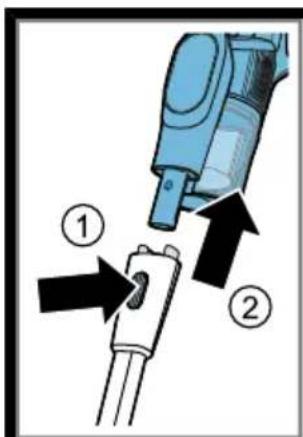

Using the flexible suction pipe

→Fig. 23 - 25

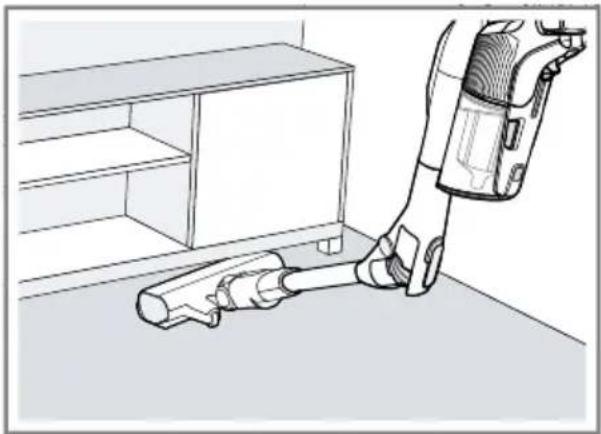

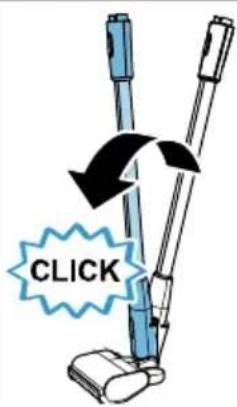

Using the free-standing function

Note: Never use the free-standing function of the floor nozzle with the appliance attached.

→Fig. 26 - 27

en Basic settings

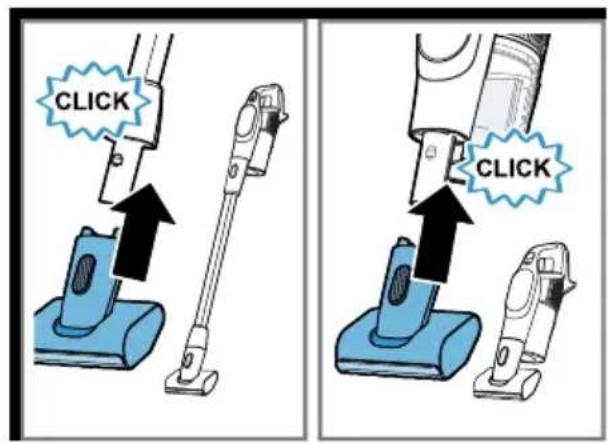

Vacuuming with the mini electro-nozzle ^1

$$ \rightarrow \text { Fig. } \boxed {2 8} - \boxed {2 9} $$

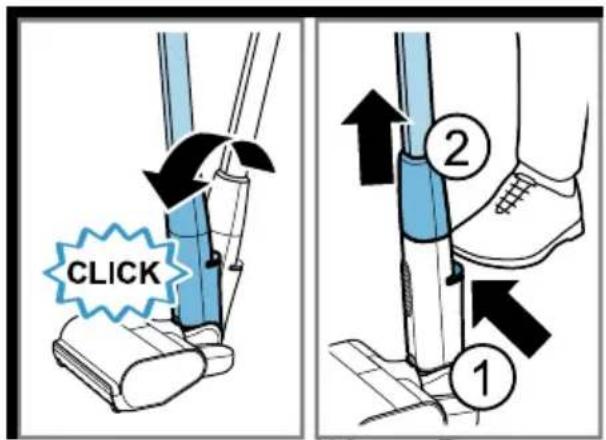

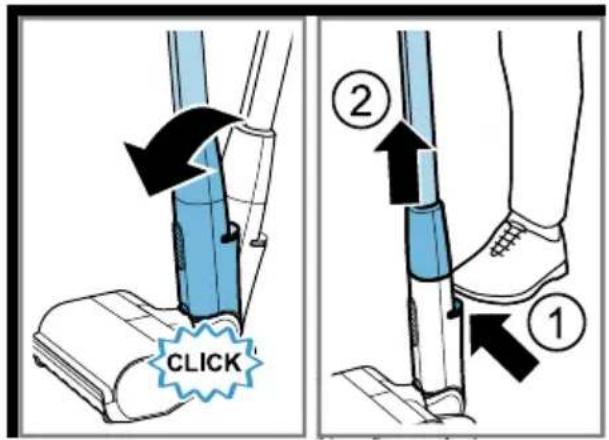

Using the foot release

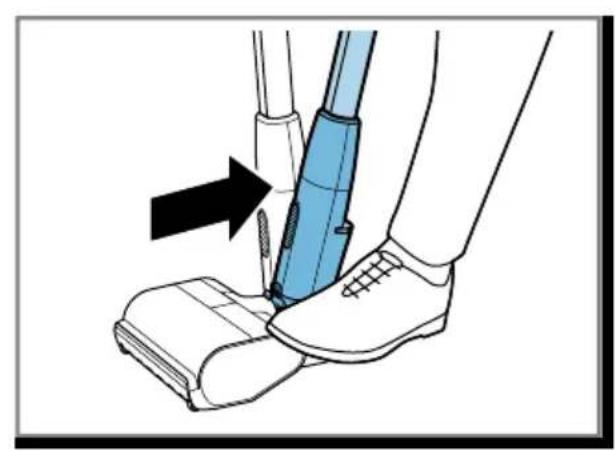

$$ \rightarrow \text { Fig. } \boxed {3 0} - \boxed {3 2} $$

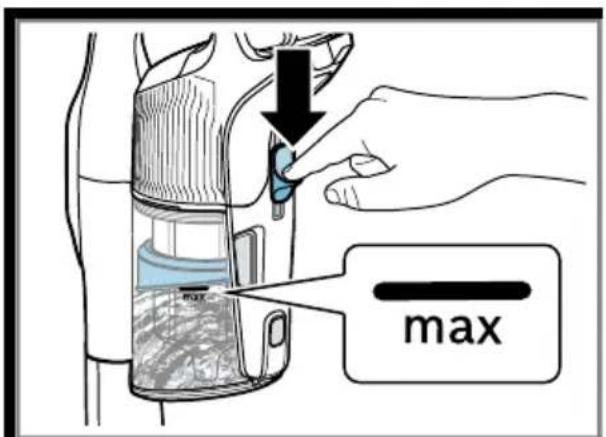

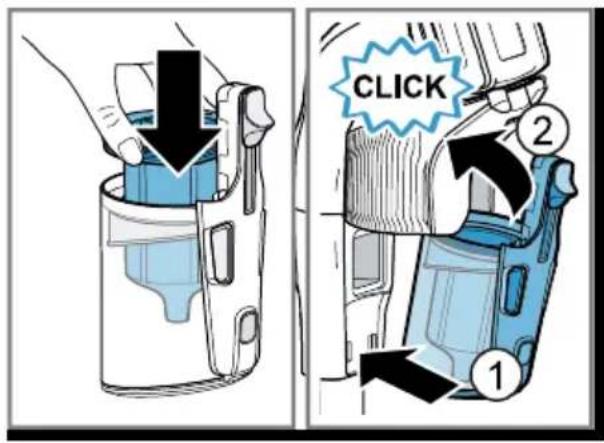

Compressing the dust

$$ \rightarrow \text { Fig. } \boxed {3 3} - \boxed {3 4} $$

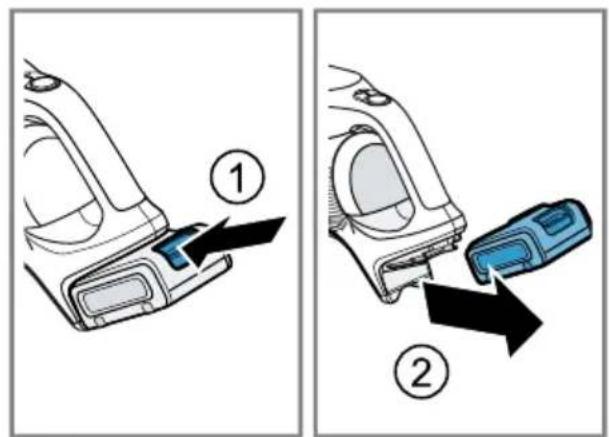

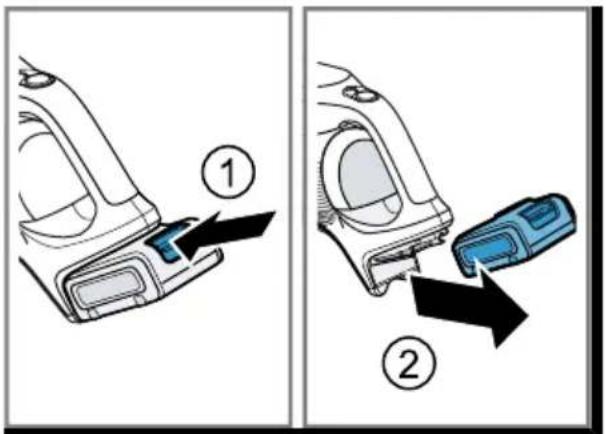

Removing the appliance

$$ \rightarrow \text { Fig. } \boxed {3 5} - \boxed {3 7} $$

Basic settings

You can configure the basic settings for your appliance to meet your needs and call up additional functions.

Changing the setting

Note: If no display language is available in your national language, select a display language that is available, e.g. English.

Requirement: The appliance is switched on.

1. Touch ⏻

√ Vacuuming stops.

√ The display shows the menu with basic settings and additional functions.

1. Press to navigate through the menu.

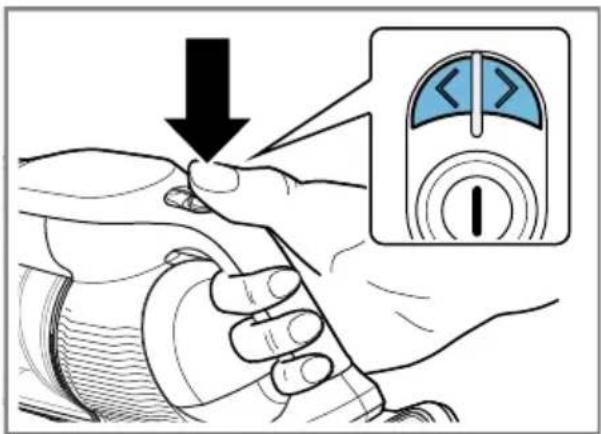

$$ \rightarrow \text { F i g . } 3 8 $$

1. Touch ☑ to confirm the selection.

$$ \rightarrow \text { Fig. } \boxed {3 9} $$

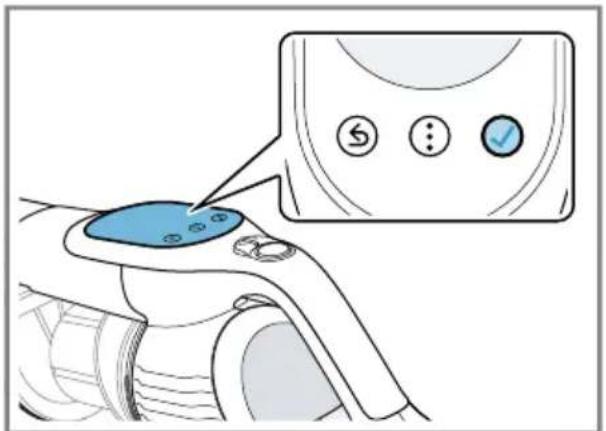

1. Change and confirm the setting or call up additional functions.

2. Touch Ⓜ to return to the menu or to continue vacuuming.

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

Cleaning the appliance

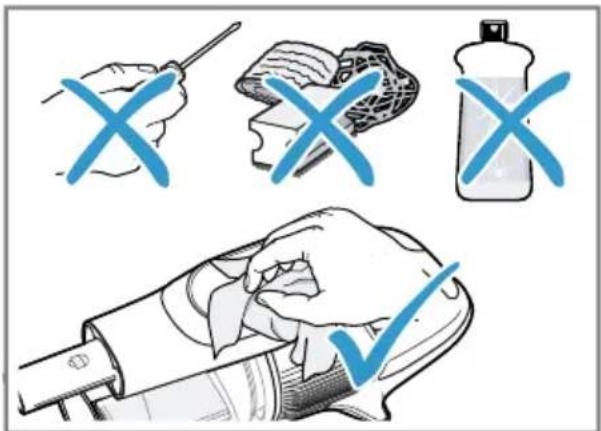

- Clean the appliance with a soft, dry cloth only.

$$ \rightarrow \text { Fig. } 4 0 $$

Emptying the dust container

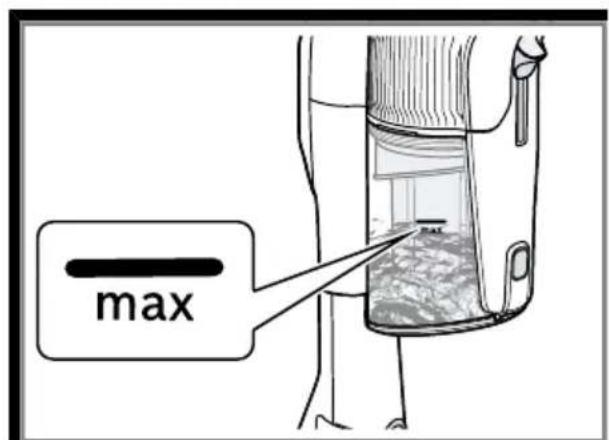

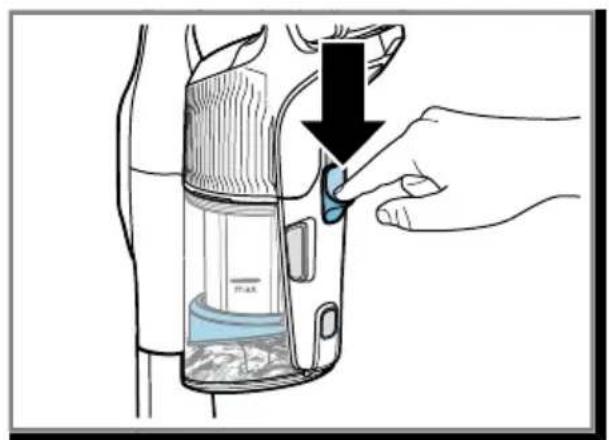

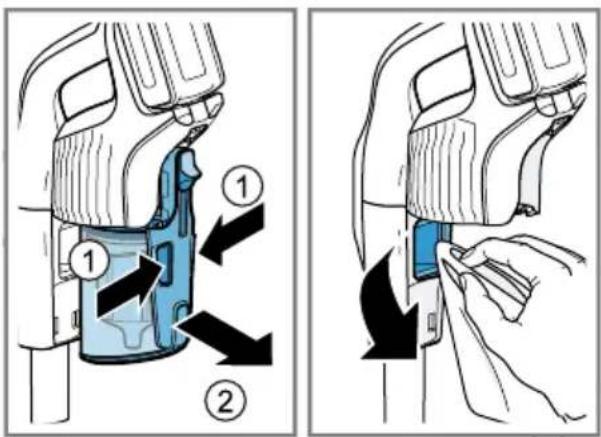

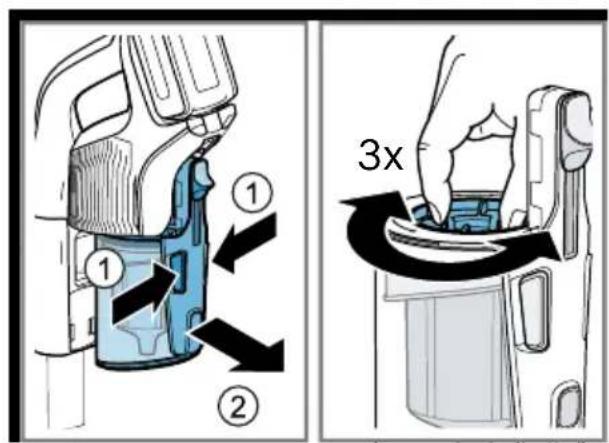

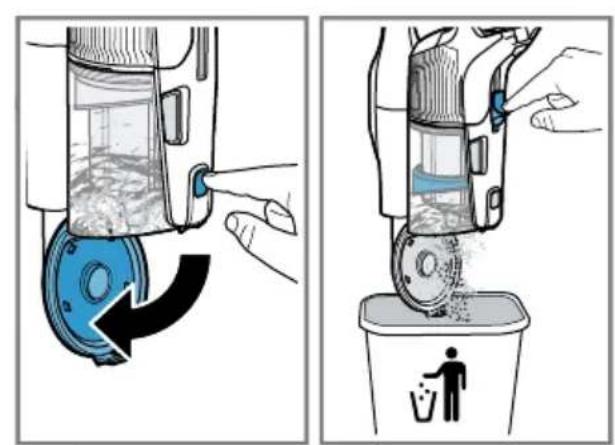

$$ \rightarrow \text { Fig. } 4 1 - 4 4 $$

Cleaning the filter unit

▶ Never allow the filters to come into contact with liquids.

Note: It is recommended that you clean the dust container filter when it is heavily soiled and the suction power decreases.

Tip: Wipe off any dust particles on the fluff filter with a slightly damp cloth.

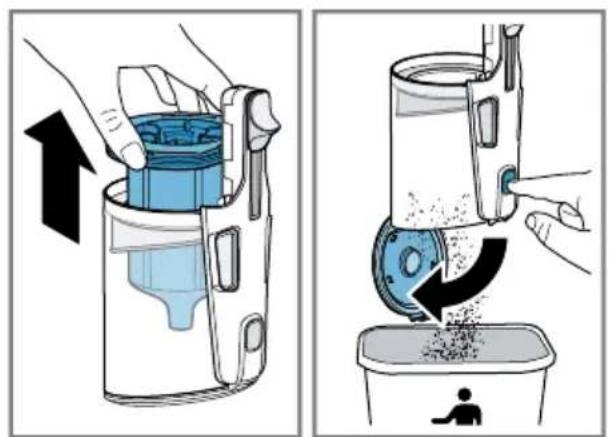

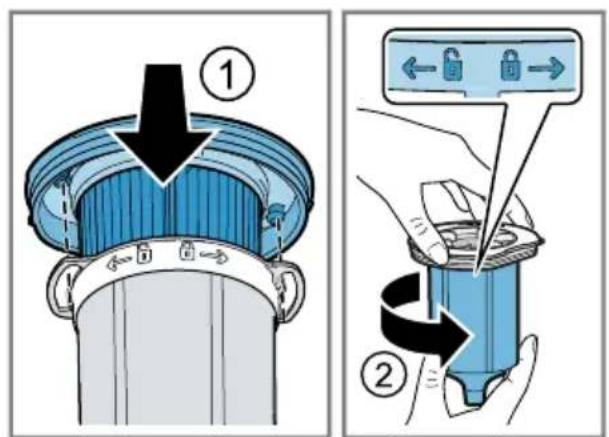

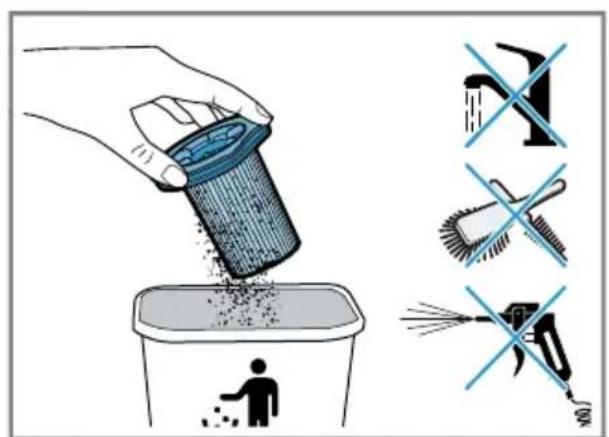

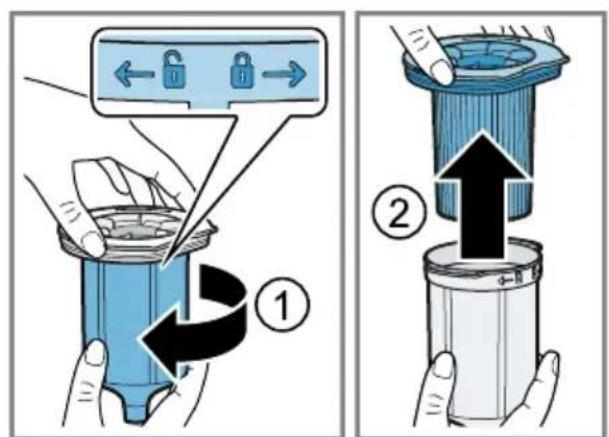

$$ \rightarrow \text { Fig. } 4 5 - 5 1 $$

Cleaning the sensor

Note: The sensor surface must be clean for the MicroClean display to work properly.

Clean the sensor if the LED ring for the MicroClean display no longer works or does not work correctly.

- Wipe the sensor thoroughly with a soft, clean and lint-free cloth.

$$ \rightarrow \text {Fig.} \boxed {5 2} $$

Cleaning the universal floor nozzle

Requirement: The appliance is switched off.

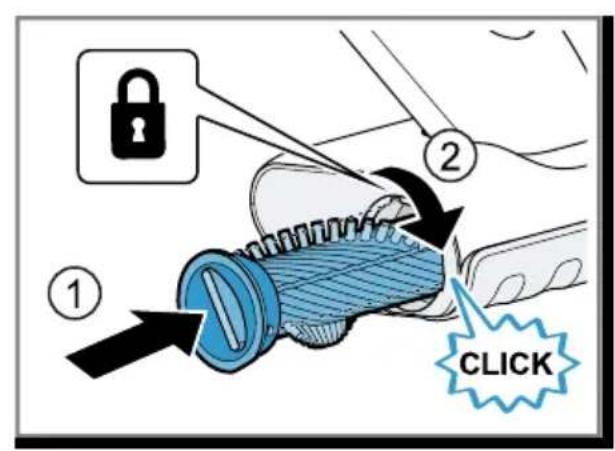

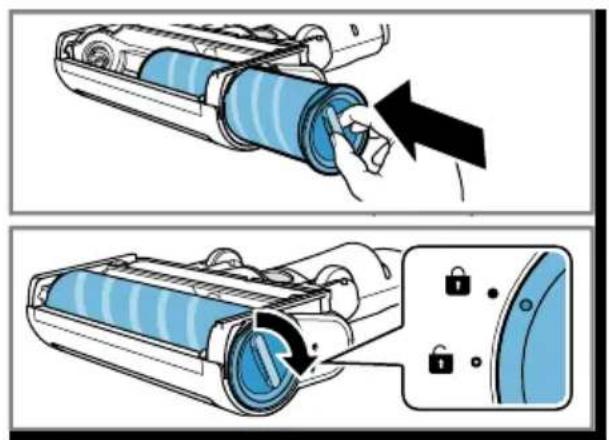

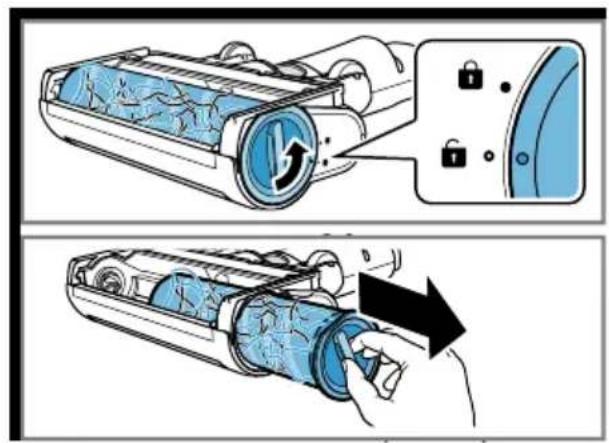

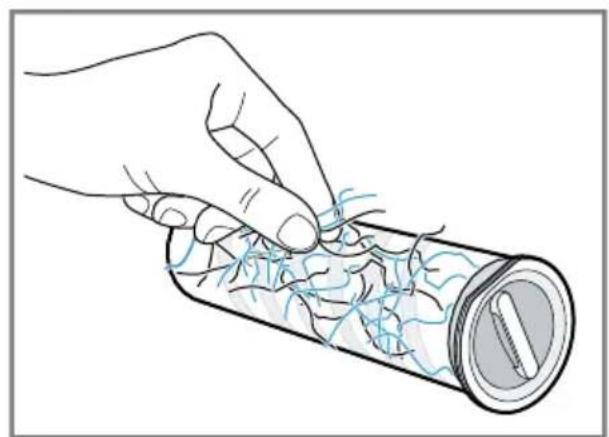

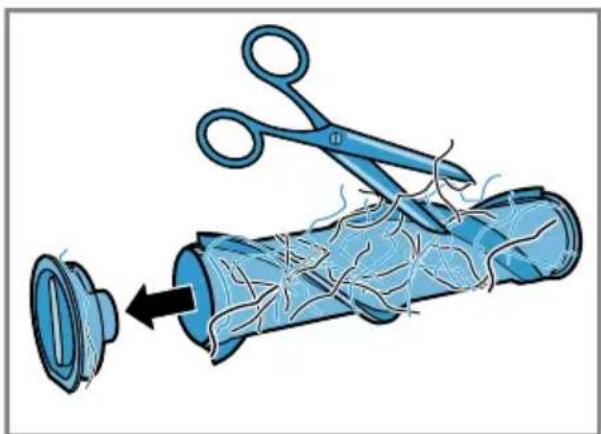

$$ \rightarrow \text { Fig. } \boxed {5 3} - \boxed {5 6} $$

Note: The brush roller features a cleaning function. When operating the brush roller on carpet, your appliance automatically vacuums the cut threads and hairs after more than 30 seconds.

Cleaning the mini electro-nozzle ^1

Requirement: The appliance is switched off.

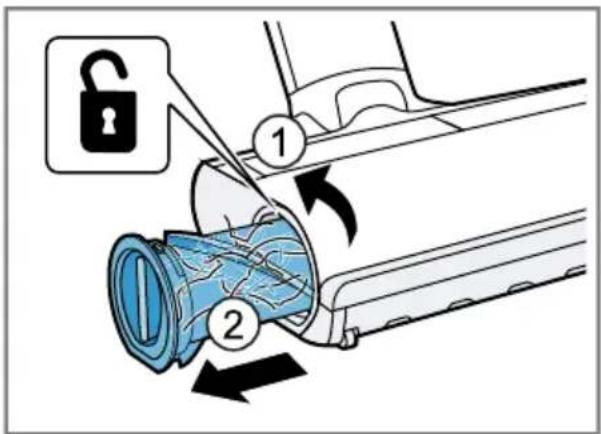

$$ \rightarrow \text { Fig. } 5 7 - 5 9 $$

Cleaning the hard floor nozzle ^1

Requirement: The appliance is switched off.

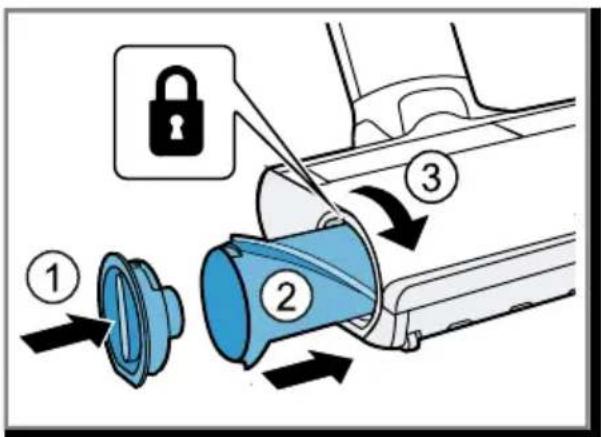

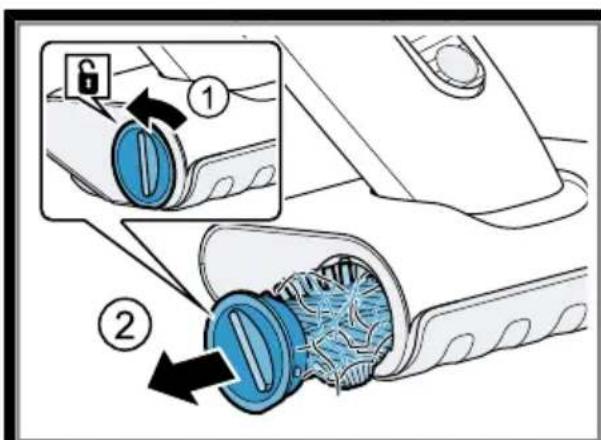

$$ \rightarrow \text {Fig.} \boxed {6 0} - \boxed {6 2} $$

Troubleshooting

Tip: You can find further information and explanations on troubleshooting online by scanning the QR code on page 2 and on our website www.bosch-home.com.

▶ Repairs to the appliance should only be carried out by trained specialist staff.

▶ Only use genuine spare parts when repairing the appliance.

The appliance is not working.

The battery has not been inserted correctly.

- Insert the battery correctly.

The battery has not been charged.

▶ Charge the battery.

The nozzle cannot be moved.

The nozzle is stuck.

Too much suction power.

▶ Change the cleaning mode.

No charging function.

Incorrect charger was used.

▶ Only use the charger that is included.

Information in the display

Message E2 - "Take a look at the instruction manual" appears in the display The safety shut-off has been activated.

1. Switch off the appliance and disconnect the appliance from the power supply.

2. Wait until battery has reached room temperature or use a spare battery.

3. Switch the appliance back on again.

4. If this fault occurs repeatedly, please call.

→ "Customer Service", Page 25

Message E3 - "Cool down device" appears on the display

The thermal safety switch-off function has been activated.

1. Switch off the appliance and disconnect the appliance from the power supply.

2. Check whether the air channel from the nozzle to the appliance is blocked.

3. Empty the dust container.

4. Clean the filter unit.

5. Once the appliance has cooled down, switch the appliance back on.

Message "Air channel blocked" appears on the display

The thermal safety shut-off on the fan has been activated.

1. Switch off the appliance and disconnect the appliance from the power supply.

2. Check whether the air channel from the nozzle to the appliance is blocked.

3. Empty the dust container.

4. Once the appliance has cooled down, switch the appliance back on.

Message E5 – "Take a look at the instruction manual" appears in the display A motor fault has been detected.

1. Switch the appliance off and then on again.

2. If this fault occurs repeatedly, please call.

→ "Customer Service", Page 25

⚠️ and a notification appear on the display. A fault has been detected and vacuuming is continued.

1. To rectify the fault, call up the tutorial in the menu.

→ "Changing the setting", Page 24

1. Follow the instructions on the display.

Disposing of old appliance

- Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE).

The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Disposing of batteries

Batteries should be recycled in an environmentally friendly manner. Do not dispose of the batteries in the household rubbish.

- Dispose of batteries in an environmentally friendly manner.

Customer Service

Detailed information about the warranty period and the warranty conditions in your country is available via the QR code on the enclosed document on service contacts and warranty conditions, from our customer service or on our website.

You can find the contact details for our customer service via the QR code on the en-

closed document on service contacts and warranty conditions or on our website. You can find the information required as per Regulation (EU) 2023/826 online at www.bosch-home.com on the product and service pages for your appliance, in the area of user manuals and additional documents.

Information regarding Free and Open Source Software

This product includes software components that are licensed by the copyright holders as free software or open source software. You can download the licence information on the brand product website. (Please search for your appliance model and additional documents on the product website.)

Sécurité

4,0 Ah Power+ 80 dak

5,0 Ah 100 dak

Notlar

3,0 Ah 60 perc

4,0 Ah Power+ 80 perc

5,0 Ah 100 perc

Megjegyzések

QR code image containing encoded data, no visible human-readable text

e-mail: [e-mail]

+Ah Power 4,0 د قيقة 80

و说是 التمرير بالقدم

Ah 5,0.100

تركيب وحدة الqaيدة

ملامظات

rectangular agitated

34 - 33 alشكل

فلك الجهاز

37 - 35 alشكل

.(electronic equipment - WEEE

1. demographics منogenous significational difficulties

Thank you for buying a Bosch Home Appliance!

Register your new device on MyBosch now and profit directly from:

• Expert tips & tricks for your appliance
• Warranty extension options
  • Discounts for accessories & spare-parts
  • Digital manual and all appliance data at hand
• Easy access to Bosch Home Appliances Service

Free and easy registration – also on mobile phones:

www.bosch-home.com/welcome

BOSCH HOME APPLIANCES SERVICE

Looking for help? You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you: www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

BSH Hausgeräte GmbH

Carl-Wery-Straße 34

81739 München, GERMANY

www.bosch-home.com

A Bosch Company

Valid within Great Britain:

Imported to Great Britain by

BSH Home Appliances Ltd.

Grand Union House

Old Wolverton Road

Wolverton, Milton Keynes

MK12 5PT

United Kingdom

8001346295 (050312)

de, en, fr, it, nl, da, no, sv, fi, es, pt, el, tr, pl, hu, ru, ro, cs, uk, ar
