DO9294G - Grill plate DOMO - Free user manual and instructions

USER MANUAL DO9294G DOMO

Modern DomO grater with layered food arrangement and cooking tools (no visible text or symbols)

NL Handleiding Grill – raclette

EN Instruction booklet Grill – raclette

ES Manual de instrucciones Grill - raclette

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Four black plastic tray holders arranged in a 2x2 grid, no text or symbols visible

9

1 2 3 4 DOMO 5 6 7

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Product display of black plastic clips and beige adhesive strips, no text or symbols visible

1 2 3 4 DOMO 5 6 7

AVANT LA PREMIÈRE UTILISATION

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Four black plastic tray holders arranged in a 2x2 grid, with one holder labeled '8' (no text or symbols on the tray itself)

Five beige paper cutouts arranged in a 3x3 grid, with the number '9' overlaid (no text or symbols on cutouts)

1 2 3 4 DOMO 5 6 7

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Thank you very much for placing your trust in DOMO. We hope you enjoy your new purchase.

All our products undergo strict quality control before reaching you. If you still experience any problems with your device, we sincerely regret that. We have collected the most frequently asked questions about our devices on our webshop. Scan the QR code and have a look!

If you cannot find a solution to your problem there, do not hesitate to contact our customer service via [e-mail]. Our staff will do everything they can to assist you!

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
  • Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
  • bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

• Do not operate the appliance with wet hands.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

CAUTION: the appliance gets very hot during use and stays hot for some time after use. Keep the power cord away from hot parts and don't cover the appliance.

• Make sure that the air can circulate freely around the appliance.
• Make sure that the appliance does not come into contact with flammable materials.
• Only use the appliance indoors and be careful with hot areas and materials such as curtains, tablecloths, etc.
• Preferably use a heat resistant mat underneath the appliance base is flat and level.
• Allow the appliance to cool off completely before cleaning or storing it.
• Never touch any hot parts while the appliance is switched on and being used.
• Make sure nothing can touch the heating element.
• Do not move the appliance when it is warm or hot.
• Clean the appliance directly after use because it has been in contact with foodstuffs.
• Keep the appliance free of oil on its parts. Oil is very inflammable.
• Never use any sharp objects such as knives or forks on the different parts, always use wooden spoons/spatulas.

- Do not use a metal scouring pad to clean the appliance. Metal fragments can break off and come into contact with the electrical components of the appliance, causing a short circuit.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

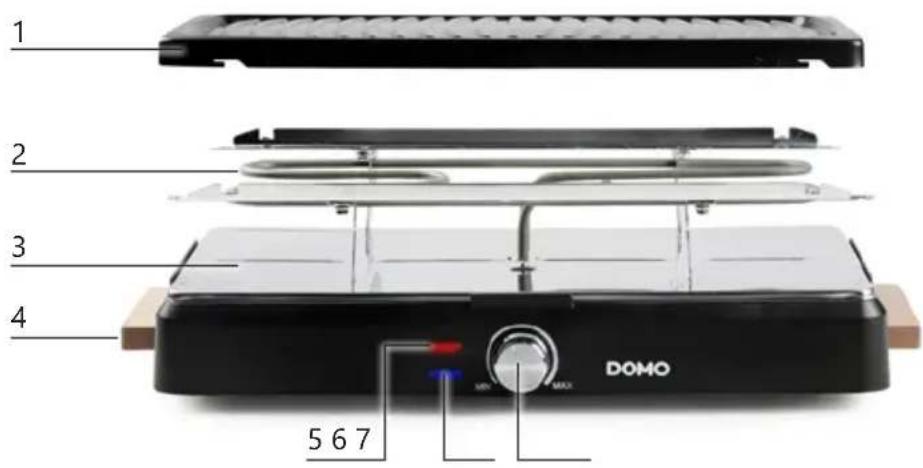

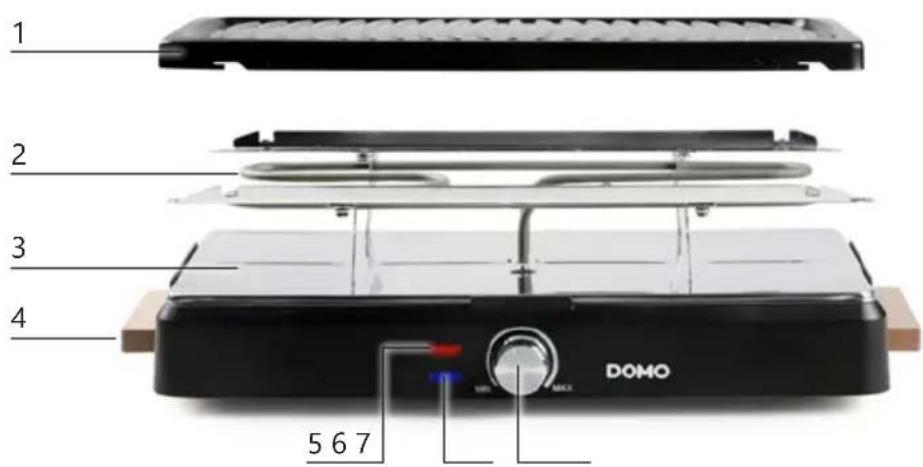

PARTS

1. Grill plate with non-stick coating
2. Heating element
3. Cooking zone for raclette pans
4. Base with wooden handles
5. On/off indicator light
6. Indicator light for heating
7. Temperature knob

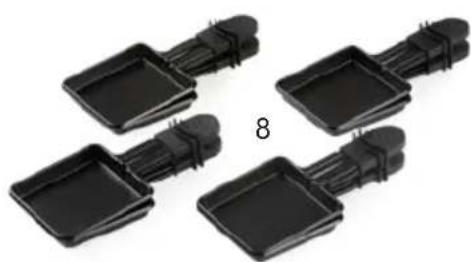

8. 8 small raclette pans
9. 8 wooden spatulas

Four black plastic tray holders arranged in a 2x2 grid, with one holder labeled '8' (no text or symbols on objects)

9

1 2 3 4 DOMO 5 6 7

BEFORE THE FIRST USE

• Remove all packing materials and carefully clean the appliance, the grill plate and the mini pans before the first use. (See "Cleaning and maintenance".)
• Use a thin layer of vegetable oil in the mini pans and on the grill plate. This will prevent sticking and cleaning after use will be easier.
• When using the appliance for the first time a small amount of smoke may be released from the heating element. This is completely normal and harmless. For this reason allow the appliance 10-30 minutes to preheat before using for the first time in order to burn any possible remaining residues.
• Place the unit preferably on a surface that is easy to clean. The surface should also be heat-resistant. Do not place the appliance on an untreated wooden surface.
• Make sure that there is enough ventilation around the grill.

USE

1. Place the appliance in the middle of the table. Make sure that the space around the appliance is properly ventilated.
2. Carefully place the griddle in the top of the holders. Make sure it is positioned firmly and straight, and that the unit itself is level and stable.
3. Make sure that the grill is switched off (position MIN). Plug into an earthed socket.
4. Use a thin layer of vegetable oil in the raclette pans and on the grill plate. This will prevent sticking and cleaning after use will be easier.
5. Let the appliance preheat for at least 10 minutes until the grill is hot enough for cooking. When the set temperature is reached, the blue light will turn off.
6. Cut meat into small squares to shorten cooking time. The thickness of the food determines the cooking time. Turn the food often to ensure even cooking.
7. Only use wooden or plastic utensils so you do not damage the anti-stick coating of the grill plate or mini pans.

SETTING OF TEMPERATURE

• You can set the temperature of the appliance as required. The temperature ranges from minimum (MIN) to maximum (MAX). A mid-way temperature is recommended.
  • This switch is also the 'on' switch, and MIN is the off position.
• Turn the temperature dial to the desired position. The red indicator light will light up once the unit is plugged in, and will stay on as long as the unit is receiving power. The blue indicator light will light up to show that the unit is heating up, and will turn off later to indicate that the unit has reached the operating temperature. When the temperature of the griddle drops, the blue light will automatically turn back on to show that the unit is heating up again.

GRILLING

• Apply a thin layer of vegetable oil to the grill plate and mini pans.
• Only use wooden or plastic utensils so you do not damage the anti-stick coating of the grill plate or mini pans.

RACLETTE

• Use a thin layer of vegetable oil on the raclette pans. This will prevent sticking and cleaning after use will be easier.
• For raclettes use approximately 200-250 g special raclette cheese per person. Cut the cheese into thin slices of 2 mm.
• Lay the cheese in the raclette raclette pans and place the mini pans on the appliance in the specially designed slots. The cheese will be ready in about 3-4 minutes. Do not overfill the pans.
• The above can be prepared with a combination of onions, gherkins, lettuce, baguettes or potatoes.
  • The raclette mini pans are also suitable for frying eggs or new potatoes (small) and even meat.
• Do not touch the pans with bare hands; use the handles.
• Do not allow heat the empty raclette pans. Empty pans are best placed outside the unit.

CLEANING AND MAINTENANCE

- Clean the appliance after every use.

- Switch off and unplug the appliance before cleaning it. Wait until the appliance has completely cooled down.

- It is recommended that all food residues be removed with a wooden spatula or a heat-resistant plastic utensil while the appliance is still hot. If the residues dry up, they will be harder to remove.

- All external surfaces can be cleaned with a damp cloth or sponge.

- Clean the grill plate and raclette pans with water and some mild detergent.

⚠️Do not use sharp objects. Only use a wooden scraper.

⚠️Make sure that water can not get into the appliance.

⚠️ Never use any aggressive or abrasive cleaning agents. These could cause damage to the non-stick surface layer on the grill plate and pans.

Do not immerse the appliance in water and never clean it in a dishwasher.

- The mini pans can be immersed in water and are dishwasher-safe.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The grill does not heat up.	Make sure the appliance is connected to a working power outlet. Check that the red light is on (the appliance is correctly connected). Then turn the thermostat knob far enough and check to see if the blue light is on (the appliance is heating up).Give the grill enough time to heat up.
Food sticks to the grill. • Make sure the grill is hot enough (the blue light turns off) when you put the meat on the grill.Give the pans and grill a thin coat of oil that can withstand heat well (vegetable, groundnut, etc.).

SPECIFICATIONS

Model DO9294G
Voltage 220-240 V~ 50-60Hz
Power 1200-1400 W
Energy consumption in off-mode after 0 minutes 0,42 W

GUIDELINES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Product display showing black plastic tray holders and beige plastic slippers with numbered labels (8 and 9) — no text or symbols present.

1 2 3 4 DOMO 5 6 7

Symbol of a trash bin crossed with two crossed lines and a black rectangular base (no text or numbers present)

Two types of plastic kitchen utensils: black plastic with handles and two beige slatted pieces, labeled 8 and 9 (no text or symbols on the items themselves)

1 2 3 4 DOMO 5 6 7

PRIMA DELL'USO

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Two types of plastic kitchen utensils: black plastic with handles and four beige slanted pieces, labeled 8 and 9 (no text or symbols on the items themselves)

1 2 3 4 DOMO 5 6 7

PŘED PRVNÍM POUŽITÍM

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Two types of plastic kitchen utensils: black plastic clips and beige slippers, arranged on a white background (no text or symbols visible)

1 2 3 4 DOMO 567

PRED PRVÝM POUŽITÍM

Symbol of a trash bin crossed with two crossed lines, no text or numbers present
