USER MANUAL AquaSub Klarstein

CLEANINGCI LEANINGLE ANINGLEAN NINGCLEAN NINGLEANINGCI GCLEANINGCI CLEANINGLE LEANINGLE ANINGLEAN

KLARSTEIN

www.klarstein.com

Sehr geehrter Kunde

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Line drawing of a robotic vacuum cleaner (no text or symbols)

Poolsaugroboter

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Adapter

Simple line drawing of a coiled wire or coil with no text or symbols

Schwimmleine

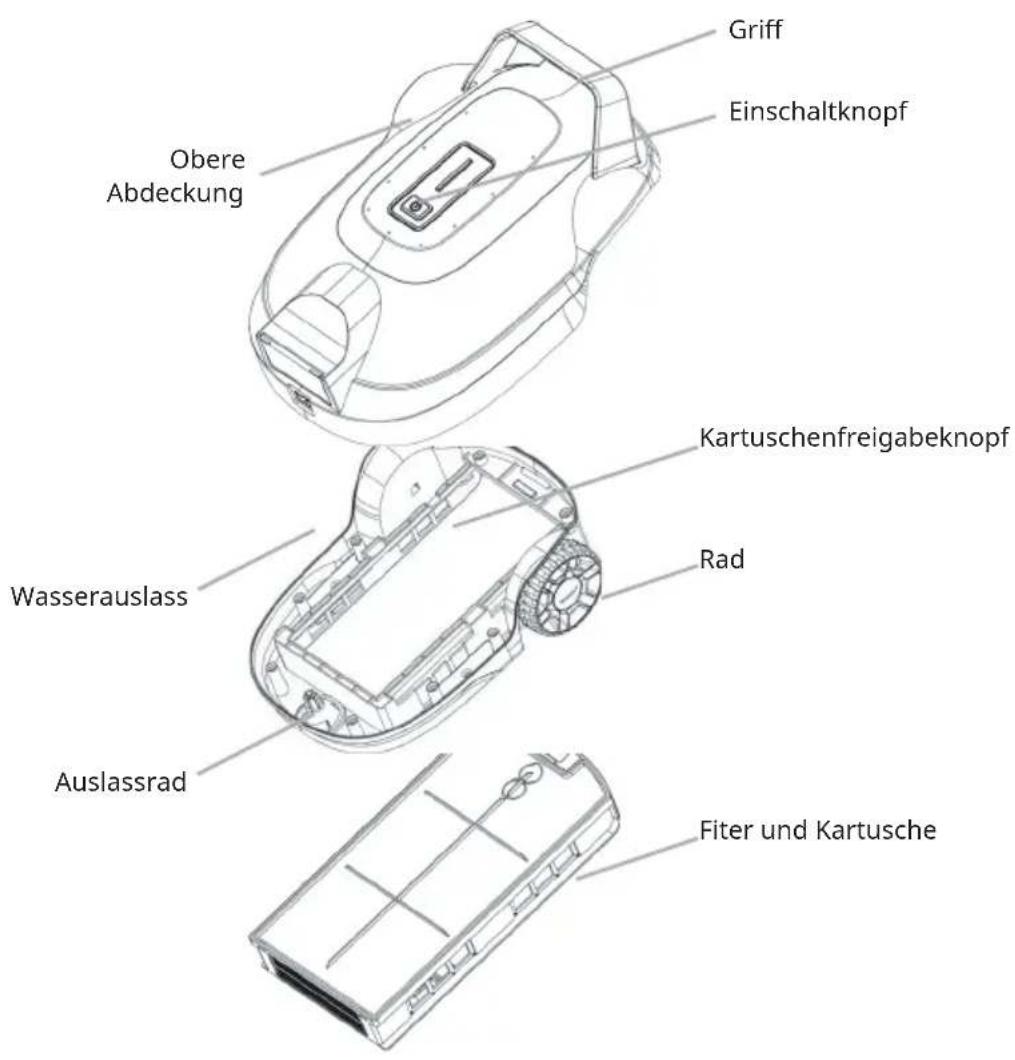

GERÄTEÜBERSICHT

Technical line drawing of a mechanical device casing with internal components (no text or symbols)

falsch

Line drawing of a mechanical device with no visible text or symbols

korrekt

KURZANLEITUNG

Line drawing of an electric vehicle connected to a wire coil (no text or symbols)

Line drawing of a robotic car with visible wheels and sensor components (no text or symbols)

Technical line drawing of a dual-chamber electronic device casing (no text or symbols)

LADEANSCHLUSS

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Großbritannien

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safty Instructions 16

Scope of Delivery 17

Product Overview 18

Operation 19

Quick Operation 20

Cleaning of Filter 21

The Charging Port 21

Troubleshooting 22

Specifications 23

Disposal Considerations 24

Manufacturer & Importer (UK) 24

SAFTY INSTRUCTIONS

• Read the manual carefully and use the machine accordingly. We shall not be liable for any loss or injury caused by improper use.
• Use only accessories recommended or sold by the manufacturer.
• This model applies only to swimming pools with flat floors.
  • Children are not allowed to ride or play with machines.
• Use only authorized power adapters.
• When charging, connect the charging adapter to the anti-leakage and corrosion-proof socket.
• Do not operate the machine when people or animals are in the pool.
  • After use, always clean the Filter.
• Shut down the machine during maintenance, cleaning or non-use.
• The machine shall be stored in a cool and ventilated place away from direct sunlight.
• When charging, put the machine in a cool place, and do not cover anything on the machine to prevent over heating from damaging internal electrical parts.
• Only certified professionals shall disassemble the sealing parts of the machine.
• Do not remove the clips to open the machine while the swimming pool is open.
• The seal of the motor contains grease. If the leakage is serious, it may cause water pollution
• Due to battery capacity limitations the machine is only applicable to water tanks up to 100 square meters, otherwise
  • cleaning effect wit be influenced.
• If the machine needs to be stored for a long time the battery/shall be charged once every three-months-to-keep-the-battery life-between 40% and 60%. Please use only the original authorized power adapter. If the machine does not charge for a long time, the battery voltage will be lower than the over discharge protection voltage due to the discharge of the battery, which may cause damage to the battery.
• Do not use or store the machine near the heat source.
• Do not pierce the machine shell with nails or other sharp objects, Do not hammer or throw the machine.
• Ensure a dry charging socket before charging.

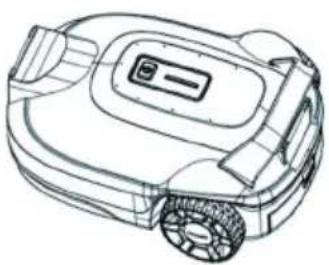

SCOPE OF DELIVERY

Line drawing of a robotic vacuum cleaner (no text or symbols)

pool vacuum robot

Technical line drawing of a mechanical or electrical component with no visible text or symbols

adapter

Simple line drawing of a coiled wire or coil with no text or symbols

floating bracelet & rope

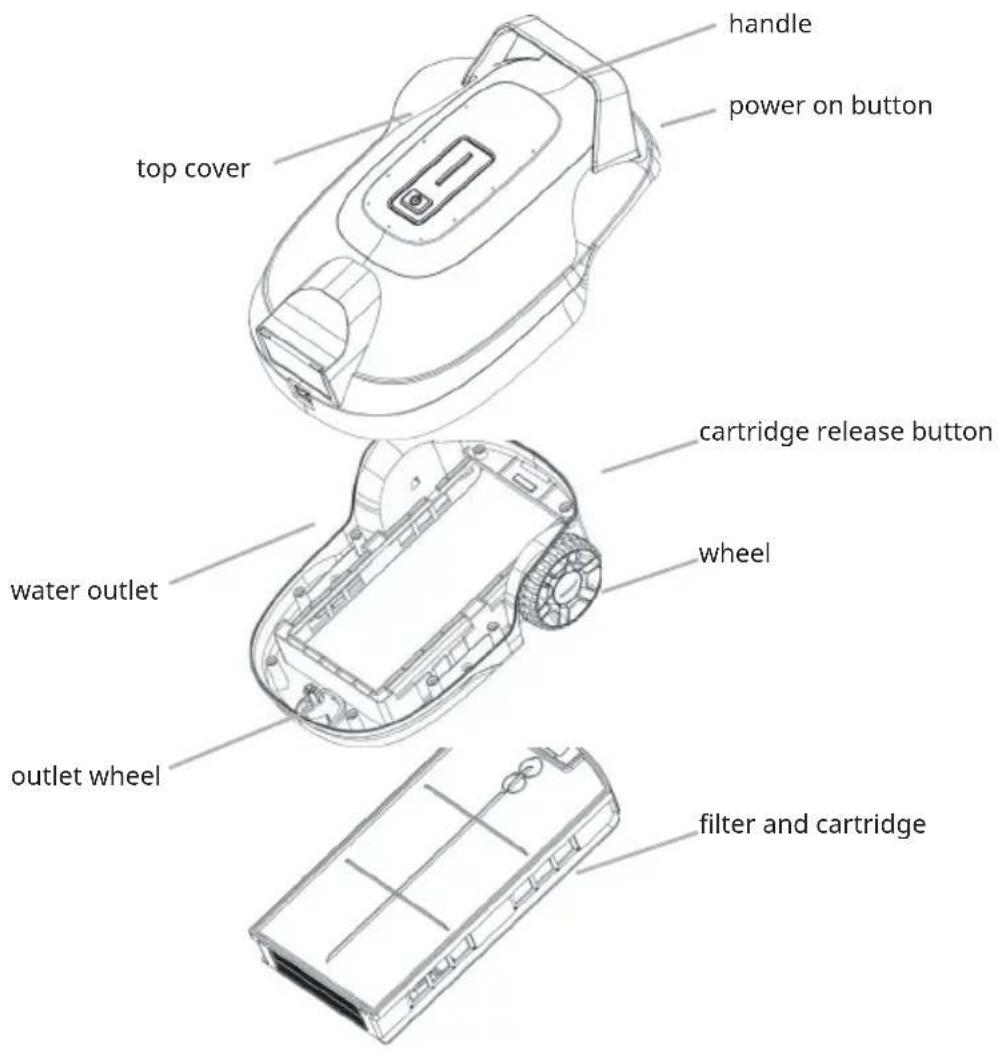

PRODUCT OVERVIEW

handle power on button top cover cartridge release button water outlet wheel outlet wheel filter and cartridge

OPERATION

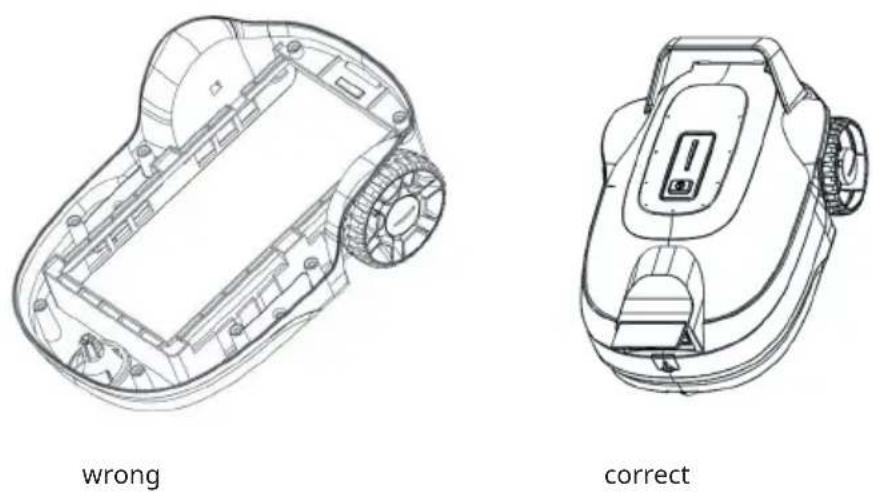

Precautions

Handhold the handle of the machine and put the machine into the pool at an angle of 45 degrees to avoid roll.

Take out the device from pool once it parking at side of pools. Avoid shortening the life of the machine by continuously placing it in water.

After using the machine, please clean the filter, wheels or other parts. Move out leaves, debries and sands.

QUICK OPERATION

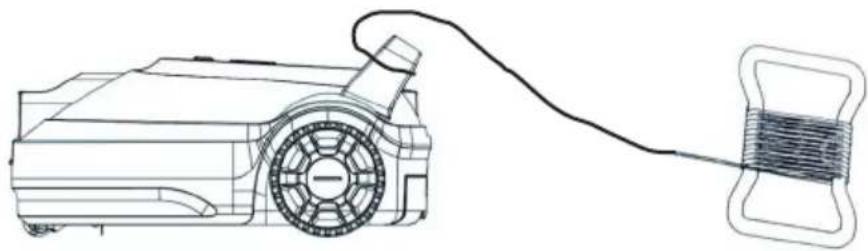

a. Install floating Bracelet

1. Adjust the length of towing rope according to the depth of the swimming pool.

2. Tie the rope to the position shown in the image.

Line drawing of an electric vehicle connected to a wire coil (no text or symbols)

1. Charge the battery by the attached adapter in the package before first using the device. Clean the charging pin before charging.

• The white light flashing quickly indicates that it is charging.

- It indicates that the charging is complete when the charging indicator light turns off.

Indicator light Status on the machine
White light keeps on Standby: press the power button
Blue light keeps on Working
Red light keeps on Low battery
Flashing White light Charging

1. Start the machine.

Press the switch and the light turn white with a sound. Now the machine is powered on to be ready to put into the water. In order to let the machine sink to the bottom smoothly, the pool vacuum robot would start working after about 20 seconds and the indicator light turns blue. After pressing the switch button, if the machine is not put into water for operation the machine will automatically shut down after 5 minutes. Press the switch again to start the machine when you want to restart the pool vacuum robot.

Function of the water outlet

There are two outlets on the machine. When the machine works normally, one opens and the other is closed, and water flows out of the open water outlet, pushing the machine forward.

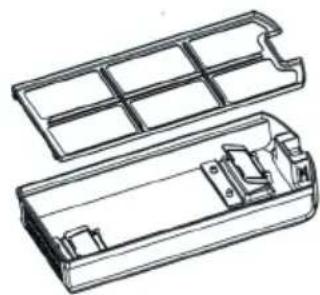

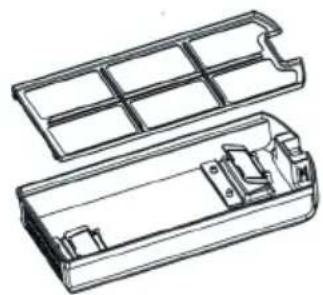

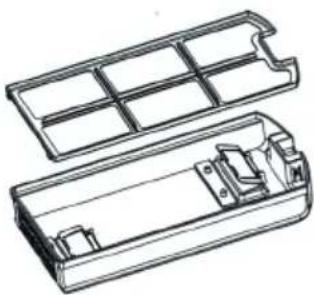

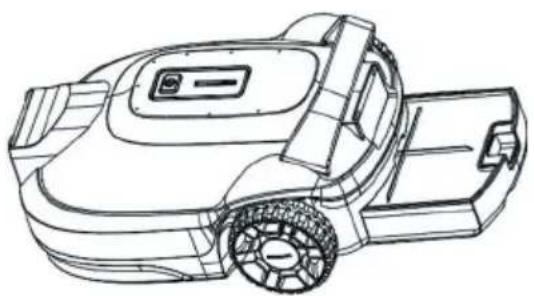

CLEANING OF FILTER

1. Pull the drawer at the tail of the machine
2. Take off the filter
3. Flush filter
4. Reassemble the drawer

Line drawing of a robotic car with visible wheels and sensor components (no text or symbols)

Technical line drawing of a dual-panel electronic device casing (no text or symbols)

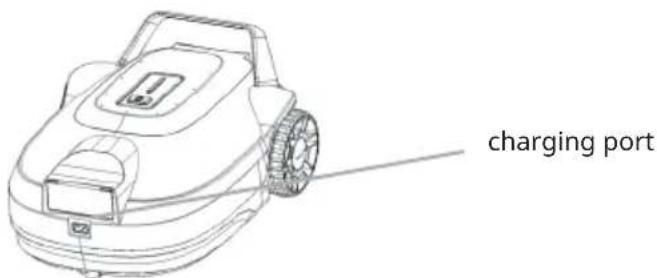

THE CHARGING PORT

1. Wipe the charging pin clean and try with tissue or cotton swab before charging with the attached adapter for device longevity.
2. The charging pin material is stainless steel 316.
3. If don't use it after summer, please make sure to charge it by every month.

charging port

TROUBLESHOOTING

Q1. What color is the indicator light when the machine is operating?

1. The stable blue indicator light indicates that the machine starts normally.
2. The blue indicator light keeps on during operation indicating that the machine is running normally.
3. The red indicator keeps on indicates that the battery is low. Please charge the machine.

Q2.Why there is no response after turning on the machine and how can I solve the problem?

1. Check whether the battery is completely discharged before use.
2. If the machine cannot be turned on after connecting the charger or fully charged.
   Please contact customer support to for further trouble shooting if the battery cannot be switched on after replacement.

Q3. Press the power button and the white light is on, waiting more than 20 seconds, why the machine is not started after putting into the pool?

1. Stop the machine, and check whether the machine is jammed with other objects.
2. Contact customer support to replace the accessories if the above troubleshooting is not working.

Q4.What color is the indicator light on when the adapter is charging?

Please note that during the charging process there are two status indications on the indicator light on the machine.

The flashing white light indicates that it is charging, and a white light off indicates that it is fully charged.

Q5.How to deal with the slow running speed of the machine and less suction?

1. Check whether the water outlet is blocked by sundries in the machine and check whether the filter is too dirty.
2. It is recommended to dean it manually first and then use the machine for daily maintenance.
3. It is recommended to dean the fine every time before and after using the machine.
4. After using the machine every time, it is recommended to charge the machine.

Q6.Why the device stopped and the light is shut down when the device is working in the pool?

This indicates the device crashed. Please take out the device from pool and cleaning the device properly, then charging the device for 10 mins before restarting the device.

Q7. The device slows down or back and forward after using a while in dirty pool.

Please cleaning the filter and cartridge, this is NOT error or fault of the device.

SPECIFICATIONS

Model 10046137
Rated workine: volatage 10.8 V
Power 45 W
Charging input 100-240 V 50/60 Hz
Charging output 24 V/1 A
Charging time 3.5-4 hours
Battery capacity 5000 mAh
Battery capacity 250 μm
Waterproof grade IPX8
Water temoerature of the oool 50 °F ~95 °F (10 C ~ 35 °C)
PH value of pool water 7.0 ~ 7.4
Maximum water depth 8.20 ft (2.5 m)
Charging ambient temperature 41F~95 F{5 °C–35 °C}
Storage temperature 4 F ~ 3 F (-20–45 °C), RH<75%
Product size 38 x 29 x 15.5 cm
Weight 3.4 kg
Working Time	90 min

DISPOSAL CONSIDERATIONS

Symbol of a trash bin with crossed lines indicating no waste, and a solid rectangle below (no text or labels)

If there is a legal regulation for the disposal of electrical and electronic devices in your country, this symbol on the product or on the packaging indicates that this product must not be disposed of with household waste. Instead, it must be taken to a collection point for the recycling of electrical and electronic equipment. By disposing of it in accordance with the rules, you are protecting the environment and the health of your fellow human beings from negative consequences. For information about the recycling and disposal of this product, please contact your local authority or your household waste disposal service.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Cher client, chère cliente,

QR code image containing encoded data, no visible human-readable text

SOMMAIRE

Line drawing of a robotic vacuum cleaner (no text or symbols)

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Adaptateur

Simple line drawing of a coiled wire or coil with no text or symbols

Ligne flottante

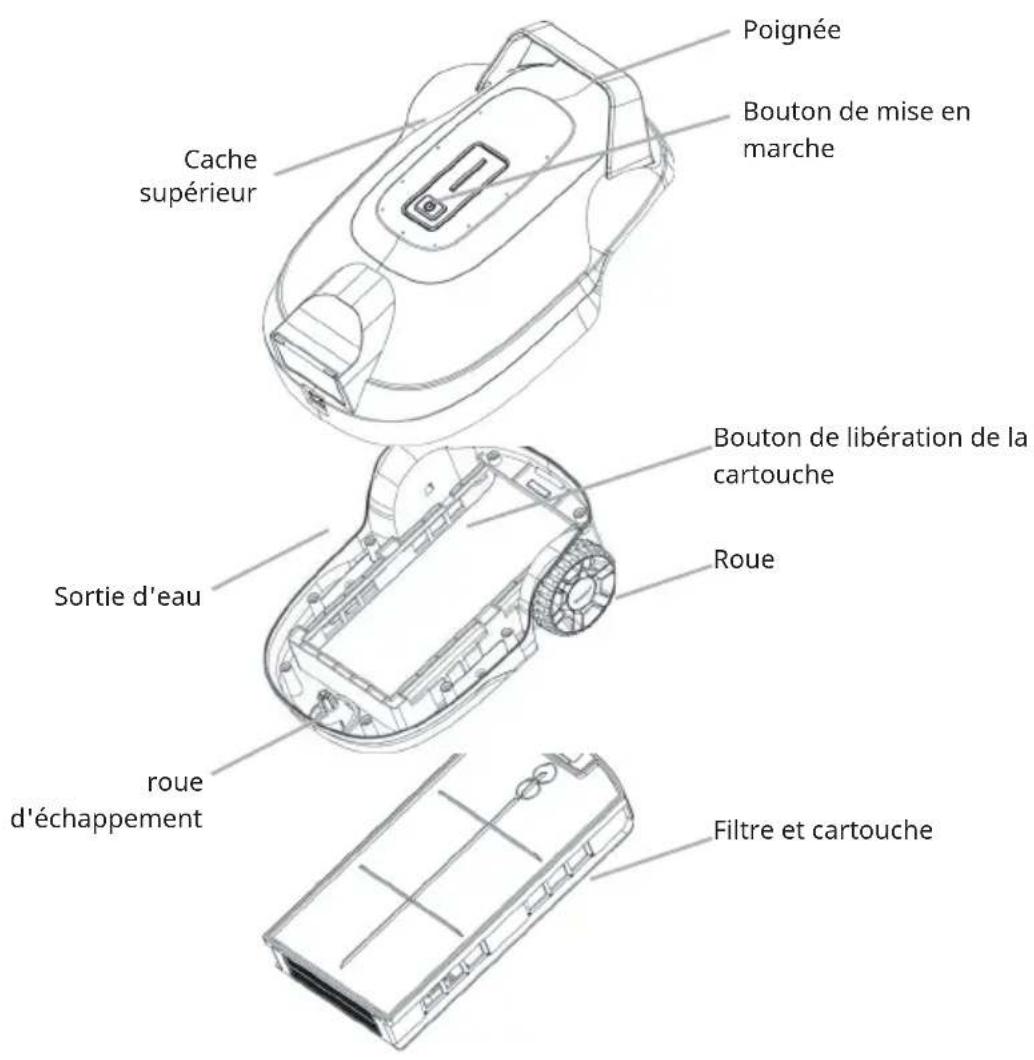

DESCRIPTIF DE L'APPAREIL

Technical line drawing of a mechanical device casing with internal components (no text or symbols)

incorrect

Line drawing of a mechanical device with no visible text or symbols

correct

GUIDE RAPIDE

Line drawing of an electric vehicle connected to a wire coil (no text or symbols)

Line drawing of a robotic car with visible wheels and sensor components (no text or symbols)

Technical line drawing of a dual-chamber electronic device casing (no text or symbols)

PRISE DE CHARGEMENT

Line drawing of a modern agricultural robot with wheels and a digital display (no text or symbols)

Prise de chargement

IDENTIFICATION ET RÉSOLUTION DES PROBLÈMES

Symbol of a trash bin with crossed x and y axes, no text or labels present

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Gentile cliente

QR code image containing encoded data, no visible human-readable text

INDICE

Line drawing of a robotic vacuum cleaner (no text or symbols)

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Adattatore

Simple line drawing of a coiled wire or coil with no text or symbols

Cavo galleggiante

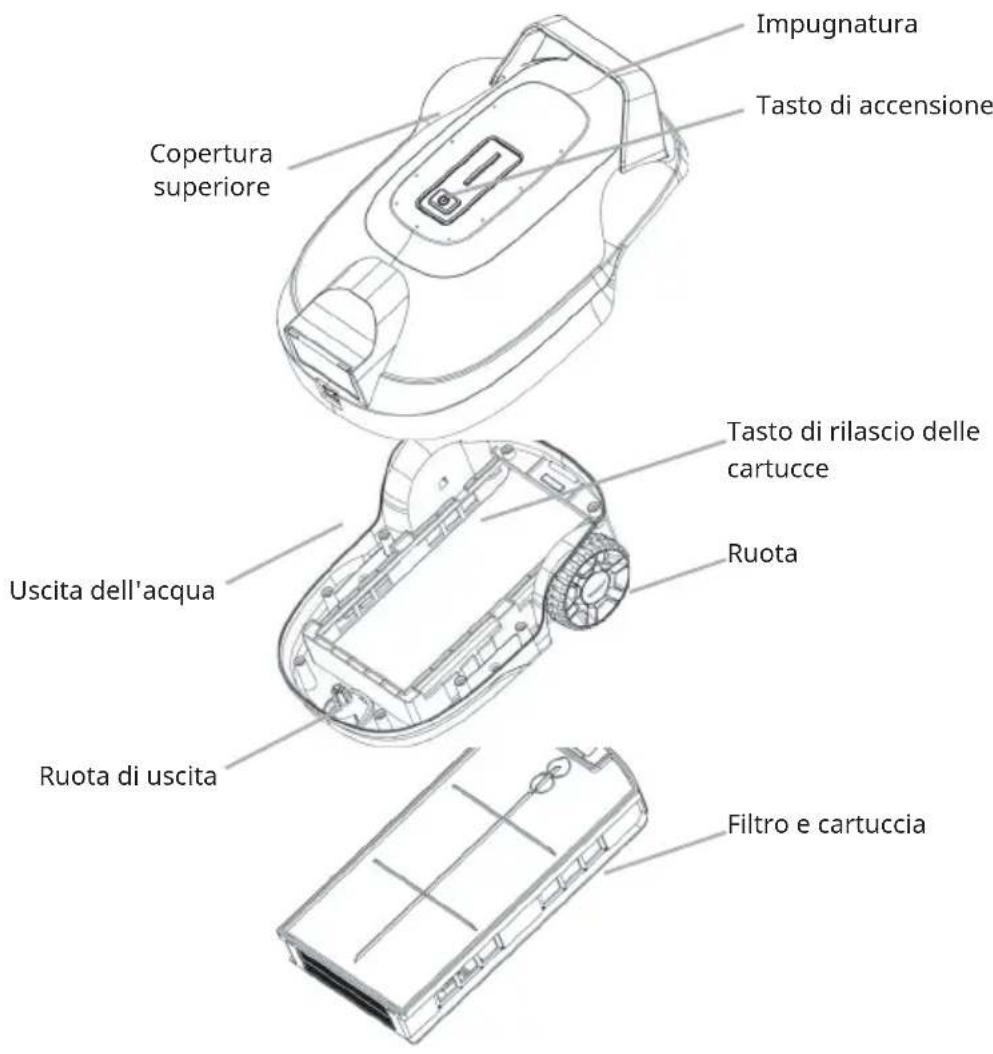

DESCRIZIONE DEL DISPOSITIVO

Line drawing of an electric vehicle connected to a wire coil (no text or symbols)

Line drawing of a robotic car with visible wheels and sensor components (no text or symbols)

Technical line drawing of a dual-chamber electronic device casing (no text or symbols)

CONNESSIONE DI CARICA

Line drawing of a modern agricultural robot with wheels and a digital display (no text or symbols)

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

Estimado cliente:

QR code image containing encoded data, no visible human-readable text

ÍNDICE

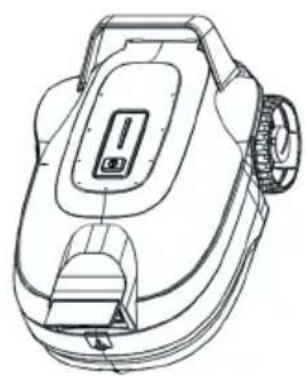

Line drawing of a robotic vacuum cleaner (no text or symbols)

Robot limpiafondos

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Adaptador

Simple line drawing of a coiled wire or coil with no text or symbols

Corchera

Technical line drawing of a mechanical device casing with internal components (no text or symbols)

mal

Line drawing of a mechanical device with no visible text or symbols

bien

GUÍA RÁPIDA

Line drawing of an electric vehicle connected to a wire coil (no text or symbols)

Line drawing of a robotic car with visible wheels and sensor components (no text or symbols)

Technical line drawing of a dual-panel electronic device casing (no text or symbols)

CONEXIÓN DE CARGA

Line drawing of a modern agricultural robot with wheels and a digital display (no text or symbols)

Conexión de carga

Symbol of a trash bin with crossed lines indicating no waste, and a solid black rectangle below (no text or labels)

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

Gran Bretaña

KLARSTEIN
