USER MANUAL BCBIM17600KSBMPS BEKO

Thank you for choosing the Beko product. We want your product, manufactured with high quality and technology, to offer you the best efficiency. Therefore, carefully read this manual and any other documentation provided before using the product.

Keep in mind all the information and warnings stated in the user's manual. This way, you will protect yourself and your product against the dangers that may occur.

Keep the user's manual. If you give the product to someone else, give the manual with it. The warranty conditions, usage and troubleshooting methods for your product are provided in this manual.

The symbols and their descriptions in the user's manual:

Hazard that may result in death or injury.

Important information or useful usage tips.

Read the user's manual.

Hot surface warning.

NOTICE Hazard that may result in material damage to the product or its environment.

Arçelik A.Ş. Karağac caddesi No:2-6 34445 Sutlüce/Istanbul/TURKEY Made in TURKEY

Table of Contents

1 Safety Instructions. 4

1.1 Intended Use. 4
1.2 Child, Vulnerable Person and Pet Safety 4
1.3 Electrical Safety. 5
1.4 Transportation Safety 7
1.5 Installation Safety. 7
1.6 Safety of Use 8
1.7 TemperatureWarnings 8
1.8 Accessory Use 9
1.9 Cooking Safety 9
1.10 Maintenance and Cleaning Safety 10
1.11 High temperature self-cleaning 11 (Pyrolysis)

2 Environmental Instructions 11

2.1 Waste Directive 11
2.1.1 Compliance with the WEEE Directive and Disposing of the Waste Product
2.2 Package Information 11
2.3 Recommendations for Energy Saving 12

3 Your product 13

3.1 Product Introduction 13
3.2 Product Control Panel Introduction and Usage 13

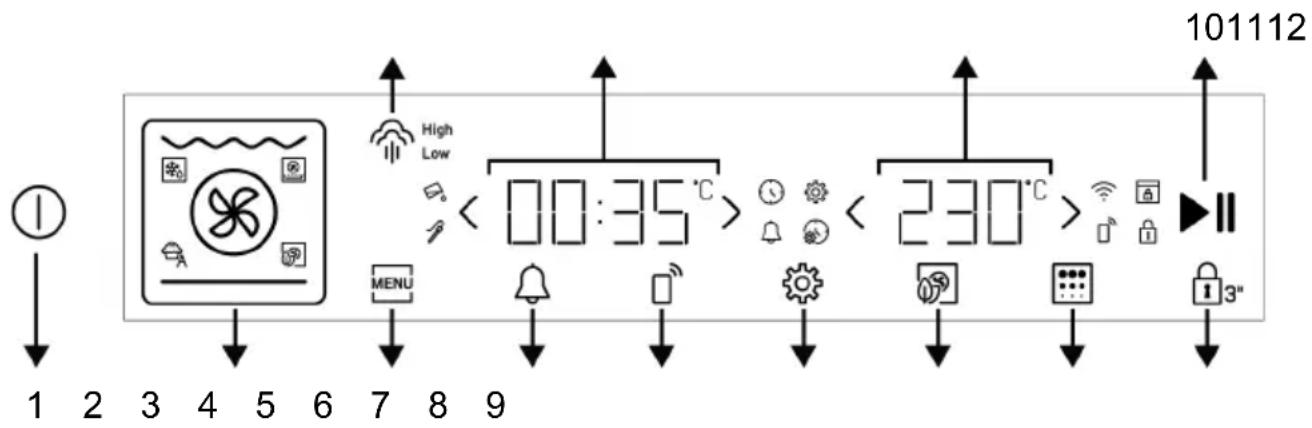

3.2.1 Control Panel 14
3.3 Oven operating functions.. 14
3.4 Product Accessories 16

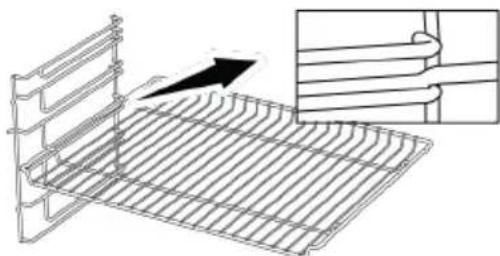

3.5 Use of Product Accessories 16
3.6 Technical Specifications 19

4 First Use 20

4.1 First Timer Setting 20
4.2 Initial Cleaning 20

5 Using the Oven 22

5.1 General Information on Using the 22 Oven
5.2 Operation of the Oven Control 22 Unit
5.3 Settings 25

6 General Information About Baking. 28

6.1 GeneralWarnings About Baking 28 in the Oven
6.1.1 Pastries and oven food 28

6.1.2 Meat, Fish and Poultry 31
6.1.3 Grill 32
6.1.4 Test foods.. 33

7 Maintenance and Cleaning. 34

7.1 General Cleaning Information.... 34
7.2 Cleaning Accessories.. 35
7.3 Cleaning the Control Panel.. 35
7.4 Cleaning the inside of the oven 36 (cooking area)

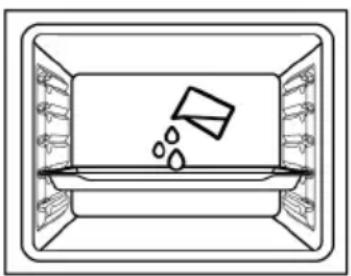

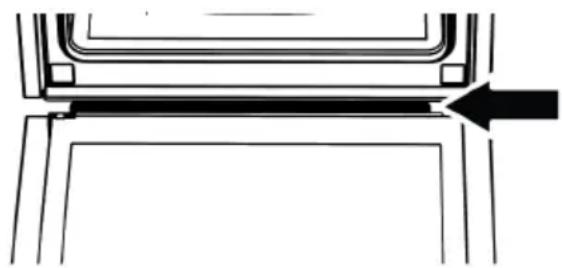

7.5 Easy Steam Cleaning 36
7.6 High temperature self-cleaning .... 37

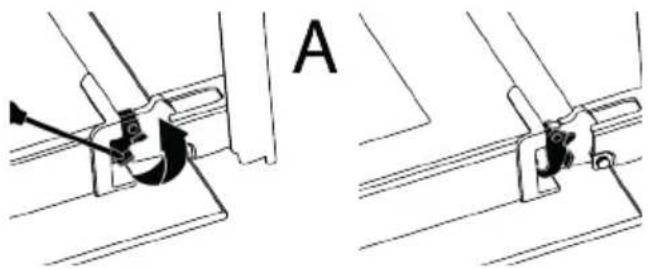

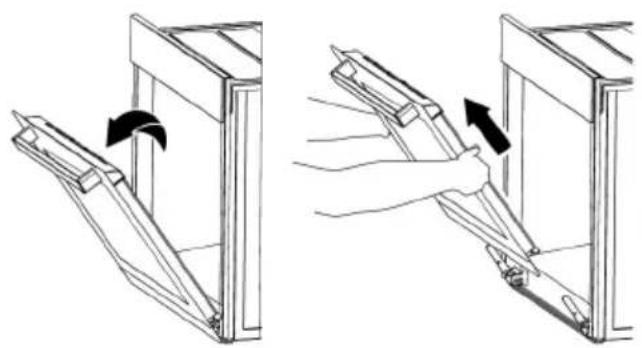

7.7 Cleaning the Oven Door 38

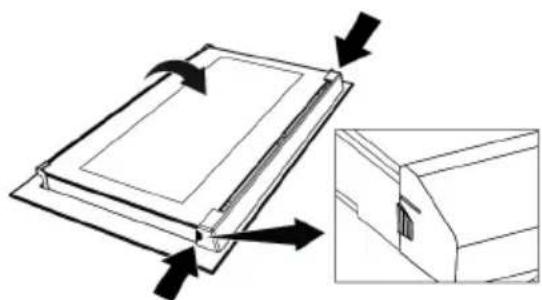

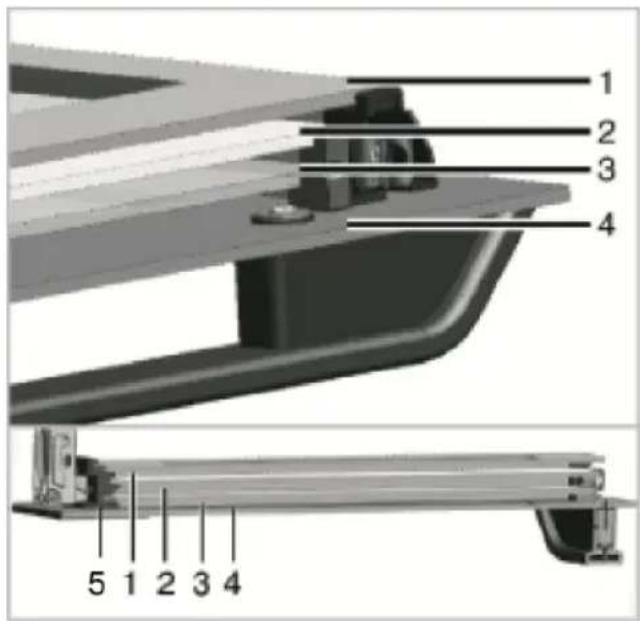

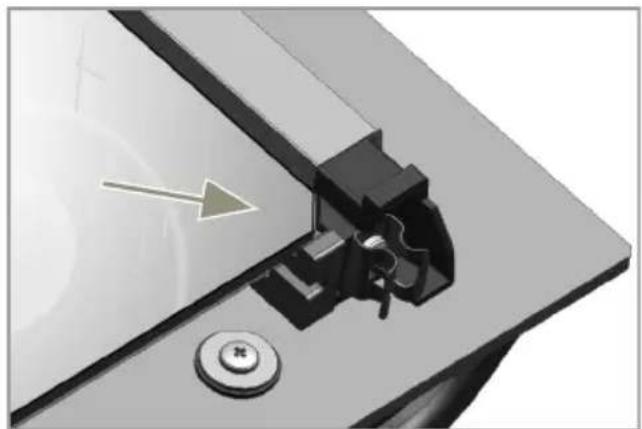

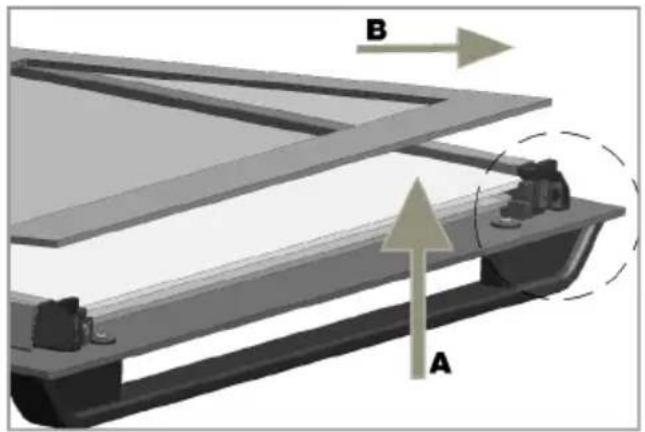

7.8 Removing the Inner Glass of The 39 Oven Door

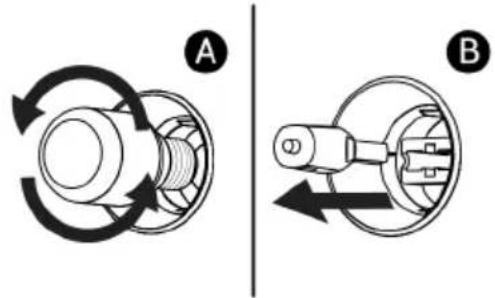

7.9 Cleaning the Oven Lamp 40

8 Troubleshooting 41

1 Safety Instructions

EN

• This section includes the safety instructions necessary to prevent the risk of personal injury or material damage.
• If the product is handed over to someone else for personal use or second-hand use purposes, the user's manual, product labels and other relevant documents and parts should also be given.
• Our company shall not be held responsible for damages that may occur if these instructions are not observed.
• Failure to follow these instructions shall void any warranty.
• Always have the installation and repair works made by the manufacturer, the authorised service or a person that the importer company shall designate.
• Use original spare parts and accessories only.
• Do not repair or replace any component of the product unless it is clearly specified in the user's manual.
• Do not make technical modifications on the product.

1.1 Intended Use

• This product is designed to be used at home. It is not suitable for commercial use.
• Do not use the product in gardens, balconies or other outdoors. This product is intended to be used in households and in the staff kitchens of shops, offices and other working environments.
• CAUTION: This product should be used for cooking purposes only. It should not be used for different purposes, such as heating the room.
• The oven can be used to defrost, bake, fry and grill food.
• This product should not be used for plate heating, drying by hanging towels or clothes on the handle.

1.2 Child, Vulnerable Person and Pet Safety

• This product can be used by children 8 years of age and older, and people who are underdeveloped in physical, sensory or mental skills, or who have lack of experience and knowledge, as long as they are supervised or trained about the safe use and hazards of the product.

• Children should not play with the product. Cleaning and user maintenance should not be performed by children unless there is someone overseeing them.

• This product should not be used by people with limited physical, sensory or mental capacity (including children), unless they are kept under supervision or receive the necessary instructions.
• Children should be supervised to ensure that they do not play with the product.
• Electrical products are dangerous for children and pets. Children and pets must not play with, climb on, or enter the product.
• Do not put objects that children may reach on the product.
• CAUTION: During use, the accessible surfaces of the product are hot. Keep children away from the product.
• Keep the packaging materials out of the reach of children. There is a hazard of injury and suffocation.

• When the door is open, do not put any heavy objects on it or allow children to sit on it. You may cause the oven to tip over or damage the door hinges.

• Before discarding worn out and useless products:

• Unplug the power plug and remove it from the socket.
• Cut off the power cable and disconnect it with the plug from the product.
• Take precautions to prevent children from entering the product.
• Do not allow children to play with product when it is in idle mode.

1.3 Electrical Safety

• Plug the product into a grounded outlet protected by a fuse that matches the current ratings indicated on the type label. Have the grounding installation made by a qualified electrician. Do not use the product without grounding in accordance with local / national regulations.

• The plug or the electrical connection of the appliance shall be in an easily accessible place. If this is not possible, there should be a mechanism (fuse, switch, key switch, etc.) on the electrical installation to which the product is connected, in compliance with the electrical regulations and separating all poles from the network.

• Unplug the product or switch off the fuse before repair, maintenance and cleaning.

• Plug the product into an outlet that meets the voltage and frequency values specified on the type label.
• (If your product does not have a mains cable) only use the connecting cable described in the "Technical specifications" section.
• Do not jam the power cable under and behind the product. Do not put a heavy object on the power cable. The power cable should not be bent, crushed, and come into contact with any heat source.
• Make sure that the power cable is not jammed while putting the product to its place after assembly or cleaning.
• The rear surface of the oven gets hot when it is in use. The power cables must not touch the rear surface of the product. Otherwise it might get damaged.
• Do not jam the electric cables into the oven door and do not pass them over hot surfaces. Otherwise, cable insulation may melt and cause fire as a result of short circuit.

• Use original cable only. Do not use cut or damaged cables.

• Do not use an extension cord or multi-plug to operate your product.

• Contact the authorized service centre or importer to use the approved adapter in cases where the use of a converter adapter (for plug type) is necessary.
• Contact the importer or the authorized service centre if the length of the power line is inadequate.
• Portable power sources or multiple plugs may overheat and catch fire. Keep multiple plugs and portable power sources away from the product.
• If the power cable is damaged, it must be replaced by the manufacturer, an authorized service or a person to be specified by the importer company in order to prevent possible dangers.
• CAUTION: Before replacing the oven lamp, be sure to disconnect the product from the mains supply to avoid the risk of electric shock. Unplug the product or turn off the fuse from the fuse box.

If your product has a power cable and plug:

• Never put the product plug into a broken, loose, or out-of-socket plug. Make sure the plug is fully inserted into the socket. Otherwise the connections may overheat and cause a fire.
• Avoid inserting the device into plugs that are greasy, unclean, or potentially exposed to water (such as those near a worktop where water may escape). Otherwise there is a risk of short circuit and electrocution.
• Never touch the plug with wet hands!
• Pull the plug out of the socket using the plug's body rather than the cord itself.

1.4 Transportation Safety

• Disconnect the product from the mains before transporting the product.
• The product is heavy, carry the product with at least two people.
• Do not use the door and / or handle to transport or move the product.
• Do not place items on the appliance. Carry the appliance vertically.
• When you need to transport the product, wrap it with bubble wrap packaging mater

ial or thick cardboard and tape it tightly. Secure the moving parts of the product firmly to prevent damage.
- Before the product is installed, check the product for any damage after transport. Contact the importer or the authorized service centre if damaged.

1.5 Installation Safety

• Before beginning the installation, de-energize the power line to which the product will be connected by turning off the fuse.
• Always wear protective gloves during transport and installation. Otherwise there is a risk of injury from sharp edges!
• Before the product is installed, check the product for any damage. Do not have it installed if the product is damaged.
• Avoid using any heat-insulating materials to cover the interior of the furniture that will be installed.
• Direct sunlight and heat sources, such as electric or gas heaters, must not be present in the area where the product is installed.

• Keep the surroundings of all ventilation ducts of the product open.

• To avoid overheating, product installation should not be carried out behind decorative covers.

• In cases where a gas hose/ pipe or plastic water pipe is situated behind the designated installation area for the product, it is imperative to guarantee that there is no contact between the product and these utility lines. Otherwise the hose/pipe may be crushed.
• If there is a socket behind the place where the product will be installed, it must be ensured that the product does not come into contact with the socket nor with the plug plugged into the socket.

1.6 Safety of Use

• Ensure that the appliance is switched off after every use.
• If you will not use the product for a long time, unplug it or turn off the power from the fuse box.

• Don't use the product if it breaks down or gets damaged while being used. Disconnect the product from the electricity. Contact the importer or the authorized service centre.

• Do not use the product if the front door glass is removed or cracked. Otherwise there is a risk of injury and environmental damage.

• Do not step on the appliance for any reason.
• Never use the product when your judgement or coordination is impaired by the use of alcohol and/or drugs.
• Flammable objects must not be kept in and around the cooking area. Otherwise, these may lead to fire.
• The oven handle is not a towel dryer. When using the product, do not hang towels, gloves or similar textiles on the handle.
• The hinges of the product door move when opening and closing the door and might jam. When opening / closing the door, do not hold the part with the hinges.

1.7 TemperatureWarnings

• CAUTION: When the product is in use, the product and its accessible parts will be hot. Care should be taken to avoid touching the product and heating elements. Children under 8 years of age should be kept away from the product unless constantly supervised.

• Do not place flammable / explosive materials near the product, as the surfaces will be hot while it is operating.

• Keep your distance when opening the oven door during or at the end of cooking. The steam may burn your hand, face and/or eyes.
• During operation the product is hot. Care should be taken to avoid touching hot parts, inside of the oven and heating elements.
• Always wear heat-resistant oven gloves when handling the product.

1.8 Accessory Use

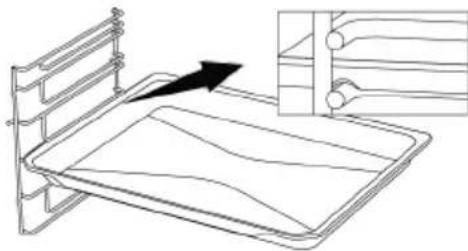

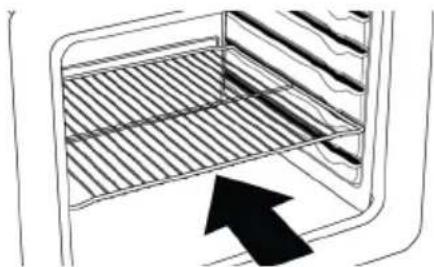

• It is important that the wire grill and tray are placed properly on the wire shelves. For detailed information, refer to the section "Usage of accessories".
• Close the oven door after pushing the accessories completely into the cooking space, otherwise they may hit the door glass and damage it.

1.9 Cooking Safety

• Be careful when using alcoholic drinks in your dishes. Alcohol evaporates at high temperatures and may cause fire

since it can ignite when it comes into contact with hot surfaces.

• Food residues in the cooking area., such as oil, can ignite. Clean these residues before cooking.
• Food Poisoning Hazard: Do not let food sit in oven for more than 1 hour before or after cooking. Otherwise it may cause food poisoning or diseases.
• Do not heat closed tins and glass jars in the oven. The pressure that would build-up in the tin/jar may cause it to burst.
• Do not place baking trays, dishes or aluminium foil directly onto the bottom of the oven. The accumulated heat might damage the bottom of the oven.

Be mindful of the following precautions when using greasy parchment paper or similar materials:

• Place the greaseproof paper in a cookware or on the oven accessory (tray, wire grill, etc.) with food and place it in the preheated oven.
• To prevent the risk of touching the oven heating elements and obstructing the flow of hot air, remove any excess parts of

greaseproof paper that hang from accessories or containers. Do not use greaseproof paper at oven temperatures higher than the maximum usage temperature specified by the manufacturer. Never place greaseproof paper on the oven base.

• Do not place it on top of accessories during preheating.
• Always press down with a plate or similar object to prevent the material from flying around due to the air circulation inside the oven.
• Only cover the necessary surface inside the tray.
• After each use, the tray should be cleaned, and any greaseproof paper or similar materials used in the tray should be replaced. Otherwise, liquids dripping onto the tray can cause smoking or even ignite flames.
• An air flow is generated when the product lid is opened. Greaseproof paper can come into contact with heating elements and ignite.
• When using a grilling rack for frying, a tray should be placed on the lower rack. Otherwise, the food oil and other compon

ents that drip onto the oven bottom can create heavy smoke and lead to flames.

• Close the oven door during grilling. Hot surfaces may cause burns!
• Food not suitable for grilling carries a fire hazard. Grill only food that is suitable for heavy grill fire. Do not place the food too far in the back of the grill. This is the hottest area and fatty foods may catch fire.

1.10 Maintenance and Cleaning Safety

• Wait for the product to cool before cleaning the product. Hot surfaces may cause burns!
• Never wash the product by spraying or pouring water on it! There is the risk of electric shock!
• Do not use steam cleaners to clean the product as this may cause an electric shock.
• Do not use harsh abrasive cleaners, metal scrapers, wire wool or bleach materials to clean the oven front door glass. These materials can cause glass surfaces to be scratched and broken.

1.11 High temperature self-cleaning (Pyrolysis)

• During self-cleaning, the surfaces become hotter than in standard use. Keep children away.
• Hot surfaces cause burns! Do not touch the product during self-cleaning and keep children away from the product. Wait at least 30 minutes before removing the residue.
• During self-cleaning, smoke will be released due to the burning of food residues. Ventilate your kitchen well during the cleaning process.

2 Environmental Instructions

2.1 Waste Directive

2.1.1 Compliance with the WEEE Directive and Disposing of the Waste Product

This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waste electrical and electronic equipment (WEEE).

This product has been manufactured with high quality parts and materials which can be reused and are suitable for recycling. Therefore, do not dispose of the waste product with nor

mal domestic and other wastes at the end of its service life. Take it to a collection point for the recycling of electrical and electronic equipment. You can ask your local administration about these collection

• Before starting the cleaning, clean the outer surfaces of the oven and the food residues inside the oven with soapy cloth. Remove all accessories and cooking utensils from the oven. If your product has a pyro proof accessory (resistant to high temperature self-cleaning), you do not need to remove these accessories from the oven.
• If there is a hob over your oven, do not operate the hob during prolysis.

points. Disposing of the appliance properly helps prevent negative consequences for the environment and human health.

Compliance with RoHS Directive:

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

2.2 Package Information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging waste with the household or other wastes, take it to the packaging material collection points designated by the local authorities.

2.3 Recommendations for Energy Saving

According to EU 66/2014, information on energy efficiency can be found on the product receipt supplied with the product. The following suggestions will help you use your product in an ecological and energy-efficient way:
- Defrost frozen food before baking.
- In the oven, use dark or enamelled containers that transmit heat better.
- If specified in the recipe or user's manual, always preheat. Do not open the oven door frequently during baking.

• Turn off the product 5 to 10 minutes before the end time of baking in prolonged bakings. You can save up to 20% electricity by using residual heat.
• Try to cook more than one dish at a time in the oven. You may cook at the same time by placing two cookers on the wire rack. In addition, if you cook your meals one after the other, it will save energy because the oven will not lose its heat.
• Do not open the oven door when baking in the "Eco fan heating" operating function. If the door is not opened, the internal temperature is optimized to save energy in the "Eco fan heating" operating function, and this temperature may differ from what is shown on the display.

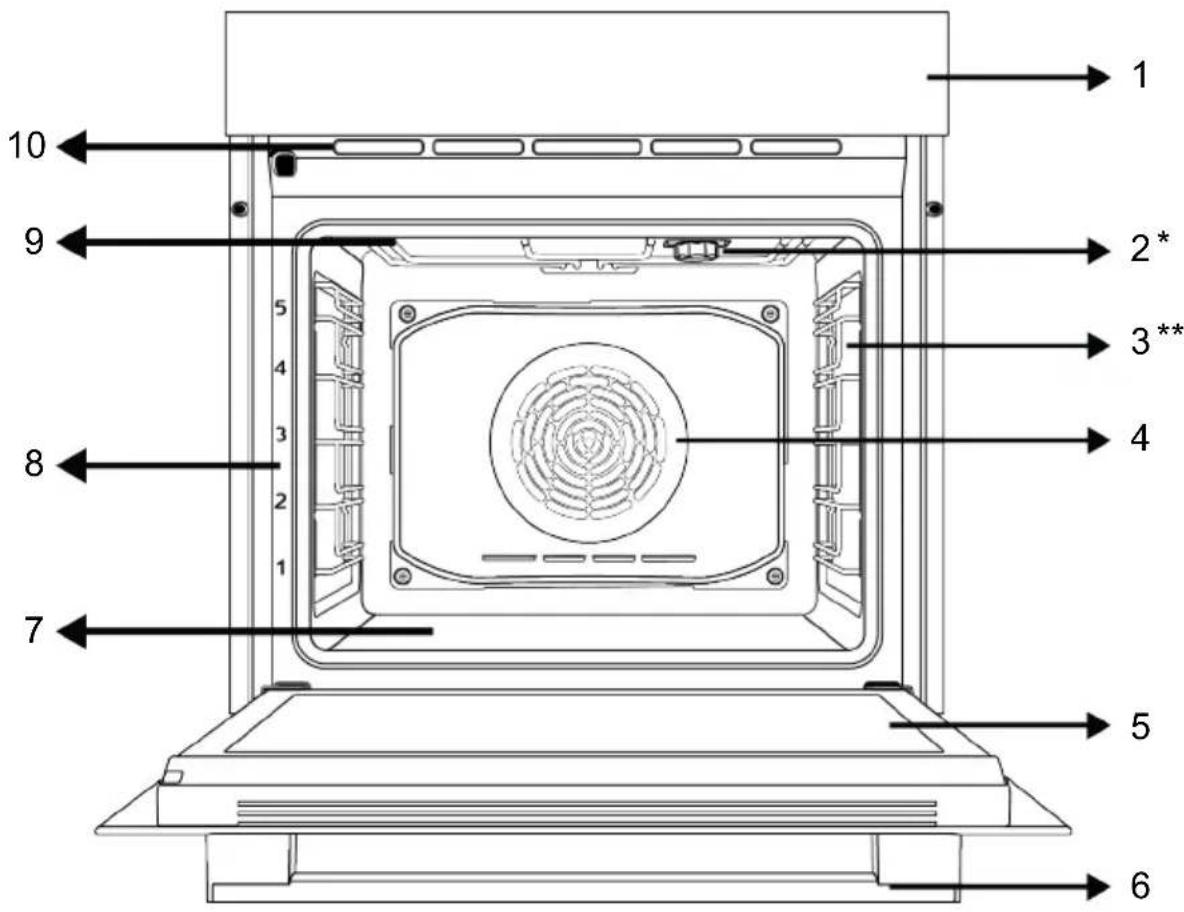

3.1 Product Introduction

1 Control panel 2 Lamp

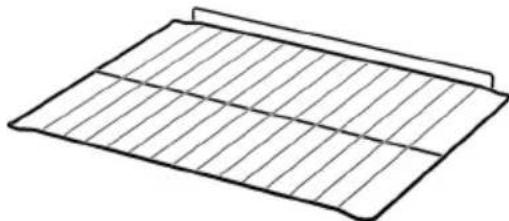

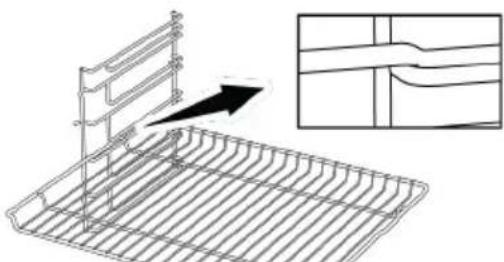

3 Wire shelves 4 Fan motor (behind the steel plate)
5 Door 6 Handle

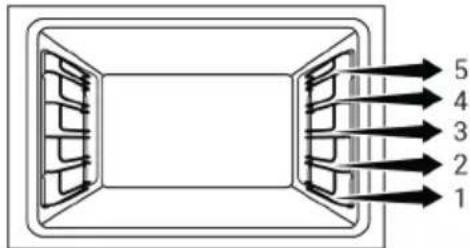

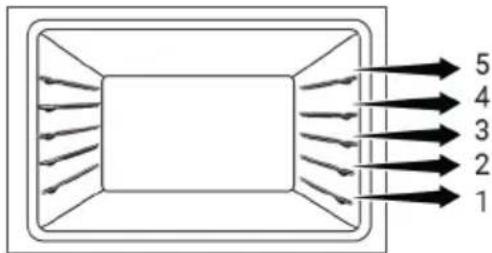

7 Lower heater (under the steel plate) 8 Shelf positions
9 Upper heater 10 Ventilation holes

• Varies depending on the model. Your product may not be equipped with a lamp, or the type and location of the lamp may differ from the illustration.

** Varies depending on the model. Your product may not be equipped with a wire rack. In the image, a product with wire rack is shown as an example.

3.2 Product Control Panel Introduction and Usage

In this section, you can find the overview and basic uses of the product's control panel. There may be differences in images and some features depending on the type of product.

3.2.1 Control Panel

EN

1 On/off key 2 Touch display

If there are knob(s) controlling your product, in some models this/these knob(s) may be so that they come out when pushed (buried knobs). For settings to be made with these knobs, first push the relevant knob in and pull out the knob. After making your adjustment, push it in again and replace the knob.

3.3 Oven operating functions

On the function table, the operating functions you can use in your oven and the highest and lowest temperatures that can be set for these functions are shown. The order of the operating modes shown here may differ from the arrangement on your product.

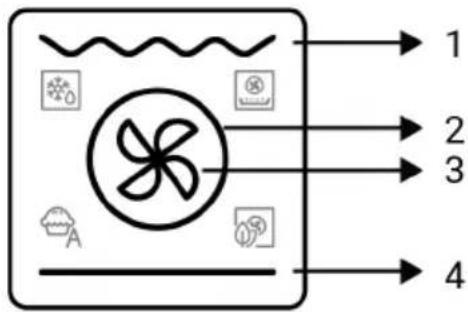

Function display

You can create your product's cooking functions by touching and selecting on the display below. The selected and active heaters will light up in red. The bottom and heaters are activated when touched once. It switches between different heaters and functions for the fan motor and fan heater with a few touches. The heater combinations you select will direct you to the

defined functions. Some of your selections will continue to work differently because they are not defined. Some functions are only can be selected for use via the "Home-Whiz" application. Detailed information about the operating functions that can be used in the product is given in a table.

1 Top heater
2 Fan heater (with fan motor)
3 Fan motor
4 Bottom heater
Operating with fan- symbol
Eco fan heating- symbol
Airfry-symbol*
Automatic cooking function (SmartBakePro)-symbol
It varies depending on the product model. It may not be available on your product.

Function symbol	Function description	Temperature range (℃)	Description and use
	Operating with fan -		The oven is not heated. Only the fan (on the back wall) operates. Frozen food with granules is slowly defrosted at room temperature, cooked food is cooled. The time required to de-frost a whole piece of meat is longer than for foods with grains.
	Top and bottom heating	40-280	Food is heated from above and below at the same time. Suitable for cakes, pastries or cakes and stews in baking moulds. Cooking is done with a single tray.
	Bottom heating 40-220		Only lower heating is on. It is suitable for foods that need browning on the bottom. This function should also be used for easy steam cleaning.
	Fan assisted bottom/top heating	40-280	The hot air heated by the upper and lower heaters is distributed equally and rapidly throughout the oven with the fan. Cooking is done with a single tray.
	Fan Heating 40-280		The hot air heated by the fan heater is distributed equally and rapidly throughout the oven with the fan. It is suitable for multi-tray cooking at different shelf levels.
	Eco fan heating 160-220		In order to save energy, you can use this function instead of using "Fan Heating" in the range of 160-220°C. But; cooking time will be slightly longer.
	Pizza function 40-230		The lower heater and fan heating work. It is suitable for cooking pizza.
	"3D" function 40-280		Upper heating, lower heating and fan heating functions operate. Each side of the product to be cooked is cooked equally and quickly. Cooking is done with a single tray.
	Full grill 40-280		The large grill on the oven ceiling works. It is suitable for grilling in large amounts.
	Fan assisted full grill 40-280		The hot air heated by the large grill is quickly distributed into the oven with the fan. It is suitable for grilling in large amounts.
	Pyrolysis - economy mode		It is used for self-cleaning of the oven at high temperature. It is recommended to use when the oven is slightly dirty. Look at the specifications in the maintenance and cleaning section for this function.
	Pyrolysis -		It is used for self-cleaning of the oven at high temperature. Look at the specifications in the maintenance and cleaning section for this function.

EN

The functions that can be selected via the "HomeWhiz" application are as follows. These functions may vary depending on the model. Not all of them may be used in your product.

Function definition Definition and use
Low grill The small grill	on the oven ceiling works. It is suitable for grilling smaller quantities.
Keep warm It is used to	keep food at serviceable temperature for a long time.
Bread function It is used	to bake bread. The set temperature and time cannot be changed.
Automatic cooking function (Smart-BakePro)	You can cook the meals defined for your product with this function without making temper- ature, function and time adjustments. The defined meal list is explained in the following sections.
Air fry	Hot air heated by the fan heater is distributed evenly and quickly to all parts of the oven by the fan. It is suitable for multi-tray cooking at different shelf levels. Thanks to the rapid air distribution with this function, you can fry with little or no oil.

3.4 Product Accessories

There are various accessories in your product. In this section, the description of the accessories and the descriptions of the correct usage are available. Depending on the product model, the supplied accessory varies. All accessories described in the user's manual may not be available in your product.

The trays inside your appliance may be deformed with the effect of the heat. This has no effect on the functionality. Deformation disappears when the tray is cooled.

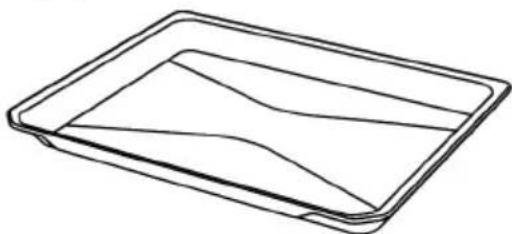

Standard tray

It is used for pastries, frozen foods and frying large pieces.

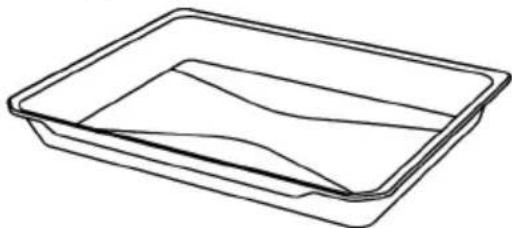

Deep tray

It is used for pastries, frying large pieces, juicy food or for the collection of flowing oils when grilling.

Wire grill

It is used for frying or placing the food to be baked, fried and stewed on the desired shelf.

On models with wire shelves :

On models without wire shelves :

3.5 Use of Product Accessories

Cooking shelves

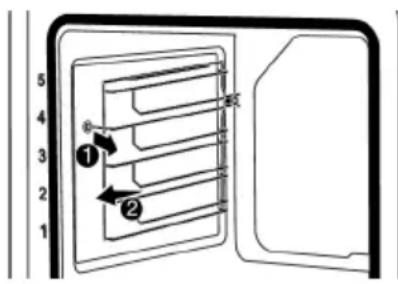

There are 5 levels of shelf position in the cooking area. You can also see the order of the shelves in the numbers on the front frame of the oven.

On models with wire shelves :

On models without wire shelves :

Placing the wire grill on the cooking shelves

On models with wire shelves :

It is crucial to place the wire grill on the wire side shelves properly. While placing the wire grill on the desired shelf, the open section must be on the front. For better cooking, the wire grill must be secured on the wire shelf's stopping point. It must not pass over the stopping point to contact with the rear wall of the oven.

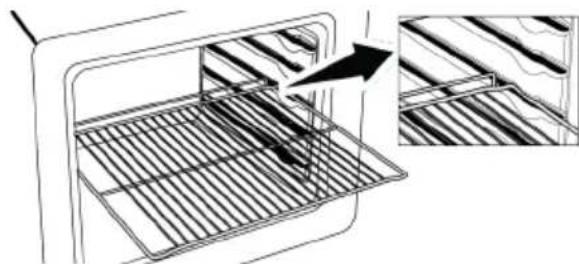

On models without wire shelves :

It is crucial to place the wire grill on the side shelves properly. The wire grill has one direction when placing it on the shelf. While placing the wire grill on the desired shelf, the open section must be on the front.

Placing the tray on the cooking shelves

On models with wire shelves :

It is also crucial to place the trays on the wire side shelves properly. While placing the tray on the desired shelf, its side designed for holding must be on the front. For better cooking, the tray must be secured on

the stopping socket on the wire shelf. It must not pass over the stopping socket to contact with the rear wall of the oven.

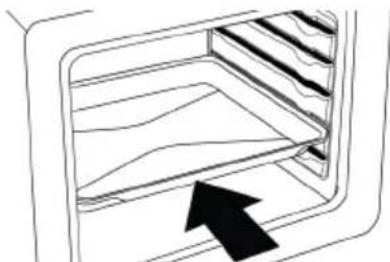

On models without wire shelves :

It is also crucial to place the trays on the side shelves properly. The tray has one direction when placing it on the shelf. While placing the tray on the desired shelf, its side designed for holding must be on the front.

Stopping function of the wire grill

There is a stopping function to prevent the wire grill from tipping out of the wire shelf. With this function, you can easily and safely take out your food. While removing the wire grill, you can pull it forward until it reaches the stopping point. You must pass over this point to remove it completely.

On models with wire shelves :

On models without wire shelves :

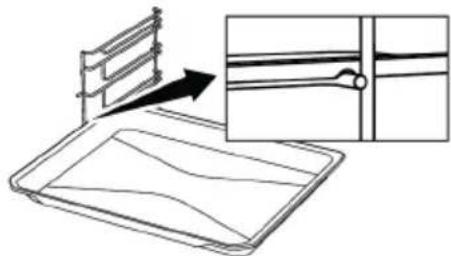

Tray stopping function - On models with wire shelves

There is also a stopping function to prevent the tray from tipping out of the wire shelf. While removing the tray, release it from the rear stopping socket and pull it towards yourself until it reaches the front side. You must pass over this stopping socket to remove it completely.

Proper placement of the wire grill and tray on the telescopic rails-On models with wire shelves and telescopic models

Thanks to telescopic rails, trays or the wire grill can be easily installed and removed. When using trays and wire grills with the telescopic rail, care should be taken that the pins on the front and back of the telescopic rails, rest against the edges of the grill and the tray (shown in the figure).

3.6 Technical Specifications

EN

General specifications
Product external dimensions (height/width/depth) (mm)	595 /594 /567
Oven installation dimensions (height / width / depth) (mm)	590-600 /560 /min. 550
Voltage/Frequency 220-240 V ~; 50 Hz
Cable type and section used/suitable for use in the product	min. H05VV-FG 3 x 1,5 mm2
Total power consumption (kW) 3,3
Oven type Multifunction oven

Basics: Information on the energy label of home type electrical ovens is given in accordance with the EN 60350-1 / IEC 60350-1 standard. The values are determined in Top and bottom heating or (if present) Fan assisted bottom/top heating functions with the standard load.

Energy efficiency class is determined in accordance with the following prioritization depending on whether the relevant functions exist on the product or not. 1-Eco fan heating, 2-Fan Heating, 3-Fan assisted low grill, 4-Top and bottom heating.

Technical specifications may be changed without prior notice to improve the quality of the product.

Figures in this manual are schematic and may not exactly match your product.

Values stated on the product labels or in the documentation accompanying it are obtained in laboratory conditions in accordance with relevant standards. Depending on operational and environmental conditions of the product, these values may vary.

4 First Use

Before you start using your product, it is recommended to do the following stated in the following sections respectively.

4.1 First Timer Setting

Always set the time of day before using your oven. If you do not set it, you cannot cook in some oven models.

1. Turn on the oven by touching the key.
2. Activate the bottom keys by touching the key.

1. Touch the key until the symbol appears on the display.

The clock field and the symbol flash on the display.

1. Touch the keys of the hour/time display area to set the time of day and touch the key again to activate the minute field.

The minute field and the symbol flash on the display.

The keys of the clock/time display area and the temperature display area will be activated and visible when you move your hand closer to the screen.

1. Touch the keys of the hour/time display area to set the minutes and touch the key again to confirm the setting.

The time of day setting is confirmed and the display returns to the initial startup display.

①

If the initial time setting is not made, the time of day will start to increase from 12:00. You can change the time of day setting later as described in the "Settings" section.

In the event of a long power outage, the time of day setting is cancelled. It should be set again.

4.2 Initial Cleaning

1. Remove all packaging materials.
2. Remove all accessories from the oven provided with the product.
3. Operate the product for 30 minutes and then, turn it off. This way, residues and layers that may have remained in the oven during production are burned and cleaned.
4. When operating the product, select the highest temperature and the operating function that all the heaters in your product operate. See "Oven operating functions [14]. You can learn how to operate the oven in the following section.
5. Wait for the oven to cool.
6. Wipe the surfaces of the product with a wet cloth or sponge and dry with a cloth.

EN

Before using the accessories:

Clean the accessories you remove from the oven with detergent water and a soft cleaning sponge.

NOTICE: Some detergents or cleaning agents may cause damage to the surface. Do not use abrasive detergents, cleaning powders, cleaning creams or sharp objects during cleaning.

NOTICE: During the first use, smoke and odour may come up for several hours. This is normal and you just need good ventilation to remove it. Avoid directly inhaling the smoke and odours that form.

EN

5.1 General Information on Using the Oven

Cooling fan ( It varies depending on the product model. It may not be available on your product.)

Your product has a cooling fan. The cooling fan is activated automatically when necessary and cools both the front of the product and the furniture. It is automatically deactivated when the cooling process is finished. Hot air comes out over the oven door. Do not cover these ventilation openings with anything. Otherwise, the oven may overheat. The cooling fan continues to operate during oven operation or after the oven is turned off (approximately 20-30 minutes). If you cook by programming the oven timer, at the end of the baking time, the cooling fan turns off with all functions. The cooling fan running time cannot be determined by the user. It turns on and off automatically. This is not an error.

Oven lighting

The oven lighting is turned on when the oven starts baking. In some models, the lighting is on during baking, while in some models it turns off after a certain time.

If the product door is opened while the oven is operating or in the closed position, the oven lighting turns on automatically.

5.2 Operation of the Oven Control Unit

General warnings for the oven control unit

• The maximum time that can be set for the end of the cooking process is 5:59 hours. In the keep warm function, this time is 23:59 hours. In the event of a power outage, the set cooking and cooking time will be cancelled.
• While any adjustment is being made, the relevant symbols flash on the display. To save the adjustments, either touch the relevant key in the description or wait for a short while.
• If the cooking time is set when cooking starts, the remaining time is shown on the display. If the cooking time is not set, the elapsed time is shown on the display. In some operating functions, rapid preheating is set. The elapsed time or cooking times start to appear on the display when the rapid preheating is completed and the oven inner temperature reaches the set temperature.

Control unit

1 On/off key 2 Function display
3 Menu key 4 Alarm key
5 Remove control key 6 Settings key
7 Eco fan heating key 8 High heat cleaning button
9 Key lock key 10 Baking start/stop key
1 Temperature indicator area 12 Timer/duration indicator area
3 Steam key

EN

Increase key

Decrease key

Baking time symbol

Alarm symbol

Settings symbol

Time of day symbol

Key lock symbol

Temperature symbol

Wifi symbol *

Meat probe symbol

Door lock symbol *

Remove control symbol *

Low level steam symbol *

High level steam symbol *

Add water warning symbol *

• It varies depending on the product model. It may not be available on your product.

Turning on the oven

Turn on the oven by touching the key. The first splash display appears.

If no settings are made regarding the oven on this display, the oven will turn off after a certain period of time and the time of day will appear on the display.

Turning off the oven

Turn off the oven by touching the key. The time of day appears on the display.

Manual cooking by selecting temperature and oven operating function

You can cook your food by manually controlling it (under your own control) without setting a cooking time by selecting the temperature and operating function specific to your meal.

1. Turn on the oven by touching the key.
2. Create the operating function according to the heaters you want to operate via the function display. You can find detailed information about creating a operating function in the Oven operating functions [▶ 14] section.

To cook in the Eco fan heating function, selection cannot be used via the function display. To activate the Eco fan heating function, activate the bottom keys by touching the key. Select this operating function by touching the key. You can set the temperature and time as in the following steps.

1. When the oven reaches the set temperature, the "green" color on the display "Eco fan heating" turns to "white".
2. The predefined temperature for the operating function you created appears on the display. To change this temperature, touch the keys of the temperature display area.

①

The / keys of the clock/time display area and the temperature display area will be activated and visible when you move your hand closer to the screen.

If you change the operating function after changing the predefined temperature for the operating functions, the last set temperature will appear on the display. However, if the set temperature is not within the temperature range of the selected operating function, the recommended temperature for that operating function will appear.

1. After the working function and temperature are set, touch the key to start cooking.

①

Your oven starts working immediately in the function you created and the temperature you set. Fast preheating is defined in some operating functions. An animation is displayed on the display during preheating. When preheating is complete, when the oven interior temperature reaches the set temperature, a short animation is displayed on the screen and a short beep is heard. After the beep, the elapsed time starts to appear on the display. Since manual cooking is done without setting the cooking time, the oven does not turn off automatically. You need to control the cooking yourself and turn it off. When your cooking is complete, touch the key to end the cooking or touch the key to turn the oven off completely.

Cooking by adjusting the cooking time;

By selecting the temperature and operating function specific to your meal and setting the cooking time via the control unit, you can have the oven automatically turn off at the end of the time.

1. Turn on the oven by touching the key.
2. Create the operating function according to the heaters you want to operate via the function display. You can find detailed information about creating a operating function in the Oven operating functions [▶ 14] section.

①

1. The predefined temperature for the operating function you created appears on the display. To change this temperature, touch the keys of the temperature display area.

①

The / keys of the clock/time display area and the temperature display area will be activated and visible when you move your hand closer to the screen.

If you change the operating function after changing the predefined temperature for the operating functions, the last set temperature will appear on the display. However, if the set temperature is not within the temperature range of the selected operating function, the recommended temperature for that operating function will appear.

1. Touch the keys of the clock/time display area to set the cooking time.

The symbol appears on the display.

To quickly set the cooking time, after setting the operating function and temperature, you can activate the cooking time as 30 minutes by touching the key of the clock/ time display area and change the time with the keys.

Cooking time increases by 1 minute in the first 15 minutes, and by 5 minutes after 15 minutes.

1. After setting the working function, temperature and cooking time, touch the key to start cooking.

①

1. Your oven starts working immediately with the function you have created and the temperature you have set. Some operating functions have a fast preheating feature. An animation is displayed on the display during preheating. When preheating is complete, when the oven interior temperature reaches the set temperature, a short animation is displayed on the display and a short beep is heard. After the beep, the cooking time starts to count down on the display. After the set cooking time is completed, the displays "End", an audible warning is heard and cooking stops.
2. The audible signal will sound for two minutes. If the key is touched while the audible signal is sounding and the "End" text is displayed on the display, the oven will continue to operate indefinitely. If the key is touched, the oven

will turn off. If any key other than these keys is touched, the audible signal will be stopped.

EN

5.3 Settings

Activating key lock

By using the key lock feature, you can prevent intervention to the control unit during cooking. The key lock cannot be made when cooking is not in progress.

1. While cooking in your oven, touch the key that appears on the display.

The temperature display area shows a 3-2-1 countdown. After the countdown is complete, the key lock is activated and the symbol appears on the display.

When the key lock is active, other keys on the control unit cannot be used except the key.

Deactivating the key lock

1. Touch the key on the display.
2. Touch the key until the symbol disappears from the display.

The symbol disappears from the display and the key lock is deactivated.

Setting the alarm

You can also use the control unit of the product for any warning or reminder purpose other than cooking.

The alarm clock has no effect on the oven's operating functions. It is used for warning purposes. For example, you can use the alarm clock when you want to turn the food in the oven at a certain time. As soon as the time you set is up, the clock will give an audible warning.

The maximum alarm duration can be 23 hours and 59 minutes.

1. Turn on the oven by touching the key.
2. Activate the bottom keys by touching the key.

1. Touch the key to set the alarm time.

The symbol starts flashing on the display.

1. Set the alarm time by touching the < keys of the time/time display area. Touch the key again to confirm the setting.

The alarm time is set and the symbol is constantly lit on the display. You must touch the key again to see the remaining alarm time.

1. After the alarm period is completed, the symbol begins to flash and an audible warning is heard.

Turning off the alarm

1. At the end of the alarm time, the audible signal will sound for two minutes. Touch any key to stop the audible signal.
   The audible signal is silenced.

If you want to cancel the alarm;

1. Touch the key to reset the alarm time. Touch the key until "00:00" appears on the display.

Adjusting the volume

You can adjust the volume of the control unit. To make this adjustment, your oven must not be cooking.

1. Turn on the oven by touching the key.
2. Activate the bottom keys by touching the key.

1. Touch the key until b-1, b-2 or b-3 appears on the display.

The symbol flashes on the display.

1. Adjust the desired tone by touching the < / × keys of temperature display area.
2. Confirm the setting by touching the key or touch the key to move on to the next setting.

Adjusting the display brightness

You can adjust the brightness of the control unit display. To make this adjustment, your oven must not be in cooking mode.

1. Turn on the oven by touching the key.
2. Activate the bottom keys by touching the key.

1. Tap the key until d-1, d-2 or d-3 appears on the display.

The symbol flashes on the display.

1. Adjust the desired brightness by touching the keys of the temperature display area. (d-1, d-2, d-3)
2. Confirm the setting by touching the key or touch the key to move on to the next setting.

Connecting the oven to the wireless network and introduction to the "Home-Whiz"application

Connect your oven to a wireless network with a smart device you can check it via the "HomeWhiz" application. To do this, first install the "HomeWhiz" application on your smart device. The "HomeWhiz" application is available on IOS and Android mobile operating systems.

After downloading the "HomeWhiz" application, you need to create your own home by following the application steps.

You can connect your oven to the wireless network and enable remote control by following the steps given in the application.

1. Turn on the oven by touching the key.
2. Activate the bottom keys by touching the key.

1. Touch the and keys simultaneously for about 3 seconds.

When the oven enters setup mode, the 3-2-1 countdown appears on the temperature display area and the symbol flashes on the display.

1. Open the "HomeWhiz" application you have installed on your smart device. After creating your own home, select the oven under kitchen products, enter the

stock number of your product in the application and follow the steps on the application.

EN

The product stock number is the number starting with "77..." located at the bottom of the front cover of the manual.

1. Complete the introduction of your oven to the application by following the application steps.

When the connection is complete, the symbol will light up continuously.

Activating remote control of the oven

After introducing it to the "HomeWhiz" application, your oven remote control can be done:

1. While the symbol is visible on the display, touch the key once.

The symbol appears on the display along with the symbol.

If the symbol is not visible on the screen, touch the key until the symbol appears on the display.

If the symbol appears on the display but an error signal is heard when the key is touched and the symbol does not appear on the display or the symbol flashes, check the internet connection you have connected the product to. If the internet connection is good and the problem persists, repeat the installation steps.

Deleting the matching of "HomeWhiz" connected oven

After you add your product to the "HomeWhiz" application, the information about your product will match with the user account you used for "HomeWhiz". In order to delete the match if you lose access to the account you use in the application or for other reasons, the following steps must be taken.

1. Turn on the oven by touching the key.
2. Activate the bottom keys by touching the key.

1. Touch the and keys for about 5 seconds.

A countdown from 5 appears on the display.

1. Once the countdown is complete, a match deletion animation will appear on the display.
2. Once the pairing deletion process is completed without any problems, a warning sound will be heard and your oven will restart.

If a problem occurs during the match deletion process and the process cannot be completed, an error sound will be heard.

1. After the matching deletion process is completed, restart the product you can introduce to your "HomeWhiz" account.

6 General Information About Baking

You can find tips on preparing and cooking your food in this section.

Plus, this section describes some of the foods tested as producers and the most appropriate settings for these foods. Appropriate oven settings and accessories for these foods are also indicated.

6.1 GeneralWarnings About Baking in the Oven

While opening the oven door during or after baking, hot-burning steam may emerge. The steam may burn your hand, face and/or eyes. When opening the oven door, stay away.
- Intense steam generated during baking may form condensed water drops on the interior and exterior of the oven and on the upper parts of the furniture due to the temperature difference. This is a normal and physical occurrence.
- The cooking temperature and time values given for foods may vary depending on the recipe and amount. For this reason, these values are given as ranges.
- Always remove unused accessories from the oven before you start cooking. Accessories that will remain in the oven may prevent your food from being cooked at the correct values.

• For foods that you will cook according to your own recipe, you can reference similar foods given in the cooking tables.
• Using the supplied accessories ensures you get the best cooking performance. Always observe the warnings and information provided by the manufacturer for the external cookware you will use.
• Cut the greaseproof paper you will use in your cooking in suitable sizes to the container you will cook. Greaseproof papers that are overflowing from the container can create a risk of burns and affect the quality of your baking. Use the greaseproof paper you will use in the temperature range specified.
• For good baking performance, place your food on the recommended correct shelf. Do not change the shelf position during baking.

6.1.1 Pastries and oven food

General Information

• We recommend using the accessories of the product for a good cooking performance. If you will use an external cookware, prefer dark, non-sticking and heat resistant ware.

• If preheating is recommended in the cooking table, be sure to put your food in the oven after preheating.

• If you will cook by using cookware on the wire grill, place it in the middle of the wire grill, not near the back wall.

• All materials used in making pastry should be fresh and at room temperature.
• The cooking status of the foods may vary depending on the amount of food and the size of the cookware.
• Metal, ceramic and glass moulds extend the cooking time and the bottom surfaces of pastry foods do not brown evenly.
• If you are using baking paper, a small browning can be observed on the bottom surface of the food. In this situation, you may have to extend your cooking period by approximately 10 minutes.
• The values specified in the cooking tables are determined as a result of the tests carried out in our laboratories. Values suitable for you may differ from these values.
• Place your food on the appropriate shelf recommended in the cooking table. Refer to the bottom shelf of the oven as shelf 1.

Tips for baking cakes

• If the cake is too dry, increase the temperature by 10^ and shorten the baking time.

• If the cake is moist, use a small amount of liquid or reduce the temperature by 10^ .

• If the top of the cake is burnt, put it on the lower shelf, lower the temperature and increase the baking time.
• If the inside of the cake is cooked well, but outside is sticky, use less liquid, decrease the temperature and increase the cooking time.

Hints for pastry

• If the pastry is too dry, increase the temperature by 10^ and shorten the cooking time. Wet the dough sheets with a sauce consisting of milk, oil, egg and yoghurt mixture.
• If the pastry is getting cooked slowly, make sure that the thickness of the pastry you have prepared does not overflow the tray.
• If the pastry is browned on the surface but the bottom is not cooked, make sure that the amount of sauce you will use for the pastry is not too much at the bottom of the pastry. For an even browning, try to spread the sauce evenly between the dough sheets and the pastry.
• Bake your pastry in the position and temperature appropriate to the cooking table. If the bottom is still not browned enough, place it on a bottom shelf for the next cooking.

Cooking table for pastries and oven foods Suggestions for baking with a single tray

Food Accessory to	be used	Operating func- tion	Shelf position Tem	perature (℃) Baking	time (min) (approx.)
Cake on the tray Standard tray *		Top and bottom heating	3 180 30 ... 45
Cake in the mould	Cake mould on wire grill** **	Fan Heating 2 180	30 ... 40
Small cakes Standard tray *		Top and bottom heating	3 160 25 ... 35
Small cakes Standard tray * Fan Heating 3 150 25 ... 35
Sponge cake	Round springform pan, 26 cm in dia-meter on wire grill **	Top and bottom heating	2 150 30 ... 40

Food Accessory to	be used	Operating func- tion	Shelf position Temperature (℃) Baking time (min) (approx.)
Sponge cake	Round springform pan, 26 cm in dia-meter on wire grill **	Fan Heating 2 150	35 ... 45
Cookie Pastry tray	*	Top and bottom heating	3 170 25 ... 40
Cookie Pastry tray	* Fan Heating 3 170	20 ... 30
Rich pastry Standard	tray *	Top and bottom heating	2 200 30 ... 40
Rich pastry Standard	tray *	Fan assisted bot- tom/top heating	2 180 35 ... 45
Dough pastry Standard	tray *	Top and bottom heating	2 200 20 ... 35
Dough pastry Standard	tray * Fan Heating	3 180 20 ... 30
Whole bread Standard	tray *	Top and bottom heating	3 200 30 ... 45
Whole bread Standard	tray * Fan Heating	3 200 30 ... 40
Lasagne	Glass / metal rectangular con- tainer on wire grill **	Top and bottom heating	2 or 3 200 30 ... 45
Apple pie	Round black metal mould, 20 cm in diameter on wire grill **	Top and bottom heating	2 180 50 ... 70
Apple pie	Round black metal mould, 20 cm in diameter on wire grill **	Fan Heating 3 170	50 ... 65
Pizza Standard tray	*	Top and bottom heating	3 280 5 ... 9
Pizza Standard tray	* Pizza function 2	280 5 ... 10

EN

Preheating is recommended for all food.
These accessories may not be included with your product.
*These accessories are not included with your product. They are commercially available accessories.

Suggestions for cooking with two trays

Food Accessory to	be used	Operating func- tion	Shelf position Tem	perature (℃) Baking	time (min) (approx.)
Small cakes	2-Standard tray * 4-Pastry tray *	Fan Heating 2 - 4 1	50 25 ... 35
Cookie	2-Standard tray * 4-Pastry tray *	Fan Heating 2 - 4 1	70 25 ... 35
Rich pastry	1-Standard tray * 4-Pastry tray *	Fan Heating 1 - 4 1	80 40 ... 50
Dough pastry	2-Standard tray * 4-Pastry tray *	Fan Heating 2 - 4 1	80 20 ... 30

Preheating is recommended for all food.

*These accessories may not be included with your product.

**These accessories are not included with your product. They are commercially available accessories.

Cooking table with operating function "Eco fan heating"

• Do not change the temperature setting after starting cooking in the operating function "Eco fan heating".

• Do not open the oven door when cooking in the "Eco fan heating" operating function. If the door does not open, the internal temperature is optimized to save energy, and this temperature may differ from what is shown on the display.

• Do not preheat in the "Eco fan heating" operating function.

Food Accessory to be	used Shelf position Temperature (°C) Baking time (min)		(approx.)
Small cakes Standard tray * 3 160 25 ... 35
Cookie Standard tray * 3 180 25 ... 35
Rich pastry Standard tray * 3 200 45 ... 55
Dough pastry Standard tray * 3 200 35 ... 45

These accessories may not be included with your product.
*These accessories are not included with your product. They are commercially available accessories.

6.1.2 Meat, Fish and Poultry

The key points on grilling

• Seasoning it with lemon juice and pepper before cooking whole chicken, turkey and large pieces of meat will increase cooking performance.
• It takes 15 to 30 minutes more to cook boned meat than fillet by frying.
• You should calculate about 4 to 5 minutes of cooking time per centimetre of the meat thickness.

Cooking table for meat, fish and poultry

After the cooking time is expired, keep the meat in the oven for approximately 10 minutes. The juice of the meat is better distributed to the fried meat and does not come out when the meat is cut.
- Fish should be placed on the medium or low level shelf in a heat resistant plate.
Cook the recommended dishes in the cooking table with a single tray.

Food Accessory to	be used	Operating func- tion	Shelf position Tem	perature (°C) Baking	time (min) (approx.)
Steak (whole) / Roast (1 kg)	Standard tray *	Fan assisted bot- tom/top heating	3	15 mins. 250/ max, after 180 ... 190	60 ... 80
Lamb's shank (1,5-2 kg)	Standard tray *	Fan assisted bot- tom/top heating	3 170	85 ... 110
Fried chicken (1,8-2 kg)	Wire grill * Place one tray on a lower shelf	Fan assisted bot- tom/top heating	2	15 mins. 250/ max, after 190	60 ... 80
Fried chicken (1,8-2 kg)	Wire grill * Place one tray on a lower shelf	"3D" function	2	15 mins. 250/ max, after 190	60 ... 80
Turkey (5.5 kg) Standard tray *		Fan assisted bot- tom/top heating	1	25 mins. 250/ max, after 180 ... 190	150 ... 210
Turkey (5.5 kg) Standard tray * "3D" function 1				25 mins. 250/ max, after 180 ... 190	150 ... 210
Fish	Wire grill * Place one tray on a lower shelf	Fan assisted bot- tom/top heating	3 200 20 ... 30
Fish	Wire grill * Place one tray on a lower shelf	"3D" function 3 200	20 ... 30

Preheating is recommended for all food.
These accessories may not be included with your product.
*These accessories are not included with your product. They are commercially available accessories.

6.1.3 Grill

Red meat, fish and poultry meat quickly turns brown when grilled, holds a beautiful crust and does not dry out. Fillet meats, skewer meats, sausages as well as juicy vegetables (tomatoes, onions, etc.) are particularly suitable for grilling.

General warnings

• Food not suitable for grilling carries a fire hazard. Grill only food that is suitable for heavy grill fire. Also, do not place the food too far in the back of the grill. This is the hottest area and fatty foods may catch fire.
• When the preheating time is 5 minutes in the grill mode, skip the preheating, do not wait for the entire preheating time to pass.
• Close the oven door during grilling. Never grill with the oven door open. Hot surfaces may cause burns!

Grill table

Food Accessory to be	used Shelf position Temperature (℃) Baking time (min)			(approx.)
Fish Wire grill 4 - 5 250	20 ... 25
Chicken pieces Wire grill	4 - 5 250 25 ... 35
Meatball (veal) - 12 amount	Wire grill 4	250 20 ... 30
Lamb chop	Wire grill 4 - 5 250 20 ...	25
Steak - (meat cubes)	Wire grill 4 - 5 250 25 ...	30

The key points of the grill

• Prepare foods of similar thickness and weight as much as possible for the grill.
• Place the pieces to be grilled on the wire grill or wire grill tray by distributing them without exceeding the dimensions of the heater.
  Depending on the thickness of the pieces to be grilled, the cooking times given in the table may vary.
• Slide the wire grill or the wire grill tray to the desired level in the oven. If you are cooking on the wire grill, slide the oven tray to the lower shelf to collect the oils. The oven tray you will slide should be sized to cover the entire grill area. This tray may not be supplied with the product. Put some water into the oven tray for easy cleaning.

EN

Food Accessory to be	used Shelf position Temperature (°C) Baking time (min)			(approx.)
Veal chop Wire grill 4 -	5 250 25 ... 30
Vegetable gratin Wire grill 4 -	5 220 20 ... 30
Toast bread Wire grill 4	250 1 ... 4
Skip pre-heating after 5 minutes in grill position. Turn pieces of food after 1/2 of the total grilling time.

EN

6.1.4 Test foods

• Foods in this cooking table are prepared according to the EN 60350-1 standard to facilitate testing of the product for control institutes.

Cooking table for test meals

Suggestions for baking with a single tray

Food Accessory to	be used	Operating func- tion	Shelf position Tem	perature (℃) Baking	time (min) (approx.)
Shortbread (sweet cookie)	Standard tray *	Top and bottom heating	3 140	20 ... 30
Shortbread (sweet cookie)	Standard tray *	Fan Heating	On models with wire shelves :3 On models without wire shelves :2	140	15 ... 25
Small cakes	Standard tray *	Top and bottom heating	3 160	25 ... 35
Small cakes	Standard tray *	Fan Heating	3	150	25 ... 35
Sponge cake	Round springform pan, 26 cm in diameter on wire grill **	Top and bottom heating	2 150	30 ... 40
Sponge cake	Round springform pan, 26 cm in diameter on wire grill **	Fan Heating	2 150	35 ... 45
Apple pie	Round black metal mould, 20 cm in diameter on wire grill **	Top and bottom heating	2 180	50 ... 70
Apple pie	Round black metal mould, 20 cm in diameter on wire grill **	Fan Heating	3 170	50 ... 65

Preheating is recommended for all food.

*These accessories may not be included with your product.

**These accessories are not included with your product. They are commercially available accessories.

Food Accessory to	be used	Operating func- tion	Shelf position Tem	perature (℃) Baking	time (min) (approx.)
Small cakes	2-Standard tray * 4-Pastry tray *	Fan Heating 2 - 4 1	50 25 ... 35
Shortbread (sweet cookie)	2-Standard tray * 4-Pastry tray *	Fan Heating 2 - 4 1	40 15 ... 25

Preheating is recommended for all food.

*These accessories may not be included with your product.

**These accessories are not included with your product. They are commercially available accessories.

Grill

Food Accessory to be	used Shelf position Temperature (℃) Baking time (min)			(approx.)
Meatball (veal) - 12 amount	Wire grill 4 250 20 ... 30
Toast bread Wire grill 4	250 1 ... 3
It is recommended to preheat for 5 minutes for all grilled food. Turn pieces of food after 1/2 of the total grilling time.

7 Maintenance and Cleaning

7.1 General Cleaning Information

General warnings

• Wait for the product to cool before cleaning the product. Hot surfaces may cause burns!
• Do not apply the detergents directly on the hot surfaces. This may cause permanent stains.
• The product should be thoroughly cleaned and dried after each operation. Thus, food residues shall be easily cleaned and these residues shall be prevented from burning when the product is used again later. Thus, the service life of the appliance extends and frequently faced problems are decreased.
• Do not use steam cleaning products for cleaning.
• Some detergents or cleaning agents cause damage to the surface. Unsuitable cleaning agents are: bleach, cleaning products containing ammonia, acid or chloride, steam cleaning products, descaling agents, stain and rust removers, abrasive cleaning products (cream cleaners, scouring powder, scouring cream,

abrasive and scratching scrubber, wire, sponges, cleaning cloths containing dirt and detergent residues).

• No special cleaning material is needed in the cleaning made after each use. Clean the appliance using dishwashing detergent, warm water and a soft cloth or sponge and dry it with a dry cloth.
• Be sure to completely wipe off any remaining liquid after cleaning and immediately clean any food splashing around during cooking.
• Do not wash any component of your appliance in a dishwasher unless otherwise stated in the user's manual.

Inox - stainless surfaces

• Do not use acid or chlorine-containing cleaning agents to clean stainless-inox surfaces and handles.

• Stainless-inox surface may change colour in time. This is normal. After each operation, clean with a detergent suitable for the stainless or inox surface.

• Clean with a soft soapy cloth and liquid (non-scratching) detergent suitable for inox surfaces, taking care to wipe in one direction.

• Remove lime, oil, starch, milk and protein stains on the glass and inox surfaces immediately without waiting. Stains may rust under long periods of time.
• Cleaners sprayed/applied to the surface should be cleaned immediately. Abrasive cleaners left on the surface cause the surface to turn white.

Enamelled surfaces

• The oven must cool down before cleaning the cooking area. Cleaning on hot surfaces shall create both fire hazard and damage the enamel surface.
  After each use, clean the enamel surfaces using dishwashing detergent, warm water and a soft cloth or sponge and dry them with a dry cloth.
• If your product has an easy steam cleaning function, you can make easy steam cleaning for light non-permanent dirt. (See "Easy Steam Cleaning [▶ 36]".)
• For difficult stains, an oven and grill cleaner recommended on the website of your product brand and a non-scratching scouring pad can be used. Do not use an external oven cleaner.

Catalytic surfaces

• The side walls in the cooking area can only be covered with enamel or catalytic walls. It varies by model.
• The catalytic walls have a light matte and porous surface. The catalytic walls of the oven should not be cleaned.
• Catalytic surfaces absorb oil thanks to its porous structure and start to shine when the surface is saturated with oil, in this case it is recommended to replace the parts.

Glass surfaces

• When cleaning glass surfaces, do not use hard metal scrapers and abrasive cleaning materials. They can damage the glass surface.

• Clean the appliance using dishwashing detergent, warm water and a microfiber cloth specific for glass surfaces and dry it with a dry microfiber cloth.

• If there is residual detergent after cleaning, wipe it with cold water and dry with a clean and dry microfiber cloth. Residual detergent may damage the glass surface next time.
• Under no circumstances should the dried-up residue on the glass surface be cleaned off with serrated knives, wire wool or similar scratching tools.
• You can remove the calcium stains (yellow stains) on the glass surface with the commercially available descaling agent, with a descaling agent such as vinegar or lemon juice.
• If the surface is heavily soiled, apply the cleaning agent on the stain with a sponge and wait a long time for it to work properly. Then clean the glass surface with a wet cloth.
• Discolorations and stains on the glass surface are normal and not defects.

Plastic parts and painted surfaces

• Clean plastic parts and painted surfaces using dishwashing detergent, warm water and a soft cloth or sponge and dry them with a dry cloth.
• Do not use hard metal scrapers and abrasive cleaners. They may damage the surfaces.
• Ensure that the joints of the components of the product are not left damp and with detergent. Otherwise, corrosion may occur on these joints.

7.2 Cleaning Accessories

Do not put the product accessories in a dishwasher unless otherwise stated in the user's manual.

7.3 Cleaning the Control Panel

• When cleaning the panels with knob-control, wipe the panel and knobs with a damp soft cloth and dry with a dry cloth.

Do not remove the knobs and gaskets underneath to clean the panel. The control panel and knobs may be damaged.

• While cleaning the inox panels with knob control, do not use inox cleaning agents around the knob. The indicators around the knob can be erased.
• Clean the touch control panels with a damp soft cloth and dry with a dry cloth. If your product has a key lock feature, set the key lock before performing control panel cleaning. Otherwise, incorrect detection may occur on the keys.

7.4 Cleaning the inside of the oven (cooking area)

Follow the cleaning steps described in the "General Cleaning Information" section according to the surface types in your oven.

Cleaning the side walls of the oven

The side walls in the cooking area can only be covered with enamel or catalytic walls. It varies by model. If there is a catalytic wall, refer to the "Catalytic surfaces" section for information.

If your product is a wire shelf model, remove the wire shelves before cleaning the side walls. Then complete the cleaning as described in the "General Cleaning Information" section according to the side wall surface type.

To remove the side wire shelves:

1. Remove the front of the wire shelf by pulling it on the side wall in the opposite direction.
2. Pull the wire shelf towards you to remove it completely.

1. To reattach the shelves, the procedures applied when removing them must be repeated from the end to the beginning, respectively.

7.5 Easy Steam Cleaning

This allows cleaning of the dirt (not remaining for a long time) that is softened by the steam inside the oven and by the water droplets condensed in the internal surfaces of the oven easily.

1. Remove all accessories inside the oven.
2. Add 500ml water into the tray and place it on the 2nd shelf of the oven.

Do not use distilled or filtered water. Use ready-made waters only. Do not use flammable, alcoholic or solid particulate solutions instead of water.

1. Set the oven to the "Bottom heating" operating mode and operate it at 100^ for 20 minutes.

Immediately open the door and wipe the oven interiors with a wet sponge or cloth.

Steam will be released when opening the door. This may pose a risk of burns. Be careful when opening the door.

For stubborn dirt, clean the product using dishwashing detergent, warm water and a soft cloth or sponge and dry it with a dry cloth.

In the easy steam cleaning function, it is expected that the added water evaporates and condenses on the inside of the oven and the oven door in order to soften the light dirt formed in your oven. Condensation formed on the oven door may drip around when the oven door is opened. As soon as you open the oven door, wipe off the condensation.

(It varies depending on the product model. It may not be available on your product.) After the condensation inside the oven, puddle or moisture may occur in the pool channel under the oven. Wipe this pool channel with a damp cloth after use and dry it.

7.6 High temperature self-cleaning

The oven is equipped with a pyrolysis feature. The oven heats up to a temperature of approximately 420 - 480^ and burns until the existing dirt turns to ash. A strong smoke may be generated. Provide good ventilation. High-temperature cleaning should be performed after approximately every 10 uses of the oven.

General warnings

Hot surfaces cause burns!

Do not touch the product during self-cleaning and keep children away from the product. Wait at least 30 minutes before removing the residue.

• Before using the pyrolysis function, remove all accessories, the telescopic shelf and the side shelves (if any). If not removed, the accessories and side wire shelves will be damaged.

• If your product has a pyro proof accessory (resistant to high temperature self-cleaning), you do not need to remove these accessories from the oven. Whether your accessories are pyro-proof or not is specified in the accessories section. If not specified, your accessories are not resistant to high temperatures. It must be removed from the oven before cleaning to avoid damage.

• Do not clean the door seal. The glass fiber seal is very delicate and easily damaged. If the door seal is damaged, replace it with a new one from an authorized service.

To start the high temperature self-cleaning:

1. Remove all accessories from the oven. In models with wire shelves, do not forget to remove the wire shelf.
2. Before you start cleaning, clean the outer surfaces of the oven and the overflowing food residue inside the oven with a soapy cloth.
3. Select the "Pyrolysis" or "Pyrolysis - economy mode" function depending on the dirtiness of your oven. If your oven is not very dirty, we recommend using the "Pyrolysis - economy mode" function. This function takes less time than the "Pyrolysis" function. If your oven is very dirty, the "Pyrolysis - economy mode" function may not be sufficient. In this case, clean using the "Pyrolysis - economy mode" function.
4. Turn on the oven by touching the key.
5. Activate the bottom keys by touching the key.

1. Touch the key.

The "Pyrolysis" function is activated.

1. Touch the key to start cleaning.
   Cleaning starts and the self-cleaning time appears on the display. This time cannot be changed.
2. After the self-cleaning process starts and the oven reaches a certain temperature, the lock symbol appears on the clock display and the oven door will not open. Do not force the handle to unlock the door until the cleaning process is complete and the lock symbol disappears from the display.
3. When the cleaning process is completed, the display will show "End". If the ① key is touched, the oven will turn off.
4. When the symbol disappears from the display, remove any remaining residue with vinegar water.

Pyrolysis - economy mode

If your oven is not very dirty, we recommend using the "Pyrolysis - economy mode" function. This function takes less time than the "Pyrolysis" function. If your oven is very dirty, the "Pyrolysis - economy mode" function may not be sufficient. In this case, clean in the "Pyrolysis" function.

1. Remove all accessories from the oven. In models with wire shelves, do not forget to remove the wire shelf.
2. Before you start cleaning, clean the outer surfaces of the oven and the overflowing food residue inside the oven with a soapy cloth.
3. Turn on the oven by touching the key.
4. Activate the bottom keys by touching the key.

1. Touch the key.

The "Pyrolysis" function is activated.

1. Touch the key again for the Pyrolysis - economy mode function.
2. Touch the key to start cleaning.

Cleaning starts and the self-cleaning time appears on the display. This time cannot be changed.

1. After the self-cleaning process starts and the oven reaches a certain temperature, the lock symbol appears on the clock display and the oven door will not open. Do not force the handle to unlock the door until the cleaning process is complete and the lock symbol disappears from the display.
2. When the cleaning process is completed, the display will show "End". If the ① key is touched, the oven will turn off.
   10.When the symbol disappears from the display,remove any remaining residue with vinegar water.

7.7 Cleaning the Oven Door

You can remove your oven door and door glasses to clean them. How to remove the doors and windows is explained in the sections "Removing the oven door" and "Removing the inner glasses of the door".

After removing the door inner glasses, clean them using a dishwashing detergent, warm water and a soft cloth or sponge and dry them with a dry cloth. For lime residue that may form on the oven glass, wipe the glass with vinegar and rinse.

Do not use harsh abrasive cleaners, metal scrapers, wire wool or bleach materials to clean the oven door and glass.

Removing the oven door

1. Open the oven door.
2. Open the clips in the front door hinge socket on the right and left by pushing them downwards as shown in the figure.
3. Hinge types vary as (A), (B), (C) types according to the product model. The following figures show how to open each type of hinge.
4. (A) type hinge is available in normal door types.

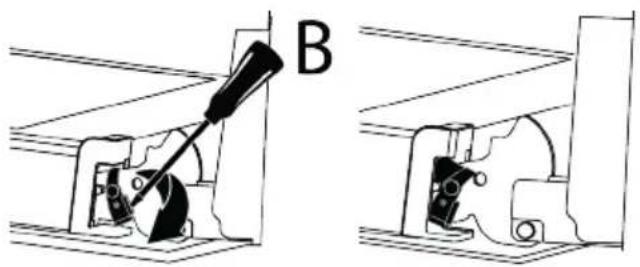

1. (B) type hinge is available in soft closing door types.

1. (C) type hinge is available in soft opening/closing door types.

1. Get the oven door to a half-open position.

1. Pull the removed door upwards to release it from the right and left hinges and remove it.

To reattach the door, the procedures applied when removing it must be repeated from the end to the beginning, respectively. When installing the door, be sure to close the clips on the hinge socket.

7.8 Removing the Inner Glass of The Oven Door

Inner glass of the product's front door may be removed for cleaning.

1. Open the oven door.

1. Pull the plastic component, attached on the upper section of the front door, towards yourself by simultaneously pushing on the pressure points on both sides of the component and remove it.

1 Innermost glass

2 Second inner glass

3 Third inner glass

4 Outer glass

5 Plastic glass slot-Lower

1. As shown in the figure, gently lift the innermost glass towards "A" and then, remove it by pulling towards "B".

1. Repeat the same process for removing the second and third glasses.

The first step of regrouping the door is to replace the second and third glasses (2, 3). As shown in the figure, place the bevelled edge of the glass to meet the bevelled edge of the plastic slot.

The attachment order of the second and third inner glasses is not important, as they are interchangeable.

While attaching the innermost glass (1), pay attention to place the printed side of the glass on the second inner glass. It is crucial to place the lower corners of all inner glasses to meet the lower plastic slots (5). Push the plastic component towards the frame until a "click" sound is heard.

After cleaning, all glasses must be reassembled.

7.9 Cleaning the Oven Lamp

In the event that the glass door of the oven lamp in the cooking area becomes dirty; clean using dishwashing detergent, warm water and a soft cloth or sponge and dry with a dry cloth. In case of oven lamp failure, you can replace the oven lamp by following the sections that follow.

Replacing the oven lamp

GeneralWarnings

• To avoid the risk of electric shock before replacing the oven lamp, disconnect the product and wait for the oven to cool. Hot surfaces may cause burns!
• This oven is powered by an incandescent lamp with less than 40W , less than 60 mm in height, less than 30mm in diameter, or a halogen lamp with G9 sockets with less than 60W power. Lamps are suitable for operation at temperatures above 300^ . Oven lamps are available from Authorised Services or licensed technicians. This product contains a G energy class lamp.
• The position of the lamp may differ from that is shown in the figure.
• The lamp used in this product is not suitable for use in the lighting of home rooms. The purpose of this lamp is to help the user see food products.
• The lamps used in this product must withstand extreme physical conditions such as temperatures above 50^ .

If your oven has a round lamp,

1. Disconnect the product from the electricity.
2. Remove the glass cover by turning it counter clockwise.

1. If your oven lamp is type (A) shown in the figure below, rotate the oven lamp as shown in the figure and replace it

with a new one. If it is type (B) model, pull it out as shown in the figure and replace it with a new one.

1. Refit the glass cover. If your oven has a square lamp,

2. Disconnect the product from the electricity.

3. Remove the wire shelves according to the description.

8 Troubleshooting

If the problem persists after following the instructions in this section, contact your vendor or an Authorized Service. Never try to repair your product yourself.

Steam is emanated while the oven is working.

It is normal to see vapour during operation. This is not an error.

Water droplets appear while cooking

The steam generated during cooking condenses when it comes into contact with cold surfaces outside the product and may form water droplets. This is not an error.

Metal sounds are heard while the product is warming and cooling.

Metal parts may expand and make sounds when heated. This is not an error.

1. Lift the lamp's protective glass cover with a screwdriver. Remove the screw first, if there is a screw on the square lamp in your product.

2. If your oven lamp is type (A) shown in the figure below, rotate the oven lamp as shown in the figure and replace it with a new one. If it is type (B) model, pull it out as shown in the figure and replace it with a new one.

1. Refit the glass cover and wire shelves.

The product does not work.

• Fuse may be faulty or blown. >> Check the fuses in the fuse box. Change them if necessary or reactivate them.
• The appliance may not be plugged to the (grounded) outlet. >> Check if the appliance is plugged in to the outlet.
• (If there is timer on your appliance) Keys on the control panel do not work. >> If your product has a key lock, the key lock may be enabled, disable the key lock.

Oven light is not on.

• Oven lamp may be faulty. Replace oven's lamp.
• No electricity. >> Ensure the mains is operational and check the fuses in the fuse box. Change the fuses if necessary or reactivate them.

Oven is not heating.

• The oven may not be set to a specific cooking function and/or temperature. >> Set the oven to a specific cooking function and/or temperature.
• No electricity. Ensure the mains is operational and check the fuses in the fuse box. Change the fuses if necessary or reactivate them.

Bienvenue!

Cher client, chere clientele
