USER MANUAL LFG815W ELECTROLUX

EN Safety Information and Installation Instruction 29

Warning symbol and three tool icons: triangular warning triangle with exclamation mark, screwdriver wrench, and screwdriver tip.

BG

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible for any injuries or damage that are the result of incorrect installation or usage. Always keep the instructions in a safe and accessible location for future reference.

1.1 Children and vulnerable people safety

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children of less than 8 years of age and persons with very extensive and complex disabilities shall be kept away from the appliance unless continuously supervised.
• Children should be supervised to ensure that they do not play with the appliance.
• Keep all packaging away from children and dispose of it appropriately.
• Keep children and pets away from the appliance when it operates.
• Children shall not carry out cleaning and user maintenance of the appliance without supervision.

1.2 General Safety

• This appliance is intended for domestic use above hobs, cookers and similar cooking devices.
• This appliance is designed for single household domestic use in an indoor environment.

• This appliance may be used in offices, hotel guest rooms, bed & breakfast guest rooms, farm guest houses and other similar accommodation where such use does not exceed (average) domestic usage levels.

• Before carrying out any maintenance, disconnect the appliance from the power supply.

• CAUTION: Accessible parts may become hot during use with cooking appliances.
• Use only the fixing screws supplied with the appliance if not supplied, use the screws recommended in the installation instructions. Install the appliance in a safe and suitable place that meets installation requirements.
• WARNING: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.
• Do not use adhesives to fix the appliance.
• The minimum distance between the hob surface on which the pans stand and the lower part of the appliance shall be at least 65 cm, unless otherwise specified in the installation instructions for the appliance or hob.
• The discharge of air must comply with local authorities regulations.
• Ensure good air ventilation in the room where the appliance is installed to avoid the backflow of gases into the room from appliances burning gas or other fuels, including open fires.
• Make sure that the ventilation openings are not blocked and the air collected by the appliance is not conveyed into a duct used to exhaust smoke and steam from other appliances (central heating systems, thermosiphons, water-heaters, etc.).
• When the appliance operates with other appliances the maximum vacuum generated in the room should not exceed 0.04 mbar.
• If the supply cord is damaged, it must be replaced by the manufacturer, its Authorised Service Centre or similarly qualified persons to avoid an electrical hazard.

• If the cord set is damaged, it must be replaced by a special cord set available from the manufacturer or its Authorised Service Centre.

• If the appliance is connected directly to the power supply, the electrical installation must be equipped with an isolating device that allows to disconnect the appliance from the mains at all poles. Complete disconnection must comply with conditions specified in the overvoltage category III. The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.

• Do not flambé under the appliance.
• Do not use to exhaust hazardous or explosive materials and vapours.
• Clean the appliance regularly with a soft cloth to prevent the deterioration of the surface material.
• Do not use a steam cleaner, water spray, harsh abrasive cleaners or sharp metal scrapers to clean the surface of the appliance. Use only neutral detergents.
• Clean grease filters regularly (at least every 2 months) and remove grease deposits from the appliance to prevent the risk of fire.
• Use a cloth to clean the interior of the appliance.

2. SAFETY INSTRUCTIONS

2.1 Installation

WARNING!

Risk of injury, electric shock, fire, burns or damage to the appliance.

• Only a qualified person must install this appliance.
• Do not install or use a damaged appliance.
• Follow the installation instructions supplied with the appliance.
  • Always take care when moving the appliance as it is heavy. Always use safety gloves and enclosed footwear.
• Before installing the appliance remove all the packaging, the labelling and the protective film.
• Do not install the exhaust air into a wall cavity, unless the cavity is designed for that purpose.

2.2 Electrical connection

WARNING!

Risk of fire and electric shock.

• All electrical connections should be made by a qualified electrician.
• Make sure that the parameters on the rating plate are compatible with the electrical ratings of the mains power supply.
• If the symbol (☐) is not printed on the rating plate, the appliance must be earthed.
  • Always use a correctly installed shockproof socket.
• Do not let the electricity mains cable tangle.
• Do not use multi-plug adapters and extension cables.

• If the mains socket is loose, do not connect the mains plug.

• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Make sure the appliance is installed correctly. Loose and incorrect electricity mains cable can make the terminal become too hot.
• Connect the appliance at the end of the installation. Make sure that there is access to the mains after the installation.

2.3 Use

WARNING!

Risk of injury, burns and electric shock.

• This appliance is for cooking purpose only. Do not use the appliance for any other purpose.
• Do not change the specification of this appliance.
• Do not operate the appliance with wet hands or when it has contact with water.
• Use only the accessories supplied with the appliance.
• Keep flames or heated objects away from fats and oils during cooking and frying.
• Do not use uncovered electric grills.
• Do not use the appliance as a storage surface.
• Do not pour liquids over the appliance.
• Do not use magnifying glasses, binoculars or similar optical devices to look directly at the lighting of the appliance.
• If the appliance works with other devices, the maximum developed pressure must not exceed 4 Pa (4x10-5 bar).

2.4 Service

• To repair the appliance contact the Authorised Service Centre. Use original spare parts only.
- Concerning the lamp(s) inside this product and spare part lamps sold separately: These lamps are intended to withstand extreme physical conditions in household appliances, such as temperature, vibration, humidity, or are intended to signal information about the operational status of the appliance. They are not intended to be used in other applications

and are not suitable for household room illumination.

2.5 Disposal

WARNING!

Risk of injury or suffocation.

• Contact your municipal authority for information on how to dispose of the appliance.
• Disconnect the appliance from the mains supply.
• Cut off the mains electrical cable close to the appliance and dispose of it.

ES

1. ⚠TURVALLISUUSTIEDOT

ELECTROLUX APPLIANCES AB

BUSINESS SECTOR EMA-EMEA (SEE)

ST GÖRANSGATAN 143

SE-105 45 STOCKHOLM

SWEDEN

TEL: [phone]

FAX: [phone]

www.electrolux.com

Ø 150 mm ✓

Ø 150 mm

Ø150 mm

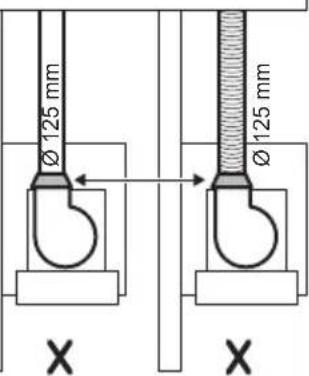

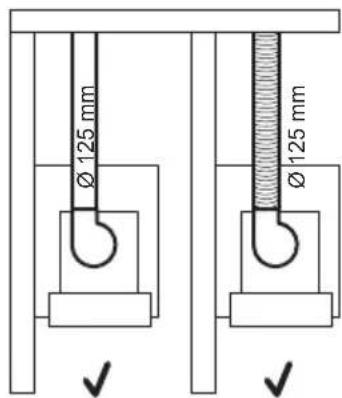

Ø 125 mm Ø 125 mm X X

Motor outlet diameter 120 mm

Ø 125 mm Ø 125 mm

Pure technical diagram of a rectangular block with an oval detail, no text or symbols present

Warning sign showing a flame symbol crossed out by a circular icon next to a cylindrical object, with a speech bubble pointing to it.

Technical illustration of a rectangular object with a magnified inset showing a rectangle and two smaller blocks (no text or symbols)

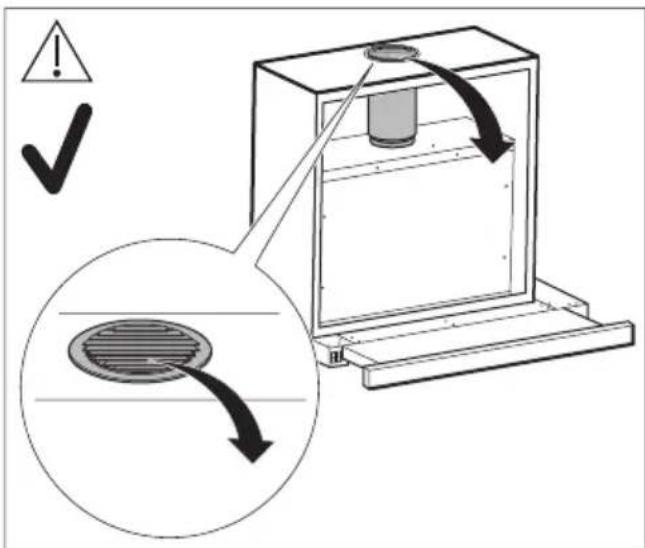

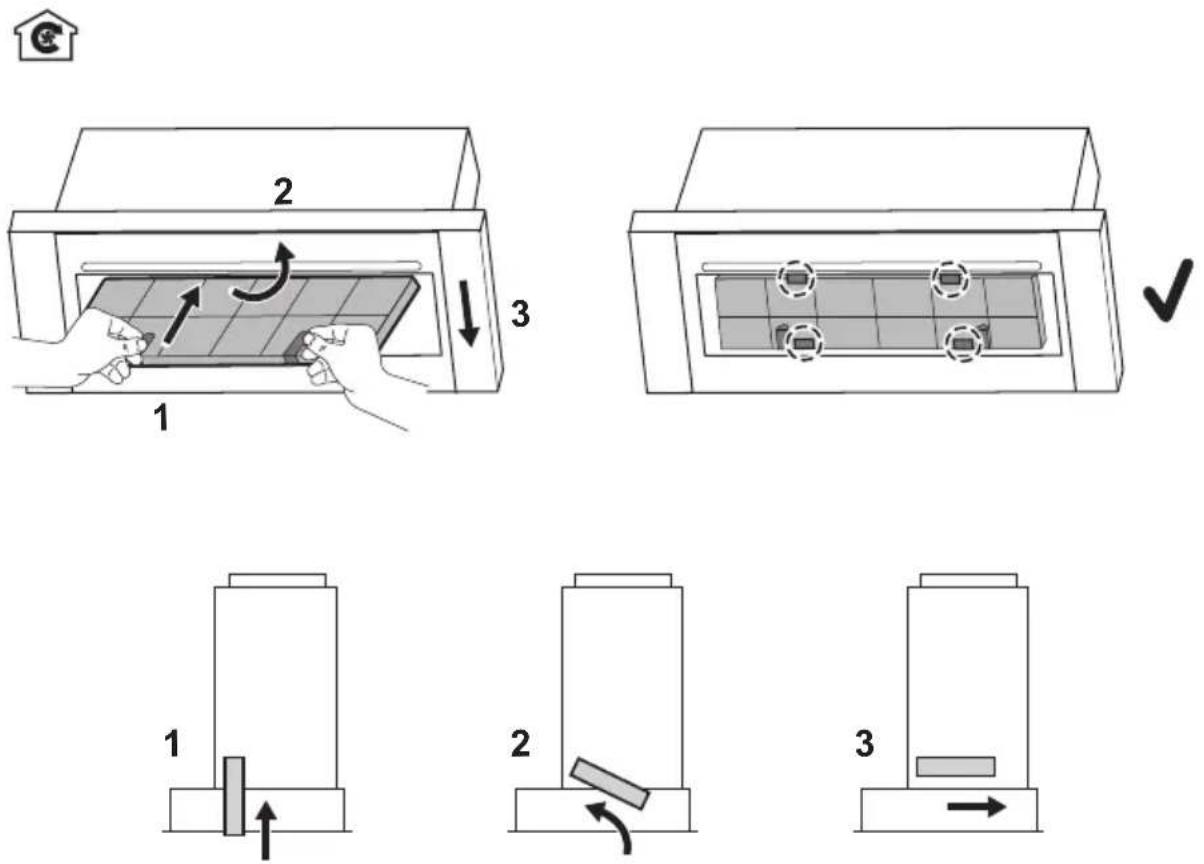

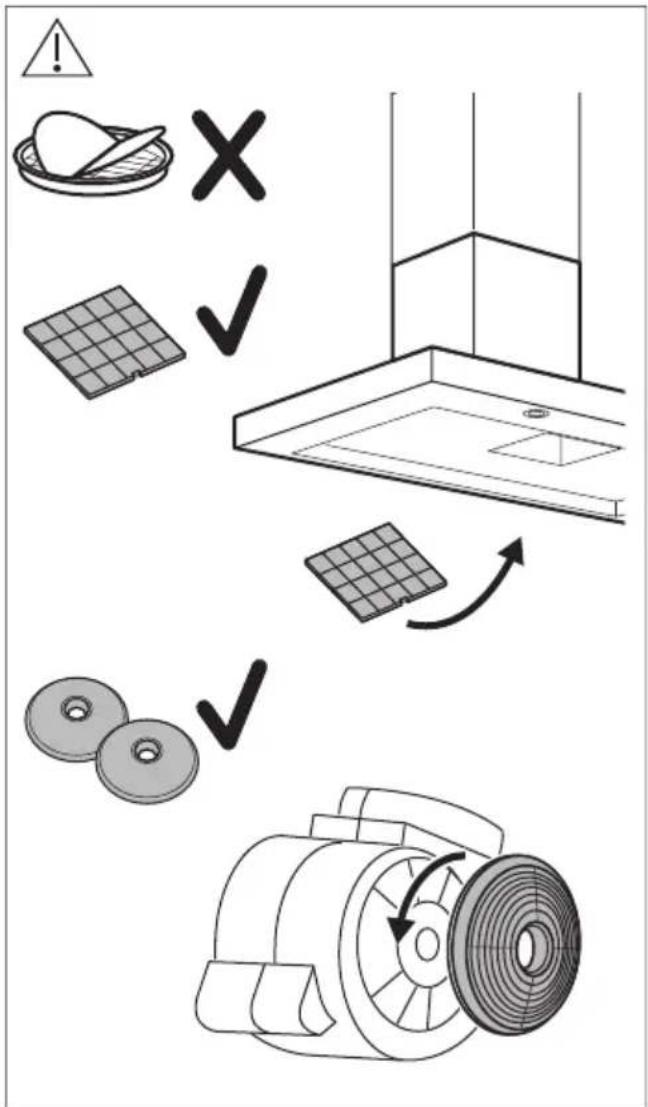

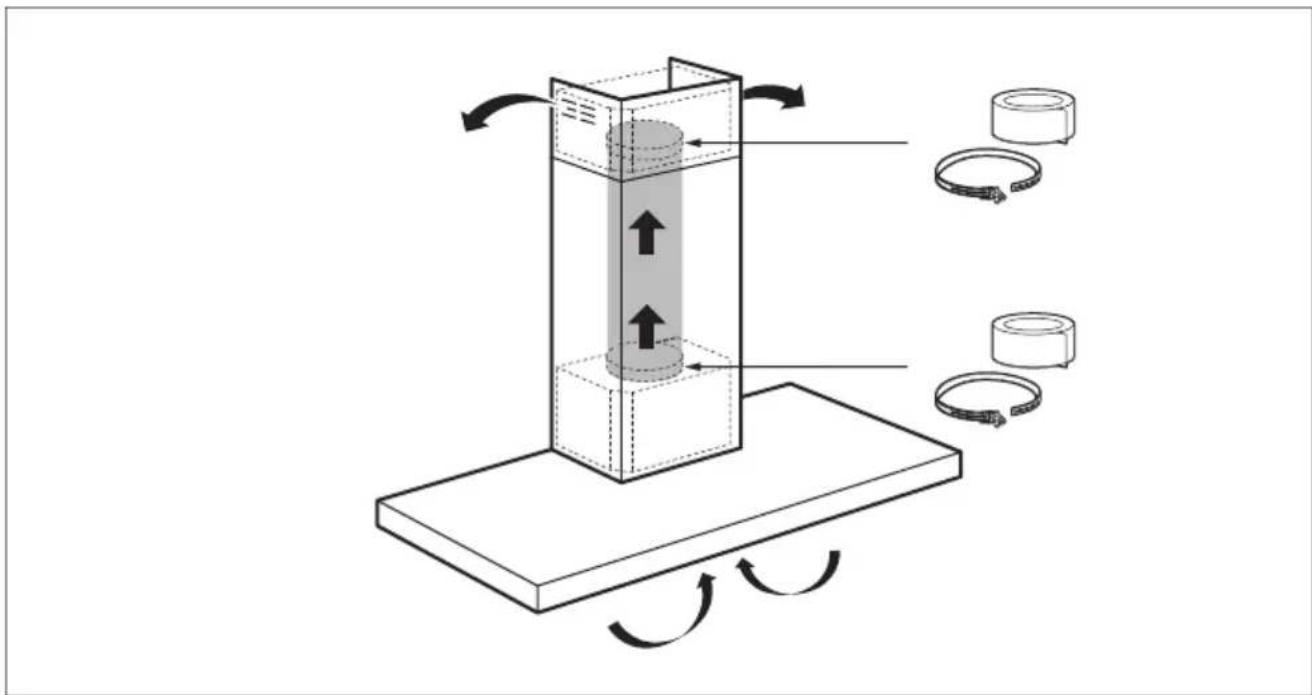

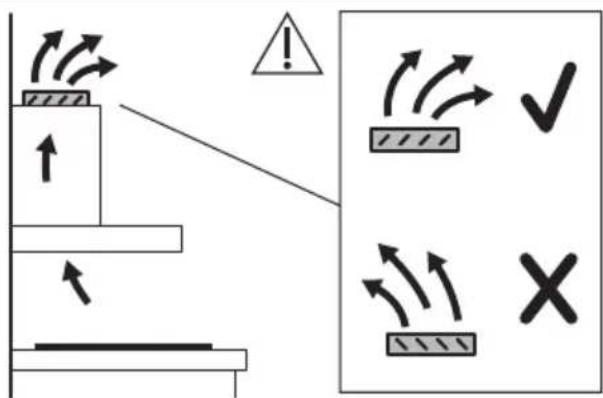

RECIRCULATION MODE

Diagram of a mechanical device with rotating components and directional arrows indicating motion (no text or symbols)

Diagram illustrating installation or cleaning process with warning symbols, solar panel, fan, and motor components

Technical diagram illustrating a mechanical assembly or inspection process with labeled components and warning symbols

Diagram illustrating a mechanical or electrical system with warning symbols and a magnified inset showing a circular component being turned into a device.

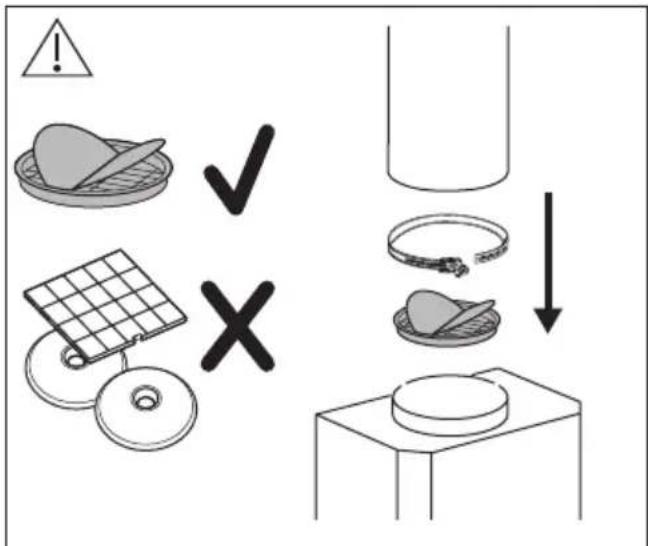

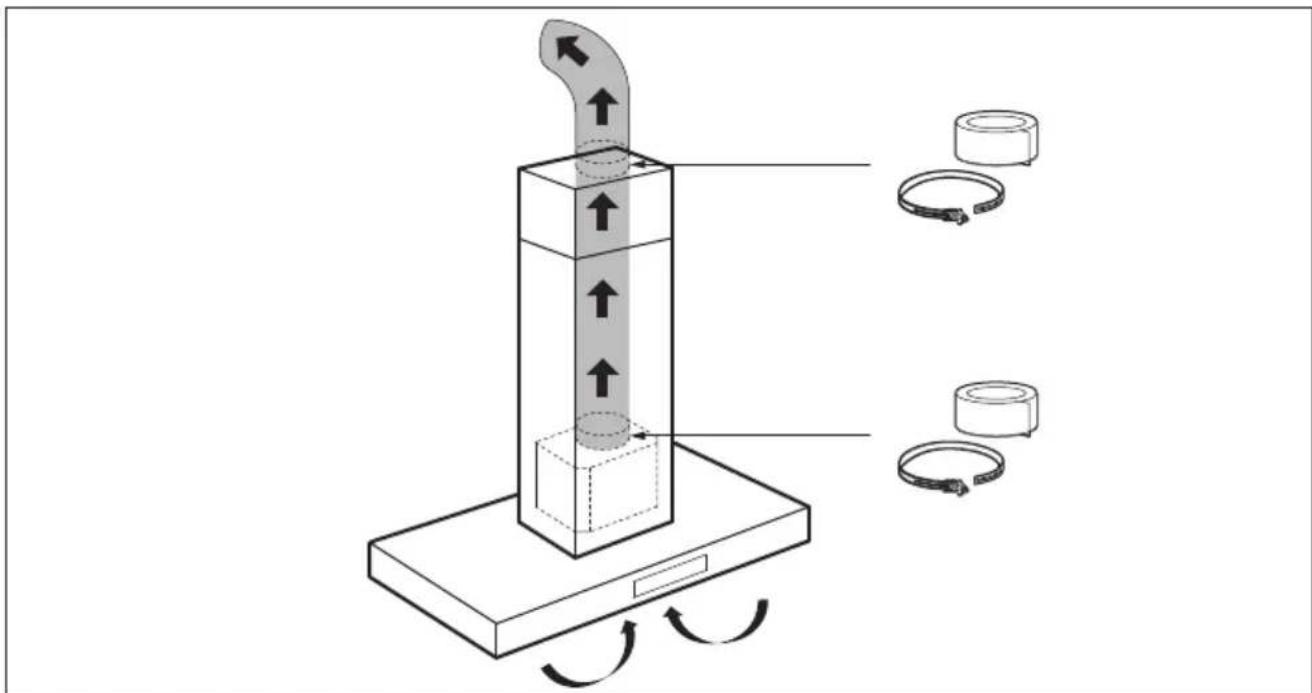

EXTRACTION MODE

Diagram illustrating a mechanical or electrical device with directional arrows and labeled components, including rings and rotating arms.

Diagram illustrating food safety and storage process with warning symbols and labeled icons

Diagram illustrating directional flow between two pipes with warning symbols and a cross symbol, likely representing fluid or material movement.

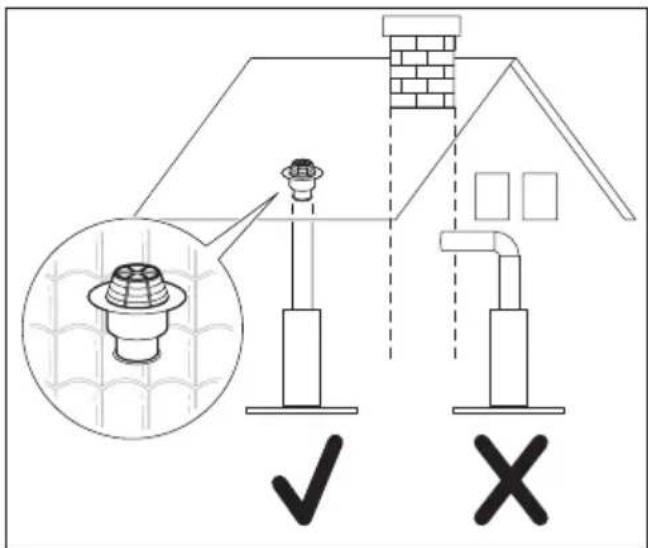

Diagram illustrating a roof structure with labeled components and checkmark indicators for installation or inspection.

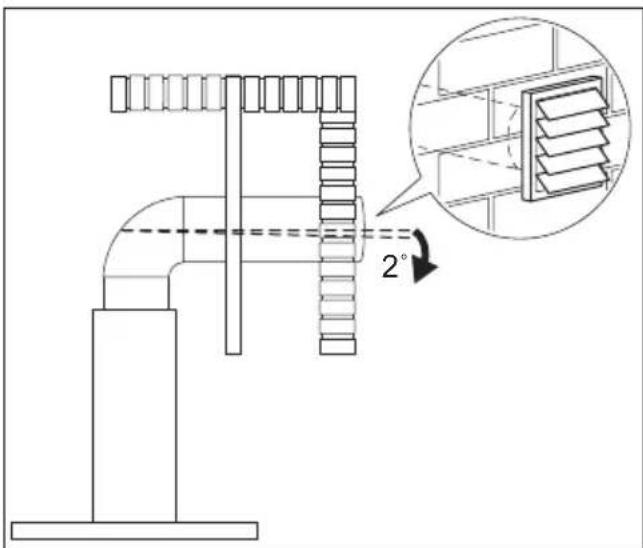

Technical diagram showing a pipe connection with a 2° angle annotation and magnified detail view of the structure.

Silhouette of a human figure in black silhouette (no text or symbols)

Icon of two gloves inside a circle (no text or symbols)

Simple line drawing of a boot inside a circle (no text or symbols)

YouTube

www.youtube.com/electrolux

www.youtube.com/aeg

How to install your Myron hood

Diagram illustrating a recycling or waste sorting process with labeled parts and directional arrows

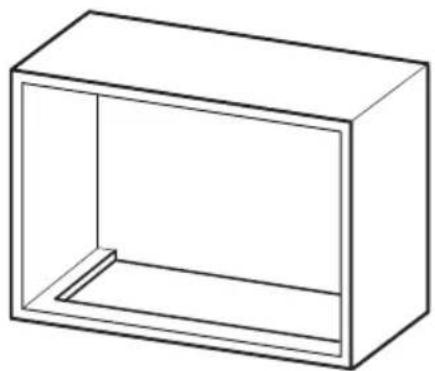

Simple line drawing of a rectangular frame with corner edges (no text or symbols)

x1

x1

x1

x2

x1

140cm

x1

RPT. (250, 300) RPT. (150, 200) RPT. (200, 250) M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12 M13 M14 M15 M16 M17 M18 M19 M20 M21 M22 M23 M24 M25 M26 M27 M28 M29 M30 M31 M32 M33 M34 M35 M36 M37 M38 M39 M40 M41 M42 M43 M44 M45 M46 M47 M48 M49 M50 M51 M52 M53 M54 M55 M56 M57 M58 M59 M60 M61 M62 M63 M64 M65 M66 M67 M68 M69 M70 M71 M72 M73 M74 M75 M76 M77 M78 M79 M80 M81 M82 M83 M84 M85 M86 M87 M88 M89 M90 M91 M92 M93 M94 M95 M96 M97 M98 M99 M100

x1

80cm54cm

MCFB83PL

MCFB84STMCFB8 MCFB85PL

MCFB75PR
M8CKSL07
70 mm
M8CKSL28
280 mm

Line drawing of a small electric iron with a handle and screw base (no text or symbols)

i
54cm

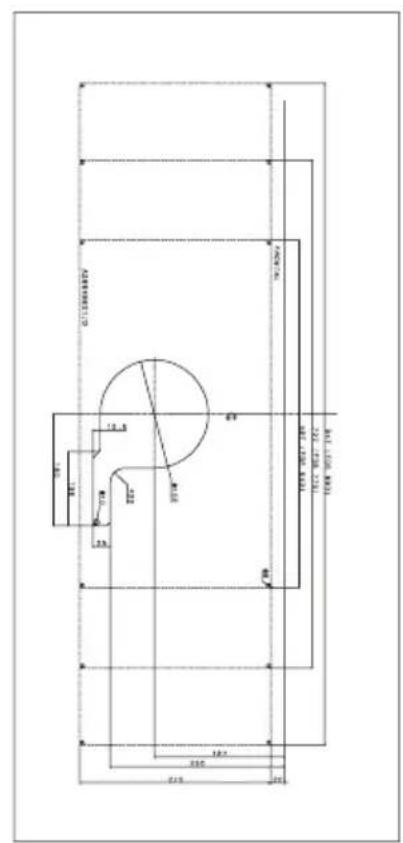

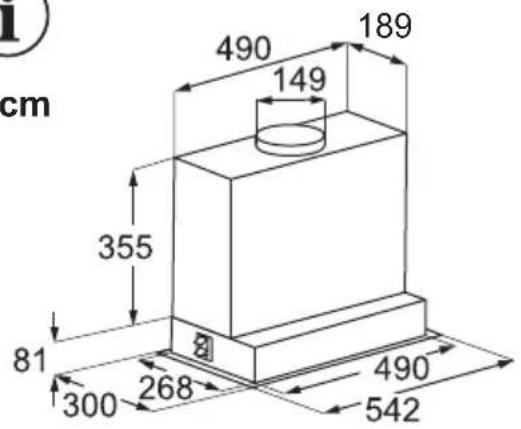

1 cm 490 189 149 355 81 300 268 490 542

198 104 23 9 165

Pure diagram of a mechanical or electrical component with arrows indicating direction, no text or symbols present

M8CKSL07

350 mm
M8CKSL28

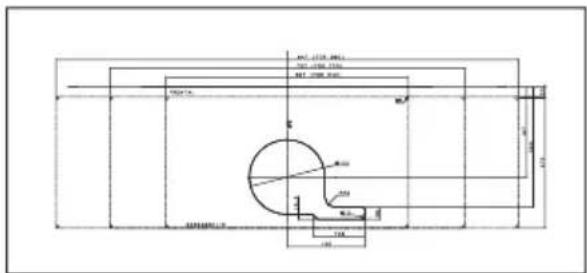

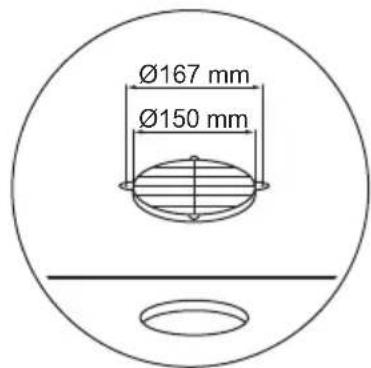

B1

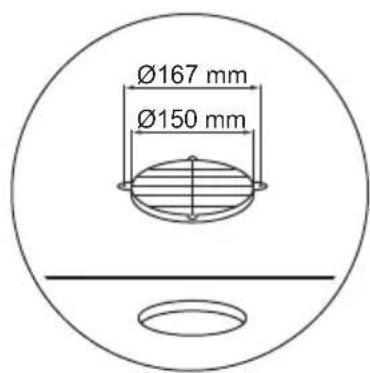

Ø167 mm Ø150 mm

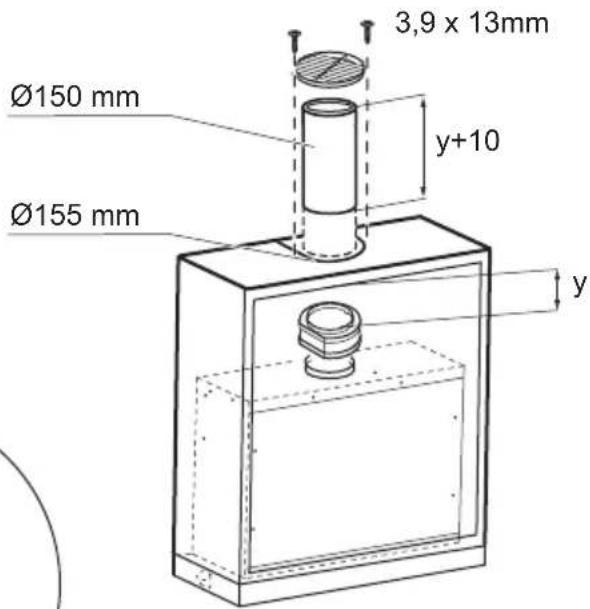

Ø150 mm Ø155 mm 3,9 x 13mm y+10 y

B2

Ø167 mm Ø150 mm

Ø150 mm Ø155 mm 3,9 x 13mm y+10 y

Safety warning diagram showing airflow indicators and checkmark symbols with arrows and symbols

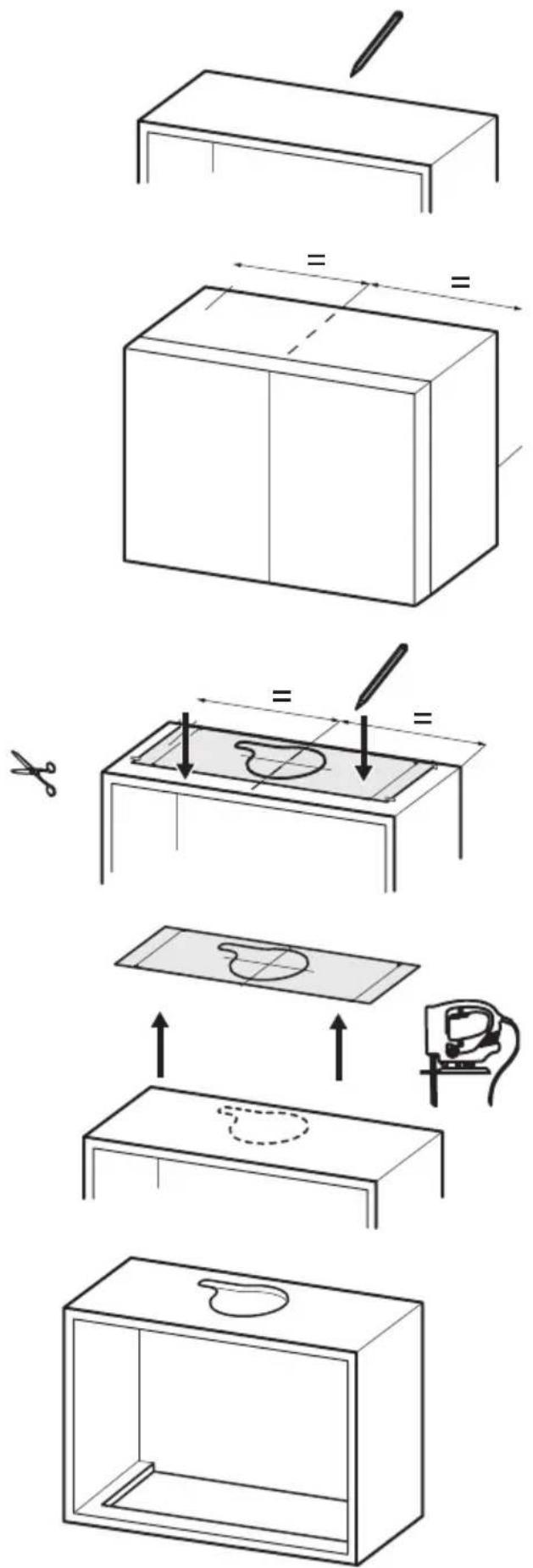

1.

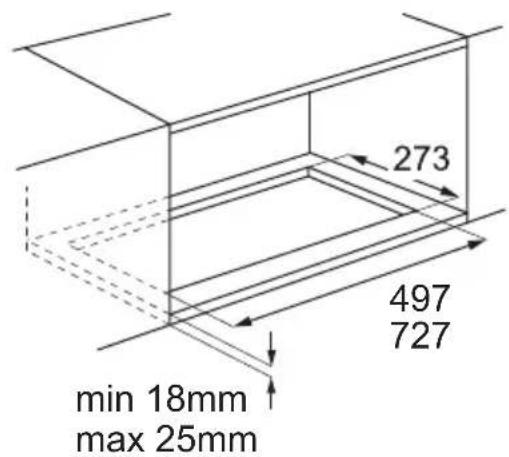

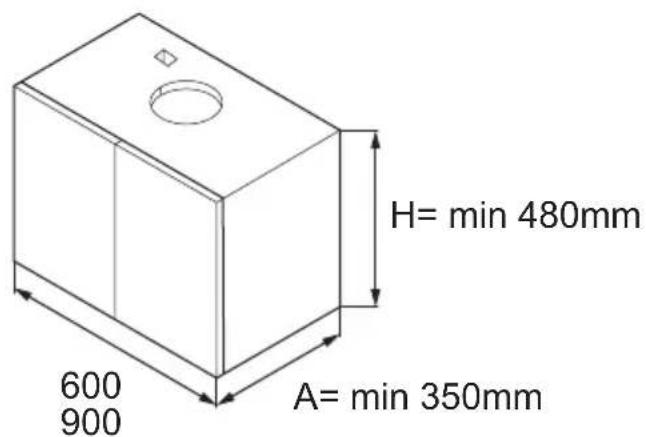

H= min 480mm 600 900 A= min 350mm

min 18mm max 25mm 497 727 273

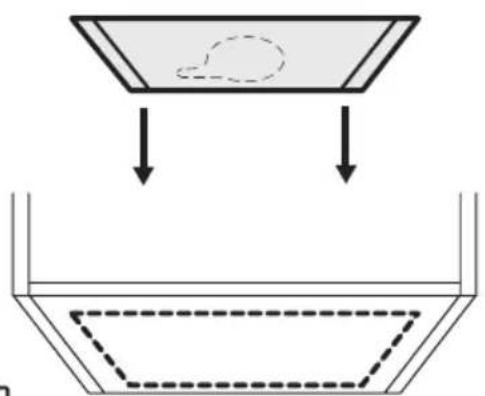

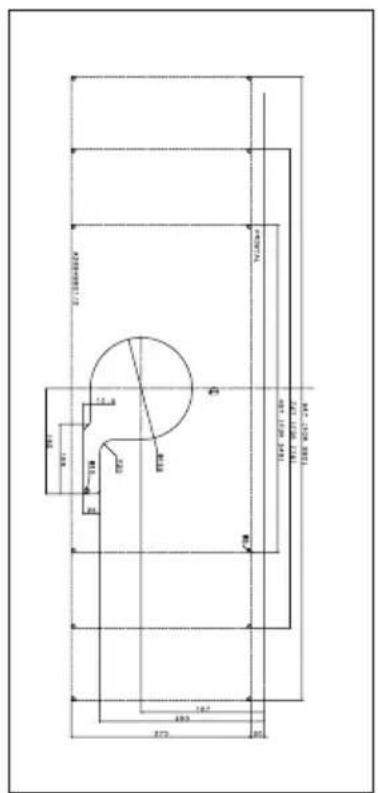

1.

C:\100mm 12.5 300 40 70 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100 mm 100mm

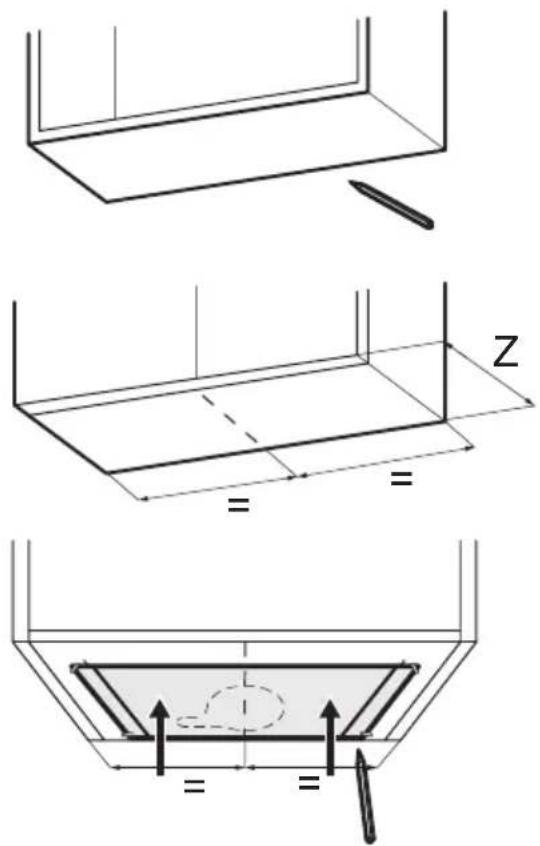

Technical diagram showing three views of a rectangular structure with dimension labels Z and horizontal lines, including directional arrows and annotations.

Diagram showing a container with liquid and a curved object above it, indicating a process or measurement setup.

Simple line drawing of a rectangular box with one corner and two horizontal lines inside (no text or symbols)

1.

1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0 24.0 25.0 26.0 27.0 28.0 29.0 30.0 31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0 41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0 51.0 52.0 53.0 54.0 55.0 56.0 57.0 58.0 59.0 60.0 61.0 62.0 63.0 64.0 65.0 66.0 67.0 68.0 69.0 70.0 71.0 72.0 73.0 74.0 75.0 76.0 77.0 78.0 79.0 80.0 81.0 82.0 83.0 84.0 85.0 86.0 87.0 88.0 89.0 90.0 91.0 92.0 93.0 94.0 95.0 96.0 97.0 98.0 99.0 100.0

4.

Technical line drawing of a mechanical component with internal channels and directional arrows indicating rotation (no text or symbols)

5.

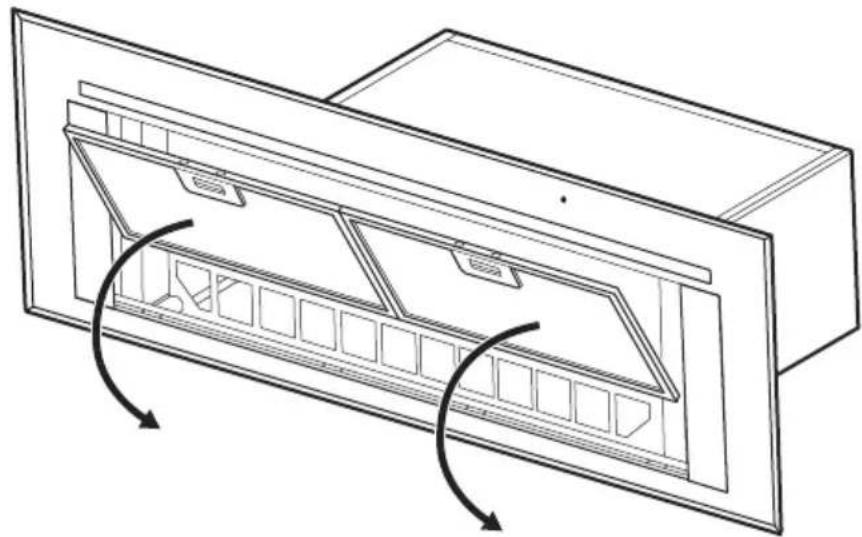

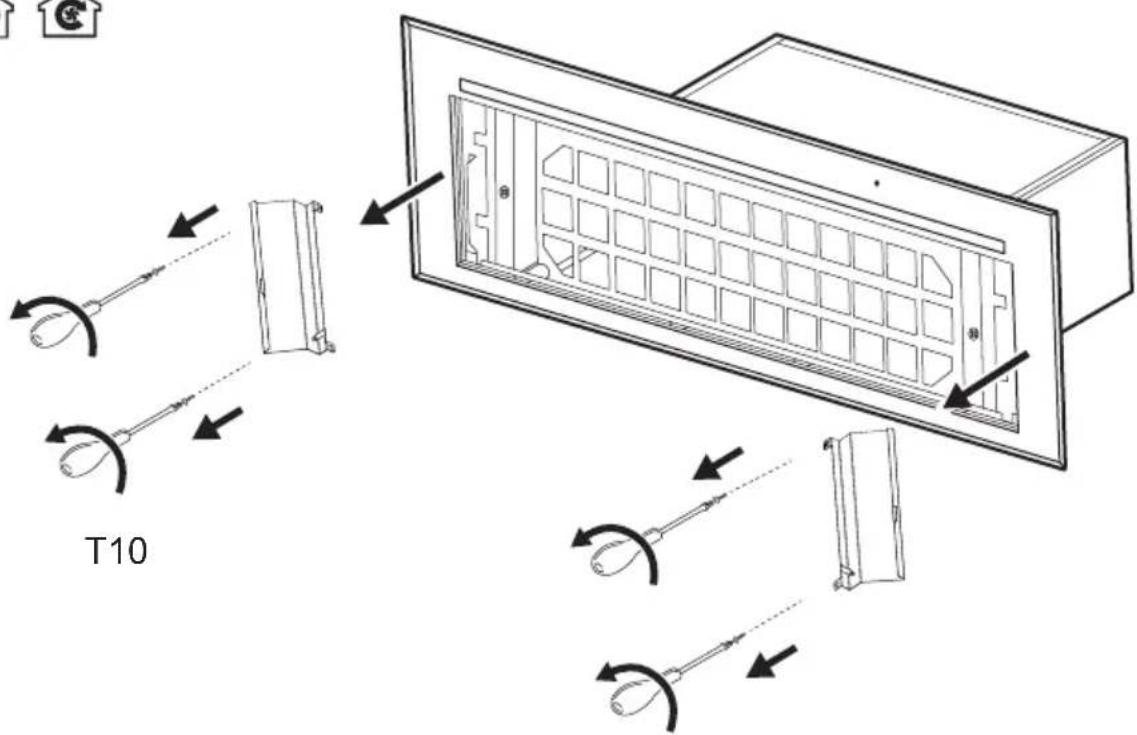

T10

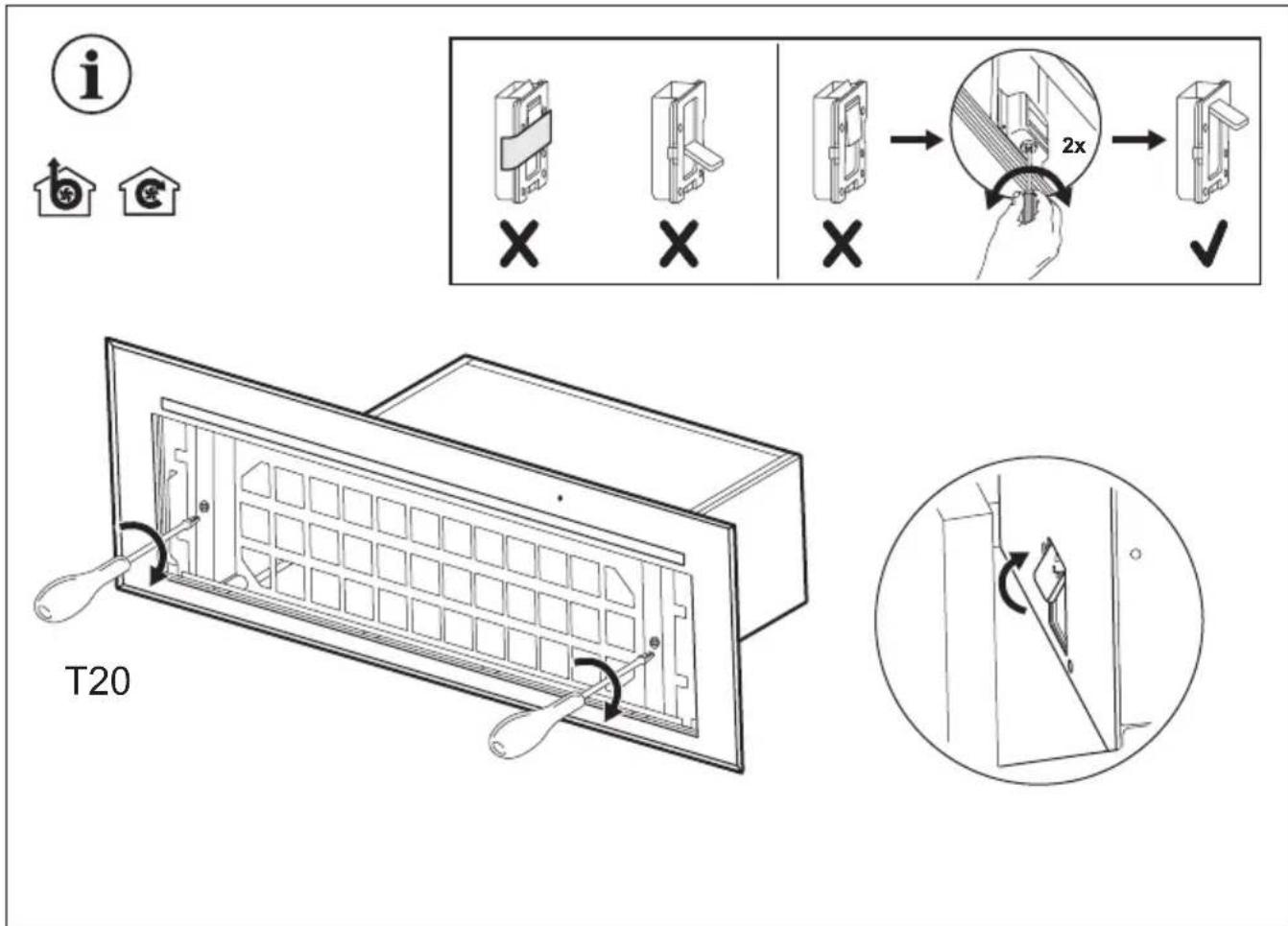

i T20

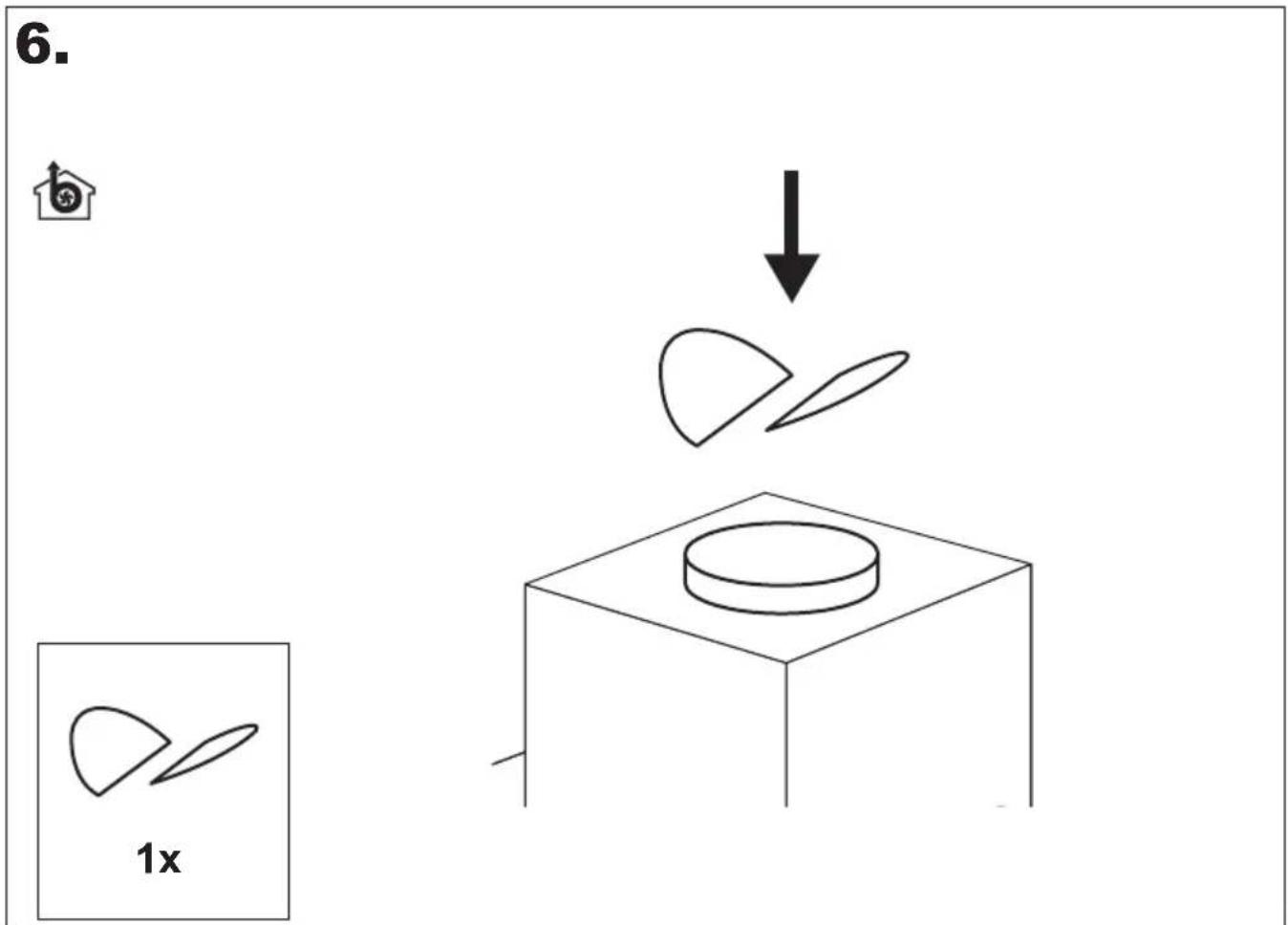

6. 1x

7.

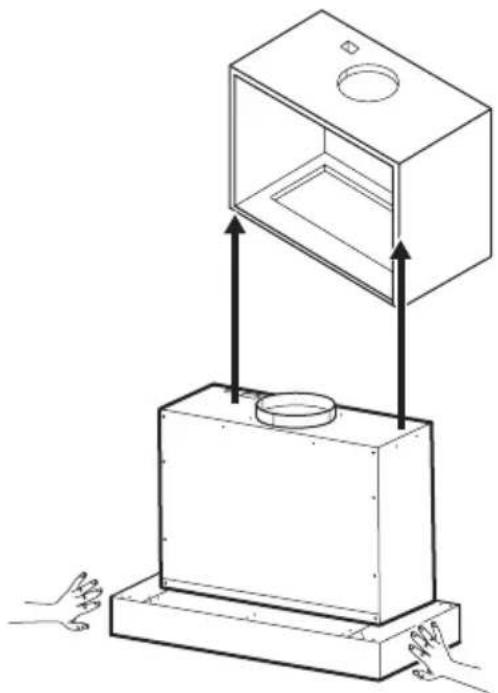

Diagram of a mechanical device with two hands operating it, showing internal components and directional arrows (no text or symbols)

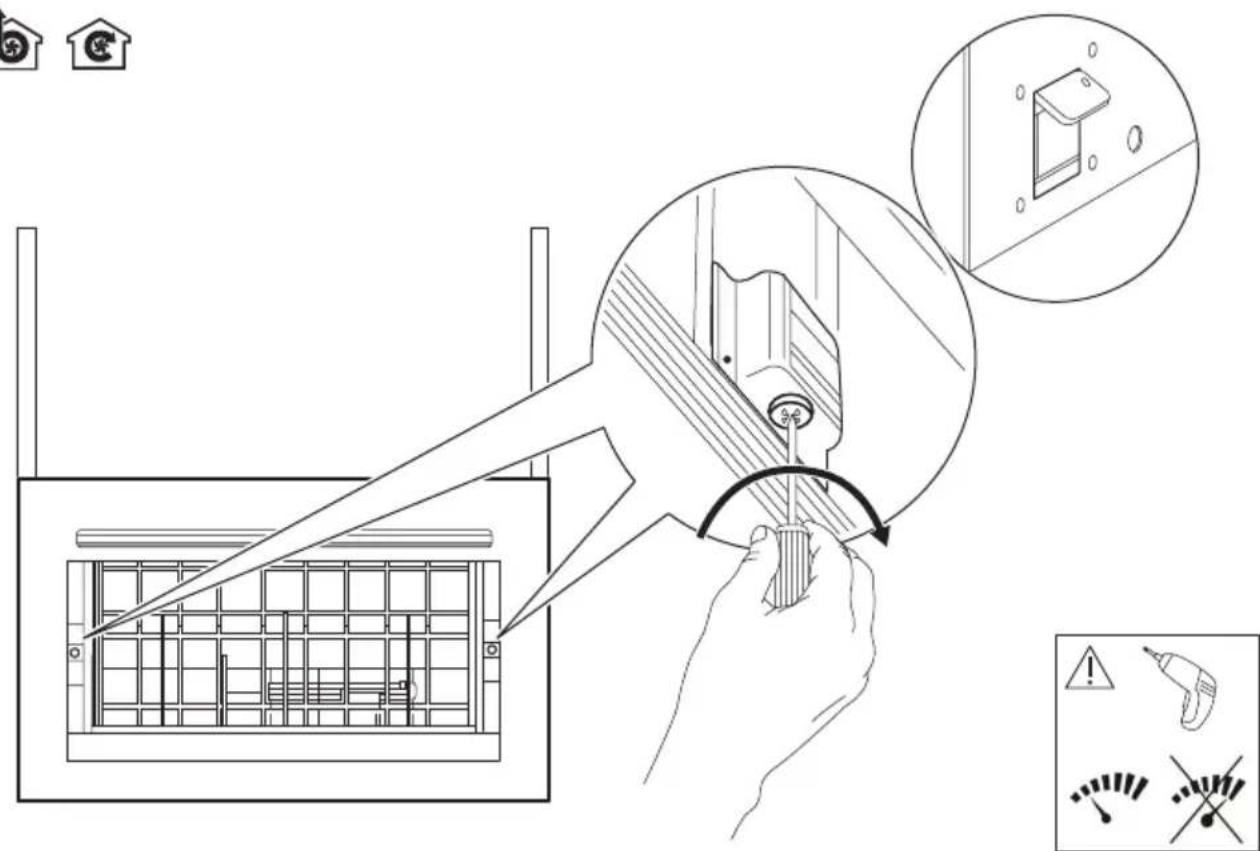

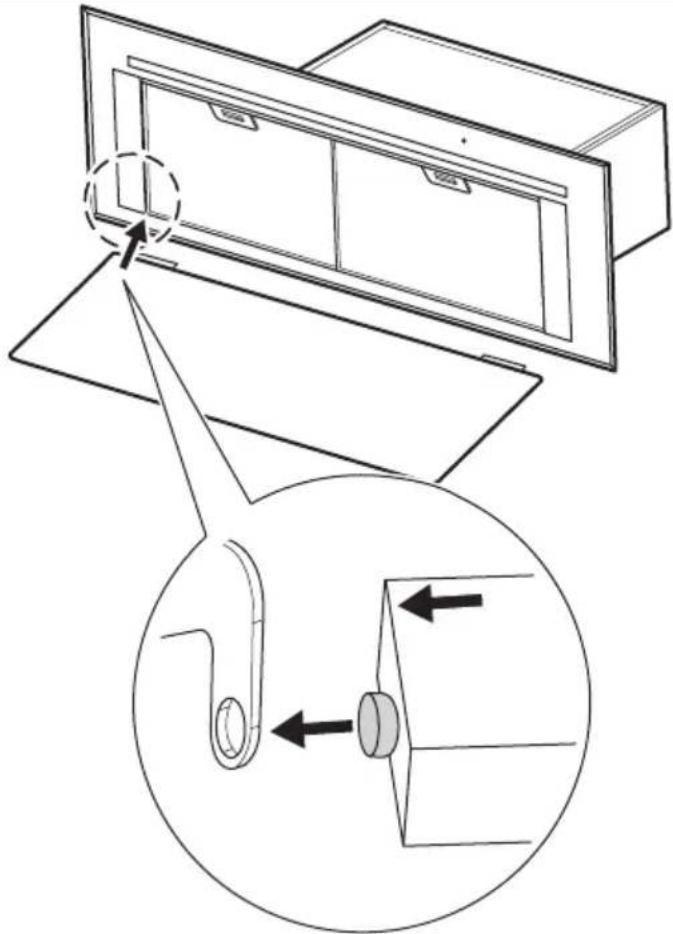

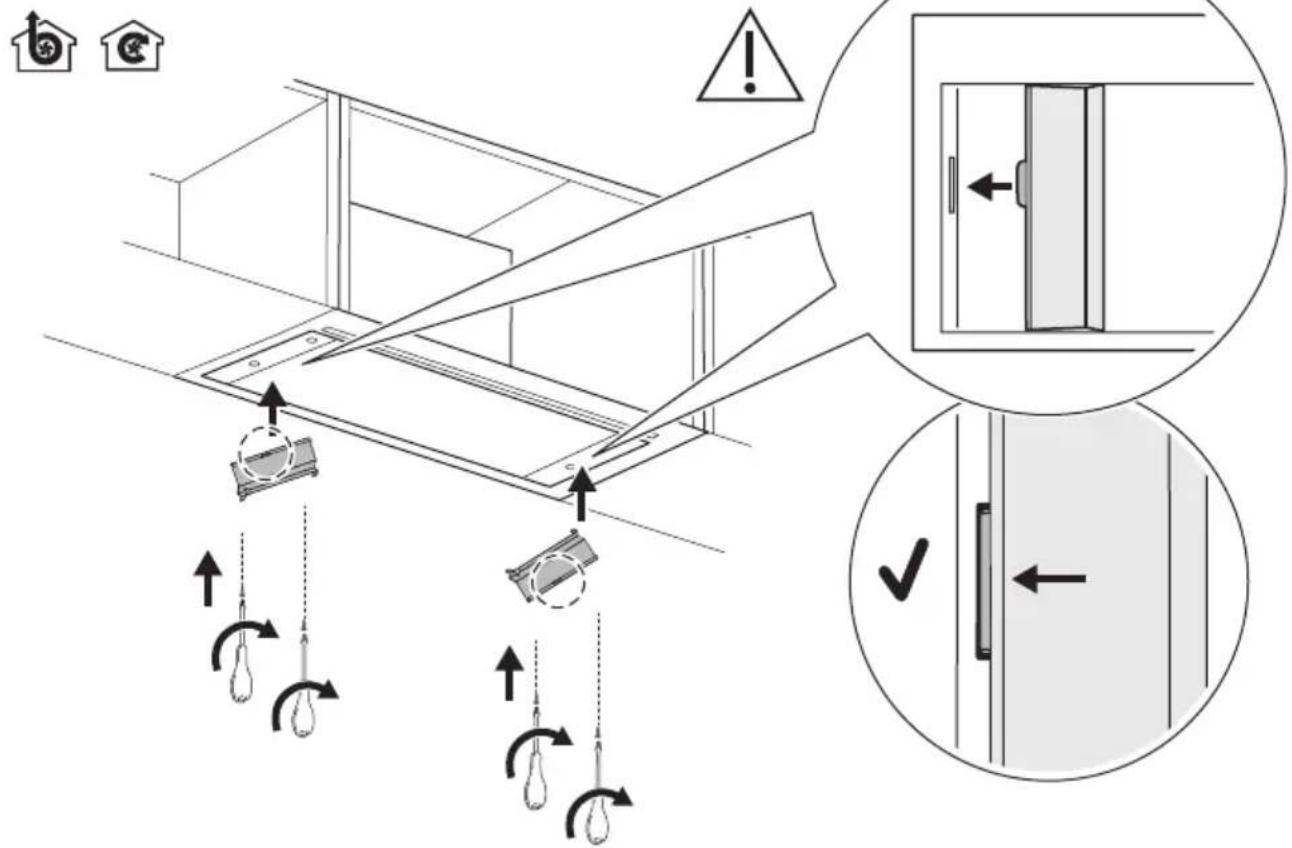

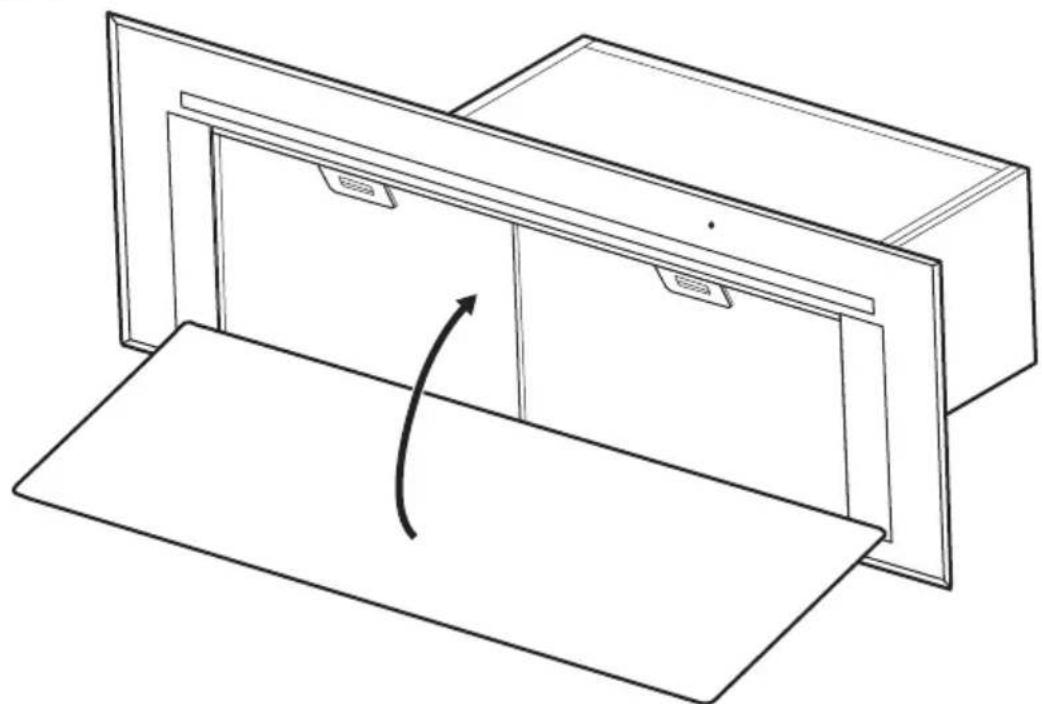

8.

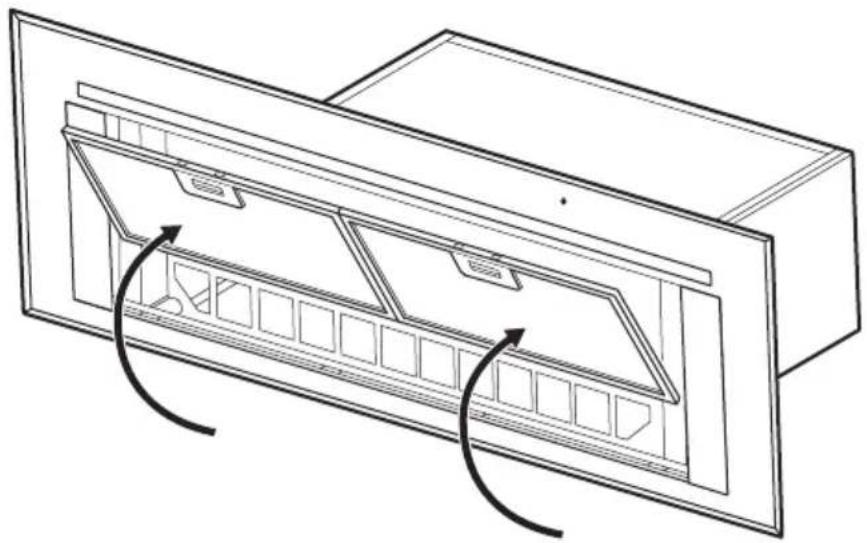

Diagram illustrating a hand using a tool to adjust or install a grid-based component, with instructional annotations and safety symbols.

1.

2.

Diagram illustrating the installation of a door frame with hanging fixtures and directional arrows, accompanied by safety warning symbols.

11

Technical line drawing of a mechanical component with internal channels and mounting holes (no text or symbols)

12.1.

Technical line drawing of a door handle assembly with an inset showing a hand holding a key (no text or symbols present)

Simple line drawing of a rectangular prism with label 'x1' (no other text or symbols)

12.2.

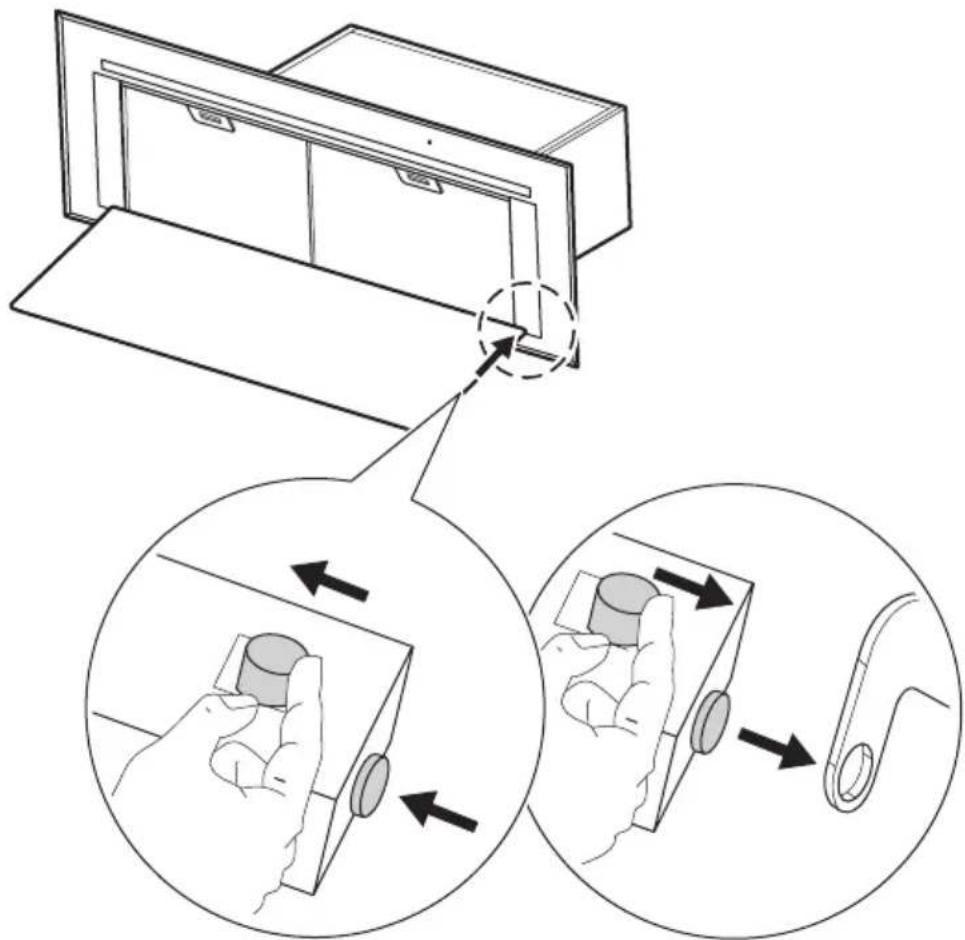

Diagram illustrating a door lock mechanism with hand positioning and cable insertion steps

12.3.

Line drawing of a cabinet with an arrow indicating rotation or movement (no text or symbols)

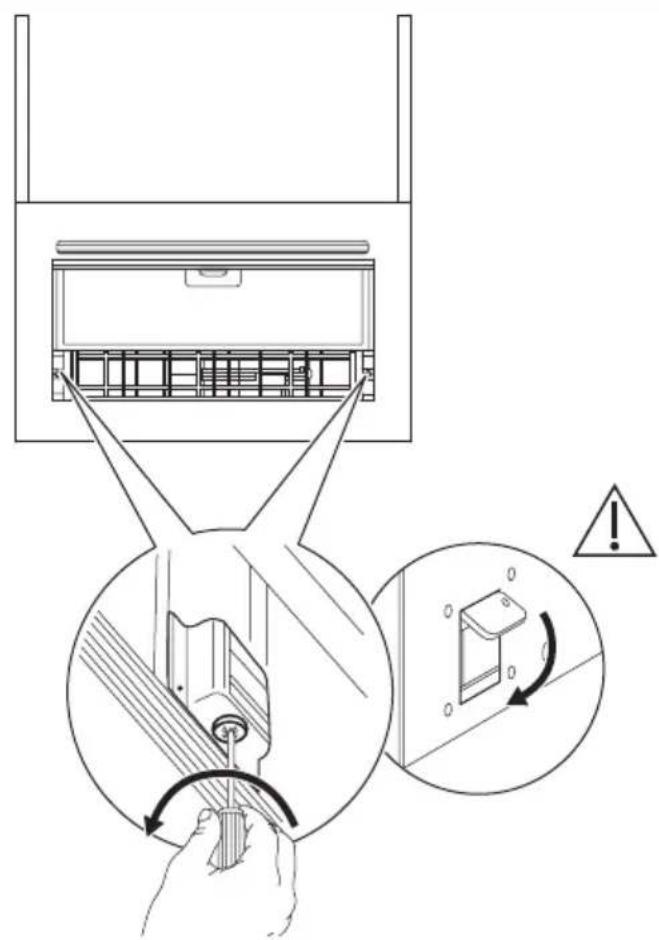

13.

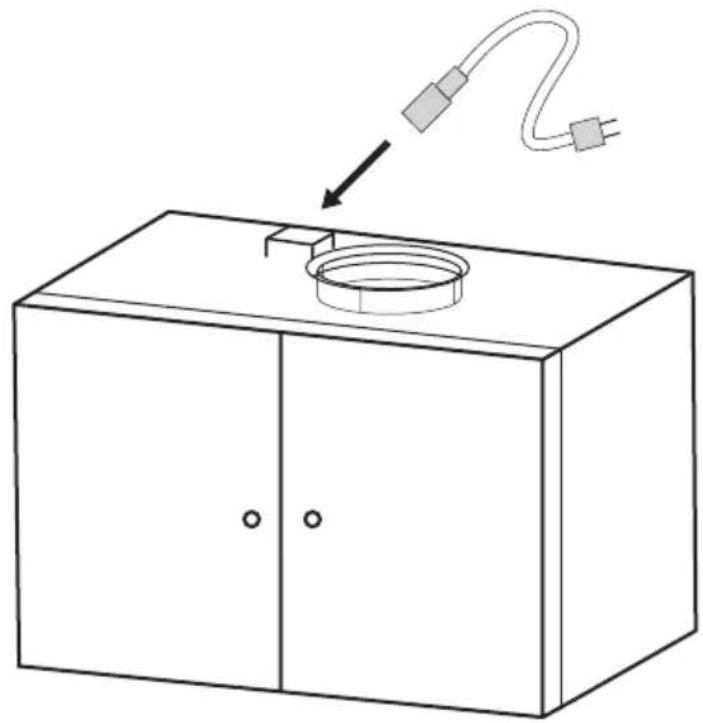

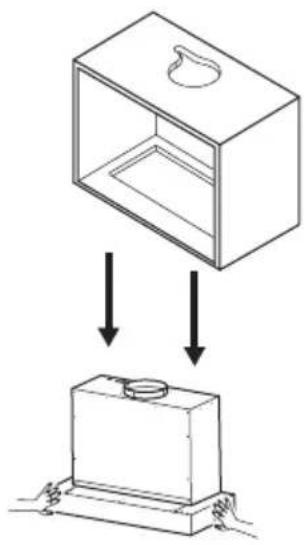

Line drawing of a cabinet with a circular component on top and a cable being inserted into it (no text or symbols)

i

Diagram showing a container with a lid and a base with a circular component, illustrating a process or assembly.

Diagram illustrating airflow control mechanism with labeled components and warning symbols
