USER MANUAL MIG 2072 CE Orbegozo

MANUAL D'INSTRUCTIONS

MIG 2070 CE / MIG 2071 CE / MIG 2072 CE

Sonifer,S.A.

Avenida de Santiago, 86, 30007, Murcia, Spain

[e-mail] / www.ortegozo.com

MADE IN P.R.C.

Read this manual carefully before running this appliance and save it for reference in order to obtain the best results and ensure safe use.

1. Do not attempt to operate this oven with the door open since open door operation can result in harmful exposure to microwave energy. It is important not to defeat or tamper with the safety interlocks.
2. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
3. Do not operate the oven if it is damaged. It is particularly important that the oven door close properly and that there is no damage to the

a. Door (bent),
b. Hinges and latches (broken or loosened),
c. Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except properly qualified service personnel.

IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND SAVE FOR FUTURE REFERENCE

When using electrical appliance basic safety precautions should be followed, including the following:

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children must never play with the appliance. Cleaning and user maintenance must never be carried out by children without supervision.
2. Children should be supervised to ensure that they do not play with the appliance.
3. Keep the appliance and the cable cord out of the reach

of children less than 8 years old.

1. WARNING: In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
2. If the supply cord is damaged it must be repaired by the Authorized Service Agent.
3. Never pull on the cord when unplugging.
4. Do not use the unit with a damaged cord or plug, or if it is not working properly.
5. Do not handle the appliance with wet hands.
6. Never immerse the appliance in water or any other liquid.
7. Make sure the appliance has been unplugged before cleaning.
8. This appliance must be installed following the national regulations for electrical installations.
9. This appliance is for household use only.
10. In case that you need a copy of the instruction manual, you can find it in www.orbegozo.com.

WARNING: To reduce the risk of burns, electric shock, fire, personal injury, or exposure to excessive microwave energy:

1. WARNING: It is dangerous for anyone other than a competent person to perform maintenance or repair

operations that involve removing a cover that provides protection against exposure to microwave energy.

1. WARNING: Liquid or other food must not be heated in sealed containers since they are liable to explode.
2. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
3. Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handling the container.
4. The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
5. Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
6. WARNING: If the door or seals are damaged, the oven must not be used until properly repaired by qualified service personnel.
7. Use only utensils that are intended for use in microwave ovens.
8. When heating food in plastic or paper containers, carefully attend the oven due to the possibility of ignition.
9. The intended use of the microwave oven is that of heating beverages and food. The drying of food or clothes

and the warming of pillows, slippers, sponges, damp clothes and similar items may result in injury, ignition or fire.

1. The oven must be cleaned regularly and any food residue removed.
2. The failure to keep the oven clean could lead to damage in its surface and negatively affect the appliance's performance, leading to a potentially hazardous situation.
3. WARNING: Check the oven for any damage, for example, a misaligned or bent door, damaged door seals and sealing surfaces, broken or loose latches or hinges, and dents inside the oven or on the door. If there is any damage, do not operate the oven and contact the qualified service personnel.
4. Read these instructions completely before using the microwave.
5. Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
6. Do not operate the oven when empty.
7. Failure to maintain the oven in a clean condition could result in surface deterioration, which could adversely affect

the life of the appliance and possibly result in a hazardous situation.

To reduce the risk of fire inside the oven:

1. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
   2 Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
2. Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
3. Pierce foods with heavy skins such as potatoes, whole squashes, apples and chestnuts before cooking.
4. Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
5. Utensils should be checked to ensure that they are suitable for use in microwave oven.
6. This product is a Group 2 Class B ISM equipment. The definition of Group 2 which contains all ISM (Industrial, Scientific and Medical) equipment in which radio-frequency energy is intentionally generated and/or used in the form of electromagnetic radiation for the treatment of material, and spark erosion equipment. For Class B equipment is equipment suitable for use in domestic establishments and in establishments directly connected to

a low voltage power supply network which supplies buildings used for domestic purpose.

1. Do not operate the device connected to an external timer or a separate remote control system.
2. WARNING: In case of misuse, there is a risk of possible injury.

3. The back of the appliance should be placed against the wall.

4. CAUTION: Surface may remain hot during or after use.

SPECIFICATIONS

Power consumption:	230V~50Hz, 1150W (microondas)
Rated Microwave Power Output:	700W
Grill power consumption:	800W
Operation Frequency:	2450MHz
Oven Capacity:	20 Litros
DIMENSIONS	440 / 280 / 365 mm
WEIGHT	10.6 Kg
MODE OFF	<0,5W

* NOTE: The period after which the equipment enters the specified mode automatically is 0 minutes.
*All data is subject to change, and comparison by the user with the data included on the oven's technical plate. Complaints about errors in these are not accepted.

INSTALLATION

1. Make sure that all the packing materials are removed from the inside of the door.
2. WARNING: Check the oven for any damage, such as misaligned or bent door, damaged door seals and sealing surface, broken or loose door hinges and latches and dents inside the cavity or on the door. If there

is any damage, do not operate the oven and contact qualified service personnel.

1. This microwave oven must be placed on a flat, stable surface to hold its weight and the heaviest food likely to be cooked in the oven.
2. Do not place the oven where heat, moisture, or high humidity are generated, or near combustible materials.
3. For correct operation, the oven must have sufficient airflow. Allow 20cm of space above the oven, 10cm at back and 5cm at both sides. Do not cover or block any openings on the appliance. Do not remove feet.
4. Make sure that the power supply cord is undamaged and does not run under the oven or over any hot or sharp surface.
5. The socket must be readily accessible so that it can be easily unplugged in an emergency.
6. Do not use the oven outdoors.

RADIO INTERFERENCE

Operation of the microwave oven can cause interference to your radio, TV, or similar equipment.

When there is interference, it may be reduced or eliminated by taking the following measures:

• Clean door and sealing surface of the oven.
• Reorient the receiving antenna of radio or television.
• Relocate the microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that microwave oven and receiver are on different branch circuits

MICROWAVE COOKING PRINCIPLES

1. Arrange food carefully.
2. Watch cooking time. Cook for the shortest amount of time indicated and add more as needed. Food severely overcooked can smoke or ignite.
3. Cover foods while cooking. Covers prevent spattering and help foods to cook evenly.
4. Turn foods over once during microwaving to speed cooking of such foods as chicken and hamburgers. Large items like roasts must be turned over at least once.
5. Rearrange foods such as meatballs halfway through cooking both from top to bottom and from the center of the dish to the outside.

GROUNDING INSTRUCTIONS

This appliance must be grounded. This oven is equipped with a cord having a grounding wire with a grounding plug. It must be plugged into a wall receptacle that is properly installed and grounded. In the event of an electrical short circuit, grounding reduces risk of electric shock by providing an escape wire for

the electric current. It is recommended that a separate circuit serving only the oven be provided. Using a high voltage is dangerous and may result in a fire or other accident causing oven damage.

WARNING Improper use of the grounding plug can result in a risk of electric shock.

Note:

1. If you have any questions about the grounding or electrical instructions, consult a qualified electrician or service person.
2. Neither the manufacturer nor the dealer can accept any liability for damage to the oven or personal injury resulting from failure to observe the electrical connection procedures.

The wires in this cable main are colored in accordance with the following code:

Green and Yellow = EARTH

Blue = NEUTRAL

Brown = LIVE

BEFORE YOU CALL FOR SERVICE

If the oven fails to operate:

1. Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds, and plug it in again securely.
2. Check for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly, test the outlet with another appliance.
3. Check to ensure that the control panel is programmed correctly and the timer is set.
4. Check to ensure that the door is securely closed engaging the door safety lock system. Otherwise, the microwave energy will not flow into the oven.

IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT A QUALIFIED TECHNICIAN. DO NOT TRY TO ADJUST OR REPAIR THE OVEN YOURSELF

UTENSILS GUIDE

The ideal material for a microwave utensil is transparent to microwave, it allows energy to pass through the container and heat the food.

Microwave can not penetrate metal, so metal utensils or dishes with metallic trim should not be used.

Do not use recycled paper products when microwave cooking, as they may contain small metal fragments which may cause sparks or fires.

Round or oval dishes rather than square or oblong ones are recommend, as food in corners tends to overcook.

Narrow strips of aluminum foil may be used to prevent overcooking of exposed areas. But be careful don't use too much and keep a distance of 1 inch (2.54cm) between foil and cavity.

The list below is a general guide to help you select the correct utensils

CONTAINERS	MICROWAVE	GRILL	COMBINATION
Heat-resistant glass	Yeah	Yeah	Yeah
Non-heat resistant glass	No	No	No
Heat-resistant ceramic	Yeah	Yeah	Yeah
Microwave-safe plastic plate	Yeah	No	No
Kitchen paper	Yeah	No	No
Metal tray	No	Yeah	No
Metal grate	No	Yeah	No
Paper and aluminum containers	No	Yeah	No

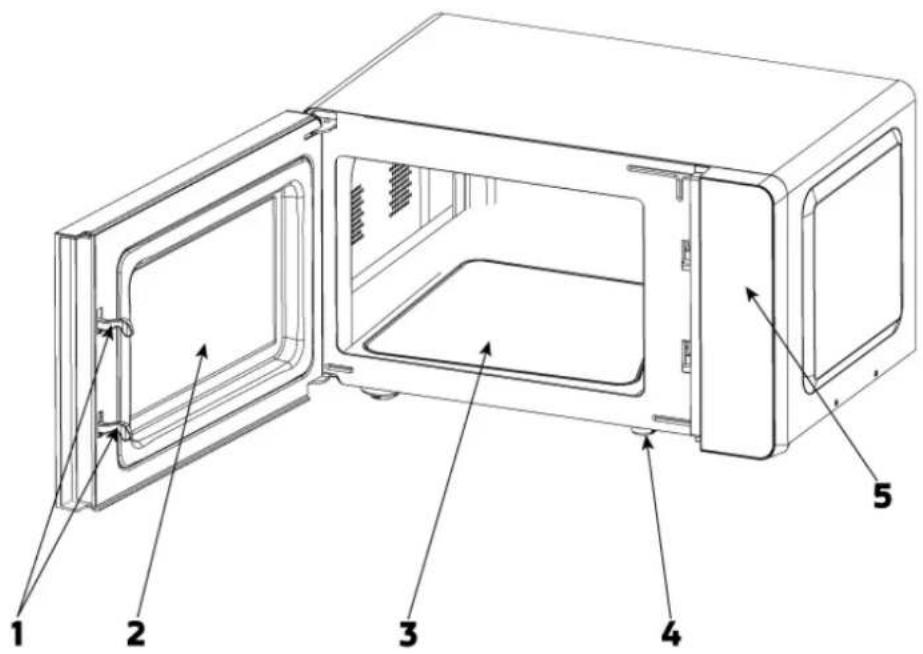

PART NAMES

1. Door Closure

The microwave oven door must be properly closed for it to work.

1. Display window

Allows the user to view the cooking status.

1. Cavity Base

Flatbed technology allows the microwave to skip the turntable, making optimal use of space and making cleaning easier.

1. Microwave feet

These secure the appliance.

5. Control Panel

See details below (control panel design is subject to change without notice).

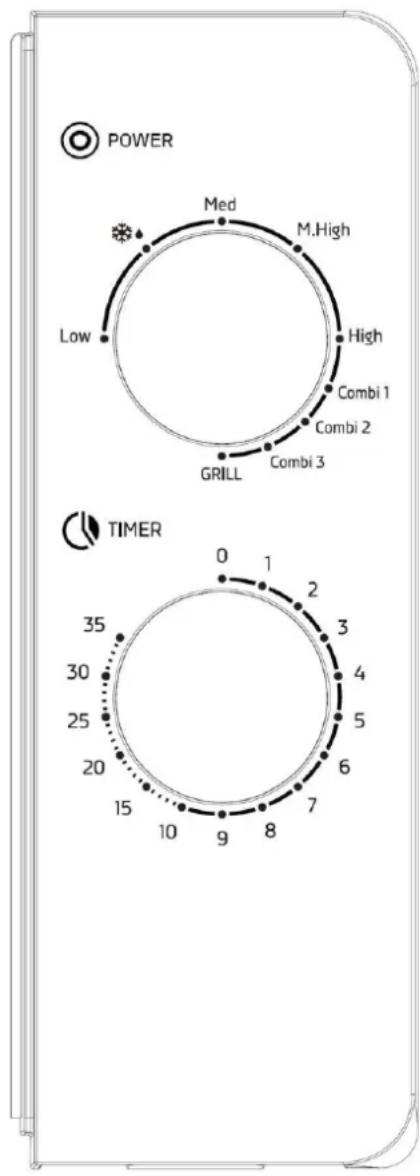

CONTROL PANEL

The control panel consists of two function operators. One is a timer knob, and another a power knob.

You use this operator knob to choose a cooking power level. It is the first step to start a cooking session.

TIMER KNOB

Offers visual timing settings at easy turn of your thumb to select a desired cooking time up to 30 minutes per cooking session.

MICROWAVE COOKING

For pure microwave cooking, there are six power levels from which to choose one as best fit to do the job at hand. Select

Power level increases with the knob turning clockwise. The power levels can be classified as the following:

	Description	Microwave Power	Grill Power
1	LOW	17%	/
2	DESFROST *	30%	/
3	MED	55%	/
4	M HIGH	80%	/
5	HIGH	100%	/
6	COMBI 1	20%	80%
7	COMBI 2	30%	70%
8	COMBI 3	40%	60%
9	GRILL	/	100%

• Whenever you want to defrost any meal, select defrost in the power knob and then select the weight in the time knob.

RILL

With the knob turning clockwise passing the highest microwave power level, the oven come to the grill cooking function which is particularly useful for thin slices of meat, steaks, chops, kebabs, sausages or pieces of chicken. It is also suitable for cooking hot sandwiches and au grain dishes.

COMBINATION COOKING

By its name, this cooking operation combines microwave power with that of grill cooking. The operation is categorized into three levels with different combination power settings. These are particularly suitable for certain foods and culinary operations. As well as for keeping the much desired crispness of certain foods.

Combi 1: 30% operation time the magnetron is energized and 70% time heat element is energized. It is suitable for roasting chops, sandwich and etc.

Combi 2: 49% operation time the magnetron is energized and 51% time heat element is energized. It is suitable for broiling small chicken and meat.

Combi 3: 67% operation time the magnetron is energized and 33% time heat element is energized. It is suitable for broiling large chicken, duck and etc.

1. Place food in the microwave and close the door. Make sure you use a container suitable for this microwave (refer to the table in this manual).
2. Turn the Power selector to select a power level.
3. Use the timer to select the cooking time.

NOTE: When you turn the timer, the microwave oven begins to operate.

If you wish to select a time shorter than 2 minutes, turn the timer longer than 2 minutes and return to the desired time.

CAUTION: ALWAYS RESET THE TIMER TO THE ZERO POSITION if you remove food from the microwave oven before the set time has elapsed or when the oven is not in use. To stop the oven during cooking, open the door using the handle.

CLEANING AND CARE

CAUTION

The microwave oven must be cleaned regularly and any food residue must be removed.

a. Unplug the power cord from the outlet before cleaning. Do not immerse the appliance in water or any other liquid while cleaning.
b. Keeping the microwave dirty could damage the surface, which could negatively affect its lifespan and create a dangerous situation.
c. Never use abrasive detergents, gasoline, scouring powders, or metal brushes to clean any part of the appliance.
d. Do not remove the waveguide cover.
e. After prolonged use of the microwave oven, you may notice strange odors. Follow these three methods to eliminate them:

1) Place several lemon slices in a cup and heat on high for 2 to 3 minutes.
2) Place a cup of red tea in the oven and heat on high.
3) Place the orange peels in the oven and heat on high for 1 minute.

f. When not in use, store the product in a dry, ventilated area.

CAUTION

Cleaning instructions for food contact surfaces:

After use, wipe the waveguide cover with a damp cloth, then a dry cloth, to remove food spills and grease.

Grease buildup can overheat and cause smoke or a fire.

CLEANING TIPS

Instructions for cleaning the door seals, cavity, and adjacent parts:

Housing:

Clean the housing with a soft, damp cloth.

Door:

Clean the door and window with a soft, damp cloth.

Wipe the door seals and surrounding parts to remove any spills or splashes.

Clean the control panel with a soft, slightly damp cloth.

Interior walls:

Wipe the interior surfaces with a soft, damp cloth.

DISPOSAL OF OLD ELECTRICAL APPLIANCES

The European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out "wheeled bin"

symbol on the product reminds you of your obligation, that when you dispose of the appliance, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

DECLARATION OF CONFORMITY:

This device complies with the requirements of the Low Voltage Directive 2014/35/EU and the requirements of the EMC directive 2014/30/EU.

GUARANTEE

This appliance is covered and is entitled to the legal guarantee in accordance with the legislation in force from the date of purchase. Keep the purchase receipt to be able to claim your right to the guarantee. To find the closest service to your location, contact through the following web link: https://orbegozo.com/assistencia-technica/

For any type of query, doubt or incident, you can contact us through our email shown on the main page of this manual or through our technical assistance service at https://orbegozo.com/contacto/

Orbegozo is not responsible for components and accessories that are subject to wear and tear due to use, as well as perishable compounds or those that have deteriorated due to improper use. Nor will it be held responsible if the owner has technically modified the device. Check the legal conditions on our website.
