USER MANUAL Snoozy Deryan

Line drawing of a portable air conditioner unit with grid-patterned panel and support legs (no text or symbols)

IMPORTANT FOR FUTURE REFERENCE.

Read the following instructions carefully before use.

IMPORTANT ! À CONSERVER POUR TOUTE RÉFÉRENCE ULTÉRIEURE.

Lowering of the toprail

Height adjustment

Attaching to a bed

Brake operation

Clean and store (EN)

• Do not use the product until you have read the instructions.
• Stop using this product as soon as your child can sit, kneel or pull himself up.
• Do not place anything on or on top of the product in connection with possible suffocation.
• Do not place this product near other parts that may pose a choking or strangulation hazard, for example near cords of (roller) curtains.
• Never use more than one mattress in this product.
• This product is designed for use by one child from birth up to the maximum weight of 9 kg or until the age of 6 months.
• Only an adult should assemble, collapse and unfold the trundle bed.
• This product should be placed on a horizontal floor.
• Do not allow young children to play unsupervised near the crib.
  • This product must be securely fastened when left unattended.
• Due to strangulation hazard, make sure all fastenings are secure.
• Beware of loose screws, which would pose a strangulation hazard, as a child could entrap body parts or garments (for example, strings, necklaces, ribbons for baby teats, etc.).
• Use only the mattress provided with this product, this mattress has the correct size and thickness in relation to suffocation hazards.
• Be aware of the many burning cigarettes, open fires and other strong heat sources such as electric bar fires, gas fires and so on in the immediate vicinity of the refusal, due to fire hazard.
• Do not use the cradle if any parts are missing, damaged or broken.
• This product can be used as a side bed next to adult beds, with mattress height between 55 and 67 cm from the ground.
• Use only the attachment system provided with this product.
• Never use this product in a collapsed or tilted position.
• There should never be a gap between the bottom of the side sleeper and the mattress of the adult bed.
• Before each use, recheck that the attachment system is secure by pulling the refusal away from the adult bed.
• Always put the top rail in the highest position when it is not attached to the adult bed.
• To prevent the child's neck or chin from getting caught behind the top rail, the top rail should not be higher than the mattress of the adult bed.
• Gaps should not be filled with pillows, blankets or other objects.

WAARSCHUWINGEN

Mattress Removeable guardrail Sleeping nest Height adjust handle Supporting plastic clip Baseplate Bracket Transverse supporting tube Universal wheel

Strap

ASSEMBLY

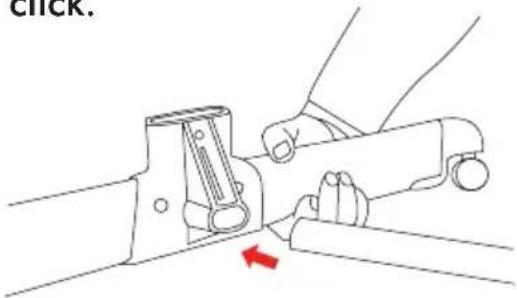

Insert the bottom rod (center) into both side feet until you hear a clear click.

Line drawing of a hand operating a lever mechanism with a red arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical assembly with a red arrow indicating a downward motion (no text or symbols present)

Insert both upper legs into the corresponding side foot until you hear a clear click.

Line drawing of a baby crib with red arrows indicating support points (no text or symbols)

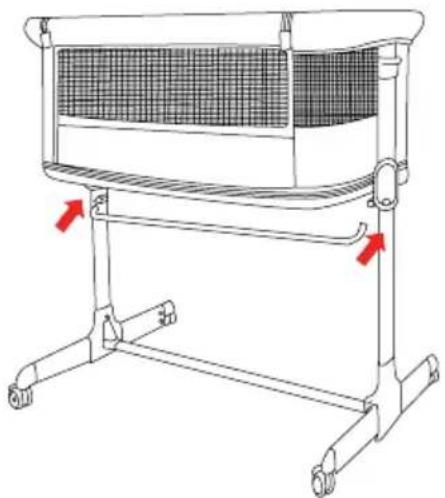

Place both security/bottom frames, under the crib bottom, until you hear a clear click. Slide the front frame into the fabric section.

1 2

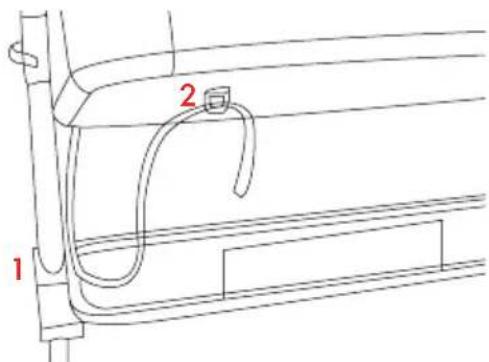

Fix the fabric part to the frame by at the bottom of the bottom, passing the straps through the sliders, on both sides.

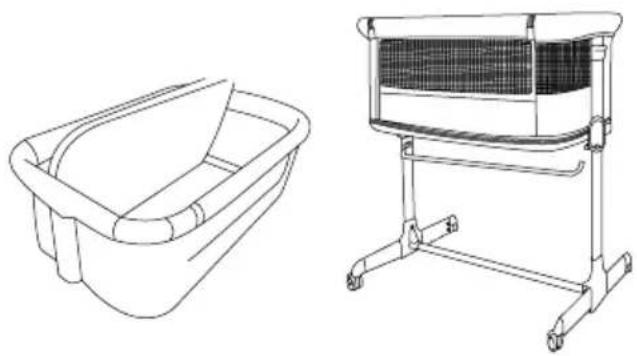

Line drawings of two household appliances: a rectangular basin and a portable bed holder (no text or symbols)

Lay the mattress hard side down and your side sleeper is ready for use in solo mode.

Caution! Always keep the top rail at the top if it is not attached to an adult bed.

LOWERING OF THE TOPRAIL

Line drawing of a hand holding a curved object, possibly a tool or component (no text or symbols)

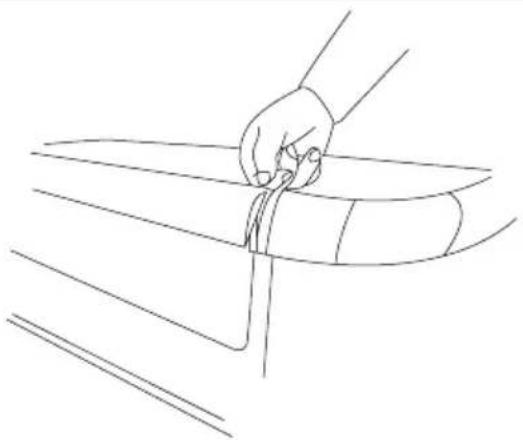

Open both zippers on the front of the crib and open them all the way until they can't go any further.

Diagram showing two hands adjusting a cable with red arrows indicating positions 1 and 2

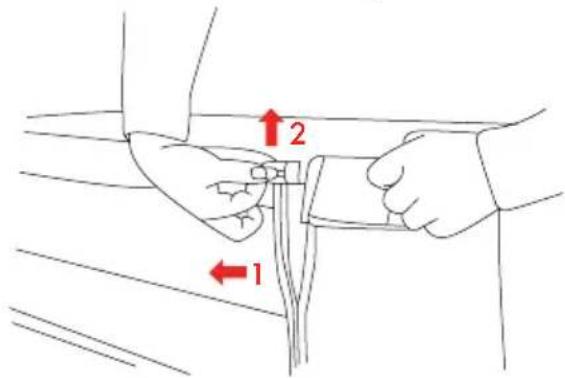

As you slide the plastic slider to the center of the cradle, you can move the top rail upward. This is how you remove it from its locking position. Repeat on the other side of the top rail.

Line drawing of hands adjusting a belt buckle with a red arrow indicating motion (no text or symbols)

Simple line drawing of a rectangular container or support structure (no text or symbols)

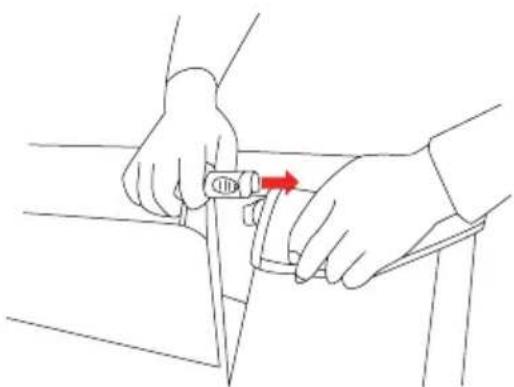

Remove the top rail from the liner and simply leave the front flap hanging down (it will clip automatically between the parent mattress and the crib during use). Store the top rail safely, out of reach of other children but store it well for future use.

HEIGHT ADJUSTMENT

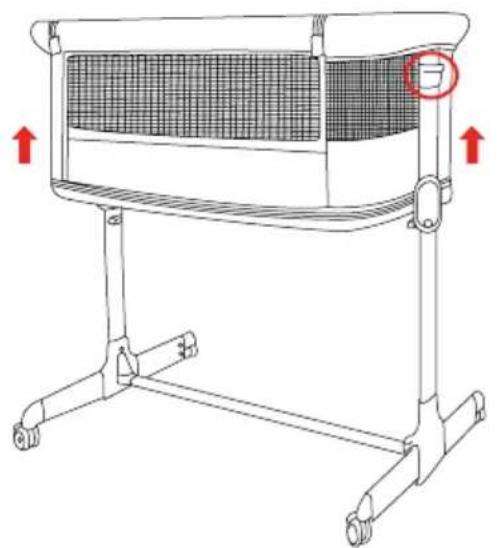

Line drawing of a baby crib with a mesh backrest and two red arrows indicating upward motion (no text or symbols)

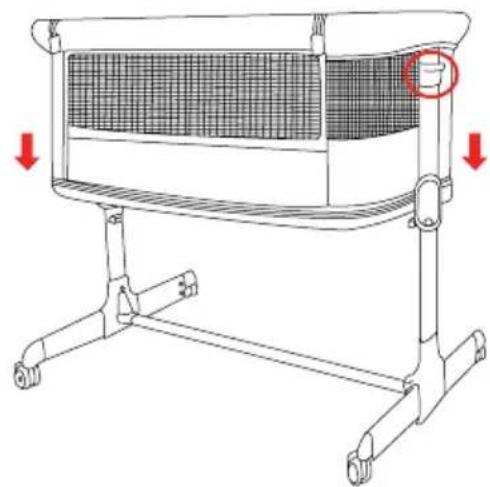

Line drawing of a baby crib with red arrows indicating downward motion (no text or symbols)

By squeezing the adjustment button to the side of the frame, you can adjust the height of the cradle. See also the other side of the frame.

Pressing both buttons at the same time allows you to adjust the cradle up or down. In the correct position. In the round viewing window you can see in which position it is and whether left or right are equal.

Caution! Since your baby should not be on a slope of more than 10 degrees, make sure you have a maximum of 2 steps difference between left and right.

ATTACHING TO A BED

Line drawing of a vintage sofa with patterned backrest and side arm details (no text or symbols)

Caution! Always use the safety straps when this product is next to the parent bed.

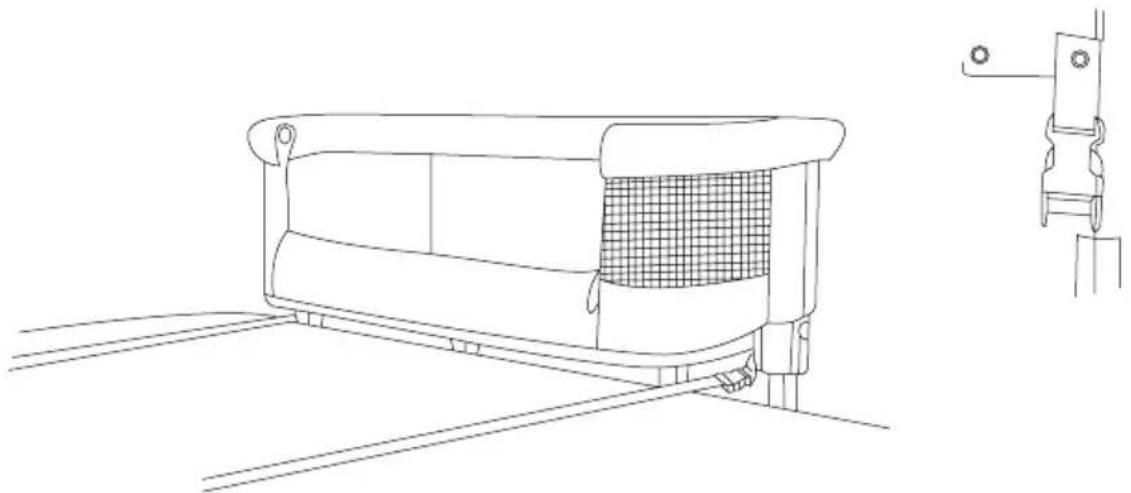

Place both safety straps under the old mattress, as shown in these drawings. And snap them to the attachment points to the left and right of the crib.

Line drawing of a rectangular tray with a curved top and side supports (no text or symbols)

Diagram showing two mechanical or electrical component assemblies with red arrows indicating motion direction (no text or symbols)

Caution! This product can only be used alongside a parent bed, with the mattress and frame aligned as shown in this drawing.

Simple line drawing of a box with an arrow pointing to its side, no text or symbols present.

Here the parts are in line, and therefore with this bed the crib can be used as a co sleeper.

Simple line drawing of a bed with two square chairs (no text or symbols)

This parent bed has a frame that extends beyond the mattress.

Hereby, the crib cannot be used as a co sleeper.

ATTACHING TO A BED

Caution! This product should not be used next to waterbeds or cribs. Use this product only on the side of an adult bed, never at foot or headboard.

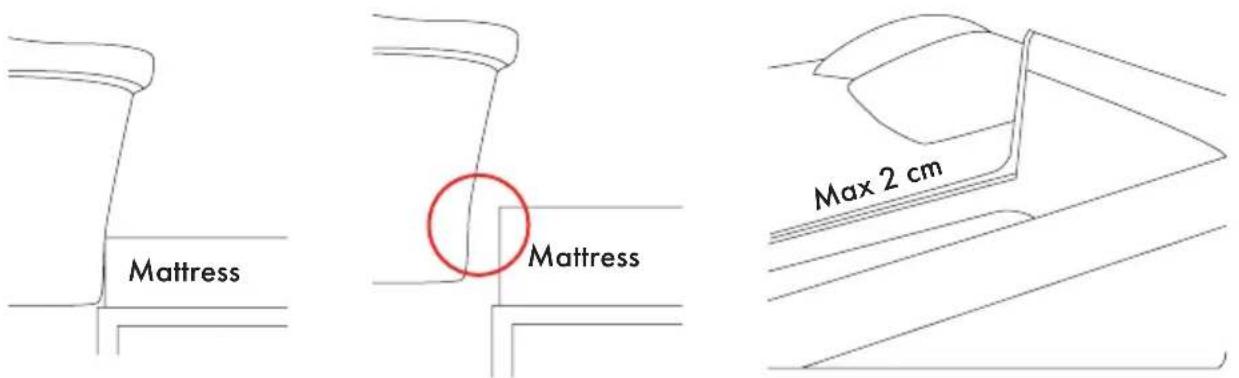

Mattress Mattress Max 2 cm

Caution! Adjust the height of the co sleeper next to the bed to the correct height, just below the parent mattress. So when both beds are connected, you won't feel the hard frame of the crib.

Caution! Make sure the safety belts are securely fastened and properly tightened.

Caution! When using the co sleeper feature, keep in mind that the top rail must be removed and stored properly.

Caution! When the co sleeper is attached to the parent bed, the crib should fit closely to the parent mattress without any difficulty.

BRAKE OPERATION

Diagram showing two vehicle wheels with lock and padlock symbols, indicating left-hand rule changes.

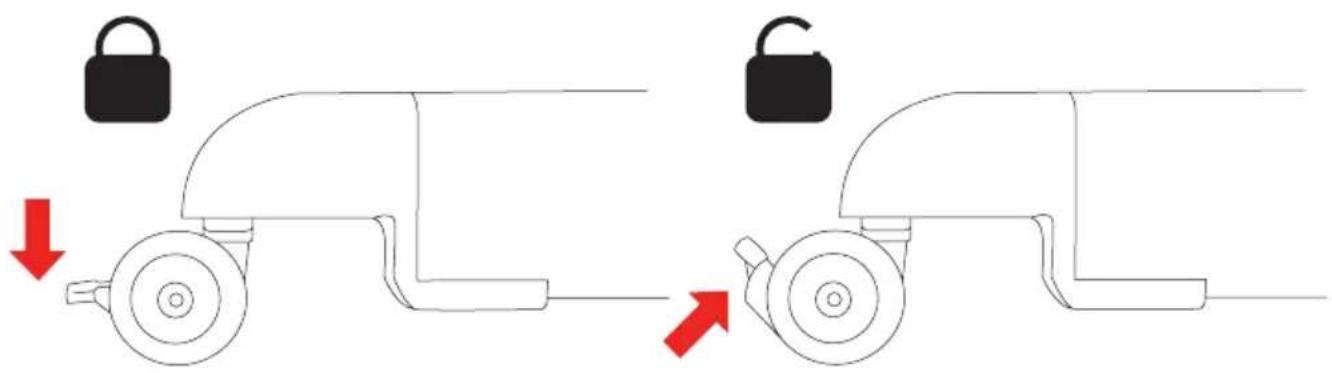

Step down the brake, it is locked. Step up the brake, it is unlocked.

CLEAN AND STORE

To prevent mold growth, store the product after it has dried thoroughly and do not store in a humid environment. Clean the frame with a wet cloth and mild detergent. Never use solvents, ammonia or other aggressive cleaning methods. Prevent rust and dry metal parts as soon as they come into contact with water or rain. Keep all parts clean. The mattress cover can be gently washed in the washing machine on a gentle program at up to 40 degrees. Dry flat only, do not iron.
