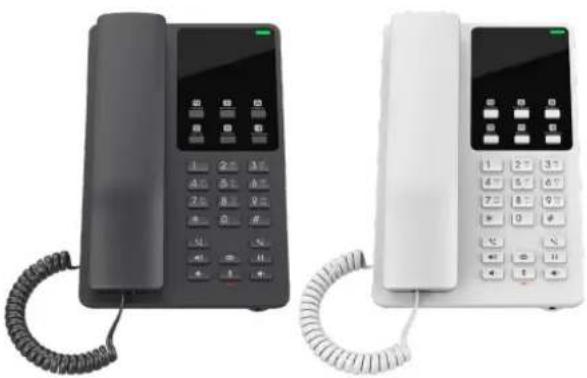

Two modern telephones, one black and one white, displayed side by side with a coiled cord (no visible text or symbols)

GHP620/W

GHP621/W

Compact Hotel Phone

Quick Installation Guide

Content

English....1

简体中文....6

Español....11

Français....16

Deutsch....21

Italiano....26

Русский....31

Português....36

Regulatory Information....41

EN

The GHP620/W and GHP621/W are not pre-configured to support or carry emergency calls to any type of hospital, law enforcement agency, medical care unit ("Emergency Service(s)"), or any other kind of Emergency Service. You must make additional arrangements to access Emergency Services. It is your responsibility to purchase SIP-compliant Internet telephone service, properly configure the GHP620/W and GHP621/W to use that service, and periodically test your configuration to confirm that it works as you expect. If you do not do so, it is your responsibility to purchase traditional wireless or landline telephone services to access Emergency Services.

GRANDSTREAM DOES NOT PROVIDE CONNECTIONS TO EMERGENCY SERVICES VIA THE GHP620/W AND GHP621/W. NEITHER GRANDSTREAM NOR ITS OFFICERS, EMPLOYEES OR AFFILIATES MAY BE HELD LIABLE FOR ANY CLAIM, DAMAGE, OR LOSS YOU HEREBY WAIVE ANY AND ALL SUCH CLAIMS OR CAUSES OF ACTION ARISING FROM OR RELATING TO YOUR INABILITY TO USE THE GHP620/W AND GHP621/W TO CONTACT EMERGENCY SERVICES, AND YOUR FAILURE TO MAKE ADDITIONAL ARRANGEMENTS TO ACCESS EMERGENCY SERVICES IN ACCORDANCE WITH THE IMMEDIATELY PRECEDING PARAGRAPH.

The GNU GPL license terms are incorporated into the device firmware and can be accessed via the Web user interface of the device at http(s)://IP/#/gpl_license. To obtain a CD with GPL source code information, please submit a written request to [e-mail]

PRECAUTIONS:

WARNING: Please DO NOT power cycle the GHP620/W and GHP621/W during system bootup or firmware upgrade. You may corrupt firmware image files and cause the unit to malfunction.

WARNING: Use only the power adapter included in the GHP620W/GHP621W package. Using an alternative nonqualified power adapter may damage the unit.

OVERVIEW:

The GHP series of hotel phones feature the GHP620(W) and GHP621(W), easy-to-use IP phones for any hotel rooms that can be programmed and customized based on the needs of hotels and their guests. The GHP620W and GHP621W models are equipped with integrated dual-band Wi-Fi. The features of GHP series include HD speaker, 2 SIP accounts/lines, 6 programmable keys, 10 speed dial keys, 3-way voice conferencing, full band Opus voice codec, and advanced jitter-resilience algorithm that tolerates up to 30% packet loss without impacting voice quality. The GHP series is supported by Grandstream Device Management System (GDMS), which provides a centralized interface to configure, provision, manage and monitor the deployment of Grandstream endpoints. The GHP series IP phones can be installed on desktop or wall-mounted, and can be powered by PoE (GHP620/GHP621) and power adapter (GHP620W/GHP621W). Its elegant and compact design makes it perfect for not only hotels, but also hospitals, apartments, dormitories and much more.

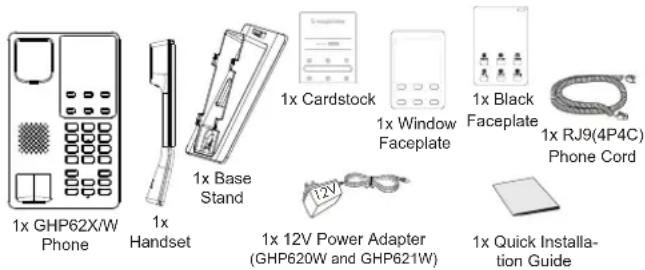

PACKAGE CONTENT:

1x GHP62X/W Phone 1x Handset 1x Base Stand 1x Cardstock 1x Window Faceplate 1x Black Faceplate 1x RJ9(4P4C) Phone Cord 1x 12V Power Adapter (GHP620W and GHP621W) 1x Quick Installation Guide

GHP620/W & GHP621/W DESCRIPTION:

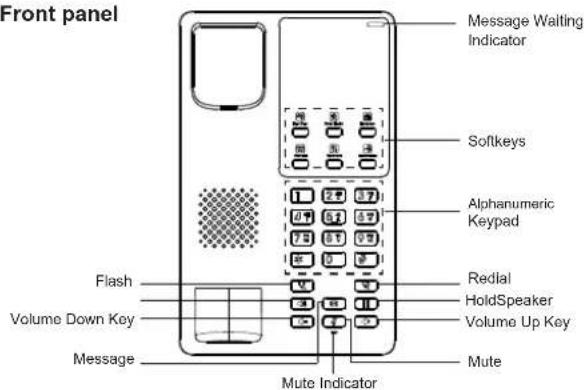

Front panel

Front panel Message Waiting Indicator Softkeys Alphanumeric Keypad Redial HoldSpeaker Volume Up Key Mute Mute Indicator Flash Volume Down Key Message

Note: The LED for the message waiting indicator will flash in green when there is a message waiting.

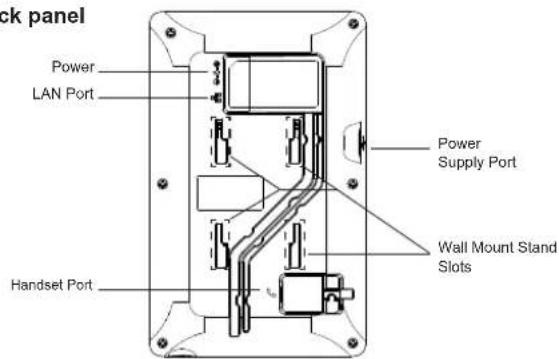

Back panel

lock panel Power LAN Port Power Supply Port Wall Mount Stand Slots Handset Port

-3--4-

PHONE SETUP:

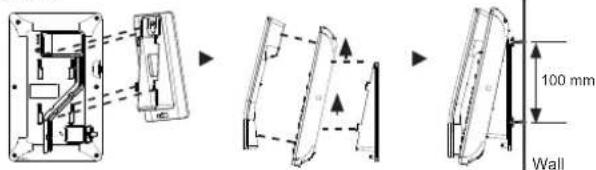

Wall Mount

1. On the wall where the GHP620/W & GHP621/W will be mounted, mark two dots with 100mm distance in between vertically.
2. Using a drill, make a hole on each marked dot. Put a plastic expansion bolt and screw (not provided) into each hole. Leave enough space on the screws to mount the GHP620/W & GHP621/W.

3. Attach the wall mount spacers to the slot for wall mount spacers on the back of the phone.

4. Mount the GHP620/W & GHP621/W on the screws using its "Wall Mount Slots".

Technical diagram showing assembly steps of a mechanical component with dimension annotations including 100 mm width and wall thickness.

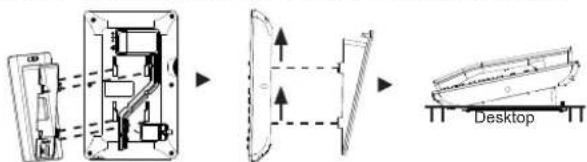

Desktop Installation

For installing the phone on the table with the phone stand, attach the phone stand to the bottom of the phone where there is a slot for the phone stand.

Technical diagram showing three stages of a device assembly: front view, side view, and top-down view with labeled 'Desktop' component.

INSTALLING THE FACEPLATE:

1. Remove the release paper from the back of the faceplate.
2. Stick the faceplate on the indicated area. Please refer to the illustration on the right.

Diagram of a microwave oven with control panel and indicator lights (no text or symbols)

CONNECTING THE PHONE:

To set up the phone, follow the steps below:

1. Plug in the phone cord to the handset RJ9 port and then connect it to the base.
2. Connect the LAN port of the phone to the RJ45 socket of a hub/switch or a router (LAN side of the router) using the Ethernet cable. This step can be skipped if using GHP620W & GHP621W with Wi-Fi.
3. Power up the phone:

- For GHP620W & GHP621W: Connect the 12V DC output plug to the power jack on the phone; plug the power adapter into an electrical outlet.

- For GHP620 & GHP621: A PoE switch must be used in step 2.

Note: The GHP620W/GHP621W is preconfigured to connect to a default SSID named "wp_master" with password (WPA/WPA2 PSK) "wp!987@dmin". Users can also modify these settings from the phone's web UI.

PHONE CONFIGURATION:

1. Ensure your phone is powered up and connected to the Internet.
2. Locate the MAC address on the bottom of the device or on the package.
3. From a computer connected to the same network as the GHP62X, type in the following address using the GHP62X's MAC address on your browser: https://.local

Example: https://c074adfffff.local

Note: The user can also dial **47# and the current IP address will be announced by the IVR.

1. Enter the admin username and password to access the configuration menu. (The factory default username is "admin" and the default random password can be found on the sticker at the back of the unit).

Refer to online documents and FAQ for more detailed information: https://www.grandstream.com/our-products

ZII

Technical diagram showing assembly steps of a mechanical component with dimension annotations in millimeters

桌面安装：

Technical diagram showing three stages of a mechanical assembly: front view, side view, and top view with Chinese label '桌面'

安装面板：

Diagram showing a device with buttons and a separate screen, no text or symbols present

电话的连接：

请按照以下步骤设置话机：

CHPS21W Welcome to CHPS21W

更多有关详细信息，请参阅在线文档和常见问题解答 https://www.grandstream.com/our-products

Line drawing of a microwave oven with control panel and indicator lights (no text or symbols)

CONECTANDO EL TELÉFONO:

GHP20W Welcome to GHP20W

Technical diagram showing assembly steps of a device with labeled components and dimensions

Installation Sur Bureau

Technical diagram showing three stages of a mechanical assembly: front view, side view, and top view with labeled 'Bureau' component.

INSTALLATION DE LA PLAQUE FRONTALE:

Diagram of a microwave oven with control panel and indicator lights (no text or symbols)

CONNECTER LE TELEPHONE:

Welcome to GPH208

Technical diagram illustrating the assembly of a mechanical component with labeled parts and dimensions

Tischmontage

Line drawing of a microwave oven with control panel and indicator lights (no text or symbols)

SHPL20W Welcome to SHPL20W

Diagram of a device with labeled buttons and indicators (no readable text or symbols)

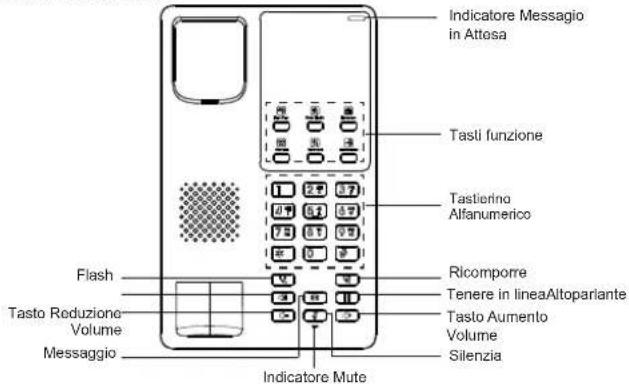

GHP620/W & GHP621/W DESCRIZIONE:

Pannello anteriore

Welcome to SHPGW!

Line drawing of a microwave oven with control panel and indicator lights (no text or symbols)

GHP20W Welcome to GHP20W

Technical diagram illustrating assembly steps of a mechanical component with labeled parts and dimension annotation

Diagram of a microwave oven with control panel and indicator lights (no text or symbols)

A CONECTAR O TELEFONE:
