USER MANUAL CSD4-4Li SCHEPPACH

Close-up of a handheld electric drill bit with visible brand and model details (no text or symbols on the device itself)

https://www.scheppach.com/de/service scheppach

CSD4-4Li

DE	AKKU-BOHRSCHRAUBEROriginalbedienungsanleitung	4
GB	CORDLESS DRILLTranslation of original instruction manual	15
FR	PERCEUSE-VISSEUSE SANS FILTraduction des instructions d'origine	25
PL	WIERTARKO-WKRĘTARKAAKUMULATOROWAPrzekład z oryginału instrukcji obsługi	36
CZ	AKU VRTACÍ ŠROUBOVÁKPřekład originálního návodu k obsluze	47
SK	AKU VŘTACÍ SKRUTKOVAČPreklad originálu návodu na obsluhu	57
HU	AKKUS FÚRÓ-CSAVAROZÓAz eredeti használati utasítás fordítása	67

1 X5W 6 5 6 2 3 7 4 PRET

Top-down view of a black and gray electric drill bit with a metallic handle (no visible text or symbols)

Close-up of a metal drill bit with a twist drill, no visible text or symbols

Close-up of a mechanical component being held by a tool, with no visible text or symbols

Close-up of a black electrical adapter connected to a coiled cable, labeled '7' (no text or symbols on the device itself)

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the equipment

The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.

	Caution - Read the operating instructions to reduce the risk of inquiry
	Wear ear-muffs! The impact of noise can cause damage to hearing.
	Wear a breathing mask! Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
	Wear safety goggles! Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
MAX 40°C	Protect rechargeable batteries from temperatures over 40°C
Li-Ion	Do not throw rechargeable batteries away with household waste

Table of contents: Page:

1. Introduction ...... 17
2. Device description (Fig. 1, 2) ...... 17
3. Technical data 17
4. Scope of delivery.... 17
5. Unpacking 17
6. Construction.... 18
7. Safety information....18
8. Additional Safety Warnings.... 19
9. Intended use....21
10. Installation....21
11. Cleaning 22
12. Storage 23
13. Maintenance....23
14. Troubleshooting....23
15. Disposal and recycling 24

1. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

we wish you a pleasant and successful working experience with your new scheppach machine.

Note:

According to the applicable product liability law the manufacturer of this device is not liable for damages which arise on or in connection with this device in case of:

• improper handling,
  • non-compliance with the instructions for use,
• repairs by third party, non authorized skilled workers,
• installation and replacement of non-original spare parts,
• improper use,
• failures of the electrical system due to the non-compliance with the electrical specifications and the VDE 0100, DIN 57113 / VDE 0113 regulations

Recommendations:

Read the entire text of the operating instructions prior to the assembly and operation of the device.

These operating instructions are intended to make it easier for you to get familiar with your device and utilize its intended possibilities of use.

The operating instructions contain important notes on how to work safely, properly and economically with your machine and how to avoid dangers, save repair costs, reduce downtime, and increase the reliability and working life of the machine.

In addition to the safety regulations contained herein, you must in any case comply with the applicable regulations of your country with respect to the operation of the machine.

Put the operating instructions in a clear plastic folder to protect them from dirt and humidity, and store them near the machine. The instructions must be read and carefully observed by each operator prior to starting the work. Only persons who have been trained in the use of the machine and have been informed on the related dangers and risks are allowed to use the machine. The required minimum age must be met.

In addition to the safety notes contained in the present operating instructions and the special regulations of your country, the generally recognized technical rules for the operation of wood working machines must be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

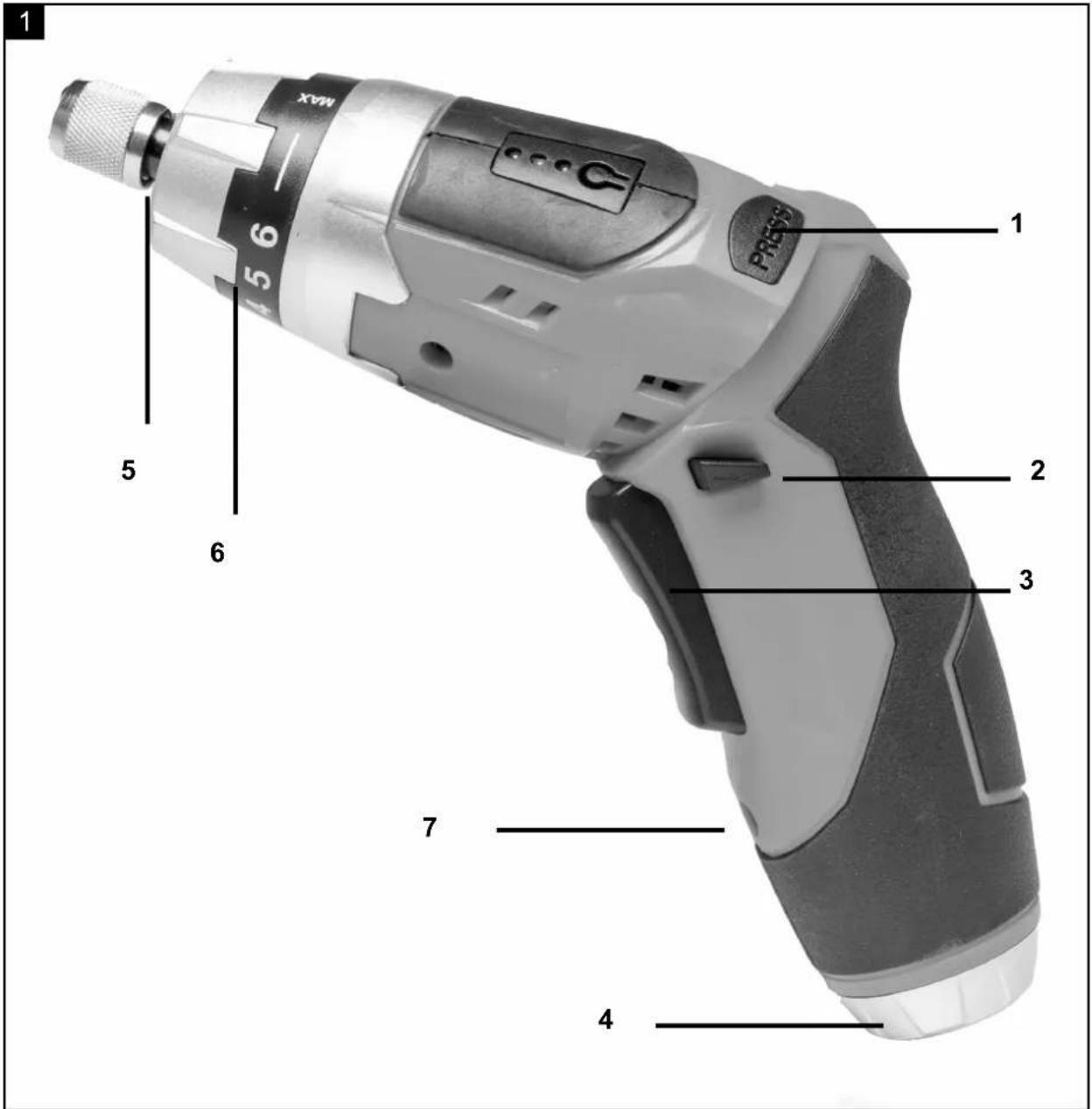

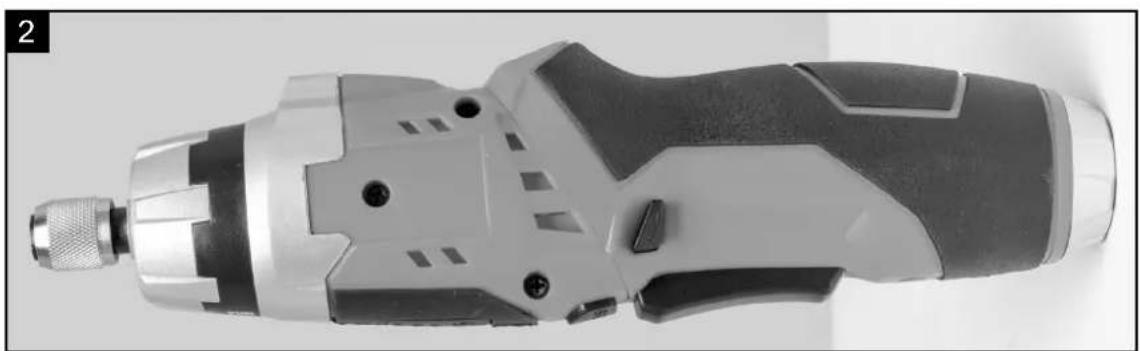

2. Device description (Fig. 1, 2)

1 Button for handle change
2 Direction of rotation switch / lock
3 ON / OFF Switch / R.P.M. regulator
4 LED-light
5 Drill chuck
6 Torque pre-selector

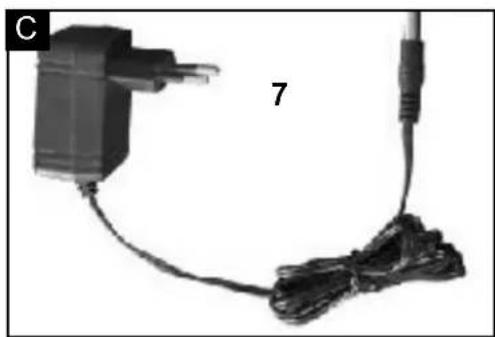

7 Charger

3. Technical data

Cordless Screwdrill:

Nominal voltage: 4 V

Idle-running speed: 1st gear: max. 200 min-1

Drill chuck: 6 mm

Max. torque: 3,5 Nm

Battery:

Type: LITHIUM-ION

Nominal voltage: 4 V

Capacity: 1,5 Ah

Energy content: 6 Wh

Subject to technical changes!

Noise and vibration

⚠ Warning: Noise at the workplace can exceed 85 dB (A). In this case, noise protection measures are necessary for the user (wear hearing protection!).

Noise output in dB

sound power level L_WA 65 dB(A) (EN ISO 3744) sound pressure level L_pA 54dB(A) (EN ISO 11201) uncertainty K_wa/pA 3 dB(A)

Vibration value

Vibration a_h 0,3 m/s ^2

Uncertainty K_h 1,5 m/s ^2

4. Scope of delivery

• drill bits,
• 2pc holder
• 1,5 AH battery
• 1pc Charger
  • Translation of original instruction manual

5. Unpacking

• Open the packaging and remove the device carefully.

• Remove the packaging material as well as the packaging and transport bracing (if available).

• Check that the delivery is complete.

• Check the device and accessory parts for transport damage. Inform the transport agent immediately of any faults. Later complaints cannot be considered.
• If possible, store the packaging until the warranty period has expired.
• Familiarize yourself with the machine with the help of the operating instructions manual before using it.
• Use only original parts for accessories as well as consumables and spare parts. Spare parts can be obtained from your scheppach retailer.
• Please quote our article numbers as well as type and production year in all your orders.

ATTENTION

The device and packaging materials are not toys! Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

6. Construction

Warning!

Always remove the battery pack before making adjustments to the equipment.

Be sure to read the following information before you put the cordless equipment into operation:

7. Safety information

⚠ WARNING Read all safety warnings, instructions, illustrations and specifications provided with this electric tool.

Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “electrical tool” used in the safety instructions refers to mains-powered electrical tools (with a mains cable) and battery-powered electrical tools (without a mains cable).

1) Work area safety

a. Keep your work area clean and well-lit. Disorganised and unlit work areas can result in accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions may cause you to lose control of the device.

2) Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed surfaces, such as pipes, heaters, ovens and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water penetrating an electric device increases the risk of an electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep the cable away from heat, oil, sharp edges or moving device parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If you cannot avoid using the electrical tool in a wet environment, use a fault-current circuit breaker. Using a fault-current circuit breaker reduces the risk of an electric shock.

3) Personal safety

a. Always remain attentive, pay attention to what you are doing and be sensible when working with electric tools. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using electrical tools can result in serious injuries.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A tool or spanner that is located in a rotating device part may result in injuries.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not allow yourself to be lulled into a false sense of security and do not ignore the safety rules for electric tools, even when you have used it many times and have become familiar with it. A careless action can cause severe injury within a fraction of a second.

4) Using and handling the electric tool

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. These precautionary measures will prevent the electric tool from starting unintentionally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools and accessories. Check whether moving parts function properly and do not get stuck and whether parts are broken or are damaged and thus adversely affect the electric tool function. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use electric tools, insertion tools, etc. according to these instructions. Taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h. Keep grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a. Only have your electric tool repaired by qualified specialists and only with original spare parts. This will ensure that the safety of the power tool is maintained.

Safety instructions for cordless drill

• When performing work during which the tool attachment can meet with concealed power lines or its own mains cable, hold the device by the insulated gripping surfaces. Contact between the screw and a live power line can also
• This device is not designed to be operated by persons (including children) with impaired physical, sensory or mental capabilities, or who have insufficient experience and/or insufficient knowledge unless they are being supervised by a person who is responsible for their safety or they are receiving instruction about how this device is to be used. Children should not be left unattended, to ensure they do not play with the device.
• Secure the workpiece. A workpiece held with a clamping device or vice is held more securely than with your hand.

Poisonous dust!

• Harmful / noxious dusts generated from your work represent a risk to the health of the person operating the device and to anyone near the work area. Wear safety glasses and a dust mask! Do not drill any material containing asbestos. Asbestos is a known carcinogen.
• Hold the electrical power tool firmly. High reaction torques may occur momentarily during tightening or loosening of screws. Switch the electric tool off immediately if the tool attachment blocks.
• Be prepared for high reaction torques as they may cause kickback. The inserted tool may jam if the electrical power tool is overloaded or is held at an angle to the workpiece.
• Before you carry out any tasks on the device, transport or store it, make sure that the direction of rotation switch is in the middle position (lock). To prevent the device from starting up unintentionally.

Attention - Service lines!

Danger!

Take steps to ensure that you do not hit upon any service lines (electricity, gas, water) when working with electrical appliances. Check, if need be with a service line detector, before you start to cut or bore into a surface.

8. Additional Safety Warnings

Information on the rechargeable battery

1. The battery pack of the rechargeable device is not charged when delivered. It is therefore necessary to charge the battery before first commissioning.

2. For optimum battery capacity avoid deep discharge cycles! Charge your battery frequently.

3. Store your battery in a cool place, ideally at 15^ C and with at least 40% charge.

4. Lithium-ion batteries are subject to natural ageing. The rechargeable battery must be replaced no later than when its capacity is just 80% of the capacity in new condition! Weakened cells in an aged battery pack are no longer able to cope with the high capacity requirements and therefore constitute a safety risk.

5. Do not throw old rechargeable batteries into an open fire. Risk of explosion!

6. Do not ignite or burn rechargeable batteries.

7. Do not deep discharge rechargeable batteries! Deep discharge damages the battery cells. The most frequent cause of deep discharge in battery packs is lengthy storage or a lack of use of partially discharged rechargeable batteries. End the working process as soon as the capacity is notably reduced or the protection electronics trigger. Only store the rechargeable battery after fully charging.

8. Protect rechargeable batteries or device from overloading! Overloading quickly leads to overheating and cell damage inside the rechargeable battery housing, without overheating being externally visible.

9. Avoid damage and impacts! Replace rechargeable batteries immediately if these fall more than one metre or if they have been exposed to hefty impacts, even if the battery pack housing appears undamaged. The battery cells inside may be seriously damaged. Also observe the disposal instructions here.

10. With overloading or overheating, the protective shut-down integrated in the device switches off for safety reasons. Attention! Do not actuate the on/off switch again if the protective shut-down has switched the device off. This can lead to damage to the rechargeable battery.

11. Only use original rechargeable batteries. The use of other batteries can lead to injuries, explosion and a risk of fire.

Warning! This electric tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the electric tool

Information on the charging unit and charging process

1. Observe the data provided on the type plate of the charging unit. Only connect the charging unit to the mains voltage provided on the type plate.

2. Protect the charging unit and cable from damage and sharp edges. Have damaged cables replaced by an electrician immediately.

3. Keep the charging unit, rechargeable batteries and rechargeable device out of reach of children.

4. Do not use damaged charging units.

5. Do not use the charging unit supplied to charge other rechargeable devices.

6. The rechargeable battery pack will heat up with heavy loads. Leave the rechargeable battery pack to cool down before starting the charging process.

7. Do not over-charge rechargeable batteries! Observe the maximum charging times. These charging times only apply to discharged batteries. Inserting a charged or partially charged rechargeable battery multiple times leads to overloading and cell damage. Do not leave rechargeable batteries in the charging unit for multiple days.

8. Never use or charge rechargeable batteries if you suspect that they were last charged more than 12 months ago. The probability is high that the rechargeable battery is already dangerously damaged (deep discharge).

9. Charging at a temperature of less than 10^ C leads to chemical damage to the cell and can result in a fire.

10. Do not use rechargeable batteries that have heated up during charging, because the battery cells could be dangerously damaged.

11. Do not use rechargeable batteries that are bulging or deformed, or that exhibit unusual symptoms (out-gassing, hissing, crackling, etc.)

12. Do not discharge the rechargeable battery fully (recommended final discharge level max. 80%). Fully discharging leads to premature ageing of the battery cells.

13. Never leave batteries to charge unsupervised!

Residual risks

The machine has been built according to the state of the art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Health hazard due to electrical power, with the use of improper electrical connection cables.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the „safety instructions“ and the „Proper use“ are observed along with the whole of the operating instructions.
• Avoid accidental starting of the machine: the operating button may not be pressed when inserting the plug in an outlet. Use the tool that is recommended in this manual.. This ensures that your machine performs optimally.
• Hands may never enter the processing zone when the machine is in operation.

9. Intended use

The equipment is to be used only for its prescribed purpose. Any other use is deemed to be a case of misuse. The user / operator and not the manufacturer will be liable for any damage or injuries of any kind caused as a result of this.

To use the equipment properly you must also observe the safety information, the assembly instructions and the operating instructions to be found in this manual. All persons who use and service the equipment have to be acquainted with this manual and must be informed about the equipment's potential hazards. It is also imperative to observe the accident prevention regulations in force in your area.

The same applies for the general rules of health and safety at work.

The manufacturer will not be liable for any changes made to the equipment nor for any damage resulting from such changes.

The machine may be used only with original accessories and original tools of the manufacturer.

The safety-, workplace- and maintenance specifications of the manufacturer as well as the dimensions specified in the technical data must be observed.

Please note that our equipment has not been designed for use in commercial, trade or industrial applications. Our warranty will be voided if the equipment is used in commercial, trade or industrial businesses or for equivalent purposes.

10. Installation

⚠ IMPORTANT!

You must fully assemble the appliance before using it for the first time!

Charging the battery pack

DANGER OF ELECTRIC SHOCK! Before cleaning or servicing the charging station or the battery pack always ensure that the plug is not in the mains socket.

Note! A new battery pack, or one that has not been in use for an extended period, must be charged up before the first / renewed usage. The battery pack attains its full capacity after ca. 3–5 charging cycles.

CAUTION! Always ensure the plug is removed from the mains socket before inserting a battery pack into, or removing one from, the charging station. Never charge the battery pack if the ambient temperature is less than 10 °C or greater than 40 °C.

Switch the charger off for at least 15 minutes between two successive charging procedures.

Remove the power plug from the wall socket.

Changing tools

Your cordless electric drill / screwdriver has a fully automatic spindle lock and is fitted with an enclosed keyless chuck incorporating the latest technology.

Once the motor has come to a halt, the drive shaft is automatically locked, so that the chuck 5 can be opened simply by turning it. After you have inserted the required bit and fixed it in place by turning the chuck, you can immediately continue working. The spindle lock releases itself automatically when the motor is started (by operation of the ON/OFF switch 3).

Torque pre-selection

You can adjust the torque by using 6 torque preselection. The torque levels regulate a range of up to ca. 3,5 N m.

Select a low setting for small screws, soft workmaterial.

Select a high setting for large screws, hard work materials and for the extraction of screws.

For drilling, push the selector to the setting for drilling, in that you adjust the torque pre-selector to the position.

For drilling tasks, also push the gear selector switch 1 to the front (Position: 2).

Handle adjustment

The screwdriver can be locked into 2 different angle settings. To do so, press the locking button (3) and move the screwdriver into the desired position. Then release the locking button (3).

Caution:

Before you switch on the screwdriver, make sure that it is correctly locked in the required angle position.

Preparing the tool for use

Switching On /Off

Switching on:

To start the appliance squeeze on the ON/OFF switch 3 and then keep it pressed down. The LED working light 4 comes on with a slightly or fully pressed ON/OFF switch 3 and illuminates the working area in poor lighting conditions.

Switching off:

To stop the appliance, release the ON

Adjusting the speed

The ON / OFF switch 3 has a variable speed control device. Slight pressure on the ON / OFF switch 3 will cause the rotation speed to slow down. With increased pressure, the rotational speed will increase.

Note: The integrated engine brake means that the device will come to a fast standstill.

Switching direction of rotation

To switch the direction of rotation, push the direction of rotation switch 2 to either theright or to the left.

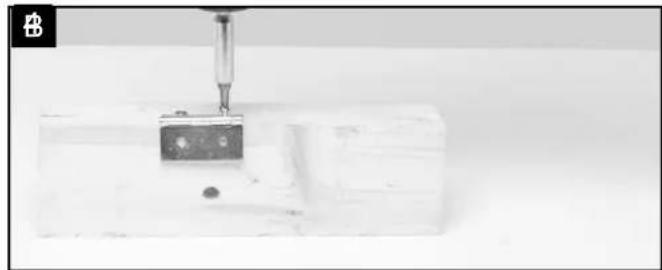

Tips and Tricks

Before you use the appliance, check to see that the screw or drill bit is properly fitted, i.e. located centrally in the chuck.

Screw bits are designated with their dimensions and their shape. If you are unsure, always try the particular screw bit out to see whether it sits in the screw head without any free play.

Torque:

Smaller screws and bits in particular can be easily damaged if you adjust the appliance with too high a torque and/or rotation speed.

Hard screwdriving conditions (into metal):

Particularly high torques can occur, for example with metal screws tightened by socket tool bits.

Select a lower rotation speed.

Soft screwdriving conditions (e.g. into soft wood):

You should also select a low speed in order not to damage the wood workpiece surface through contact with the metal screw head.

Use a countersinker.

When drilling into wood, metal and other materials, take note of the following advice:

With small diameter drill bits use a high drill speed.

For large diameter drill bits, use a low drill speed.

For hard materials, select a low drill speed.

For soft materials, select a high drill speed.

Secure or fix down the workpiece (if possible) in a clamp or vice.

Mark the intended position of the hole with a centre punch or a nail and select a low drill speed for drilling.

Take the rotating drill bit out of the hole frequently so that swarf or drill dust can be re-moved and the hole and tool is ventilated.

Drilling in metal:

Use a metal drill bit (HSS). For the best results, you should cool the bit with oil. Metal drill bits can also be used to drill into plastic.

Drilling in stone:

Use a circular shafted masonry drill bit with a hardened metal tip.

Drilling in wood:

Normally you should use a wood drill with a centring point. For deep holes, use an auger type bit. For large diameter holes, use a forstner bit. You can screw small screws into soft wood without the need for pre-drilling.

To ensure that the Li battery pack provides long service you should take care to recharge it promptly.

You must recharge the battery pack when you notice that the power of the cordless equipment drops.

Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Passage points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Make sure that the connection cable does not hang on the power network during the inspection.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables with the marking „

The printing of the type designation on the connection cable is mandatory.

11. Cleaning

Danger!

Always pull out the battery pack before starting any cleaning work.

Cleaning

• Keep all safety devices, air vents and the motor housing free of dirt and dust as far as possible. Wipe the equipment with a clean cloth or blow it with compressed air at low pressure.
• We recommend that you clean the device immediately each time you have finished using it.
• Clean the equipment regularly with a moist cloth and some soft soap. Do not use cleaning agents or solvents; these could attack the plastic parts of the equipment. Ensure that no water can seep into the device. The ingress of water into an electric tool increases the risk of an electric shock.

12. Storage

Store the device and its accessories in a dark, dry and frost-proof place that is inaccessible to children. The optimum storage temperature is between 5 and 30°C. Store the electrical tool in its original packaging. Cover the electrical tool in order to protect it from dust and moisture. Store the operating manual with the electrical tool.

13. Maintenance

There are no parts inside the equipment which require additional maintenance.

Connections and repairs

Connections and repairs of electrical equipment may only be carried out by an electrician.

Please provide the following information in the event of any enquiries:

• Type of current for the motor
• Machine data - type plate
• Machine data - type plate

Service information

Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables.

Wear parts*: Grinding discs, carbon brushes

* Not necessarily included in the scope of delivery!

14. Troubleshooting

The table below contains a list of fault symptoms and explains what you can do to remedy the problem if your equipment fails to work properly. If the problem still persists after working through the list, please contact your nearest service workshop.

Fault Possible cause Remedy
Device does not start	Battery empty Check the battery,	have it repaired by a certified elec-trician if necessary
	On/off switch defective Repair by	an authorised service centre
	Motor defective Repair by an authorised service centre
Motor stops during operation	Battery empty Charge battery
	Battery not inserted correctly Re-insert battery
	Battery defective Clean contacts, replace original battery
Reduced power	Battery depleted Replace battery
	Battery not fully charged Charge battery

15. Disposal and recycling

The equipment is supplied in packaging to prevent it from being damaged in transit. The raw materials in this packaging can be reused or recycled.

The equipment and its accessories are made of various types of material, such as metal and plastic. Defective components must be disposed of as special waste. Ask your dealer or your local council.

Old devices must not be disposed of with household waste!

This symbol indicates that this product must not be disposed of together with domestic waste in compliance with the Directive (2012/19/EU) pertaining to waste electrical and electronic equipment (WEEE). This product must be disposed of at a designated collection point. This can occur, for example, by handing it in at an authorised collecting point for the recycling of waste electrical and electronic equipment. Improper handling of waste equipment may have negative consequences for the environment and human health due to potentially hazardous substances that are often contained in electrical and electronic equipment. By properly disposing of this product, you are also contributing to the effective use of natural resources. You can obtain information on collection points for waste equipment from your municipal administration, public waste disposal authority, an authorised body for the disposal of waste electrical and electronic equipment or your waste disposal company.

Batteries and rechargeable batteries do not belong in the household waste!

As the consumer you are required by law to bring all batteries and rechargeable batteries, regardless whether they contain harmful substances* or not, to a collection point run by the local authority or to a retailer, so that they can be disposed of in an environmentally friendly manner.

*labelled with: Cd = cadmium, Hg = mercury, Pb = lead

- Remove the batteries from the laser before disposing of the machine and the batteries.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Günzburger Straße 69

D-89335 Ichenhausen

Szanowny kliencie,

Günzburger Straße 69

D-89335 Ichenhausen

Vážení zákazníci,

Günzburger Straße 69

D-89335 Ichenhausen

Vážený zákazník,

Günzburger Straße 69

D-89335 Ichenhausen

Tisztelt vásárló!

Exploded view diagram of a mechanical device with numbered components for identification

CE - Declaration of Conformity

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC	2000/14/EC_2005/88/EC
X	2014/35/EU		2014/68/EU		90/396/EC		Annex V
X	2014/30/EU	X	2011/65/EU*				Annex VINoise: measured L_WA = xx dB(A); guaranteed L_WA = xx dB(A)P = xx KW; L/∅ = cmNotified Body: Notified Body No.:
X 2006/42/EC
		Annex IVNotified Body:Notified Body No.:Certificate No.:				2010/26/EC
						Emission. No:

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
X	2014/35/EU		2014/68/EU		90/396/EC
X	2014/30/EU	X	2011/65/EU*

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
X	2014/35/EU		2014/68/EU		90/396/EC
X	2014/30/EU	X	2011/65/EU*

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
x	2014/35/EU		2014/68/EU		90/396/EC
x	2014/30/EU	x	2011/65/EU*

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
x	2014/35/EU		2014/68/EU		90/396/EC
x	2014/30/EU	x	2011/65/EU*

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
x	2014/35/EU		2014/68/EU		90/396/EC
x	2014/30/EU	x	2011/65/EU*

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
x	2014/35/EU		2014/68/EU		90/396/EC
x	2014/30/EU	x	2011/65/EU*

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
X	2014/35/EU		2014/68/EU		90/396/EC
X	2014/30/EU	X	2011/65/EU*

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
x	2014/35/EU		2014/68/EU		90/396/EC
x	2014/30/EU	x	2011/65/EU*

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
x	2014/35/EU		2014/68/EU		90/396/EC
x	2014/30/EU	x	2011/65/EU*

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
x	2014/35/EU		2014/68/EU		90/396/EC
x	2014/30/EU	x	2011/65/EU*

	2014/29/EU		2004/22/EC		89/686/EC_96/58/EC
x	2014/35/EU		2014/68/EU		90/396/EC
x	2014/30/EU	x	2011/65/EU*

Annex IVNotified Body:Notified Body No.:Certificate No.:

2000/14/EC_2005/88/EC
	Annex V
	Annex VINoise: measured L_WA = xx dB(A); guaranteed L_WA = xx dB(A)P = xx KW; L/∅ = cmNotified Body: Notified Body No.:
2010/26/EC
Emission. No:

Standard references:

EN 62841-1:2015; EN 62841-2-2:2014; EN 60335-1; EN 60335-2-29; EN 62233;

EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registar: Thomas Schuster

Günzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer's rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
