USER MANUAL PES31 SCHEPPACH

Black and white photo of a power tool with visible branding and mounting base (no readable text or symbols)

https://www.scheppach.com/de/service scheppach

PES31

DE	3-IN-1-MULTIFUNKTIONSSCHLEIFEROriginalbetriebsanleitung	4
GB	3-IN-1 MULTI-FUNCTION SANDERTranslation of the original instructions	15
FR	PONCEUSE MULTIFONCTION 3 EN 1Traduction des instructions d'origine	24

Exploded view diagram of a power tool with numbered parts for identification and assembly reference.

2 8 A

Black electric shaver with labeled part '10' (no text or symbols on device body)

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

https://www.scheppach.com/de/service scheppach

Explanation of the symbols on the device

	Read the operating instructions to reduce the risk of injury.
	Wear safety goggles!
	Wear ear-muffs! The impact of noise can cause damage to hearing.
	Wear a dust protection mask. When machining wood and other materials, harmful dust may be generated. Do not machine material containing asbestos!
	Class II symbol: This machine is designed with dual insulation and does not need to be connected to an earthed power socket.
	The product complies with the applicable European directives.

Table of contents: Page:

1. Introduction...... 17
2. Device description....17
3. Scope of delivery.... 17
4. Proper use....18
5. General safety information.... 18
6. Technical data 20
7. Assembly....20
8. Operation....21
9. Cleaning and Maintenance....21
10. Storage 22
11. Electrical connection 22
12. Disposal and recycling 22
13. Troubleshooting....23
14. Declaration of Conformity 35

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburger Straße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new tool brings you much enjoyment and success.

Note:

According to the applicable product liability laws, the manufacturer of the device does not assume liability for damages to the product or damages caused by the product that occurs due to:

• Improper handling,
  • Non-compliance of the operating instructions,
• Repairs by third parties, not by authorized service technicians,
• Installation and replacement of non-original spare parts,
  • Application other than specified,
• A breakdown of the electrical system that occurs due to the non-compliance of the electric regulations and VDE regulations 0100, DIN 57113 / VDE0113.

We recommend:

Read through the complete text in the operating instructions before installing and commissioning the device.

The operating instructions are intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The operating instructions contain important information on how to operate the machine safely, professionally and economically, how to avoid danger, costly repairs, reduce downtimes and how to increase reliability and service life of the machine.

In addition to the safety regulations in the operating instructions, you have to meet the applicable regulations that apply for the operation of the machine in your country.

Keep the operating instructions package with the machine at all times and store it in a plastic cover to protect it from dirt and moisture. Read the instruction manual each time before operating the machine and carefully follow its information. The machine can only be operated by persons who were instructed concerning the operation of the machine and who are informed about the associated dangers. The minimum age requirement must be complied with.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

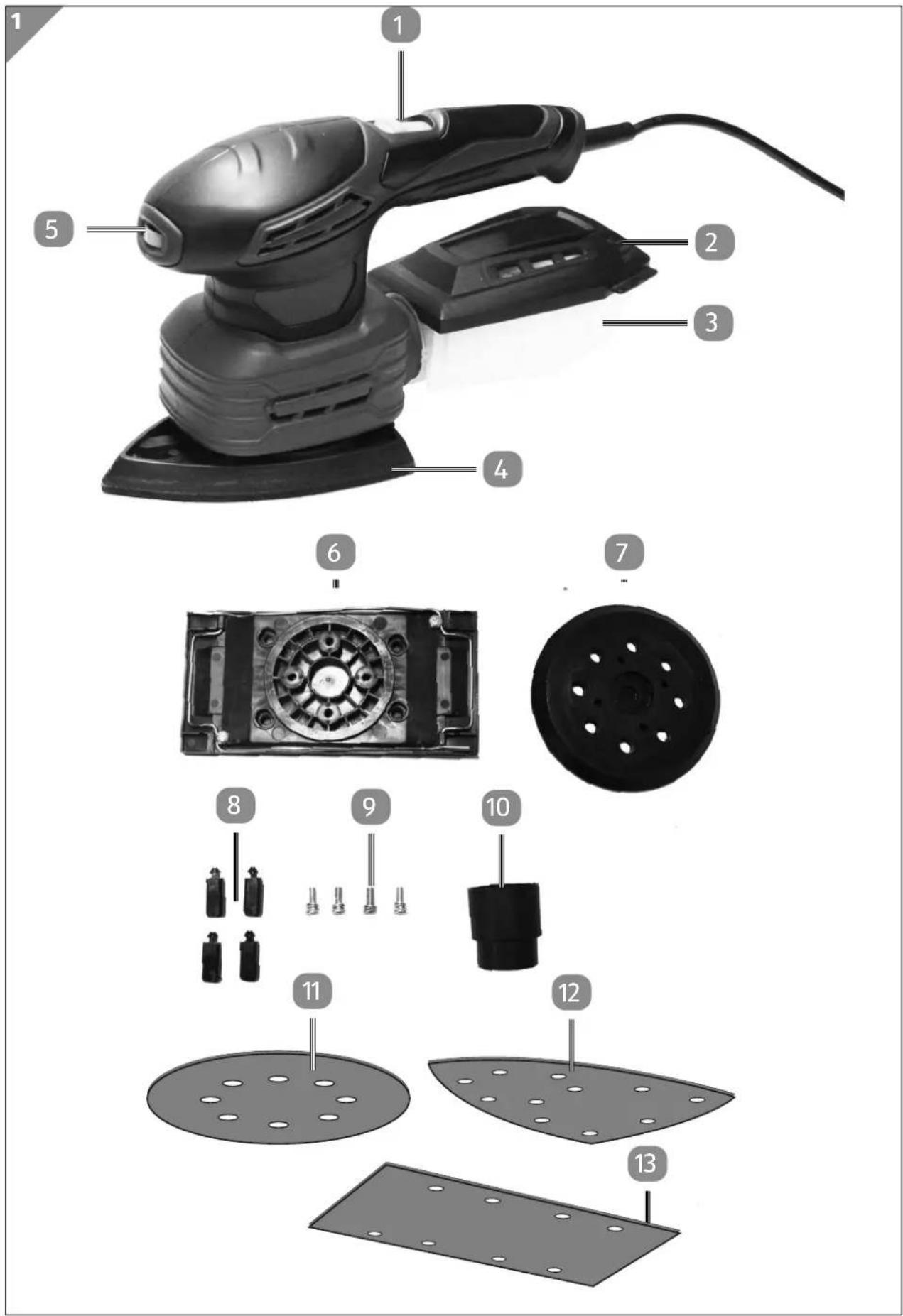

2. Device description

1. ON/OFF switch
2. Lid (dust box)
3. Dust box
4. Delta sander plate
5. Speed selector
6. Orbital sander plate
7. Random orbital sander plate
8. Rubber pin
9. Screw
10. Suction adapter
11. Random orbital sanding sheet
12. Delta sanding sheet
13. Orbital sanding sheet

3. Scope of delivery

1x All in one sander
1x Dust box
1x Delta sander plate (pre-mounted)
1x Orbital sander plate
1x Random orbital sander plate
8x Rubber pin (4x pre-mounted)
8x Screw (4x pre-mounted)
1x Suction adapter
1x Random orbital sanding sheet
1x Delta sanding sheet
1x Orbital sanding sheet
1x Manual

• Open the packaging and take out the machine carefully.
• Remove the packaging material as well as the packaging and transport bracing (if available).
• Check that the delivery is complete.
• Check the machine and accessory parts for transport damage.
• If possible, store the packaging until the warranty period has expired.

⚠ Attention!

The machine and packaging materials are not toys!

Children must not be allowed to play with plastic bags, film and small parts! There is a risk of swallowing and suffocation!

4. Proper use

Depending on the sandpaper being used, this appliance is suitable for the dry sanding of wood, plastic, metal, filler and also painted surfaces.

The appliance is particularly suitable for corners, edges and hard-to-reach areas. Any other usage of or modification to the appliance is deemed to be improper and carries a significant risk of accidents.

Please observe that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the equipment is used in commercial or industrial applications, or for equivalent work.

5. General safety information

⚠ WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When working outdoors with an electrical power tool, always use extension cords that are also suitable for use outdoors. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating a power tool may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h. Do not allow yourself to get lulled into a false sense of security and do not ignore the safety rules for power tools, even if you are familiar with the power tool after repeated use. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d. Store idle power tools out of the reach of children, and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g. Use the power tool, accessories and tool bits, etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

b. Always arrange for the replacement of the plug or the power cord to be carried out by the manufacturer of the appliance or by his approved customer services. This will ensure that the safety of the power tool is maintained.

Appliance-specific safety instructions:

- Secure the workpiece. A workpiece securely held by a clamping device or vice is much safer than one held in your hand.

- Do not rest your hands next to or in front of the appliance and the area being worked as there is a risk of injury if you slip.

- In the event of danger, remove the mains plug from the socket immediately.

• Always route the power cable towards the rear, away from the appliance.

- RISK OF FIRE DUE TO FLYING SPARKS! If you sand metal, sparks will be produced. Therefore, make sure that nobody is at risk and that no combustible materials are located in the immediate vicinity of where you are working.

- Hold the power tool by the insulated gripping surfaces, as the grinding surface could hit its own cable. Damage to a live wire may make exposed metal parts of the power tool live and could give the operator an electric shock.

⚠ WARNING! TOXIC VAPOURS! Working with the tool can produce harmful/ toxic dusts that represent a health hazard for the person operating the appliance and for any other people in the area.

⚠ WARNING! RISKS DUE TO DUST! When working for extended periods of time on wood and, in particular, materials that produce dust which is hazardous to health, connect the appliance to an appropriate external dust extraction appliance. Wear safety goggles and a protective dust mask!

- Ensure sufficient ventilation when working on plastics, paints, lacquers, etc.

- Do not soak the materials or the area to be processed with liquids containing solvents.

- Never work on moistened materials or damp surfaces.

- Avoid sanding lead paint or other harmful materials.

- Materials containing asbestos must not be processed. Asbestos is a known carcinogen.

- Avoid contact with the sanding sheet while the appliance is running!

- Do not use the appliance without a sanding sheet fitted.

- Never use the appliance for other purposes and only use original parts/accessories. Using attachments or accessory tools other than those recommended in the operating instructions can lead to a risk of injury.

• Always allow the appliance to come to a complete standstill before putting it down.
- The appliance must always be kept clean, dry and free from oil or grease.

⚠ WARNING! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain conditions. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

6. Technical data

Power consumption 200W
Nominal Voltage 230V~
Idle speed 7000-12000 min	-1
Oscillation speed 14000-2	4000 min -1
Protection class II
Dimension Random Orbital Sanding Sheet	92x186 mm
Dimension Delta Sanding Sheet	150x150x100 mm
Dimension Orbital Sanding Sheet	∅ 125 mm

Sound emission

Noise emission values are measured according to the relevant standards.

Sound pressure level (LpA) 79 dB
Uncertainty KpA	3 dB
Sound power level (LWA):	90 dB
Uncertainty KWA	3 dB
Vibration (ah):	13.7 m/s2 (front handle) / 10.9 m/s2 (main handle)
Uncertainty K	1.5 m/s2

Wear ear-muffs.

The impact of noise can cause damage to hearing. Sound and vibration values were measured with a standardized test method.

The specified vibration value was established in accordance with a standardized testing method. It may change according to how the electric machine is used and may exceed the specified value in exceptional circumstances.

The specified vibration value can be used to compare the machine with other electric power tools. The specified vibration value can be used for initial assessment of a harmful effect.

Keep the noise emissions and vibrations to a minimum:

• Only use appliances which are in perfect working order.
  • Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.

7. Assembly

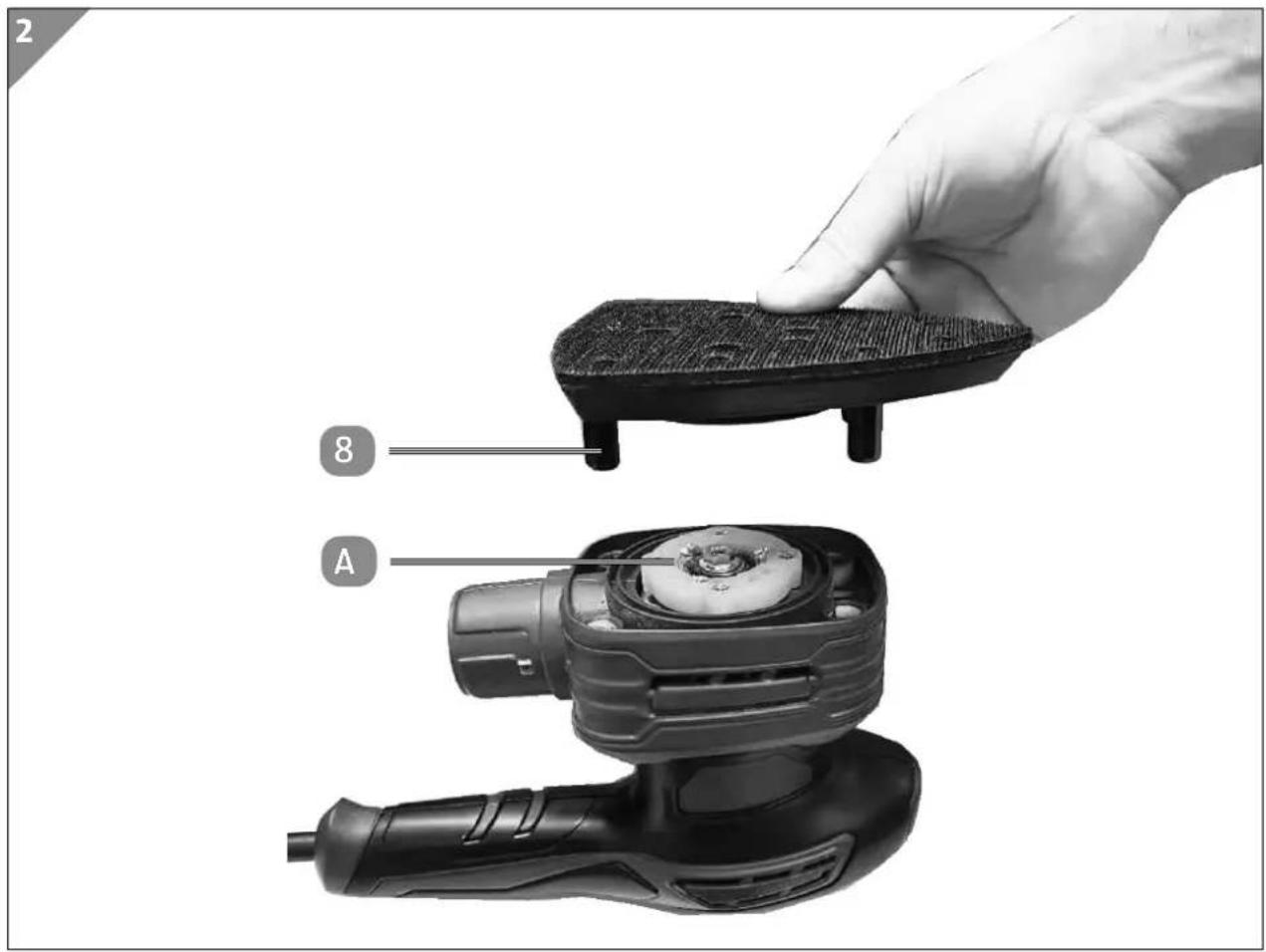

Fitting/changing the sander plate (Fig. 1 / 2) △ WARNING! Always remove the plug from the mains power socket before carrying out any work on the appliance.

• Use the appropriate sander plate (4, 6, 7) for the corresponding application.
• Remove the four screws (9) using a screwdriver (not included).
• Remove the pre-fitted sander plate.

NOTE: The orbital sander plate (6) can only be fitted to the appliance in one direction. Please pay attention to the arrow marks on the orbital sander plate (6). These must point forwards. With the delta sander plate (4) the tip points forwards.

- Now fit the required sander plate. Ensure that the mounting plate (A) is aligned with the sander plate. The threaded holes of the mounting plate (A) must be aligned with the corresponding holes on the respective sander plate. Align the rubber pins (8) (only on sander plates 4 and 6) with the holes in the appliance.

• Fix the sander plate with four screws (9).
- Check that the sander plate is fitted securely.

Fitting the sanding sheet (Fig. 1)

⚠ WARNING! Always remove the plug from the mains power socket before carrying out any work on the appliance.

NOTE: Before fitting a new sanding sheet, remove any dust and dirt from the sander plate (4, 6, 7).

Attaching sanding sheets:

• You can attach the sanding sheet to the sander plate (4, 6, 7) using hook & loop.
• Ensure that the extraction holes on the sanding sheet match up with those on the sander plate.

Removing sanding sheets:

- Simply pull the sanding sheet off the sander plate.

Dust extraction

⚠ WARNING! RISK OF FIRE! When working with power tools that have a dust collection box or can be connected to a vacuum cleaner via the vacuum cleaner adapter, there is a risk of fire! In unfavourable conditions, e.g. when sparks are flying while sanding metal or metal residues in wood, wood dust in the dust sack (or in the vacuum cleaner dust bag) can spontaneously ignite. This is a particular risk if the wood dust is mixed with paint residues or other chemicals and the workpiece has become hot after being worked for a long time. Therefore, do not allow the workpiece to overheat and always empty the dust box or the dust bag of the vacuum cleaner before taking a break from work.

Dust box (Fig. 1):

Connecting:

- Push the dust box (3) onto the multi-sander and twist it until it locks.

Removal:

- Twist the dust box (3) and pull it from the multisander.

NOTE:

• To achieve optimum dust extraction, the dust box (3) should be emptied regularly.
• To do this, remove the dust box (3) from the appliance as described above. Open the dust box by pulling on lid (2). Clean both parts thoroughly by tapping them out.

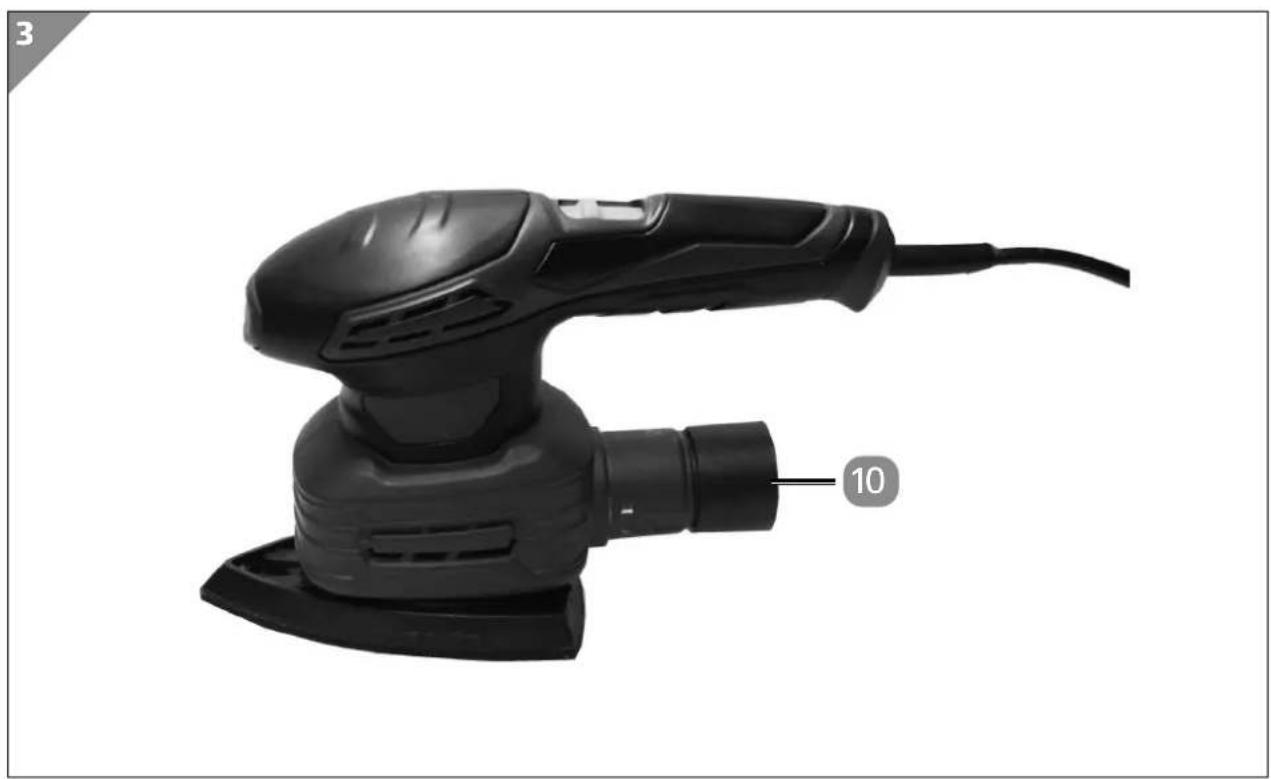

Reducer (Fig. 3)

Connecting:

• Push the suction adapter (10) onto the multi-sander.
• Push the hose of a suitable of vacuum cleaning appliance (e.g. a workshop vacuum cleaner) suction adapter (10).

Removal:

• Pull the hose of the vacuum cleaner off the suction adapter (10).
• Remove the suction adapter (10).

8. Operation

⚠ Attention!

Always make sure the device is fully assembled before commissioning!

⚠️ CAUTION! Ensure that the appliance is switched off before connecting it to the mains.

NOTE: Always switch the multi-sander on before applying it to the material, then move it over the workpiece.

Switching on and off (Fig. 1)

Switching the appliance on:

• Move the ON/OFF switch (1) to the "I" position.
  Switching the appliance off:
• Move the ON/OFF switch (1) to the "0" position.

Setting the oscillating speed (Fig. 1)

You can set the desired oscillating speed using the speed selector (5) as required. The speed should be selected if the appliance is switched on. The required speed depends on the material being processed and can be determined through practical tests.

Working procedures

• Switch the appliance on before applying it to the workpiece.
• Apply minimal pressure when working.
  • Work at a constant speed.
• Change the sanding sheets regularly.
• Never use the same sanding sheet for sanding different materials (e.g. wood followed by metal). Optimum sanding results can only be achieved by using clean sanding sheets.
• Clean the sanding sheet every once in a while using a vacuum cleaner.
• Sand hard-to-reach places with the front or side edge of the sanding sheet on the sander plate.
• Guide the sander over the workpiece in parallel and use overlapping sanding motions.
  • After completing the task, lift the appliance from the workpiece and then switch it off.

9. Cleaning and Maintenance

WARNING! Always remove the plug from the mains power socket before carrying out any work on the appliance.

The multi-sander is maintenance-free.

• Always clean the appliance directly after completion of work.
- Use a dry cloth to clean the housing.
- Remove any sanding dust stuck to the appliance with a brush.
- Never use sharp objects, petrol, solvents or cleaning agents which can damage plastic. Do not allow any liquids to get into the interior of the appliance.
• Always keep the ventilation openings free of obstructions.

Service information

Please note that the following parts of this product are subject to normal or natural wear and tear, and are therefore also required as consumables.

Wear parts*: Sanding paper

* Not necessarily included in the scope of delivery!

Spare parts and accessories can be obtained from our service centre. To do this, scan the QR code on the cover page.

10. Storage

• The whole machine and all accessories must be thoroughly cleaned.
• Store devices and accessories out of the reach of children in a dark and dry place above freezing point. The optimum storage temperature lies between 5 and 30^ . Store the power tool in its original packaging.
• Do not wrap the machine into bags or covers made of nylon or plastic, as dampness may develop.

11. Electrical connection

⚠ The electric motor installed is connected and ready for operation.

The connection complies with the applicable VDE and DIN provisions.

The customer's mains power connection as well as the extension lead used must also comply with these regulations and the local electricity supplier regulations.

Damaged electrical connection cables

The insulation on electrical connection cables is often damaged.

Possible causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
• Insulation damage due to being ripped out of the wall outlet.
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions, and the local power supply regulations.

Only use connection cables marked with H07RN. The printing of the type designation on the connection cable is mandatory.

AC motor

• The mains voltage must be 220 ÷ 240 ~V / 50 ~Hz .
• Extension leads up to 25 m long must have a minimum cross section of 1.5 mm ^2 , and over 25 m long must have a minimum cross section of 2.5 mm ^2 .
• The mains connection must be protected with a max. 16 A fuse.

Connection type X

If the mains connection cable of this product is damaged, it must be replaced by a specially prepared mains connection cable which can be obtained from the manufacturer or its service department.

Connections and repair work on the electrical equipment may only be carried out by electricians.

Please provide the following information in the event of any enquiries:

• Engine manufacturer; engine type
- Type of current for the motor
• Data of machine type plate
• Electrical control data

12. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed non-destructively before disposal. Their disposal is regulated by the battery law.
• Owners or users of electrical and electronic devices are legally obliged to return them after use.
• The end user is responsible for deleting their personal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards)
• Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.
• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
• Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.
• If the manufacturer delivers a new electrical appliance to a private household, the manufacturer can arrange for the free collection of the old electrical appliance upon request from the end user. Please contact the manufacturer's customer service for this.
• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

13. Troubleshooting

Problem Possible	Cause Action
The machine does not work.	No electrical voltage to the machine.	Check the fuse, power cable and power plug and have them replaced by qualified personnel if necessary.
	The cross section of the extension cable is not large enough and/or the extension cable is too long.	Use extension cables with larger cross sections and/or use shorter extension cables.
	The mains voltage is lower than that speci-fied.	Contact the power supply company if necessary.

Günzburger Straße 69

D-89335 Ichenhausen

Cher client,

Exploded view diagram of a mechanical assembly with numbered parts for identification

EU Declaration of Conformity

	2014/29/EU		2004/22/EG		89/686/EWG_96/58/EG	2000/14/EG_2005/88/EG
	2014/35/EU		2014/68/EU				Annex V
	X 2014/30/EU		X 2011/65/EU*		90/396/EWG		Annex VINoise: measured L_WA = xx dB; guaranteed L_WA = xx DBP = xx KW; L/∅ = cmNotified Body:Notified Body No.:
X 2006/42/EG
		Annex IVNotified Body:Notified Body No.:Certificate No.:				2016/1628/EU
						Emission. No:

Standard references:

EN 62841-1:2015; EN 62841-2-4:2014; EN 55014-1:2017/A11:2020; EN 55014-2:1997/A2:2008; EN 55014-2:2015; EN 61000-3-2:2014; EN IEC 61000-3-2:2019; EN 61000-3-3:2013; EN 61000-3-3:2013/A1:2019

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyeris rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material

or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
