USER MANUAL EGT350 SCHEPPACH

https://www.scheppach.com/da/service

EGT350

DE	Elektro-Rasentrimmer Originalbetriebsanleitung	4
GB	Electric strimmer Translation of original instruction manual	18
FR	Coupe-bordure électrique Traduction des instructions d'origine	29

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde,

Homepage: https://www.scheppach.com/de/service

Explanation of the symbols on the product

Symbols are used in this manual to draw your attention to potential hazards. The safety symbols and the accompanying explanations must be fully understood. The warnings themselves will not rectify a hazard and cannot replace proper accident prevention measures.

	Warning - Read the operating manual to reduce the risk of injury.
	Wear hearing protection. Excessive noise can result in a loss of hearing.
	Wear work gloves!
	Wear safety goggles. Sparks created during work or fragments, chippings and dust ejected by the product can cause sight loss.
	Wear sturdy footwear!
	Do not operate the device in rain or in humid conditions. Danger of electric shock!
	Danger due to parts flying off while the engine is running. The safety distance must be observed.
	Keep children, onlookers and helpers 15m away from the brush cutter.
	Attention, do not use saw blades or multi-part metallic cutting tools!
	Attention: Risk of injury! Do not allow hands and feet to come into contact with the blade when the engine is running.
	Before any adjustment or cleaning work, or if the mains cable is tangled or damaged, switch off the device and disconnect it from the power supply.
CE	The product complies with the applicable European directives.

Table of contents: Page:

1. Introduction 20
2. Device description (Fig. 1) 20
3. Scope of delivery 20
4. Proper use 21
5. General safety instructions 21
6. Technical data 24
7. Assembly and operation 25
8. Working instructions 26
9. Maintenance 26
10. Electrical connection 27
11. Storage 27
12. Disposal and recycling 27
13. Troubleshooting 28
14. Declaration of conformity 43

1. Introduction

Manufacturer:

Scheppach GmbH

Günzburgerstraße 69

D-89335 Ichenhausen

Dear Customer,

We hope your new device brings you much enjoyment and success.

Note:

In accordance with the applicable product liability laws, the manufacturer of this device assumes no liability for damage to the device or caused by the device arising from:

• Improper handling,
• Failure to comply with the operating instructions,
• Repairs carried out by third parties, unauthorised specialists,
• Installing and replacing non-original spare parts,
  Application other than specified,
• Failures of the electrical system in the event of the electrical regulations and VDE provisions 0100, DIN 57113 / VDE0113 not being observed.

Note:

Read the whole text of the operating manual before assembly and commissioning.

This operating manual should help you to familiarise yourself with your device and to use it for its intended purpose.

The operating manual includes important instructions for safe, proper and economic operation of the device, for avoiding danger, for minimising repair costs and downtimes, and for increasing the reliability and extending the service life of the device.

In addition to the safety instructions in this operating manual, you must also observe the regulations applicable to the operation of the device in your country.

Keep the operating manual at the device, in a plastic sleeve, protected from dirt and moisture. They must be read and carefully observed by all operating personnel before starting the work.

The device may only be used by personnel who have been trained to use it and who have been instructed with respect to the associated hazards. The required minimum age must be observed.

In addition to the safety instructions in this operating manual and the separate regulations of your country, the generally recognised technical rules relating to the operation of such machines must also be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

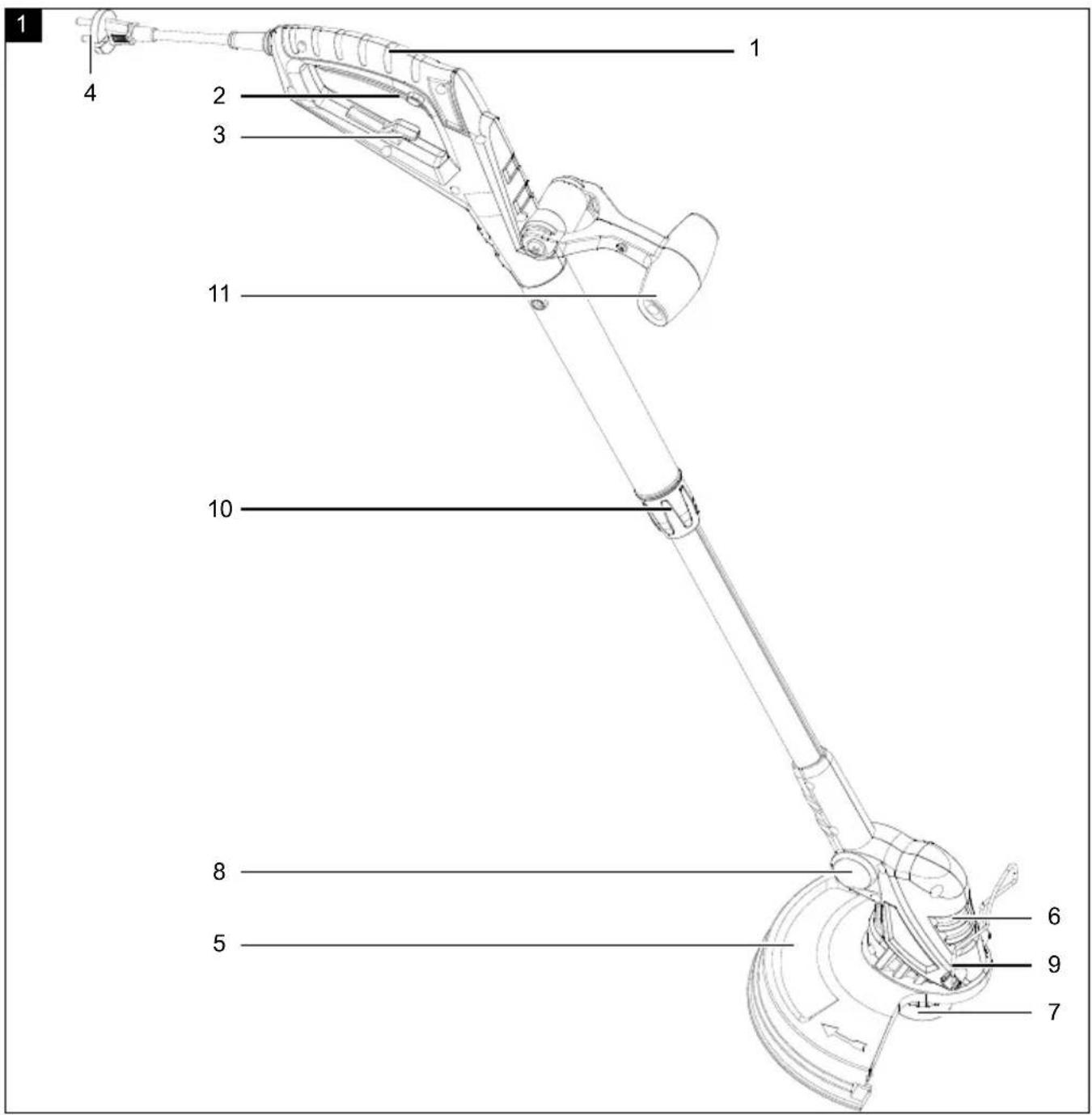

2. Device description (Fig. 1)

Scope of delivery

1. Top handle
2. Start switch
3. Cable strain relief
4. Device plug
5. Shield with thread cutter
6. Cutting head with motor
7. Thread coil
8. Adjustment knob for cutting head
9. Plant protection clip
10. Quick-release fastener for length adjustment
11. Additional grip

Adjustable telescopic handle

The grass trimmer is equipped with an adjustable telescopic handle. This allows the device to be adjusted to individual body sizes and the motor head can be swivelled.

3. Scope of delivery

• Open the packaging and carefully remove the device from the packaging.
• Remove the packaging material, as well as the packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport damage. In the event of complaints the carrier must be informed immediately. Later claims will not be recognised.
• If possible, keep the packaging until the expiry of the warranty period.
• Familiarise yourself with the product by means of the operating instructions before using for the first time.
• Then dispose of it in an environmentally friendly manner.
• With accessories as well as wearing parts and replacement parts use only original parts. Spare parts can be obtained from your - specialist dealer.
• When ordering please provide our article number as well as type and year of manufacture for your equipment.

Electric strimmer
- Shield
- Hoop guard

Attention!

The device and the packaging material are not children's toys! Do not let children play with plastic bags, films or small parts! There is a danger of choking or suffocating!

4. Proper use

The machine complies with the applicable EC machinery directive.

• Before starting any work, all protective and safety devices must be in place.
• The machine has been designed to be operated by one person.
• The operator is responsible for third parties in the area of operations.
• Observe all safety information and danger notices on the machine.
• Ensure that all of the safety information and danger notices on the machine are complete and in legible condition.
• Only use the machine when in a technically faultless condition, appropriately and in compliance with the operating manual and with full knowledge of safety and hazards!
• In particular, rectify malfunctions that could impair safety immediately (or commission rectification works accordingly)!
• The safety, operating and maintenance specifications of the manufacturer, as well as the dimensions specified in the technical data, must be observed.
• Relevant accident prevention regulations and other generally recognized safety and technical rules must also be observed.
• The machine may only be used, maintained or repaired by competent persons who are familiar with it and have been informed of the dangers. The manufacturer shall not be liable for damage resulting from unauthorized changes to the machine.
• The machine may only be operated with original accessories and original tools from the manufacturer.
• Any use beyond this is improper use. The manufacturer is not responsible for the resultant damages, the user bears this risk alone.

• For easy removal of grass and weeds from under bushes, embankments and edges.

• The machine must not be used for commercial, technical or industrial applications.

• If you are not sure whether working conditions are safe or unsafe, do not work with the machine.

WARNING! For your own safety, please thoroughly read this manual and the general safety instructions before turning the device on. If you give the device to third parties, always include these usage instructions.

Please note that our equipment was not designed with the intention of use for commercial or industrial purposes. We assume no guarantee if the device is used in commercial or industrial applications, or for equivalent work.

5. General safety instructions

General safety instructions

WARNING Read all safety information and instructions. Failure to observe safety information and instructions can result in electric shock, fire and/or serious injuries.

Save all warnings and instructions for future reference.

The term "electrical tool" used in the safety instructions refers to mains-powered electrical tools (with a mains cable) and battery-powered electrical tools (without a mains cable).

1. Work area safety

• Keep your work area clean and well-lit. Cluttered or dark areas invite accidents.
• Do not work with the electric tool in an explosive environment where flammable liquids, gases or dusts may be located. Power tools create sparks which may ignite the dust or fumes.
• Keep children and other people away while using the electric tool. Distractions may cause you to lose control of the device.

2. Electrical safety

• Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

• Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

• Do not expose power tools to rain or wet conditions. Water penetrating an electric device increases the risk of an electric shock.
• Do not use the cable for another purpose, for example, carrying or hanging the power tool or pulling the plug out of the socket. Keep the cable away from heat, oil, sharp edges or moving device parts. Damaged or coiled cables increase the risk of an electric shock.
• If you work with an electric tool outdoors, only use extension cables that are also suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
• If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Warning! This power tool generates an electromagnetic field during operation. This field can impair active or passive medical implants under certain circumstances. In order to prevent the risk of serious or deadly injuries, we recommend that persons with medical implants consult with their physician and the manufacturer of the medical implant prior to operating the power tool.

3. Personal safety

• Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use an electric tool if you are tired or under the influence of drugs, alcohol or medication. A moment of carelessness when using electrical tools can result in serious injuries.
• Wear personal protective equipment and always safety goggles. Protective equipment such as a dust mask, non-skid safety shoes, safety helmet or hearing protection used for appropriate conditions will reduce personal injuries.
• Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or rechargeable battery, picking up or carrying the tool. Keeping your finger on the switch or having the device switched on when you connect it to the power supply may result in accidents.

• Remove any adjusting tools or spanners/keys before turning the power tool on. A tool or spanner that is located in a rotating device part may result in injuries.

• Avoid abnormal postures. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

• Dress properly. Do not wear loose clothing or jewellery. Keep hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
• If dust extraction and collection devices can be mounted, make sure that they are connected and used properly. Use of dust extraction can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

• Do not overload the device. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
• Remove the plug from the socket and/or remove the battery before setting the device, changing accessories or putting the device away. These precautionary measures will prevent the electric tool from starting unintentionally.
• Store idle power tools out of the reach of children and Do not let people use the device if they are not familiar with it or if they have not read these instructions. Power tools are dangerous in the hands of untrained users.
• Maintain power tools. Check whether moving parts function properly and do not get stuck and whether parts are broken or are damaged and thus adversely affect the electric tool function. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

• Use the power tool, accessories and tool bits etc. in accordance with these instructions. Take into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation

• Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Service

• Only have your power tool repaired by qualified specialists and only with original spare parts. This ensures that safety of the electric tool is maintained.

Safety instructions for grass trimmers

Attention: After switching off, the nylon thread continues to rotate for a few seconds! Tool runs on!

• Keep the cable away from the cutting area. During operation, the cable may be covered by bushes and accidentally cut.
• Before switching on the device, make sure that the nylon thread is not touching any stones or other objects.
• Do not switch on the device when it is upside down or when it is not in the operating position.
• Switch off the motor and disconnect the mains plug if you are not using the device; if you leave it unattended; if you are checking it; if the supply cable is damaged; if you remove or replace the coil; or if you are transporting the device from one place to another.
• Keep the device away from other people, especially children and pets. There may be stones and other objects in the cut and whirled up grass.
• Keep a distance of at least 5 metres from other people and animals while working.
• Do not cut against hard objects. This will prevent you from injuring yourself and damaging the device.
• Use the edge of the protective device to keep the device away from walls, various surfaces and fragile objects.
• Never use the device without the protective device.

ATTENTION! The protective device is essential for your safety and the safety of others, as well as for the correct functioning of the machine. Failure to observe this regulation, apart from creating a potential source of danger, will result in the loss of the warranty claim.

• Do not try to stop the cutting device (nylon thread) with your hands. Always wait until it stops on its own.

• Do not use any thread other than the original nylon thread. Never fit metal cutting elements.

• Be careful not to injure yourself on the device used to trim the thread length. After drawing out a new thread, always hold the machine in its normal working position before switching it on.

• Ensure that the air openings are free from contamination.
• Disconnect the mains plug after use and check the machine for damage.
• Do not attempt to use the device to cut grass that does not grow on the ground; for example, do not attempt to cut grass that grows against walls or on stones, etc.
• In the working area of the grass trimmer, the user is responsible to third parties for any damage caused by using the device.
• Do not cross roads or gravel paths with the device switched on. When you are not using the device, store it in a dry place that is inaccessible to children.

Safety instructions

Please carefully read the follow the safety instructions and manual!

1. Before carrying out any work on your grass trimmer and in the event of malfunctions, disconnect the mains plug, e.g.

2. Damage to the cable

3. Checking in the event of malfunctions

4. Cleaning and maintenance
   If being left unattended

5. The machine can cause serious injuries! Read the operating manual carefully for the correct handling, preparation, repair, starting and setting down of the machine. Familiarise yourself with all the adjustment parts and the correct use of the machine.

6. The grass trimmer may only be operated with both hands.
7. When working with the grass trimmer, ensure that you have a secure footing and wear sturdy footwear.
8. Do not use in the rain or on wet grass and do not leave the device outdoors. It must not be used while wet.
9. Wearing safety goggles and hearing protection is recommended when cutting.
10. Wear suitable work clothing such as gloves, nonslip shoes and no loose clothing.
11. Avoid abnormal posture and ensure that you are standing securely.

12. Keep the device at a sufficient distance from the body while working.

13. Make sure that there are no people or animals in the working or pivot range.

14. Carry the grass trimmer only by the guide handle.
15. Keep the cable out of the cutting area.
16. Inspect the connection cable for signs of damage and ageing before use.
17. The grass trimmer may only be used if the connection cable is in undamaged condition.
18. Do not pull the mains plug out of the socket by the cable. Do not carry the device by the cable. Avoid damaging the cable.
19. Protect the cable from heat, aggressive liquids and sharp edges. Replace damaged cables immediately.
20. Store the device in a safe and dry location, out of reach of children.
21. Avoid overloading the tool and misuse, i.e. the grass trimmer is only to be used for cutting grass and weeds.

22. Only use cables and plug-in devices that are approved for outdoor use;

23. Connection cable HO7RN-F 2x1.0 with moulded contour plug.

24. Extension lead HO7RN-F 3G1.5 with splashproof, earth contact plug and earth contact coupling.
25. When operating power tools, it is recommended to use an earth leakage circuit breaker or a residual current device with a trigger current of 30 mA or less. Please ask your electrician!
26. The grass trimmer must be checked and maintained properly on a regular basis. Replace damaged blades only in pairs. If damaged by dropping or impact, a professional inspection is essential.
27. Care for and maintain your tool carefully. Keep your tool clean so that you can work well and safely. Observe and follow the instructions for maintenance and care.
28. According to the regulations of the agricultural trade associations, only persons over 17 years of age may carry out work with electric grass trimmers. This is permitted for persons over 16 years of age with adult supervision.
29. Do not use the machine with a defective or heavily worn cutting device.
30. Familiarise yourself with your environment and pay attention to possible hazards that you may not hear due to the noise from the machine.

31. Never attempt to use an incomplete machine or one which an unauthorised alteration has been implemented.

32. Avoid using the grass trimmer if people, and especially children, are in the vicinity.

33. Children are not permitted to use the grass trimmer.
34. The noise developed at the workplace can exceed 85 dB. In this case, noise and hearing protection measures are required for the operator.
35. Always ensure that all handles and guards are in place when using the grass trimmer.
36. This device is not designed to be operated by persons (including children) with impaired physical, sensory or mental capabilities, or who have insufficient experience and/or insufficient knowledge unless they are being supervised by a person who is responsible for their safety or they are receiving instruction about how this device is to be used. Children must not be left unattended, to ensure they do not play with the device.

Store the safety instructions safely.

Residual risks

The machine has been built according to the state-of-the-art and the recognised technical safety requirements. However, individual residual risks can arise during operation.

• Risk of injury for fingers and hands due to the cutting tool running with improper guidance.
• Hazard due to electrical power, with the use of improper electrical connection cables.
• Health hazard from the grass trimmer when clothing is loose. Wear personal protective equipment such as close-fitting work clothing.
• Furthermore, despite all precautions having been met, some non-obvious residual risks may still remain.
• Residual risks can be minimised if the "safety instructions" and the "Proper use" are observed along with the whole of the operating instructions.

6. Technical data

Cutting diameter 250 mm

Max.speed 12000 rpm

Thread length 6 m

Thread count 1,2 mm

Engine 230 - 240V~ / 50 Hz

Rated engine power 350 W

Weight 1.4 kg

Subject to technical changes!

Information about noise level measured in accordance with applicable standards:

Sound pressure L_pA 73.86 dB

Sound power level L_WA 93.9 dB

Measurement uncertainty K_pA 1.91 dB

Wear hearing protection.

Excessive noise can result in a loss of hearing.

Vibration = 4.403m / s^2

Measurement uncertainty K_pA = 1.5 m/s^2

The specified vibration emission value has been measured according to a standardised test procedure and can be used for comparison of one electric tool with another.

The specified vibration emission value can also be used for an initial assessment of the load.

Warning:

The vibration emission value can vary from the specified value during the actual use of the electric tool, depending on the type and the manner in which the electric tool is used;

Try to minimise stress from vibrations as low as possible. Some examples of means for reducing the vibration stress are wearing gloves while using the tool and limiting work time. In the process all parts of the operating cycle must be taken into account (such as times in which the electric tool is switched off or time in which it is switched on, but is not running under a load).

Keep the noise level and vibration to a minimum!

• Only use faultless devices.
• Maintain and clean the device at regular intervals.
• Adapt your working methods to the device.
• Do not overload the device.
• Have the device checked if necessary.
• Switch the device off if it is not in use.
• Wear gloves.

We have marked points in these operating instructions that impact your safety with this symbol:

7. Assembly and operation

ATTENTION! Always switch off the device and disconnect it from the power supply before carrying out any work on the device - cleaning, inspection, maintenance or other work.

Assembly:

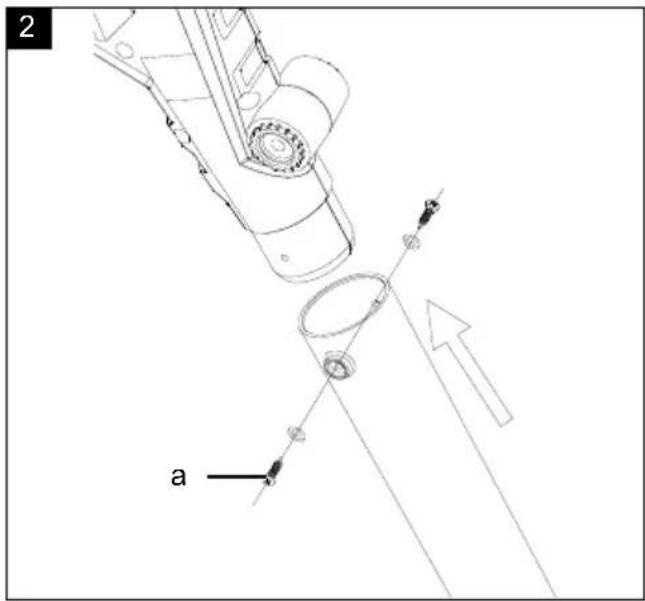

Fitting the upper handle, Fig. 2

• Insert the handle (1) into the opening and secure it with two screws (a).

Fitting the shield with thread cutter, Fig. 3

• Screw the shield (5) to the grass trimmer housing with the two screws (b).

Fitting the plant protection clip, Fig. 4

• Insert the clip (9) into the cutting head.

Fitting the additional handle, Fig. 5

• Attach the handle to the designated position and lightly pre-assemble with the screw (c).
• Secure the handle with screws (d).
• Adjust the angle and tighten screw (c).

Adjusting the telescopic handle, Fig. 6

Telescopic handle can be individually adjusted to body height.

• To change the length, open the locking knob for the telescopic handle (10).

Tilting the cutting head, Fig. 7

By changing the angle of inclination, trimming can also be carried out in inaccessible places, e.g. under benches, projections, etc.

• Press the locking button (8).
• Engage the cutting head at the desired angle.
• Release the locking button.

Warning! Only use original spare parts and accessories from the manufacturer. Failure to do so can reduce performance, result in injuries and void your warranty. Never use the machine without the protection assembled!

Attention!

Always make sure the product is fully assembled before commissioning!

Commissioning:

The device can be connected to any socket outlet (with 230 V AC voltage) fused with at least 10 A. The socket outlet must be protected with a residual current circuit breaker (RCCB). The tripping current must not exceed 30 mA.

AC motor

The mains voltage must be 230V
- Extension cables up to 25m long must have a cross-section of 2.5mm^2

Attaching the extension cable

• Plug the extension cable coupling onto the plug of the device.
• Pull the extension cable through the cable strain relief (3) as a loop and hook it in.
• Make sure that the extension cable has enough slack.

Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

Starting and stopping the grass trimmer, Fig. 1

• Starting the device: Press the on/off switch (2) on the handle.
• Stopping the device: Release the switch (2).

Switch on the device before approaching the grass to be cut. Tilt the device slightly forwards, proceed slowly. Swivel the device to the right and left to cut the grass.

Long grass must be trimmed in layers. Always proceed from top to bottom.

Use plant protection clip to keep the device at the correct distance from obstacles. Only remove clippings when the motor is not running.

8. Working instructions

WARNING INFORMATION:

The device must never be switched on or used before it has been fully assembled.

For your own safety, please thoroughly read this manual and the general safety instructions before turning the device on.

• Regularly remove all lawn and weed debris to prevent the shaft tube from overheating. Lawn/grass/weed debris gets caught underneath the shield, this prevents sufficient cooling of the shaft tube. Carefully remove the residues with a screwdriver or similar.

• Swing the trimmer from side to side in a sickle-like motion. Always keep the thread coil parallel to the ground. Check the terrain and set the desired cutting height (max. 15 cm). Guide and hold the thread coil at the desired height to get an even cut.

• The grass trimmer may only be used to cut grass and weeds under bushes on edges, borders and slopes that cannot be reached with the lawn mower. Any other use not specified in these usage instructions may damage the device or cause severe injuries to the user and is therefore explicitly prohibited from the list of possible uses.

Automatic thread feeding

The thread is automatically added during operation by means of the centrifugal force.

9. Maintenance

Always switch off the device before carrying out maintenance and cleaning work and wait until the device has come to a complete standstill. Pull out the mains plug.

Maintenance work that is not expressly described in this manual must be carried out by qualified personnel, as hazardous situations may arise for which the operator is not prepared.

Cleaning

After each use, clean the grass trimmer either with a clean cloth, a brush or blow it out with compressed air at low pressure.
- Do not use any cleaning products or solvents; they could attack the plastic parts of the device.
- Do not hose down the grass trimmer.

ATTENTION! Always disconnect the mains plug before replacing the thread coil (7)!

1. Switch off the grass trimmer and wait until the nylon thread has come to a complete standstill, then disconnect the device from the mains cable.
2. Unscrew the thread coil and replace it with a new one.

When the cutting head starts up for the first time, the thread is cut to the correct length by the blade on the cover hood.

The device can now be plugged back in and started.

Service information

With this product, it is necessary to note that the following parts are subject to natural or usage-related wear, or that the following parts are required as consumables. Wearing parts*: Carbon brushes, thread coil

• may not be included in the scope of delivery!

Spare parts and accessories can be obtained from our Service Centre. To do this, scan the QR code on the front page.

10. Electrical connection

The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions.

The customer's mains connection as well as the extension cable used must also comply with these regulations.

Damaged electrical connection cable

The insulation on electrical connection cables is often damaged.

This may have the following causes:

• Pressure points, where connection cables are passed through windows or doors.
• Kinks where the connection cable has been improperly fastened or routed.
• Places where the connection cables have been cut due to being driven over.
  Insulation damage due to being ripped out of the wall outlet
• Cracks due to the insulation ageing.

Such damaged electrical connection cables must not be used and are life-threatening due to the insulation damage.

Check the electrical connection cables for damage regularly. Ensure that the connection cables are disconnected from electrical power when checking for damage.

Electrical connection cables must comply with the applicable VDE and DIN provisions. Only use connection cables of the same designation.

The printing of the type designation on the connection cable is mandatory.

Connection type Y

If it is necessary to replace the mains connection cable, this must be done by the manufacturer or their representative to avoid safety hazards.

11. Storage

• Disconnect the grass trimmer from the power supply when the device is not in use.
• Store the device in a dry place and out of reach of children
• When the device is not in use, store it in such a way that it cannot be activated by an unauthorised person.

WARNING!

Do not store the device unprotected outside or in a damp environment.

12. Disposal and recycling

Notes for packaging

The packaging materials are recyclable. Please dispose of packaging in an environmentally friendly manner.

Notes on the electrical and electronic equipment act [ElektroG]

Waste electrical and electronic equipment does not belong in household waste, but must be collected and disposed of separately!

• Used batteries or rechargeable batteries that are not installed permanently in the old device must be removed non-destructively before disposal! Their disposal is regulated by the battery act.

• Owners or users of electrical and electronic devices are legally obliged to return them after use.

• The end user is responsible for deleting their personal data from the old device being disposed of!

• The symbol of the crossed-out dustbin means that waste electrical and electronic equipment must not be disposed of with household waste.

• Waste electrical and electronic equipment can be handed in free of charge at the following places:

• Public disposal or collection points (e.g. municipal works yards).

• Points of sale of electrical appliances (stationary and online), provided that dealers are obliged to take them back or offer to do so voluntarily.

• Up to three waste electrical devices per type of device, with an edge length of no more than 25 centimetres, can be returned free of charge to the manufacturer without prior purchase of a new device from the manufacturer or taken to another authorised collection point in your vicinity.
  Further supplementary take-back conditions of the manufacturers and distributors can be obtained from the respective customer service.

• If the manufacturer delivers a new electrical device to a private household, the manufacturer can arrange for the free collection of the old electrical device upon request from the end user. Please contact the manufacturer's customer service for this.

• These statements only apply to devices installed and sold in the countries of the European Union and which are subject to the European Directive 2012/19/EU. In countries outside the European Union, different regulations may apply to the disposal of waste electrical and electronic equipment.

13. Troubleshooting

The following table shows fault symptoms and describes remedial measures in the event of your machine failing to work properly. If you cannot localise and rectify the problem with this, please contact your service workshop.

Fault Possible cause Remedy
Device does not start.	• Mains voltage not present. • On/Off switch defective. • Carbon brushes worn. • Motor defective. • Power cable is damaged.	• Check the socket and the power supply; have it repaired by a certified electrician if necessary. • Repair by an authorised service centre. • Repair by an authorised service centre. • Repair by an authorised service centre. • Check the extension cable and have it repaired if necessary.
Device runs intermittently.	• Power cable is damaged. • Internal connections loose. • On/Off switch defective.	• Check the extension cable and have it replaced if necessary. • Repair by an authorised service centre. • Repair by an authorised service centre.
Does not cut. • Coil thread too short or empty. • Readjust or replace the coil.

EU Declaration of Conformity

Standard references:

EN 55014-1:2017; EN 55014-2:2015; EN IEC 61000-3-2:2019; EN 61000-3-3:2013/A1:2019;

This declaration of conformity is issued under the sole responsibility of the manufacturer.

The object of the declaration described above fulfils the regulations of the directive 2011/65/EU of the European Parliament and Council from 8th June 2011, on the restriction of the use of certain hazardous substances in electrical and electronic equipment.

Subject to change without notice

Documents registrar: David Rumpelein Gunzburger Str. 69, D-89335 Ichenhausen

Garantie DE

Apparent defects must be notified within 8 days from the receipt of the goods. Otherwise, the buyer loses its rights of claim due to such defects are invalidated. We guarantee for our machines in case of proper treatment for the time of the statutory warranty period from delivery in such a way that we replace any machine part free of charge which provably becomes unusable due to faulty material or defects of fabrication within such period of time. With respect to parts not manufactured by us we only warrant insofar as we are entitled to warranty claims against the upstream suppliers. The costs for the installation of the new parts shall be borne by the buyer. The cancellation of sale or the reduction of purchase price as well as any other claims for damages shall be excluded.

Garantie FR
