USER MANUAL SRC035 Scotsman

Installation and User's Manual for Residential Ice Machine

Model SRC035

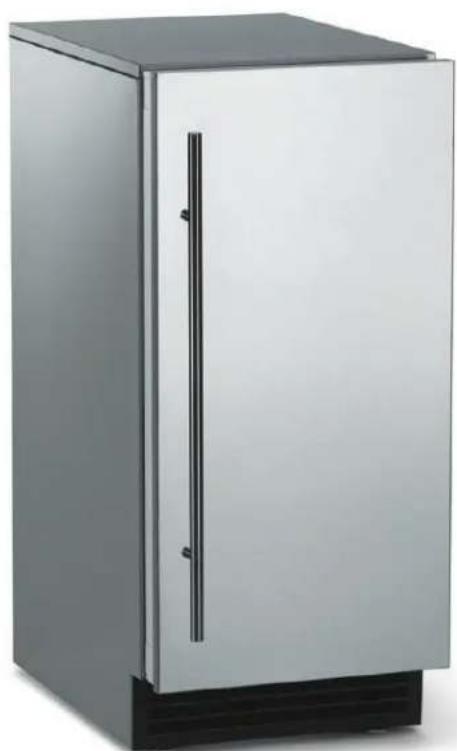

Exterior view of a stainless steel refrigerator with black doors and front panel (no text or symbols visible)

Brilliance™

SRC035

User Manual

Safety Information

Important Safety Information. Make sure to read through fully to avoid severe injury or death.

WARNING

R290 Refrigerant is

Flammable.

Flame can cause burns or property damage

Keep away from sources of fire

Warning sign depicting a flame symbol in yellow and black on a yellow triangle

This ice machine contains FLAMMABLE refrigerant and improper use can result in fire or explosion. Do not use cigarettes, vapes, or cellphones near pipes or cables, as it can be a source of ignition or spark.

This ice machine must not be installed next to equipment with an open ignition source (ie. open flames, an operating gas appliance, or electric heater). Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: Do not use electrical appliances inside the food/ice storage compartments unless they are of the type recommended by the manufacturer.

WARNING: In order to reduce flammability hazards the installation of this appliance must only be carried out by a suitably qualified person.

This appliance must be installed according to the safety standard for refrigeration systems presented in ANSI/ASHRAE 15.

Do not install next to anything that continuously vibrates, avoiding excessive vibrations or pulsations.

Install in a well ventilated environment and ensure ventilation and outlets are not obstructed.

Properly secure electrical wiring and cabling for the machine to minimize wear and vibrations.

Keep fire extinguisher nearby in case of emergencies.

WARNING: Do not damage the refrigerating circuit

Use a Scotsman recommended technician certified to repair R290 equipment.

Install ONLY Scotsman factory service parts. Use of non-OEM parts can be dangerous due to the design changes needed to safely use R290 refrigerant.

WARNING: Cancer and Reproductive Harm. Visit www.P65Warnings.ca.gov for details.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not unplug or disconnect power to the ice machine with out shutting off the water supply.

Note: This ice machine should be on its own dedicated circuit with out any other appliances or devices.

September 2025

This ice machine is the result of Scotsman's decades of experience in the design and manufacturing of both commercial and residential ice machines.

This manual includes the information needed to install, start up and maintain the ice machine. Note any Caution or Warning indicators, as they provide notice of potential hazards. Keep this manual for future reference.

Table of Contents

Safety Information ...... Page 2
Specifications ...... Page 3
Cabinet Layout Page 4
Air flow....Page 5
Water Quality......Page 6
Door Panel......Page 7
Door Panel Attachment......Page 8
Door Swing Change ...... Page 9
Installation: Water & Drain......Page 10
Installation: Gravity Drain ...... Page 11
Installation: Electrical......Page 12
Use Page 13
Maintenance...... Page 14
Cleaning the Condenser....Page 15
What To Do Before Calling For Service......Page 16
Decomissioning Page 17

Specifications

This ice machine is designed to be used indoors, in a controlled environment. Use outside of the listed limitations is misuse and will void the warranty.

Air temperature limits:

The ice machine will operate adequately within the limits, but functions best in temperatures between 70-80°F.

• Minimum: 50°F (10°C)
• Maximum: 100°F (38°C)

Water temperature limits:

• Minimum: 40°F (4.5°C)
• Maximum: 100°F (38°C)

Water pressure limits

• Minimum: 20 psi (1.4 bar)
• Maximum: 80 psi (5.5 bar)

Because the ice machine is making a food product, the water supply to the ice machine must be potable, or fit for human consumption.

Electrical Voltage

• Minimum - 104 volts
• Maximum – 126 volts

Options:

Door Panel Kits

Finished door panels are available from Scotsman for attachment to the machine, or a custom panel can be made.

Kit Number Panel	Finish Handle	Finish
KDFS Stainless	Steel Stainless Steel

Kickplate Extension

In some situations the leg levelers will be extended enough to become visible. A kit to extend the kickplate over the legs is KKPF.

Cabinet Stability

In some free standing installations it may be prudent to add a bracket that secures the back of the cabinet to a wall. That kit number is KATB.

Drain Conversion

A gravity drain model can be converted to a drain pump model by installing a drain pump kit. The drain pump kit consists of a drain pump, wiring harness and associated tubing. The part number is KPMP.

Warranty Information

Warranty information is supplied separately from this manual. Refer to it for coverage. In general, the warranty covers defects in materials or workmanship and does not cover corrections of installation errors or maintenance.

Fill out the Warranty Registration by using the attached warranty and mailing it in or scan the QR code to be taken to the Scotsman warranty website:

Models:

• SRCP035A-1SU – Pump model, stainless cabinet
• SRCG035A-1SU– Gravity drain model, stainless cabinet

Cabinet Dimensions

Width Depth, w/out door panel Depth, with door panel, handle adds 1 5/8" Height
14 7/8" 2	2" 22 3/4" 33 3/8" to 34 3/8"

QR code image containing encoded data, no visible human-readable text

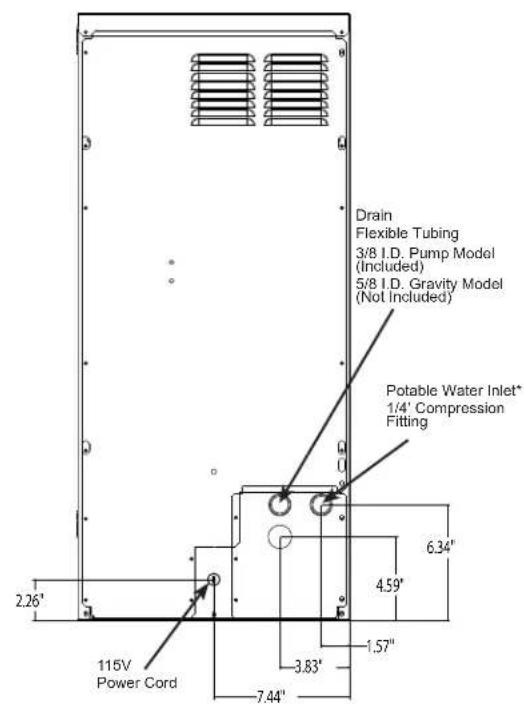

3.78" FLOOR DRAIN ACCESSHOLE 20.36"

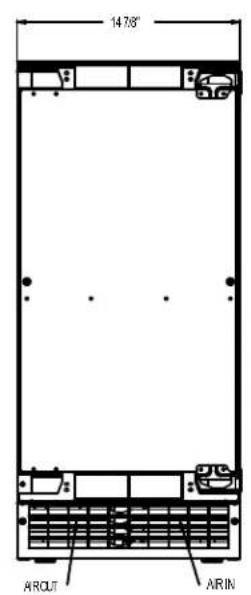

14.78" AROUT AIRIN

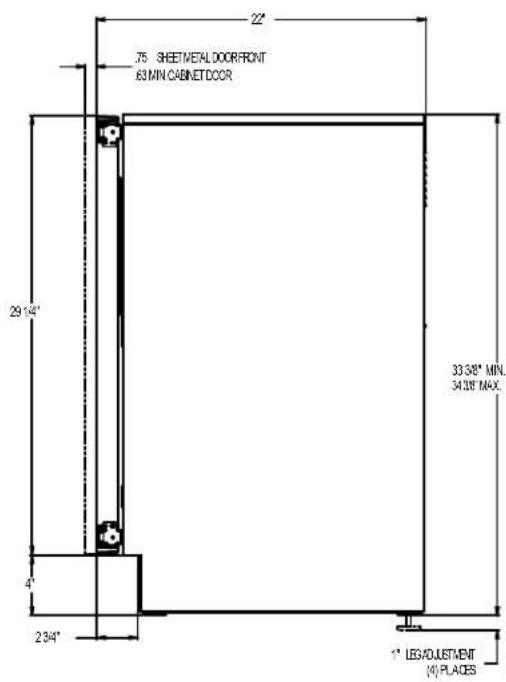

75 SHEETMEAL DOORFRONT 63 MIN CABINETDCOR 22" 29 1/4" 4" 23/4" 33 38" MIN. 34 18" MAX. 1" LEG/OUSTMENT (W) PLACES

Drain Flexible Tubing 3/8 I.D. Pump Model (Included) 5/8 I.D. Gravity Model (Not Included) Potable Water Inlet* 1/4" Compression Fitting 6.34" 4.59" 1.57" -3.83" -7.44" 2.26" 115V Power Cord

* - See Page 7 for more details

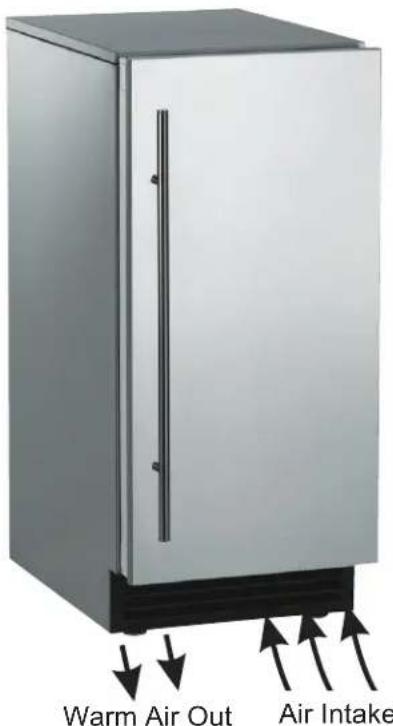

Air flow

The machine takes in room temperature air at the lower right front and discharges warm air from the lower left front. Restricting the airflow will adversely affect the ability of the ice machine to make ice.

Warm Air Out Air Intake

Scotsman Ice Systems are designed and manufactured with the highest regard for safety and performance. They meet or exceed the standards of UL60335-2-24.

Scotsman assumes no liability or responsibility of any kind for products manufactured by Scotsman that have been altered in any way, including the use of any parts and/or other components not specifically approved by Scotsman.

Scotsman reserves the right to make design changes and/or improvements at any time.

Specifications and designs are subject to change without notice.

All water, including potable water supplied by municipalities, contains some impurities or minerals. Water absorbs impurities from the air as rain and/or as it flows through the ground. Some of the impurities are solid particles. These are known as suspended solids, and a fine particle filter will remove them. Other impurities are chemically bonded to the water molecules, and cannot be filtered out. These are called dissolved solids.

Ice made by this machine will have a lower mineral content than the water it was made from. This is due to the method of making ice. Purer water will freeze first in the ice making molds. The reason for this is that anything dissolved in water lowers the water's freezing temperature. This concentrates most of the impurities in the ice machine water reservoir where they may form hard deposits known as scale. The machine dilutes the concentration of minerals by over-filling the reservoir during the harvest cycle (with the excess water flowing down the drain). About 3 quarts of water flow into the unit each cycle. About 1 quart of that rinses the reservoir and goes down the drain.

Some impurities will inevitably remain, will stick to the parts in the machine, and will cause malformed ice cubes. Eventually, built up mineral scale can shorten machine life.

To keep the machine operating properly, these impurities or minerals will have to be regularly dissolved by an acid cleaning, using Scotsman Ice Scale Remover. Directions for this may be found in the section under cleaning.

Filters and Treatment

In general, it is always a good idea to filter the water. A water filter, if it is of the proper type, can remove taste and odors as well as particles. Some methods of water treatment for dissolved solids include reverse osmosis and polyphosphate feeders. A reverse osmosis (RO) system should include post treatment to satisfy the RO water's potential aggressiveness. Deionized water is not recommended.

Because water softeners exchange one mineral for another, softened water may not improve water conditions when used with ice machines. Where water is very hard, softened water could result in white, mushy cubes that stick together.

If in doubt about water quality or filtration needs, contact a local water specialist for recommendations on water treatment.

Installation Overview

The ice machine must be connected to cold, potable water; it must have a drain; it must be connected to the proper power supply and must be able circulate air through the vents at the front.

Electrical: The unit is equipped with an electrical power cord, but should only be plugged into a circuit dedicated to the ice machine. The unit must be the only device on the circuit; powered directly from the breaker panel.

Confirm the outlet is properly grounded and is in good condition. Worn outlets should be replaced as they can cause erratic operation of equipment. Do not use an extension cord.

SRC035

User Manual

Door Panel

The ice machine is supplied without a conventional door covering so it can be decorated to the user's preference. Scotsman offers a stainless steel covering. In addition, a custom built panel can be placed onto the door.

Door Panel Attachment

To attach a Scotsman supplied panel:

Note: If door swing is to be changed, it must be done before panel is attached.

The panel will be held on by 6 sheet metal screws and 2 machine screws.

1. Remove the gasket and retain for later use.
2. If the door panel is stainless steel, remove any plastic covering the stainless steel panel.
3. Place the panel onto the outside of the door, and secure it to the door using two machine screws, located at the left center and right center.
4. Fasten the panel to the door using the 6 sheet metal screws. In the hinge area, use the outermost screw holes.

5. Place the covers over the hinge areas, and secure each cover to the door using a sheet metal screw.

6. Insert hole plug over screw installed in step 5.

7. Return the gasket to its original position.

Custom Panel

A custom panel of wood or other material not exceeding 15 lb can be attached to the door. Attachment is from the ice side of the door. Holes are provided in the door for this purpose.

See instructions in information packet to create and attach a custom panel:

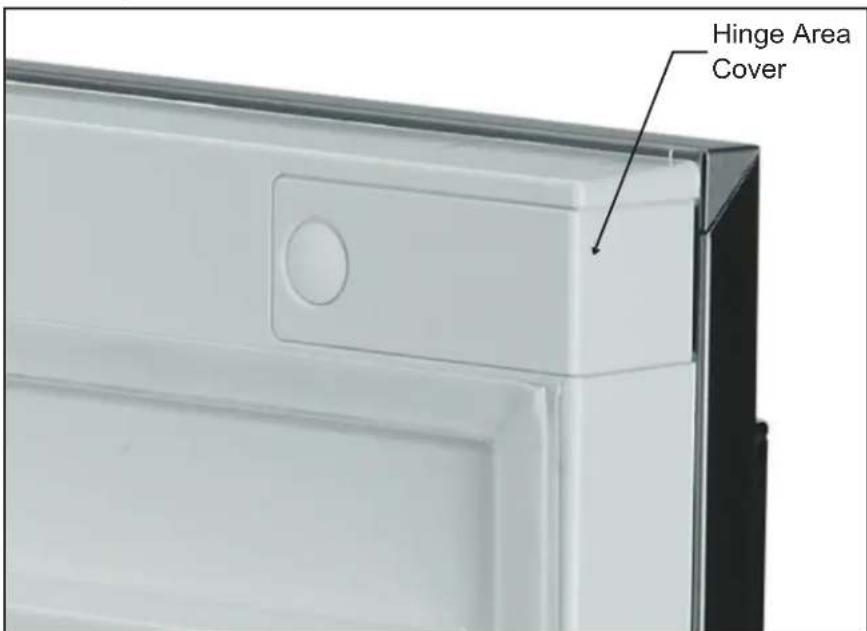

Hinge Area Cover

September 2025

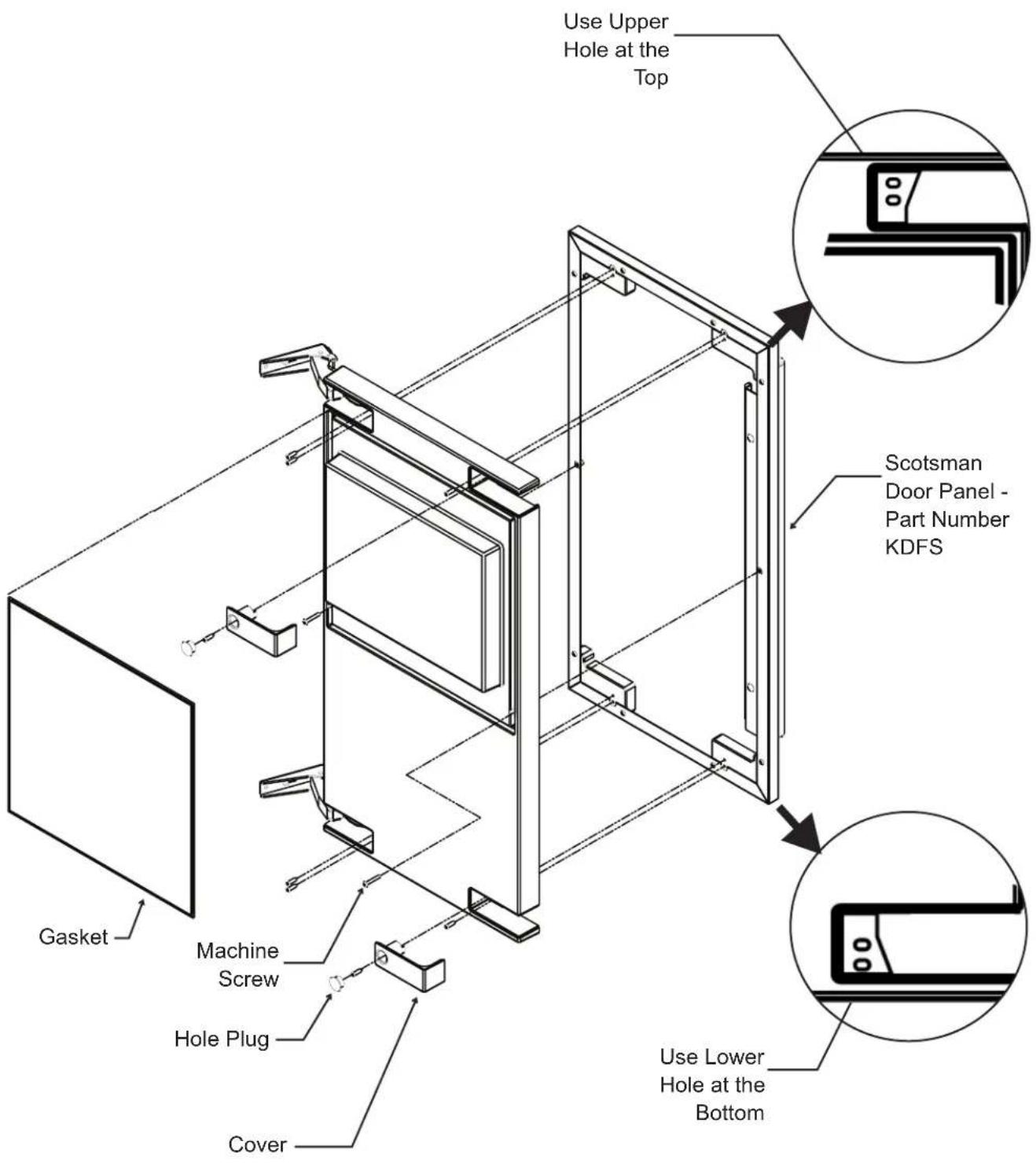

Use Upper Hole at the Top Scotsman Door Panel - Part Number KDFS Gasket Machine Screw Hole Plug Cover Use Lower Hole at the Bottom

Door Swing Change

Note: Prior models had separate hinge brackets and different directions to change swing.

Moving the hinges allows the door to open from either the left or right side. Change swing before attaching door panel.

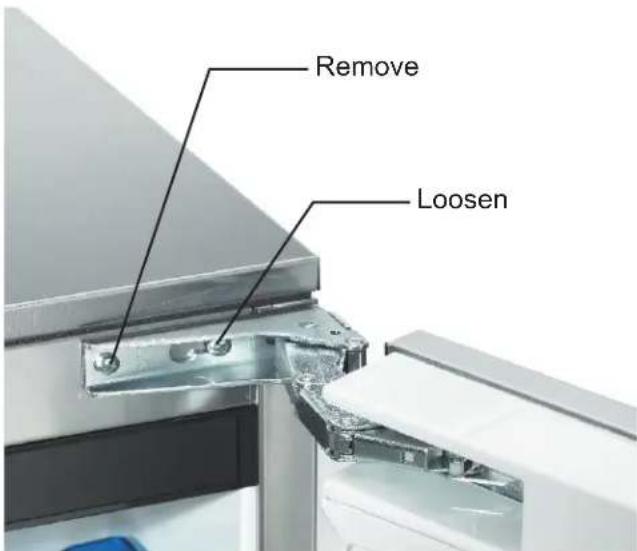

1. Remove innermost screw holding each hinge to cabinet, then loosen the outer screw.

Remove Loosen

1. Slide door to the side and remove from cabinet.

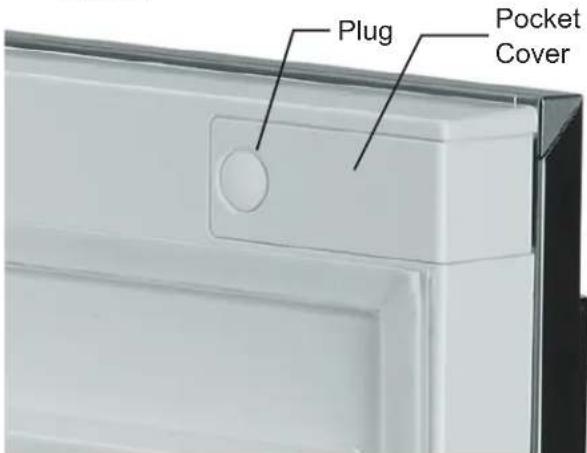

Plug Pocket Cover

1. Remove plug and hinge pocket covers from door.

Note: There are either plugs or screws in the holes where the hinges will mount. They must be moved.

1. Remove hole plugs or screws from unit's new hinge locations, set aside.
2. Move screws loosened in step 1 to opposite location.
3. Install screws or plugs removed in step 4 to the unit's original hinge location to fill the holes.
4. Remove the upper hinge from the door and move it to the door's opposite side, bottom location. Secure using the original screws.

Note: If door panel is attached, it must be removed to access hinge screws and to reverse handle position.

1. Remove the original lower hinge and move it to the door's opposite side, upper location. Secure using the original screws.
2. Install pocket covers and hole plugs onto door.
3. Attach the door to the cabinet using the original screws.

Installation Notes

Built In Situations: If a finished floor is to be installed in the area after the ice machine has been built in, shims the expected thickness of the floor should be installed under the unit to keep the machine level with the planned floor level.

Installations on a slab: Use a pump model and pump the water to the point of drainage. Pump models will pump 1 story (10 feet) high.

Installations over a crawl space or basement: Either gravity drain or pump model units may be used, if there is not enough room behind the machine for a drain/waste receptacle, the drain will have to be below the floor.

Note: When installed in a corner, the door swing may be limited due to handle contact with the wall or cabinet face.

Installation: Water & Drain

This model includes factory-installed water and drain lines. The installer must connect these lines to the building's water supply and drain system. All horizontal runs of drain lines must have a 14 " per foot fall. An air gap will likely be required between the ice machine drain tube and the drain/waste receptacle. Install an easily accessible shut-off valve between the supply and the unit. This shut-off valve should not be installed behind the unit.

Note: Do not use self-piercing type valves.

Screw Securing Front Service Panel

1. Place ice machine in front of installation location. Adjust leg levelers to approximately correct position.

2. Remove the front service panel. Install a compression fitting on the tubing and connect to the inlet of the solenoid.

Close-up of a hand using a tool to adjust or install a 3D-printed valve component, with no visible text or symbols.

1. Locate the factory-installed water line at the rear of the cabinet. The line terminates with a compression fitting. Connect this fitting to the building's cold water supply and tighten the compression nut to seal.

Note: Do NOT connect water to tubing in the back of the unit. Water supply connects in the front.

Drains

There are two types of ice machine models, one that drains by gravity and one that has an internal drain pump.

Drain Pump Model Drain Installation

1. Locate the coil of factory-installed 3/8" ID plastic drain tubing secured to the back of the cabinet.
2. Route the plastic drain tube from the back of the unit to the drain connection point.
3. Pour water into ice bin to check for leaks.

IMPORTANT NOTE: Often an air gap is required by local codes between the ice maker drain tube and the drain receptacle.

Note: It is recommended to purge the water supply lines prior to connecting to the ice machine. This will flush sediment from the line and prevent water flow restrictions.

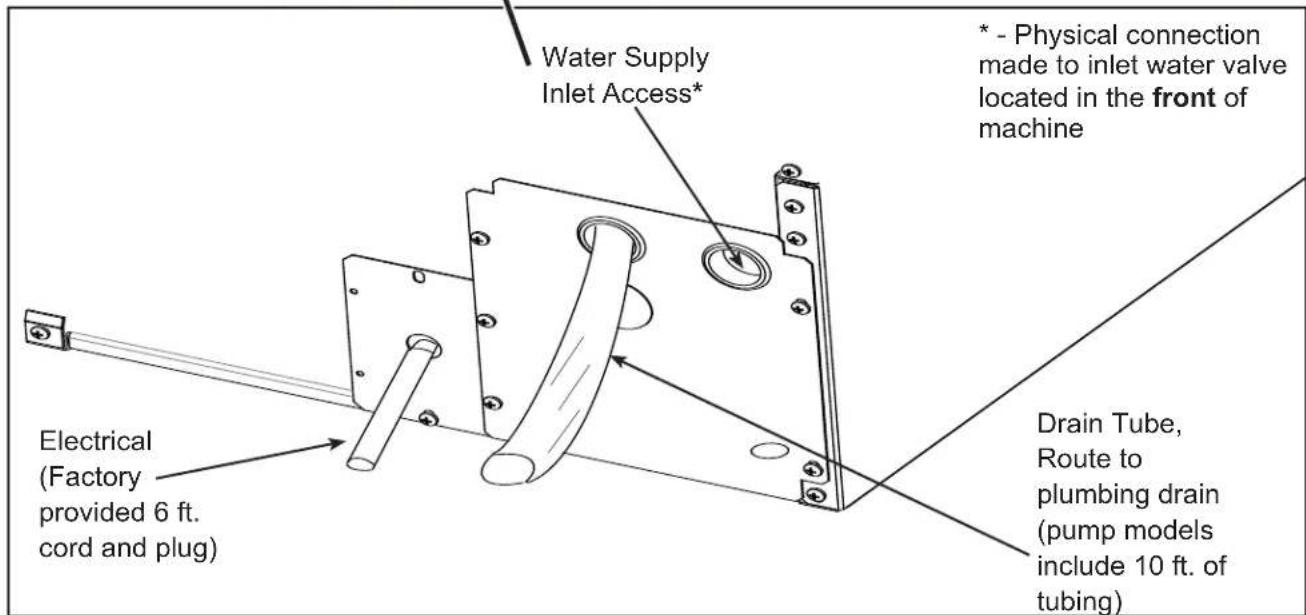

Water Supply Inlet Access* * - Physical connection made to inlet water valve located in the front of machine Electrical (Factory provided 6 ft. cord and plug) Drain Tube, Route to plumbing drain (pump models include 10 ft. of tubing)

Back View, Drain Pump Model
September 2025

Installation: Gravity Drain

Caution: Restrictions in the drain system to the machine will cause water to back up into the ice storage bin and melt the ice. Gravity drain tubing must be vented, have no kinks and slope to the building drain. Air gaps are typically required by local code.

1. Place the ice machine in front of the installation opening. Adjust leveling legs to the approximate height.
2. Remove the front service access panel and the upper back panel.

Note: If you are connecting a gravity drain model and the drain opening has been located in the floor under the base pan according to the pre install specifications, follow steps 3 through 5 to drain the unit through the base. If not, proceed to step 6b.

1. Remove the clamp and barbed elbow from the installed drain hose and take off the plastic cover in the base pan below the drain hose.

2. Connect a straight 5/8" barbed connector to the drain hose, securing with the supplied hose clamp removed in step 3.

3. Cut an 8" piece from the drain line tubing. Slide one end of the tube onto the outlet of the barbed connector and secure with a clamp. Leave the other end of the tube lying on the floor of the base pan until the unit is positioned over the floor drain.

4. Route the drain tube. Either:

a) Insert the drain tube through the base pan into the floor drain or
b) Route the drain tube through the left hole in the lower back panel and connect to barbed elbow and secure with a clamp. Check all connections for leaks and water drips and ensure hoses are secure

1. Reinstall any panels removed. Level the unit.

IMPORTANT NOTE: Often an air gap is required by local codes between the ice maker drain tube and the drain receptacle.

Note: It is recommended to purge the water supply lines prior to connecting to the ice machine. This will flush sediment from the line and prevent water flow restrictions.

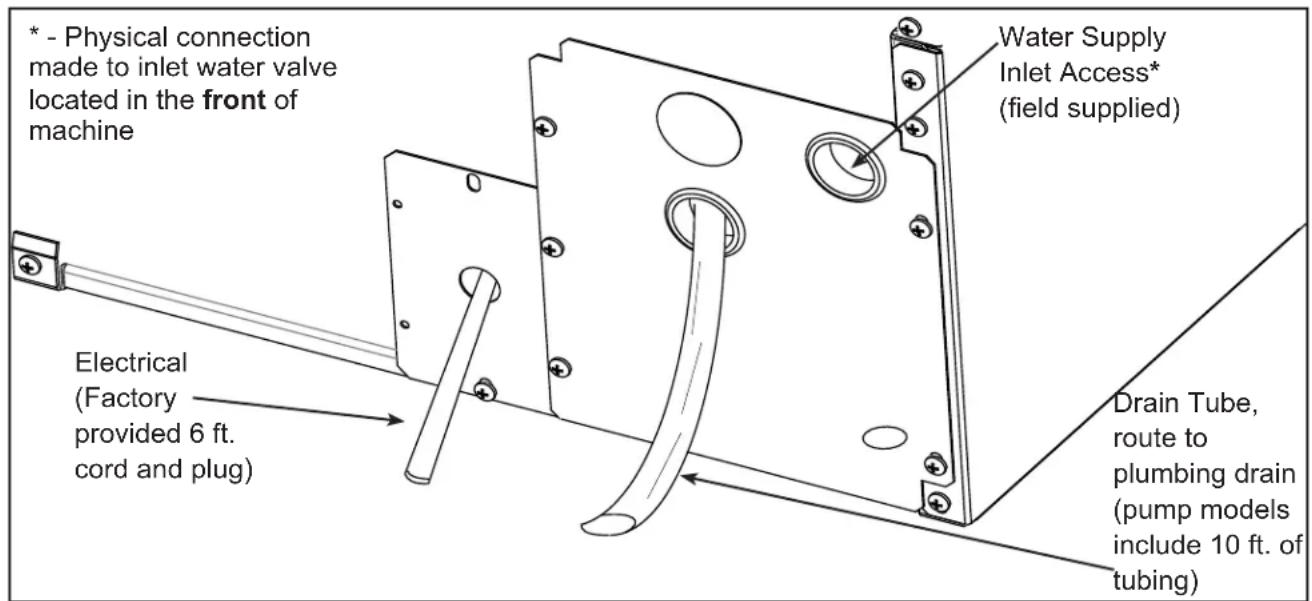

* - Physical connection made to inlet water valve located in the front of machine Electrical (Factory provided 6 ft. cord and plug) Water Supply Inlet Access* (field supplied) Drain Tube, route to plumbing drain (pump models include 10 ft. of tubing)

Back View, Gravity Drain Model

Installation: Electrical

The ice machine is supplied with a power cord. Do not remove the grounding pin from the cord's plug. Do not use extension cords. Follow all codes. Connect the machine to a dedicated 115 volt, 15 amp circuit.

1. If the electrical outlet for the ice maker is behind the unit, plug in the unit.
2. Position the unit in the installation opening.
3. After the water supply has been purged, turn on the water supply. Make sure that the ice maker is plugged in and the power is on. Verify water leaks are not present.
4. Slide unit into installation opening, paying careful attention to water supply and drain connections. Do not kink!
5. Pour a couple of quarts of water into the ice storage bin. On units equipped with a drain pump, the drain pump should start and water should pump out. Check for water leaks, proper draining, and ensure hoses are secure.
6. Replace the service access panel.
7. Level the unit as needed.

Installation Checklist:

1. Has the unit been connected to the proper water supply?
2. Has the water supply been purged?
3. Has the water supply be checked for leaks?
4. Has the unit been connected to a drain?
5. Has the drain been tested for flow and leaks?
6. Has the unit been connected to the proper electrical supply?
7. Has the unit been leveled?
8. Have all packing materials been removed from the machine?
9. Has the door covering been installed?
10. Has the unit been plugged into a dedicated circuit?

Initial Start Up:

1. Turn on the water supply.
2. Switch on the electrical power.
3. Press and release the Power button.

The compressor will start and water will begin to flow into the unit. When the reservoir is full, water will start to drain from the machine. After a few minutes the water pump and fan motor will begin to operate and the first ice making cycle will begin.

No adjustments are needed.

After about a half hour, ice will fall into the ice storage bin. The machine makes 12 cubes per batch. It is normal for the first batches of ice to melt. That will continue until the bin has cooled. It will take 24 to 36 hours of continuous run time to fill the ice bin. When the bin is full of ice, the ice machine will shut off. It will automatically restart when the ice level falls, either from use or normal meltage.

Do not unplug or disconnect power to the ice machine with out shutting off the water supply.

Note: This ice machine should be on its own dedicated circuit with out any other appliances or devices.

SRC035

User Manual

Use

No special instructions are needed for use. Just take as much ice as you need and the machine will replace it. A scoop is provided and can be stored in the machine using the loop of tubing on the right side as a holder.

The machine can be shut off at anytime by pushing and releasing the Power button. The machine will shut off immediately.

What shouldn't be done?

Never keep anything in the ice storage bin that is not ice. Objects like wine or beer bottles are not only unsanitary, but the labels may slip off and plug up the drain.

Never allow the machine to operate without regular cleaning. The machine will last longer if it is kept clean. Regular cleaning should happen at least once per year, and preferably twice. Some water conditions will dictate even more frequent cleaning of the ice making section, and some carpets or pets will dictate more frequent cleaning of the condenser.

Note: The Time to Clean light will turn on after 6 months of use. It will remain ON until the ice making system is cleaned using the process on page 15.

Noise:

The ice machine is designed for quiet operation, but will make some noise during the ice making cycle. It is normal to hear the fan and circulating water during the freeze cycle, and ice hitting the bin or other cubes in the bin can be heard during harvest.

Three transparent glass mechanical components on a blue background, no text or symbols visible

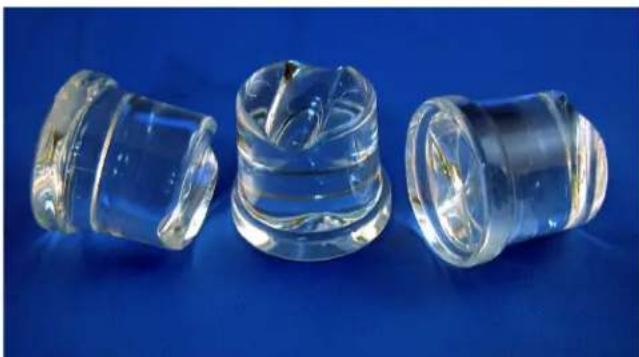

Normal cubes are tapered cylinders. If the cubes are ragged and mis-shaped, mineral scale must be removed from the ice making system.

Do not unplug or disconnect power to the ice machine with out shutting off the water supply. Note: This ice machine should be on its own dedicated circuit with out any other appliances or devices.

Maintenance

There are 6 things to keep clean:

1. The outside cabinet & door.
2. The ice storage bin.
3. The condenser.
4. The ice making system.
5. The ice scoop.
6. The drain pump.

How to clean the cabinet.

Wipe off any spills on the surface of the door and handle as they occur. If anything spilled on the door or gasket dries onto the surface, wash with soap and warm water to remove.

How to clean the ice storage bin.

Over time biofilm can grow inside the drain system which can affect the ability for the drain system to evacuate the drain water. On the pump models this can also cause pump failure. Including the pump getting stuck on and running dry. Biofilm and pump cycling issues will eventually lead to low production and standing water in the bin. To ensure that this does not become an issue frequent bin sanitizing may be required.

The ice storage bin should be sanitized occasionally. It is usually convenient to sanitize the bin after the ice making system has been cleaned, and the storage bin is empty.

Create a solution of sanitizer by mixing 1 gallon (4 liters) of clean, warm potable water (105-115°F) with 1.6 Oz of locally approved sanitizer. Use a clean cloth and wipe the interior of the ice storage bin with the sanitizing solution, pour some of the solution down the drain

It is the User's responsibility to keep the ice machine and ice storage bin in a sanitary condition. Without human intervention, sanitation will not be maintained. Ice machines also require occasional cleaning of their water systems with a specifically designed chemical. This chemical dissolves mineral build up that forms during the ice making process.

Allow to air dry.

Cleaning the Condenser

The condenser is like the radiator on a car, it has fins and tubes that can become clogged. To clean:

1. Remove the kickplate.

2. Locate the condenser surface.

3. Vacuum the surface, removing all dust and lint.

Caution: Do not dent the fins.

1. Replace the kickplate.

Winterizing

1. Clean the machine as explained on the next page.
2. Open the door and switch the machine off.
3. Turn off the water supply.
4. Drain the water reservoir by removing the rubber cap on the back wall of the ice storage bin.
5. Disconnect the incoming water line at the inlet water valve.
6. Switch the machine to On.
7. Blow air through the inlet water valve until water stops flowing from it; a tire pump could do the job.
8. Drain pump models should have about 1/2 gallon of RV antifreeze (propylene glycol) poured into the ice storage bin drain.

Note: Automotive antifreeze must NOT be used.

1. Switch off and unplug the machine.

The ice scoop should be washed regularly, wash it just like any other food container.

How to clean the ice making system.

1. Scoop out all of the ice, either discard it or save it in a ice chest or cooler.
2. Pour 8 ounces of Scotsman Ice Machine Scale Remover (available from a local Scotsman Distributor or Dealer) into the ice machine reservoir.
3. Allow the machine to operate for about 2 hours.
4. Pour hot (95°F. – 115°F.) water into the bin to melt the ice that has formed. That ice will likely be white and frosty looking.
5. Turn the ice machine control to Off.

\*For Pump Only models

1. Clean the bin liner of mineral scale by using any left over scale remover solution to scrub the scale off of the liner. If none is left over, mix a solution of 2.5 ounces of Clear 1 Scale Remover and 1 quart of water. Scrub the scale off of the liner.

6a. *After ice melts, pour 1 qt. water down the bin drain until the pump turns on. Once pump turns on IMMEDIATELY stop.

*6b. Once pump shuts off, add a mixture of 10 oz of water and 4 oz of Scotsman's Clear 1 scale remover to bin drain. If the pump cycles during this process, then repeat step 6a; making sure to stop pouring as soon as the pump turns on. Then repeat step 6b. Let machine sit in off state for 1/2 an hour.

1. Rinse the liner with hot water.

Sanitize the bin interior.

\*For Pump Only models

1. Create a solution of sanitizer by mixing 1 gallon (4 liters) of clean, warm potable water (105-115°F) with 1.6 Oz of locally approved sanitizer and sanitize the bin interior and flush the drain.

*8a. Pour 1 qt. of water down the bin drain until the pump turns on. Once pump turns on IMMEDIATELY stop.

Sanitizing continued:

*8b. Once the pump shuts off, mix 13 oz of clean, warm potable water (105-115°F) with 1 oz of locally approved sanitizer to sanitize the bin interior. If the pump cycles during this process, then repeat step 8a; making sure to stop pouring as soon as the pump turns on. Then repeat step 8b. Let machine sit in off state for 10 minutes.
9. Rinse the liner with hot water.
10. Turn the ice machine control to On. Replace the ice removed in step 1.

Before Calling for Service...

Ice cubes are incompletely formed

- Clean the ice making system

Low capacity

• Check for restricted drain or standing water in the bin
• Clean the air cooled condenser fins

No ice

• Check on-off switch
• Check electrical breaker
• Check water supply

Erratic Drain Operation (Pump models only)

- Clean and sanitize bin. If problem continues, contact local service provider.

Bin's ice level.

When the ice machine shuts off the ice level in the bin should be even with the metal tube inside the bin. If the ice in the bin is too high or low, turn the ice machine control knob to adjust the bin thermostat.

1. To lower the ice level, turn the control counterclockwise. Usually a 1/8 turn will be enough.
2. To increase the ice level, turn the control clockwise. Usually a 1/8 turn will be enough.

Decomissioning

Only qualified technicians familiar with R290 refrigerant should decommission a machine, as special tools and containers are required for the removal, transportation, and disposal of this highly flammable substance.

• Before attempting the procedure:

* Ensure that all protective gear is present and used throughout the procedure.

* Make sure recovery equipment and containers are available and ready for use. All containers used for recovery must be rated for R290 refrigerant and must be labeled as such.

* Weigh any refrigerant prior to reclaiming.

- Maintain safety through standard operating procedures as outlined on page 20 of this document. Be sure to follow local, state, and federal guidelines for proper disposal.

- Do not fill containers more than 80% and do not exceed the pressure limits of the container. Make sure the machine to be decommissioned is in satisfactory working order and that the electrical components of the machine are properly sealed to prevent ignition.

- Recovered refrigerant should not be charged into another refrigerating system or mixed in another container.

- Make sure to safely transport the refrigerant in line with standard operating procedures.

- All recovered refrigerant must be returned to refrigerant supplier for proper disposal.

- If compressor or compressor oils are removed ensure it has been removed to an acceptable level so the flammable refrigerant does not remain in the lubricant.

Scotsman®

The Ideal Ice®

Exterior view of a stainless steel refrigerator with black doors and front panel (no text or symbols visible)

Brilliance™

AVERTISSEMENT

Warning sign depicting a flame symbol in yellow and black on a yellow triangle

Installation....Page 12

Utilisation Page 13

Entretien. Page 14

Close-up of a hand using a handheld device to adjust or install a brass valve component, with a magnified inset showing the valve detail (no text or symbols visible)

Three transparent plastic cylindrical objects with reflective surfaces, arranged on a solid blue background (no text or symbols visible)

Hand pressing a button on a surface, showing the knob and arrow (no text or symbols)

Hand holding a circular knob on a panel, no text or symbols visible

Mise hors service

Exterior view of a stainless steel refrigerator with black doors and front panel (no text or symbols visible)

Brilliance™

ADVERTENCIA

Warning sign depicting a flame symbol in yellow and black on a triangle

Close-up of a hand using a tool to adjust or install a brass pipe component, with a magnified inset showing the pipe detail (no text or symbols visible)

Three transparent glass cylindrical objects with reflective surfaces, arranged on a solid blue background (no text or symbols visible)

Hand pressing a button on a surface, showing the knob and arrow (no text or symbols)

Hand holding a circular knob on a panel, no text or symbols visible

Retiro de servicio

101 Corporate Woods Parkway

Vernon Hills, IL 60061

800-726-8762

www.scotsman-ice.com
