ZY-40X8-4 - DIY tool Vevor - Free user manual and instructions

Product Type	Galvanized Steel Metal Edging
Brand	Vevor
Model	ZY-40X8-4
Dimensions (per section)	40 x 8 inches (101.6 x 20.32 cm)
Color	Black
Material	Galvanized Steel
Number of sections included	4
Number of connectors included	6
Gloves included	Yes (1 pair)
Tools required	Spade, hammer, wooden block
Installation	Partially bury in the ground and secure with a hammer (use a wooden block to protect the edging)
Use	Garden edging, flower beds, pathways
Safety	Wear ANSI-approved safety gloves and goggles during installation
Maintenance	Clean with a damp cloth if necessary; no special maintenance required
Rust resistance	Yes, thanks to the galvanized coating
Bending	Can be bent to the desired angle using a workbench or table
Warranty and support	Technical support and electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - ZY-40X8-4 Vevor

How to install the Vevor ZY-40X8-4 metal edging?

To install the edging, start by marking the edge line and removing obstacles. If the soil is rocky, loosen it with a spade. Then, bend the edging to the desired angle using a workbench or table. Insert the connected sections into the ground and tap them with a hammer while placing a wooden block to avoid damaging the edging. Finally, insert a connector to secure the connection between the sections.

Can the edging be cut to the desired length?

No, it is not recommended to cut the edging with a tool as it could cause injury and damage the galvanized coating. The sections are designed to be used as is. If you need a different length, choose the appropriate model.

What tools do I need for installation?

The required tools are a spade, a hammer, and a wooden block. The spade is used to prepare the soil, the hammer to drive the edging in, and the wooden block to protect the edging during hammering.

Is the edging rust resistant?

Yes, the edging is made of galvanized steel, which provides excellent resistance to rust and corrosion, even outdoors.

How to connect multiple sections together?

Each section is connected using the provided connectors. After aligning the sections, insert a connector into the designated slots to secure the pieces together. The connection is secure and durable.

Can I bend the edging to follow a curve?

Yes, the edging can be bent manually to conform to the desired shape. Use a workbench or the edge of a table as support for a clean bend. You can create curves or right angles as needed.

What to do if a section is damaged?

If a section is damaged, it is recommended to replace it with a new section of the same model. The edging is not repairable. Contact customer service at www.vevor.com/support for replacement parts.

How to clean and maintain the edging?

Maintenance is simple: clean the edging with a damp cloth if dirty. Avoid abrasive products that could scratch the galvanized coating. No special maintenance is required.

What safety precautions should be taken?

During installation, wear ANSI-approved safety goggles and robust work gloves for protection. Ensure the work area is clean and well-lit, and do not work if you are tired or under the influence of substances.

Where to find replacement parts or support?

For technical assistance or to obtain replacement parts, visit www.vevor.com/support. There you will find the electronic warranty certificate and can contact customer service.

USER MANUAL ZY-40X8-4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GALVANIZED STEEL METAL EDGING

USER MANUAL

MODEL:ZY-40X6-3Black/ZY-40X6-4Black/ZY-40X6-6Black/ZY-40X8-3Black/ZY-40X8-4Black/ZY-40X8-6Black/ZY-40X12-4Black

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

Model: ZY-40X6-3Black/ZY-40X6-4Black/ZY-40X6-6Black/ZY-40X8-3Black/ZY-40X8-4Black/ZY-40X8-6Black/ZY-40X12-4Black

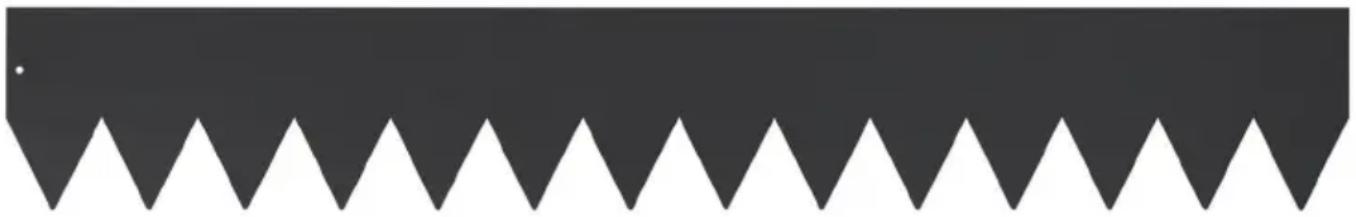

Black zigzag pattern on dark background with a small white dot at top left (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soi updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

SAVE THIS MANUAL

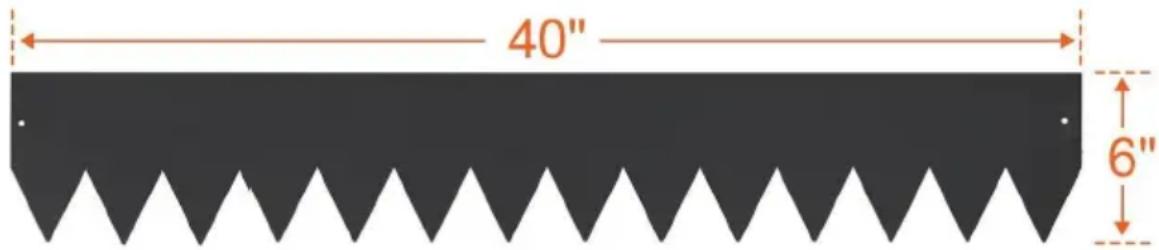

PRODUCT SPECIFICATIONS

Model	ZY-40X6-3Black
Size of Single metal edge	40*6in
Color	Black

Model	ZY-40X6-4Black
Size of Single metal edge	40*6in
Color	Black

Model	ZY-40X6-6Black
Size of Single metal edge	40*6in
Color	Black

Model	ZY-40X8-3Black
Size of Single metal edge	40*8in
Color	Black

Model	ZY-40X8-4Black
Size of Single metal edge	40*8in
Color	Black

Model	ZY-40X8-6Black
Size of Single metal edge	40*8in
Color	Black

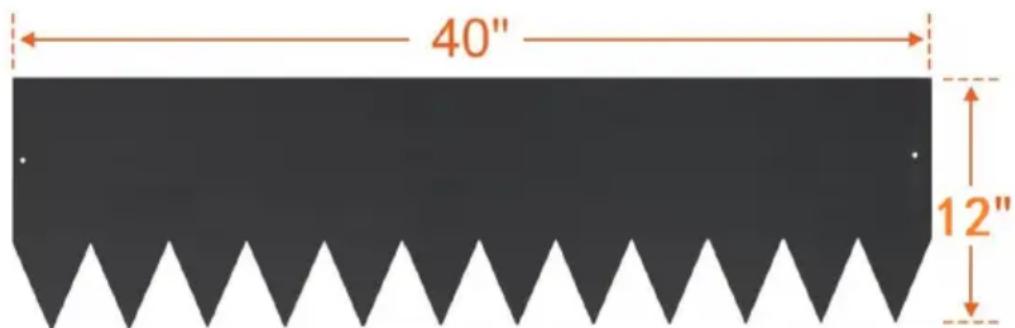

Model	ZY-40X12-4Black
Size of Single metal edge	40*12in
Color	Black

PRODUCT COMPONENTS

Model
	Metal edge	Connector	Gloves
ZY-40X6-3Black	x3	x5	X1
ZY-40X6-4Black	x4	x6
ZY-40X6-6Black	x6	x8
ZY-40X8-3Black	x3	x5
ZY-40X8-4Black	x4	x6
ZY-40X8-6Black	x6	x8
ZY-40X12-4Black	x4	x6

ZY-40X6-3Black / ZY-40X6-4Black / ZY-40X6-6Black

ZY-40X8-3Black / ZY-40X8-4Black / ZY-40X8-6Black

ZY-40X12-4Black

REQUIRED TOOLS

Spade
Hammer and a block of wo

PRODUCT ASSEMBLE INSTRUCTIONS

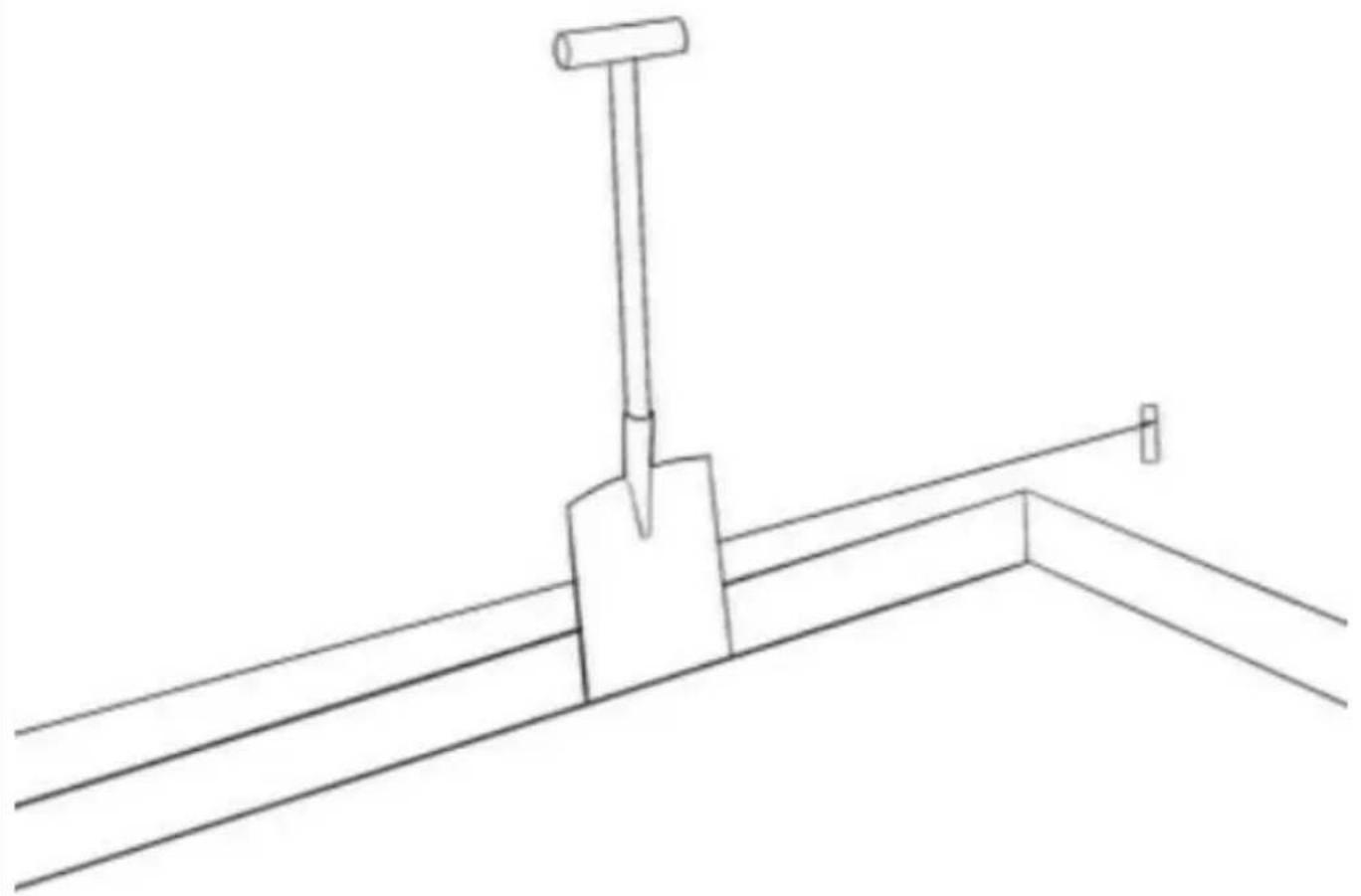

STEP 1: Prepare a line for the edging to follow and remove any obstructions. If ground is stony, loosen with pickaxe.

Line drawing of a structural support structure with a hammer and bracket (no text or symbols)

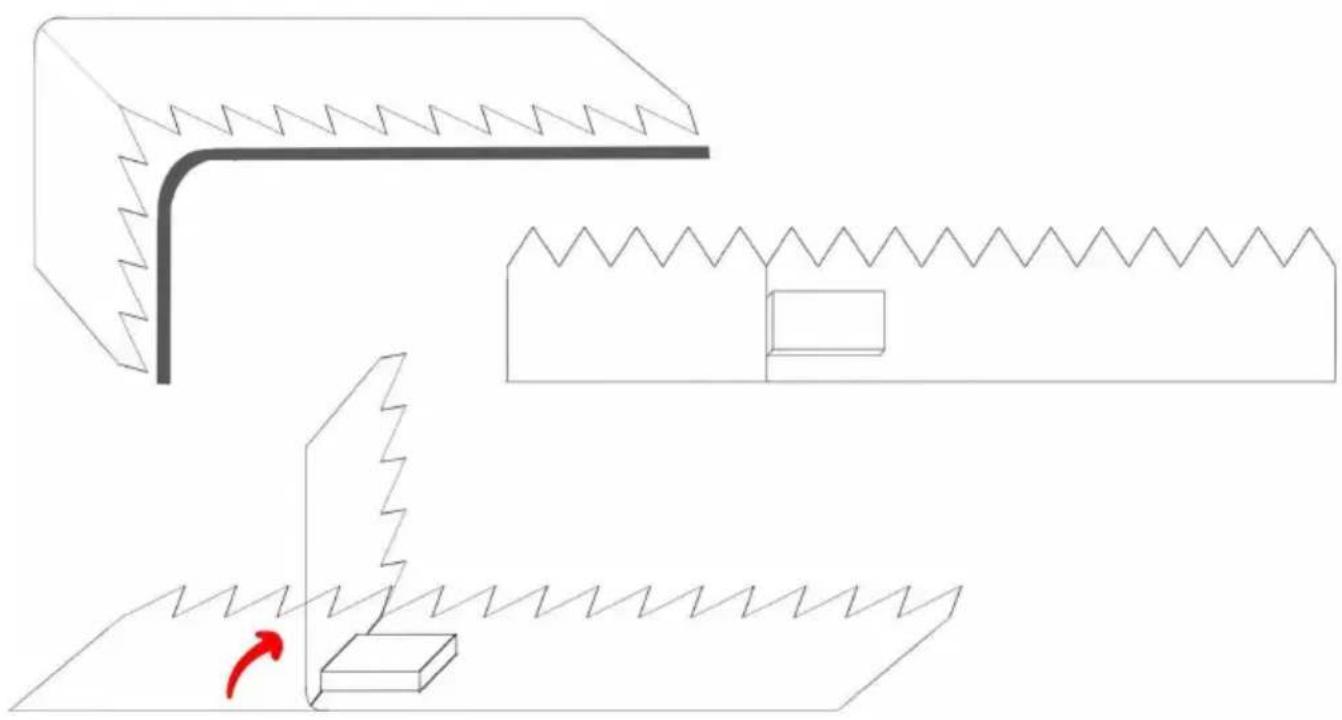

STEP 2: Bending instructions: A work bench, the edge of a table, or other former is advised when bending the metal edge to requi

Diagram showing a mechanical assembly with zigzag components and a red arrow indicating motion (no text or symbols)

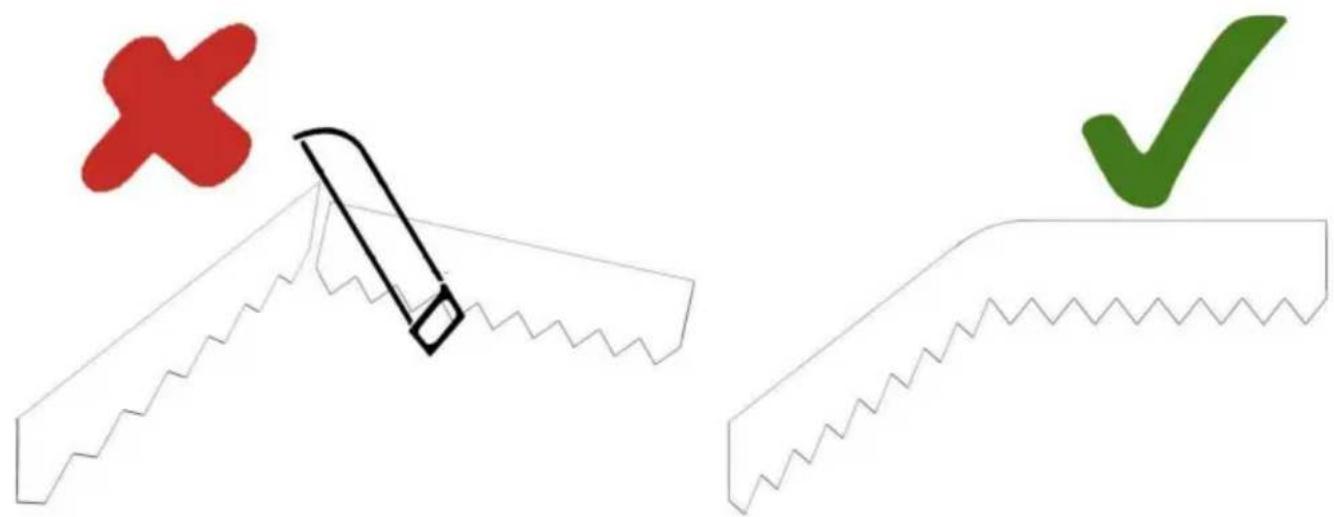

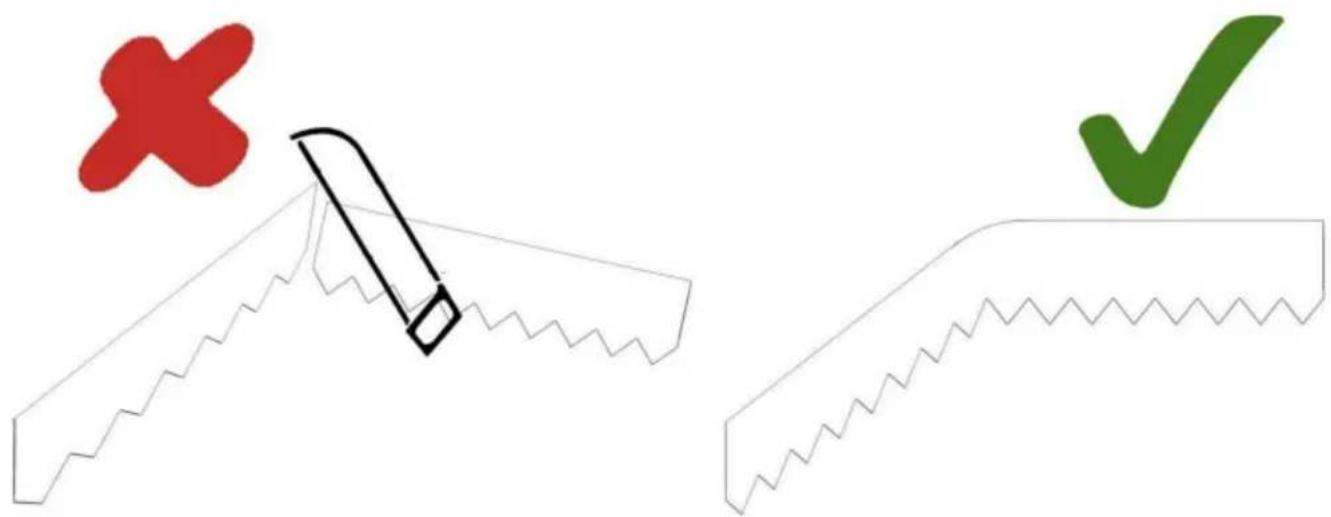

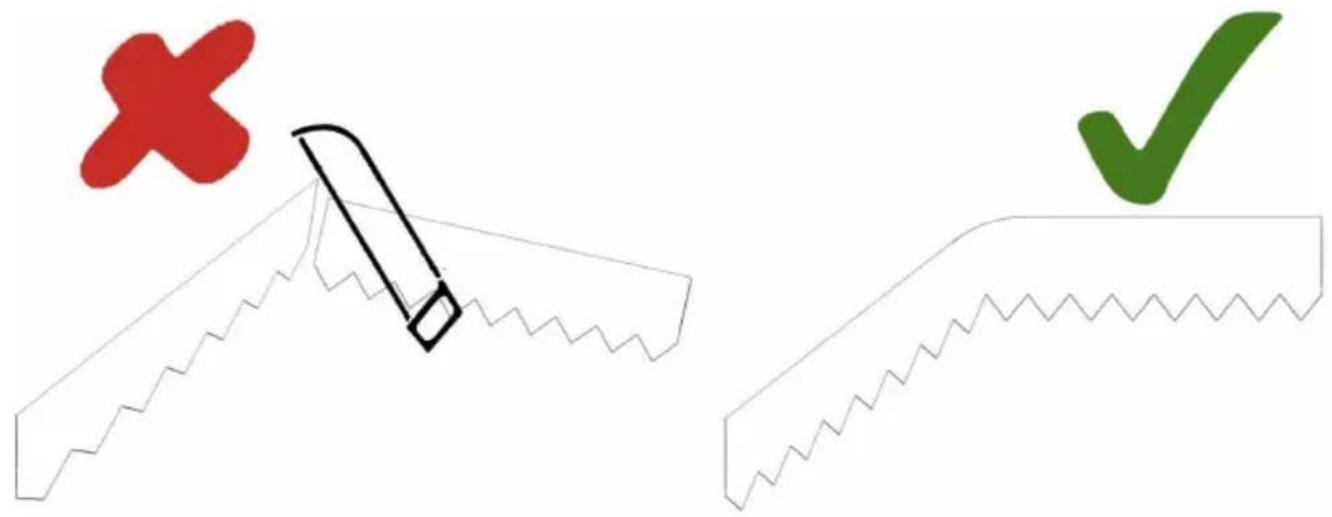

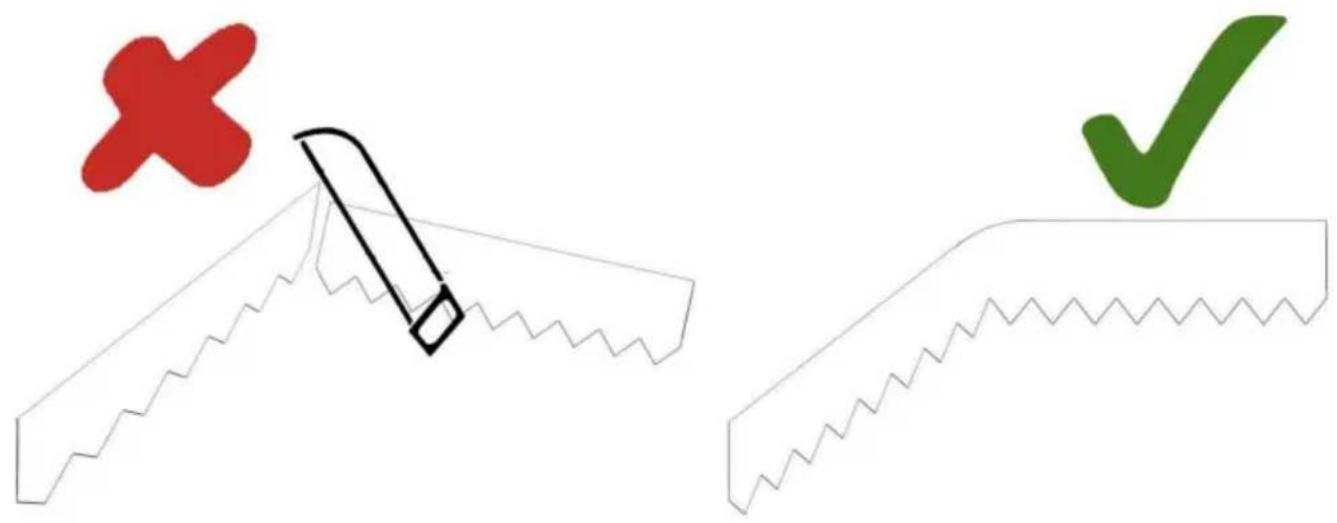

NOTE: Do not cut with anything as it can cause injury.

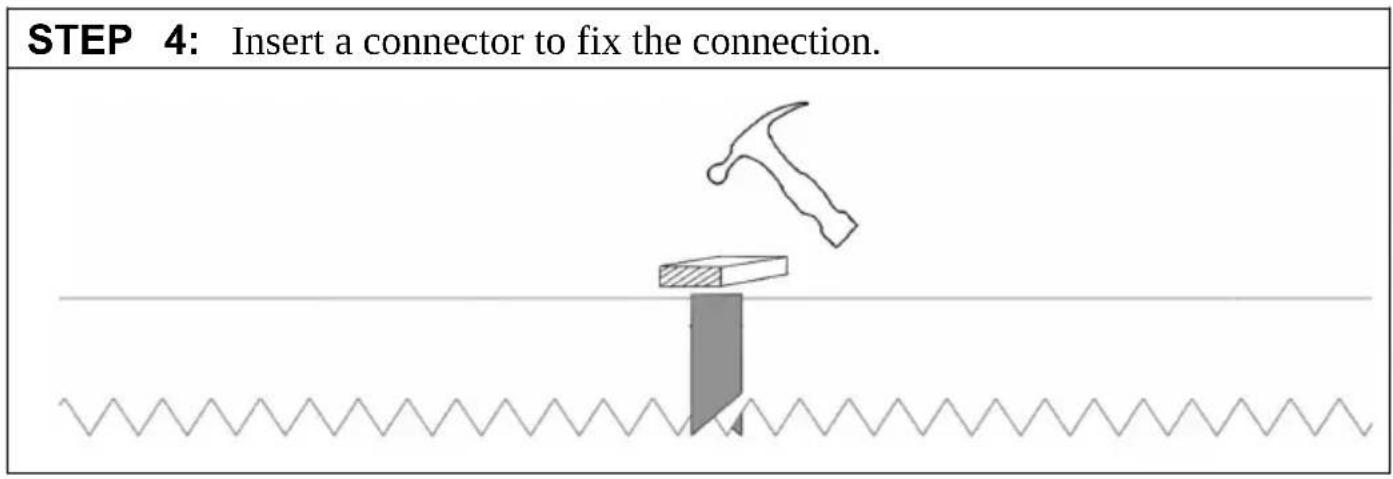

STEP 3: Insert the connected metal edges into the ground and set with a hammer.

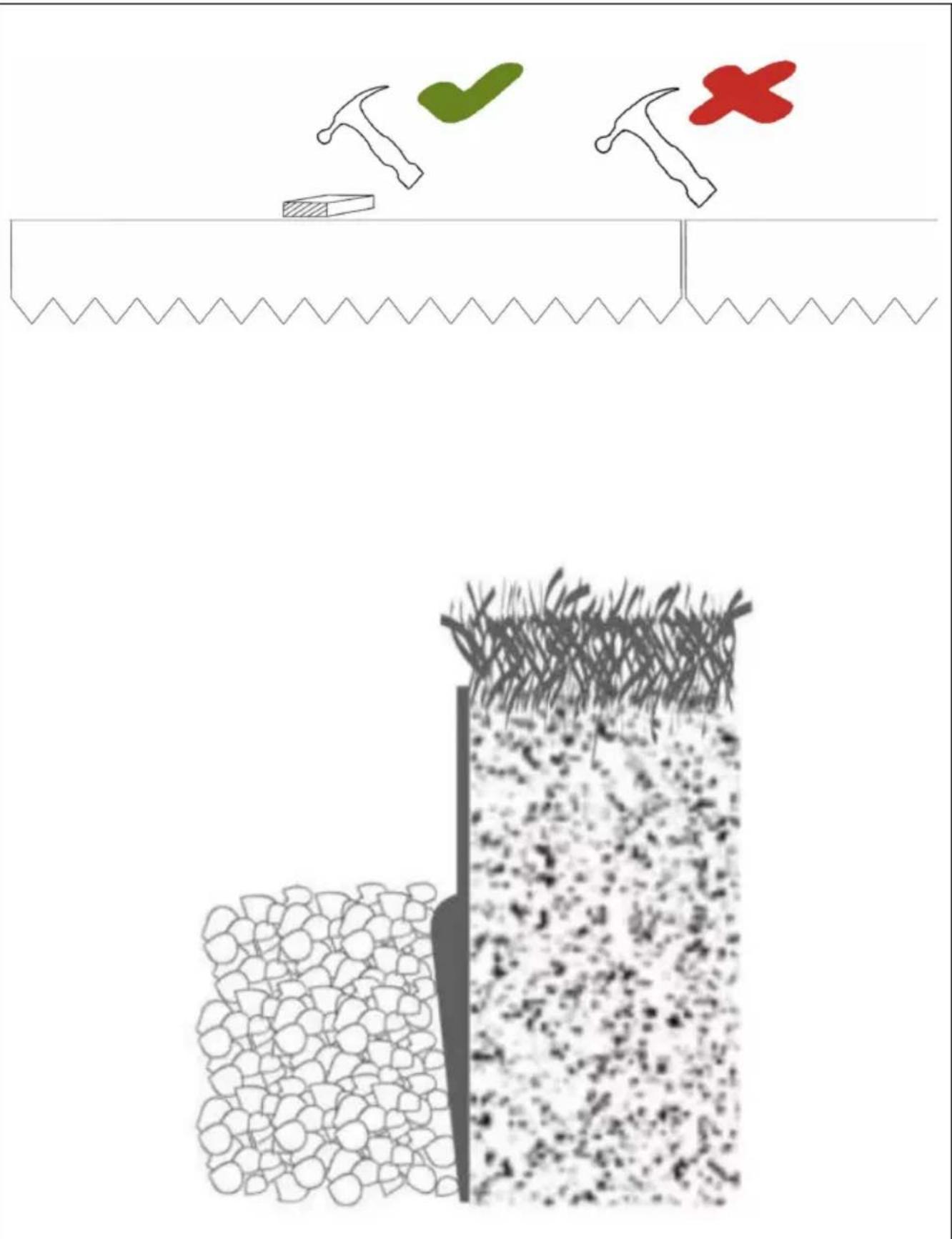

NOTE: Place a piece of wood over the metal edge when striking hammer to avoid damaging the metal edge.

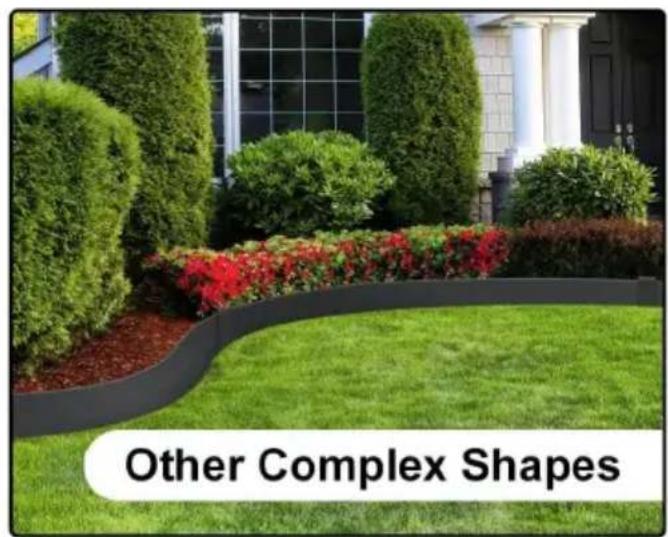

Supplementary statement: The metal barrier can be bent into the shape you need according to your needs (Including but not limited to the following shapes).
①
②
③

CLEAR ENGRAVED GRADUATIONS

Precision control of rotation degree

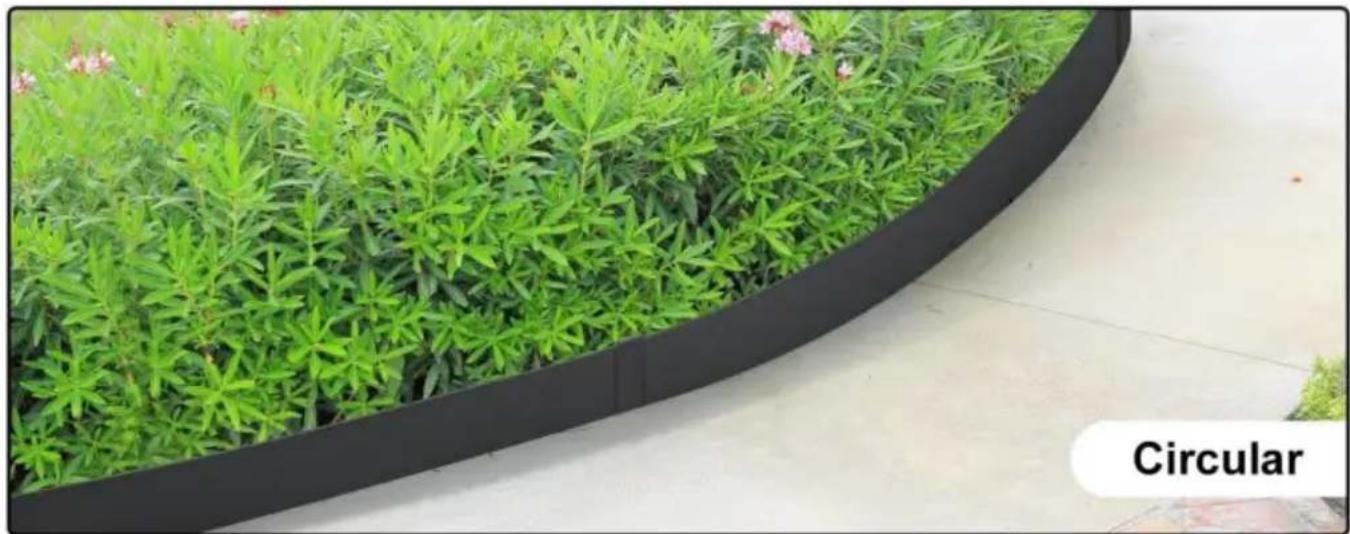

Garden wall with green shrubbery and a black curved fence, labeled 'Circular' in the corner (no other text or symbols)

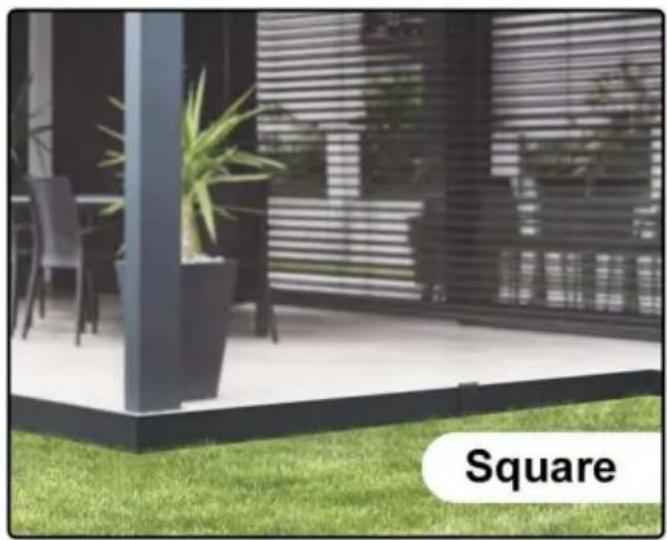

Exterior view of a modern glass-walled patio with potted plant and grassy lawn, no visible text or symbols

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730
