USER MANUAL ZY-40X12-4Black Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

GALVANIZED STEEL METAL EDGING

USER MANUAL

MODEL:ZY-40X6-3Black/ZY-40X6-4Black/ZY-40X6-6Black/ZY-40X8-3Black/ZY-40X8-4Black/ZY-40X8-6Black/ZY-40X12-4Black

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents estimate of savings you might benefit from buying certain tools with us compared to the brands and does not necessarily mean to cover all categories of tools offered by us. Y kindly reminded to verify carefully when you are placing an order with us if you are actual half in comparison with the top major brands.

Model: ZY-40X6-3Black/ZY-40X6-4Black/ZY-40X6-6Black/ZY-40X8-3Black/ZY-40X8-4Black/ZY-40X8-6Black/ZY-40X12-4Black

Black zigzag pattern on dark background with a small white dot at top left (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soi updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble if tired or when under the influence of alcohol, or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. Assemble on a flat, level, hard and smooth surface capable of sa supporting the Wooden Hall Tree.
8. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

SAVE THIS MANUAL

PRODUCT SPECIFICATIONS

Model	ZY-40X6-3Black
Size of Single metal edge	40*6in
Color	Black

Model	ZY-40X6-4Black
Size of Single metal edge	40*6in
Color	Black

Model	ZY-40X6-6Black
Size of Single metal edge	40*6in
Color	Black

Model	ZY-40X8-3Black
Size of Single metal edge	40*8in
Color	Black

Model	ZY-40X8-4Black
Size of Single metal edge	40*8in
Color	Black

Model	ZY-40X8-6Black
Size of Single metal edge	40*8in
Color	Black

Model	ZY-40X12-4Black
Size of Single metal edge	40*12in
Color	Black

PRODUCT COMPONENTS

Model
	Metal edge	Connector	Gloves
ZY-40X6-3Black	x3	x5	X1
ZY-40X6-4Black	x4	x6
ZY-40X6-6Black	x6	x8
ZY-40X8-3Black	x3	x5
ZY-40X8-4Black	x4	x6
ZY-40X8-6Black	x6	x8
ZY-40X12-4Black	x4	x6

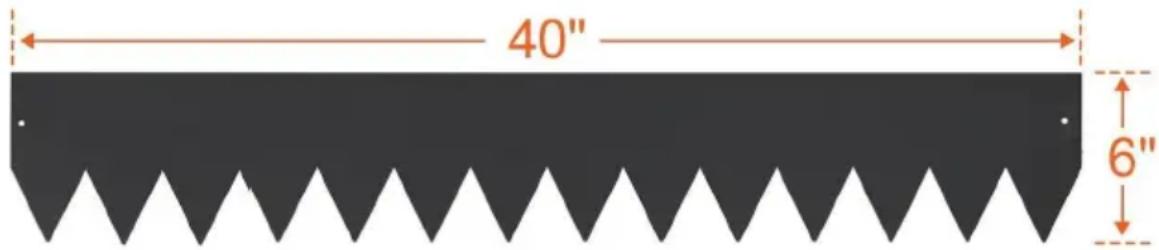

ZY-40X6-3Black / ZY-40X6-4Black / ZY-40X6-6Black

40" 6"

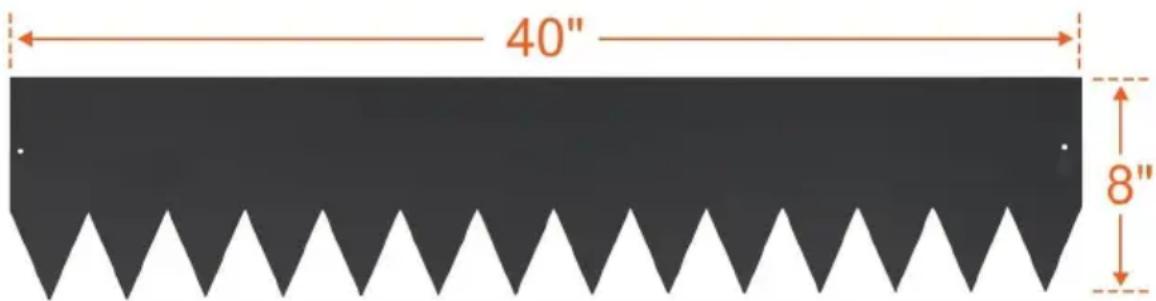

ZY-40X8-3Black / ZY-40X8-4Black / ZY-40X8-6Black

40" 8"

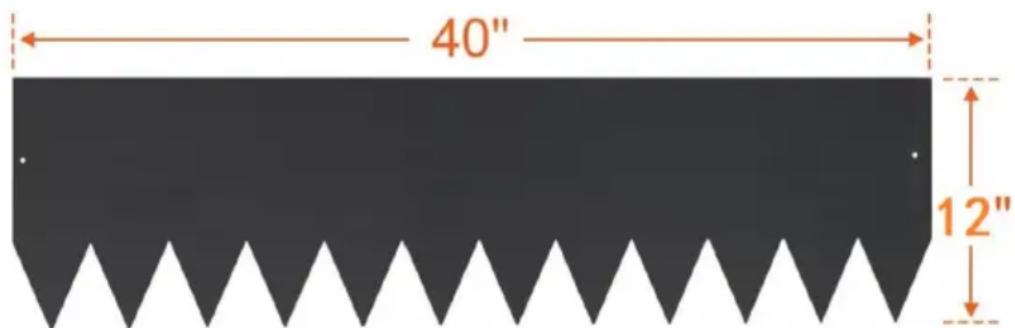

ZY-40X12-4Black

40" 12"

REQUIRED TOOLS

Spade
Hammer and a block of wo

PRODUCT ASSEMBLE INSTRUCTIONS

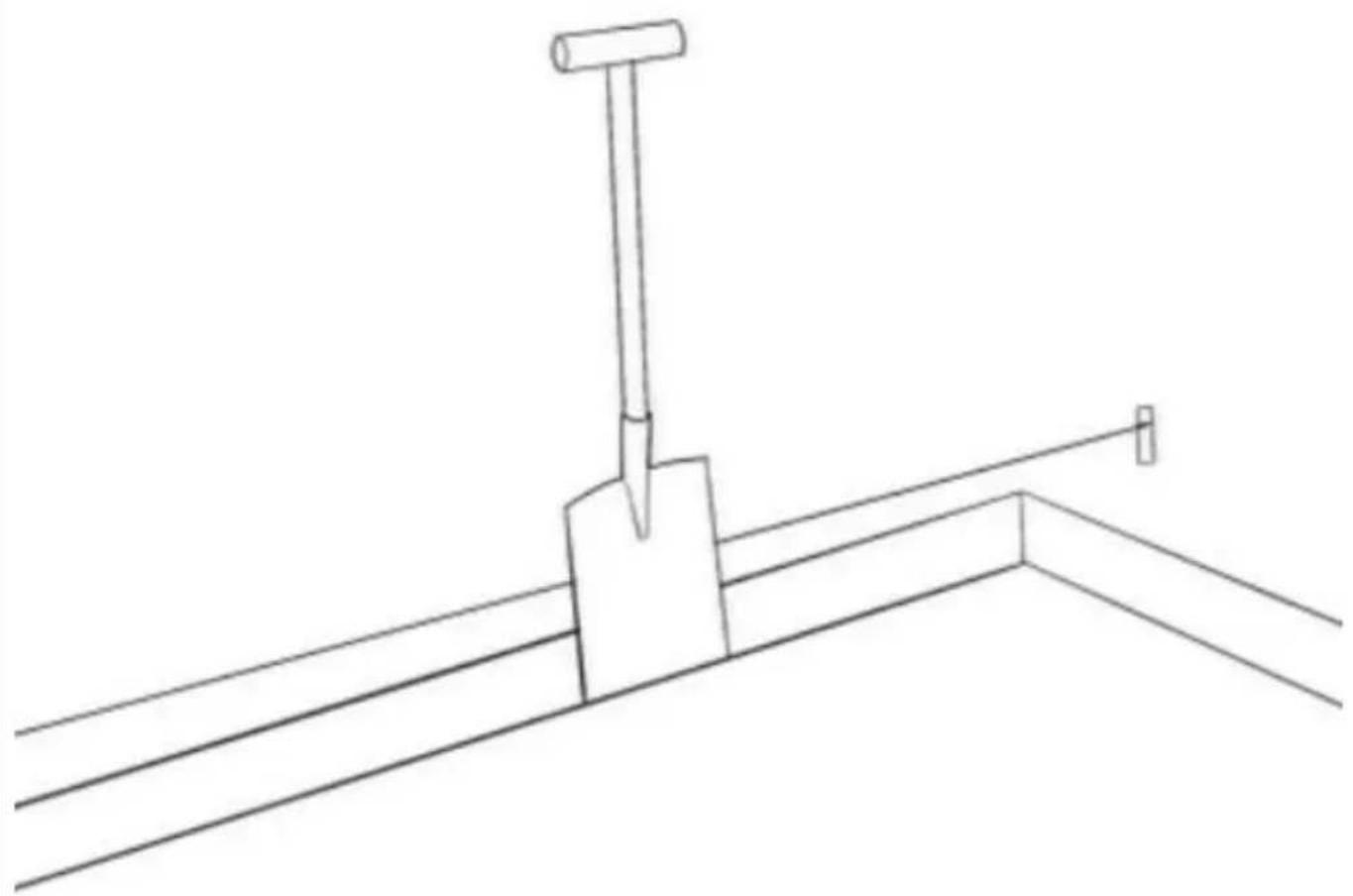

STEP 1: Prepare a line for the edging to follow and remove any obstructions. If ground is stony, loosen with pickaxe.

Line drawing of a structural support structure with a hammer and bracket (no text or symbols)

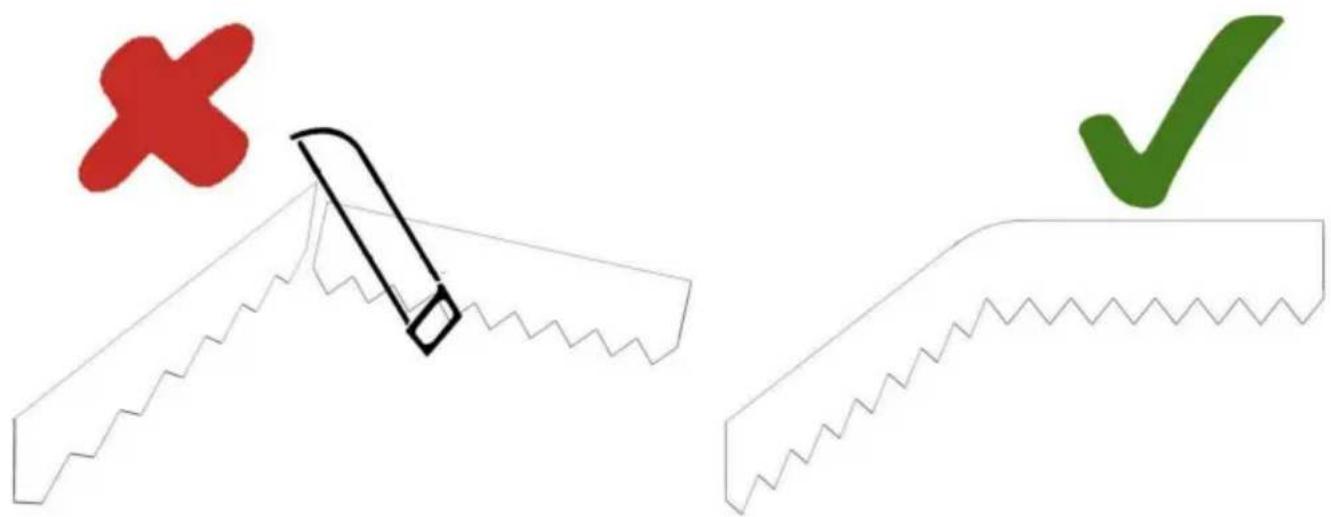

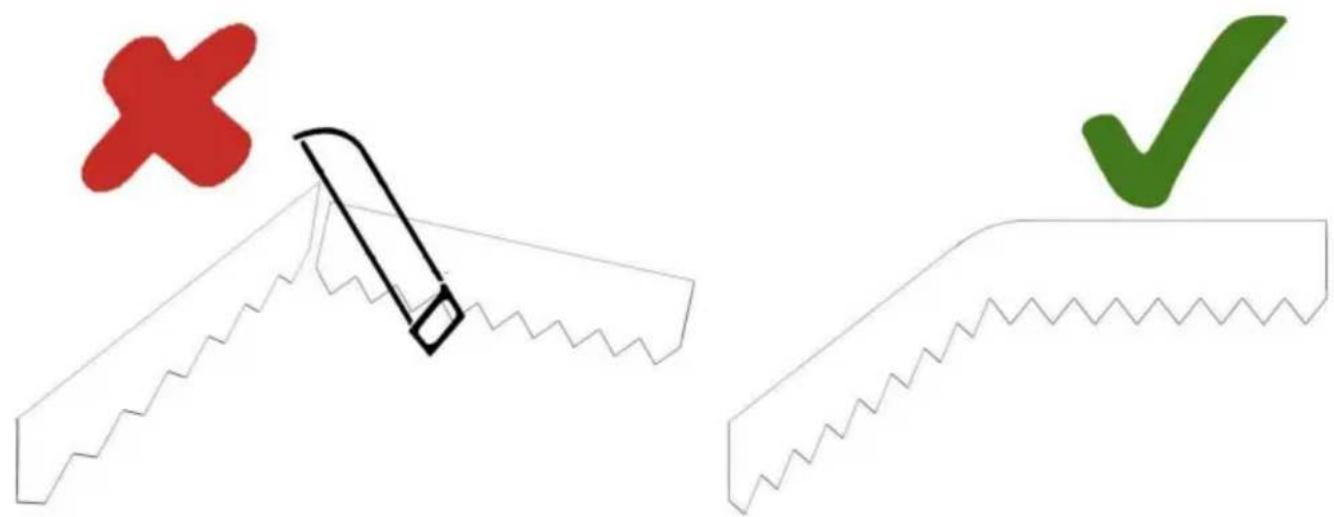

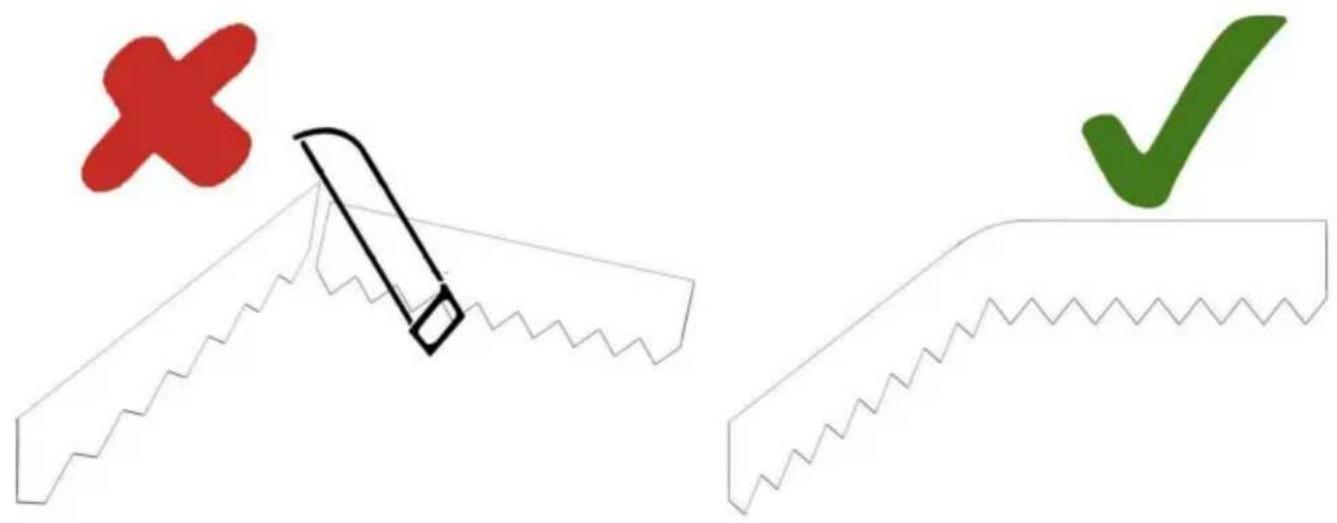

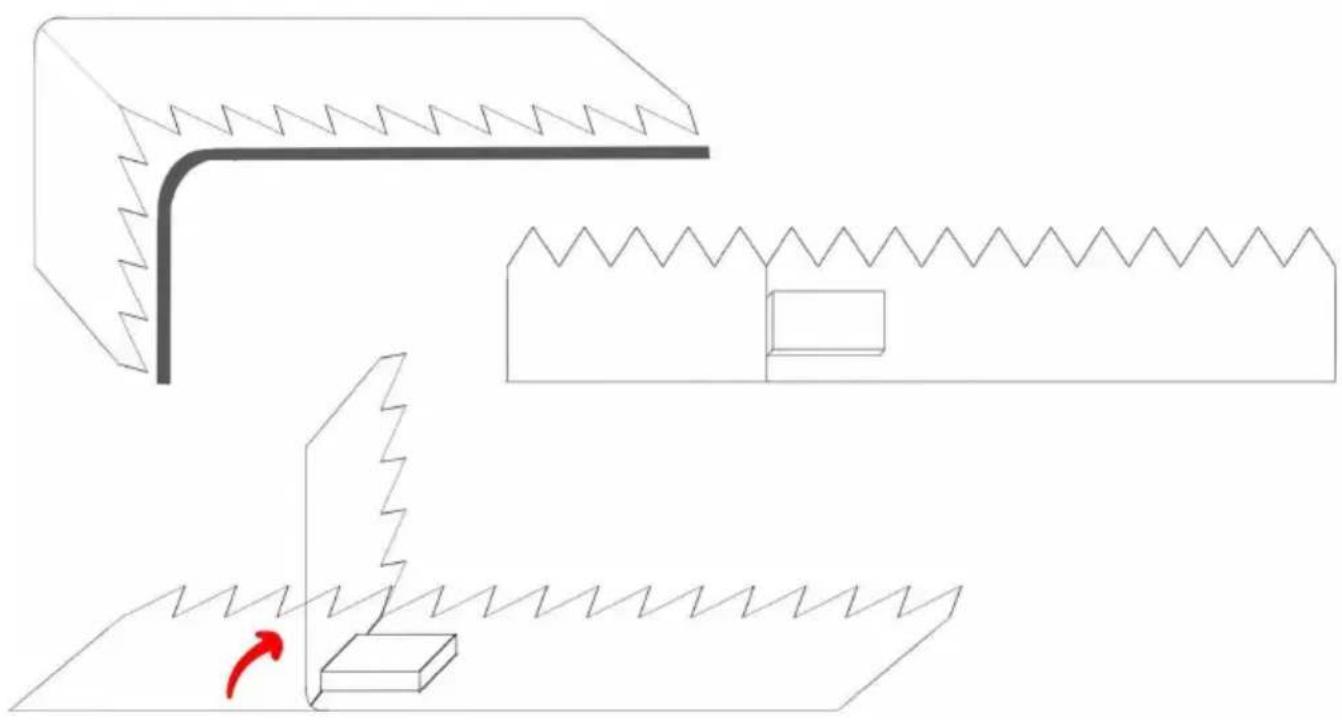

STEP 2: Bending instructions: A work bench, the edge of a table, or other former is advised when bending the metal edge to requ

Diagram showing a mechanical assembly with zigzag components and a red arrow indicating motion (no text or symbols)

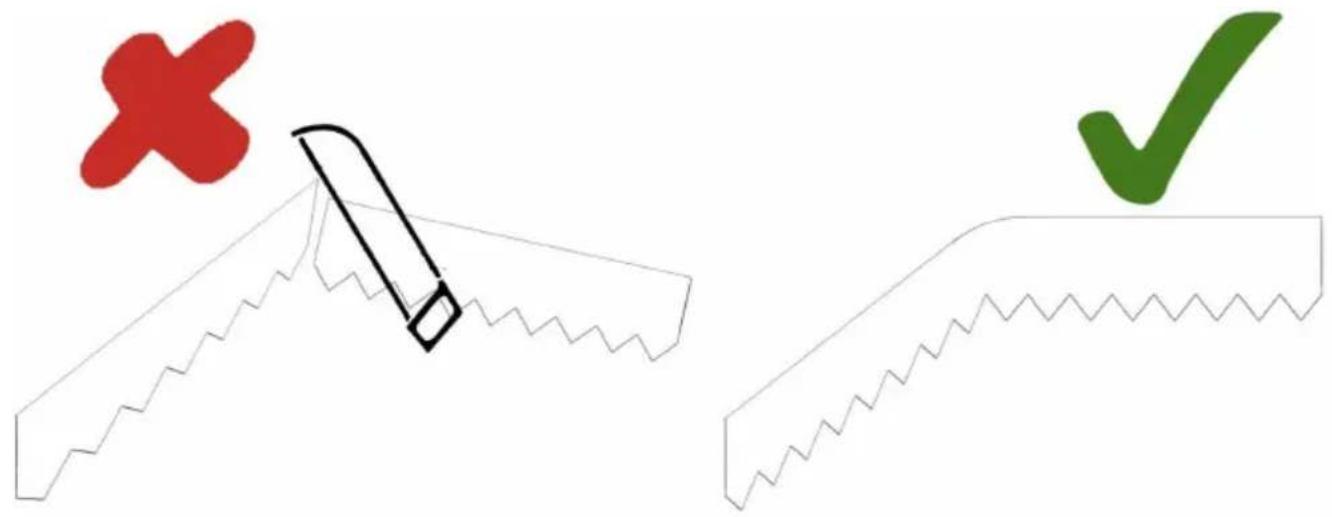

Diagram showing a checkmark and a red X symbol on a jagged saw blade, with a green checkmark indicating completion.

NOTE: Do not cut with anything as it can cause injury.

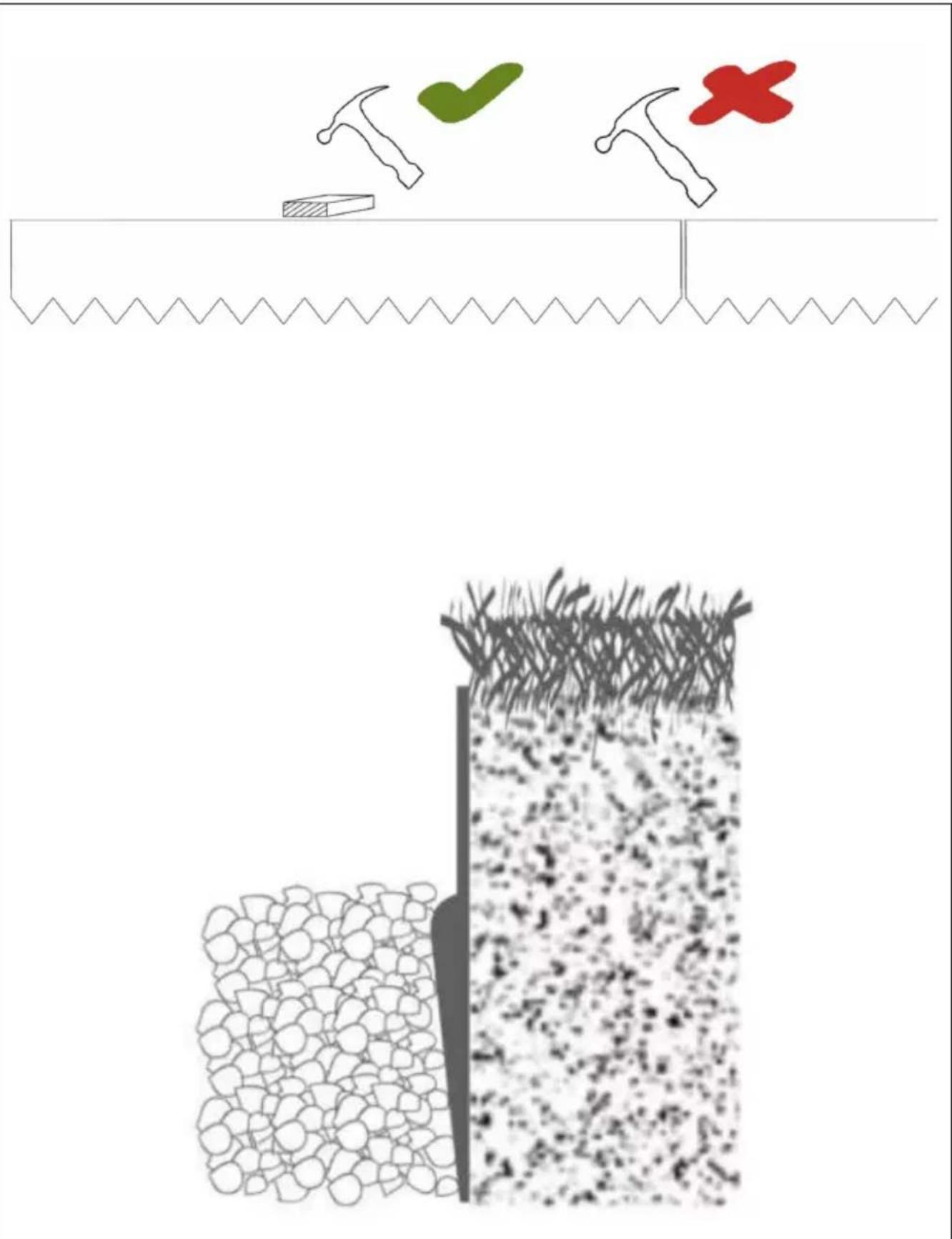

STEP 3: Insert the connected metal edges into the ground and set with a hammer.

Diagram illustrating a geological or material processing process with labeled symbols and a microscopic cross-section showing granular structure.

NOTE: Place a piece of wood over the metal edge when striking hammer to avoid damaging the metal edge.

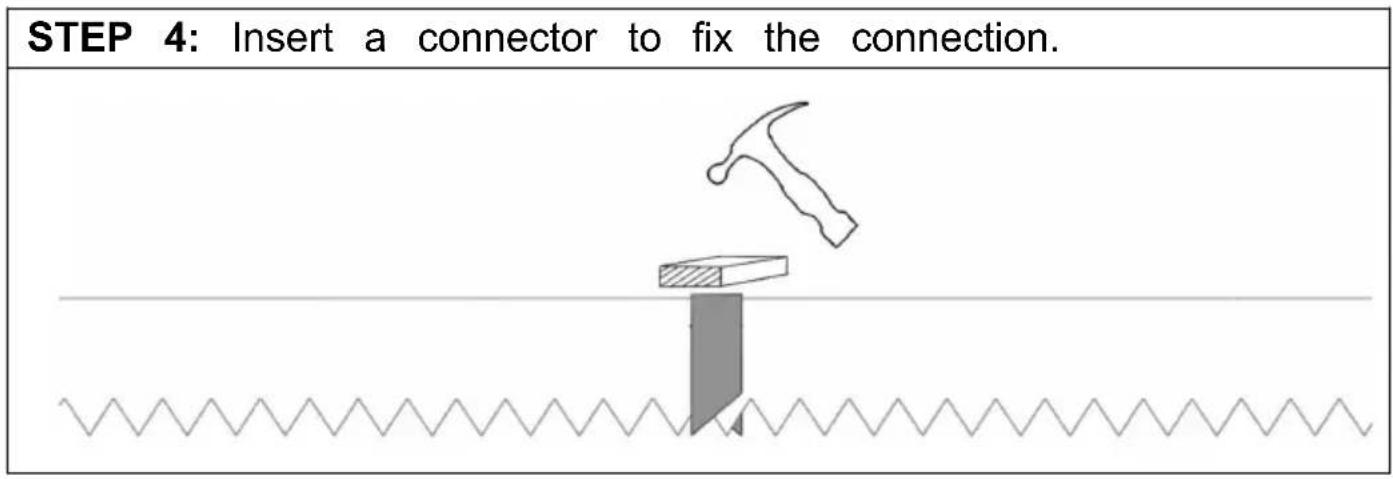

STEP 4: Insert a connector to fix the connection.

Supplementary statement:The metal barrier can be bent into the you need according to your needs (Including but not limited to th shapes).
①
②
③

CLEAR ENGRAVED GRADUATIONS

Precision control of rotation degree

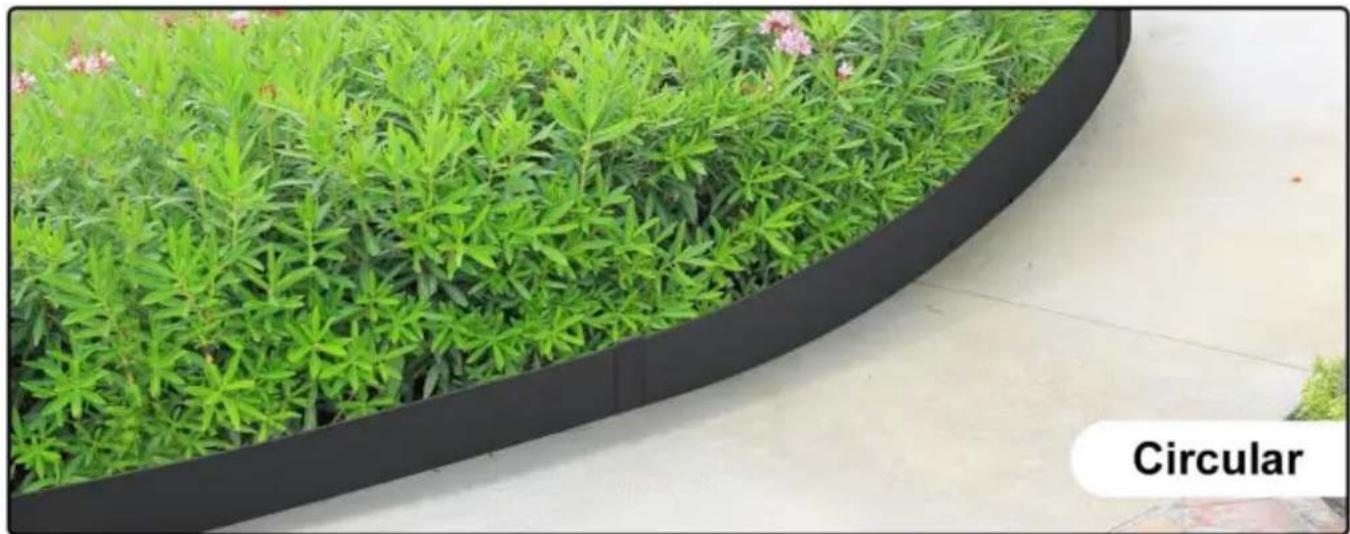

Garden wall with green shrubbery and a black curved fence, labeled 'Circular' in the corner (no other text or symbols)

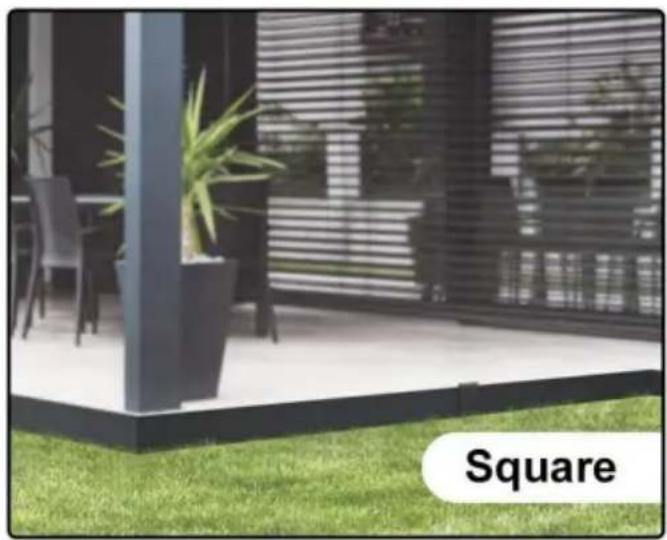

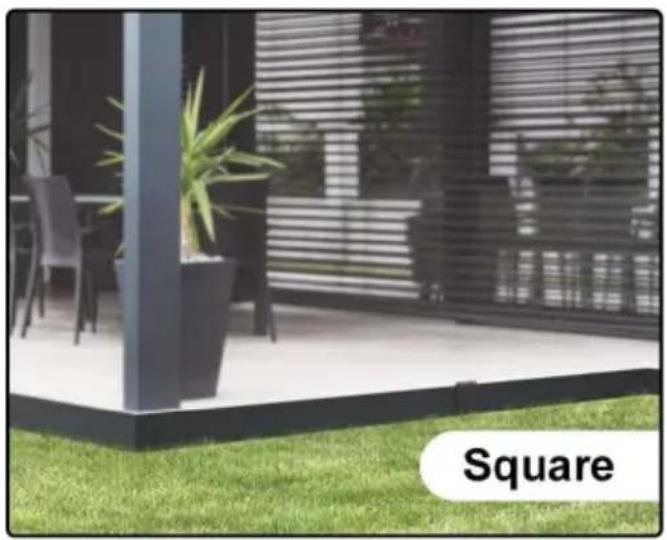

Exterior view of a modern glass-walled patio with potted plant and grassy lawn, no visible text or symbols

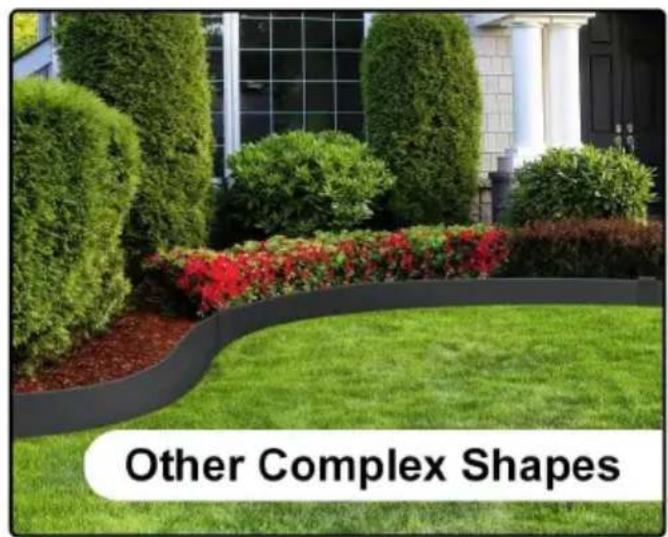

Other Complex Shapes

Manufacturer:Shanghaimuxinmuyeyouxiangongsi

Address:Shuangchenglu803nong11hao1602A-1609shi,baoshanqu,shanghai200000CN.

ECREP:E-CrossStuGmbH.

MainzerLandstr.69,60329FrankfurtamMain.

UKREP: YHCONSULTINGLIMITED.

C/OYHConsultingLimitedOffice147, CenturionHouse, LondonRoad,

Staines-upon-Thames, Surrey, TW184AX

ImportedtoAUS:SIHAOPTYLTD.

1ROKEVASTREETEASTWOODNSW2122Australia

ImportedtoUSA:SanvenTechnologyLtd.

Suite250,9166AnaheimPlace,RanchoCucamonga,CA91730
