![Vevor YXHF-1054+2021-1/8"-20 - Mechanical tensioner](/assets/img/738894.jpg "Notice Vevor YXHF-1054+2021-1/8"-20 — Mechanical tensioner — Mode d'emploi PDF")
YXHF-1054+2021-1/8"-20 - Mechanical tensioner Vevor - Free user manual and instructions
Find the device manual for free YXHF-1054+2021-1/8"-20 Vevor in PDF.
| Product Type | Mechanical Cable Railing Tensioner Kit |
| Brand | Vevor |
| Model | YXHF-1054+2021-1/8"-20 |
| Material | Rust and corrosion resistant stainless steel |
| Main Use | Installation on column for wire functions and decorative accessories for indoor and outdoor railings |
| Number of cables supported | 20 cables (model -20) |
| Compatible cable diameter | 1/8 inch (3.2 mm) |
| Kit contents | 20 tensioners, 20 fixed ends, 80 screws, 1 hex key |
| Recommended cable spacing | 3 to 4 inches |
| Installation instructions | Drill holes at ends, attach screws, thread cable, tighten tensioner |
| Maintenance and cleaning | Clean with a soft dry cloth; avoid abrasive products |
| Safety precautions | Read manual before use; keep small parts away from children; do not use as a toy |
| Repairability and spare parts | Contact Vevor customer service for spare parts |
| Warranty | Electronic warranty included; refer to provided certificate |
Frequently Asked Questions - YXHF-1054+2021-1/8"-20 Vevor
User questions about YXHF-1054+2021-1/8"-20 Vevor
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Mechanical tensioner in PDF format for free! Find your manual YXHF-1054+2021-1/8"-20 - Vevor and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. YXHF-1054+2021-1/8"-20 by Vevor.
USER MANUAL YXHF-1054+2021-1/8"-20 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
TURNBUCKLE TENSIONER
AND FIXED TERMINAL
MODEL: YXHF-1054+2021-1/8"-10
YXHF-1054+2021-1/8"-20 YXHF-1054+2021-1/8"-30
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
| MODEL:YXHF-1054+2021-1/8"-10YXHF-1054+2021-1/8"-20YXHF-1054+2021-1/8"-30 |  |
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or so updates on our product.
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before
operating or servicing this product. Failure to follow these warning and instructions can cause personal injury or damage to valuable property.
- The warning indicates that appropriate action should be taken to avoid the potential danger of personal injury.
- Product capabilities apply to properly and completely assembled product only
- Please keep small spare parts out of children's reach, it is not a toy, Do n children to play.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate parts in a clean work area.
SAVE THESE INSTRUCTIONS
MAIN FEATRUES
This product is mainly used for column installation of wire functions and decc accessories. VEVOR's kit is made of all stainless steel materials, which has resistance to rust and corrosion. It will work for long life time for interior and exterior railings with low maintenance. Please note that it is not recommended coastal projects. We work with every effort to provide quality products and professional service, and make VEVOR a reliable brand.
INSTALLATION INSTRUCTION

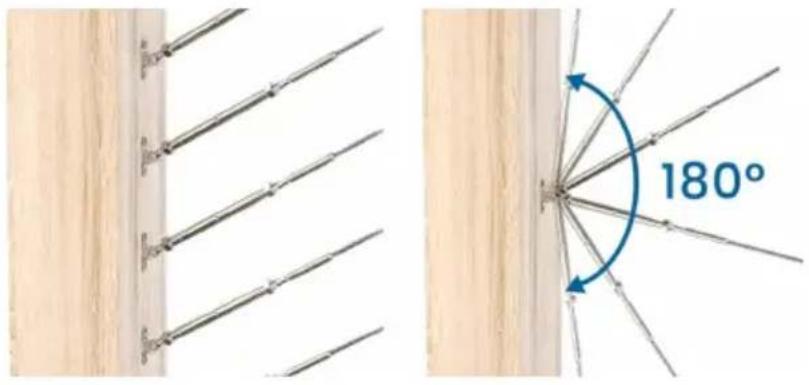

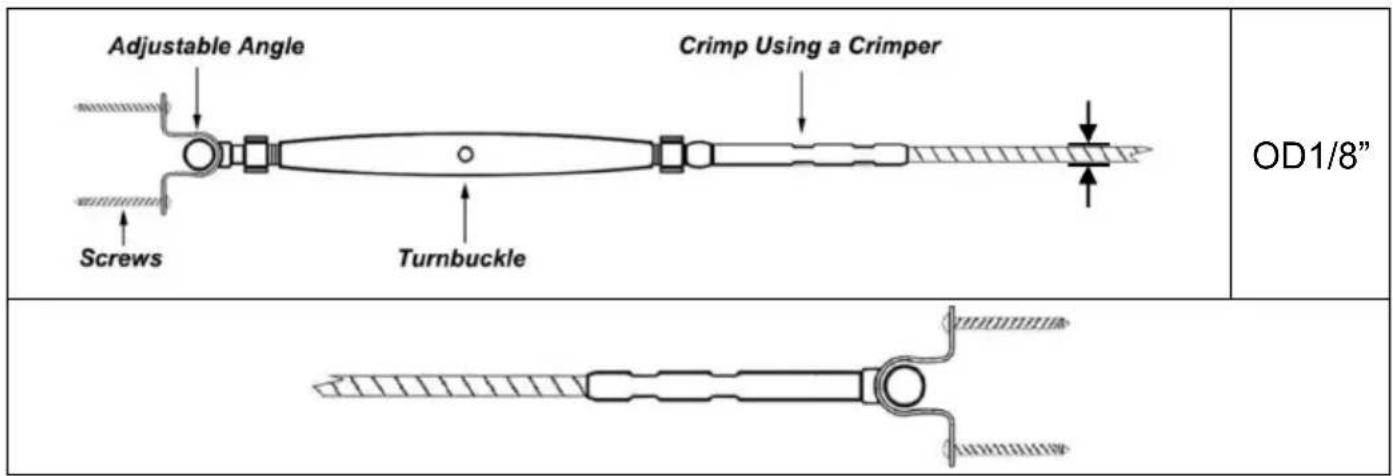

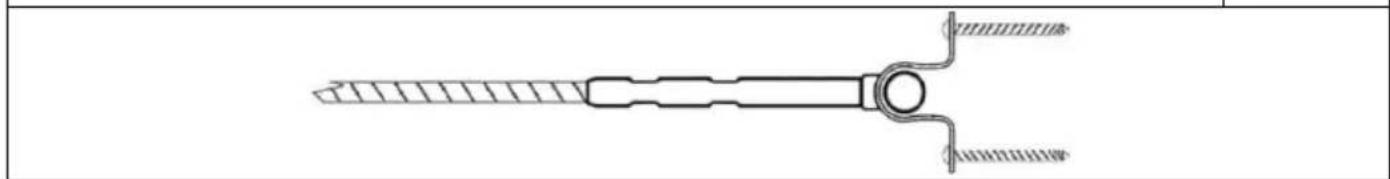

Installation indication and Applicable post
Used for installation of wooden posts.
Wire rope size

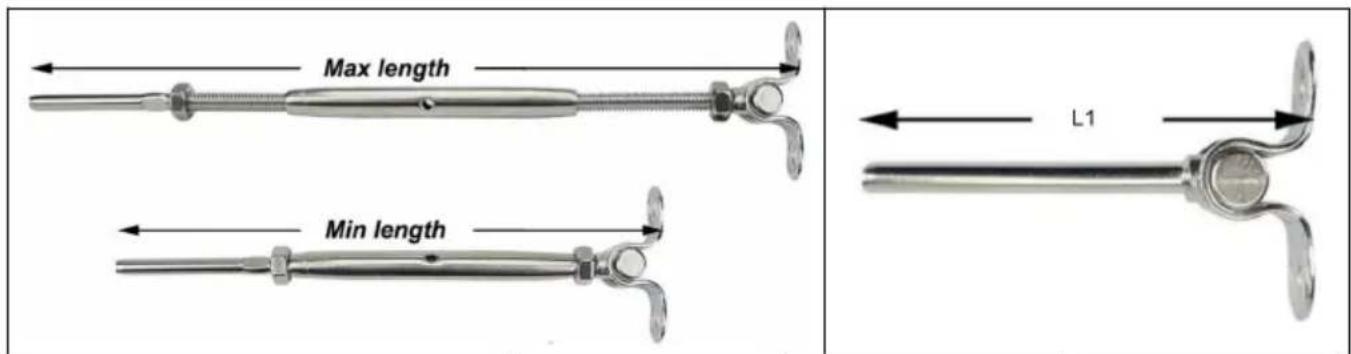

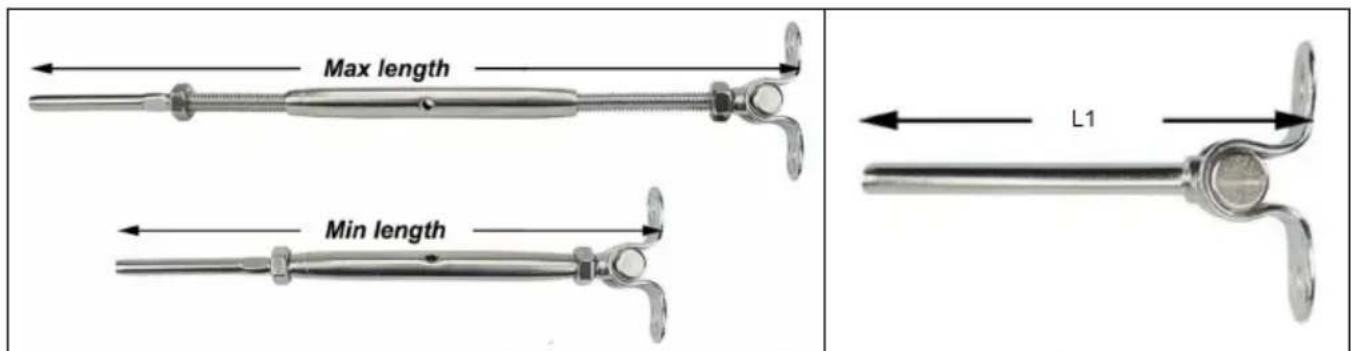

PRODUCT INFORMATION
| Model | Max length | Min length | L1 |
| YXHF-1054+2021-1/8"-10 | 245mm | 185mm | 74.5mm |
| YXHF-1054+2021-1/8"-20 | 245mm | 185mm | 74.5mm |
| YXHF-1054+2021-1/8"-30 | 245mm | 185mm | 74.5mm |

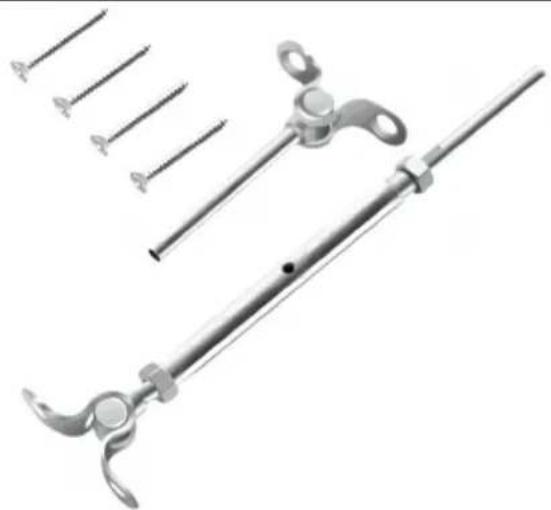

PACKAGE INCLUDE
| Model | Qty | Color | |||
| Tensioner | Fixed end | Screw | Bent wrench | ||
 |  |  |  | ||
| YXHF-1054+202 1-1/8"-10 | 10 | 10 | 40 | 1 | silver |
| YXHF-1054+202 1-1/8"-20 | 20 | 20 | 80 | 1 | silver |
| YXHF-1054+202 1-1/8"-30 | 30 | 30 | 120 | 1 | silver |
INSTALLATION
 |  |  |
| Step1.Determine the drilling positions at both ends.We recommend wire installation distances of 3-4in. | Step2.Secure both ends o the cable puller screws. | Step3.Thread the fixed end first and clamp. |
 |  |  |
| Step4.Pull the cable to th tensioner and cut at the suitable position. | Step5.Clamp down at the tensioner and press firmly | Step6.Finally, twist the screw with the bent wrench to tighten the tensioner and the entire cable device. |
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
TENDEUR DE TENDEUR
ET TERMINAL FIXE
MODÈLE : YXHF-1054+2021-1/8"-10
YXHF-1054+2021-1/8"-2 0 YXHF -1054+2021-1/8"-30
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
| MODELE:YXHF-1054+2021-1/8"-10YXHF-1054+2021-1/8"-20YXHF-1054+2021-1/8"-30 | |
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
| Modèle | longueur maximale | Longueur minimale | L1 |
| YXHF-1054+2021-1/8"-10 | 245mm | 185mm | 74,5 mm |
| YXHF-1054+2021-1/8" -2 0 | 245mm | 185mm | 74,5 mm |
| YXHF-1054+2021-1/8" -3 0 | 245mm | 185mm | 74,5 mm |
EMBALLER INCLUDE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
| MODELL:YXHF-1054+2021-1/8"-10YXHF-1054+2021-1/8"- 20YXHF-1054+2021-1/8"- 30 |  |
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
PRODUKTINFORMATION
| Modell | maximale Länge | Minimale Länge | L1 |
| YXHF-1054+2021-1/8"-10 | 245mm | 185mm | 74,5 mm |
| YXHF-1054+2021-1/8"- 2 0 | 245mm | 185mm | 74,5 mm |
| YXHF-1054+2021-1/8"- 3 0 | 245mm | 185mm | 74,5 mm |
PAKET ENTHALTEN
| Modell | Menge | Farbe | |||
| Spanner | Festes Ende | Schrauben | Verbogener Schraubenschlüssel | ||
 |  |  | |||
| YXHF-1054+202 1-1/8"-10 | 10 | 10 | 40 | 1 | Silber |
| YXHF-1054+202 1-1/8"-20 | 20 | 20 | 80 | 1 | Silber |
| YXHF-1054+202 1-1/8"-30 | 30 | 30 | 120 | 1 | Silber |
INSTALLATION
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
| MODELLO:YXHF-1054+2021-1/8"-10YXHF-1054+2021-1/8"- 20YXHF-1054+2021-1/8"- 30 | |
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
| MODELO:YXHF-1054+2021-1/8"-10YXHF-1054+2021-1/8"- 20YXHF-1054+2021-1/8"- 30 | |
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
Close-up of a medical or surgical tool with a pointed tool inserted, held by gloved hands (no visible text or symbols)natural_image
Close-up of a hand holding a metallic mechanical clamp or spring attached to a brown fabric (no text or symbols visible)natural_image
Close-up of a metal tool with three blades and a green arrow indicating rotation (no text or symbols)We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
| MODEL:YXHF-1054+2021-1/8"-10YXHF-1054+2021-1/8"- 20YXHF-1054+2021-1/8"- 30 | |
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
INFORMACJE O PRODUKCIE
Close-up of a hand holding a metallic mechanical clamp or spring attached to a brown fabric (no text or symbols visible)natural_image
Close-up of a metal tool with three blades and a green arrow indicating rotation (no text or symbols)We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
| MODEL:YXHF-1054+2021-1/8"-10YXHF-1054+2021-1/8"- 20YXHF-1054+2021-1/8"- 30 | |
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
INSTALLATIE INSTRUCTIE
PRODUCTINFORMATIE
| Model | maximale lengte | Minimale lengte | L1 |
| YXHF-1054+2021-1/8"-10 | 245 mm | 185 mm | 74,5 mm |
| YXHF-1054+2021-1/8"- 2 0 | 245 mm | 185 mm | 74,5 mm |
| YXHF-1054+2021-1/8"- 3 0 | 245 mm | 185 mm | 74,5 mm |
PAKKET ERBIJ BETREKKEN
| Model | Aantal | Kleur | |||
| Spanner | Vast einde | Schroef | Gebogen sleutel | ||
 |  |  | |||
| YXHF-1054+202 1-1/8"-10 | 10 | 10 | 40 | 1 | zilver |
| YXHF-1054+202 1-1/8"-20 | 20 | 20 | 80 | 1 | zilver |
| YXHF-1054+202 1-1/8"-30 | 30 | 30 | 120 | 1 | zilver |
INSTALLATIE
Close-up of a hand holding a metallic mechanical clamp or spring attached to a brown fabric (no text or symbols visible)natural_image
Close-up of a metal tool with three blades and a green arrow indicating rotation (no text or symbols)We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only rep estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
| MODELL:YXHF-1054+2021-1/8"-10YXHF-1054+2021-1/8"- 20YXHF-1054+2021-1/8"- 30 | |
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
PRODUKTINFORMATION
| Modell | Maxlängd | Min längd | L1 |
| YXHF-1054+2021-1/8"-10 | 245 mm | 185 mm | 74,5 mm |
| YXHF-1054+2021-1/8"- 2 0 | 245 mm | 185 mm | 74,5 mm |
| YXHF-1054+2021-1/8"- 3 0 | 245 mm | 185 mm | 74,5 mm |
PAKET OMFATTA
| Modell | Antal | Färg | |||
| Spännare | Fast ände | Skruva | Böjd skiftnyckel | ||
 |  |  |  | ||
| YXHF-1054+202 1-1/8"-10 | 10 | 10 | 40 | 1 | silver |
| YXHF-1054+202 1-1/8"- 2 0 | 20 | 20 | 80 | 1 | silver |
| YXHF-1054+202 1-1/8"- 3 0 | 30 | 30 | 120 | 1 | silver |
INSTALLATION
