Product type	Thermostat for electric heating (baseboard, convector)
Brand	Honeywell (Resideo Technologies)
Model	RLV3120A1005
Power supply	120/240 VAC, 60 Hz
Minimum load	0.83 A (resistive)
Maximum load	10.4 A (resistive)
Maximum power	2000 W at 240 V, 1000 W at 120 V
Display range	0 °C to 50 °C (32 °F to 99 °F)
Setpoint range	5 °C to 30 °C (40 °F to 85 °F)
Storage temperature	-20 °C to 50 °C (-4 °F to 120 °F)
Memory	Permanent (retains setpoint temperature after power loss)
Use	Electric baseboard heaters and convectors
Not suitable for	Inductive loads, fans, central heating systems
Thermal protection	Yes (integrated in the baseboard, triggered in case of overheating)
Warranty	1 year (parts and labor)
Package contents	1 thermostat, 2 6-32 mounting screws, 2 solderless connectors
Compliance	NMB-3, Class B (Canada)
Materials	Mercury-free

Frequently Asked Questions - RLV3120A1005 HONEYWELL

How to set the setpoint temperature?

Briefly press the Up or Down button to display the current setpoint temperature. Then use the same buttons to increase or decrease the value to the desired temperature. The new setpoint is automatically saved after 5 seconds.

What to do if the display disappears and reappears after a few minutes?

This indicates that the thermal protection of the baseboard has temporarily triggered. Check that the baseboard is not obstructed by furniture or curtains, and that the thermal protection is not too sensitive. The thermostat returns to normal after cooling.

Can I use this thermostat with a fan coil or central system?

No, this thermostat is designed only for resistive loads such as baseboard heaters or convectors. It is not suitable for devices with fans (fan coil), contactors or relays (inductive load), nor for central heating systems.

What is the maximum electrical load supported?

The maximum load is 10.4 A resistive, corresponding to 2000 W at 240 VAC or 1000 W at 120 VAC. Never exceed this value to avoid any risk of damage.

How to switch the display between Celsius and Fahrenheit?

Press and hold the Up and Down buttons simultaneously for 3 seconds. The screen shows the current format. Press Up or Down to switch from °C to °F or vice versa. Wait 1 minute or press both buttons again for 1 second to confirm.

Why is the thermostat hot to the touch?

Under normal operation, the case temperature can reach 35 to 40 °C (95-104 °F). This is normal and not dangerous. If the temperature is excessive, check the ventilation around the thermostat.

How to install my RLV3120 thermostat?

First, turn off the power to the heating circuit. Remove the faceplate by loosening the captive screw. Connect the thermostat wires to the load (baseboard) and to the power supply using the provided connectors. Mount the base on the electrical box, then replace the faceplate and tighten the screw. Ensure the ventilation openings remain clear.

Where to find the complete user manual?

The complete manual is available free on our website notice-facile.com. You can download it in PDF format. Search for the Honeywell model RLV3120A1005.

What is the warranty period and how to claim it?

The warranty is 1 year from the date of purchase by the original consumer. In case of defect, return the product with proof of purchase to the place of purchase or contact Resideo customer service at 1-800-468-1502. The warranty does not cover removal or reinstallation costs.

How to recycle this thermostat at end of life?

This product does not contain mercury. Do not dispose of it with household waste. Use accredited collection or recycling centers. In the United States, consult Thermostat Recycling Corporation (www.thermostat-recycle.org). In Canada, visit Switch the Stat (www.switchthestat.ca).

USER MANUAL RLV3120A1005 HONEYWELL

Read and save these instructions.

For help please visit resideo.com

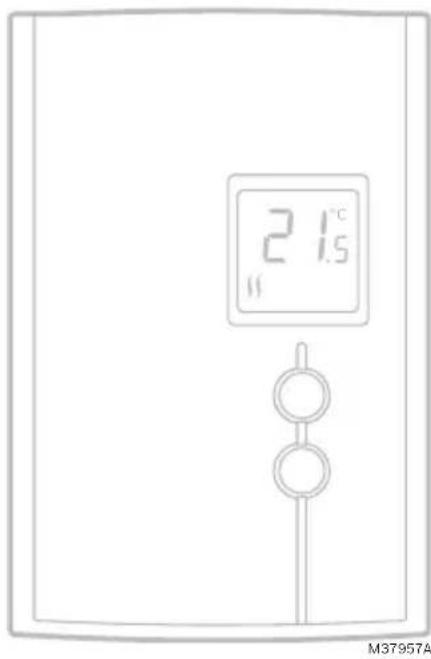

RLV3120

Application

This thermostat can be used to control an electric heating system such as a baseboard heater or a convector.

The thermostat CANNOT be used with:

• a resistive load under 0.83 A
• a resistive load over 8.3 A
- a system driven by a contactor or a relay (inductive load)
- a fan-forced heating system (e.g.: fan-forced convector)
• a central heating system.

WARNING Electrical Shock Hazard.

This thermostat is a line voltage control (120–240 Volts). Do not install it if you are not completely familiar with house wiring. If handled improperly, there is risk of electric shock hazard, which may cause serious injury or death.

Black-and-white circular portrait of a man wearing earphones and a collared shirt, holding a pen (no visible text or symbols)

Do you need assistance? We are here to help.

Call 1-800-468-1502 for wiring assistance before returning the thermostat to the store.

NO MERCURY

ATTENTION: MERCURY RECYCLING NOTICE

This product does not contain mercury.

However, this product may replace a product that contains mercury. Mercury and products containing mercury should not be discarded in household trash.

For more information on how and where to properly recycle a thermostat containing mercury in the United States, please refer to the Thermostat Recycling Corporation at www.thermostat-recycle.org.

For mercury thermostat recycling in Canada, please refer to Switch the Stat at www.switchthestat.ca

SUPPLIED PARTS

• One (1) thermostat
- Two (2) 6-32 mounting screws
- Two (2) solderless connectors

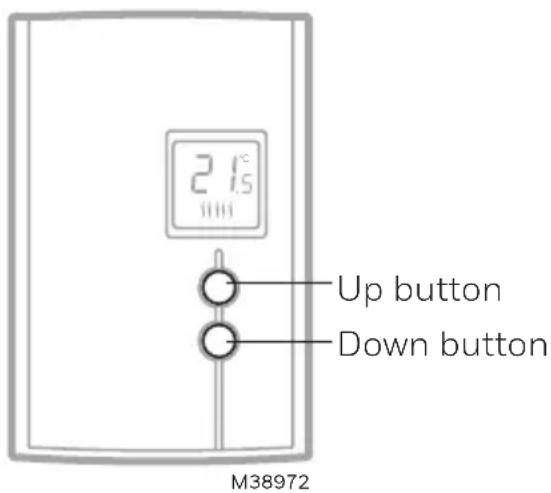

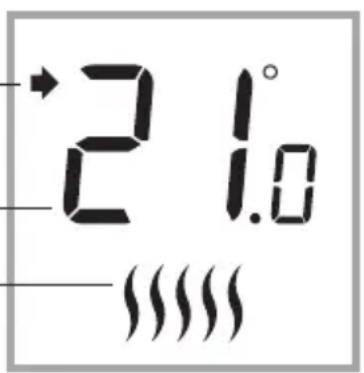

Temperature display and setting

Appears when the setpoint is displayed

Temperature display

Heating intensity indicator

(No image appears when heating is off.)

The thermostat normally displays the actual (ambient) temperature.

• To view the setpoint temperature, briefly press the Up or Down button. The setpoint will be displayed for 5 seconds.
• To change the setpoint temperature, press the Up or Down button until the desired value is displayed.

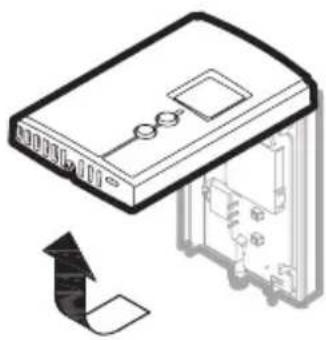

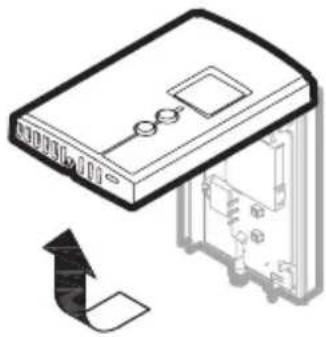

Removing the faceplate

WARNING TURN OFF POWER TO THE HEATING SYSTEM AT THE MAIN POWER PANEL TO AVOID ELECTRIC SHOCK.

Loosen the screw holding the faceplate to the base. The screw cannot be completely removed and remains captive on the base. Remove the faceplate from the base by pulling the bottom half.

Illustration of a device with a circular base and a rectangular panel, no text or symbols present

Diagram of an electronic device showing internal components and a directional arrow (no text or symbols)

M38973

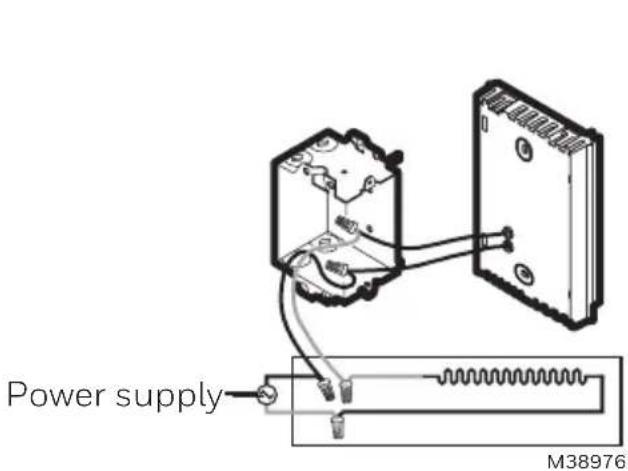

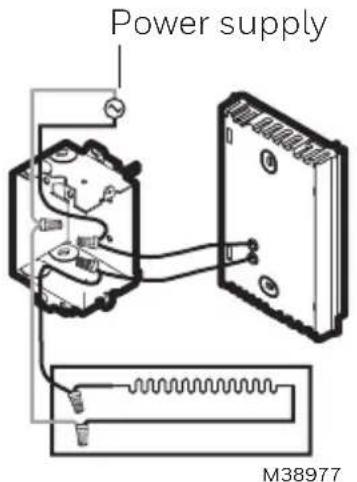

Wiring

Connect either one of the thermostat wires to the heater wire and the other one to the power supply wire using solderless connectors for copper wires.

NOTE: All cables and connections must conform to the local electrical code. Special CO/ALR solderless connectors must be used when connecting with aluminium conductors.

4-wire Installation*2-wire Installatio
* Verify this complies with local code.

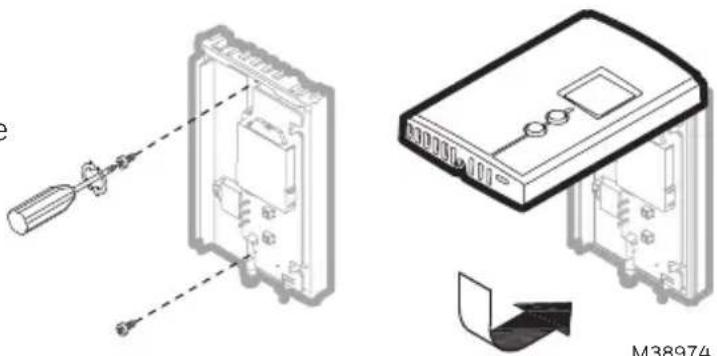

Installing the faceplate

Install the base onto an electrical box.

Reinstall the faceplate on the base and secure it in place with the screw.

Technical illustration of a device showing internal components and a close-up view of the internal structure (no text or symbols)

NOTE: Keep the air vents of thermostat clean and unobstructed at all times.

Selecting the temperature display format

To select the temperature display format:

1. Press the Up and Down buttons for three seconds. The format currently used will be indicated on the screen.
2. Press the Up or Down button to change the format.
3. Press the Up and Down buttons for one second (or wait for one minute) to return to the normal display.

M38975

Troubleshooting

ProblemSolution(s)
Thermostat is hot. Under normal operation, the thermostat housing can reach a temperature between 35 °C (95 °F) and 40 °C (104 °F).
Displayed temperature is wrong.	Remediate if any the following conditions exists:• The thermostat is exposed to air draft.• The sticker on the thermostat's screen has not been removed.• The thermostat is located near or above a heat source such as a light dimmer.
Display disappears and reappears after a few minutes.	The thermal protection device on the heater has temporarily opened. This can happen if the heater is obstructed by furniture or curtain and has overheated, or if the heater's thermal protection device is too sensitive.

Specifications

Supply: 120/240 VAC, 60 Hz

Minimum load: 0.83 A (resistive only)

200 W @ 240 V AC

100 W @ 120 V AC

Maximum load: 8.3 A (resistive only)

2000 W @ 240 VAC

1000 W @ 120 VAC

Display range: 0 °C to 50 °C (32 °F to 99 °F)

Setpoint range: 5 °C to 30 °C (40 °F to 85 °F)

Storage: -20 °C to 50 °C (-4 °F to 120 °F)

Permanent memory: You do not need to adjust the temperature following a power outage.

ICES-003 Class B Notice:

This Class B digital apparatus complies with Canadian ICES-3.

CAUTION: ELECTRONIC WASTE NOTICE

The product should not be disposed of with other household waste. Check for the nearest authorized collection centers or authorized recyclers. The correct disposal of end-of-life equipment will help prevent negative consequences for the environment and human health.

273699

Energy Verified Only

1-year limited warranty

Resideo warrants this product to be free from defects in workmanship or materials, under normal use and service, for a period of one (1) year from the date of first purchase by the original purchaser. If at any time during the warranty period the product is determined to be defective due to workmanship or materials, Resideo shall repair or replace it (at Resideo's option).

If the product is defective,

(i) return it, with a bill of sale or other dated proof of purchase, to the place from which you purchased it; or (ii) call Resideo Customer Care at 1-800-468-1502. Customer Care will make the determination whether the product should be returned to the following address: Resideo Return Goods, 1985 Douglas Dr. N., Golden Valley, MN 55422, or whether a replacement product can be sent to you.

This warranty does not cover removal or reinstallation costs. This warranty shall not apply if it is shown by Resideo that the defect was caused by damage which occurred while the product was in the possession of a consumer.

Resideo's sole responsibility shall be to repair or replace the product within the terms stated above. RESIDEO SHALL NOT BE LIABLE FOR ANY LOSS OR DAMAGE OF ANY KIND, INCLUDING ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING, DIRECTLY OR INDIRECTLY, FROM ANY BREACH OF ANY WARRANTY, EXPRESS OR IMPLIED, OR ANY OTHER FAILURE OF THIS PRODUCT.

Some states do not allow the exclusion or limitation of incidental or consequential damages, so this limitation may not apply to you.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY RESIDEO MAKES ON THIS PRODUCT. THE DURATION OF ANY IMPLIED WARRANTIES, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, IS HEREBY LIMITED TO THE ONE YEAR DURATION OF THIS WARRANTY. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you.

This warranty gives you specific legal rights, and you may have other rights which vary from state to state. If you have any questions concerning this warranty, please write Resideo Customer Care, 1985 Douglas Dr, Golden Valley, MN 55422 or call 1-800-468-1502.

resideo

www.resideo.com

Resideo Technologies, Inc.

1985 Douglas Drive North, Golden Valley, MN 55422

1-800-633-3991

33-00149EF-09 M.S. Rev. 05-22 | Printed in United States

© 2022 Resideo Technologies, Inc. All rights reserved.

The Honeywell Home trademark is used under license from Honeywell International, Inc.

This product is manufactured by Resideo Technologies, Inc. and its affiliates.

33-00149EF-09
