USER MANUAL MLHE52S7AWW MIDEA

Before using this product, please read this manual carefully and keep it for future reference.

The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

version A

USER MANUAL & INSTALLATION INSTRUCTIONS

Line drawing of a front-loading oven with top panel and side door (no text or symbols)

MODEL NUMBERS

MLTE52M2BWW

MLTE52M2BGG

www.midea/ca

Dear user

THANK YOU and CONGRATULATIONS on your purchase of this high-quality Midea product. Your Midea dryer is designed for reliable, trouble-free performance. Please take a moment to register your new dryer.

Register your new dryer at www.midea.com under the Support tab.

For future reference, record your product model and serial numbers located on the inside frame of the dryer.

Model Number ____

Serial Number

DRYER SAFETY 4

Important to Installer 8

Basic Requirements 9

Location Requirements 9

Ducting Requirements....12

Exhausting Requirements 14

Gas Requirements....14

Electric Requirements 16

Grounding 18

PARTS AND FEATURES ....19

Replacement Parts and Accessories ....19

INSTALLATION INSTRUCTIONS 20

Removing From the Package 20

Tools Required 20

Choose the Proper Location 21

Install the Exhaust System 21

Connect the Gas Line (For Gas Models) .... 23

Connect the Electrical Wiring 24.

Level the Dryer 27

Power On.... 27

Final Check 27

Door Reversal Procedure....28

Change the dryer vent location....30

DRYER USE 33

Control Panel 33

Drying a Load of Laundry 36

Special Laundry Tips ....39

Smart Function 40

DRYER CARE ....43

Cleaning and Maintenance 43

TROUBLESHOOTING 44

Check These Solutions if Your Dryer....44

Error Codes ....46

APPENDIX 47

Fabric Care Chart 47

WARRANTY 48

READ AND KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE

This manual contains important information on the installation, use, and care of your appliance. Please read this manual carefully before installation and operation of this machine to prevent injury and property damage.

Warnings and Important Safety Instructions in this manual DO NOT cover all possible conditions and situations that may occur. It is your responsibility to use common sense, caution and care when installing, maintaining and operating your dryer.

DRYER SAFETY

YOUR SAFETY AND THE SAFETY OF OTHERS ARE VERY IMPORTANT

To prevent injury to the user or other people and property damage, the instructions shown here must be followed. Incorrect operation due to ignoring of instructions may cause harm or damage, including death.

The level of risk is shown by the following indications.

This symbol indicates the possibility of death or serious injury.

WARNINGWARNING

This symbol indicates the possibility of injury or damage to property.

CAUTION

This symbol indicates the possibility of dangerous voltage constituting a risk of electrical shock is present that could result in death or serious injury.

WARNING

WARNING

For your safety the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury or death.

• Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
• Installation and service must be performed by a qualified installer, service agency, or the gas supplier.

What to do if you smell gas:

• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your building.
• Clear the room, building, or area of all occupants.
• Immediately call your gas supplier from a neighbor's phone. Follow the gas supplier's instructions.
• If you cannot reach your gas supplier, call the fire department.

WARNING

Fire Hazard

● Failure to follow safety warnings exactly could result in serious injury, death or property damage.
- Do not install a booster fan in the exhaust duct.
● Install all clothes dryers in accordance with the installation instructions of the manufacturer of the dryer.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your appliance, follow basic precautions, including the following:

• Read all instructions before using the appliance.
• Use this appliance only for its intended purpose as described in this Owner's Manual.
• Before use, the dryer must be properly installed as described in this manual.
• ALWAYS follow the fabric care instructions supplied by the garment manufacturer.
• Do not dry articles that have been previously cleaned in, washed in, soaked in, or spotted with gasoline, dry-cleaning solvents, other flammable or explosive substances as they give off vapors that could ignite or explode.
• Do not use the dryer to dry clothes which have traces of any flammable substance, such as vegetable oil, cooking oil, machine oil, flammable chemicals, thinner, etc., or anything containing wax or chemicals, such as mops and cleaning clothes. Flammable substances may cause the fabric to catch fire by itself.
• Do not store or use combustible materials, gasoline and other flammable vapors and liquids near this or any other appliance.
• Do not allow children to play on or in the appliance. Close supervision of children is necessary when the appliance is used near children.
• Before the appliance is removed from service or discarded, remove the lid of the washing or door of the drying compartment.
• Do not reach into the appliance if the drum is moving.
• Do not install or store this appliance where it will be exposed to the weather or freezing temperatures below 33^ F.
• Do not tamper with the controls and latch.

• Do not install a booster fan in the exhaust duct.

• Do not repair or replace any part of the appliance or attempt any servicing unless it is specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

• Keep the area underneath and around your appliances clear and free from combustible materials (lint, paper, rags, etc.), gasoline, chemicals and other flammable vapors and liquids.
• Keep dryer area clear and free from items that would obstruct the flow of combustion and ventilation air.
• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire. To reduce the risk of fire due to contaminated loads, the final part of a tumble dryer cycle occurs without heat (cool down period). Avoid stopping a tumble dryer before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• Unplug the dryer if the machine is to be left for an extended period of time, such as during vacations.
• Packaging material can be dangerous for children. There is a risk of suffocation! Keep all packaging from children.
• Always check the inside of the dryer for foreign objects before loading laundry. Keep the door closed when not in use.
• Do not use fabric softeners or products to eliminate static unless recommended by the manufacturer of the fabric softener or product manufacture.
• Clean the lint screen before or after each load.
• Keep the area around the exhaust opening and surrounding areas free from lint, dust, and dirt.
• The interior of the dryer and exhaust duct should be cleaned periodically by qualified service personnel.
• Do not place items exposed to cooking oils in your dryer. Items contaminated with cooking oils may contribute to a chemical reaction that could cause a load to catch fire.
• This appliance must be grounded. See “Electric Requirements” and “Grounding” in the “Operation Requirements” section.
• This appliance must be properly grounded. Never plug the power cord into a receptacle that is not grounded adequately and in accordance with local and national codes. Refer to installation instructions for grounding this appliance.
• Ensure pockets are free from small irregularly shaped hard objects and foreign material, i.e. coins, knives, pins, etc. These objects could damage your dryer.
• Do not use heat to dry articles containing foam rubber or similarly textured rubber like - materials.

WARNING

To reduce the risk of fire or explosion

• Do not dry items that have been previously cleaned, washed, soaked, or spotted with gasoline, dry cleaning solvents, or other flammable or explosive substances. They emit vapors that could ignite or explode. Any material that has been in contact with a cleaning solvent or flammable liquids or solids should not be placed in the dryer until all traces of these flammable liquids or solids and their fumes have been removed.
• There are many highly flammable items used in homes, such as acetone, denatured alcohol, gasoline, kerosene, some liquid household cleaners, some spot removers, turpentine, waxes, and wax removers.
• Do not dry items containing foam rubber (may be labeled latex foam) or similarly textured rubber-like materials on a heat setting. Heated foam rubber materials can, under certain circumstances, produce fire by spontaneous combustion.

CAUTION

• Do not sit on top of the dryer.
• Because of continuing product improvements, Midea America reserves the right of change specifications without notice. For complete details, see the Installation Instructions packed with your product before selecting cabinetry, making cutouts, or beginning installation.
• Do not dry clothing with large buckles, buttons, or other heavy metal or solid things.
• Install and use in accordance with the manufacturer's instructions.
• Do not place items in your dryer that have been spotted or soaked with vegetable oil or cooking oil. Even after being washed, these items may contain significant amounts of these oils.
• Residual oil on clothing can ignite spontaneously. The potential for spontaneous combustion increases when items containing vegetable oil or cooking oil are exposed to heat. Heat source such as your dryer can warm these items, allowing an oxidation reaction in the oil to occur.
• Oxidation creates heat. If this heat cannot escape, the items can become hot enough to catch fire. Piling, stacking, or storing these kinds of items may prevent heat from escaping and can create a fire hazard.
  Take care that children's fingers are not caught in door when closing it. This may result in injury.
• Gas leaks may occur in your system, resulting in a dangerous situation.
  • Gas leaks may not be detected by smell alone.
• Gas suppliers recommend you purchase and install a UL approved gas detector.

State of California Proposition 65 Warnings:

WARNING: Cancer and Reproductive Harm

-www.P65Warnings.ca.gov.

SAVE THESE INSTRUCTIONS

THIS APPLIANCE IS FOR HOUSEHOLD USE ONLY

• Clothes dryer installation must be performed by a qualified installer.
• Install the clothes dryer according to the manufacturer's instructions and local codes.
• Do not install a clothes dryer with flexible plastic venting materials. If flexible metal (foil type) duct is installed, it must be of a specific type identified by the appliance manufacturer as suitable for use with clothes dryer. Flexible venting materials are known to collapse, be easily crushed, and trap lint. These conditions will obstruct with the clothes dryer's airflow and increase the risk of fire.
• To reduce the risk of severe injury or death, follow all installation instructions
• Save these instructions.

IMPORTANT TO INSTALLER

Please read the following instructions carefully before installing the dryer. These instructions should be kept for future reference.

CAUTION

• The dryer is not suitable for installation in a mobile home.
• Remove the door from all discarded appliances to avoid the danger of a child being trapped and suffocating, after unplugging cut off Power Cord.

BASIC REQUIREMENTS

Make sure you have everything necessary for the proper installation.

• A GROUNDED ELECTRICAL OUTLET is required. Refer to the "Electrical requirements" section.
  • A POWER CORD electric dryer (except for Canada).
  • GAS LINES (if a gas dryer) must meet national and local codes.
• The EXHAUST SYSTEM must be made of rigid metal or flexible stiff-walled metal exhaust ducting.

LOCATION REQUIREMENTS

1. The dryer should be located where there is enough space at the front for loading the dryer, and enough space behind for the exhaust system.
2. This dryer is factory-ready for the rear exhaust option. If you want to change the vent location, see "Change the dryer vent location" section.
3. Make sure the room in which the dryer is located has enough fresh air. The dryer must be located where there are no air-flow obstructions. Ambient temperature shall not be lower than 33^ F.
4. For gas dryers, adequate clearance must be maintained as noted on the data plate to ensure adequate air for combustion and the proper dryer operation.
5. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather. The dryer area must be kept clear of combustible materials, gasoline, and other flammable vapors and liquids. A dryer produces combustible lint. The area around the dryer should be kept lint-free.

ALCOVE OR CLOSET OR WALL INSERT/RECESSED INSTALLATIONS

WARNING

• The dryer must be exhausted to the outside to reduce the risk of fire when installed any place inside the house.
• No other fuel-burning appliance should be installed in the same closet as the dryer.

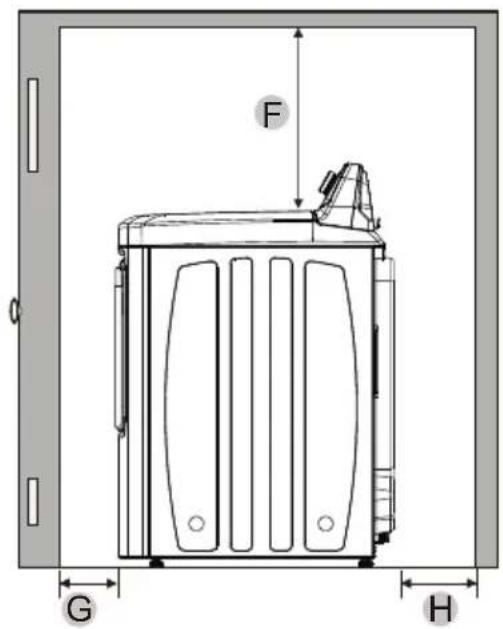

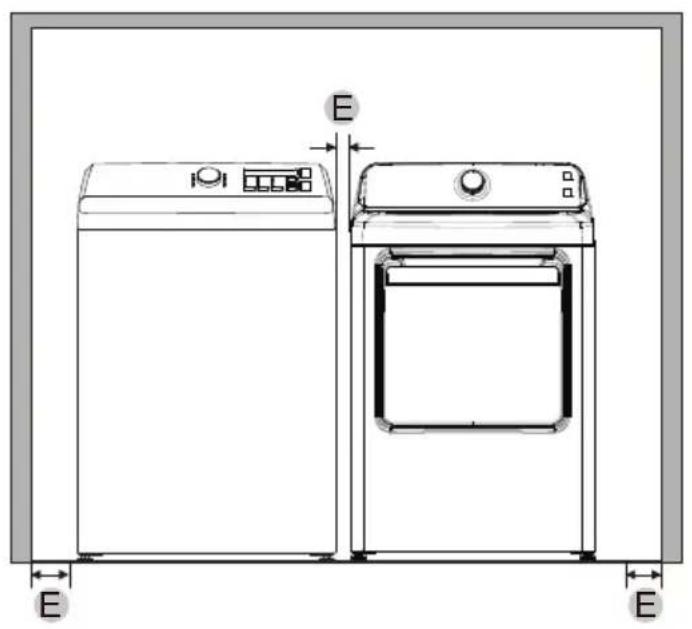

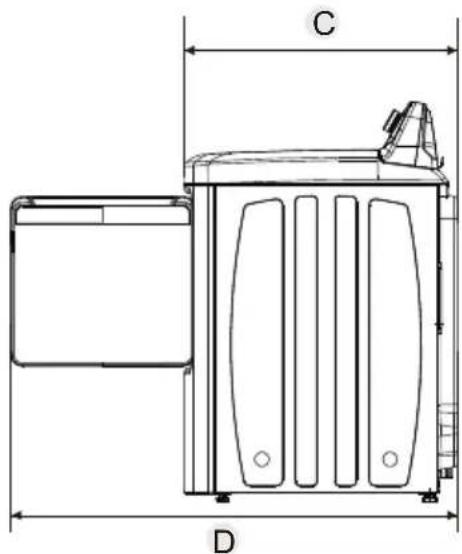

Minimum clearances between the dryer and adjacent walls or other surfaces:

Sides 1	in. (25 mm) Rear 5 in. (127 mm)
Top 24	in. (610 mm) Closet front 2 in. (51 mm)

A B

C D

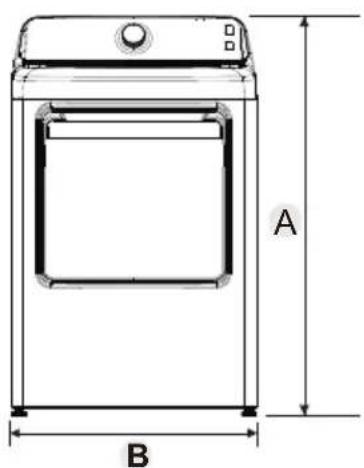

A	43.8 in. (1113 mm) B 27 in. (686 mm)
C	30.7 in. (780 mm)	D	49.1 in. (1248 mm)

Technical line drawing of a washing machine with control panel and front door, showing height dimension E (no text or symbols)

F G H

J K L I

E 1	in. (25 mm) F 24 in.	(610 mm)
G	2 in. (51 mm)	H 5 in. (127 mm)
I 3	in. (76 mm)	J 48 in. (31000 mm) ^2
K 2	4 in. (15500 mm)	L 3 in. (76 mm)

NOTE:

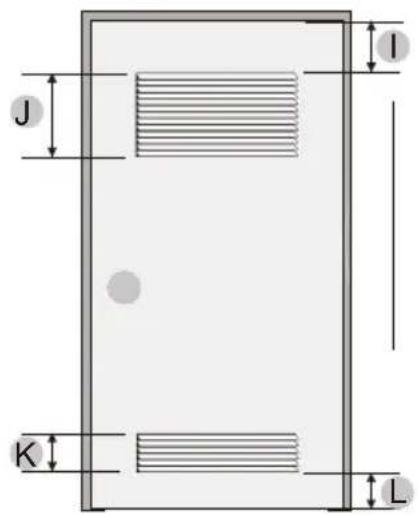

The front of the closet must have two unobstructed air openings for a combined minimum total area of 72 sq.in. (465 sq.cm) with a minimum clearance of 3 in. (76 mm) at the top and bottom. A slatted door with equivalent space clearance is acceptable.

DUCTING REQUIREMENTS

	Recommended Use only for short-run installation
Weather Hood Type	DIA 4 inch. (10.2 cm)	2.5 inch. (6.4 cm)
No. of 90° elbows	Rigid Metallic Rigid	Metallic
0 90 ft. (27.4 m) 60 ft. (18.3 m)
1 60 ft. (18.3 m) 45 ft. (13.7 m)
2 45 ft. (13.7 m) 35 ft. (10.7 m)
3 35 ft. (10.7 m) 25 ft. (7.6 m)

If this new dryer is installed into an existing exhaust system you must make sure:

• The exhaust system meets all local, state, and national codes.
• That a flexible plastic duct is not used.
• To inspect and clean all lint buildup from inside the existing duct.
• The duct is not dented or crushed.
• The exhaust hood damper opens and closes freely.

Manometer measurements

The static pressure in any exhaust system for best results shall be between 0.3 to 0.8 inches of water column, and cannot be less than 0 under any circumstances. with installed duct of 4 inch diameter. Measurement must be done with the empty dryer working with a manometer at the point where the exhaust duct connects to the dryer. A no-heat setting should be used. Lint filter must be clean.

WARNING

The correct exhaust installation is YOUR RESPONSIBILITY.

• Use a 4-inch (10.2cm) diameter rigid aluminum or rigid galvanized steel duct.
• Do not use smaller diameter than recommended diameter duct.
• Ducts larger than 4 inches (10.2cm) in diameter can result in increased accumulation of lint and changes in performance
• Lint should be removed regularly from internal filter every cycle and from ducts.
• If a flexible metal duct must be used, use the type with a stiff sheet metal wall. Do not use a flexible duct with a thin foil wall. A serious blockage can result if the flexible metal duct is bent too sharply.
• Never install any type of flexible duct in walls, ceilings, or other concealed spaces.
• Keep the exhaust duct as straight, short as possible, minimum elbows
• Secure joints with aluminum tape. Do not use screws.
• Plastic flexible ducts can kink, sag, be punctured, reduce airflow, extend drying times, and affect the dryer operation.
• Exhaust systems longer than recommended 90 ft can extend drying times, affect machine operations, and collect lint.
• The exhaust duct should end with an exhaust hood with a swing-out damper to prevent back drafts and entry of wildlife. Never use an exhaust hood with a magnetic damper.
• The hood should have at least 12 inches (30.5cm) of clearance between the bottom of the hood and the ground or other obstruction. The hood opening should point down.
• Never install a screen over the exhaust outlet.
• To avoid lint buildup, do not exhaust the dryer directly into a window well. Do not exhaust under a house or porch.
• If the exhaust duct must run through an unheated area, the duct should be insulated and slope slightly down towards the exhaust hood to reduce condensation and lint buildup.
• Inspect and clean the interior of the exhaust system at least once a year. Unplug the power cord before cleaning.
• Check frequently to make sure the exhaust hood damper opens and closes freely.
• Check once per month, and clean at least once per year. NOTE: If your clothes are not getting dry, then check the ducting for obstructions.
• Do not exhaust the dryer into a wall, ceiling, crawl space, or concealed space of a building, gas vent, or any other common duct or chimney. This could create a fire hazard from the lint expelled by the dryer.
• Do not use non-metallic flexible duct.
• To reduce the risk of fire, this dryer MUST BE EXHAUSTED OUTDOORS.
• Exhaust duct must not be connected or secured with screws or other fastening devices which extend into the interior of the duct.

EXHAUSTING REQUIREMENTS

WARNING

• The dryer shall not be exhausted into a chimney, a wall, a ceiling, an attic, a crawl space, or a concealed space of a building.
• The dryer must be exhausted to the outside to reduce the risk of fire when installed in alcove or closet.

Exhausting the dryer to the outside will prevent large amounts of lint and moisture from being blown into the room.

WARNING

NEVER USE A PLASTIC OR NON-METAL FLEXIBLE DUCT

If your existing ductwork is plastic, non-metal, or combustible, replace it with metal before installation this appliance

Use only a metal exhaust duct that is non-flammable to ensure containment of the exhaust air heat, and lint.

Refer to the “Ducting requirements” section on page 12 for the maximum duct length and number of bends.

• All dryers must be exhausted to the outside.
• Do not assemble the duct with screws or other fastening means that extend into the duct and catch lint.
  • The exhaust duct should be 4 inches (102mm) in diameter.
• The total length of flexible metal duct shall not exceed 7.8 feet (2.4 meters).

GAS REQUIREMENTS

Use only natural or LP (liquid propane) gases.

THE INSTALLATION MUST CONFORM WITH LOCAL CODES, OR IN THE ABSENCE OF LOCAL CODES, WITH THE NATIONAL FUEL GAS CODE, ANSI Z223.1/NFPA 54, LATEST REVISION (FOR THE UNITED STATES), OR THE NATURAL GAS AND PROPANE INSTALLATION CODE, CSA B149.1, LATEST REVISION (FOR CANADA).

Gas dryers are equipped with a burner vent for use with natural gas. If you plan to use your dryer with LP (liquid propane) gas, it must be converted for safe and proper performance by a qualified service technician.

A 1/2" (1.27 cm) gas supply line is recommended and must be reduced to connect to the 3/8" (1 cm) gas line on your dryer. The National Fuel Gas Code requires that an accessible, approved manual gas shut-off valve be installed within 6" (15,24 cm) of your dryer.

Gas dryers installed in residential garages must be raised 18" (46cm) above the floor.

Additionally, a1/8" (0.3cm) N.P.T. (National Pipe Thread) plugged tapping, accessible for test gauge connection, must be installed immediately upstream of your dryer's gas supply connection.

Your dryer must be disconnected from the gas supply pipe system during any pressure testing of the system.

This dryer must be connected to the gas supply piping with a listed flexible gas connector that complies with the standard for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.

DO NOT reuse old flexible metal gas lines. Flexible gas lines must be design certified by the American Gas Association (CGA in Canada).

• Any pipe joint compound used must be resistant to the action of any liquefied petroleum gas.
• As a courtesy, most local gas utilities will inspect a gas appliance installation.

GAS IGNITION - Your dryer uses an automatic ignition system to ignite the burner. There is no constant burning pilot.

COMMONWEALTH OF MASSACHUSETTS INSTALLATION INSTRUCTIONS

Your dryer must be installed by a licensed plumber or gas fitter. A “T” handle manual gas valve must be installed in the gas supply line to installed dryer at location of operation. If a flexible gas connector is used to connect dryer, the connector may not be longer than 3' (36", 91.5 cm).

WARNING

• Gas leaks may occur in your system, creating a dangerous situation.
• Gas leaks may not be detected by smell alone.
- Gas suppliers recommend that you purchase and install a UL-approved gas detector.
- Install and use it in accordance with the manufacturer's instructions.

ELECTRIC REQUIREMENTS

The wiring diagram is located on the back board of the unit.

WARNING

• The improper connection of the equipment grounding conductor can result in the risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether your dryer is properly grounded. Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet installed by a qualified electrician.
• To prevent unnecessary risk of fire, electrical shock, or personal injury, all wiring and grounding must be done in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA No. 70 - Latest Revision (for the U.S.) or the Canadian Electrical Code CSA C22.1 - Latest Revisions and local codes and ordinances. It is your responsibility to provide adequate electrical services for your dryer.
• All gas installations must be done in accordance with the National Fuel Code ANSI/Z2231 - Latest Revision (for the U.S.) or CAN/CGA - B149 Installation Codes - Latest Revision (for Canada) and local codes and ordinances.

Electrical connections

An individual branch (or separate) circuit serving only your dryer is recommended. DO NOT USE AN EXTENSION CORD.

Gas models - U.S. and Canada

A 120Volt, 60Hz AC approved electrical service, with a 15 ampere fuse or circuit breaker is required.

Electric models - U.S. only

The dryers require a 120/240 volt, 60Hz AC approved electrical service. The electric service requirements can be found on the data label located behind the door. A 30-ampere fuse or circuit breaker on both sides of the line is required.

• If a power cord is used, the cord should be plugged into a 30-ampere receptacle.
• The power cord is NOT provided with U.S. electric model dryers.

Electrical Shock Hazard

When local codes allow, the electrical supply of the dryer may be connected by means of a new power supply cord kit, marked for use with a dryer, that is UL listed and rated at a minimum of 120/240 volts, 30-ampere with three No. 10 copper wire conductors terminated with closed loop terminals, open-end spade lugs with turned up ends, or with tinned leads.

• Do not reuse a power supply cord from an old dryer. The power cord electric supply wiring must be retained at the dryer cabinet with a suitable UL-listed strain relief.
• Grounding through the neutral conductor is prohibited for (1) new branch-circuit installations, (2) mobile homes, (3) recreational vehicles, and (4) areas where local codes prohibit grounding through the neutral conductor. (Use a 4-prong plug for 4 wire receptacles, NEMA type 14-30R.)

Electric models - Canada only

• A 120/240 volt, 60Hz AC approved electrical service fused through a 30-ampere fuse or circuit breaker on both sides of the line is required.
• All Canadian models are shipped with the power cord attached. The power cord should be plugged into a 30-ampere receptacle.

GROUNDING

This dryer must be grounded. In the event of a malfunction or breakdown, the grounding the product will reduce the risk of electrical shock by providing a path of least resistance for the electrical current.

WARNING

Gas and Electric models

- Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel – Do not contact the following parts while the appliance is energized: inlet valve, control board and temperature-regulating thermistor (located on blower housing).

WARNING

Gas models

• This dryer is equipped with a three-prong (grounding) plug for your protection against shock hazard and should be plugged directly into a properly grounded three-prong receptacle. Do not cut or remove the grounding prong from this plug.
• The plug must be plugged into an appropriate individual outlet that is properly installed and grounded in accordance with all local codes and ordinances.

WARNING

Electric models

Dryer must be grounded with 3 or 4 wire cord power cord with ground grounding conductor and a grounding plug, which is sold separately.

• The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
• Do not modify the plug provided with your dryer - if it doesn't fit the outlet, have a proper outlet installed by a qualified electrician.
• If a power cord is not used and the electric dryer is to be permanently wired, the dryer must be connected to a permanently grounded metal wiring system, or an equipment grounding conductor must be run with the circuit conductors and connected to the equipment grounding terminal or lead on the dryer.

PARTS AND FEATURES

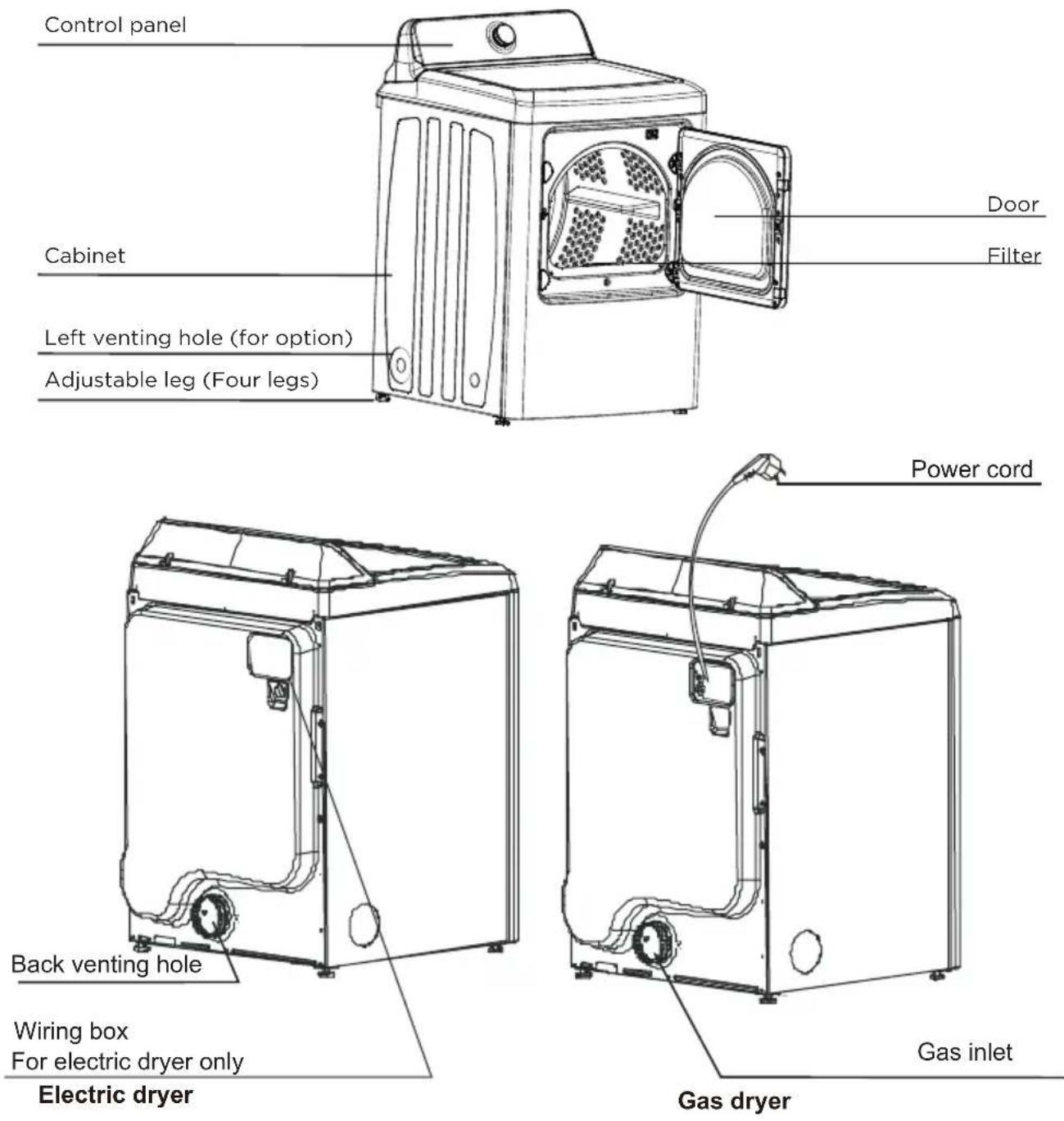

Control panel Cabinet Left venting hole (for option) Adjustable leg (Four legs) Door Filter Power cord Back venting hole Wiring box For electric dryer only Electric dryer Gas dryer Gas inlet

Electric dryer Gas dryer

REPLACEMENT PARTS AND ACCESSORIES

If your dryer requires replacement parts or accessories, contact the dealer where you purchased your dryer or MIDEA customer care center at 1-866-646-4332.

INSTALLATION INSTRUCTIONS

For the proper installation, we recommend that you hire a qualified installer.

REMOVING FROM THE PACKAGE

• Unpack your dryer and inspect it for shipping damage. Make sure you have received all the items shown below.
• To prevent personal injury or strain, wear protective gloves whenever lifting or carrying the unit.

WARNING

Packaging materials can be dangerous to children;

Keep all packaging material (plastic bags, polystyrene, etc.) well out of children's reach.

TOOLS REQUIRED

Phillips screwdriver

Flat screwdriver Level Pliers

Adjustable wrench that opens to 1" (25 mm)

aluminum tape

Cutting knife

Pipe wrench (gas only)

1. Move your dryer to an appropriate location for the installation. Consider installing the dryer and washer side-by-side, to allow access to the gas, electrical, and exhaust connections. Place two of the carton cushion-tops on the floor. Tip your dryer on its side so it lies across both cushion-tops.
2. Set your dryer back in an upright position.
3. Risk of Fire. Do not install a booster fan in the exhaust duct.

INSTALL THE EXHAUST SYSTEM

1. Review the "Exhausting Requirements" section on before installing the exhaust system.

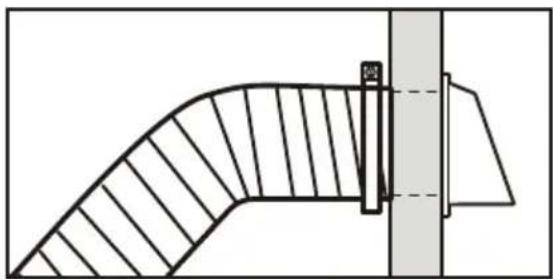

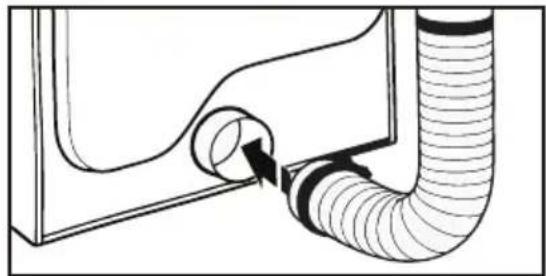

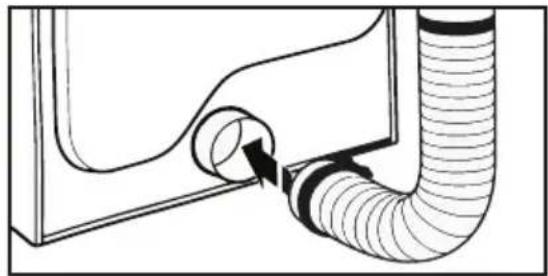

2. Install the ductwork from your dryer to the exhaust hood. The crimped end of the duct sections must point away from your dryer.
3. DO NOT use sheet metal screws when assembling the ducting.
4. These joints should be taped.
5. Never use plastic flexible exhaust material.
6. Tip for tight installations: install a section of the exhaust system onto your dryer before putting it in place.
7. Use aluminum tape to secure this section to your dryer, but do not cover the ventilation slots at the back of the unit in dryer cabinet.
8. The rear surface of appliances which, according to the instructions, shall be placed against a wall.

Technical line drawing of a curved structural component with hatched fill and a vertical guide bar (no text or symbols)

Diagram of a pipe fitting with a valve and coiled tubing (no text or symbols)

WARNING

Make sure your dryer is installed properly so it exhausts air easily.

Dryer Wall Duct exhaust

Use a 4" (10.2 cm) diameter rigid metal duct. Tape all joints, including at the dryer. Never use lint-trapping screws.

A" Tape Duct

Keep ducts as straight as possible.

Simple line drawing of a mechanical device with no text or symbols

Clean all old ducts before installing your new dryer. Be sure the vent flap opens and closes freely. Inspect and clean the exhaust system annually.

DO NOT restrict your dryer with a poor exhaust system.

DO NOT use a plastic, thin foil, or non-metal flexible duct.

DO NOT use unnecessarily long ducts that have many elbows.

Pure diagram of a prohibition symbol with no text or labels, no readable text or numbers present.

DO NOT use dented or clogged ducts and vent.

Prohibition sign with crossed-out hand holding a hammer and a triangular object, indicating no smoking or anti-smoking.

Review the "Gas Requirements" section on page 14. Remove the pipe thread protective cap.

Apply a pipe joint compound or about 11/2" wraps of teflon tape over all threaded connections.

- The pipe joint compound must be resistant to the actions of any liquefied petroleum gas.

Connect the gas supply to your dryer. An additional fitting is required to connect the 3/4" (1.9 cm) female thread end of a flexible connector to the 3/8" (1 cm) male threaded end on the dryer. Use only new AGA or CSA certified gas supply line with SS flexible connectors within 6 ft (1.8 m) of the dryer.

Securely tighten the gas line fitting over the threads.

Turn on the gas supply.

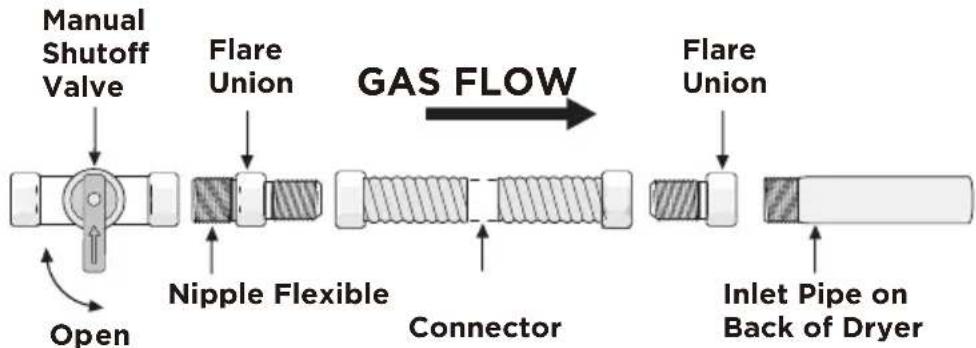


All connections must be wrench-tightened

WARNING

• All gas installations of the dryer must be equipped with Manual Shut-Off valve.
• Uncoated copper tubing will corrode when subjected to natural gas, causing gas leaks. Use ONLY black iron, stainless steel, or plastic-coated brass piping for gas supply.
• Check all gas connections for leaks using a soap solution.
• If bubbles appear, tighten the connections and recheck. DO NOT use an open flame to check for gas leaks.

CONNECT THE ELECTRICAL WIRING

Review the "Electric Requirements" section on page 16.

BEFORE OPERATING OR TESTING, follow the grounding instructions in the "Grounding" section on page 18.

THREE WIRE OUTLET

Simple electrical circuit symbol for a three-phase power supply (no text or labels)

3-Wire receptacle (10-30R)

Then choose a 3-wire power supply cord with ring or spade terminals and UL listed strain relief. The 3-wire power supply cord, at least 4 ft. (1.22 m) long, must have 3 10-gauge solid copper wires and match a 3-wire receptacle of NEMA Type 10-30R.

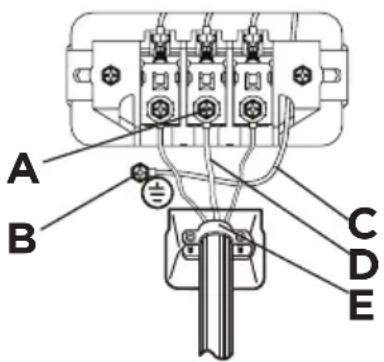

3-Wire system connections

1. Remove the center terminal block screw.
2. Connect the neutral wire (white or center wire) of the power cord to the center terminal screw of the terminal block. Be sure to cross the screw through the ring of the power cord terminal and tighten the screw.
3. Connect the other wires to the outer terminal block screws. Be sure to cross the screw through the terminal ring and tighten the screw.
4. Tighten the strain relief screws.
5. Insert the tab of the terminal block cover into your dryer's rear panel slot. Secure the cover with a screw.

3-wire system instructions:

A Center terminal block screw
B External ground connector
C Neutral grounding wire (White)
D Neutral wire (white or center wire)
E 3/4" (1.9cm) UL-listed strain relief

A B C D E

WARNING

If converting from a 4-wire electrical system to a 3-wire, the ground strap must be reconnected to the terminal block support to ground the dryer frame to the neutral conductor. Ring-type terminals are recommended. If using strap terminals, make sure they are tightened.

FOUR WIRE OUTLET

4-Wire receptacle (14-30R)

Then choose a 4-wire power supply cord with ring or spade terminals and UL listed strain relief. The 4-wire power supply cord, at least 4 ft. (1.22 m) long, must have 4 10-gauge solid copper wires and match a 4-wire receptacle of NEMA Type 14-30 R. The ground wire (ground conductor) may be either green or bare. The neutral conductor must be identified by a white color.

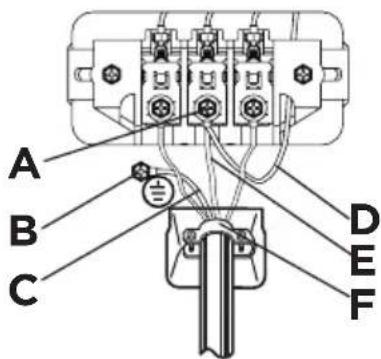

4-Wire system connections

1. Remove the center terminal block screw.
2. Connect the ground wire (green or unwrapped) of the power cord to the external ground conductor screw.
3. Connect the neutral wire (white or center wire) of the power cord and the appliance ground wire (white) under the center screw of the terminal block. Be sure to cross the screw through the ring of the power cord terminal and tighten the screw.
4. Connect the other wires to the outer terminal block screws. Be sure to cross the screw through the terminal ring and tighten the screw.
5. Tighten the strain relief screws.
6. Insert the tab of the terminal block cover into your dryer's rear panel slot. Secure the cover with a screw.

4-wire system instructions:

IMPORTANT: Ring-type terminals are recommended. If using strap terminals, make sure they are tightened.

A Center terminal block screw
B External ground connector
C Green or bare copper wire of the power cord
D Neutral grounding wire (White)
E Neutral wire (white or center wire)
F 3/4" (1.9cm) UL-listed strain relief

A B C D E F

WARNING

Electrical Shock Hazard

All U.S. models are produced for a 3-WIRE SYSTEM CONNECTION.

The dryer frame is grounded to the neutral conductor at the terminal block. A 4-WIRE SYSTEM CONNECTION is required for new or remodeled construction, mobile homes, or if local codes do not permit grounding through neutral conductor. If the 4-wire system is used, the dryer frame cannot be grounded to the neutral conductor at the terminal block. Refer to the “Electric Requirements” section on page 16 for 3-WIRE or 4-WIRE SYSTEM CONNECTIONS. Remove the terminal block cover plate.

Insert the power cord with a UL-listed strain relief through the hose provided in the cabinet near the terminal block.

- A strain relief must be used.

Do not loosen the nuts already installed on the terminal block. Be sure they are tight. Use a 3/8" (1 cm) deep-well socket.

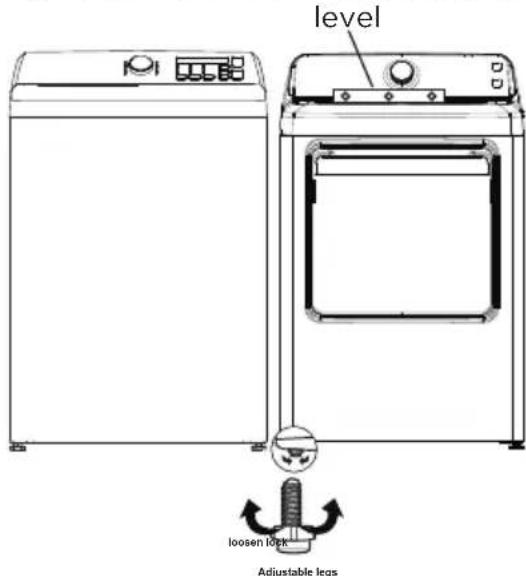

LEVEL THE DRYER

To ensure that the dryer provides the optimal drying performance, it must be leveled. To minimize vibration, noise, and unwanted movement, the floor must be a perfectly level, solid surface.

- Adjust the leveling feet only as much as necessary to level the dryer. Extending the leveling feet more than necessary can cause the dryer to vibrate. level

level loosen lock Adjustable legs

POWER ON

Make sure all gas connections (Gas Models only), exhaust and electrical connections are complete. Plug in your dryer.

FINAL CHECK

• Make sure the dryer is plugged into an electrical outlet and is properly grounded.
• The exhaust ductwork is hooked up and the joints are taped.
• A plastic flexible duct in NOT used.
• Use rigid or stiff-walled flexible metal vent material.
• The dryer is leveled and is sitting firmly on the floor.
• Gas models - the gas is turned on with no gas leakage.
- Start your dryer to confirm that it runs, heats, and shuts off.

CAUTION

The burner may not ignite initially due to air in the gas line. Allowing your dryer to operate on a heat setting will purge the line. If the gas does not ignite within 5 minutes, turn your dryer off and wait 5 minutes. Be sure the gas supply to your dryer has been turned on. In order to confirm the gas ignition, check the exhaust for heat.

DOOR REVERSAL PROCEDURE

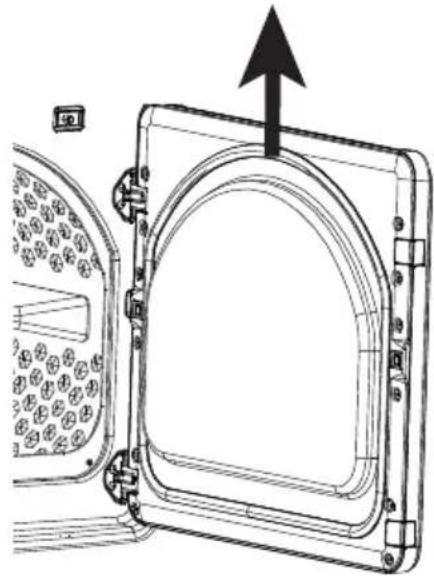

Step 1: Remove the dryer door

1 Make sure that the power cord is unplugged.
2 While supporting the door, remove the four hinge screws from the door, then lift the door to remove it and set the door aside.

Technical line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

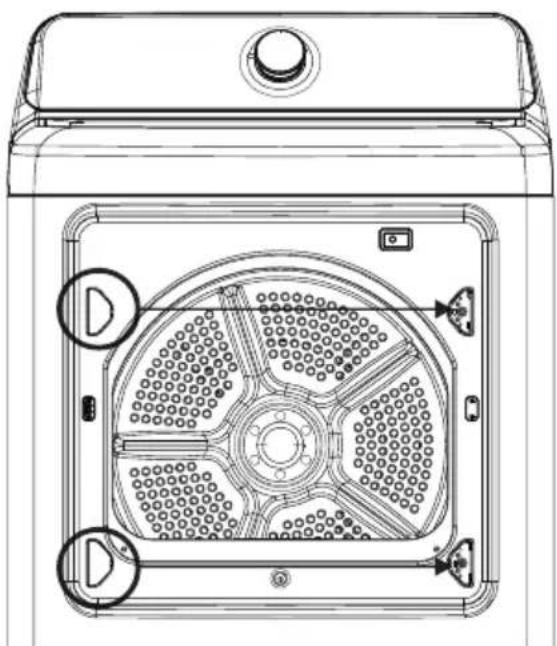

Step 2: Move the door hinges covers

1 Use a flat-blade screwdriver to remove the two hinge covers from the side that you want the door to swing from.

Technical line drawing of a front-mounted device casing with internal compartments and mounting features (no text or symbols)

2 Install the two hinge covers on the opposite side.

Step 3: Rotate the door frame

1. Remove the 16 screws that hold the door frame to your dryer.

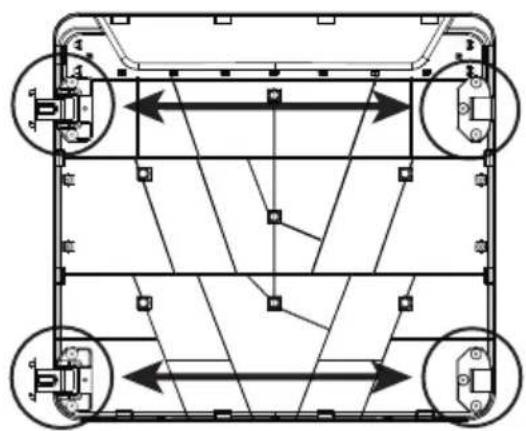

Note

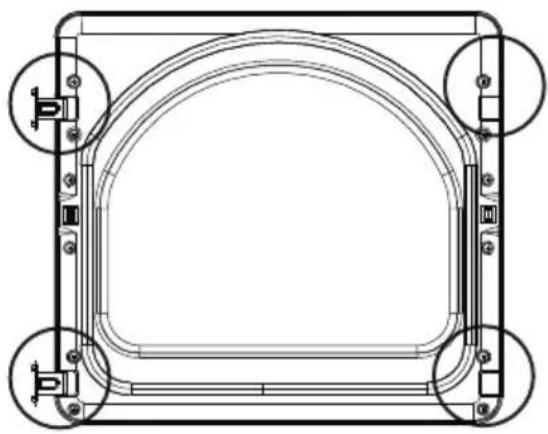

Two of the screws secure the door latch (P) to the door frame. You will need to attach the latch when you reassemble the door.

Technical line drawing of a rectangular frame with rounded corners and mounting holes (no text or symbols)

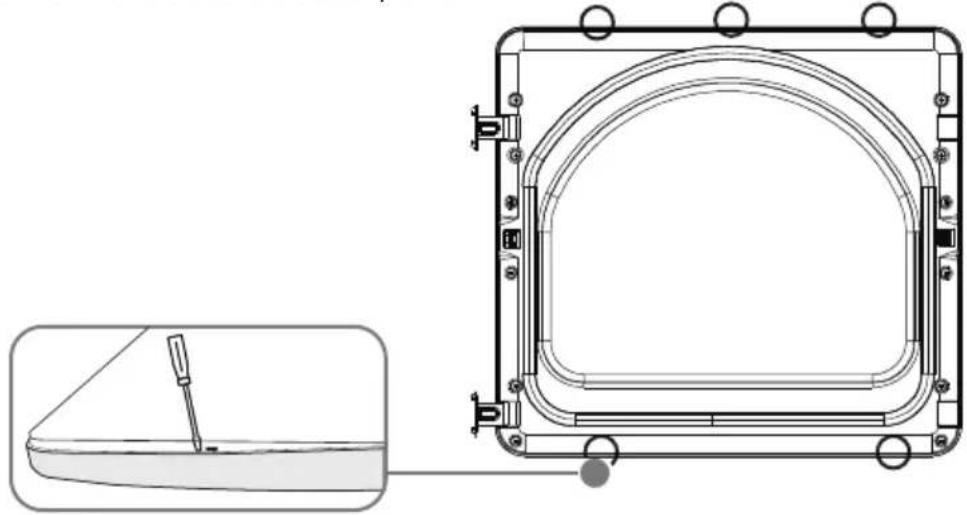

1. Use a flat-head screwdriver to pry open the 5 tabs, pull the inside door panel from the outside door panel.

Technical line drawing of a mechanical component with an inset showing a tool interacting with a surface (no text or symbols)

1. Move the hinges, hinge covers, and door latch to the other side of the door.

Your new dryer is shipped to vent to the rear. It can also be configured to vent to he bottom or left side (as seen from the front).

An Adapter kits which are standard components can be purchased from any retailer. This kit contains the necessary duct components to change the dryer vent location.

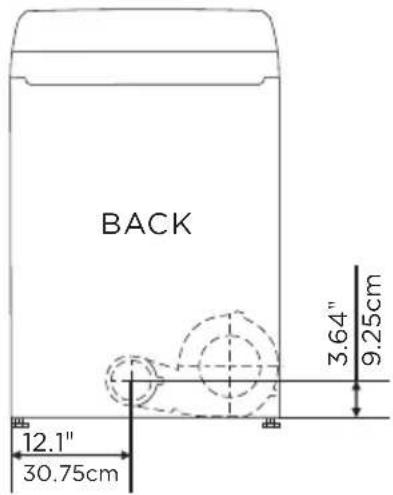

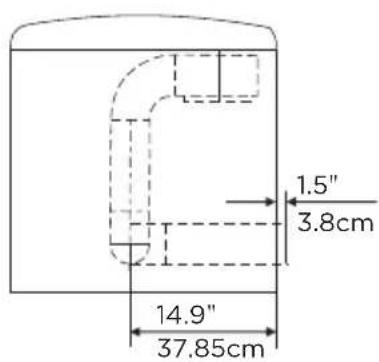

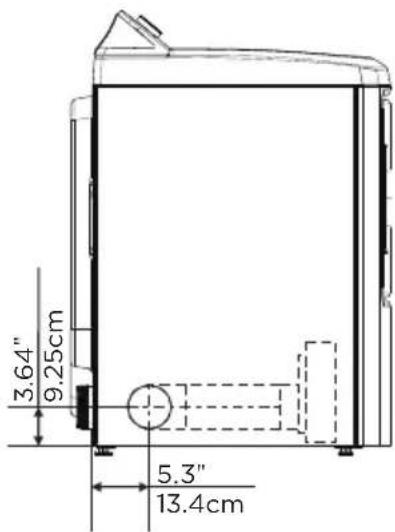

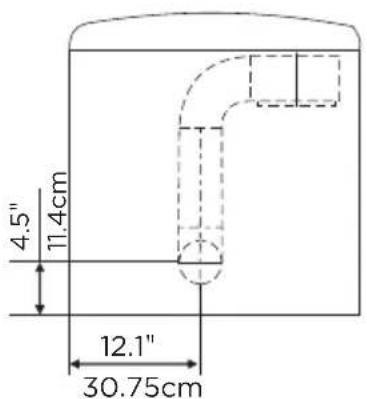

Tools and materials you will need

Phillips screwdriver

aluminum tape

Rigid or UL-listed
flexible metal
4" (10.2 cm) duct

Elbow 4" (10.2 cm)

Gloves

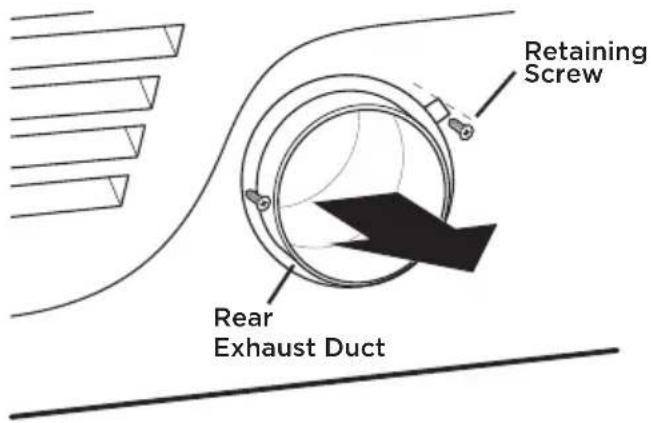

1. Remove the two rear exhaust retaining screws, then pull out the exhaust duct.

Retaining Screw Rear Exhaust Duct

Option 1: Side venting

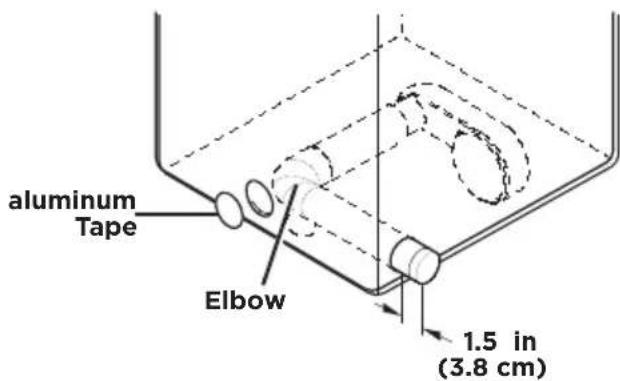

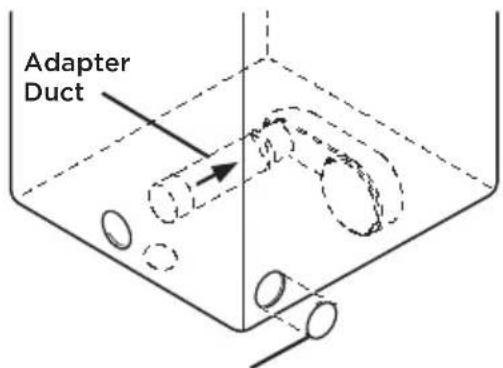

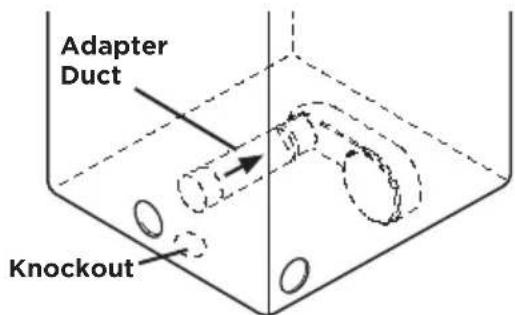

1. Press the tabs on the knockout and carefully remove the knockout for the desired vent opening.

Attach the adapter duct onto the blower housing of the dryer as shown.

Adapter Duct

Knockout

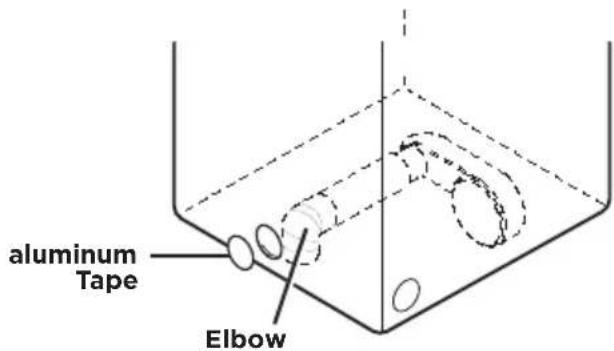

1. Preassemble a 4 inches (10.2cm) elbow to the next 4 inches (10.2cm) duct section, and secure all joints with aluminum tape. Be sure that the male end of the elbow faces AWAY from the dryer.

Insert the elbow/duct assembly through the side opening and attach it onto the adapter duct.

Secure in place with aluminum tape. Be sure that the male end of the duct protrudes 1.5 inches (3.8cm) to connect the remaining ductwork.

Attach aluminum tape to the back of the dryer.

aluminum Tape Elbow 1.5 in (3.8 cm)

Option 2: Bottom venting

1. Press the tabs on the knockout and carefully remove the knockout for the desired vent opening.

Attach the adapter duct onto the blower housing of the dryer as shown.

Adapter Duct Knockout

1. Insert the 4 inches (10.2cm) elbow through the rear opening and attach it onto the adapter duct.

Be sure that the male end of the elbow faces down through hole in the bottom of the dryer.

Secure in place with aluminum tape.

Attach aluminum tape to the back of the dryer.

aluminum Tape Elbow

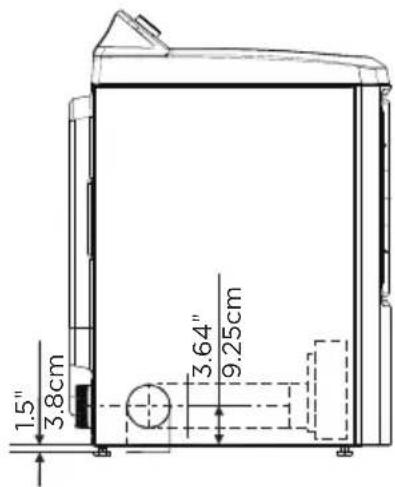

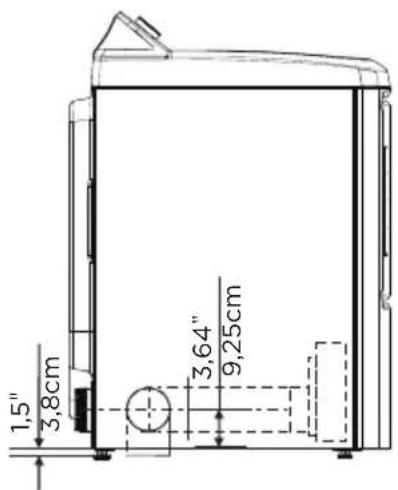

Dimensions for installation

- Rear Venting (Default)

BACK 3.64" 9.25cm 12.1" 30.75cm

- Side Venting

1.5" 3.8cm 14.9" 37.85cm

3.64" 9.25cm 5.3" 13.4cm

- Bottom Venting

4.5" 11.4cm 12.1" 30.75cm

1.5" 3.8cm 3.64" 9.25cm

DRYER USE

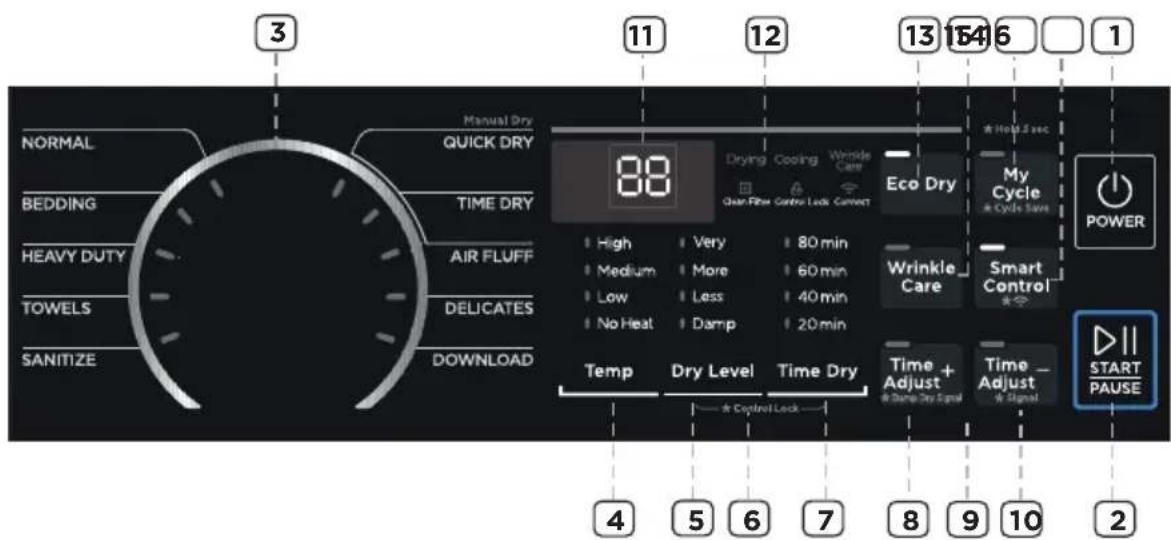

CONTROL PANEL

WARNING

To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating the appliance.

3 NORMAL BEDDING HEAVY DUTY TOWELS SANITIZE Manual Dry QUICK DRY TIME DRY AIR FLUFF DELICATES DOWNLOAD 11 88 Drying Cooling Wrinkle Care Clean Fiber Control Lock Correct High Very 80 min Medium More 60 min Low Less 40 min No Heat Damp 20 min Temp Dry Level Time Dry * Control Lock 13 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 * Hold.5 sec My Cycle * Cycle Save POWER Wrinkle Care Smart Control Time + Adjust Time - * Delay Dry Signal * Signal START PAUSE

1 POWER Button

Press to turn your dryer on or off. If your dryer is on for more than 10 minutes without any buttons being pressed, it automatically turns off.

2 START/PAUSE Button

Press to start or pause the program. You can't change any setting except add a garment.

3 Cycle selector

Select your desired cycle for the type of load.

The cycle you select determines the heat control for the cycle.

The Normal, Bedding, Heavy Duty, Towels, Sanitize, Download and Delicates are Sensor Dry cycles.

The Quick Dry, Time Dry and Air Fluff are Manual Dry cycles.

4 Temp.

Press the button to select the drying temperature.

High - For sturdy cottons or those labeled Tumble Dry.

Medium - For permanent press, synthetics, lightweight cottons, or items labeled Tumble Dry Medium.

Low - For lower heat than Medium to dry synthetic or washable knit fabrics.

No Heat - Provides just the air cycle without any heat.

5 Dry Level

Press the button to select the dryness level. Different dryness level will result in different drying time. For clothes to be ironed manually, a lower dryness level should be selected.

6 Control lock

Press and hold the Dry Level and Time Dry at the same time for three seconds to turn on the Control Lock function. All buttons except Power will not work when the control lock is activated.

Press and hold again for another three seconds to turn off the function. Your selection will be kept until next pressing.

7 Time Dry

This button is a quick selection for Time Dry setting.

8 Damp Dry Signal

Press and hold Time Adjust+ button for three seconds to turn on the Damp Dry Signal function. Press and hold again for another three seconds to turn off the function. This function is useful when you want to take some garments out for ironing. The unit will beep 8 times when the moisture in the clothes is good for ironing. At this time, you can take those garments out and continue drying the other by pressing the START/PAUSE button once.

NOTE: The unit will not stop operating if you don't take those garments out for ironing.

9 Time Adjust+\-

Press these buttons repeatedly to adjust the drying time for Manual cycles. (These buttons do not work for Sensor cycles.)

10 SIGNAL

Press about mobile 'Adjust- button for three seconds buzzer sound.

Press angahoto irtieateljuts-sbutton

Your selection will be kept until next pressing.

11 Digital display

This digital will display the time of cycle you are setting or remaining time of cycle operating.

12 Cycle status display

The relative indicator Light will be flash when the dryer is in its drying program, other process indicators to be executed are lit.

13 ECO DRY

Press to select the ECO DRY mode. The ECO DRY mode is a power saving mode that reduces power while providing efficient drying performance.

• To save energy, turn ECO DRY on.
• To dry quickly, turn ECO DRY off.

14 Wrinkle Care

Press to turn the Wrinkle Care program on or off. When turned on, the Wrinkle Care indicator lights up.

Wrinkle Care provides approximately 90 minutes of intermittent tumbling in unheated air at the end of the cycle to reduce wrinkling. The load is already dry and can be removed at any time during the Wrinkle Care cycle.

15 MY CYCLE

Press and hold for 3 seconds to remember your favorite drying cycle. Press once to load your favorite cycle setting.

16 Smart Control

Press[Smart Control] 3 seconds, the machine will be connected to the internet on your smart phone, you can go to the settings and turn on the wireless connection and select an AP (Access Point).

The details of wireless check the part of Smart Control. This is the wireless, if you want to make your appliance connect to the internet, you need turn on this button.

After connecting your device to wireless [networkance, indicating that it has entered the remote control state

Smart phone smart control should meet the following conditions:

1. The appliance should connect to the internet;
2. The door of drum should be closed.

Remark:

-. If the door is open in anytime, the smart control function will be failure.
-. The smart control function is turned off at the end of each cycle automatically, if you want to use smart control function again, you need turn on it again.

DRYING A LOAD OF LAUNDRY

1. Power on your dryer.

- Press this Power button to power your dryer on.

- The “Clean Filter” light in the process bar will flash 10 times when your dryer is powered on - You should clean the filter before the dryer is loaded.

2. Load your dryer.

• Place only one wash load in your dryer at a time.
• Mixed loads of heavy and light weight fabrics will dry differently, which may result in lightweight fabrics being dry while heavy fabrics remain damp at the end of a drying cycle.
• Add one or more similar items to your dryer when only one or two articles of clothing need drying. This improves the tumbling action and drying efficiency.
  • Overloading restricts tumbling action, resulting in uneven drying as well as excessive wrinkling of some fabrics.

3. Select the appropriate cycle and options for the load.

NORMAL BEDDING HEAVY DUTY TOWELS SANITIZE Maneral Dry QUICK DRY TIME DRY AIR FLUFF DELICATES DOWNLOAD

• Select the appropriate cycle by Cycle Selector according to the cycle chart on next page.
• Select the appropriate optional function by buttons according to the chart on .next page

4. Start your dryer.

Pressing START/PAUSE button will start the selected cycle. To PAUSE cycle press START/PAUSE button then open the door. To resume operation after closing the door always press START/PAUSE. Opening the door during the operation will instantly stop operation and will require to press START/PAUSE button to resume operation.

Cycle Fabric type		Dry Temp	Dryness	Wrinke Care	Damp Dry Signal	Time+-	ECO dry	My Cycle	Maxim Amount
Normal	·Cotton·Underwear·Linen	Medium	Very Dry	Y	Y	N Y	Y
			More Dry
			Less Dry
			Damp Dry	N
Bedding	·Quilt	Electric: Medium Gas: low	Very Dry	Y	Y	N N Y
			More Dry
			Less Dry
			Damp Dry	N
Heavy Duty	·Jeans·Corduroys·Work clothes	High	Very Dry	Y	Y	N N Y
			More Dry
			Less Dry
			Damp Dry	N
Towels	·Towels·Heavy cottons	High	Very Dry	Y	Y	N N Y
			More Dry
			Less Dry
			Damp Dry	N
Sanitize	·Towels·Bedding·Children's clothing	High Very	Dry Y Y N	N Y
Quick Dry	/	High	/	Y	/ Y	N Y			—
		Medium
		Low
Time Dry	/	High	/	Y	/ Y	Y	Y
		Medium
		Low
Air Fluff / No Heat / Y / Y N Y
Delicates	·Sensitive items	Low	Very Dry	Y	Y	N	N	Y
			More Dry
			Less Dry
			Damp Dry	N
Download 1 (Perm Press)	·Wrinkle-free cottons·Synthetic fabrics·Knits	Medium	Very Dry	Y	Y	N	N	Y
			More Dry
			Less Dry
			Damp Dry	N
Download 2 (Active wear)	·Mesh sleeves·Sports bras·Athletic muscle shirts	Medium	More Dry	Y Y N	N Y
Download 3 (Baby Care)	·Children's clothing	High	Very Dry	Y Y N			N	Y
			More Dry

* Table in grey is an initial setting. "Y" are all optional functions you can select.
* For even better drying effect, please select higher dryness level.

Download

Select download cycles from app menu. Select the cycle you want to use. At the bottom of the next pop-up screen select download. The selected cycle will be synched to your machine and will be used when you select the download cycle with the knob.

Load Size Recommendations:

For best results, follow the wet load size recommendations noted for each cycle.

Small load: Fill the dryer drum with 3-4 items, not more than 1/4 full.

Medium load: Fill the dryer drum up to about 12 full.

Large load: Fill the dryer drum up to about 3/4 full. Do not overload. Items need to tumble freely.

1. Unloading your laundry.

• The dryer will beep 6 times after the cycle is done.

FILTER CLEAN

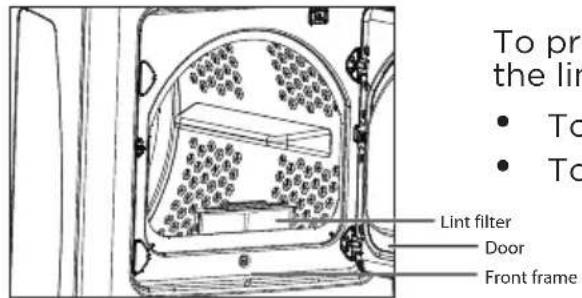

To pr the lin • To • To Lint filter Door Front frame

To prevent a risk of fire, make sure to clean the lint filter before or after every load.

• To shorten drying time.
• To operate more energy efficiently.

CAUTION

• Do not operate your dryer without the lint filter in place.
• Do not use a damage or broken lint filter. This may reduce performance and/or cause fire.

SPECIAL LAUNDRY TIPS

Please follow the care label or manufacturer's instructions for drying special items. If care label instructions are not available, use the following information as a guide.

Items Drying guide
Bedspreads & Comforters	Follow the care label instructions or dry in Heavy Duty cycle.Make sure the item is thoroughly dry before using or storing.May require repositioning to ensure even drying.
Blankets	Use the Normal cycle and dry only one blanket at a time for best tumbling action.Make sure the item is thoroughly dry before using or storing.May require repositioning to ensure even drying.
Curtains & Draperies	Use the Casual cycle, medium temperature and less dry to help minimize wrinkling.Dry these in small loads for best results and remove as soon as possible.
Cloth Diapers	Use the Normal cycle on High temperature for soft fluffy diapers.
Down Filled Items (jackets, sleeping bags, comforters, etc.)	Use the Normal cycle on High temperature.Add a couple of dry towels to shorten drying time and absorb moisture.
Foam Rubber (rug backs, stuffed toys, shoulder pads, etc.)	DO NOT dry on a heat setting. Use the Air Fluff cycle (no heat).WARNING: Drying a rubber item with heat may damage it or create a fire hazard.
Pillows	Use the Normal cycle.Add a couple of dry towels and a pair of clean sneakers to help the tumbling action and to fluff the item.DO NOT dry kapok or foam pillows in the dryer. You can dry these items in the dryer as long as you use the air fluff cycle.
Plastics (shower curtains, outdoor furniture covers, etc.)	Use the Air fluff cycle or the Time Dry cycle on the Low or Ultra Low temperature setting depending on the care label instructions.

Items NOT to dry:

• Fiberglass items (curtains, draperies, etc.)
- Woolens, unless recommended on the label.
- Items spotted or soaked with vegetable or cooking oils.

Smart Control

Use Your Appliance with the SmartHome App

Before you start, make sure that:

1. Your smartphone is connected to home wireless network, and you know the network password.
2. Make sure you are near the home appliance.
3. The 2.4GHz band wireless signal is enabled on your wireless router.

Follow the below steps to enter the remote control state

Download the SmartHome app

On an app market (Google Play Store, Apple App Store), search for "MSmartHome" and find the SmartHome* app. Download and install it on your phone. You can also download the app by scanning the QR code below.

SmartHome Download the app & activate product Download on the App Store GET IT ON Google Play

Register and log in

Open the SmartHome app, and create a new account to start (you can also register through a third-party account). If you already had an existing account, use the account to log in.

Login Enter email Enter password Login Login

Connect your devices to SmartHome

1. Please make sure your mobile phone is connected to wireless network. If not, go to Settings and turn on the wireless connection, select and connect to a wireless network. Also please turn on the Bluetooth on your phone. If not, go to Settings and turn it on.

2. Please power on your devices.

3. Open SmartHome app on your phone.

4. If a message of "Smart devices discovered nearby" appears, click to add.

5. If no message appears, select "+" on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device cate device model.

1. Connect your device to wireless to the instructions on appnifetition fails, please follow the instructions provided by the appcontinue with the operation.

Illustration showing a hand interacting with a smartphone displaying a app interface, with a magnified circular icon highlighting the screen.

7. Start the remote control

Press smart control button once, then the machine will enter the remote control state and you can start the machine remotely, which means it has entered the remote control state and you can start to control remotely.

Wireless Network Status Light

	Slowly flashing	Waiting for connection
	Quickly flashing	Connecting
	Light is on	Connected to your wireless router

Note!

• Make sure your devices are powered on.

- Keep your mobile phone close enough to your device when you are connecting network to your device.

- Connect your mobile phone to the wireless network at home, and make sure you know the password of the wireless network

- Check if your router supports 2.4 GHz wireless network on. If you are not sure whether the router supports 2.4 GHz band, please contact the router manufacturer.

- The device cannot connect to the wireless security authentication, and it usually appears in public area such as hotels, restaurants, etc. Please connect wireless and not require authentication.

- It is recommended to use a wireless network contains letters and numbers.

- If your wireless containers special characters, please modify it in the router.

- Turn off the WLAN+ (Android) or WLAN Assistant (iOS) function of your mobile phone when connecting network to your devices.

- In the case that your device connected to wireless network needs to reconnect, please click "+" on app Home page, and add your device again by the device category and model according to the instructions on app.

• Operating Temperature: -20C-85 C

- The Max RF Output Power: wFEJRS3 networks, Bluetooth LE: 10dBm.Frequency band of operation:2400-2483.5MHz

Procedures to reset the configuration.wireless network

1. Press [Control] 3 seconds to turn on the win function network-enter the network configuration process.
2. "AP" will be displayed on the digital display.
3. Reconnect to the network based on the content of previous page.

DRYER CARE

WARNING

- Certain internal parts are intentionally not grounded and may present a risk of electric shock only during servicing. Service Personnel – Do not contact the following parts while the appliance is energized: inlet valve, control board and temperature-regulating thermistor (located on blower housing).

CLEANING AND MAINTENANCE

CONTROL PANEL

• Clean with a soft, damp cloth. Do not use abrasive substances.
• Do not spray cleaners directly on the panel.
• The control panel finish may be damaged by some laundry pretreatment soil and stain remover products. Apply such products away from your dryer and wipe up any spills or overspray immediately.

STAINLESS STEEL OR ANODIZED DRUM

• To clean the stainless steel or anodized drum, use a damp cloth with a mild, non-abrasive cleaner suitable for stainless steel and anodized surfaces.
• Remove the cleaner residue and dry with a clean cloth.

DRYER EXTERIOR

• Clean with a soft, damp cloth. Do not use abrasive substances.
• Protect the surface from sharp objects.
• Do not place any heavy or sharp objects or a detergent box on the dryer. Keep them on the purchased pedestal or in a separate storage box. This may scratch or damage the top cover of the dryer.
• Since the entire dryer has a high-gloss finish, the surface can be scratched or damaged.
• Avoid scratching or damaging the surface when using the dryer.

DRYER EXHAUST SYSTEM

• Should be inspected and cleaned yearly to maintain optimum performance.
• Disconnect the exhaust duct from the dryer and from the exhaust hood (at the exhaust outlet) outside of the building.
• Check the interior of the duct and remove any lint accumulation.

• Be sure that lint is removed from the exhaust hood. Lint may collect in the exhaust hood so that the flappers or louvers will not open or close completely.

• After cleaning the exhaust hood, check that the flapper or louvers move freely.

• Reassemble the exhaust duct and hood, checking that the joints are secure and sealed.
• Operate the dryer and verify that the exhaust air is not obstructed in the vent and that there are no leaks in the system.
• The outside exhaust hood should be cleaned more frequently to ensure proper operation.

TROUBLESHOOTING

CHECK THESE SOLUTIONS IF YOUR DRYER...

If your dryer has any problems as followings, you can check as the solutions listed below before making a service call. This will help you save time and money.

Problem Solution
The unit doesn’t start.	Make sure the door is latched shut.Be sure the power cord is plugged into a live electrical outlet.Check the home’s circuit breaker and fuses.Press the Start/Pause button again if the door is opened during the cycle.
The unit doesn’t heat.	Check the home’s circuit breaker and fuses.Select a heat setting other than Air fluff and the Temp selection is not on “No heat”On a gas dryer, check that the gas supply is on.Clean the lint filter and exhaust duct.Dryer may have moved into the cool-down process of the cycle.
Doesn’t dry.	Check all of the above, plus...Be sure the exhaust hood outside the home can open and close freely.Check exhaust system for lint buildup. Ducting should be inspected and cleaned annually.Use a 4” rigid metal exhaust duct.Do not overload. 1 wash load = 1 dry load.Sort heavy items from lightweight items.Large, bulky items like blankets or comforters may require repositioning to ensure even drying.Load may be too small to tumble properly. Add a few towels.
The unit is noisy.	Check the load for objects such as coins, loose buttons, nails, broken zips, etc. Remove promptly.It is normal to hear the dryer gas valve or heating element cycle on and off during the drying cycle.Be sure the dryer is leveled properly as outlined in the installation instruction.It is normal for the dryer to hum due to the high velocity of air moving through the dryer drum and exhaust system.
Clothes are unevenly dried.	Seams, pockets, and other similarly heavy areas may not be completely dry when the rest of the load has reached the selected dryness level. This is normal.Select the Extra Dry setting if desired.If one heavy item is dried with a lightweight load, such as one towel with sheets, it is possible that the heavy item will not be completely dry when the rest of the load has reached the selected dryness level.Sort heavy items from lightweight items for best drying results.
Shuts off before load is dry.	Dryer load is too small. Add more items or a few towels and restart the cycle.Dryer load is too large. Remove some items and restart the dryer.
The unit has a special odor.	Household odors from painting, varnishing, strong cleaners, etc. may enter the dryer with surrounding room air. This is normal as the dryer draws the air from surrounding air space of the dryer locations.When these odors linger in the air, ventilate the room completely before using the dryer.
Odors remain in clothing after refresh	Fabrics containing strong odors should be washed utilizing desired wash cycle.
Garments still wrinkled after Wrinkle-prevent	Small loads of 1 to 4 items work best.Load fewer garments. Load similar-type garments.
Lint on clothes	Clean lint filter before every cycle.Some fabrics are lint producers (for example, a fuzzy white cotton towel) and they should be dried separately from clothes that are lint trappers (for example, a pair of lack linen pants).Divide larger loads into smaller loads for drying.Check pockets thoroughly before washing and drying clothes.

ERROR CODES

Error Warning Solutions	Possible Cause
C9	The PCB failed.	Call the service center for help do not use dryer.
E4	The humidity sensor failed.	The unit will complete the current operating cycle but garments could be over dried.The unit can still operate under the Time Cycles.Call the service center for help.
E5	The temperature sensor failed.	Call the service center for help do not use dryer.

*When error happening, the buzzer will beep 10 seconds and repeat once per 15 minutes.

APPENDIX

FABRIC CARE CHART

The following symbols provide garment care direction. The Clothing care labels include symbols for washing, bleaching, drying and ironing, or dry cleaning when necessary. The use of symbols ensures consistency among garment manufacturers of domestic and imported items. Follow care label directions to maximize garment life and reduce laundering problems.

Wash Cycle Special Instructions				Warning Symbols for Laundering
	Normal		Line Dry/Hang to Dry		Do Not Wash
	Permanent Press / Wrinkle Resistant / Wrinkle Control		Drip Dry Do Not
	Gentle/Delicates Dry		Do Not Bleach
	Hand Wash Heat Set	g	Do Not Tumble D	[2523]
Water Temperature**			High		No Steam (added to iron)
	Hot Medium Do Not
	Warm Low Dryclean
###	Cold Any Heat Dry
Bleach No Heat/Air Do N			y Clean
[Z388]	Any Bleach (when needed)	Iron-Dry or Steam Temperatures			Line Dry/ Hang to Dry
	Only Non-Chlorine (color-safe) Bleach (when needed)	[7783]	High		Drip Dry
	Tumble Dry Cycle		Medium Dry Flat	[K6SY]
Normal			Low
[GBW3]	Permanent Press / Wrinkle Resistant / Wrinkle Control		For machine-washable wool. Loads should be under 8 pounds.
	Gentle/ Delicates

**The number of dots represent appropriate wash water temperatures for various items. The temperature range for Hot is 105-125°F/41-52°C, for Warm 85-105°F/29-41°C and for Cold 60-85°F/16-29°C.

2 YEAR LIMITED WARRANTY

This warranty is provided to the original purchaser at retail (the "Purchaser" or "you") by Midea America (Canada) Corp. ("Midea" or "we"), which warrants all parts of this Product, as described below. Midea warrants this Product to the Purchaser for personal, family or household use. This warranty covers performance and quality issues in materials and workmanship that appear under normal use and maintenance appearing within two years from the date of purchase. This warranty gives you specific rights, and you may also have other rights that vary from state to state.

WARRANTY LIMITATIONS

This warranty is given only to the original purchaser at retail in either the United States or Canada and may not be transferred to any subsequent buyer. This warranty does not apply to purchasers of our products for use or resale in a business; a separate commercial warranty may protect those purchasers.

This warranty does not cover any Product failure caused by:

(a) Abuse, damage or use of the Product in violation of the Product instructions.
(b) Modification to any Product or part.
(c) Failure to maintain the Product or part as described in accordance with the Product instructions.
(d) Faulty installation or application.
(e) Use of parts or accessories not compatible with this Product.
(f) Floods, fires, winds, lightning, accidents, corrosive atmosphere, or other conditions beyond Midea's control.
(g) Interruption in electrical service or inadequate electrical service.
(h) Replacement of fuses and replacement or resetting of circuit breakers.
(i) Frozen or broken water pipes, water damage, moisture intrusion, mold or other biological growth.
(j) The use, combination or linking of the Product to other products, processes or materials not provided by Midea.

WARRANTY REMEDY

If any quality or performance issue covered by this warranty is discovered during the warranty period, we will, at our option, repair or replace any such Product. This warranty is limited to Product repair or replacement by an authorized Midea servicer or dealer and does not cover any shipping cost, labor cost, customs duties, inland logistics cost, or cost of service, including any diagnostics, removal, transportation, or reinstallation costs. If we ask, you must return the Product to us.

WARRANTY DISCLAIMER; EXCLUSION OF DAMAGES

This is the only express warranty to consumers that we offer on our Products. ANY IMPLIED WARRANTIES BY MIDEA, INCLUDING BUT NOT LIMITED TO WARRANTIES OF MERCHANTABILITY AND FITNESS FOR PARTICULAR PURPOSE, ARE LIMITED TO THE DURATION OF THIS EXPRESS WARRANTY. Some states and provinces do not allow the exclusion of express warranties and/or limitations on how long an implied warranty lasts, so the above exclusion and/or limitation may not apply to you.

THE REMEDY DESCRIBED ABOVE IS THE ONLY ONE THAT WE WILL PROVIDE, EITHER UNDER THIS WARRANTY OR UNDER ANY WARRANTY ARISING BY OPERATION OF LAW. WE WILL NOT BE RESPONSIBLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES ARISING FROM THE BREACH OF THIS WARRANTY OR ANY OTHER WARRANTY, WHETHER EXPRESS OR IMPLIED, NEGLIGENCE OR OTHER TORT, OR ON ANY STRICT LIABILITY THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion may not apply to you.

WARRANTYCLAIMS PROCESS

For more information or to make a warranty claim, please visit:

https://www.midea.com/ca/support

Or contact us at:

Telephone: [phone]

Email: [e-mail]

You must have Your bill of sale, delivery slip, or appropriate proof of purchase to submit a warranty claim. The date of purchase establishes the warranty period, should service be required.

DISPUTE RESOLUTION

ARBITRATION CLAUSE. IMPORTANT. PLEASE REVIEW THIS ARBITRATION CLAUSE. IT AFFECTS YOUR LEGAL RIGHTS.

(a) Parties: This arbitration clause (this "Arbitration Clause") affects your rights against Midea and any of its affiliates or employees or agents, successors, or assigns, all of whom together are referred to below as "we" or "us" for ease of reference.

(b) ARBITRATION REQUIREMENT: EXCEPT AS STATED BELOW, ANY DISPUTE BETWEEN YOU AND ANY OF US SHALL BE DECIDED BY NEUTRAL, BINDING ARBITRATION RATHER THAN IN COURT OR BY JURY TRIAL. "Dispute" will be given the broadest possible meaning allowable by law. It includes any dispute, claim, or controversy arising from or relating to your purchase of this Product, any warranty upon the Product, or the Product's condition. It also includes determination of the scope or applicability of this Arbitration Clause. The arbitration requirement applies to claims in contract and tort, pursuant to statute, or otherwise.

(c) CLASS-ARBITRATION WAIVER: ARBITRATION IS HANDLED ON AN INDIVIDUAL BASIS. IF A DISPUTE IS ARBITRATED, YOU AND WE EXPRESSLY WAIVE ANY RIGHT TO PARTICIPATE AS A CLASS REPRESENTATIVE OR CLASS MEMBER ON ANY CLASS CLAIM YOU MAY HAVE AGAINST US OR WE AGAINST YOU, OR AS A PRIVATE ATTORNEY GENERAL OR IN ANY OTHER REPRESENTATIVE CAPACITY, TO THE MAXIMUM EXTENT PERMITTED BY LAW. YOU AND WE ALSO WAIVE ANY RIGHT TO CLASS ARBITRATION OR ANY CONSOLIDATION OF INDIVIDUAL ARBITRATIONS.

(d) Discovery and Other Rights: Discovery and rights to appeal in arbitration are generally more limited than in a lawsuit. This applies to both you and us. Other rights that you or we would have in court may not be available in arbitration. Please read this Arbitration Clause and consult the rules of the arbitration organizations listed below for more information.

(e) SMALL CLAIMS COURT OPTION: YOU MAY CHOOSE TO LITIGATE ANY DISPUTE BETWEEN YOU AND ANY OF US IN SMALL CLAIMS COURT, RATHER THAN IN ARBITRATION, IF THE DISPUTE MEETS ALL REQUIREMENTS TO BE HEARD IN SMALL CLAIMS COURT.

(f) Governing Law: For residents of the United States, the procedures and effect of the arbitration will be governed by the Federal Arbitration Act (9 U.S.C. § 1 et seq.) rather than by state law concerning arbitration. For residents of Canada, the procedures and effect of the arbitration will be governed by the applicable arbitration law of the province in which you purchased your Product. The law governing your substantive warranty rights and other claims will be the law of the state or province in which you purchased your Product. Any court having jurisdiction may enter judgment on the arbitration award.

(g) Rules of the Arbitration: If the amount in controversy is less than \250,000, the arbitration will be decided by a single arbitrator. If the amount in controversy is greater than or equal to \250,000, the arbitration will be decided by a panel of three arbitrators. The arbitrator(s) will be chosen pursuant to the rules of the administering arbitration organization. United States residents may choose JAMS (1920 Main Street, Ste. 300, Irvine, CA 92614, www.jamsadr.com), or, subject to our approval, any other arbitration organization. In addition, Canadian residents may choose the ADR Institute of Canada (234 Eglinton Ave. East, Suite 405, Toronto, Ontario, M4P 1K5, www.amic.org). These organizations' rules can be obtained by contacting the organization or visiting its website. If the chosen arbitration organization's rules conflict with this Arbitration Clause, the provisions of this Arbitration Clause control. The award of the arbitrator(s) shall be final and binding on all parties.

(h) Location of the Arbitration Hearing: Unless applicable law provides otherwise, the arbitration hearing for United States residents will be conducted in the federal judicial district in which you reside (in your hometown area) or, for Canadian residents, in the province in which you reside, and, if you choose, will be in-person.

(i) Costs of the Arbitration: Each party is responsible for its own attorney, expert, and other costs and fees unless applicable law requires otherwise. Notwithstanding the preceding sentence, and unless applicable law requires otherwise, if you are a consumer under the JAMS rules or the rules of another agreed upon arbitration administrator, Midea will pay or reimburse you for all reasonable fees or costs to the extent required by law or the applicable arbitration administrator's rules. Whether or not required by law or such rules, if you prevail at arbitration on any claim against Midea, Midea will reimburse you for any reasonable fees paid to the arbitration administrator in connection with the arbitration proceedings. Under no circumstances will Midea seek from you payment or reimbursement of any reasonable fees that Midea incurs in connection with the arbitration. If you are required to advance any fees or costs to JAMS or other agreed upon arbitration administrator, but you ask Midea to do so in your stead, Midea will consider and respond to your request.

(j) Survival and Enforceability of this Arbitration Clause: This Arbitration Clause shall survive the expiration or termination, or any transfer, of the warranty on your Product. If any part of this Arbitration Clause, except waivers of class-action rights, is found to be unenforceable for any reason, the remainder of this clause and the warranty shall remain enforceable. If, in a case in which class-action allegations have been made, the waiver of class-action rights under this warranty is found to be unenforceable with respect to any part of the dispute, the parts of the dispute as to which the waiver of class-action rights have been found unenforceable will be severed and will proceed in court without reference or application of this Arbitration Clause. Any remaining parts will proceed in arbitration.

QUEBEC RESIDENTS

The arbitration provisions of this warranty shall not apply to residents of Quebec

SELF-DECLARATION OF CONFORMITY

47 CFR Pt. 15.21 Compliance Information

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

47 CFR Pt. 2.1077 Compliance Information

Unique Identifier

Product name: Dryer

Product mode: MLTE52M2BWW, MLTE52M2BGG

FCC ID: 2ADQOMWB-S

Responsible Party-U.S.Contact Information

Midea America Corp.

Parsippany, NJ, USA07054

1-866-646-4332

https://www.midea.com/us/support

FCC Compliance Statement

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may cause undesired operation.

47 CFR. Pt 2.1093 Radiofrequency radiation exposure evaluation: portable devices NOTE:

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and your body.

This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

Sécheuse

Alimentation

Line drawing of a front-loading oven with top handle and side panel (no text or symbols)

NUMÉROS DE MODÈLE

MLTE52M2BWW

MLTE52M2BGG

www.midea/ca

Cher utilisateur

Technical line drawing of a two-door washing machine with control panel and front-mounted door (no text or symbols)

F G H

J I K L

E 25 mm (1 po) F 610 mm (24 po)
G 51 mm (2 po) H 127 mm (5 po)
I 76 mm (3 po) J			31 000 mm^2 (48 po^2 )
K 15 500 mm^2 (24 po^2 )		L 76 mm (3 po)

REMARQUE :

Technical diagram of a curved structural component with hatched fill and a vertical guide bar (no text or symbols)

Diagram of a pipe fitting with a valve and coiled tubing (no text or symbols)

AVERTISSEMENT

Pure technical diagram of a mechanical or electrical component without any text, numbers, or symbols

Pure electrical circuit lines without any symbols

No smoking sign with pictogram of hand holding a cigarette and 'no smoking' symbol

RACCORDEMENT DE LA CONDUITE DE GAZ (POUR LES MODÈLES AU GAZ)

Simple electrical circuit symbol for a three-pin socket (no text or labels)

Simple electrical circuit symbol with three vertical lines and a diode, enclosed in a circle (no text or labels)

Technical line drawing of a mechanical component with an arrow indicating upward motion (no text or symbols)

Technical line drawing of a washing machine front panel with circular vent slots and control knobs (no text or symbols)

Technical line drawing of a rectangular frame with rounded corners and mounting holes (no text or symbols)

Technical line drawing of a mechanical component with an inset view showing a tool interacting with a curved frame (no text or symbols)

ARRIÈRE 12,1" 30,75cm 3,64" 9,25cm

4,5" 11,4cm 12,1" 30,75cm

1,5" 3,8cm 3,64" 9,25cm

UTILISATION DE LA SÉCHEUSE

PANNEAU DE COMMANDE

AVERTISSEMENT

Normal Bedding Heavy Duty Towels Sanitize Manual Dry Quick Dry Time Dry Air Fluff Delicates Download

SmartHome Download the app & activate product

Illustration showing a hand interacting with a smartphone displaying an app interface, with a magnified circular detail highlighting the screen.

https://www.midea.com/ca/support
