Product Type	Vehicle towing bridle chain
Brand	Vevor
Model	RTJ5/16*3FT
Working load limit (WLL)	Double chain: 10,800 lb (G80)
Ring type	Pear-shaped lifting ring
Chain diameter	8 mm (5/16 inch)
Chain length	3 feet (90 cm)
Material	Alloy steel
Box contents	Bridle chain × 1, shackle × 1
Main functions	Vehicle towing, chassis mounting, length adjustment
Hook types	R-hook, T-hook, small J-hook, large J-hook
Recommended use	Towing cars, light trucks
Safety	Do not exceed WLL, visual inspection before use, do not stand under load
Maintenance	Clean and dry after use, store in a dry place
Operating temperature	Not specified, standard use at room temperature
Repairability	Inspection by a qualified technician if damaged
Quality standard	G80 (grade 80)
Origin	Made in China, imported by Sanven Technology Ltd. (USA)

Frequently Asked Questions - RTJ5/16*3FT Vevor

How to use the Vevor RTJ5/16*3FT bridle chain?

Attach the hooks correctly to the vehicle chassis. Use the R-hook for Ford, T-hook for GM/Chrysler, small J-hook for Honda/Toyota, and large J-hook for the axle. Adjust the length using the retaining hooks.

What is the maximum load of this chain?

The working load limit (WLL) is 10,800 lb (approximately 4,900 kg) in double chain configuration. Never exceed this limit.

Can I use this chain for overhead lifting?

No, this chain is not approved for overhead lifting. It is designed only for ground vehicle towing.

How to inspect the chain before use?

Visually check for cracks, deformations, or widening of the hook opening. Ensure the chain is not twisted or knotted.

What to do if a hook is damaged?

Do not use the chain if damage is visible. Consult a qualified technician for repair or replacement.

How to maintain the bridle chain?

After use, clean and dry it thoroughly to prevent rust. Store it in a dry, ventilated place.

Are the hooks suitable for all vehicles?

No, each hook type corresponds to specific brands: R for Ford, T for GM/Chrysler, J for Honda/Toyota. Check compatibility with your vehicle.

Can I tie the chain to adjust the length?

No, never tie the chain. Use the provided retaining hooks to safely adjust the length.

Where to find replacement parts?

Contact Vevor technical support at www.vevor.com/support for replacement parts or warranty information.

Is this chain delivered with a warranty?

Yes, an electronic warranty certificate is available. Visit www.vevor.com/support for more details.

USER MANUAL RTJ5/16*3FT Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

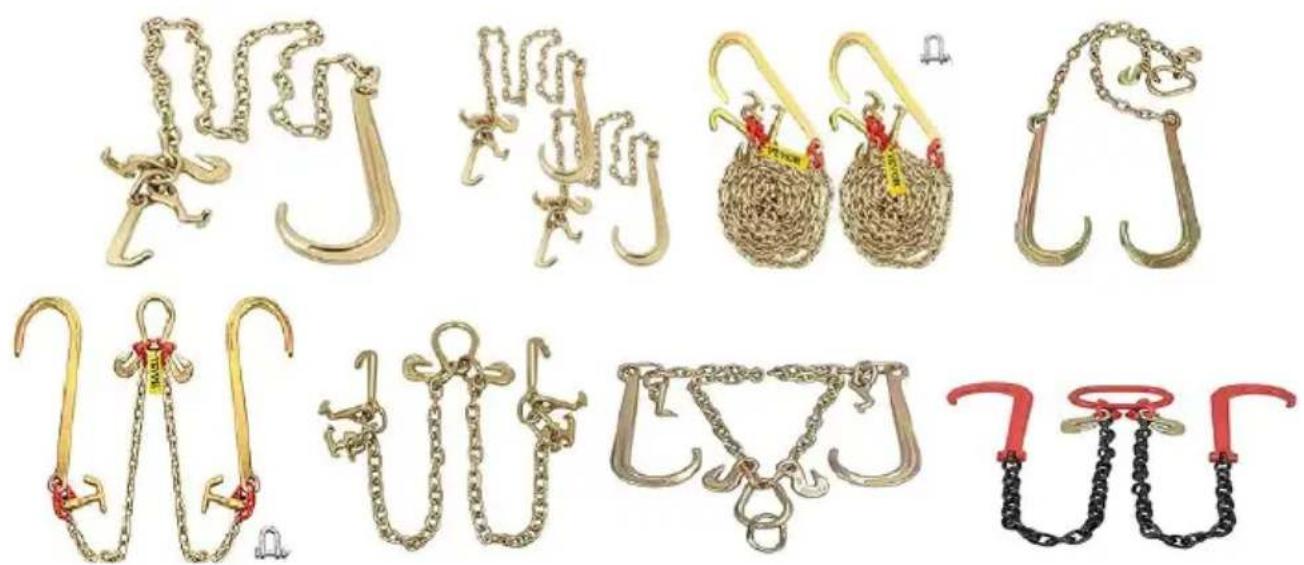

BRIDLE CHAIN

Model: RTJ5/16*6FT-A1; RTJ5/16*6FT-A2; TJ5/16*10FT-A3;

RTJ5/16*2FT-A3; TJ5/16*2FT-A2; TJ5/16*2FT-A1;

RTJ5/16*3FT-A1; RTJ5/16*3FT-A2; RTJ3/8*2FT-A1;

RTJ3/8*3FT-A1

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BRIDLE CHAIN

NOTE: The image shown is for illustration purposes only. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

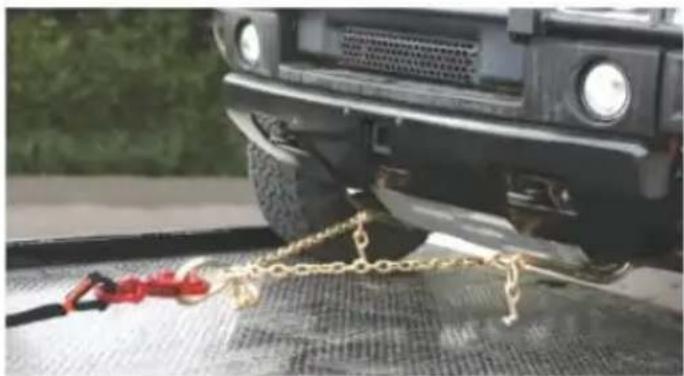

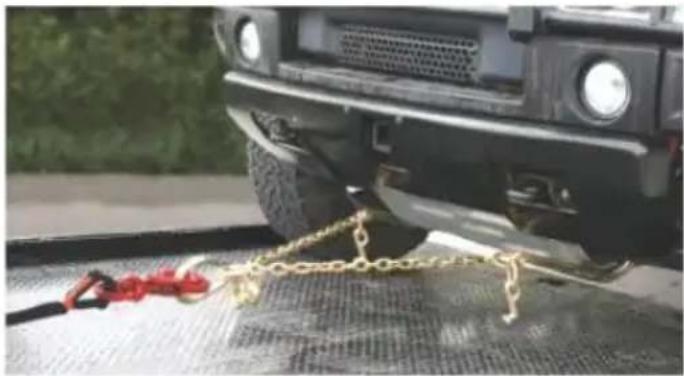

WARNING:

1. Read this material before using this product. Failure to do so can result in serious injury.
2. The bridle chain sling must be used flexibly, and it is strictly prohibited to force it when individual connections are inflexible.
3. Do not exceed the WLL (working load limit) for the bridle chain sling. Not approved for overhead lifting.
4. After use, dry it before storage to avoid rusting of bolts affecting use.
5. Procedures not specifically explained in this manual must be performed only by a qualified technician.

To prevent serious injury from tool failure, do not use when damaged.

1) Check the overall condition of the product before each use.

Does the opening of the hook widen?

Is the bridle chain deformed?

Are there cracks in all parts?

Before each use, check whether the bridle chain works properly before actual use. If the bridle chain doesn't work properly, follow the inspection instructions to see if the problem occurs.

2) To prevent serious injury, be careful when troubleshooting the faulty bridle chain. Solve all problems before use. If the solution provided in the troubleshooting guide cannot solve the problem, ask a qualified technician to check the bridle chain before use.

3) Make sure that the bridle chain is safe enough to continue using it. The bridle chain can bring you convenience at work.

CAUTION:

1. Carefully read instructions and procedures for safe operations.
2. Carefully INSPECTIONS:

1) Before each use: Each time the bridle chain is used, a visual inspection should be carried out to determine whether there are abnormal conditions, such as cracking, bending, deformation, etc.

2) After each use: After each use, if the bridle chain is strained abnormally, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.

Suggestions for Safe Use of The Bridle Chain

• Do not knot the chain when using the bridle chain.
• When using the bridle chain, make sure that the bridle chain is straight with folding and twisting.
• Due to the shipping(handing) or transportation, the bridle chain may have knots at the connection between the ring and the hook. Please smooth before use.
• NO one is allowed to stand below when hoisting goods by bridle chain.
• When using the bridle chain, please confirm whether the goods can be lift with the chain and whether the hardness of the chain will damage your

Save This Manual

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	RTJ5/16*6FT-A1	RTJ5/16*6FT-A2
Working Load Limi	5400lbs (G80)	5400lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	6ft(180cm)	6ft(180cm)
Material	Alloy Steel	Alloy Steel
Package Content	Bridle Chain*1+Shackle*1+User Manual*1	Bridle Chain*2+Shackle*1+User Manual*1

Model	TJ5/16*10FT-A3	RTJ5/16*2FT-A3
Working Load Limi	5400lbs (G80)	Double chain: 10800lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	10ft(300cm)	2ft(60cm)
Material	Alloy Steel	Alloy Steel
Package Content	Bridle Chain*2+Shackle*1 +User Manual*1	Bridle Chain*1+Shackle*1 +User Manual*1
Model	TJ5/16*2FT-A2	TJ5/16*2FT-A1
Working Load Limi	Double chain: 10800lbs (G80)	Double chain: 10800lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	2ft(60cm)	2ft(60cm)
Material	Alloy Steel	Alloy Steel
Package Content	Bridle Chain*1+Shackle*1 +User Manual*1	Bridle Chain*1+Shackle*1 +User Manual*1

Model	RTJ5/16*3FT-A1	RTJ5/16*3FT-A2
Working Load Limi	Double chain: 10800lbs (G80)	Double chain: 10800lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	3ft(90cm)	3ft(90cm)
Material	Alloy Steel	Alloy Steel
Package Content	Bridle Chain*1+Shackle*1 +User Manual*1	Bridle Chain*1+Shackle*1 +User Manual*1

Model	RTJ3/8*2FT-A1	RTJ3/8*3FT-A1
Working Load Limi	Double chain: 15600lbs (G80)	Double chain: 15600lbs (G80)
Chain Size	10mm(3/8inch)	10mm(3/8inch)
Chain Length	2ft(60cm)	3ft(90cm)
Material	Alloy Steel	Alloy Steel
Package Content	Bridle Chain*1+Shackle*1 +User Manual*1	Bridle Chain*1+Shackle*1 +User Manual*1

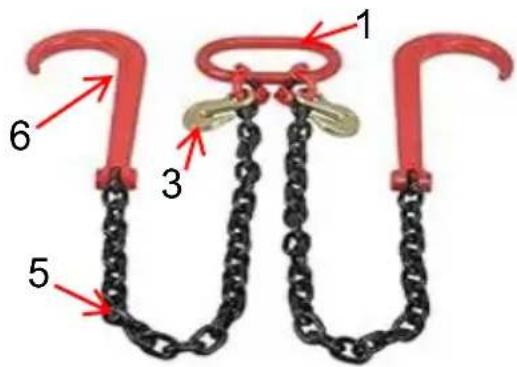

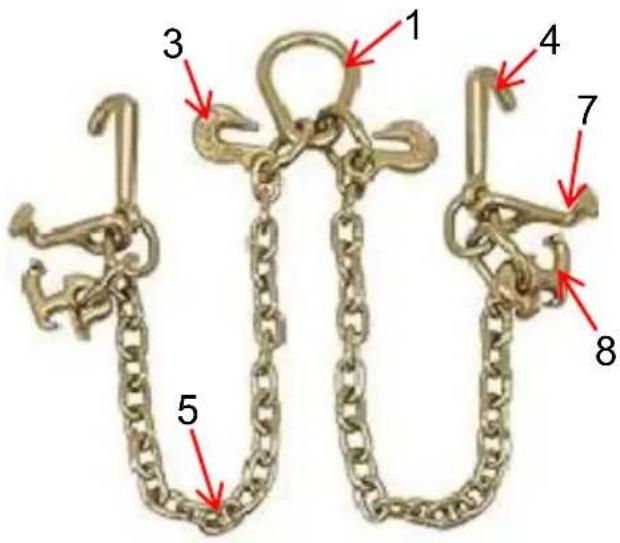

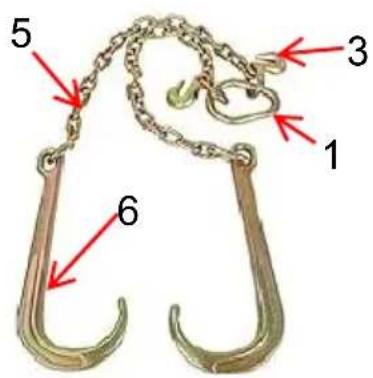

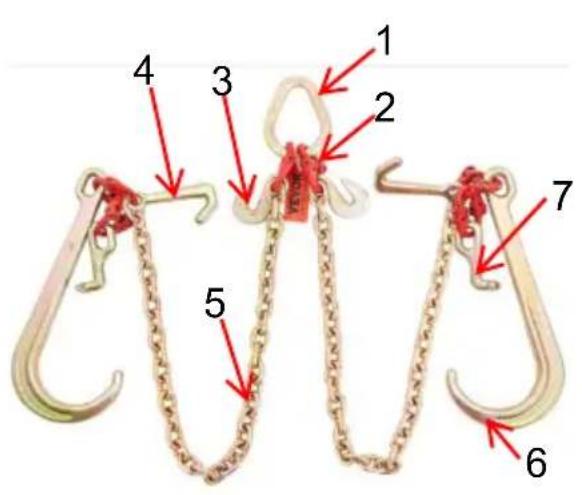

STRUCTURE DIAGRAM

1. Lifting Ring 2. Butterfly buckle 3. Grab Hooks 4. J-hook
2. Chain 6. Large J-hook 7. T-hook 8. R-hook

NOTE: The shown is for illustration purposes only. Please refer to your purchase!

INSTRUCTIONS

R-Hook: Small hole for hooking the chassis of the vehicle (for Ford vehicles)

T-Hook: Rectangular hole for hooking the chassis of the vehicle (for GM/Chry vehicles)

J-Hook: Small hole for hooking the vehicle chassis (for Honda/Toyota etc.) Large J-Hook: The Large J-Hook connects to the clean (upper-carriage) side the vehicle. Secure the J-Hook safely to the vehicle's Axel.

Grab Hooks: They are designed to adjust the length of the legs! Grab Hook safely hook and secure any slack in your chain after adjustments. They can shorten chain length for the perfect vehicle.

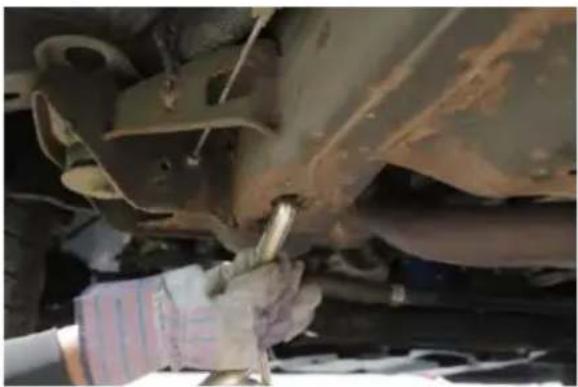

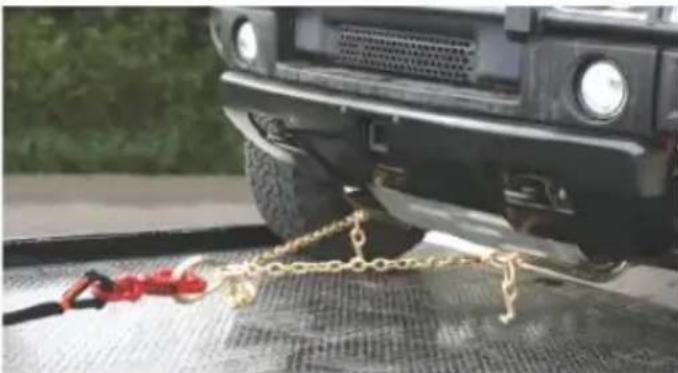

How to use the chain: Attach Your Hooks Properly!

1. Cluster hooks like our J-Hook, T-J Hooks, and Grab Hooks are designed modern cars, and ensuring they're properly secured is vitally important for the safety of the vehicle and roadways!
2. The master pear ring attaches easily to the winch cable, and our grab hooks make for easy adjustment on the chain length. Attach to vehicle Axel. Improperly placed J-Hooks can damage and bend the aluminum in the front and rear bumpers.

MAINTENANCE

• Do not exceed WLL (working load limit). ● After use, please clean and dry the product and store it in a dry, ventilated place.

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
