USER MANUAL RTJ3/8*3FT-A1 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
BRIDLE CHAIN
Model: RTJ5/16*6FT-A1; RTJ5/16*6FT-A2; TJ5/16*10FT-A3;
RTJ5/16*2FT-A3; TJ5/16*2FT-A2; TJ5/16*2FT-A1;
RTJ5/16*3FT-A1; RTJ5/16*3FT-A2; RTJ3/8*2FT-A1;
RTJ3/8*3FT-A1
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE

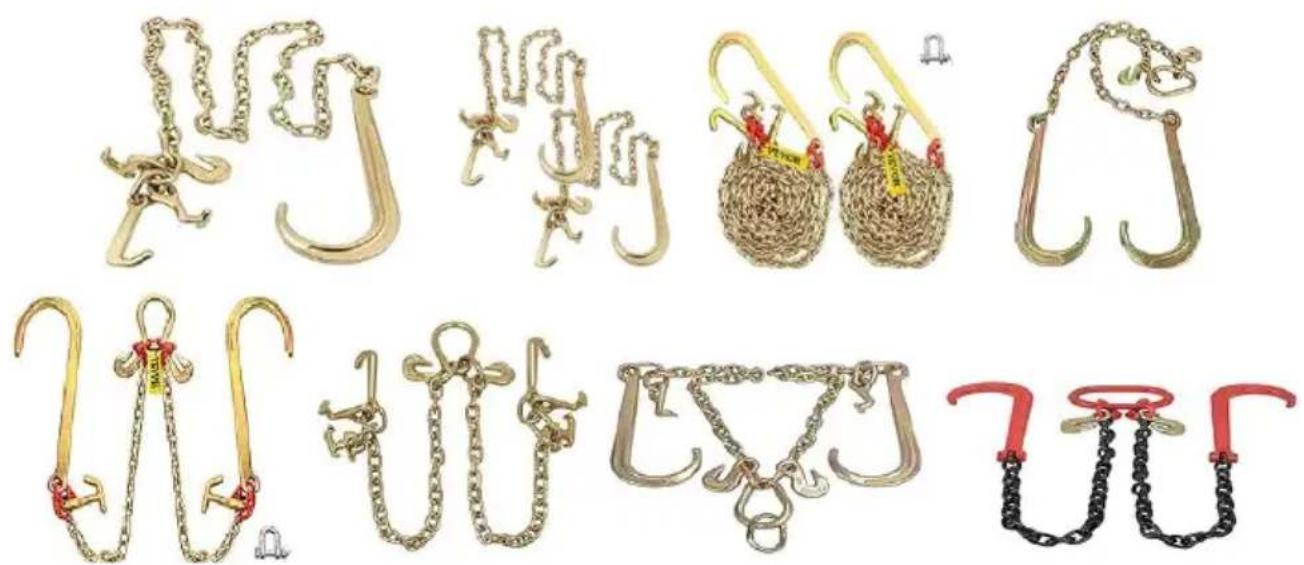

BRIDLE CHAIN
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
WARNING:
- Read this material before using this product. Failure to do so can result in serious injury.
- The bridle chain sling must be used flexibly, and it is strictly prohibited to compulsorily when individual connections are inflexible.
- Do not exceed WLL (working load limit) for bridle chain sling. Not approved overhead lifting.
- After use, please dry before storage to avoid rusting of bolts affecting use
- Procedures not specifically explained in this manual must be performed only a qualified technician.
To prevent serious injury from tool failure, do not use When it is damage
1) Please check the overall condition of the product before each use.
Does the opening of the hook widen?
Is the bridle chain deformed?
Whether there are cracks in all parts.
Before each use, check whether the bridle chain works properly before actual. If the bridle chain doesn't work properly, please follow the inspection instruction, see if the problem occurs.
2) To prevent serious injury, be carefully when troubleshooting the faulty bridle chain, solve all problems before use. If the solution provided in the troubleshooting guide cannot be solved problem, please ask qualified technician to check the bridle chain before use.
3) Make sure that the bridle chain is safe enough to continue to use it. The bridle chain can bring you convenience at work.
CAUTION:
-
Carefully read instructions and procedures for safe operations.
-
Carefully INSPECTIONS:
1) Before each use: Each time the bridle chain is used, a visual inspection should be carried out to determine whether there are abnormal conditions, such as cracking, bending, deformation, etc.
2) After each use: After each use, if the bridle chain is strained abnormally, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.
Suggestions for Safe Use of The Bridle Chain
- Do not knot the chain when using the bridle chain.
- When using the bridle chain, make sure that the bridle chain is straight with folding and twisting.
- Due to the shipping(handing) or transportation, the bridle chain may have knots at the connection between the ring and the hook. Please smooth before use.
- NO one is allowed to stand below when hoisting goods by bridle chain.
- When using the bridle chain, please confirm whether the goods can be lift with the chain and whether the hardness of the chain will damage your
Save This Manual
MODEL AND PARAMETERS
NOTE: Please match your purchase.
| Model | RTJ5/16*6FT-A1 | RTJ5/16*6FT-A2 |
| Working Load Limi | 5400lbs (G80) | 5400lbs (G80) |
| Chain Size | 8mm(5/16inch) | 8mm(5/16inch) |
| Chain Length | 6ft(180cm) | 6ft(180cm) |
| Material | Alloy Steel | Alloy Steel |
| Package Content | Bridle Chain*1+Shackle*1+User Manual*1 | Bridle Chain*2+Shackle*1+User Manual*1 |
| Model | TJ5/16*10FT-A3 | RTJ5/16*2FT-A3 |
| Working Load Limi | 5400lbs (G80) | Double chain: 10800lbs (G80) |
| Chain Size | 8mm(5/16inch) | 8mm(5/16inch) |
| Chain Length | 10ft(300cm) | 2ft(60cm) |
| Material | Alloy Steel | Alloy Steel |
| Package Content | Bridle Chain*2+Shackle*1 +User Manual*1 | Bridle Chain*1+Shackle*1 +User Manual*1 |
| Model | TJ5/16*2FT-A2 | TJ5/16*2FT-A1 |
| Working Load Limi | Double chain: 10800lbs (G80) | Double chain: 10800lbs (G80) |
| Chain Size | 8mm(5/16inch) | 8mm(5/16inch) |
| Chain Length | 2ft(60cm) | 2ft(60cm) |
| Material | Alloy Steel | Alloy Steel |
| Package Content | Bridle Chain*1+Shackle*1 +User Manual*1 | Bridle Chain*1+Shackle*1 +User Manual*1 |
| Model | RTJ5/16*3FT-A1 | RTJ5/16*3FT-A2 |
| Working Load Limi | Double chain: 10800lbs (G80) | Double chain: 10800lbs (G80) |
| Chain Size | 8mm(5/16inch) | 8mm(5/16inch) |
| Chain Length | 3ft(90cm) | 3ft(90cm) |
| Material | Alloy Steel | Alloy Steel |
| Package Content | Bridle Chain*1+Shackle*1 +User Manual*1 | Bridle Chain*1+Shackle*1 +User Manual*1 |
| Model | RTJ3/8*2FT-A1 | RTJ3/8*3FT-A1 |
| Working Load Limi | Double chain: 15600lbs (G80) | Double chain: 15600lbs (G80) |
| Chain Size | 10mm(3/8inch) | 10mm(3/8inch) |
| Chain Length | 2ft(60cm) | 3ft(90cm) |
| Material | Alloy Steel | Alloy Steel |
| Package Content | Bridle Chain*1+Shackle*1 +User Manual*1 | Bridle Chain*1+Shackle*1 +User Manual*1 |

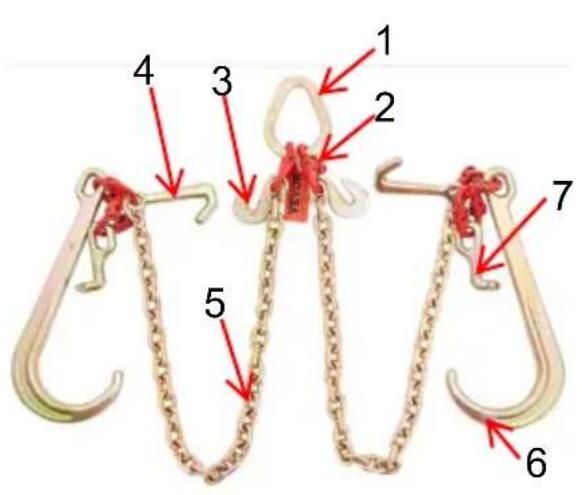

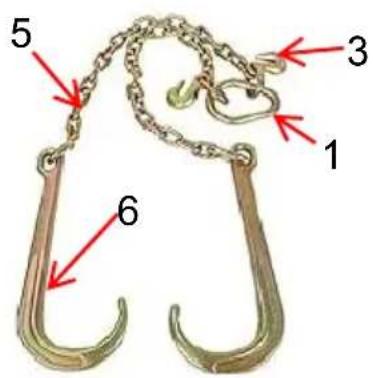

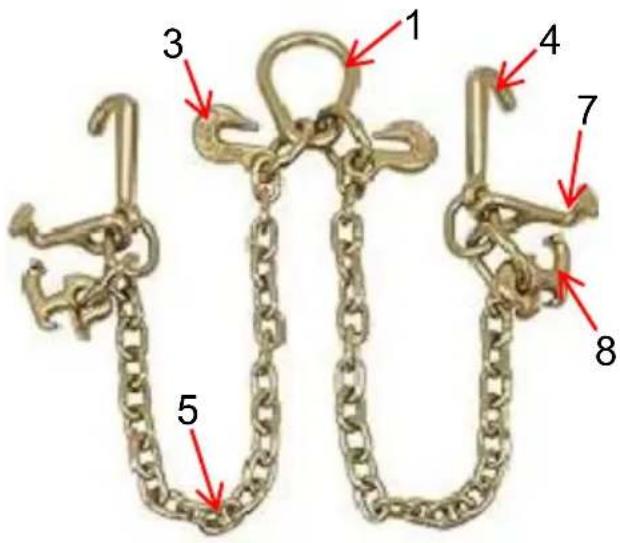

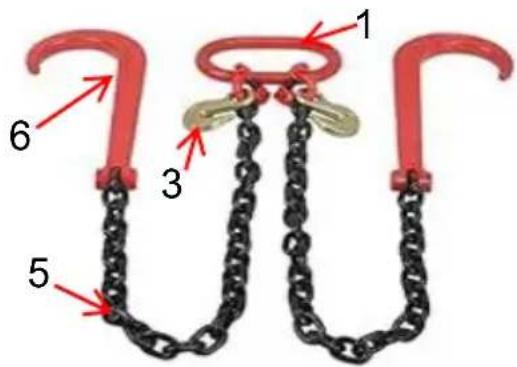

STRUCTURE DIAGRAM
- Chain 6. Large J-hook 7. T-hook 8. R-hook
NOTE: The shown is for illustration purposes only. Please refer to your purchase!
INSTRUCTIONS
T-Hook: Rectangular hole for hooking the chassis of the vehicle (for GM/Chry vehicles)
J-Hook: Small hole for hooking the vehicle chassis (for Honda/Toyota etc.) Large J-Hook: The Large J-Hook connects to the clean (upper-carriage) side the vehicle. Secure the J-Hook safely to the vehicle's Axel.
Grab Hooks: They are designed to adjust the length of the legs! Grab Hook safely hook and secure any slack in your chain after adjustments. They can shorten chain length for the perfect vehicle.

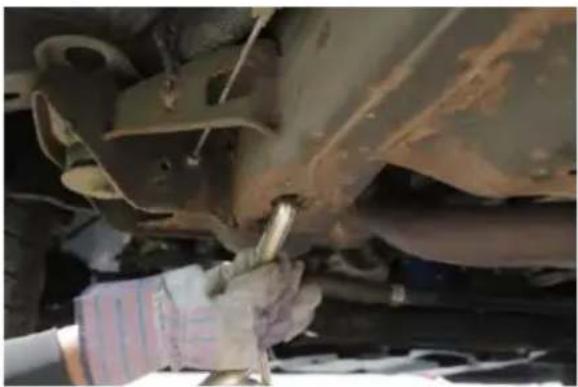

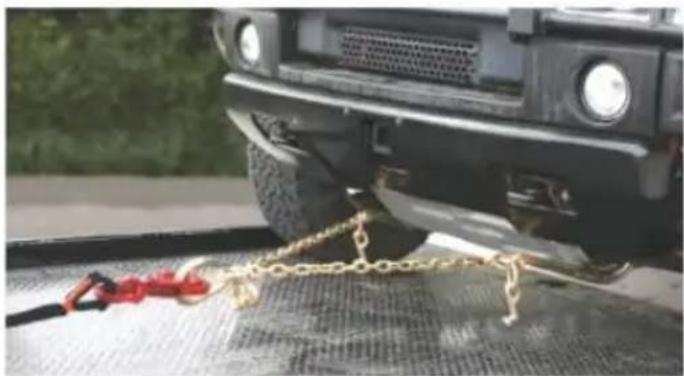

How to use thedle chain Attach Your Hooks Properly!
- Cluster hooks like our J-Hook, T-J Hooks, and Grab Hooks are designed modern cars, and ensuring they're properly secured is vitally important for the safety of the vehicle and roadways!
- The master pear ring attaches easily to the winch cable, and our grab how make for easy adjustment on the chain length. Attach to vehicle Axel. Improp placed J-Hooks can damage and bend the aluminum in the front and rear bumpers.
- Do not exceed WLL (working load limit) .
● After use, please clean and dry the product and store it in a dry, ventilat place.
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia
Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Ma
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H
London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
BRIDLE CHAIN
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
AVERTISSEMENT:
Close-up of a car undercarriage with a hand holding a tool, no visible text or symbols
Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Ma
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H
London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
BRIDLE CHAIN
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
WARNUNG:
Close-up of a car undercarriage with a hand holding a tool, no visible text or symbols
C/O YH Consulting Limited Office 147, Centurion H
London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
BRIDLE CHAIN
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
AVVERTIMENTO:
Close-up of a car undercarriage with hands adjusting the vehicle's seat (no visible text or symbols)
Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia
C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 2
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
BRIDLE CHAIN
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
ADVERTENCIA:
C/O YH Consulting Limited Office 147, Centurion H
London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
BRIDLE CHAIN
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SAFETY INSTRUCTIONS
OSTRZEŻENIE:
Close-up of a car undercarriage with a hand using a tool to adjust the vehicle (no visible text or symbols)
Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Import do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Ma
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H
London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support
HOOFDKETTING
Model: RTJ5/16*6FT-A1 ; RTJ5/16*6FT-A2 ; TJ5/16*10FT-A3;
RTJ5/16*2FT-A3; TJ5/16*2FT-A2 ; TJ5/16*2FT-A1;
RTJ5/16*3FT-A1; RTJ5/16*3FT-A2; RTJ3/8*2FT-A1;
RTJ3/8*3FT-A1
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
BRIDLE CHAIN
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
WAARSCHUWING:


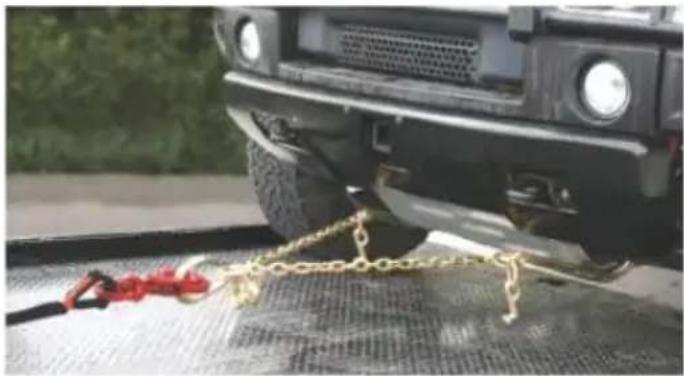

Anaheim Place, Rancho Cucamonga, CA 91730
| EC | REP |
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Ma
| UK | REP |
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H
London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE
BRIDLE CHAIN
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
WARNING:
Close-up of a person in gloves working on a vehicle undercarriage (no visible text or symbols)
C/O YH Consulting Limited Office 147, Centurion H
London Road, Staines-upon-Thames, Surrey, TW18 4
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
