RTJ5/16*2FT-A3 - Chain Vevor - Free user manual and instructions

Product Type	Bridle chain / towing sling
Brand	Vevor
Model	RTJ5/16*2FT-A3
Chain size	8 mm (5/16 inches)
Chain length	60 cm (2 feet)
Working load limit (WLL)	4899 kg (10800 lb) (G80) in double chain configuration
Material	Alloy steel grade 80 (G80)
Box contents	1 chain bridle, 1 shackle
Primary use	Towing and securing vehicles on axle or chassis
Compatible hook types	R hook (Ford), T hook (GM/Chrysler), J hook (Honda/Toyota), large J hook (axle)
Adjustment function	Holding hooks to adjust strand length
Safety	Do not exceed WLL; visual inspection before each use; do not stand under the load
Maintenance	Clean and dry after use; store in a dry, ventilated place
Standard	Grade 80 (G80)
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Technical support	www.vevor.com/support

Frequently Asked Questions - RTJ5/16*2FT-A3 Vevor

What is the maximum load of this chain?

The working load limit (WLL) for model RTJ5/16*2FT-A3 is 4899 kg (10800 lb) in double chain configuration (grade G80). Never exceed this load.

How to install the hooks correctly?

Attach the hooks according to your vehicle type: R hook for Ford, T hook for GM/Chrysler, J hook for Honda/Toyota, and large J hook for the axle. Ensure they are securely fastened to avoid damage.

Can I use this chain for overhead lifting?

No, this bridle chain is not approved for overhead lifting. It is designed only for towing and securing vehicles on the ground.

How to maintain my bridle chain?

After each use, clean and dry the chain to prevent rust. Store it in a dry, ventilated place. Visually inspect it before each use for cracks, deformation, or wear.

What to do if the chain is twisted or damaged?

If the chain has knots, twists, cracks, or deformation, do not use it. Consult the troubleshooting guide or have it checked by a qualified technician before use.

Can I tie a knot in the chain to shorten the length?

No, it is strictly forbidden to tie a knot in the chain. Use the holding hooks to adjust the strand length safely.

What types of hooks are included with this model?

The model RTJ5/16*2FT-A3 comes with one chain bridle and one shackle. The hooks (R, T, J, large J) are not included; they are compatible with the chain but must be purchased separately based on your vehicle.

Is this chain suitable for all vehicles?

Yes, thanks to the different compatible hook types (R, T, J, large J), it can adapt to most vehicles. Make sure to choose the appropriate hook for your model.

How to store the chain after use?

After use, clean and dry the chain, then store it in a dry, ventilated place, away from moisture to prevent corrosion.

Where to find after-sales service?

For technical assistance or warranty claims, visit the website www.vevor.com/support or contact the manufacturer at the address indicated in the manual.

USER MANUAL RTJ5/16*2FT-A3 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BRIDLE CHAIN

Model: RTJ5/16*6FT-A1; RTJ5/16*6FT-A2; TJ5/16*10FT-A3;

RTJ5/16*2FT-A3; TJ5/16*2FT-A2; TJ5/16*2FT-A1;

RTJ5/16*3FT-A1; RTJ5/16*3FT-A2; RTJ3/8*2FT-A1;

RTJ3/8*3FT-A1

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BRIDLE CHAIN

NOTE: The shown is for illustration purposes only. Please refer to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

WARNING:

1. Read this material before using this product. Failure to do so can result in serious injury.
2. The bridle chain sling must be used flexibly, and it is strictly prohibited to force it when individual connections are inflexible.
3. Do not exceed the WLL (working load limit) for the bridle chain sling. Not approved for overhead lifting.
4. After use, dry before storage to avoid rusting of bolts affecting use.
5. Procedures not specifically explained in this manual must be performed only by a qualified technician.

To prevent serious injury from tool failure, do not use when damaged.

1) Check the overall condition of the product before each use.

Does the opening of the hook widen?

Is the bridle chain deformed?

Are there cracks in all parts?

Before each use, check whether the bridle chain works properly before actual use. If the bridle chain doesn't work properly, follow the inspection instructions to see if the problem occurs.

2) To prevent serious injury, be careful when troubleshooting the faulty bridle chain. Solve all problems before use. If the solution provided in the troubleshooting guide cannot solve the problem, ask a qualified technician to check the bridle chain before use.

3) Make sure that the bridle chain is safe enough to continue using it. The bridle chain can bring you convenience at work.

CAUTION:

1. Carefully read instructions and procedures for safe operations.
2. Carefully INSPECTIONS:

1) Before each use: Each time the bridle chain is used, a visual inspection should be carried out to determine whether there are abnormal conditions, such as cracking, bending, deformation, etc.

2) After each use: After each use, if the bridle chain is strained abnormally, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.

Suggestions for Safe Use of The Bridle Chain

• Do not knot the chain when using the bridle chain.
• When using the bridle chain, make sure that the bridle chain is straight with folding and twisting.
• Due to the shipping(handing) or transportation, the bridle chain may have knots at the connection between the ring and the hook. Please smooth before use.
• NO one is allowed to stand below when hoisting goods by bridle chain.
• When using the bridle chain, please confirm whether the goods can be lift with the chain and whether the hardness of the chain will damage your

Save This Manual

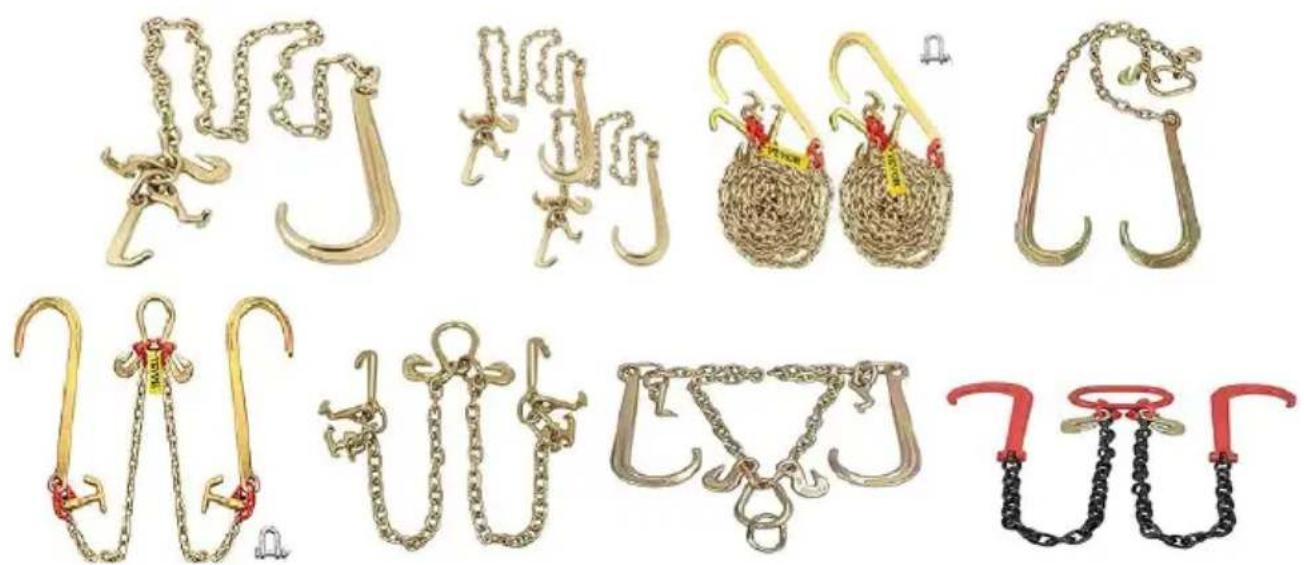

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	RTJ5/16*6FT-A1	RTJ5/16*6FT-A2
Working Load Limi	5400lbs (G80)	5400lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	6ft(180cm)	6ft(180cm)
Material	Alloy Steel	Alloy Steel
Package Content	Bridle Chain*1+Shackle*1+User Manual*1	Bridle Chain*2+Shackle*1+User Manual*1

Model	TJ5/16*10FT-A3	RTJ5/16*2FT-A3
Working Load Limi	5400lbs (G80)	Double chain: 10800lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	10ft(300cm)	2ft(60cm)
Material	Alloy Steel	Alloy Steel
Package Content	Bridle Chain*2+Shackle*1 +User Manual*1	Bridle Chain*1+Shackle*1 +User Manual*1
Model	TJ5/16*2FT-A2	TJ5/16*2FT-A1
Working Load Limi	Double chain: 10800lbs (G80)	Double chain: 10800lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	2ft(60cm)	2ft(60cm)
Material	Alloy Steel	Alloy Steel
Package Content	Bridle Chain*1+Shackle*1 +User Manual*1	Bridle Chain*1+Shackle*1 +User Manual*1

Model	RTJ5/16*3FT-A1	RTJ5/16*3FT-A2
Working Load Limi	Double chain: 10800lbs (G80)	Double chain: 10800lbs (G80)
Chain Size	8mm(5/16inch)	8mm(5/16inch)
Chain Length	3ft(90cm)	3ft(90cm)
Material	Alloy Steel	Alloy Steel
Package Content	Bridle Chain*1+Shackle*1 +User Manual*1	Bridle Chain*1+Shackle*1 +User Manual*1

Model	RTJ3/8*2FT-A1	RTJ3/8*3FT-A1
Working Load Limi	Double chain: 15600lbs (G80)	Double chain: 15600lbs (G80)
Chain Size	10mm(3/8inch)	10mm(3/8inch)
Chain Length	2ft(60cm)	3ft(90cm)
Material	Alloy Steel	Alloy Steel
Package Content	Bridle Chain*1+Shackle*1 +User Manual*1	Bridle Chain*1+Shackle*1 +User Manual*1

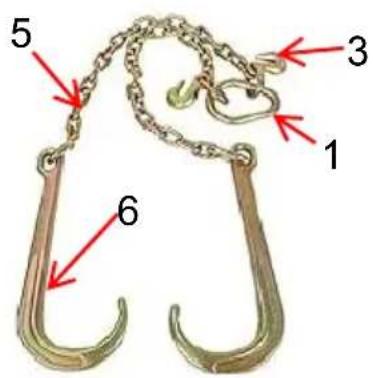

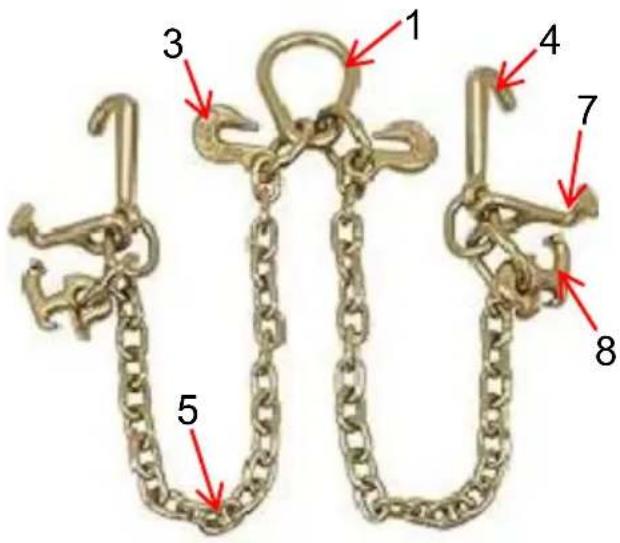

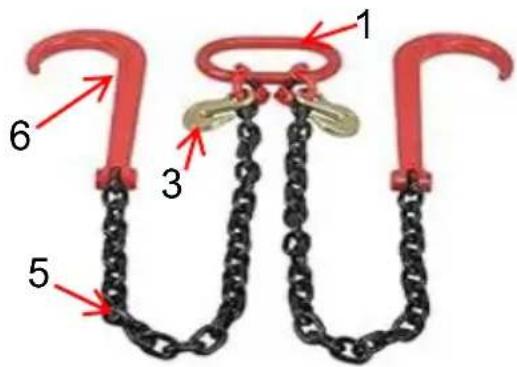

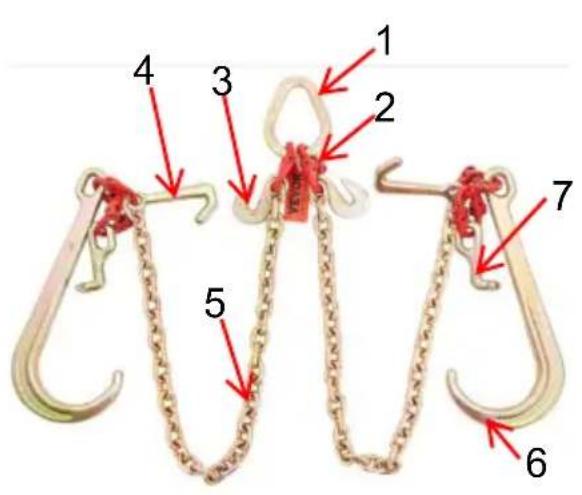

STRUCTURE DIAGRAM

1. Lifting Ring 2. Butterfly buckle 3. Grab Hooks 4. J-hook
2. Chain 6. Large J-hook 7. T-hook 8. R-hook

NOTE: The shown is for illustration purposes only. Please refer to your purchase!

INSTRUCTIONS

R-Hook: Small hole for hooking the chassis of the vehicle (for Ford vehicles)

T-Hook: Rectangular hole for hooking the chassis of the vehicle (for GM/Chry vehicles)

J-Hook: Small hole for hooking the vehicle chassis (for Honda/Toyota etc.) Large J-Hook: The Large J-Hook connects to the clean (upper-carriage) side the vehicle. Secure the J-Hook safely to the vehicle's Axel.

Grab Hooks: They are designed to adjust the length of the legs! Grab Hook safely hook and secure any slack in your chain after adjustments. They can shorten chain length for the perfect vehicle.

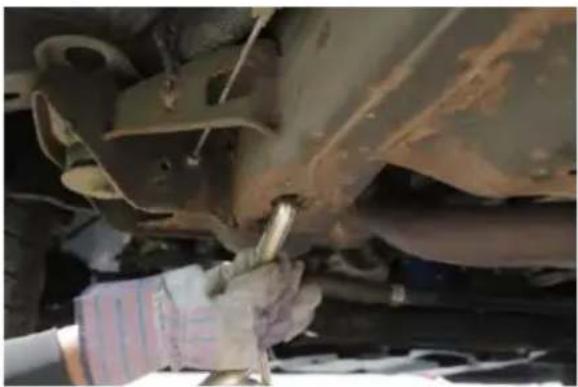

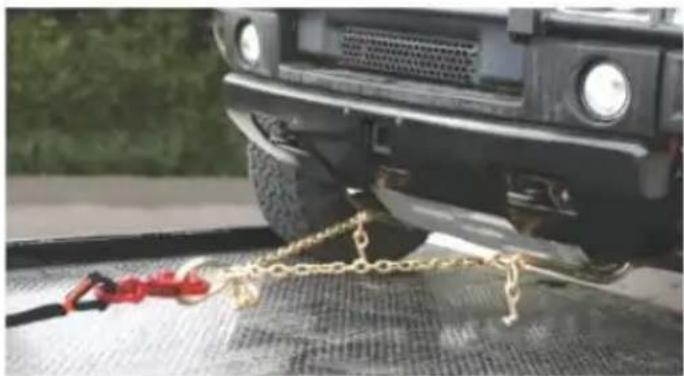

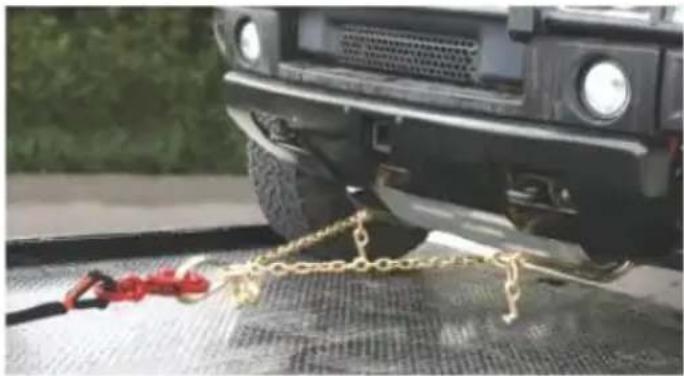

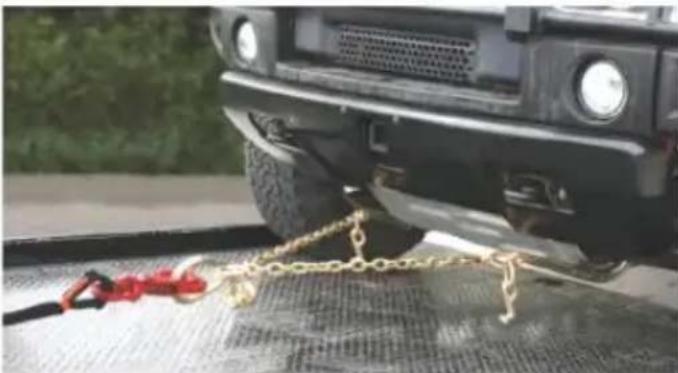

How to use the chain Attach Your Hooks Properly!

1. Cluster hooks like our J-Hook, T-J Hooks, and Grab Hooks are designed modern cars, and ensuring they're properly secured is vitally important for the safety of the vehicle and roadways!
2. The master pear ring attaches easily to the winch cable, and our grab how make for easy adjustment on the chain length. Attach to vehicle Axel. Improp placed J-Hooks can damage and bend the aluminum in the front and rear bumpers.

MAINTENANCE

• Do not exceed WLL (working load limit) . ● After use, please clean and dry the product and store it in a dry, ventilat place.
