FLOATING SHELF BRACKET
MODEL:FT-16-2 \ FT-22-2 \ FT-34-1 \ FT-43-1 \ FT-46-1
Technical Support and E-Warranty Certificate
www.vevor.com/support
MODEL:FT-16-2 \ FT-22-2 \ FT-34-1 \ FT-43-1 \ FT-46-1


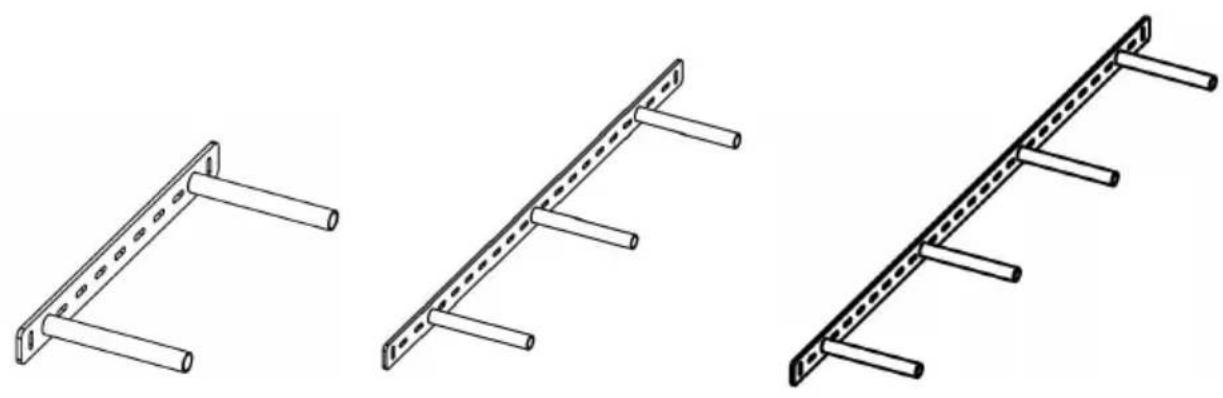

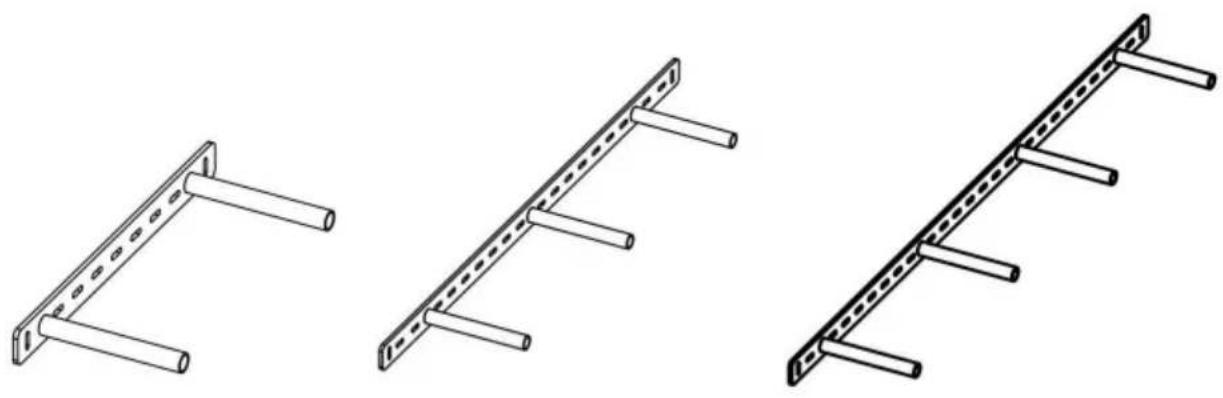

Three technical line drawings of metal bracket structures with no text or symbols(FT-16-2 \ FT-22-2) (FT-34-1) (FT-43-1 \ FT-46-1)
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
Warning-To reduce the risk of injury, user must instructions manual carefully.
Warnings
1.1 Shelf brackets must be correctly installed into studs or wall blocki. Failure to do so may result in sagging shelves, falling objects, or sen injury.
1.21 Every bracket weight class and length has been engineered for using with specific shelf capacities/dimensions. Failure to follow our specified capacity ratings and correct shelf dimensions may result in sagging shelves, falling objects, or serious injury.
| Part List | ||||||
| Code | Picture | Qty. | ||||
| FT-16-2 | FT-22-2 | FT-34-1 | FT-43-1 | FT-46-1 | ||
| 1 |  | 2 | 2 | - | - | - |
| 2 |  | - | - | 1 | - | - |
| 3 |  | - | - | - | 1 | 1 |
| 4 |  | 16 | 16 | 10 | 14 | 14 |
| 5 |  | 16 | 16 | 10 | 14 | 14 |
| 6 | [BY2H]ST4.5*50mm | 16 | 16 | 10 | 14 | 14 |
| 7 |  ST4*30mm | 6 | 6 | 8 | 10 | 10 |
| 8 |  | 1 | 1 | 1 | 1 | 1 |
| 9 |  | 1 | 1 | 1 | 1 | 1 |
| 10 |  | 1 | 1 | 1 | 1 | 1 |
| 11 |  | 1 | 1 | 1 | 1 | 1 |
| 12 |  | 1 | 1 | 1 | 1 | 1 |
Required Tools
 Drill |  Level |
 Measuring Tape |  Phillips-head Screwdriver |
Product Installation
(Take the FT-34-1 for example.)


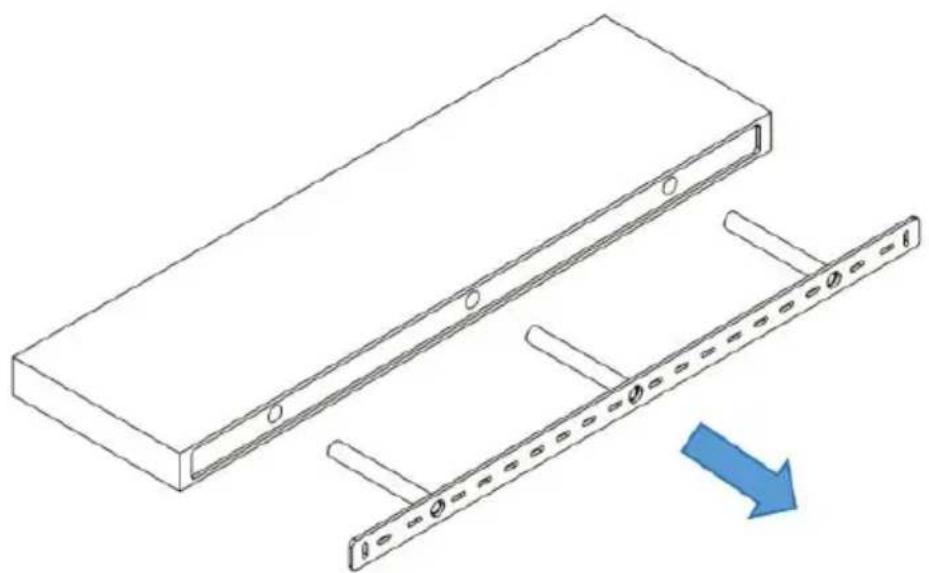

Technical line drawing of a rectangular panel with mounting holes and a diagonal metal strip, showing a blue arrow indicating direction (no text or symbols)Step 1: After pairing the shelf, remove the bracket.


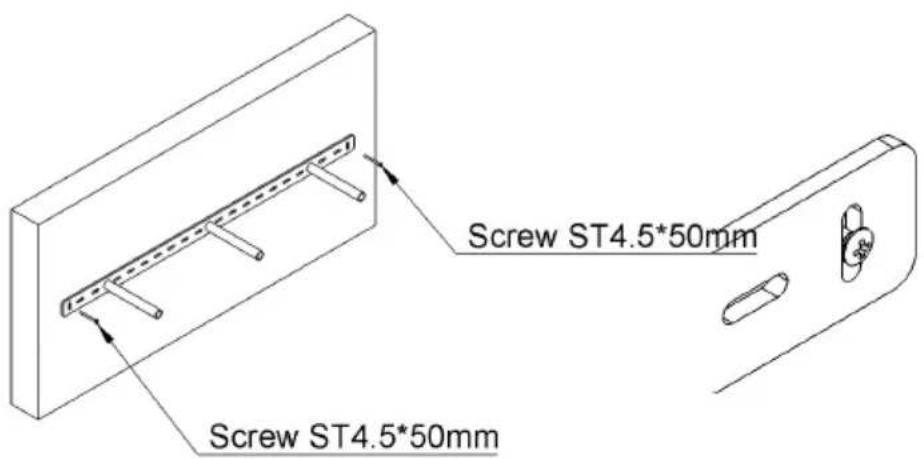

Screw ST4.5*50mm Screw ST4.5*50mmStep 2: Position the bracket preliminarily with screws.


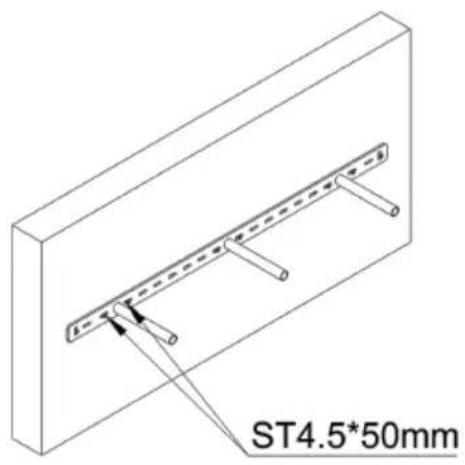

ST4.5*50mmStep 4: Install remaining screws.
Note: Install the screws in the holes on both sides of the rod bracket load will be better.
How to use accessories
| 1 |  | For cement walls. |
| 2 |  | For drywall. |
Using Shims With Your Bracket
 | If your wall is not straight, use shims to en bracket is installed straight across the wall and square to the wall. The shelf slab and will properly mate only if the bracket is strai plum. |
 | If your bracket continues to sag after correct use wood shims underneath the backbar to front to back level. |
Manufacturer: Shanghaimuxinmuyeyouxiangongsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
| UK | REP |
YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A)
| EC | REP |
Technical Support and E-Warranty Certificate
www.vevor.com/support
