FILE WALL RACK

Black rectangular electronic device with a flat top and side panel (no visible text or symbols)

JLW001

3D rendering of a multi-tiered cabinet or shelf unit (no text or symbols visible)

JLW009

3D rendered image of a folded paper or envelope with visible internal striations (no text or symbols)

JLW018

3D wireframe illustration of a multi-tiered document or folder structure (no text or symbols visible)

JLW019

3D wireframe model of a multi-tiered document or folder structure (no text or symbols visible)

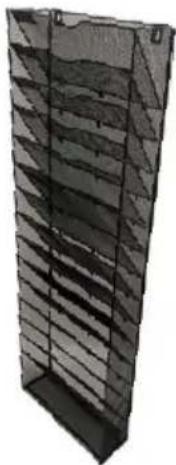

JLW020

3D rendered image of a tall, multi-tiered vertical structure with horizontal slats (no text or symbols visible)

JLW021

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

	Model	Total number of pieces	PARTS LIST
1	JLW001	3		---	Label Paper x3
2		6	2	2	Label Paper x6
3	JLW009	1			u_x5	Label Paper x5
4	JLW018	2			u_x10	Label Paper x10
5	JLW019	1			u_x5	Label Paper x5
6		2			u_x10	Label Paper x10
7	JLW020	1			u_x5	Label Paper x11
8	JLW021	1			u_x5	Label Paper x15

STEP 1

Simple line drawing of a pencil with a cross mark and a shaded tip, no text or symbols present

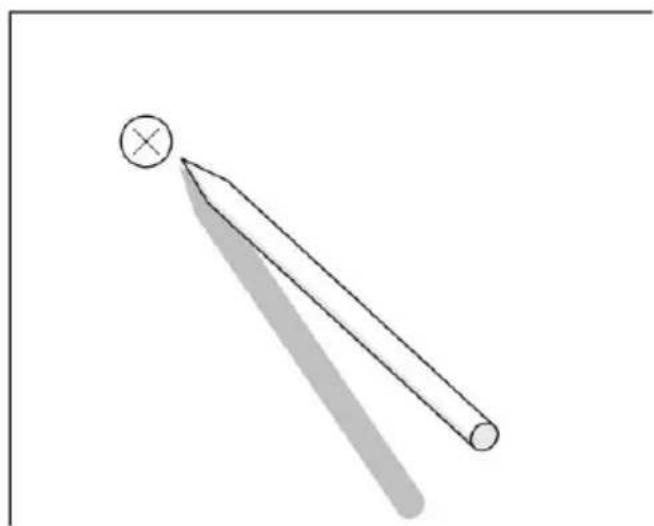

Mark on the wall according to the position of product hanging holes.

STEP 2

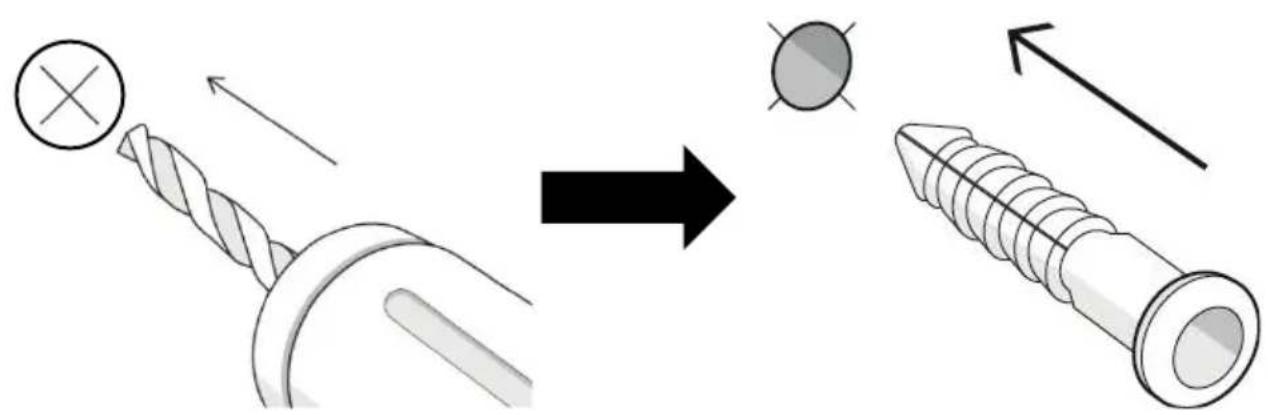

Diagram illustrating the process of screw thread application, showing a wire being inserted into a hole and then being added to a final screw.

Drill holes on the wall and install expansion s

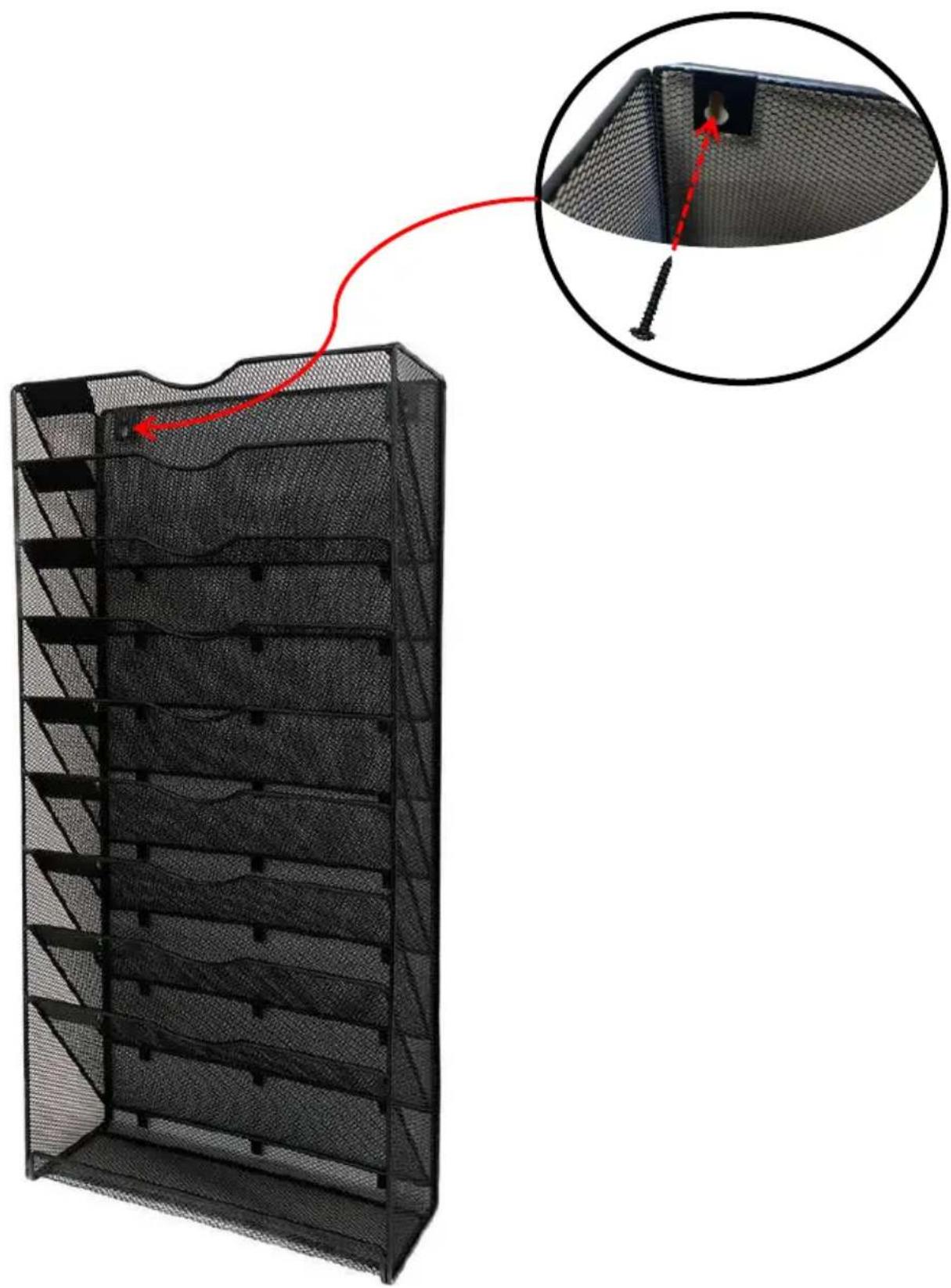

STEP 3

3D diagram of a black mesh storage unit with red arrows pointing to a magnified view of the component (no text or symbols)

PRODUCT PARAMETER

	Model	Single safe loading weight	Total number of pieces	Size of each piece
1	JLW001	3kg	3	350*80*220mm
2		3kg	6	350*80*220mm
3	JLW009	10kg	1	320*105*405mm
4	JLW018	10kg	2	320*105*405mm
5	JLW019	10kg	1	322*105*650mm
6		10kg	2	322*105*650mm
7	JLW020	12kg	1	105*320*773mm
8	JLW021	16kg	1	325*105*1020mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730
