JLW020 - Wall shelf Vevor - Free user manual and instructions

Product type	Wall-mounted file shelf
Brand	Vevor
Model	JLW020
Intended use	Storage and organization of files in an office or workshop
Main material	Steel
Color	Black (typical)
Number of pieces	1 wall shelf
Included accessories	5 label sheets (11 labels per sheet)
Mounting	Wall mounting with screws and anchors (not included)
Assembly instructions	User manual included with assembly diagram
Safety	Do not sit or stand on the shelf; do not exceed load capacity
Care and cleaning	Wipe with a damp cloth; do not use abrasive cleaners
Spare parts and repairability	Contact customer service for any damaged parts
Warranty	Electronic warranty via www.vevor.com/support
Technical support	Online support available on the Vevor website
Approval / Certifications	Not specified
Operating environment	Indoor only
Country of origin	China (Vevor brand)

Frequently Asked Questions - JLW020 Vevor

What is the maximum weight supported by the JLW020 wall shelf?

The manual does not specify the exact load capacity. It is recommended not to exceed a reasonable load (about 20-30 kg) and to follow safety instructions: do not sit or stand on the shelf.

How to install the Vevor JLW020 wall shelf?

The shelf is fixed to the wall using appropriate screws and anchors (not included). Follow the assembly diagram provided in the manual. Wear safety glasses and gloves during installation.

What accessories are included with the JLW020 model?

The product comes with 5 label sheets (11 labels per sheet) to identify files. The shelf itself is a one-piece assembly.

Is the wall shelf easy to clean?

Yes, clean it with a damp cloth and mild detergent. Avoid abrasive products that could scratch the surface.

Can I use this shelf to store heavy items other than files?

The shelf is designed for files. For other objects, make sure not to exceed the load capacity and distribute the weight evenly. Check the wall mount regularly.

How to get spare parts for the JLW020?

Contact customer service via www.vevor.com/support. They will inform you about the availability of spare parts.

Is warranty included?

Yes, an electronic warranty is available. Register your product on the Vevor website to activate the warranty.

What tools are needed for assembly?

You will need a drill, a bubble level, a screwdriver, and anchors/screws suitable for your wall. The manual provides a detailed diagram.

Can the shelf be mounted on any type of wall?

It is suitable for concrete, brick, or wood walls. For drywall, use appropriate anchors. Before installation, ensure the wall can support the weight.

What to do if the product is damaged upon receipt?

Contact Vevor customer service immediately via the support website. Provide photos of the damage for a replacement or refund.

USER MANUAL JLW020 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

FILE WALL RACK

USER MANUAL

JLW001

JLW009

JLW018

JLW019

JLW020

JLW021

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

FILE WALL RACK

Black rectangular electronic device with a flat top and side panel (no visible text or symbols)

JLW001

3D rendering of a multi-tiered cabinet or shelf unit (no text or symbols visible)

JLW009

3D rendered image of a folded paper or envelope with layered structure (no text or symbols visible)

JLW018

3D wireframe illustration of a multi-tiered document or folder structure (no text or symbols visible)

JLW019

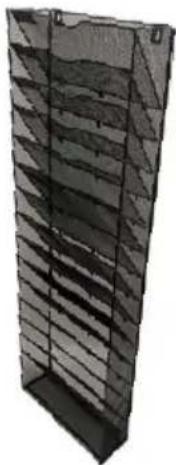

3D wireframe model of a multi-tiered document or folder structure (no text or symbols visible)

JLW020

3D rendered model of a tall, multi-tiered building with horizontal slats and a sloped roof (no text or symbols visible)

JLW021

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

WARNING:

Read this material before using this product. Failure to do so ca result in serious injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. The product capabilities apply to properly and completely assembled products only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unw and separate all parts in a clean work area.

Use precautions

1. DO NOT SIT OR STAND ON THIS ITEM.
2. This product is not a toy. Do not allow children to play with or item.
3. Do not exceed weight capacities.
4. Use as intended only.
5. Inspect before every use; do not use if parts are loose or damage

SAVE THIS MANUAL

PARTS LIST

	Model	Total number of pieces	PARTS LIST
1	JLW001	3		---	Label Paper x3
2		6	2	2	Label Paper x6
3	JLW009	1			x5	Label Paper x5
4	JLW018	2			x10	Label Paper x10
5	JLW019	1			x5	Label Paper x5
6		2			x10	Label Paper x10
7	JLW020	1			x5	Label Paper x11
8	JLW021	1			x5	Label Paper x15

STEP 1

Simple line drawing of a pencil with a cross mark and a blank circle, no text or symbols present

Mark on the wall according to the position of product hanging holes.

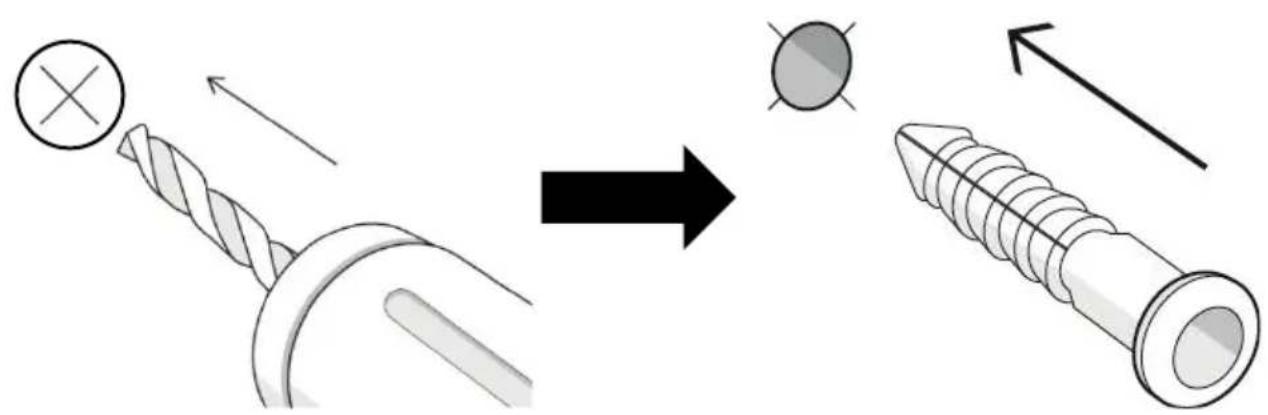

STEP 2

Drill holes on the wall and install expansion s

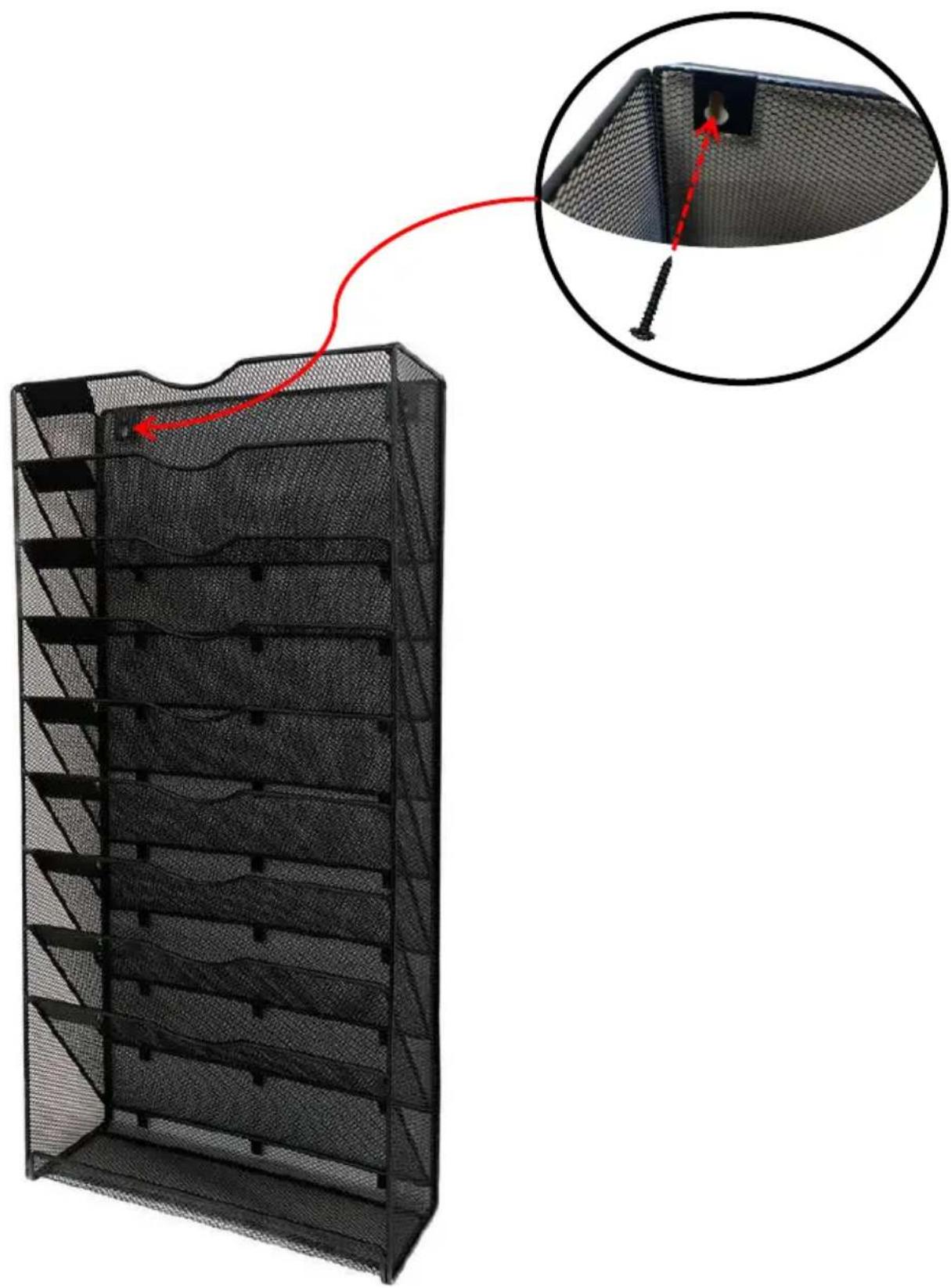

STEP 3

3D diagram of a black mesh storage unit with red arrows pointing to a magnified view of the component (no text or symbols)

PRODUCT PARAMETER

	Model	Single safe loading weight	Total number of pieces	Size of each piece
1	JLW001	3kg	3	350*80*220mm
2		3kg	6	350*80*220mm
3	JLW009	10kg	1	320*105*405mm
4	JLW018	10kg	2	320*105*405mm
5	JLW019	10kg	1	322*105*650mm
6		10kg	2	322*105*650mm
7	JLW020	12kg	1	105*320*773mm
8	JLW021	16kg	1	325*105*1020mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
