USER MANUAL GT-SY50-4 Vevor

TechnicalSupportandE-WarrantyCertificatewww.vevor.com/support

OFFICEWORKBENCH USERMANUAL

MODEL:GT-SY50-4

Wecontinuetobecommittedtoprovideyoutoolswithcompetitiveprice. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major topbrandsanddoesnotnecessarilymeantocoverallcategoriesoftoolsofferedbyus.You arekindlyremindedtoverifycarefullywhenyouareplacinganorderwithusifyouare actuallysavinghalfincomparisonwiththetopmajorbrands .

VEVOR®

TOUGH TOOLS, HALF PRICE

OFFICEWORKBENCH

MODEL:GT-SY50-4

Line drawing of a simple office chair with a flat top and four legs (no text or symbols)

NEEDHELP?CONTACTUS!

Haveproductquestions?Needtechnicalsupport?Pleasefeelfreeto

contactus:

Technical Support and E-Warranty Certificate

www.vevor.com/support

Thisistheoriginalinstruction, pleasereadallmanualinstructions carefullybeforeoperating.VEVORreservesaclearinterpretationofour usermanual.Theappearanceoftheproductshallbesubjecttothe productyoureceived.Pleaseforgiveusthatwewon'tinformyouagainif thereareanytechnologyorsoftwareupdatesonourproduct.

WARNING:

Readthismaterialbeforeusingthisproduct.Failuretodosocan resultinserious injury.

Assemblyprecautions

1. Assembleonlyaccordingtotheseinstructions.Improperassemblycan createhazards.
2. WearANSI-approved safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly are aclean and well-lit.
4. Keep bystanders out of the areaduring assembly.
5. Donotassemblewhentiredorwhenundertheinfluenceofalcohol, drugsormedication.
6. The product capabilities apply to properly and completely assembled product only.
7. Assembleonaflat, level, hardandsmoothsurfacecapable of safely supporting the Office Workbench.
8. For additional information regarding the parts listed in the following pages, pleaserefertotheAssemblyDiagramofthismanual.Unwrap and separate all parts in a clean work area.

Use precautions

1. DONOTSITORSTANDONTHISITEM.
2. Thisproductisnotatoy.Donotallowch ildrentoplaywithornearthis item.
3. Donotexceedweightcapacities.
4. Useonlyonaflat, level, hardandsmoothsurfacecapableofsafely supportingafullyloadedOfficeWorkbench.
5. Useasintendedonly.
6. Inspectbeforeeveryuse; donotuseifpartsarelooseordamaged.

SAVETHISMANUAL

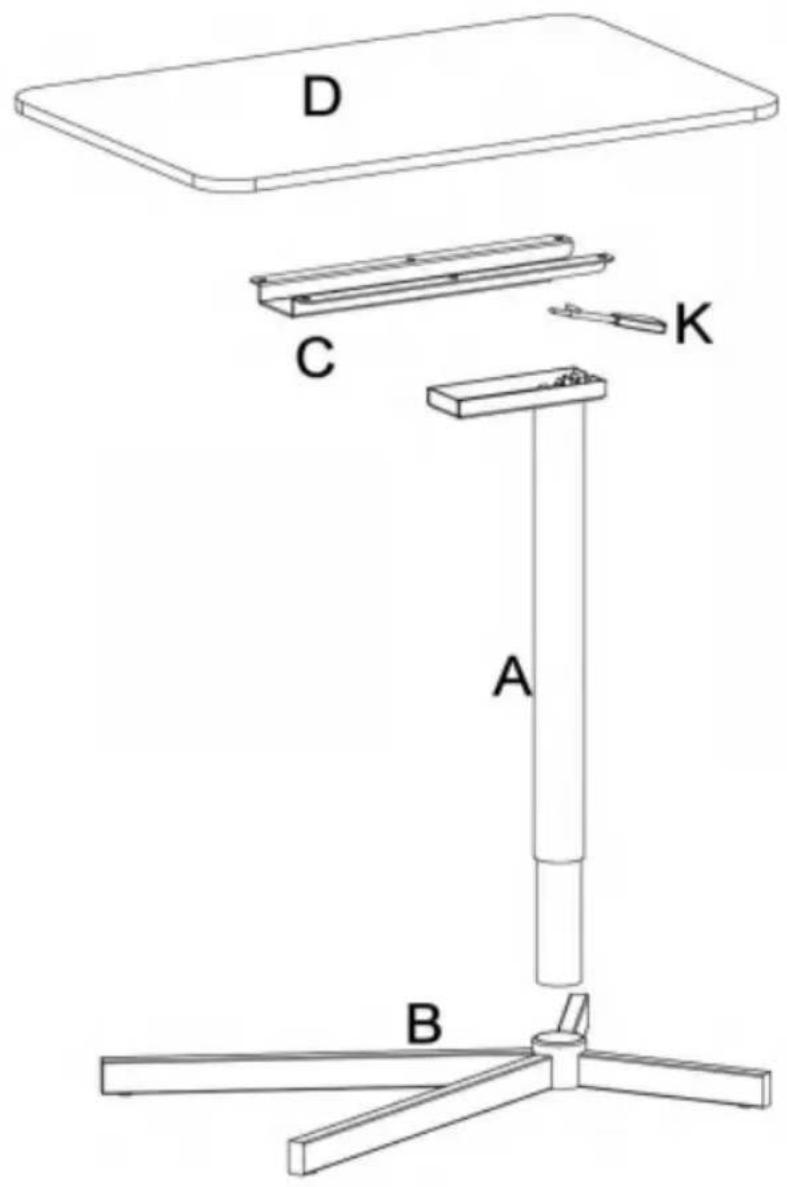

PARTSLIST

D C K A B

	F x10	M6X12mm		Gx4	M6x25mm
[HW68]	Ix4	M6		Hx1
	Jx1			Kx1
	Lx2			Mx2

ASSEMBLYSTEP

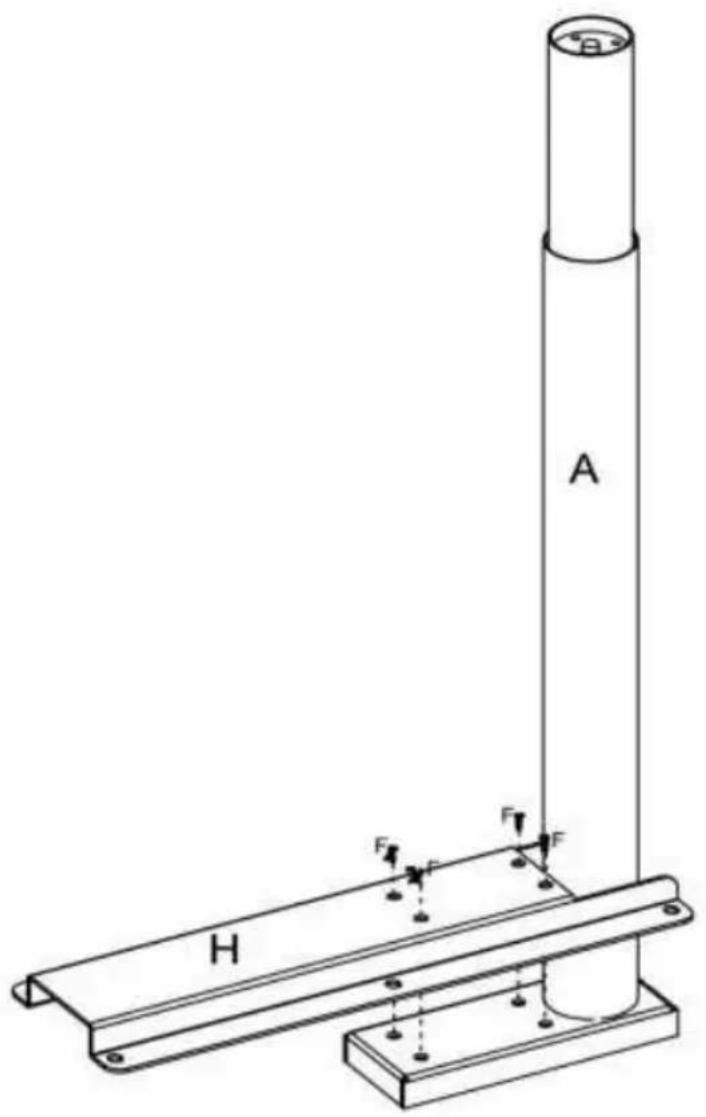

STEP 1

A H F₁ F₂ F₃ F₄

Cx1

Ax1

Fx4

Hx1

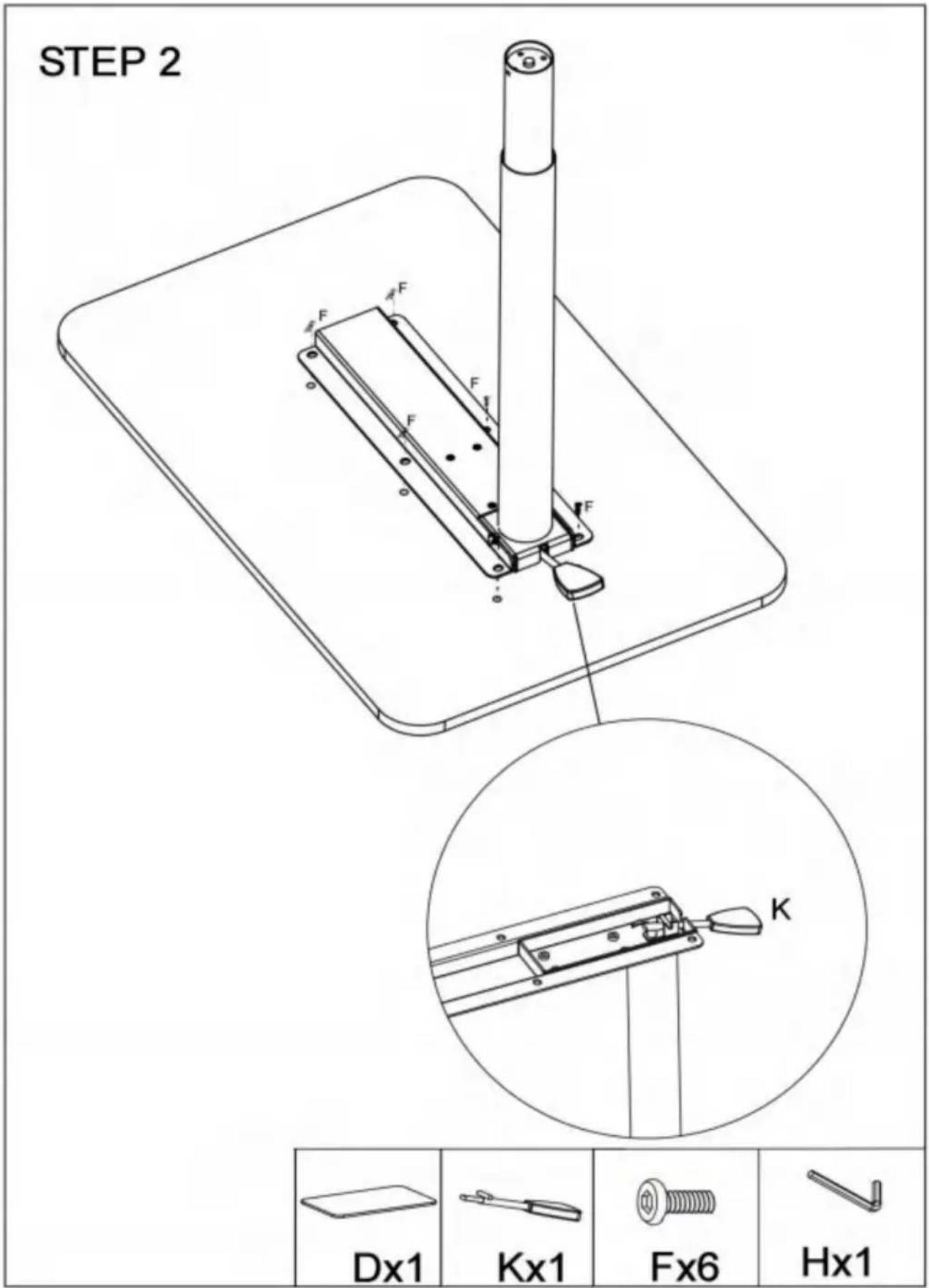

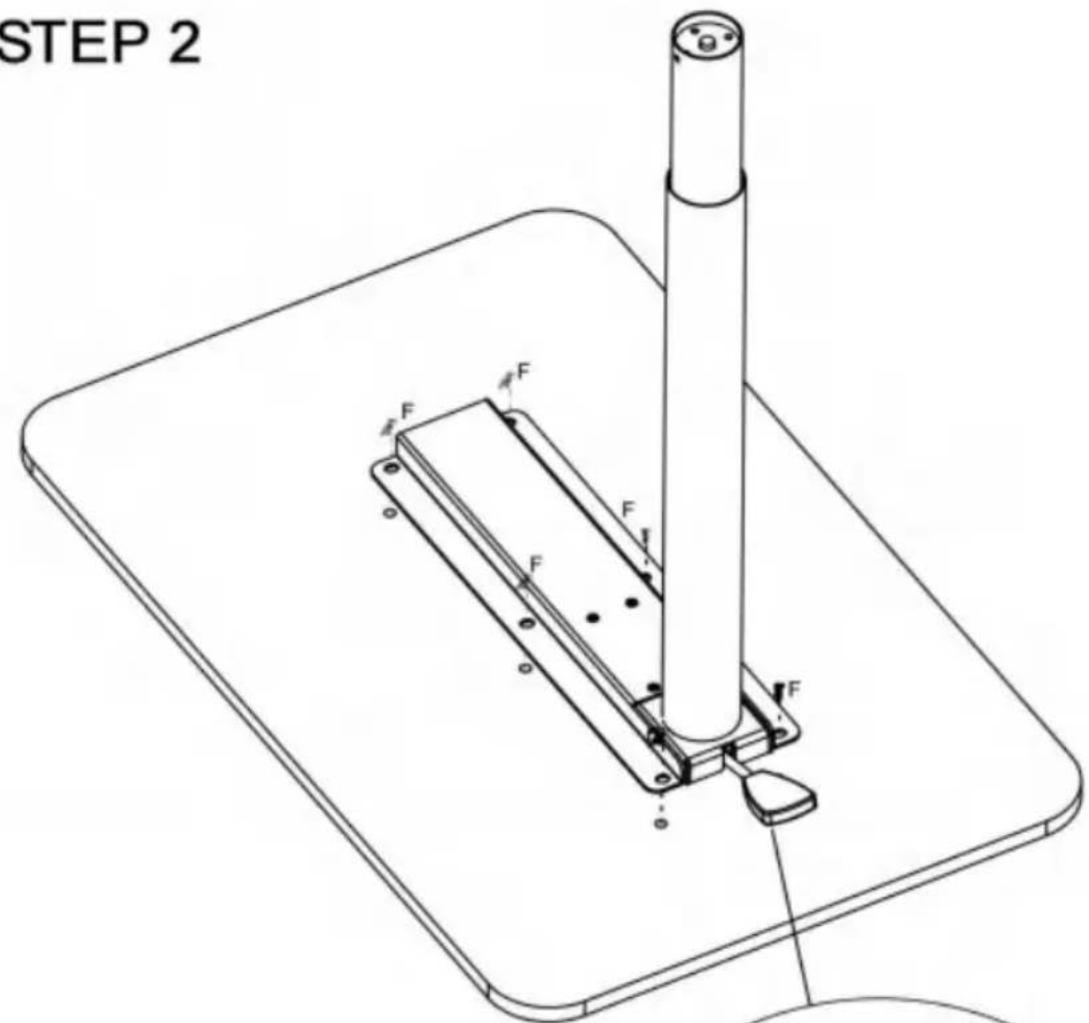

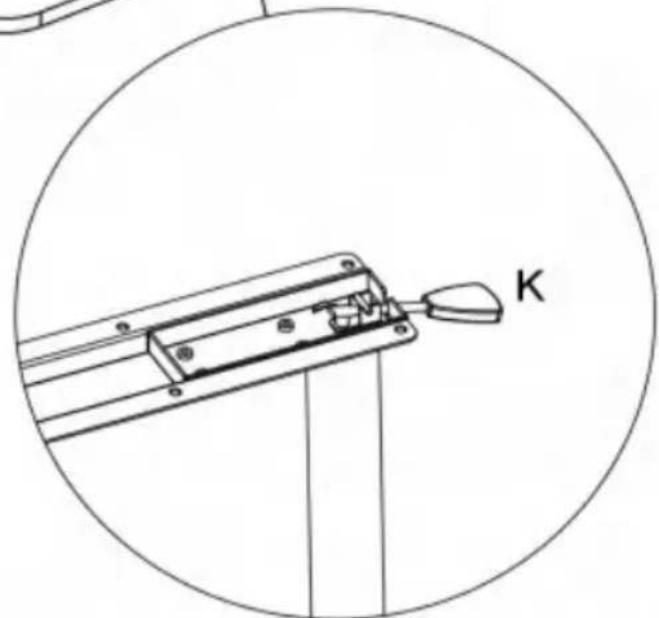

STEP 2

Technical line drawing of a mechanical component with labeled part 'K' (no text or symbols beyond label)

Dx1	Kx1	Fx6	Hx1

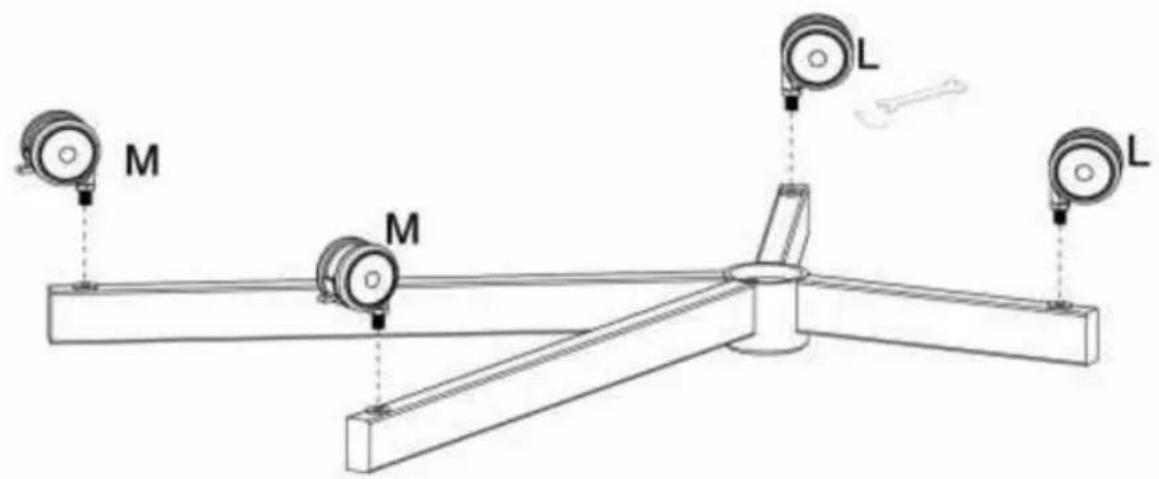

STEP 3

M M L L

Bx1

Mx2

Lx2

Jx1

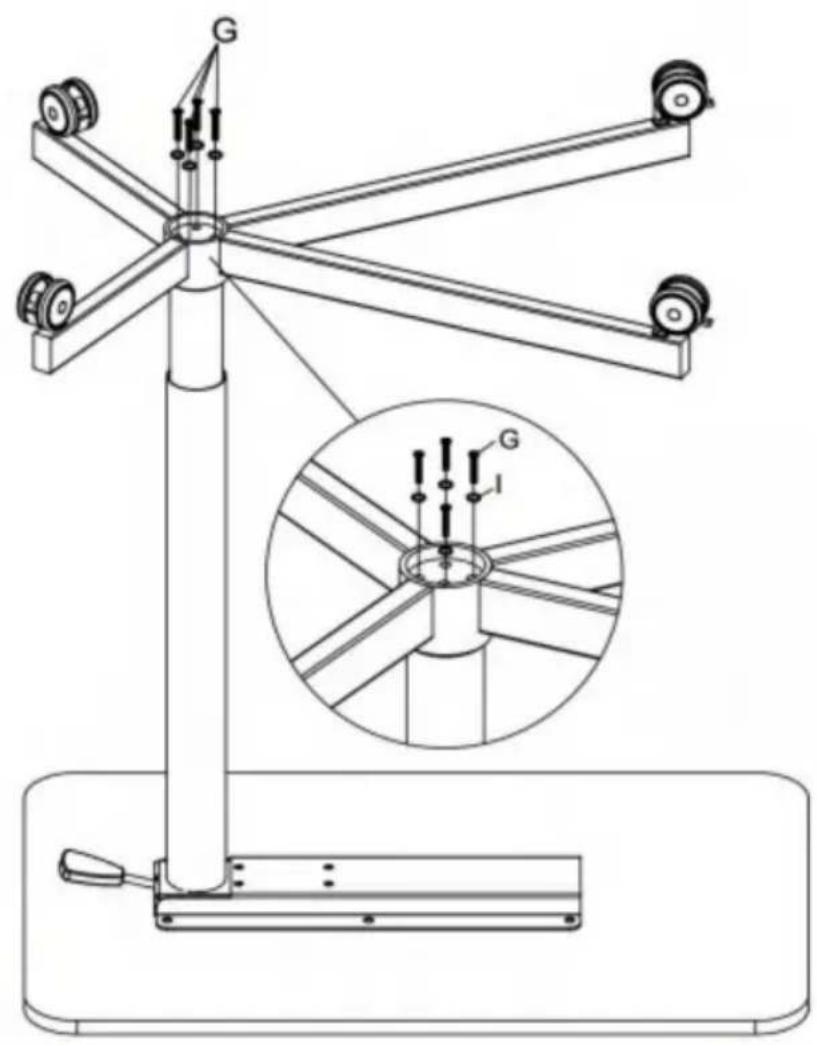

STEP 4

Technical line drawing of a mechanical device with labeled components and an inset showing a magnified view of a fan or wheel assembly (no text or symbols present)

Gx4

Ix4

Hx1

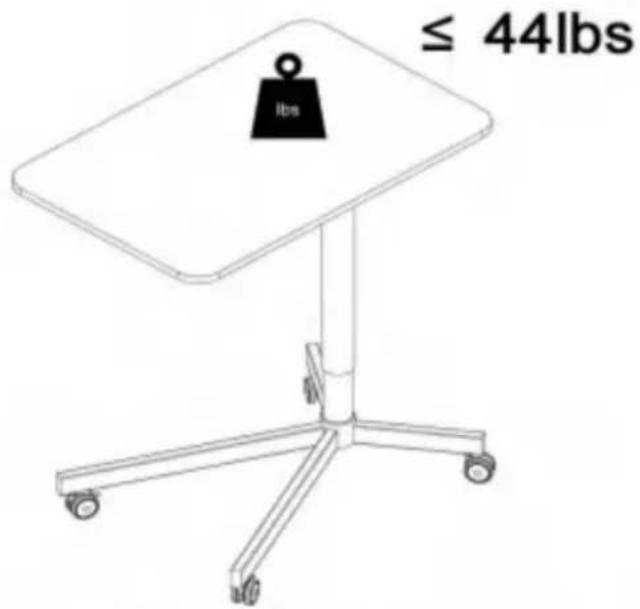

≤ 44lbs lbs

Attention: it is recommended not to exceed a maximum of 44lbs on desk top to allow for easy lifting.

Line drawing of a multi-tiered medical or laboratory stand with wheels and a vertical pole, showing structural components (no text or symbols)

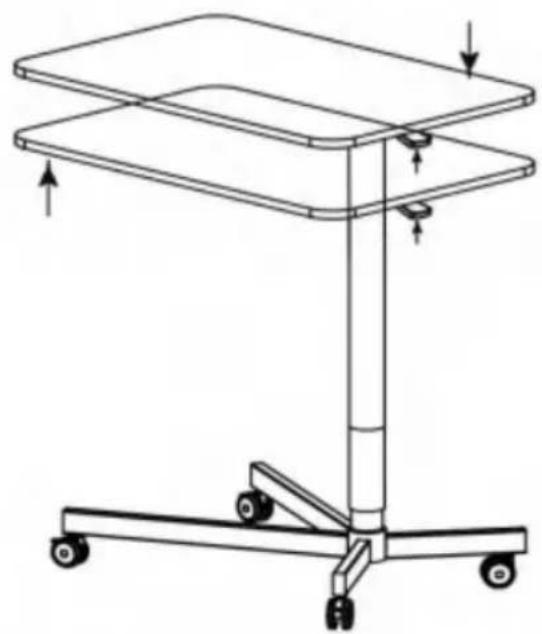

Lift the paddle for lifting the table top.

Lift the paddle and press the table top for downward operation.

PRODUCT PARAMETER

Model GT-SY50-4
Safe Loading Weight 44 lbs
Product Size 740*480*718~1132	mm
Net Weight 11.45 kg

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPE

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Frankfurt am Main.

REPU

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
