LST25JLYX - Hydraulic tank Vevor - Free user manual and instructions

Product Type	Hydraulic Tank
Brand	Vevor
Model	LST25JLYX / LST10JLYX
Tank Material	High-strength cold-rolled steel plate, black powder coating and internal phosphate
Approximate Capacity	25 L (LST25JLYX) or 10 L (LST10JLYX)
Filling/Inlet Port	1½ NPT
Drain/Outlet Port	¾ NPT (2 ports)
Oil Level Indicator	Integrated oil level temperature gauge
Breather/Respirator	With impurity filtering and leak-proof cover
Return Oil Filter	High flow, fast and stable
Mounting Brackets	Included, allows installation and placement
Applications	Hydraulic systems, tractors, heavy trucks, oil storage and supply
Maintenance and Cleaning	Regularly check oil level, clean breather, drain according to usage frequency
Safety	Flammable product, avoid ignition sources, use in ventilated area, wear PPE
Spare Parts and Repairability	Available via Vevor support; contact www.vevor.com/support
General Information	Electronic warranty, online technical support

Frequently Asked Questions - LST25JLYX Vevor

What is the capacity of the LST25JLYX hydraulic tank?

The LST25JLYX model has a capacity of approximately 25 liters, while the LST10JLYX has a capacity of approximately 10 liters.

What are the inlet and outlet connections?

The inlet port (charge) is 1½ NPT and the outlet ports (discharge) are two ¾ NPT connections.

Can I use this tank to store diesel fuel?

This tank is designed for hydraulic oil. For fuel, check material compatibility and follow fire safety guidelines.

How to install the hydraulic tank?

Attach the provided mounting brackets on a stable surface. Use the NPT ports to connect hoses. Ensure the tank is level and well-ventilated.

How to read the oil level gauge?

The gauge combines temperature and level. The oil level should be between the min and max marks. Check when cold.

What maintenance is required?

Regularly check the oil level, clean the breather and filter, and drain used oil according to the manufacturer's recommendations.

Does the tank come with a warranty?

Yes, Vevor offers an electronic warranty certificate. Contact technical support via www.vevor.com/support.

What safety precautions should be taken?

Hydraulic oil is flammable. Use in a well-ventilated area, away from flames. Do not siphon by mouth. Wear gloves and goggles.

Can I repair the tank myself?

Only external parts (filter, breather) are replaceable. In case of leakage or damage, contact Vevor support for spare parts.

Is the tank compatible with all hydraulic systems?

It is suitable for systems using standard hydraulic oil. Check the pressure and flow of your circuit to ensure compatibility.

USER MANUAL LST25JLYX Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

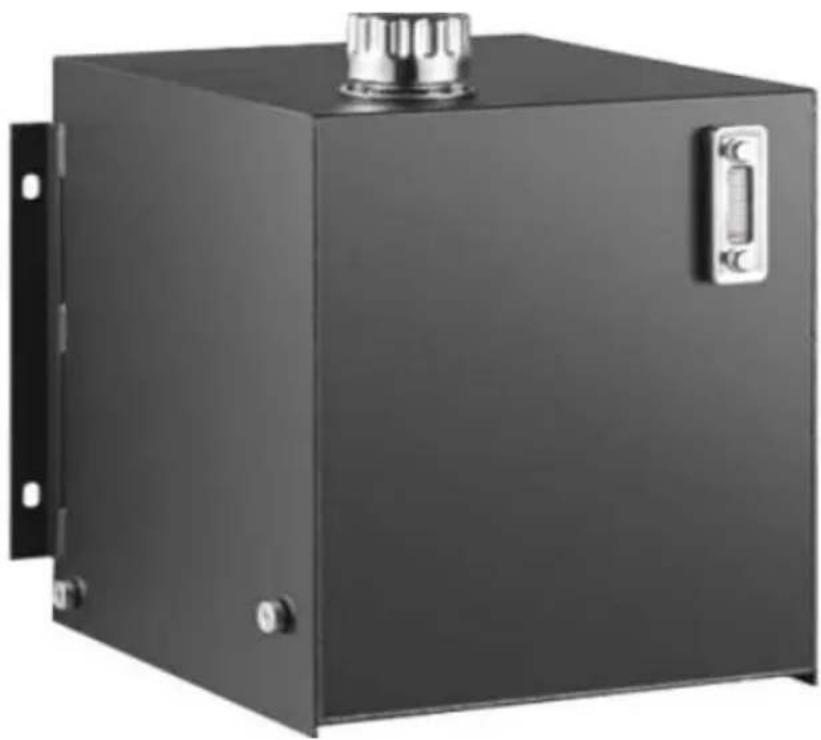

HYDRAULIC OIL TANK

MODEL: LST25JLYX / LST10JLYX

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

HYDRAULIC OIL TANK

MODEL: LST25JLYX / LST10JLYX

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Symbol	Symbol Description
	Warning: To reduce the risk of injury, the user must the instructions manual carefully.
	This symbol, placed before a safety comment, indicate kind of precaution, warning, or danger. Ignoring this warning may lead to an accident. To reduce the risk injury, fire, or electrocution, please always follow the recommendations shown below.

Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.

Failure to follow the safety rules and other basic safety precautions may result in serious personal injury.

Before attempting to operate or install the fuel unit, carefully read and take note of the following safety warnings.

Failure to comply with these warnings may result in serious injury or death.

Prior to installing or using the fuel unit, all operators must have and fully understand the contents of this instruction manual, as well as all other manuals supplied, and the safety decal fitted to the fuel unit.

Avoid fuel contact with skin and eyes, and avoid breathing vapors or mists. Ensure that all operators and associated personnel are familiar with the legal regulations and codes of practice that apply to the use, storage, and disposal of fuel.

WARNING:

• DANGER • EXTREMELY FLAMMABLE • VAPORS CAN EXPLODE • HARMFUL OR FATAL IF SWALLOWED
• If swallowed, do not induce vomiting; call a physician immediately.
• Keep out of reach of children • Avoid prolonged breathing of vapors
• Do not siphon by mouth
• Store and use in a well-ventilated area • Vapors can be ignited by a spark or flame source many feet away
• Keep away from flame, pilot lights, stoves, heaters, electric motors, and other sources of ignition.

SAVE THESE INSTRUCTIONS

【PREMIUM QUALITY】This weld-less hydraulic tank body is skillfully fabricated from high-strength cold-rolled steel plates. With a black powder-coated finish surface, and phosphate-coated internal, which makes it sturdy, durable, and anti-corrosion.

【COMPACT DESIGN】-The hydraulic oil tank has an oil level indicator that can provide more convenient and accurate data. The return oil filter has high fluid velocity and is fast and stable. This is a hydraulic respirator with a cover used to filter impurities and prevent leakage. Import: 1 ½ NPT, discharge port: ¾ NPT (2). The installation bracket helps to install and place the storage tank.

【FULL-SET EQUIPMENT】-The assembled hydraulic fuel tank consists of a steel oil tank reservoir, an oil level temp gauge and filler breather with a cap, drain ports and mount brackets.

【 WIDE APPLICATION 】 - Our transfer fuel hydraulic tank is strong, lightweight, and compact in construction, well assembled, and widely used in hydraulic systems and mechanical vehicles to provide adequate oil storage and supply solutions for heavily loaded tractors and trucks.
