This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Thank you very much for choosing this Product. Please read all of instructions before using it. The information will help you achieve the b possible results.

INTRODUCTION

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product fully aware of all warnings and precautions.

▶ Always inspect the goal post and net for defects before use and replace damaged parts.
▶ Do not use the goal with faulty parts.
▶ The product is gently placed on a flat ground for use.
▶ Never climb on the net or the goal frame. The goal must need to be used without the net fitted. Please always adhere to the safety instructions.
▶ Remove all weights and anchors before moving or disassembling the goal. Do not use the goal in windy weather
▶ Do not use the goal in sub zero temperatures. We advise ad supervision during assembly and use. Do not drop any heavy objects on the tubes.
- When dismantling the goal ensure that all fittings are packed away, and that non are left on the playing surface.
▶ Check whether the installation is firm before use to avoid potential safety hazards.
▶ Check and tighten the screw interface of each component regularly.
▶It should be stored in a dry environment if not used for a long tir

PART LIST

Line drawing of a bent pipe or elbow joint with a cylindrical end (no text or symbols)

A 1PCS

Simple line drawing of a bent pipe or elbow joint (no text or symbols)

B 1PCS

C 2PCS

Simple line drawing of a bent pipe or support structure (no text or symbols)

D 2PCS

Simple line drawing of a T-shaped object with labeled ends (no text or symbols)

E 1PCS

Simple line drawing of a vertical rod with two ends, no text or symbols present

F 1PCS

Simple line drawing of a bent pipe or rod with a cylindrical end (no text or symbols)

G 1PCS

Simple line drawing of two connected cylindrical pipes (no text or symbols)

H 1PCS

Simple line drawing of a curved mechanical tool or rod (no text or symbols)

I 2PCS

J 2PCS
M6*45

Diagram of a trapezoidal structure with red and black outlines, no text or symbols present

K 1PCS

ASSEMBLY

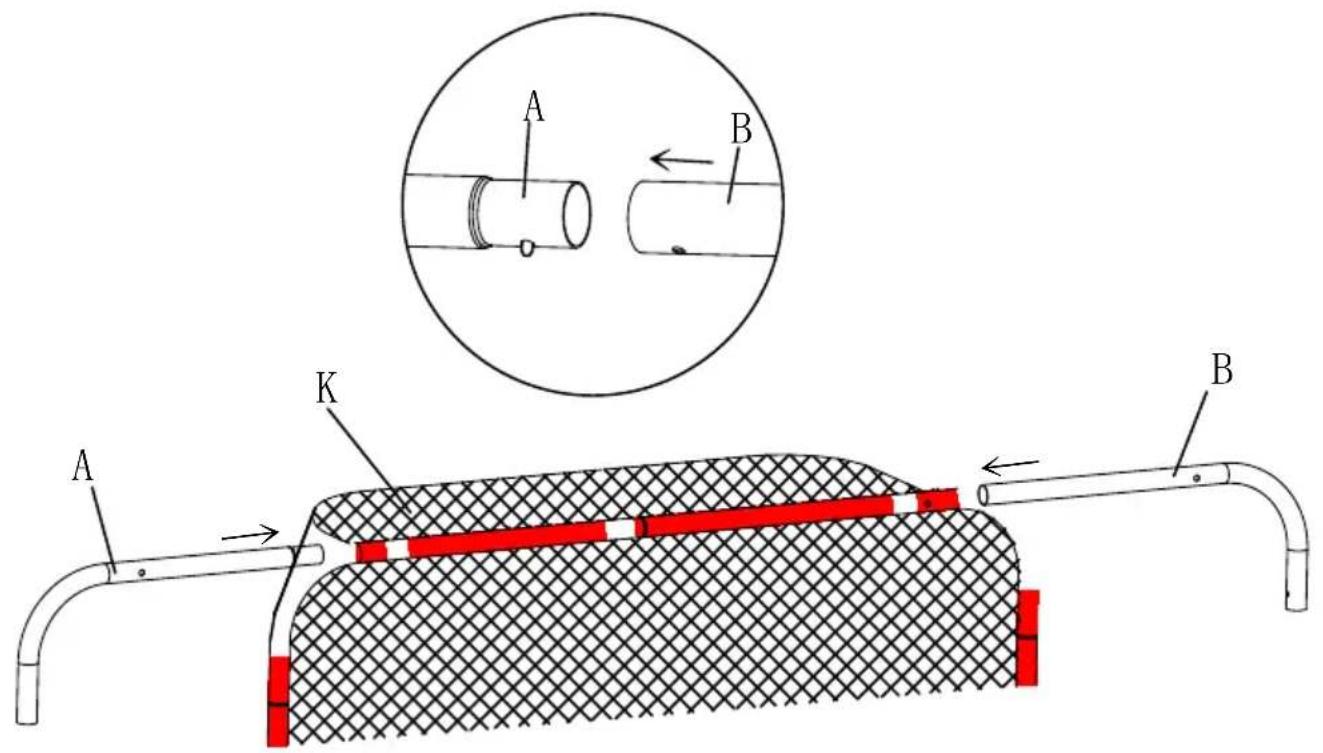

Step 1: Connect iron pipes A and B and pass them through the the net

A B K A B

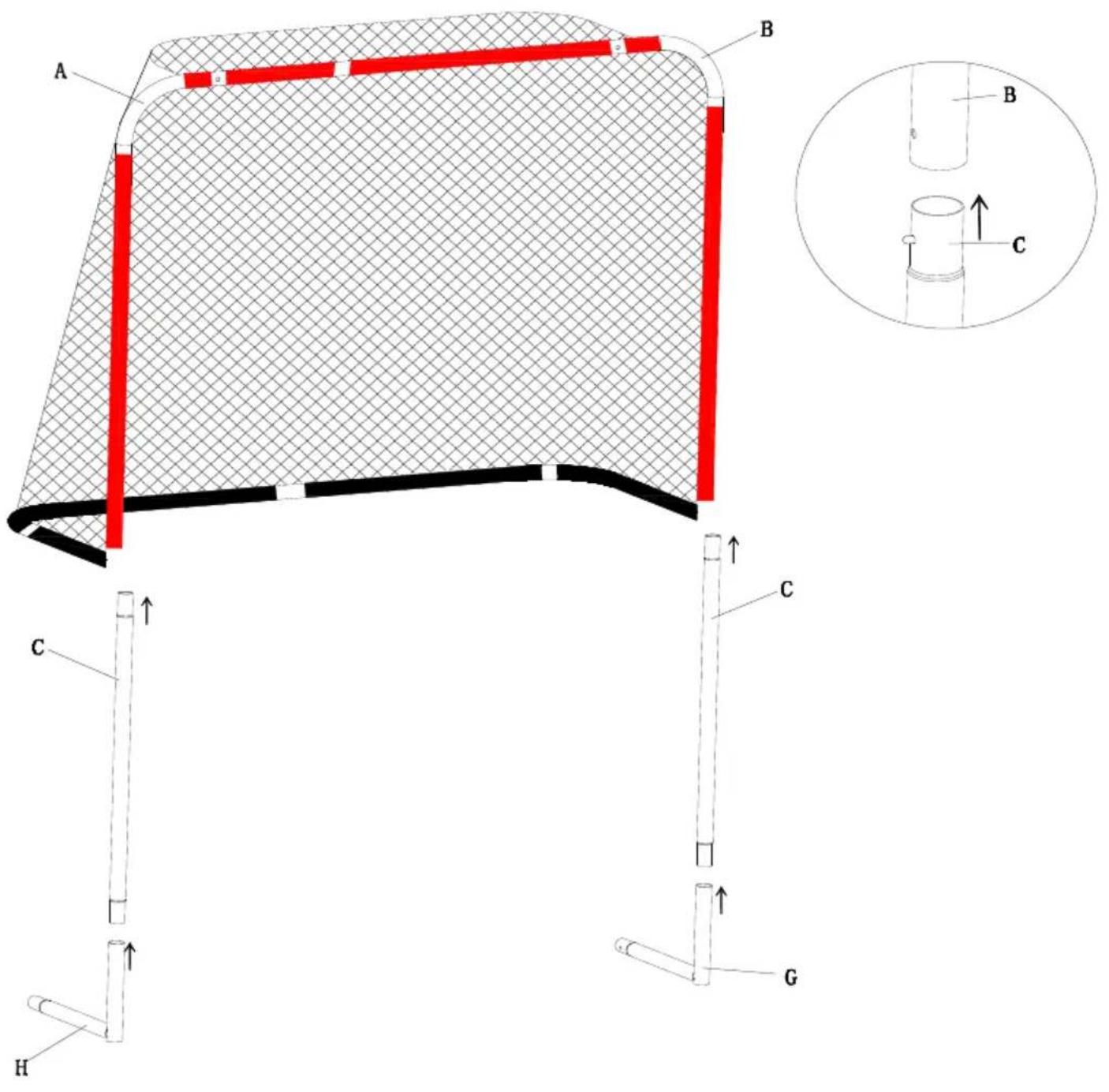

Step 2: Pass iron tubes C through both sides of the net and co them to iron tubes A and B respectively

A B C G H C B

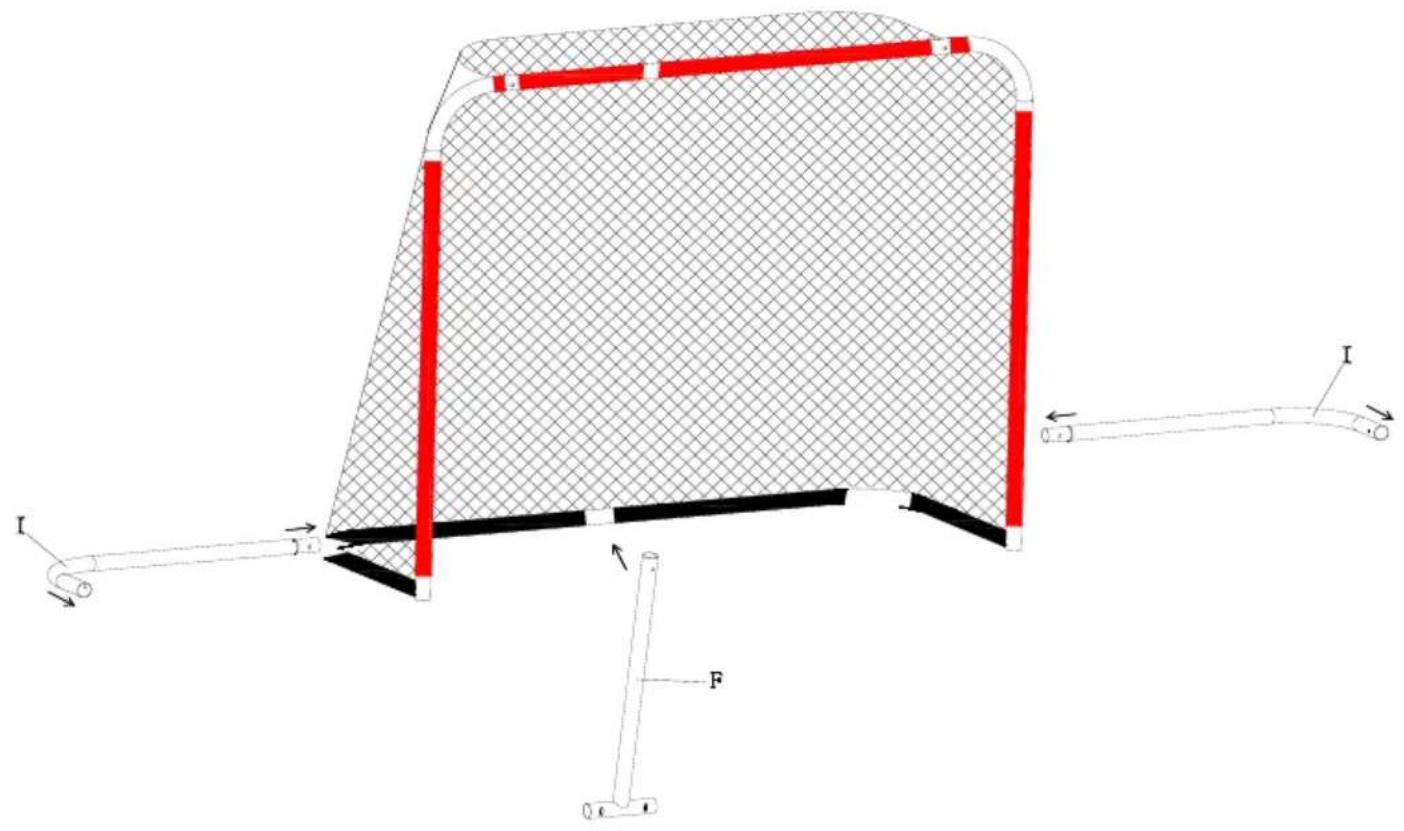

Step 3: As shown in the figure, iron pipe I is passed through the bottom end of the net and connected to iron pipe H and iron respectively, Finished.

Technical diagram of a mechanical or structural component with labeled parts I, F, and I', showing red structural elements and directional arrows.

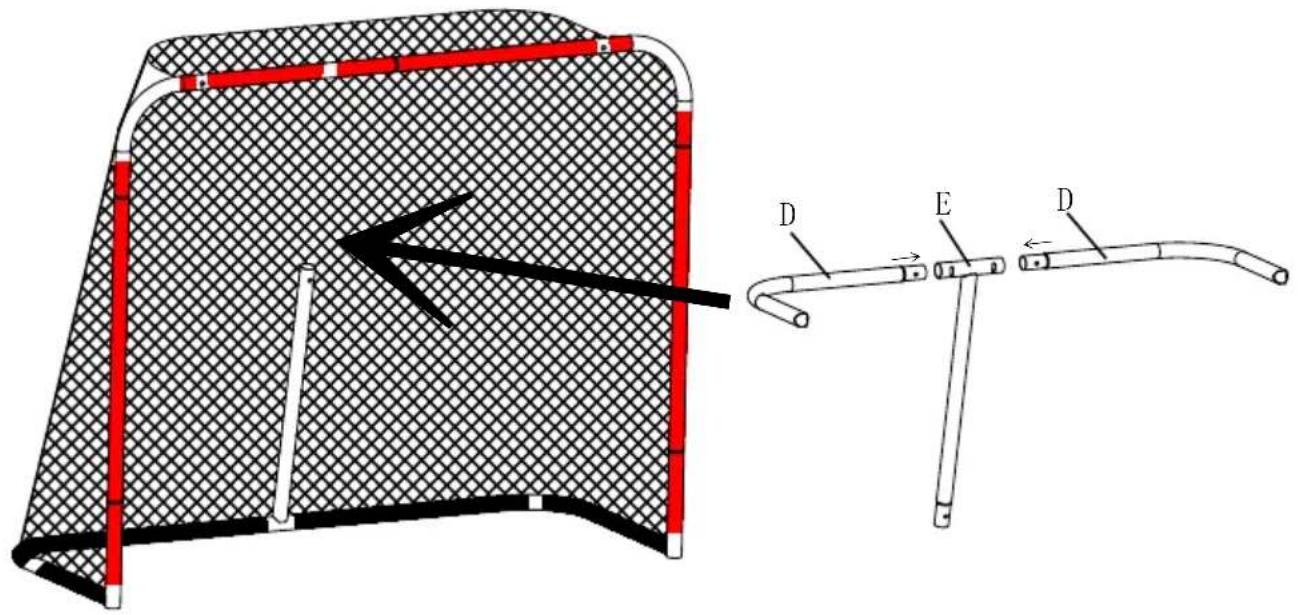

Step 4: After connecting the iron pipes E and D, connect the components to the frame.

Technical diagram showing a 3D mesh structure with red and black components, alongside a schematic of a bent pipe with labeled points D and E.

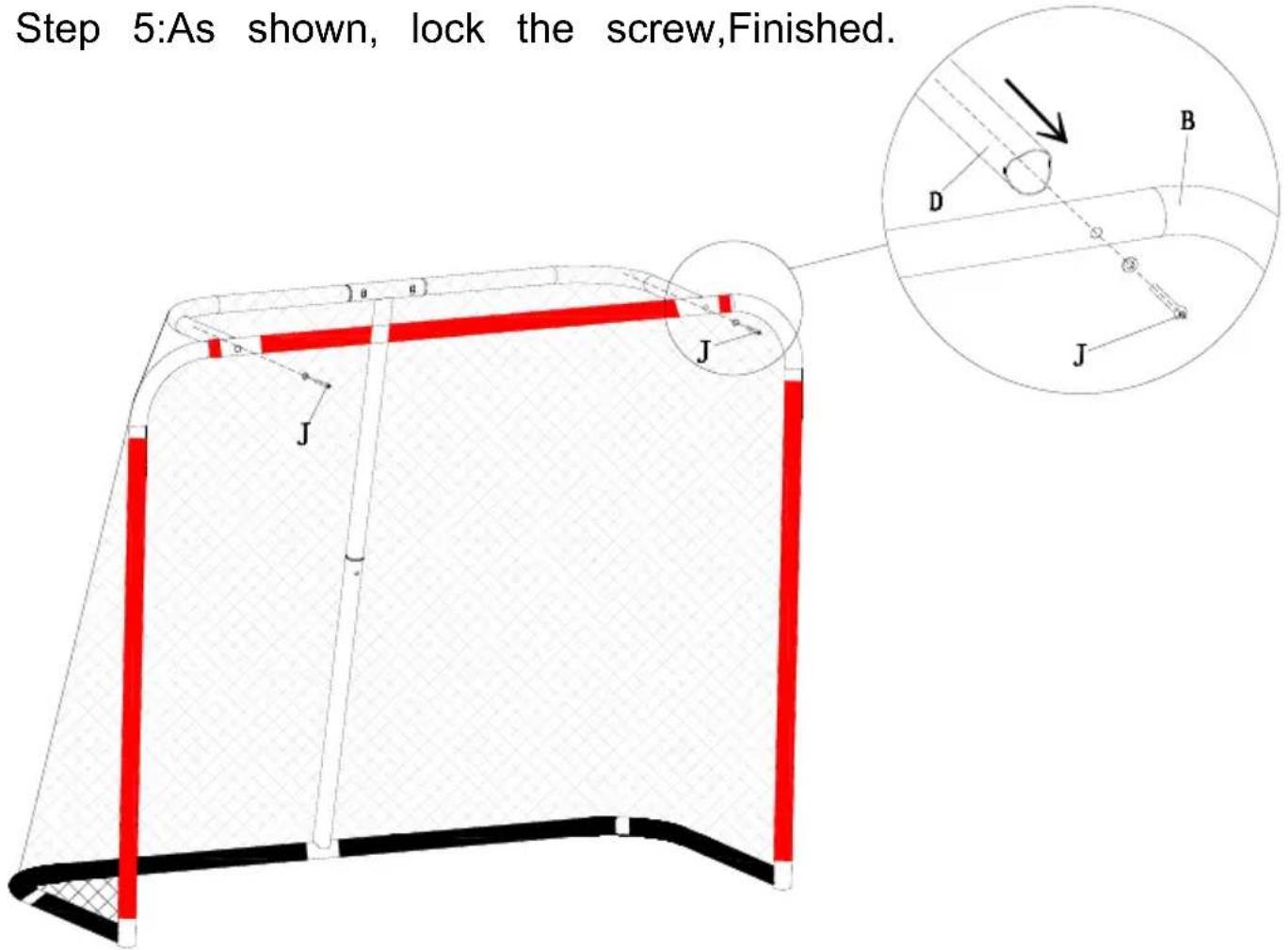

Step 5: As shown, lock the screw, Finished.

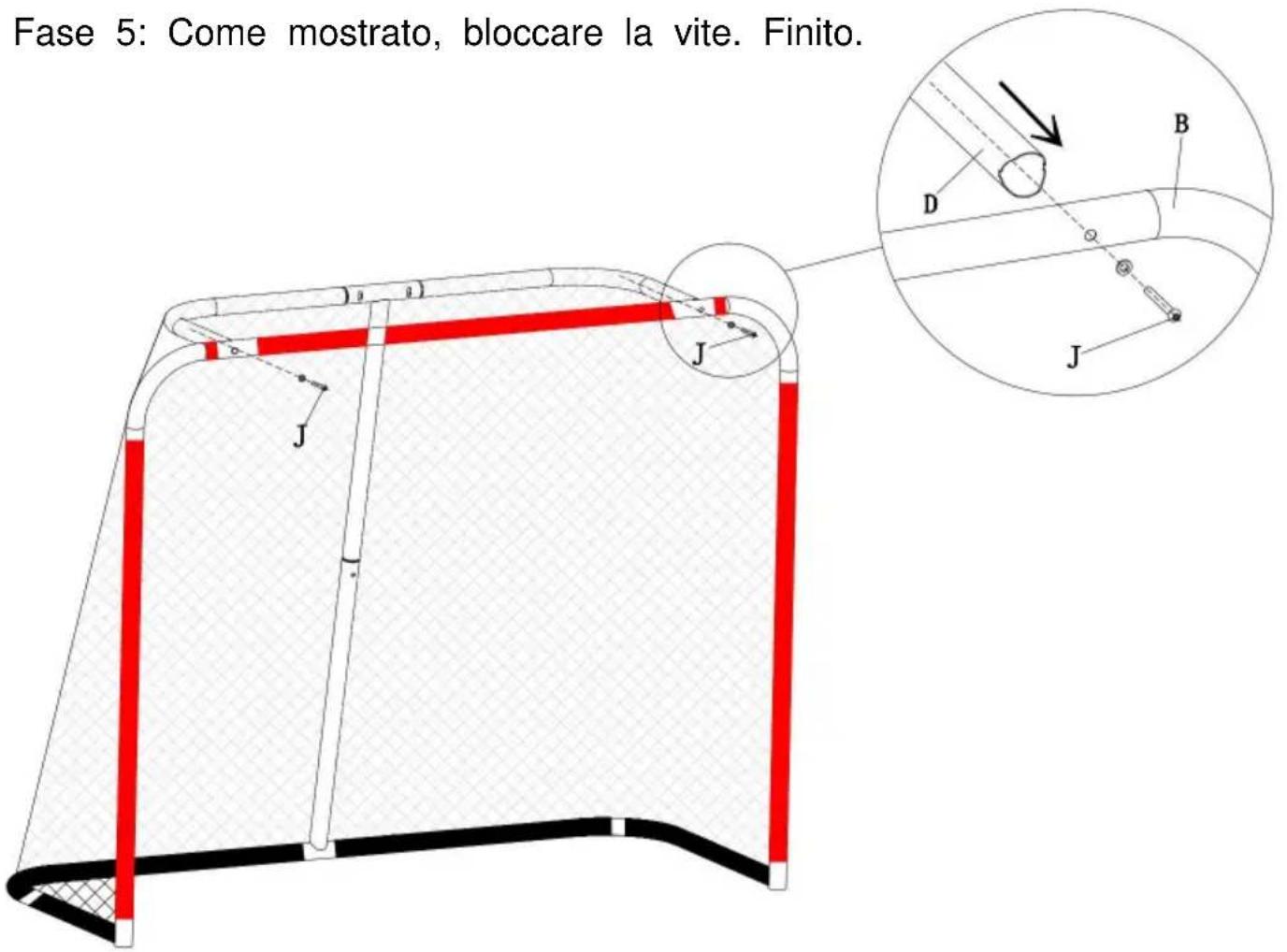

Step 5:As shown, lock the screw,Finished. B D J J

CLEANING AND MAINTENANCE

▶Clean the stand with a wet towel, the Net can be removed for washing and allowed to dry naturally.
