Product Type	Workbench Casters
Brand	Vevor
Model	CC-CZJL-2.5
Intended Use	Workbenches, router tables, lattice supports, large objects requiring mobility
Frame Material	Steel
Installation Type	Screw onto workbench legs
Fastening Method	Drill pilot holes then screw
Package Contents	Pedal brackets, casters, wood screws, nuts, lock washers
Warranty	Yes, technical support via www.vevor.com/support
Technical Support	www.vevor.com/support
Country of Origin	China (Shanghai)
Importer (Australia)	SIHAO PTY LTD
Importer (USA)	Sanven Technology Ltd.
Importer (Germany)	E-CrossStu GmbH
User Manual	64 pages, available in multiple languages

Frequently Asked Questions - CC-CZJL-2.5 Vevor

How to install casters on a wooden workbench?

Mark the drilling points at 2 inches and 4 3/4 inches from the bottom of the leg. Drill pilot holes, attach the pedal bracket with the provided wood screws, then assemble the wheel on the bracket using the nuts and lock washers.

Are the casters compatible with metal workbenches?

Yes, but for metal brackets, you will need to use your own nuts, bolts, and washers (not included) to attach the assembly.

What to do if the workbench leg is too narrow?

If the leg is less than 2 inches, center the drilling hole. Otherwise, drill on both sides for better stability.

Can I use these casters on furniture other than workbenches?

Yes, they are suitable for router tables, lattice supports, or any large object that requires mobility. Follow the same installation process.

What tools are needed for installation?

You will need a drill, a drill bit, a screwdriver or wrench. Wood screws, nuts, and lock washers are included. For metal brackets, provide your own bolts.

Is there a warranty?

Yes, the product is covered by a warranty. For any claims or assistance, contact technical support via www.vevor.com/support.

How to contact Vevor customer service?

Visit www.vevor.com/support for technical support and electronic warranty.

How many casters are included in the package?

The manual does not specify the exact number, but for standard workbench use, it is usually a set of four casters.

Are the casters lockable?

The manual does not mention a braking system. They are probably non-lockable. For a specific need, contact the manufacturer.

How to maintain the casters?

No maintenance instructions are provided. It is recommended to clean the casters with a damp cloth and occasionally lubricate the axles to ensure smooth operation.

USER MANUAL CC-CZJL-2.5 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

WORKBENCH CASTERS

USER MANUAL

MODEL:CC-CZJL-2.5

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

WORKBENCH CASTERS

MODEL: CC-CZJL-2.5

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Mark your drill points on the workbench leg at 2" and 4-3/4" from the bottom of the leg.(Figure 1) Drill two pilot holes on each workbench leg.	Figure 1

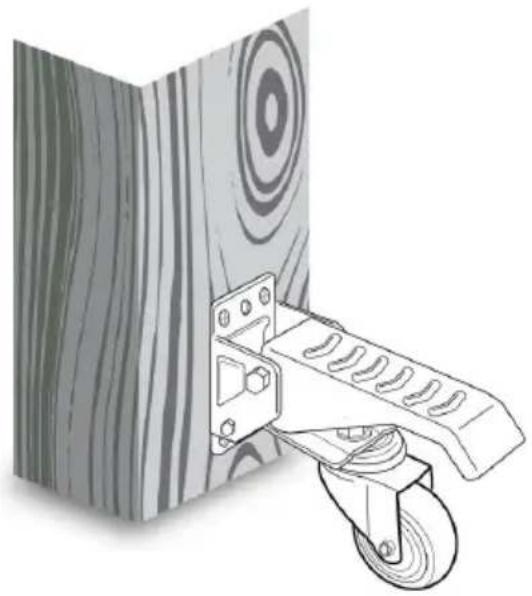

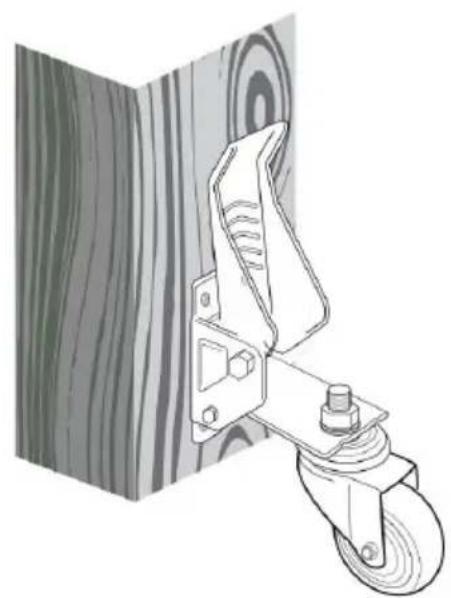

Install Pedal Bracket Assembly to the workbench leg with Wood Screws Provided.(Figure 1) Attach Caster to Pedal Brack Assembly using Nuts and Lock Washer provided.(Figure 2)	Figure 2

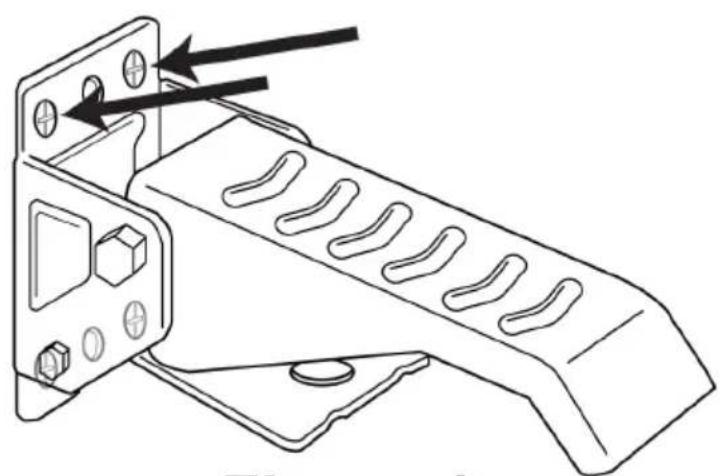

Note: 1) you may need to remove t caster from the caster plate to attach and secure the Pedal Bracket Assembly to the workbench leg. 2) If your workbench leg is smaller than 2", you can choose the centre drill point.(Figure 3) otherwise you	Figure 3

could choose the drill points both side to install which is more stability. (Figur 4)

Figure 4

Other Installations

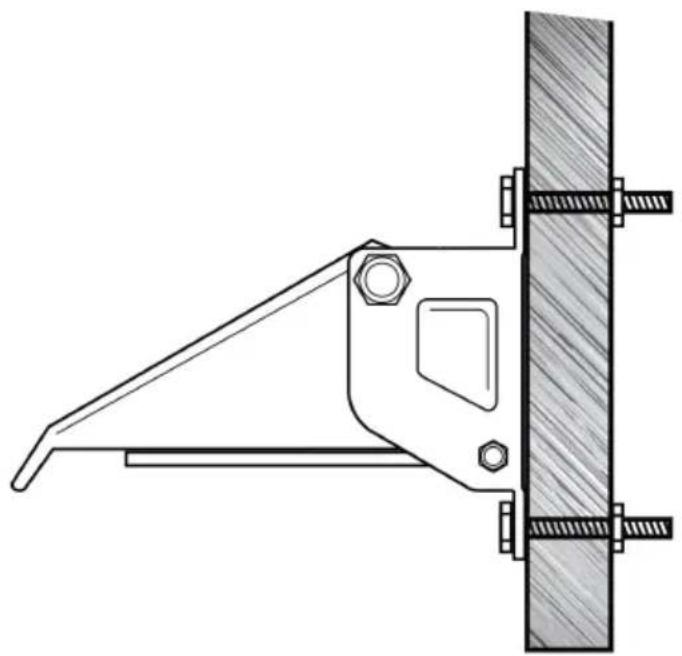

The workbench casters can be used on many different table or stands other than workbenches. This includes router table stands, lather stands or anywhere in your shop where you need mobility for a larger item. When installing the casters on meta stands you will need to use nuts, bolts and washers (not included) to properly secure the assembly. (Figure 1) The same process as shown above should be followed.

Figure 5
