USER MANUAL 645-BT Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

CEILING SPEAKER MANUAL

MODEL: 645, 645-BT, 549, 638

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: 645, 645-BT, 549, 638

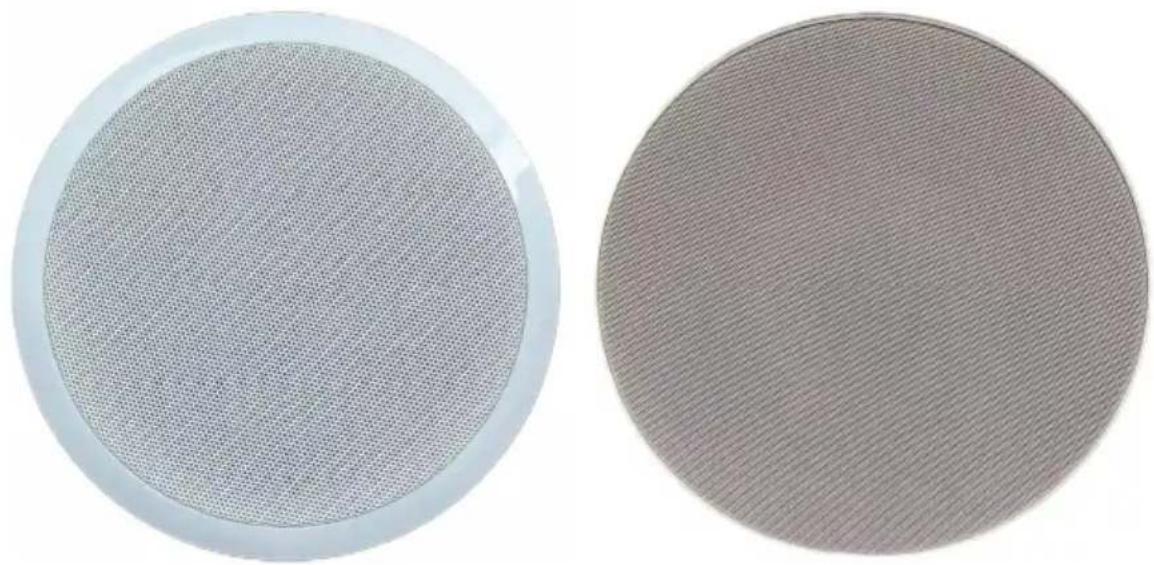

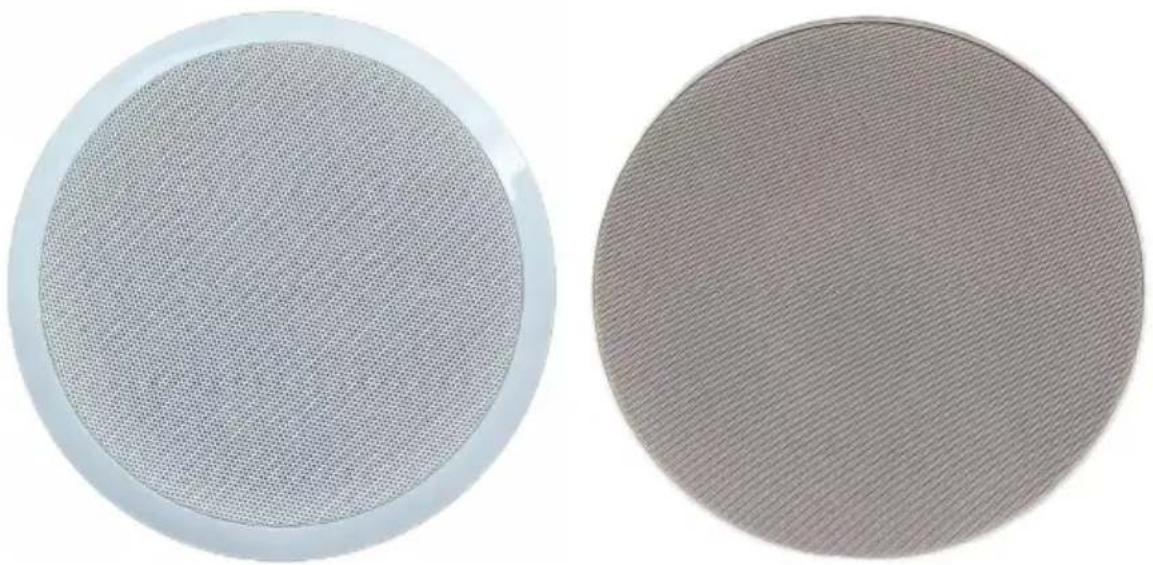

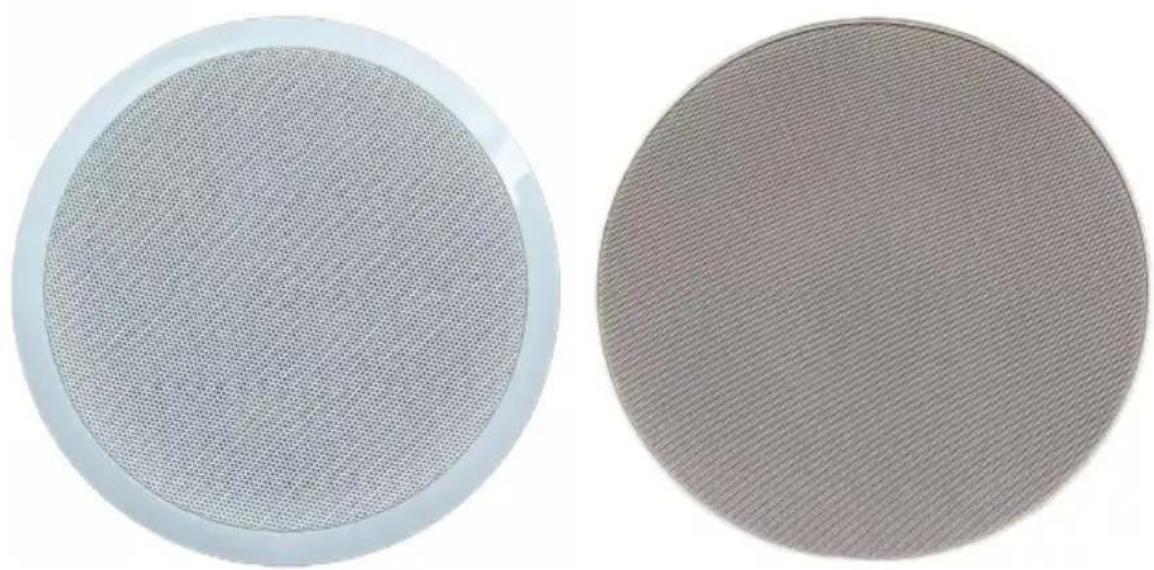

Two circular samples: one with a mesh pattern on the left, the other with a textured gray surface on the right (no text or symbols)

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructi manual carefully.

Correct DisposalThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

Ceiling speaker manual

i.The main purpose

Ceiling speakers are mainly used to amplify and transmit sound.

ii.Installation and debugging

Installation guide (for 549)

1. Refer to the round paper card, cut a hole in the ceiling according diameter of the horn installation, and connect the horn wire to the ho

Simple line drawing of a mechanical device with a circular component and handle (no text or symbols)

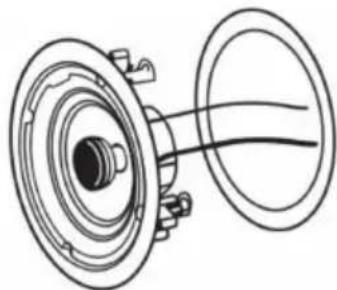

1. Connectthe speakerwirestothespeaker

Technical line drawing of a mechanical component with concentric rings and a curved shaft (no text or symbols)

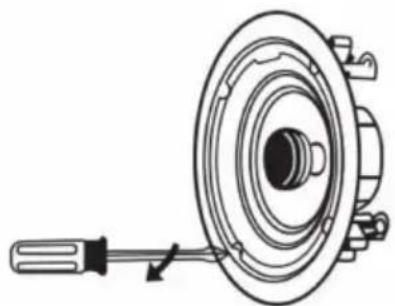

1. Tighten the four cross screws then lock the bracket rotation and set the device to the rear surface of the ceiling panel.

Technical line drawing of a mechanical component with concentric rings and a screwdriver (no text or symbols)

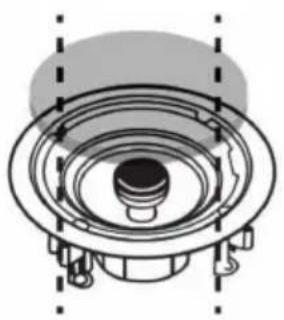

1. Install the speaker wire mesh cover.

Technical line drawing of a mechanical component with concentric rings and mounting feet (no text or symbols)

Installation guide (for 645/645-BT/638)

1. Refer to the round paper card, cut an installation hole over the ceilir

mm (Installation hole)

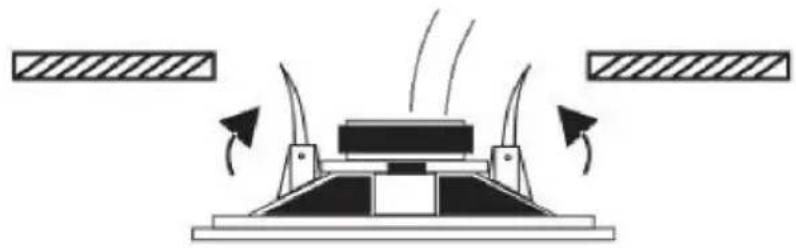

1. Connect the speakerwirestothespeaker, flip up the Speaker Mounting bu

Diagram of a mechanical or electrical component with directional arrows indicating motion or force, no text or symbols present.

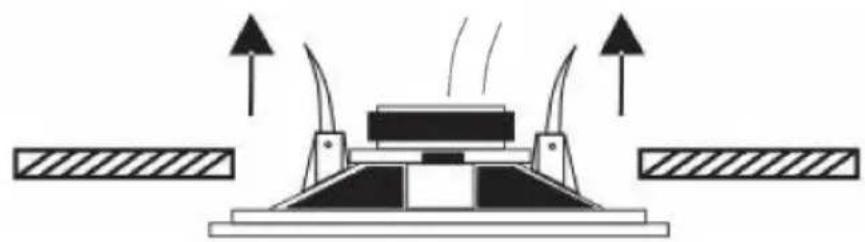

1. Put the speakers up into the ceiling mounting hole;

Pure mechanical diagram showing a lever mechanism with arrows indicating motion or force direction (no text or symbols)

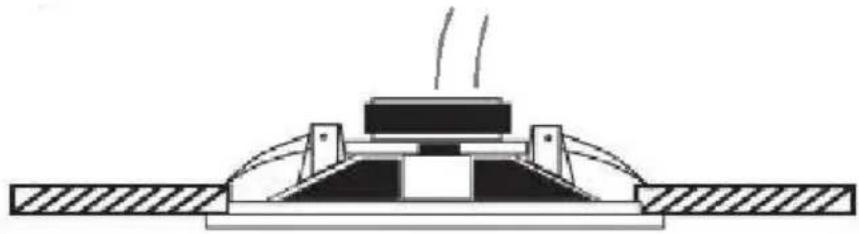

1. The mounting buckle will automatically go down and get the speak fastened into the ceiling.

Pure mechanical diagram showing a base platform with a central block and motion lines, no text or symbols present.

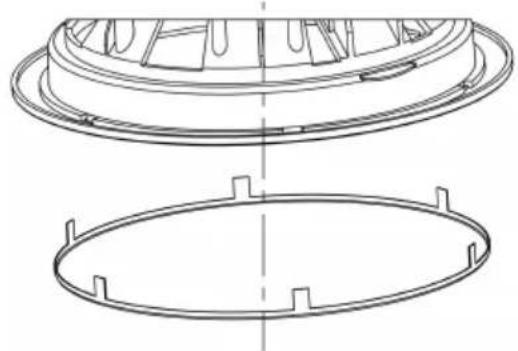

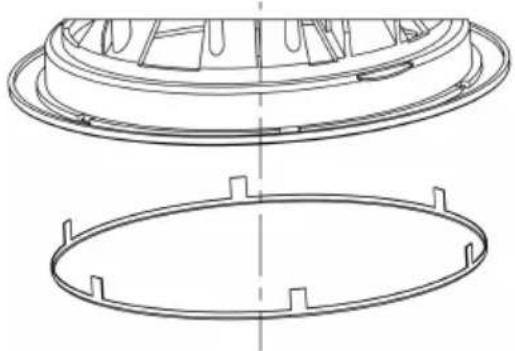

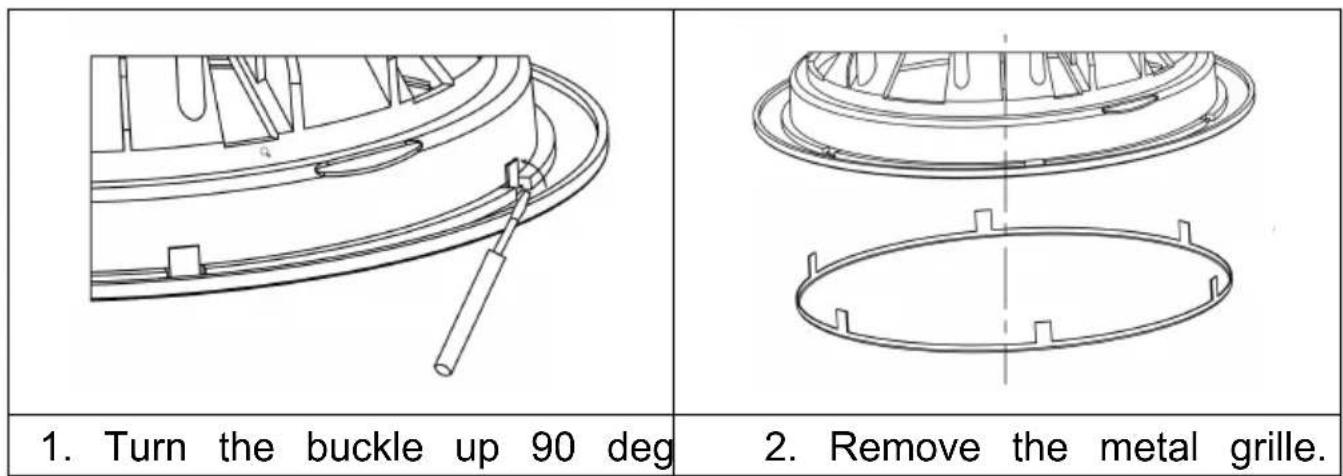

Metal grille removal instructions(Only for 645/645-BT/638)

1. Turn the buckle up 90 deg 2. Remove the metal grille.

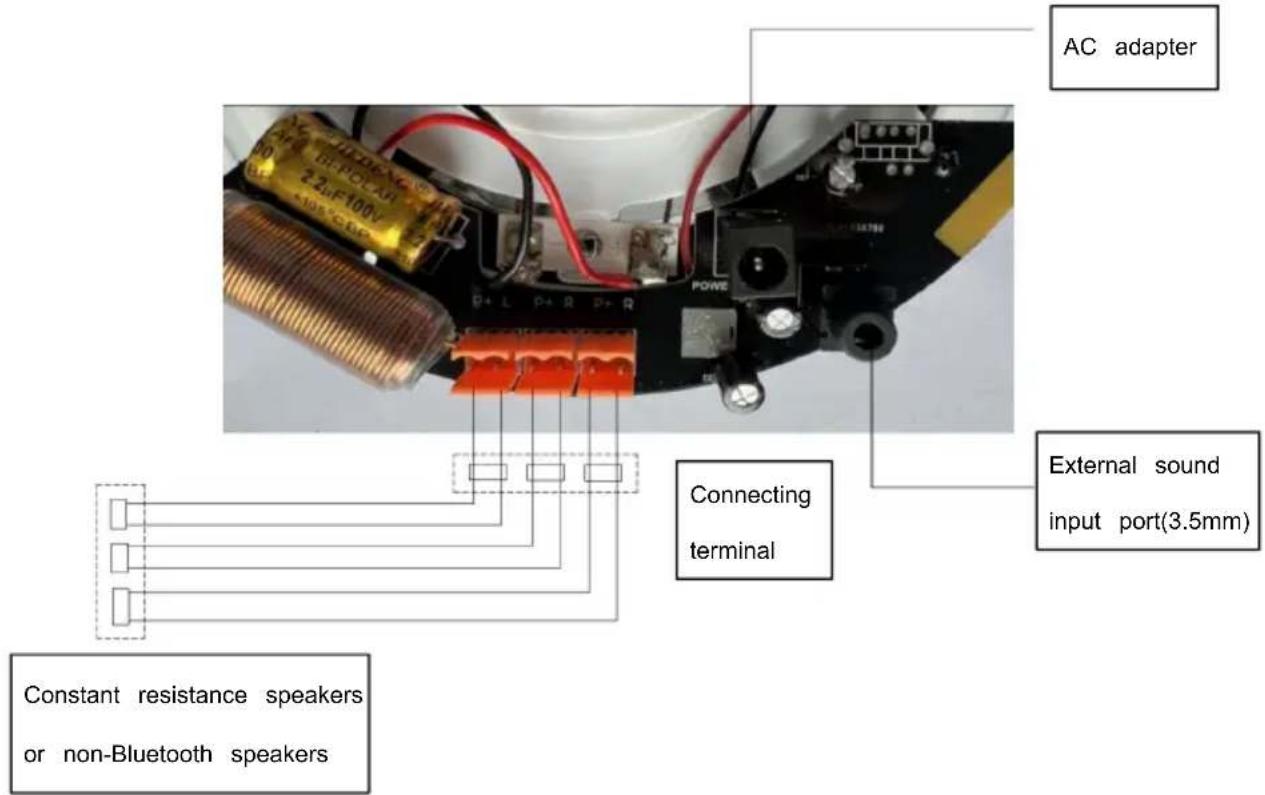

Diagram of port connection(Only for Bluetooth speakers)

AC adapter Connecting terminal External sound input port(3.5mm) Constant resistance speakers or non-Bluetooth speakers

iii. Use and operation

Bluetooth connectivity(Only for Bluetooth version):

1) Make sure the Bluetooth ceiling speaker system is properly connected the power, source and speaker wires are connected correctly.
2) Power on the speaker system, and you shall hear a tone indicating Bluetooth system is ready for pairing.
3) Then, open your Smart device's Bluetooth network settings, The Bluetooth network name will appear as '645-BT' on your device list. a click for connection. No password is required to connect but if you are prompted enter '6688'.
4) You shall hear another indication tone when a successful Bluetooth connection is established, then you are ready to enjoy the music.

iv.Common faults and troubleshooting methods

Fault	reason	Method of exclusion
The machine does not wor	The control board connection cable fell off	Check the line and restore
	Circuit board damage	Professional maintenance is required

v.Packing List

No.	Item	Qty	Remark
1	Ceiling Speakers	1 set
2	Manual	1 pc
3	AC adapter	1 set	For Bluetooth version
4	Connecting line	1 root	For two/four Bluetooth speakers
5	Connecting terminal	1 set	For two/four Bluetooth speakers
6	round paper card	1 pc

\* WARNING

1) It is recommended that you keep this manual for future reference installing audio.
2) Never expose the speaker to rain and any wet or rainy place, which may cause electric shock or fire.
3) Limit the voltage specified on the stereo, such as the use of high voltage may cause electric shock or fire. Never trim, twist, destroy or replace wires.
4) Avoid installing or setting up audio in unstable places, such as sh tables or uneven surfaces, which can avoid personal injury or property damage caused by audio falling.
5) Never plug or pull out the plug with wet hands, which may cause electric shock.
6) When pulling out the plug, make sure you are pulling the plug, no wire. Using machines with broken appliances can cause a fire or electric shock.
7) When moving the speaker, please pull out the plug in advance. M the speaker with the plug may cause a fire or electric shock. When out the plug, make sure you hold the plug and pull it out.
8) do not cover the vent on the speaker. May cause fire due to heating.
9) Avoid installing the sound in wet or dusty, direct contact with sunl close to the electric heater, or black smoke or steam, which may ca or electric shock.

10) Do not immerse in any liquid.
11) To avoid damage to the device or unit, do not hit or squeeze the device.

The equipment is installed in a position sufficient to bear the weight equipment and mounting brackets. In addition, if it is installed in other locations, it may cause fall, and cause personal injury or property damage. If the horn is distorted, do not use it for a long time, because this indicates that the horn is faulty. If it continues to be used for a long time may produce high temperature and lead to fire.

FCC Information

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the line a Class B digital device pursuant to Part 15 of the FCC Rules. The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If

product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4
