Product Type	Passive Bookshelf Speaker (Pair)
Brand	Vevor
Model	VV5B
Applications	High-fidelity stereo audio playback for home and office
Nominal Power	50 W
Peak Power	~300 W (±10%)
Tweeter Size	1 inch (2.54 cm)
Woofer Size	5.25 inches (13.34 cm)
Frequency Response	65 Hz - 20 kHz
Impedance	8 Ω
Audio Output	Stereo
Enclosure Materials	Medium-density fiberboard (MDF) with PVC finish
Package Contents	2 speakers, speaker cables (2 m) x2, manual
Dimensions (approx. per speaker)	28 cm x 18 cm x 20 cm
Weight (approx. per speaker)	4 kg
Safety	Do not expose to water or moisture; use only with certified external amplifiers
Maintenance	Clean with a soft, dry cloth; avoid sharp objects

Frequently Asked Questions - VV5B Vevor

How do I connect these speakers to my amplifier?

Use the provided speaker cables. Connect the red wire to the positive (+) terminal and the black wire to the negative (-) terminal of the amplifier and speaker. Make sure the left and right channels are correctly connected.

What is the recommended amplifier power?

The amplifier should provide at least 50 W of nominal power per channel for optimal performance. Do not exceed 300 W peak to avoid damaging the speakers.

Can I use these speakers with a TV?

Yes, if your TV has an audio output or built-in amplifier. Otherwise, connect them via an external amplifier or AV receiver.

What is the difference between the VV4B, VV5B, and VV6B models?

The models differ in woofer size: VV4B (4 inches, 42 W), VV5B (5.25 inches, 50 W), VV6B (6.5 inches, 57 W). The VV5B offers a good balance between power and footprint.

Are these speakers active or passive?

These are passive speakers, meaning they have no built-in amplification. They require an external amplifier to work.

How to clean the speakers?

Use a soft, dry cloth to wipe the surface. Avoid chemicals and sharp objects that could scratch the MDF enclosure.

What type of cable to use?

Use speaker cables of appropriate gauge (typically 2 meters provided). Make sure connections are tight to avoid loss of sound quality.

What is the impedance of the speakers?

The impedance is 8 Ω, compatible with most home amplifiers. Check that your amplifier supports this impedance.

Can I place them on a shelf?

Yes, they are designed as bookshelf speakers. Place them on a stable, flat surface, away from moisture and heat.

What to do if the sound is weak?

Check the connections, the amplifier, and that the left/right channels are correctly assigned. Make sure the amplifier delivers enough power (at least 50 W per channel).

USER MANUAL VV5B Vevor

Affordable. Reliable. Home Improvement.

Bookshelf Speakers

Model: VV-4B/VV-5B/VV-6B

VEVOR

Affordable. Reliable. Home Improvement.

Bookshelf Speakers

Model: VV-4B/VV-5B/VV-6B

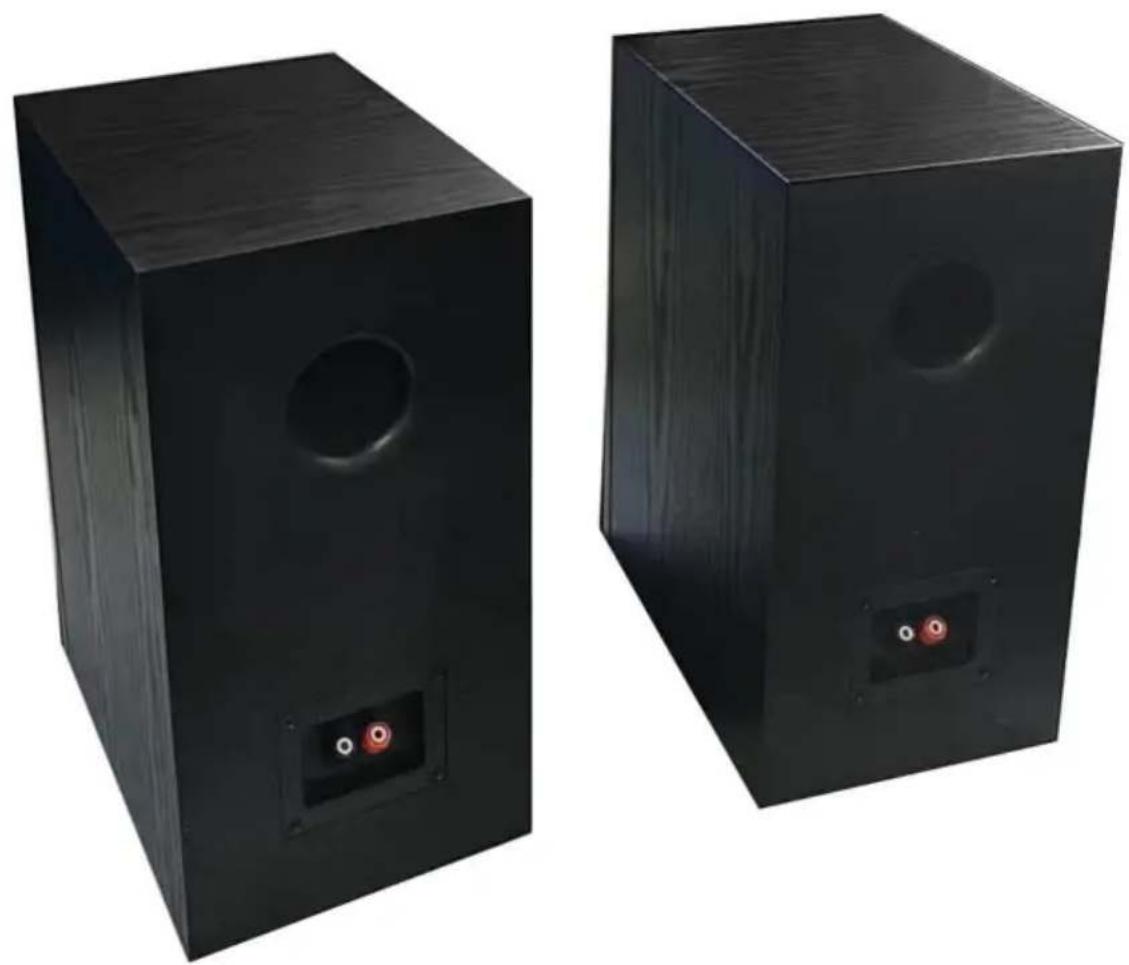

Two black wooden speaker units with visible sound holes and red-lit buttons, shown from different angles (no text or symbols)

This is the original instruction, please read all manual instructions careful before operating. VEVOR reserves a clear interpretation of our user man. The appearance of the product shall be subject to the product you receive. Please forgive us that we won't inform you again if there are any technical or software updates on our product.

Warning-To reduce the risk of injury, user must read ins manual carefully.

CORRECT DISPOSALThis product is subject to the provision of european Dire 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refus collection in the European Union. This applies to the pro and all accessories marked with this symbol. Products m as such may not be discarded with normal domestic wa must be taken to acollection point for recycling electrical electronic devices.

1. Important Notices

• Water & Moisture

Do not place the speakers in environments where water exposure moisture is possible. Avoid using them in rainy or humid conditions

- Power Safety

When connecting external amplifiers or other devices, ensure the voltage is appropriate and that connections are secure. Always operate with dry hands.

- Scratch & Impact Protection

The speaker enclosure is made of MDF, or density board with finish. Avoid contact with sharp objects to prevent scratches or damage to the surface.

• Proper Installation

These are passive speakers without built-in amplification. Use only certified external amplifiers to drive the speakers and follow prop connection instructions.

2. Product Overview

- Product Type: Passive Bookshelf Speakers (Pair)

• Applications: Suitable for high-fidelity, stereo audio playback in home and office setups.
• Key Specifications (Refer to each model for exact parameters)
• Model VV-4B:
• Rated Power: Approximately 42W (with peak \~300W ±10%)
  ■Tweeter Size: 1 inch
  ■Woofer Size: 4 inch
  ■Frequency Response: 70Hz - 20KHz
  ■Impedance: 8 Ω
  ■Audio Output: Stereo

○ Model VV-5B:

• Rated Power: Approximately 50W (with peak \~300W ±10%)
  ■Tweeter Size: 1 inch
  ■Woofer Size: 5.25 inch
  ■Frequency Response: 65Hz - 20KHz
  ■Impedance: 8 Ω
  ■Audio Output: Stereo

○ Model VV-6B:

• Rated Power: 57W (±10%) (with peak \~100W ±10%)
  ■Tweeter Size: 1 inch
  ■Woofer Size: 6.5 inch
  ■Frequency Response: 55Hz - 20KHz
  ■Impedance: 8 Ω
  ■Audio Output: Stereo
• Additional Note: This model is designed as a high-quality passive bookshelf speaker ideal for dynamic sound reproduction.
• Enclosure Materials: Typically built from density board, MDF, or similar materials with PVC finish for scratch and impact resistance
  • Market: Globally available

3. Quick Setup and Connection

1. Choosing the Installation Position:

○ Select a stable, dry, and well-ventilated location away from water so and high temperatures. Ensure the speaker is placed on a flat, secur surface.

2. Connecting Devices:

- Use the provided speaker cables (typically 2-meter cables) to connect the speakers to an external amplifier or audio device.

- Important: Ensure the red wire is connected to the + terminal, and black wire is connected to the - terminal.

- Verify that the left and right channels are connected correctly and securely to avoid poor contact that may impact sound quality.

3. System Adjustment:

- Adjust the volume and frequency response controls on the external amplifier to match the speaker specifications for optimal performance.

4. Main Functions

• High-Quality Audio Output:

Delivers high-fidelity stereo sound suitable for a wide range of a playback scenarios.

• Multiple Input Adaptability:

When paired with an external amplifier or AV receiver, the spea can handle various audio sources seamlessly.

- Simple and Durable Design:

The design includes edge protection to ensure that the speakers maintain their appearance and tactile feel over long-term use.

5. Package Contents

• Manual ×1
• Speaker Cables (2-meter) ×2

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Głośniki półkowe

Modele: VV-4B/VV-5B/VV-6B

VEVOR

Affordable. Reliable. Home Improvement.

Głośniki półkowe

Modele: VV-4B/VV-5BX/V-6B

Two black wooden audio speakers with visible sound holes and red-lit buttons, shown from different angles (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Przedstawiciel UE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Two black wooden speaker units with circular vent holes and red-lit buttons, shown from different angles (no text or symbols visible)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA91730

YH CONSULTING LIMITED. C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Two black wooden audio speakers with visible sound holes and red-lit buttons, shown from top and side (no text or symbols)

YH CONSULTING LIMITADA. A/C YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

Bokhyllehögtalare

Modell: VV-4B/VV-5B/VV-6B

VEVOR

Affordable. Reliable. Home Improvement.

Bokhyllehögtalare

Modell: VV-4B/VV-5B/VV-6B

Two black wooden audio speakers with visible sound holes and red-lit buttons, shown from top and side (no text or symbols)

YH CONSULTING LIMITED. C/O YH Consulting Limited Kontor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

EG-representant

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Two black wooden audio speakers with visible sound holes and red-lit buttons, shown from top and side (no text or symbols)

YH CONSULTING LIMITED. T.a.v. YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX

EC

REP

Affordable. Reliable. Home Improvement.

Enceintes d'étagère

Affordable. Reliable. Home Improvement.

Enceintes d'étagère

Two black wooden audio speakers with visible sound holes and red-lit buttons, shown from different angles (no text or symbols)

YH CONSULTING LIMITED. A/S YH Consulting Limited, bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

Regallautsprecher

Modell: VV-4B/VV-5B/VV-6B

VEVOR

Affordable. Reliable. Home Improvement.

Regallautsprecher

Modell: VV-4B/VV-5B/VV-6B

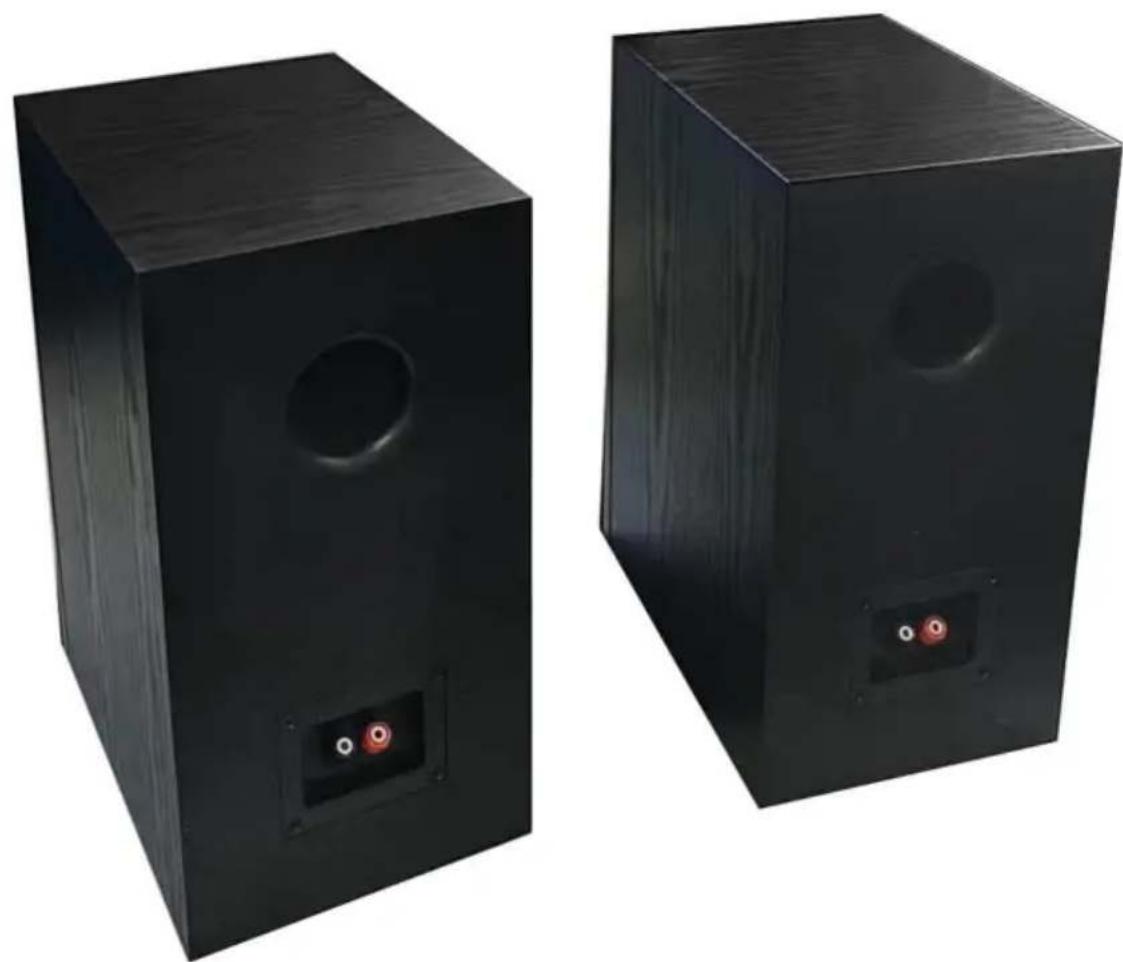

Two black wooden audio speakers with visible sound holes and red-lit buttons, shown from different angles (no text or symbols)
