USER MANUAL ROPE-G-16-12 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

STEEL CORE FLIP LINE KIT USER MANUAL

MODEL NO.: ROPE-T-8, ROPE-T-12, ROPE-G-127-10, ROPE-G-127-16, ROPE-G-16-8, ROPE-G-16-10, ROPE-G-16-12

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

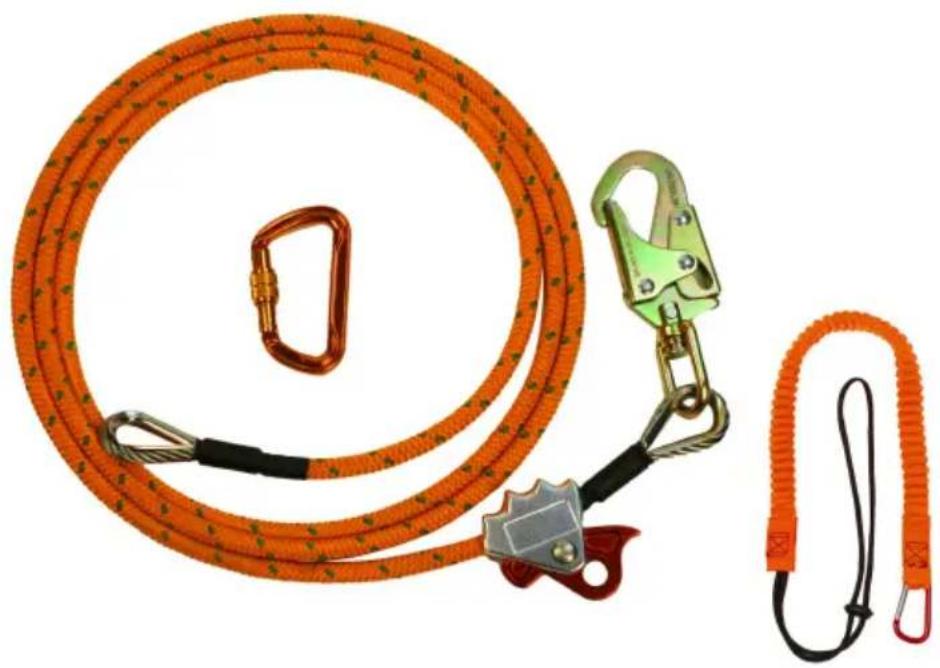

Steel Core Flip line

MODEL NO.: ROPE-T-8, ROPE-T-12, ROPE-G-127-10, ROPE-G-127-16, ROPE-G-16-8, ROPE-G-16-10, ROPE-G-16-12

Assorted orange safety harnesses and harnesses with attached clips, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure do so may result in serious injury. SAVE THIS MANUAL

GENERAL INFORMATION

Steel Core Flip line Kit
Trademark	TOUGH TOOLS, HALF PRICE	Reference standards	ANSI/ASSE Z359

"VEVOR. Steel Core Flip line Kit" is an adjustable restraint and work positioning device conforming to standard ANSI/ASSE Z359. It is made with cable for improved resistance to cut, encased in a protective polyester sheath. This product is intended for use to protect and prevent against risks of falling from above in industry, in construction work, in rescue and, more generally, for any application of work at a height.

TECHNICAL SPECIFICATIONS

Model	ROPE-T-8	ROPE-T-12	ROPE-G-127-10	ROPE-G-127-16
Main Material	Dacron, steel	Dacron, steel	Dacron, steel	Dacron, steel
Color	Orange	Orange	Orange	Orange
Net Weight (kg)	1.7	2.1	2	2.54
line supervisor(ft)	8	12	10	16

Model	ROPE-G-16-8	ROPE-G-16-10	ROPE-G-16-12
Main Material	Dacron, steel	Dacron, steel	Dacron, steel
Color	Orange	Orange	Orange
Net Weight (kg)	1.91	2.11	2.3
line supervisor(ft)	8	12	12

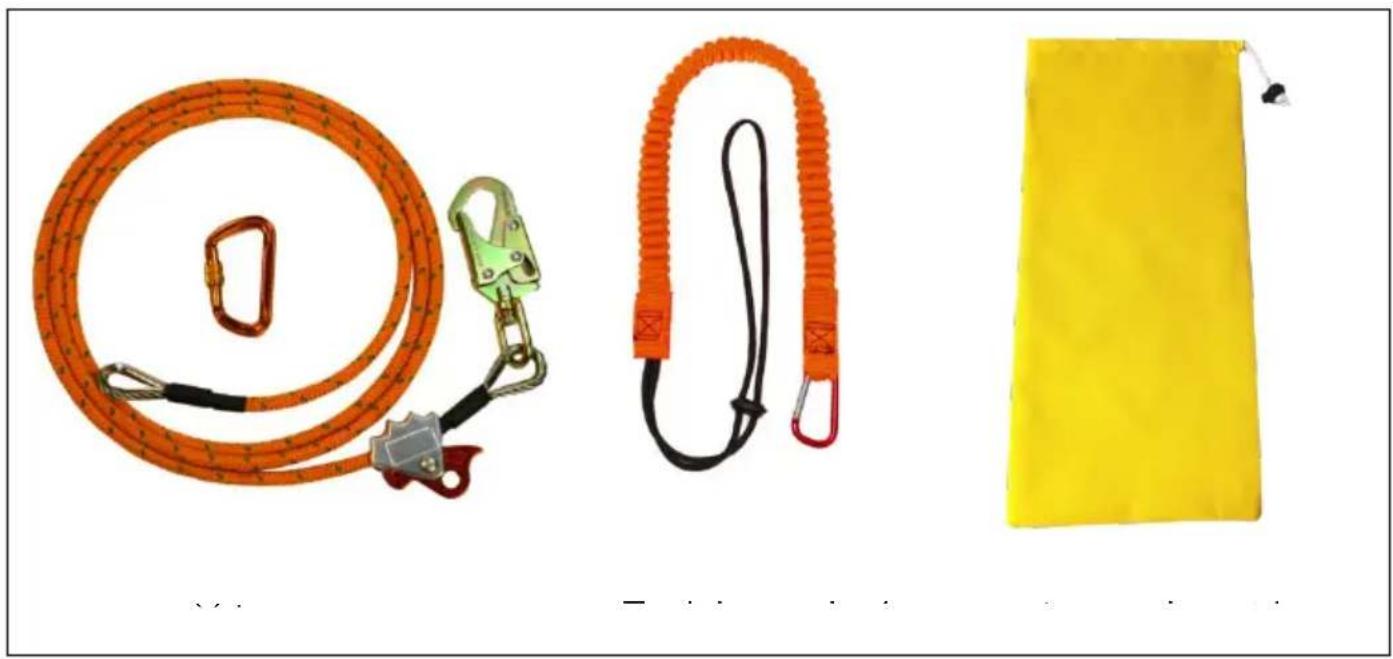

PACKAGE CONTENTS

Three safety harnesses and a yellow bag: orange rope, black-and-white safety harness, and yellow band (no text or symbols visible)

Product instruction

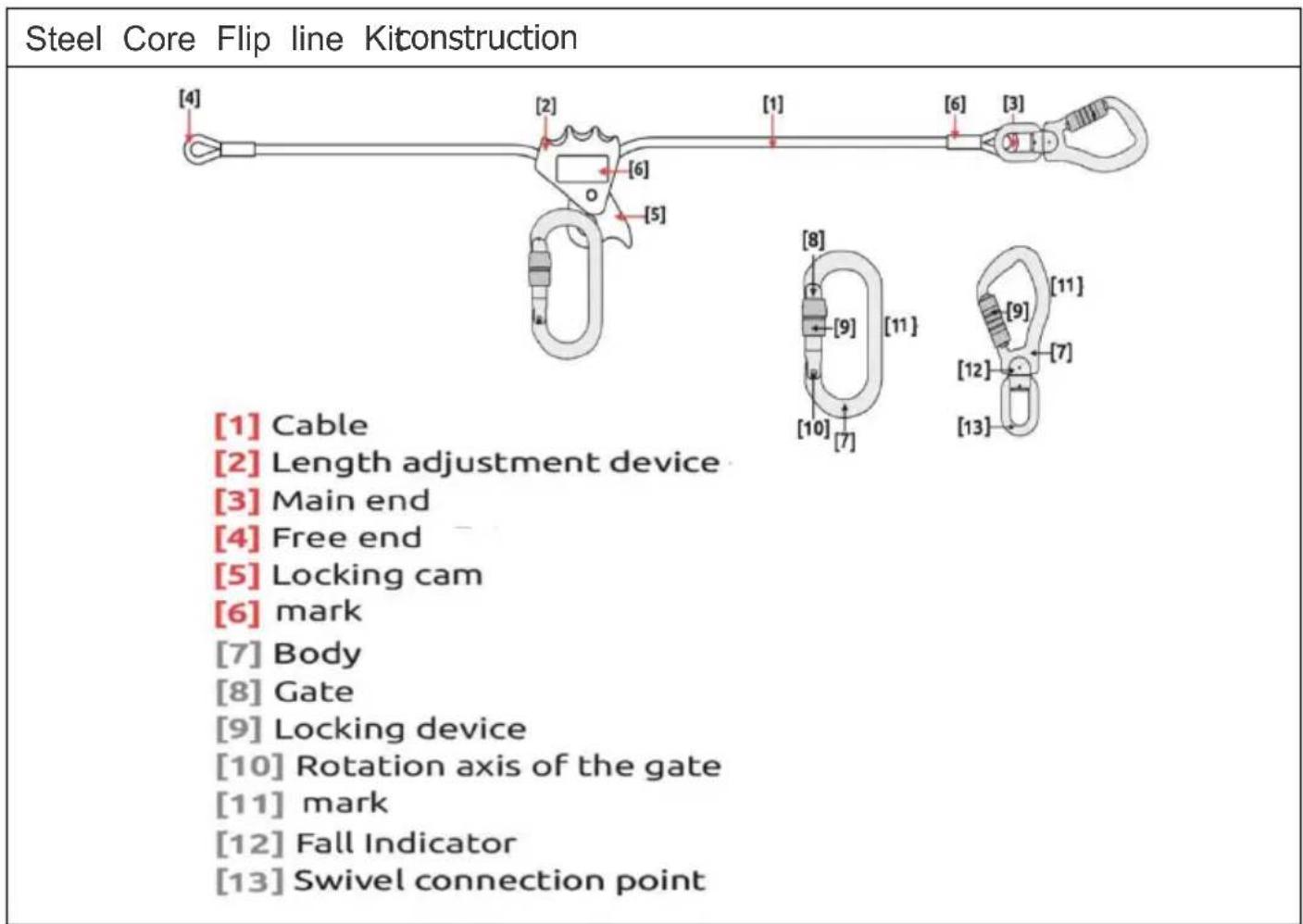

Steel Core Flip line Kitconstruction [4] [2] [1] [6] [3] [5] [8] [9] [11] [10] [7] [12] [7] [13] [1] Cable [2] Length adjustment device [3] Main end [4] Free end [5] Locking cam [6] mark [7] Body [8] Gate [9] Locking device [10] Rotation axis of the gate [11] mark [12] Fall Indicator [13] Swivel connection point

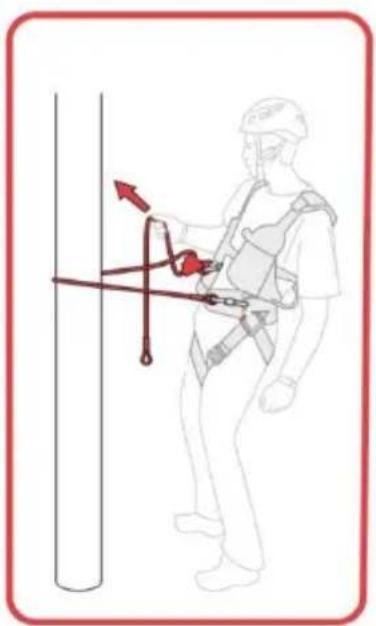

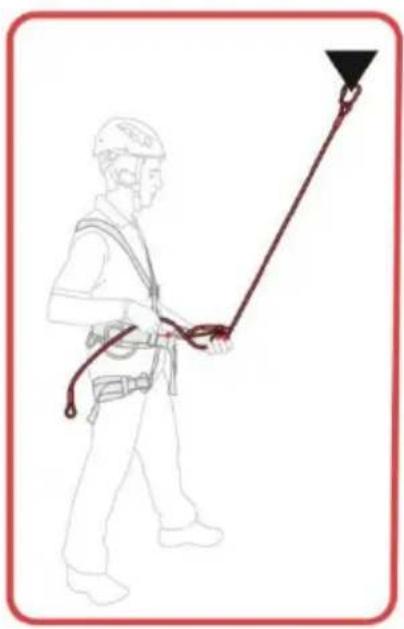

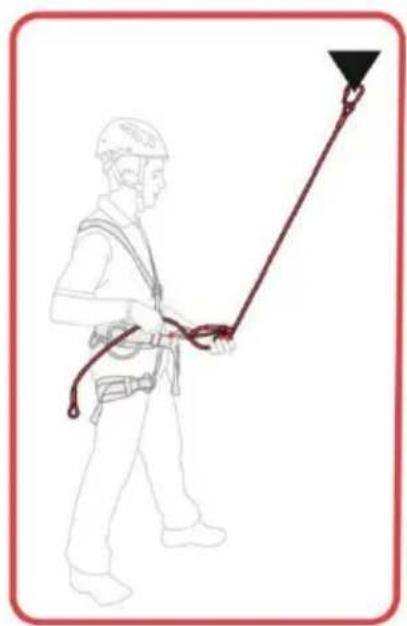

Steel Core Flip line Kit Use-pattern

Line drawing of a person wearing a harness and safety harness, holding a long pole with a triangular load (no text or symbols)

Illustration of a person in safety gear using a rope and harness to lift a vertical pole (no text or symbols)

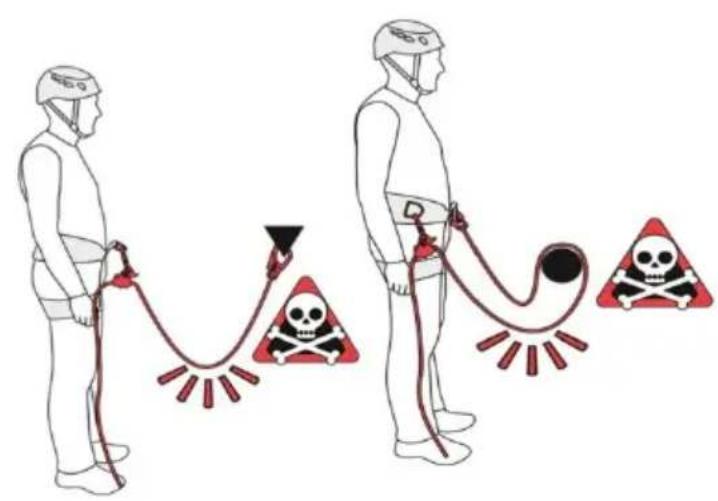

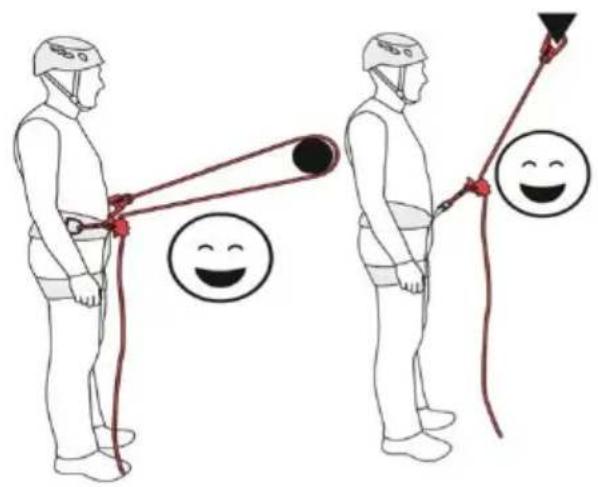

Steel Core Flip line Kit Use Warming

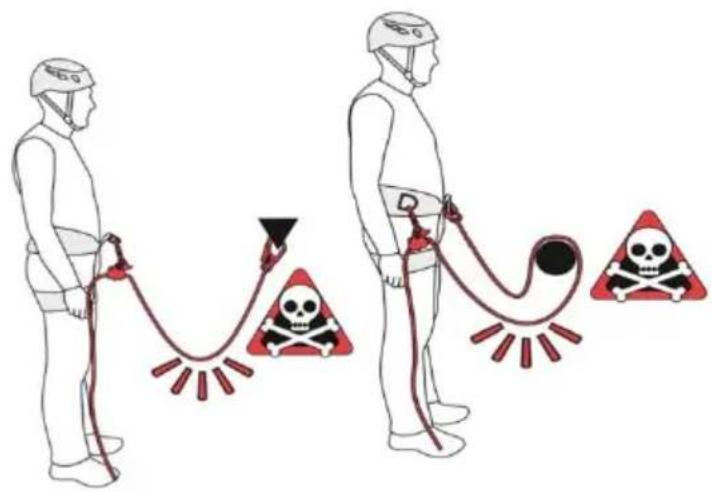

Illustration showing two safety instructions for climbing a rope, with magnified circular diagrams indicating different scenarios.

Safety warning illustration showing two workers in protective gear using ropes and safety symbols with skull and crossbones

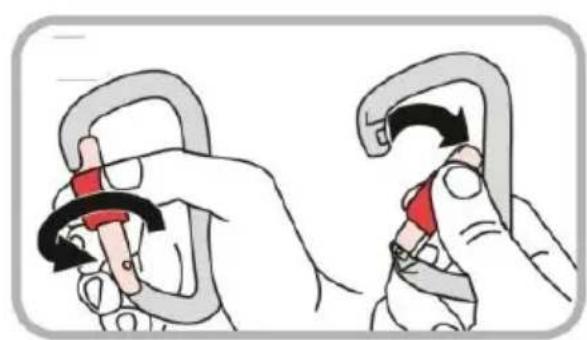

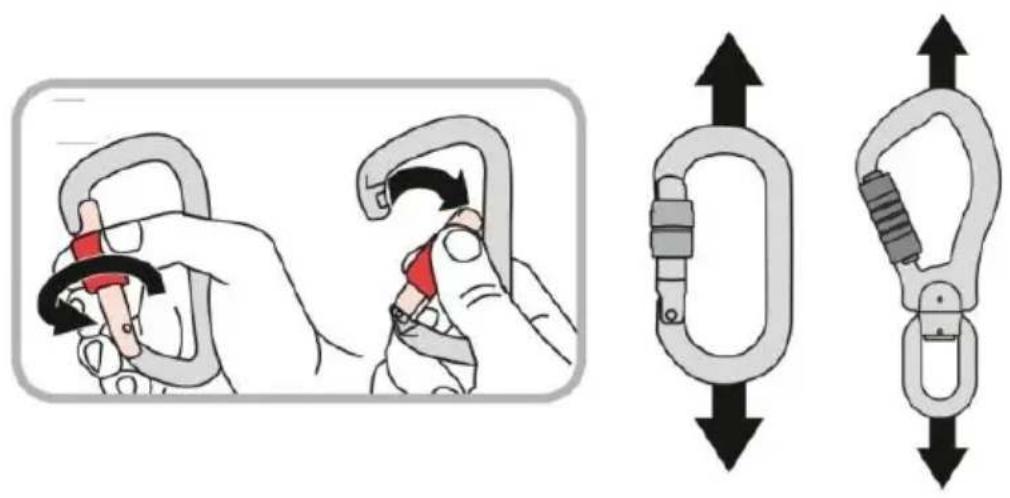

Steel Core Flip line Kit Connectors method of application

Illustration showing two different climbing techniques for lifting a carabiner, with directional arrows indicating motion.

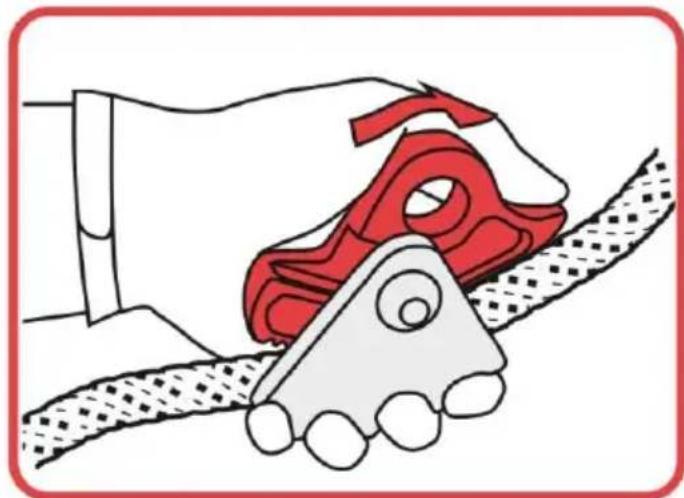

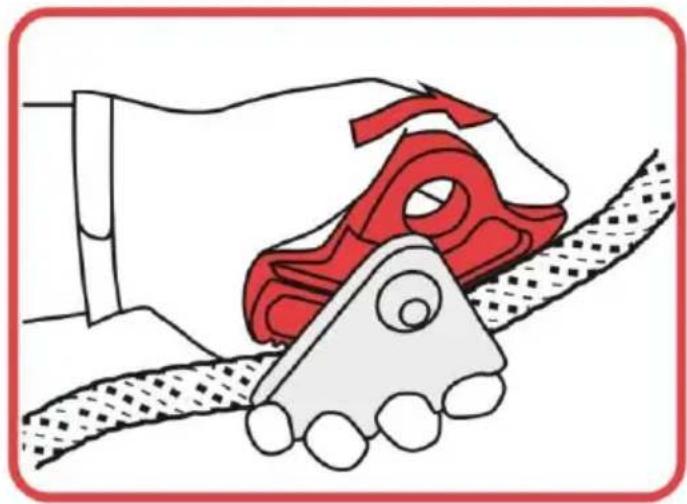

Steel Core Flip line Kit Locking cam method of application

Illustration of a red and white climbing gear securing a textured cable (no text or symbols)

USE

This equipment should be used only by trained and competent persons. Otherwise, the user should be under the direct supervision of a trained and competent person. This notice will not teach you the techniques for working at height or any other associated activity: you must have received qualified instruction before using this product. Climbing, and any other activity for which these products may be used, inherently dangerous. The consequences of incorrect selection, misuse or poor maintenance of equipment could result in damage, serious injury or death. The user must be medically fit and capable to control his security and any possible emergencies. For equipment intended for use in fall arrest systems, it is essential for safety that the anchor device or anchor point should always be positioned, and

the work carried out in such a way as to minimize both the potential for falls and the potential fall distance. Verify the free space required beneath the user at the workplace before each occasion of use, so that, in the case of a fall, there will no collision with the ground or the other obstacle in the fall path. A full-body harness is the only acceptable body-holding device that can be used in a fall array system. The product should only be used as instructed and no alterations should be made to it. It may be used in conjunction with any appropriate items of suitable specification and according to the ANSI standards, with due consideration to the limitations of each piece of equipment. This leaflet shows examples of improper utilization of this product. Note that it is impossible to show or imagine all improper utilization and that this product should be used only in the way specified by the manufacturer in this leaflet. If possible this product should be treated as personal if used by multiple individuals, these instructions must be available for consultation and must be respected by all users.

Fall Factor is a rating used to evaluate the danger of specific scenarios when working at heights calculated using the following equation: Fall Factor = Height of Fall /Length of Lanyard. In situations where the Fall Factor will be 0 (e.g. the worker is positioned under the anchor point on a tensioned lanyard) or in situation where the Fall Factor is 1 or less, positioning/restraint equipment is adequate. Far arrest equipment must be used for other situations where the Fall Factor is greater than 1 or more freedom of movement is required. Always keep the rope under tension and avoid creating slack. When using a work positioning system, the user relies on the equipment for his or her support. Assessing the need for a second arresting safety system is essential. All the lanyards, even those made of metal cable, are not indestructible and can be cut by sharp tools (i.e. chain-saw, etc.); therefore always use a backup line during cutting activities. The anchor point must be in compliance with the EN795 standard and/or known to have a resistance of 12 KN (metal anchors) or 18 KN (fabric anchors). The anchoring point must be above waist level. Connections to the harness and to the structural anchor point must be made with EN 362 connectors. Gloves are recommended to avoid burns from sliding along the cable. Use adequate rescue equipment and provide adequate training for the work crew so that they can quickly rescue the injured person to minimize the suspension trauma effects.

MAINTENANCE

Cleaning of the textile and plastic parts: rinse in clean water and neutral soap (n temperature 30C) and dry naturally away from direct heat. Cleaning of the metall parts: rinse in clean water and then dry. Temperature: Always keep this product below 80C so as not to affect the performance of the product. Chemicals: withdraw the product from service if it comes into contact with chemical reagents, solvents or fuels which could affect the performance of the product. Dirt that cannot be removed: spots of unknown origin that cannot be removed should be considered chemical contamination and therefore require that the product be disposed of.

STORAGE

Store unpacked in a cool, dry and well-ventilated, dark place away from heat sources, high humidity, sharp edges, corrosives or other possible causes of damage. Do not leave the product exposed to the weather.

COMPLETION

Assorted orange safety harnesses and harnesses with attached clips, no text or symbols visible

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Steel Core Flip line

N° DE MODÈLE : CORDE-T-8 , CORDE-T-12 , CORDE-G-127-10 , CORDE-G-127-16 , CORDE-G-16-8 , CORDE-G-16-10 , CORDE- G-16-12

Assorted orange safety harnesses and harnesses with attached clips, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVERTISSEMENT:

Three safety harnesses and a yellow bag: orange rope, black-and-white safety harness, and yellow band (no text or symbols visible)

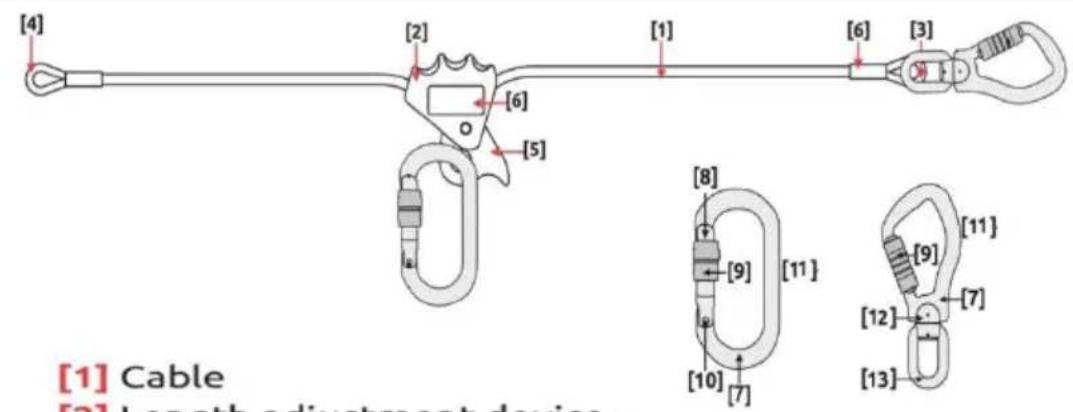

[1] Cable [2] Length adjustment device

[1] Cable
[2] Length adjustment device
[3] Main end
[4] Free end
[5] Locking cam
[6] mark
[7] Body
[8] Gate
[9] Locking device
[10] Rotation axis of the gate
[11] mark
[12] Fall Indicator
[13] Swivel connection point

Illustration of a person wearing a harness and safety harness, holding a long pole with a triangular load (no text or symbols)

Illustration of a person in safety gear using a rope and harness to lift a vertical pole (no text or symbols)

Illustration showing two scenarios of a person using a rope, with magnified views of the same figure and a smiling emoji.

Safety instruction diagram showing two workers in protective gear using ropes to prevent fatalities, with warning symbols and hazard markers.

Illustration showing two different climbing methods: one with a hand holding a spring, the other with a U-shaped spring and directional arrows indicating motion.

Illustration of a red and white mechanical clamp securing a textured cable (no text or symbols)

UTILISER

Assorted orange safety harnesses and harnesses with attached clips, no visible text or symbols

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD, 1 ROKEVA STREETESTWOC NSW 2122 Australie

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Steel Core Flip line

MODELL-NR.: ROPE-T-8, ROPE-T-12, ROPE-G-127-10, ROPE-G-127-16, ROPE-G-16-8, ROPE-G-16-10, ROPE-G-16-12

Assorted orange safety harnesses and harnesses with attached clips, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNUNG:

Three safety harnesses and a yellow bag: orange rope, black-and-white safety harness, and yellow band (no text or symbols visible)

Produktanleitung

[1] Cable [2] Length adjustment device

[1] Cable
[2] Length adjustment device
[3] Main end
[4] Free end
[5] Locking cam
[6] mark
[7] Body
[8] Gate
[9] Locking device
[10] Rotation axis of the gate
[11] mark
[12] Fall Indicator
[13] Swivel connection point

Line drawing of a person wearing a harness and safety harness, holding a long pole with a triangular load (no text or symbols)

Illustration of a person in safety gear using a rope and harness to lift a vertical pole (no text or symbols)

Illustration showing two safety scenarios with a person using a rope and a smiling face, labeled in English.

Safety instruction diagram showing two workers in protective gear using ropes to prevent fatalities, with warning symbols and hazard markers.

Illustration of two hands performing a step-up of a climbing hook mechanism (no text or symbols present)

Diagram of a double-lift chain with bidirectional arrows indicating upward and downward motion (no text or symbols)

Simple line drawing of a hanging chain with upward and downward arrows indicating motion (no text or symbols)

Illustration of a red and white mechanical clamp securing a textured cable (no text or symbols)

VERWENDEN

Illustration of orange safety harnesses and carabiners with no visible text or symbols

Adresse : Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Steel Core Flip line

MODELLO N.: CORDA-T-8, CORDA-T-12, CORDA-G-127-10, CORDA-G-127-16, CORDA-G-16-8, CORDA-G-16-10, CORDA-G-16-12

Assorted orange safety harnesses and harnesses with attached clips, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

AVVERTIMENTO:

Three safety harnesses and a yellow bag: orange rope, black-and-white safety harness, and yellow band (no text or symbols visible)

[1] Cable [2] Length adjustment device [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13]

[1] Cable
[2] Length adjustment device
[3] Main end
[4] Free end
[5] Locking cam
[6] mark
[7] Body
[8] Gate
[9] Locking device
[10] Rotation axis of the gate
[11] mark
[12] Fall Indicator
[13] Swivel connection point

Illustration of a person wearing a harness and safety harness, holding a long pole with a triangular load (no text or symbols)

Illustration of a person in safety gear using a rope and harness to lift a vertical pole (no text or symbols)

Illustration showing two safety scenarios with a person using a rope and a smiling face, labeled in English.

Safety instruction diagram showing two workers in protective gear using ropes to prevent fatalities, with warning symbols and hazard markers.

Illustration of two hands performing a step-up of a climbing hook mechanism (no text or symbols present)

Diagram of a double-lift chain with bidirectional arrows indicating upward and downward motion (no text or symbols)

Simple line drawing of a hanging chain with upward and downward arrows indicating motion (no text or symbols)

Illustration of a red climbing gear securing a textured cable (no text or symbols)

UTILIZZO

Assorted orange safety harnesses and harnesses with attached clips, no visible text or symbols

Indirizzo : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Steel Core Flip line

N.° DE MODELO: CUERDA-T-8, CUERDA-T-12, CUERDA-G-127-10, CUERDA-G-127-16, CUERDA-G-16-8, CUERDA-G-16-10, CUERDA-G-16-12

Assorted orange safety harnesses and harnesses with attached clips, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

ADVERTENCIA:

Three safety harnesses and a yellow bag: orange rope, black-and-white safety harness, and yellow band (no text or symbols visible)

[1] Cable [2] Length adjustment device [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13]

[1] Cable
[2] Length adjustment device
[3] Main end
[4] Free end
[5] Locking cam
[6] mark
[7] Body
[8] Gate
[9] Locking device
[10] Rotation axis of the gate
[11] mark
[12] Fall Indicator
[13] Swivel connection point

Line drawing of a person wearing a harness and safety harness, holding a long pole with a triangular load (no text or symbols)

Illustration of a person in safety gear using a rope and harness to lift a vertical pole (no text or symbols)

Illustration showing two safety scenarios with a person using a rope and a smiling face, labeled in English.

Safety instruction diagram showing two workers in protective gear using ropes to prevent fatalities, with warning symbols and hazard markers.

Conectores del kit Steel Core Flip line metodo de APLICACION

Illustration of two hands performing a step-up of a climbing hook mechanism (no text or symbols present)

Simple diagram of a double-headed chain lock with upward and downward arrows (no text or symbols)

Simple line drawing of a hanging chain with upward and downward arrows indicating motion (no text or symbols)

Illustration of a red and white mechanical clamp securing a textured cable (no text or symbols)

USAR

Assorted orange safety harnesses and harnesses with attached clips, no visible text or symbols

Dirección : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anahe Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Steel Core Flip line

MODEL NR: LINA-T-8, LINA-T-12, LINA-G-127-10, LINA-G-127-16, LINA-G-16-8, LINA-G-16-10, LINA-G-16-12

Assorted orange safety harnesses and harnesses with attached clips, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

OSTRZEŻENIE:

Three safety harnesses and a yellow bag: orange rope, black-and-white safety harness, and yellow band (no text or symbols visible)

Instrukcja produktu

[1] Cable [2] Length adjustment device

[1] Cable
[2] Length adjustment device
[3] Main end
[4] Free end
[5] Locking cam
[6] mark
[7] Body
[8] Gate
[9] Locking device
[10] Rotation axis of the gate
[11] mark
[12] Fall Indicator
[13] Swivel connection point

Illustration of a person wearing a harness and safety harness, holding a long pole with a triangular load (no text or symbols)

Illustration of a person in safety gear using a rope and harness to lift a vertical pole (no text or symbols)

Illustration showing two safety instructions for climbing a rope, with magnified circular diagrams indicating different scenarios.

Safety instruction diagram showing two workers in protective gear using ropes to prevent fatalities, with warning symbols and hazard markers.

Illustration showing two different climbing methods: one with a hand holding a spring, the other with a U-shaped spring and directional arrows indicating motion.

Illustration of a red and white mechanical clamp securing a textured cable (no text or symbols)

UŻYWAĆ

Assorted orange safety harnesses and carabiners with attached straps (no text or symbols visible)

Adres : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Import do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

FLIPLIJNSET MET STALEN KERN

HANDLEIDING

MODEL NR.: TOUW-T-8, TOUW-T-12, TOUW-G-127-10, TOUW-G-127-16, TOUW-G-16-8, TOUW-G-16-10, TOUW-G-16-12

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Steel Core Flip line

MODEL NR.: TOUW-T-8, TOUW-T-12, TOUW-G-127-10, TOUW-G-127-16, TOUW-G-16-8, TOUW-G-16-10, TOUW-G-16-12

Assorted orange safety harnesses and harnesses with attached clips, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAARSCHUWING:

Three safety harnesses and a yellow safety bag: orange rope, black-and-white safety harness, and yellow band (no text or symbols visible)

Productinstructie

[1] Cable [2] Length adjustment device

[1] Cable
[2] Length adjustment device
[3] Main end
[4] Free end
[5] Locking cam
[6] mark
[7] Body
[8] Gate
[9] Locking device
[10] Rotation axis of the gate
[11] mark
[12] Fall Indicator
[13] Swivel connection point

Line drawing of a person wearing a harness and safety harness, holding a long pole with a triangular load (no text or symbols)

Illustration of a person in safety gear using a rope and harness to lift a vertical pole (no text or symbols)

Illustration showing two safety scenarios with a person using a rope and a smiling face, labeled in English.

Safety instruction diagram showing two workers in protective gear using ropes to prevent fatalities, with warning symbols and hazard markers.

Illustration of two hands performing a step-up of a climbing hook mechanism (no text or symbols present)

Simple diagram of a double-headed chain lock with upward and downward arrows (no text or symbols)

Diagram of a hanging chain with upward and downward arrows indicating motion (no text or symbols)

Illustration of a red and white mechanical clamp securing a textured cable (no text or symbols)

GEBRUIK

Assorted orange safety harnesses and harnesses with attached metal clips and a separate strap (no text or symbols visible)

Adres : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represer estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered by are kindly reminded to verify carefully when you are placing an order with us if yo actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Steel Core Flip line

MODELLNR: ROPE-T-8, ROPE-T-12, ROPE-G-127-10, ROPE-G-127-16, ROPE-G-16-8, ROPE-G-16-10, ROPE-G-16-12

Assorted orange safety harnesses and harnesses with attached clips, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

Three safety harnesses and a yellow bag: orange rope, black-and-white safety harness, and yellow band (no text or symbols visible)

Produktinstruktion

Steel Core Flipline Kit konstruktion

[1] Cable [2] Length adjustment device [3] [4] [5] [6] [7] [8] [9] [10] [11] [12] [13]

[1] Cable
[2] Length adjustment device
[3] Main end
[4] Free end
[5] Locking cam
[6] mark
[7] Body
[8] Gate
[9] Locking device
[10] Rotation axis of the gate
[11] mark
[12] Fall Indicator
[13] Swivel connection point

Steel Core Flipline Kit U se-mönster

Line drawing of a person wearing a harness and safety harness, holding a long pole with a triangular load (no text or symbols)

Illustration of a person in safety gear using a rope and harness to lift a vertical pole (no text or symbols)

Illustration showing two safety scenarios with a person using a rope and a smiling face, labeled in English.

Safety instruction diagram showing two workers in protective gear using ropes to prevent fatalities, with warning symbols and hazard markers.

Steel Core Flipline Kit - anslutningar appliceringsmetod

Illustration of two hands performing a step-up of a climbing hook mechanism (no text or symbols present)

Diagram of a mechanical clamping device with bidirectional arrows indicating force or direction (no text or symbols)

Simple line drawing of a hanging chain with upward and downward arrows indicating motion (no text or symbols)

Steel Core Flipline Kit Låskam appliceringsmetod

Illustration of a red and white mechanical clamp securing a textured cable (no text or symbols)

ANVÄNDA SIG AV

Assorted orange safety harnesses and harnesses with attached clips, no visible text or symbols

Adress : Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4A

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
