USER MANUAL DOC347CO LIVOO

Black and red electric stove appliance with two pink buttons, no visible text or symbols on the device itself.

é

éLivoo

"ersioné:év.â.2ééé

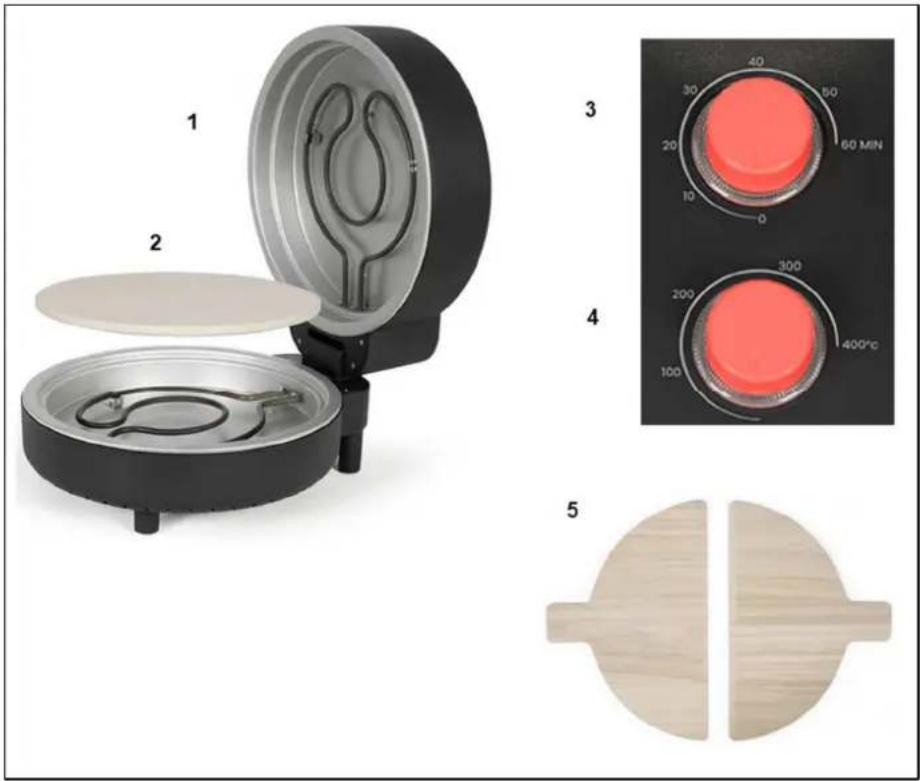

Product diagram of a portable oven with open lid, showing internal compartments, temperature control knob, and wooden panel cross-section (no text or symbols)

Yellow triangular warning sign with black smoke symbol indicating hot water or steam

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no readable text or symbols)

Thank you for choosing a Livoo product!

The collaboration between Marmiton and Livoo is a breath of fresh air. By exploring our shared expertise, we've come up with a product that will simplify your life in the kitchen. How do we do it? By slipping you 20 gourmet recipes with your new pizza oven. Simply scan the Qr code on the product to access the recipes at any time. The product is adorned with coral buttons, Marmiton's signature color, to bring a positive touch to your kitchen. Find our entire collection on our website www.livoo.en.

é

Livoo, your daily companion till social networks

@°ivooé

@livoo_officielé

@°ivooé

SafetyèInstructionsèè

«lease, étakeétimeétoéreadéwellétheéinstructionésheetébeforeétheéfirstéuseéandékeepétheméforéafutureéus

Aémisuseéofétheéapplianceécanédamageéitéoréhurtétheéuser.éAssureéthatéyouéuseétheéapplianceéforéthe foréwhichéitéisédesigned.éWeérefuseéanyéresponsibilitieséaséforétheédamagesébyéanéincorrectéuseéoréaét manipulation.é

é

1. Children shall not play with the appliance.
2. Cleaning and user maintenance shall not be made by children without supervision.
3. Regarding the instruction for cleaning surfaces in contact with food thanks to refer to the below paragraph "cleaning" in manual.

4. to be used in household and similar applications such as:

5. staff kitchen areas in shops, offices and other working environments

6. farm houses
7. by clients in hotels, motels and other residential type environments
   • bed and breakfast type environments

(*) Competent qualified electrician: after sales department of the producer or importer or any person who is qualified, approved and competent to perform this kind of repairs in order to avoid all danger. In any case you should return the appliance to this electrician.

Yellow triangular warning sign with black smoke symbol indicating steam or hazard

Warning: Hot surface! - Do not cover the air inlet and the air outlet when the appliance is working.

TechnicalèSpecificationsè

Voltage: 220v-240V\~50Hz-60Hz Power: 1800W

Power consumption in off mode: 0W

Drawingèofètheèdeviceè

Before the first use:

Remove all packaging, and clean the appliance and the plate thoroughly with a damp cloth.

Place the refractory stone inside the oven. Plug in the appliance and turn it on by turning the timer knob to the 20-minute position and the power knob to the 200^ C position.

To turn off the appliance, set both knobs to the 0 position.

Using the Appliance

Open the lid using the handle and place the pizza on the refractory stone. Close the lid with the handle and turn the power and timer knobs to the desired cooking time.

Set the temperature knob to the desired level. On average, it takes 4 to 7 minutes to cook a pizza, depending on its thickness.

You can open the lid to check the progress, but this will cause a loss of heat and may slightly extend the cooking time. When cooking time is up, open the lid and remove the pizza using the wooden peels. Then switch off and unplug the appliance.

Note: Foods containing grease or oil should not come into contact with the stone. Discoloration of the stone due to cooking or flour residues may appear over time, but this does not affect the stone's baking performance.

Do not leave the appliance running empty for more than 30 minutes.

Cleaning and storage

After each use, allow the product to cool down completely. Do not immerse the appliance in water.

Do not use sharp objects or abrasive cleaners on the cooking surface. Do not use acidic products such as vinegar to clean the stone plate.

Cleaning

Perform a "heat cleaning" by heating the pizza oven for about 15 minutes after each use. This will help eliminate some food residues.

Outer Surface

Wipe thoroughly with a damp cloth. Never use oven cleaner.

Refractory Cooking stone

Residue on the refractory stone can be wiped off with a damp cloth. If residue persists, soak the stone in water.
