USER MANUAL MKH15180BGA MIDEA

Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Please use caution when interpreting the results of these measurements.

The diagram above is just for reference. Please take the appearance of the actual product as the standard

技术要求（版本号：C，2025-02）

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETYINSTRUCTIONS 02

SPECIFICATIONS 05

PRODUCT OVERVIEW 06

OPERATION INSTRUCTIONS 07

CLEANING AND MAINTENANCE 12

TROUBLESHOOTING 13

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 15

DATA PROTECTION NOTICE 16

1 YEAR LIMITED WARRANTY 18

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find a damage, please contact the retailer or dealer. Please note that alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

Danger This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

Warning of electrical voltage This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Attention The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed including the following:

• Read all instructions.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair, or adjustment.
• To protect against fire, electrical shock and injury to persons do not immerse cord, plugs, base or kettle in water or other liquid.
• Do not touch hot surfaces. Use handles or knobs.
• Scalding may occur if the lid is removed during the brewing cycles.
• Do not use outdoor. Household use only.
• Close supervision is necessary when any appliance is used by or near children.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The appliance is only to be used with the stand provided.
• CAUTION: Insure that the appliance is switched off before removing it from its stand or unplug.
• Warning - avoid spillage on the stand connector.
• Do not use appliance for other than intended use.
• Unplug from outlet when not in use and before

cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• The appliance is only to be used with the stand provided.
• Warning: avoid spillage on the stand connector.
• Heating element surface is subject to residual heat after use.
• WARNING: Do not remove the lid while the water is boiling.
• CAUTION: Position the lid so that steam is directed away from the handle.
• If the kettle is overfilled, boiling water may be ejected.
• A short power-supply cord is provided to reduce risks resulting from becoming entangled in or tripping over a longer cord.

b) Extension cords are available and may be used if care is exercised in their use.
c) If anextension cord is used:

1) The marked electrical rating of the detachable power-supply cord or extension cord should be at least as great as the electrical rating of the appliance;
2) If the appliance is of the grounded type, the extension cord should be a grounding-type 3-wire cord; and
3) The longer cord should be arranged so that it will not drape over the counter top or table top where it can be pulled on by children or tripped over.

SAVE THESE INSTRUCTIONS

SPECIFICATIONS

	MKH15180BGAProduct Model
Rated voltage	120V~
Rated frequency	60Hz
Rated power	800W
Capacity 1.5L

PRODUCT OVERVIEW

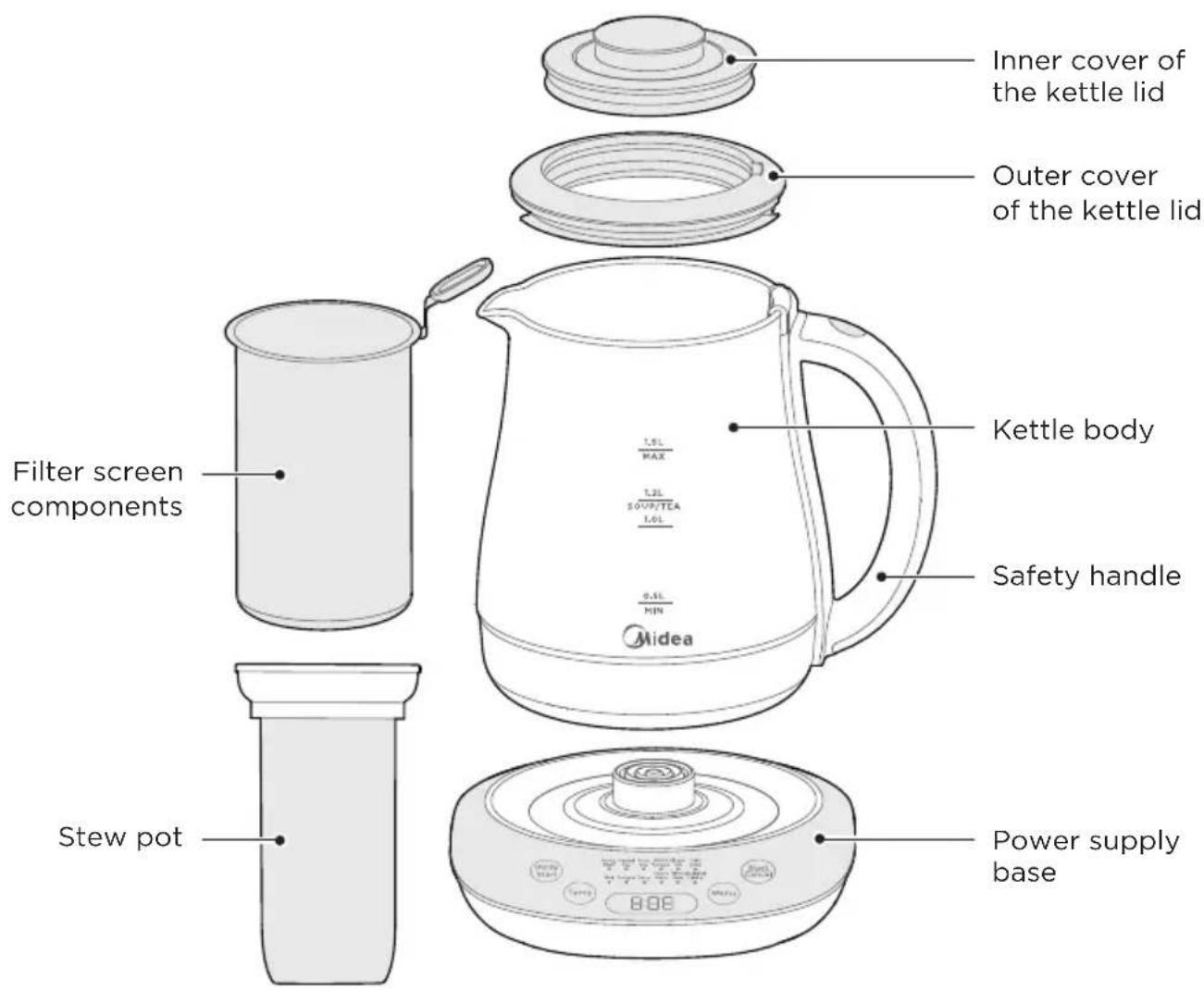

Part Name

NOTE

The figure below is for reference only, and the details are subject to the actual objects in the packaging box.

OPERATION INSTRUCTIONS

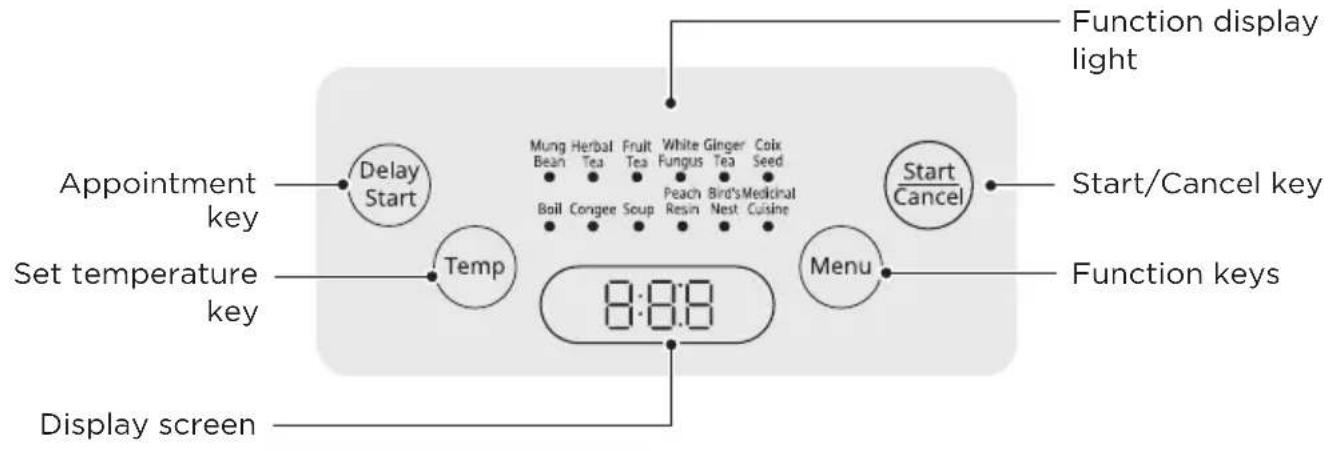

Operation Panel

Product Introduction

Standby mode:

• After power up, it will give a long ring to prompt, all work indicators will light up once, and then light off. After pressing any key, it will display the current water temperature, which is in standby mode.
• When there is no operation in standby mode for 30 seconds, the display lights off. Press any key to light up the display screen, and the product will return to standby mode.

Cooking function:

• In standby mode, continuously press the [Moyo] to circularly select the functions of "Mung Bean, Herbal Tea, Fruit Tea, White Fungus, Ginger Tea, Coix Seed, Boil, Congee, Soup, Peach Resin, Bird's Nest, Medicinal Cuisine". Press the [Start/Cancel] key again to start the selected cooking.
• After selecting the function, press the [Stary/Calmer] reservation time is not set, the system will enter the working state. If the reservation time is set, the system will enter the reservation state. After the reservation, the system will complete the cooking function.

Keep warm:

• Continuously press the [Temp] key to select the temperature circularly.

[Start/Cancel]key to start the warm After the ten

work. The warm-keeping time is 12 hours.

• During the warm process, you can press the [T]key to view or adjust the temperature. Press the [T]key once to display the selected temperature for 3 seconds. Press the [T]key again within 3 seconds to switch the selected temperature.

Reservation function:

• After selecting the cooking function or temperature, press the [Delay Start continuously to select the reservation time.
  After selecting the reservation time, press the [start/stop/cityek] reservation status.
• If only the reservation time is selected, press the [Start/Cancel] key, and the productwill be in standby mode.

Warm prompt:

• During the reservation process, the ingredients may deteriorate. Please choose a reasonable reservation time according to the characteristics of the ingredients and the ambient temperature.
• In the working state, press the [ $thery/andthe product will return to the standby mode.
• During use, the total amount of food and water shall not exceed the corresponding maximum water level, otherwise it may cause overflowing and damage the product.
• When cooking materials that are easy to bubble (such as tremella, porridge), it is recommended to open the lid of the kettle to avoid bubbling and overflow during cooking.
• When the product is working, it is normal that the water vapor in the air condenses and fogs on the outer wall of the inner tank, and the water mist will disappear naturally after being placed for a period of time.

Double dry-heating protection function:

• When the electric kettle is heated without water, the double dry-heating protection function will automatically stop heating to prevent product damage.
• In case of the above situations, please pull the power plug out of the socket and wait for the product to cool naturally (about 10 minutes) before normal use. Do not directly use cold water for cooling to avoid reducing the service life of the heating system.

Instructions For Use

Operation steps of boiling point detection

1 After adding 1.2L of water into the kettle, turn on the power, and press the [T]key and the [Menu] key for

2 After entering the boiling point detection, it displays running lights, and the kettle starts to boil water. After

3 seconds at the same time with boiling, the boiling point detection is 30 seconds, the product enters completed, and the product records the boiling point detection. the boiling point of the area.

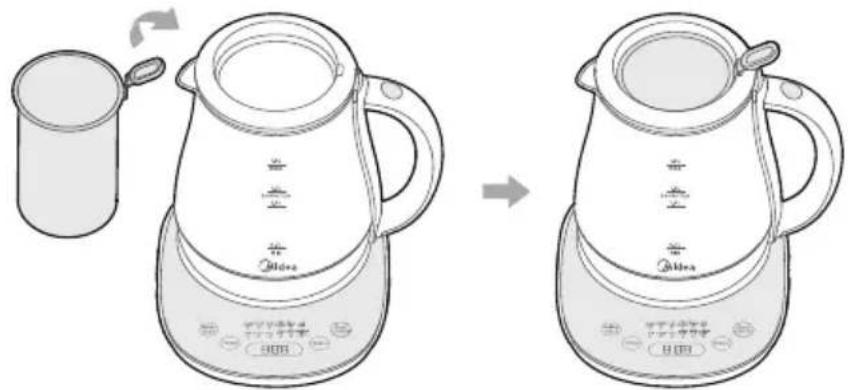

Operating steps for filter screen installation

Install the filter screen onto the outer cover of the kettle lid. Note that the handle of the filter screen should be aligned with the groove of the outer cover of the kettle lid.

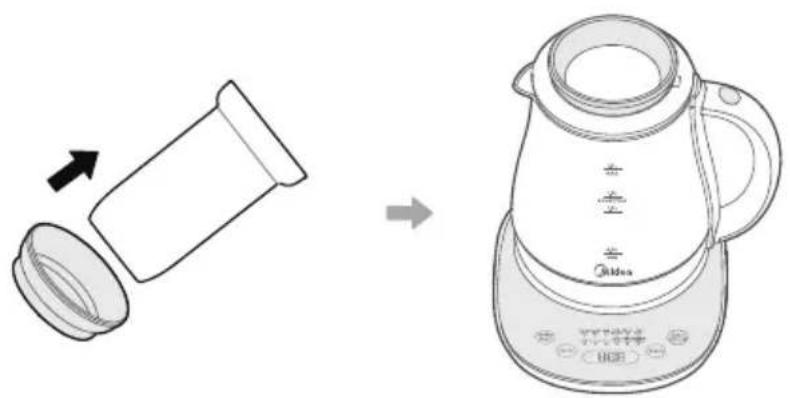

Stew cup installation steps

1. Install the silicone gel on the stew pot
2. Install the stew pot on the outer cover of the pot lid, and cover the inner cover

Product Operation Instructions

1 Open the lid of the kettle and add ingredients to the kettle. Be careful not to exceed the maximum water level in the kettle.

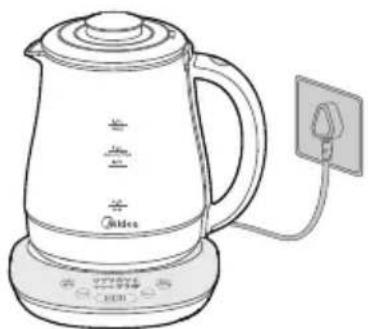

2 Place the kettle body on the power base, cover the lid, and connect the power.

3 Press any key to enter the standby mode, and then press the [Menu] key to select the desired cooking function.

4 After selecting the function, press the [Staey/Coast] the product cooking.

Recipes

Ingredient requirementsFunction Recipe
Mung Bean Mung bean soup	Mung beans 120g, sugar 30g (added as needed), water 1.2L
Herbal Tea Chrysanthemum tea	Chrysanthemum 5g, water 1.2L
Fruit Tea pear tea	Pear 250g, rock sugar 30g, chrysanthemum 2g, water 1.2L
White Fungus White fungus soup with lotus seeds	Soaked tremella 70g (2-3 hours of soaking dry tremella), red jujube 5g (5-10 minutes before the end of cooking is recommended), lily 5g (recommended), lotus seed 15g (recommended), medlar 10g (5-10 minutes before the end of cooking is recommended), rock sugar 15g (added as needed), water 1.2L
Ginger Tea Ginger tea	Ginger 10g (or dried ginger 2g), red jujube (dried) 60g, water 1.2L
Coix Seed Boiled coix seed	Coix seed 70g (or red bean 40g, coix seed 30g), sugar 20g (added as needed), water 1.2L
Boil Boiled water	Water 0.5-1.5L
Congee Mixed Congee	Soak for more than 2 hours: coix seed 10g, red beans 15g, millet 20g, mung beans 15g, peanuts 15g. No need for soaking: rice 50g, longan 10g, red jujube 20g, medlar 5g, sugar 30-50g, water 1.2L
Soup Spare ribs and corn soup	Corn 100g, carrot 100g, spare ribs 260g, ginger 7g, salt 3.5g, water 1.2L
Peach Resin Peach Resin (No stewing pot)	40g peach gum (soaked in water for 12 hours) Rock sugar 60g, water 1.2L
Peach Resin (Stewing pot)	In the stew pot: 10g peach gum (soaked in water for 12 hours), 300mL milk, 20g rock sugar water 1.2L
Bird's Nest Stewed Bird's Nest (Stewing pot)	In the stew pot: dried bird's nest 5g (soaked for 4H), wolfberry 1g (added as needed), rock sugar 3g (added as needed), water 260mL
Medicinal Cuisine Chicken soup with cordyceps flower	Chicken 200g, cordyceps flower 5g, ginger 4g, medlar 3g, salt 2.5g, water 1.2L

CLEANING AND MAINTENANCE

Descaling And Cleaning

1 Disconnect the power supply and add detergent and clean water to the kettle.

3 Pour out the detergent solution after a period of standing.

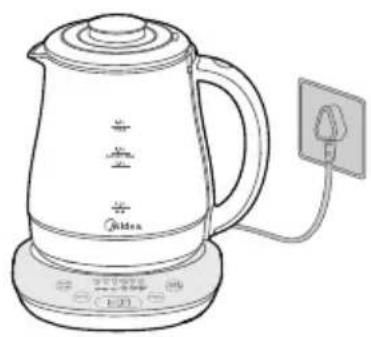

2 Cover the kettle, switch on the power, and boil the detergent solution.

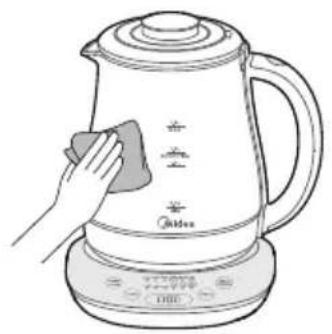

4 Rinse the tank with clean water and dry it with a clean soft cloth.

TROUBLESHOOTING

Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the table below carefully in order to save your time and money that may cost for calling to the service center.

Please check the following points before arranging for service.

Solution To Abnormal Display Of Display Screen

Abnormal display of display screen	Possible causes Solutions
C1	Sensor overtemperature protection	· Disconnect the power supply, check whether the operation is correct, and wait for a period of time before powering on. If the abnormality still occurs, please send it to the designated after-sales service point for repair
E2	Sensor short-circuit protection

In case of abnormal display on the display screen, the above list can be used for judgment and handling. If the problem cannot be solved, contact after-sales service for repair.

Solution to abnormal phenomena

	Possible causes SolutionsAbnormal phenomena
Indicator light does not work	The plug is not inserted properly	·Check whether the power plug is plugged in properly
	Light line fault	·Send to the after-sales service point for maintenance
Food spillage	Too much food/water	·Refer to the recommended recipe to place ingredients and water volume
	Wrong function grade	·Refer to the recommended recipe to select the functional grade
	Machine fault	·Send to the after-sales service point for maintenance
Burnt	Too little water	·Refer to the recommended recipe and add water to the correct position
	The bottom of the tank is not cleaned	·Clean the liner before use
	Wrong function grade	·Refer to the recommended recipe to select the functional grade
	Machine fault	·Send to the after-sales service point for maintenance
Not heating	The product is not selected to enter the function grade	·Re-select function
	The product is in reservation status	·It belongs to normal phenomena
	Machine fault	·Send to the after-sales service point for maintenance
No response to keys	The product is in operation and cannot be operated	·It belongs to normal phenomena
	Water in operation panel	·Wipe the panel
	Machine fault	·Send to the after-sales service point for maintenance

When you think there is something wrong with the product, before sending it to maintenance network for repair, please check the above conditions for confirmation.

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions there of are valuable assets of Midea Group and/or its affiliates ("Midea"), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal data being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

1 YEAR LIMITED WARRANTY

This is the only express warranty for this product and is in lieu of any other warranty or condition. This product is warranted to be (1) year from the date of original purchase. During this period, your exclusive remedy is repair or replacement of this product or any component found to be defective, at our option; however, you are responsible for all costs associated with returning the product to us and our returning the product or component under this warranty to you. If the product or component is no longer available, we will replace with a similar one of equal or greater value. This warranty does not cover wear from normal use, and damages to the product resulting from accident, alteration, abuse, or misuse. This warranty extends only to the original consumer purchaser or gift recipient. Keep the original sales. This warranty is void if products is used for other than single family household use or subjected to any voltage and waveform. We exclude all claims for special, incidental, and consequential damages by breach of express or implied warranty. All liability is limited to amount of the purchase price. Every implied warranty, including any statutory warranty or condition of merchantability prohibited by law, in which case such warranty or condition is limited to the duration of this written warranty. Legal rights that vary depending on where you live. Some states or provinces do not allow limitations on implied warranties or special, incidental consequential damages, so the foregoing limitations may not apply to you. Please note that failure to complete and submit this form does not diminish your warranty.

In the event of a warranty period claim, question, comments or if service is required for this product, please contact us at the following:
