USER MANUAL ssshksdj-e Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

PUNCHING-BAG-STAND

ssshksdj-e

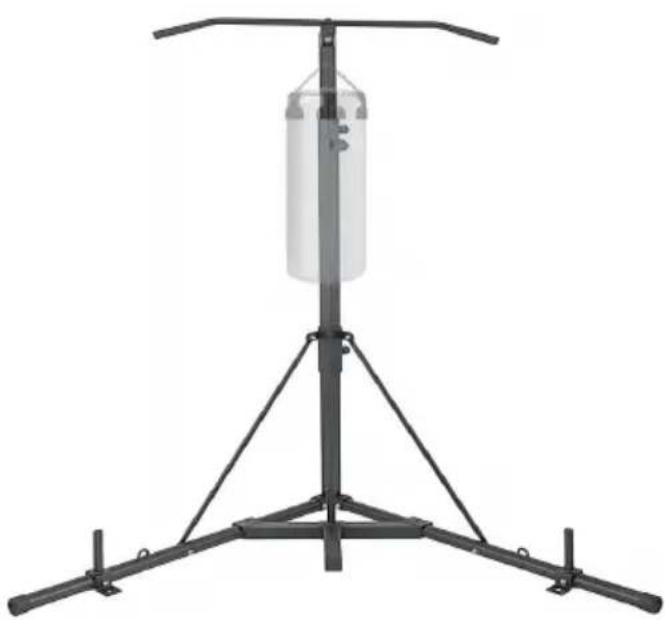

Mechanical device with a vertical cylindrical component mounted on a tripod, supported by two metal supports (no text or symbols visible)

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: ssshksdj-e

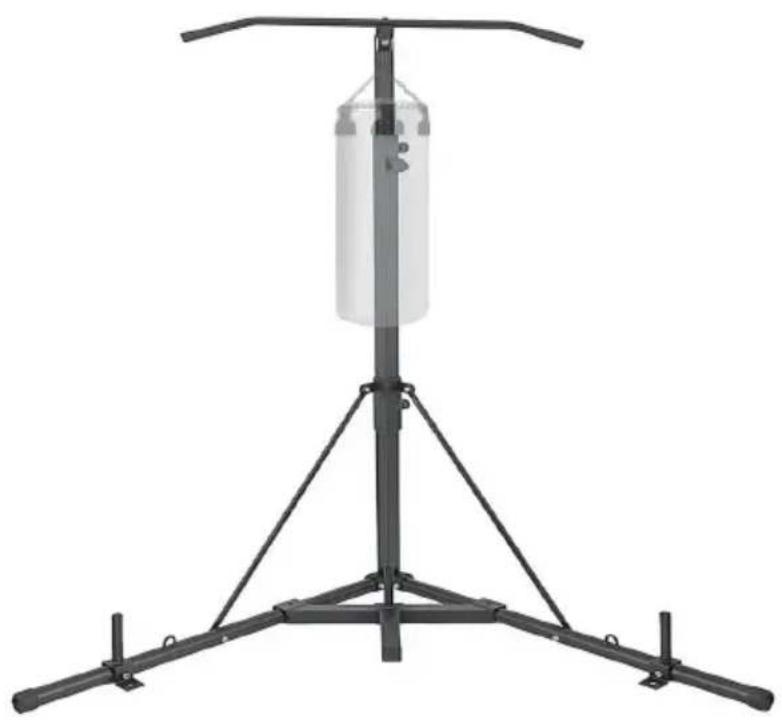

Mechanical device with tripod support structure and central vertical cylindrical component (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this Punching-Bag-Stand. Please re all of the instructions before using it. The information will help you at the best possible results.

INTRODUCTION

SAVE THESE INSTRUCTIONS

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this

product are fully aware of all warnings and precautions.

• Children or persons with disabilities must be closely supervised when using the boxing ring.
• This product is used only as intended. Do not use heavy bags that weigh more than 50 kg.
• Do not drop or insert anything into any hole.
• Boxing stands are for family use only. Do not use this product for commercial, rental, school or institution.
• Do not use outside.
• Keep the product indoors, away from moisture and dust. Choose a surface with a mat underneath it to protect the floor or carpet. Make there is enough space to install, disassemble, and use this product.
• Keep hands and feet away from moving parts.

Prohibition sign showing a person running with a diagonal line (no text or symbols)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

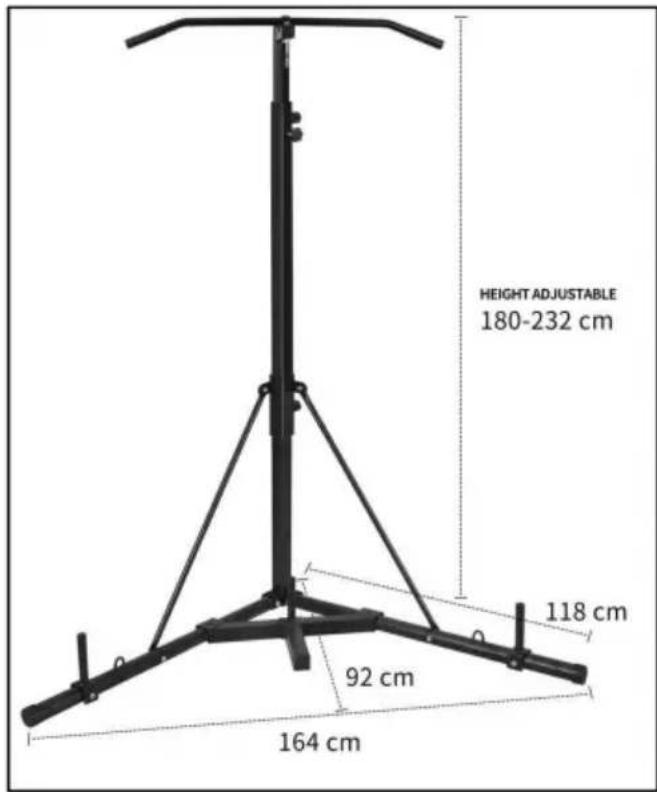

PRODUCT PARAMETER

MODEL: ssshksdj-e

HEIGHT ADJUSTABLE 180-232 cm 118 cm 92 cm 164 cm

PART LIST

NO.	Part Name QTY NO. Part Name QTY
1.	Vertical Rod 1 11. Bolt M10x70 9
2.	L-type Plate 1 12. Bolt M10x20 4
3.	Bottom Pipe 2 13. Spring Washer M10 2
4.	Movable Casing	1	14.	Flat Washer M10	22
5.	Adjustable Bracket	1 15. M10 Nut		10
6.	Support Tube	2 16. Pop Pin		2
7.	Lower Transverse Rod	1 17. Knob M10		1
8.	Middle Barbell Tube	1 18. M10 Expansion Screw		2
9.	Barbell Tube 2 19. Wrench			2
10.	Hanging Hook	1 20. Pull Up Bar		1

Actual Drawing Of Parts
1
2	3
4	5
6	7
8	9	10	11
12	13	14	15
16	17	18	19
20

Note: Some parts(1,2,4,6) have been pre-assembled when packing, please refer to the actual

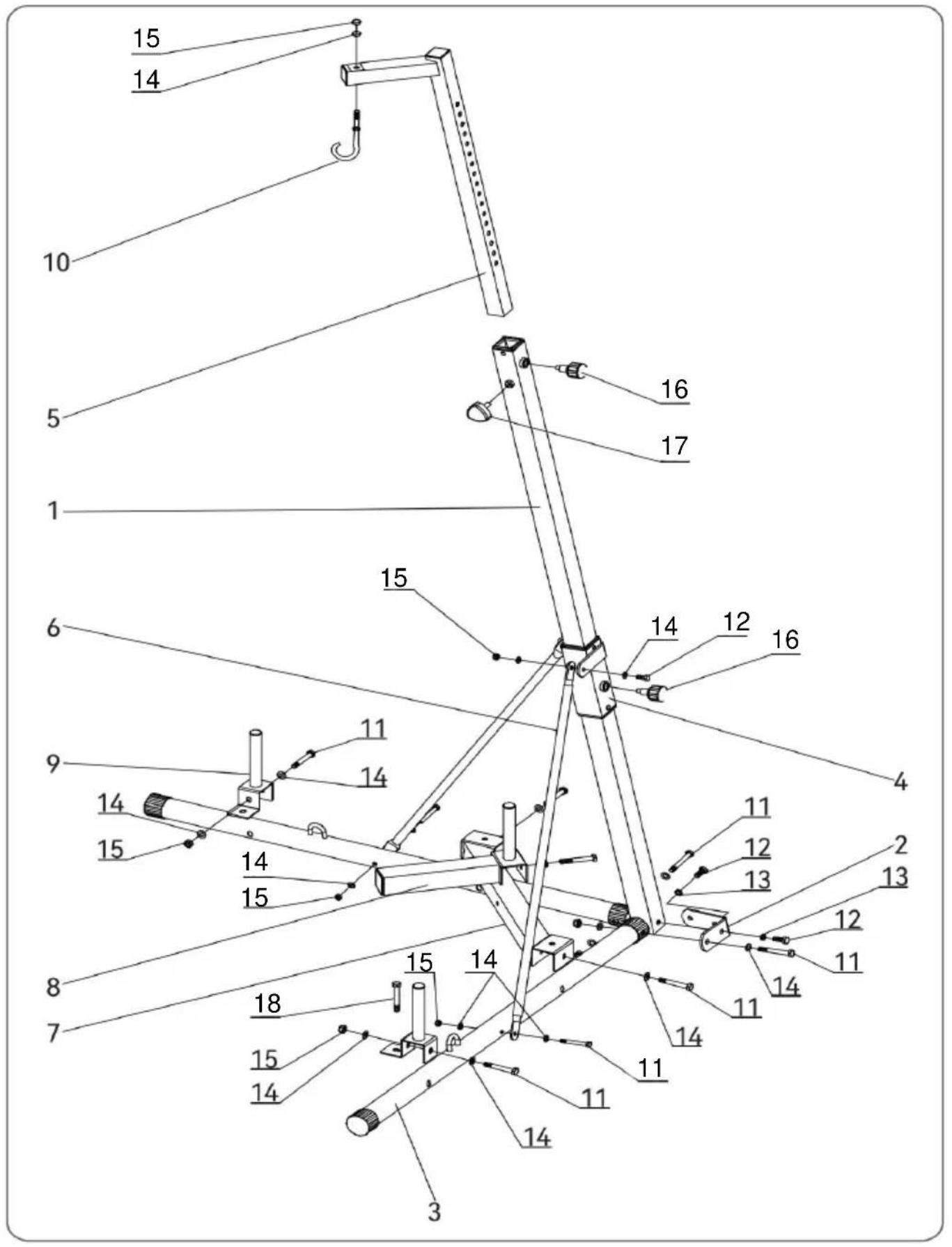

Technical diagram of a mechanical linkage system with numbered components for identification

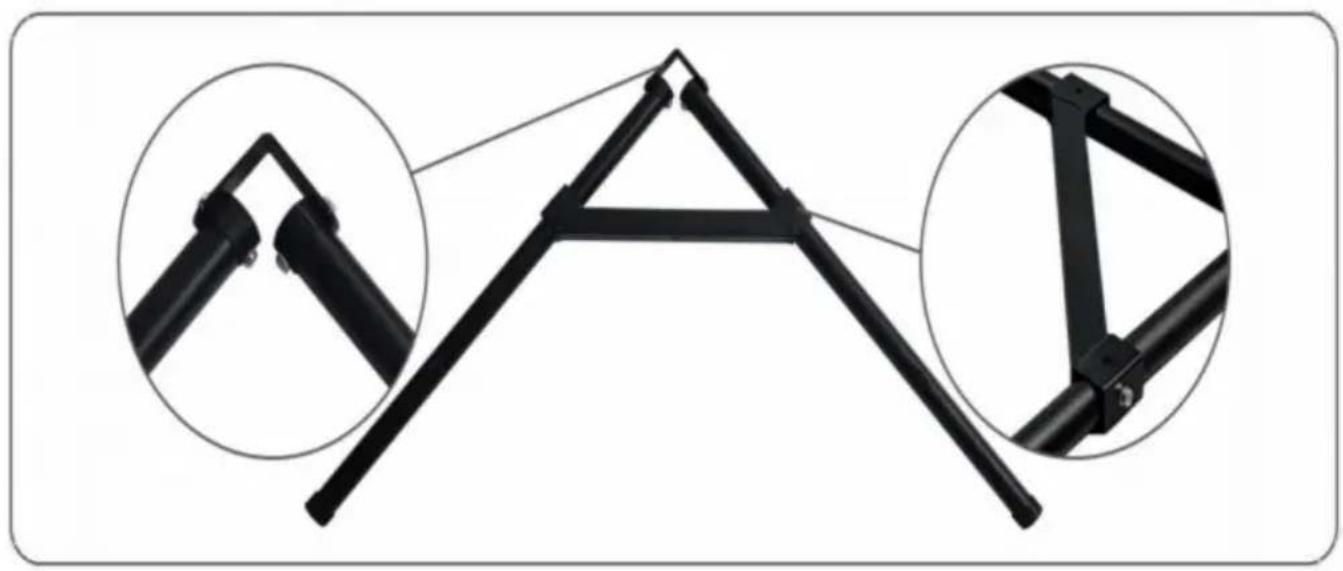

Step 1: Instalthe base (parts 2,3,7)

Technical illustration of a mechanical bracket assembly with two circular insets showing close-up views (no text or symbols)

Step 2: Instal the central pole (Parts 1,4,5,16)

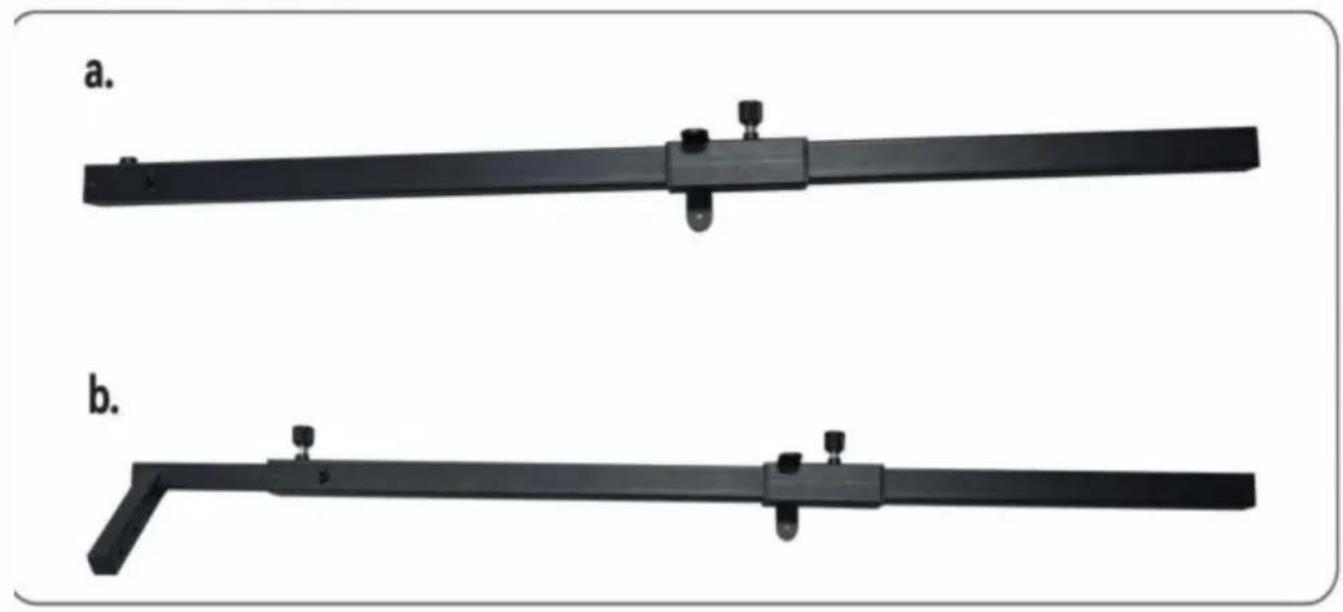

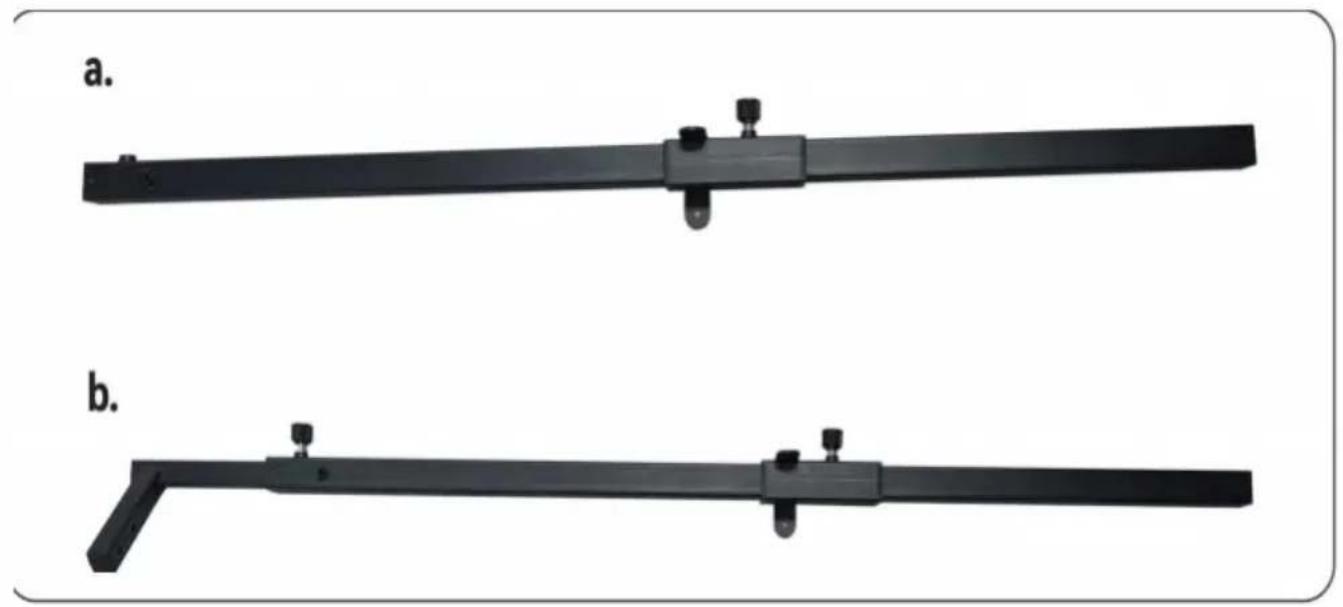

Two black metal mechanical arms labeled a and b, shown side by side (no text or symbols on the parts themselves)

Step 3: Insert the central pole to the base.

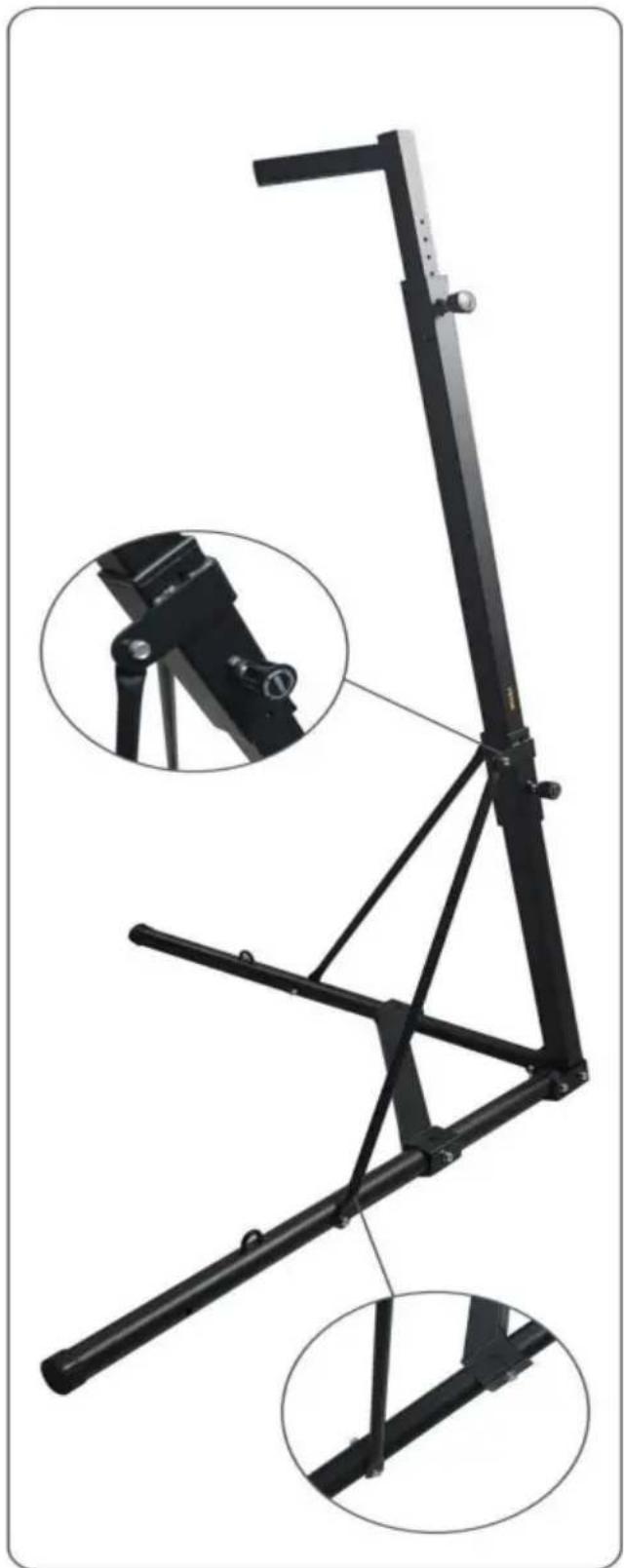

Mechanical linkage assembly diagram showing two views of a black metal frame with mounting hardware (no text or symbols)

Step 4: Install the supporting tube (Parts 6).

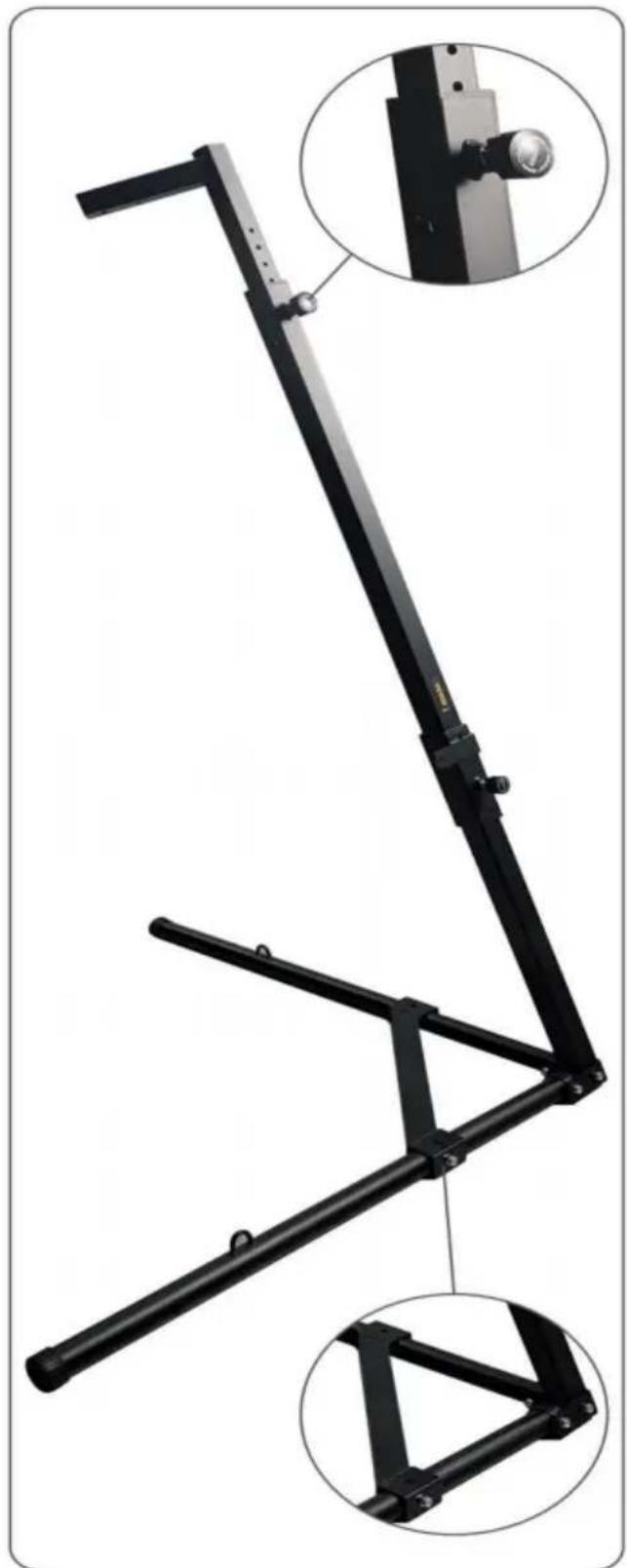

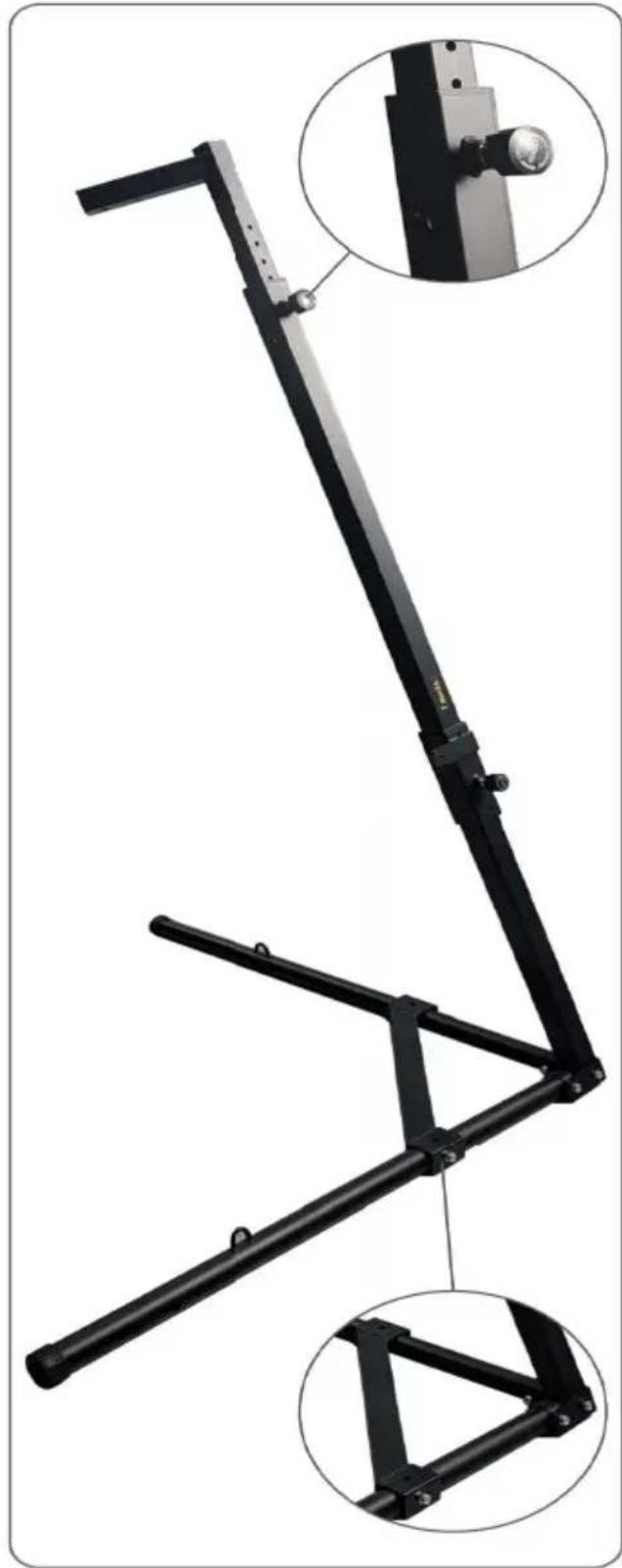

Mechanical linkage assembly diagram with two circular inset views showing a mounted device (no text or symbols)

Step 5: Install the barbell tube and hanging hook (Parts 8,9, 10).

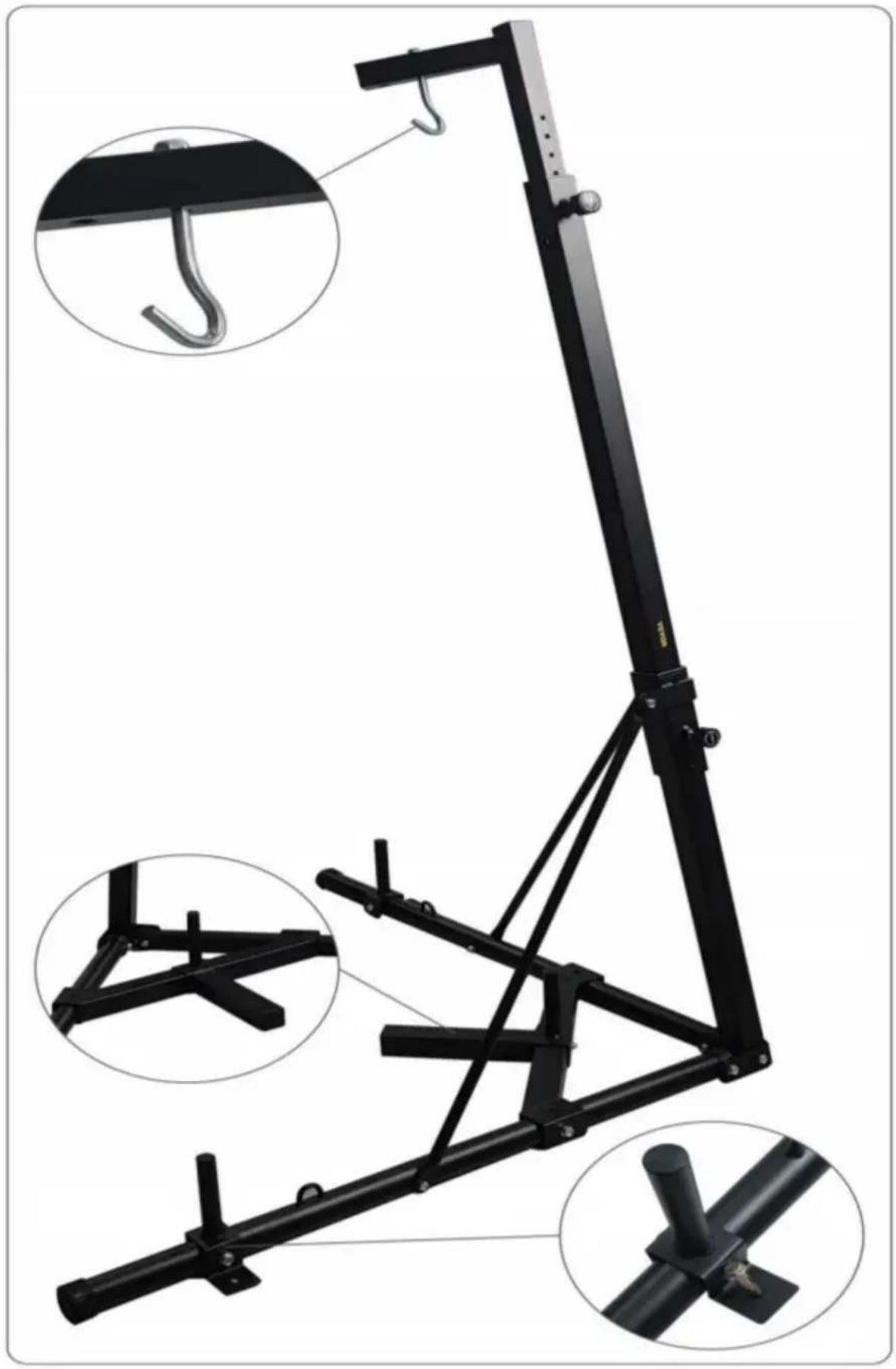

Mechanical support structure diagram with zoomed-in insets showing structural details (no text or symbols)

Step 6: I install pullup bar (Parts20). (Finished)

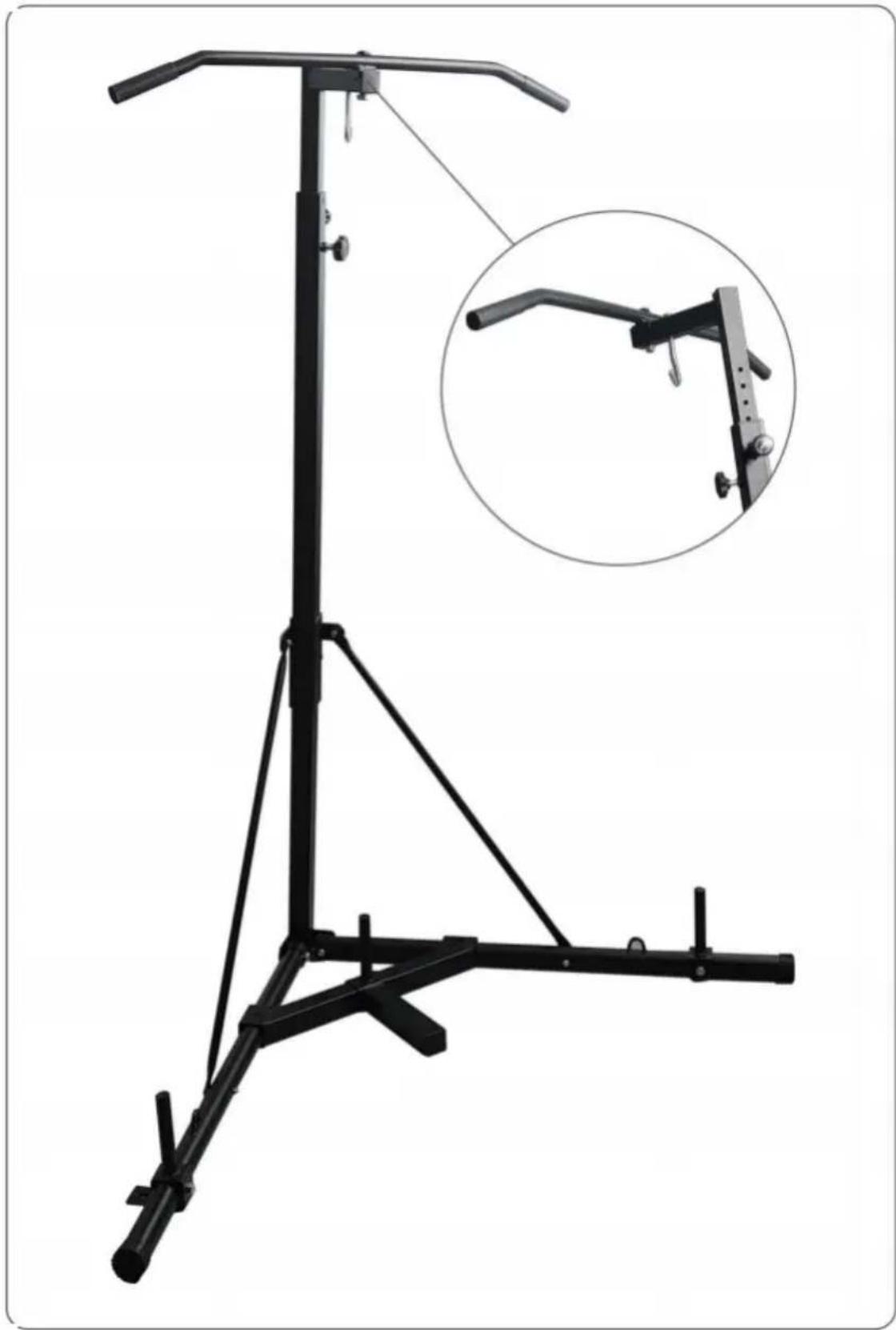

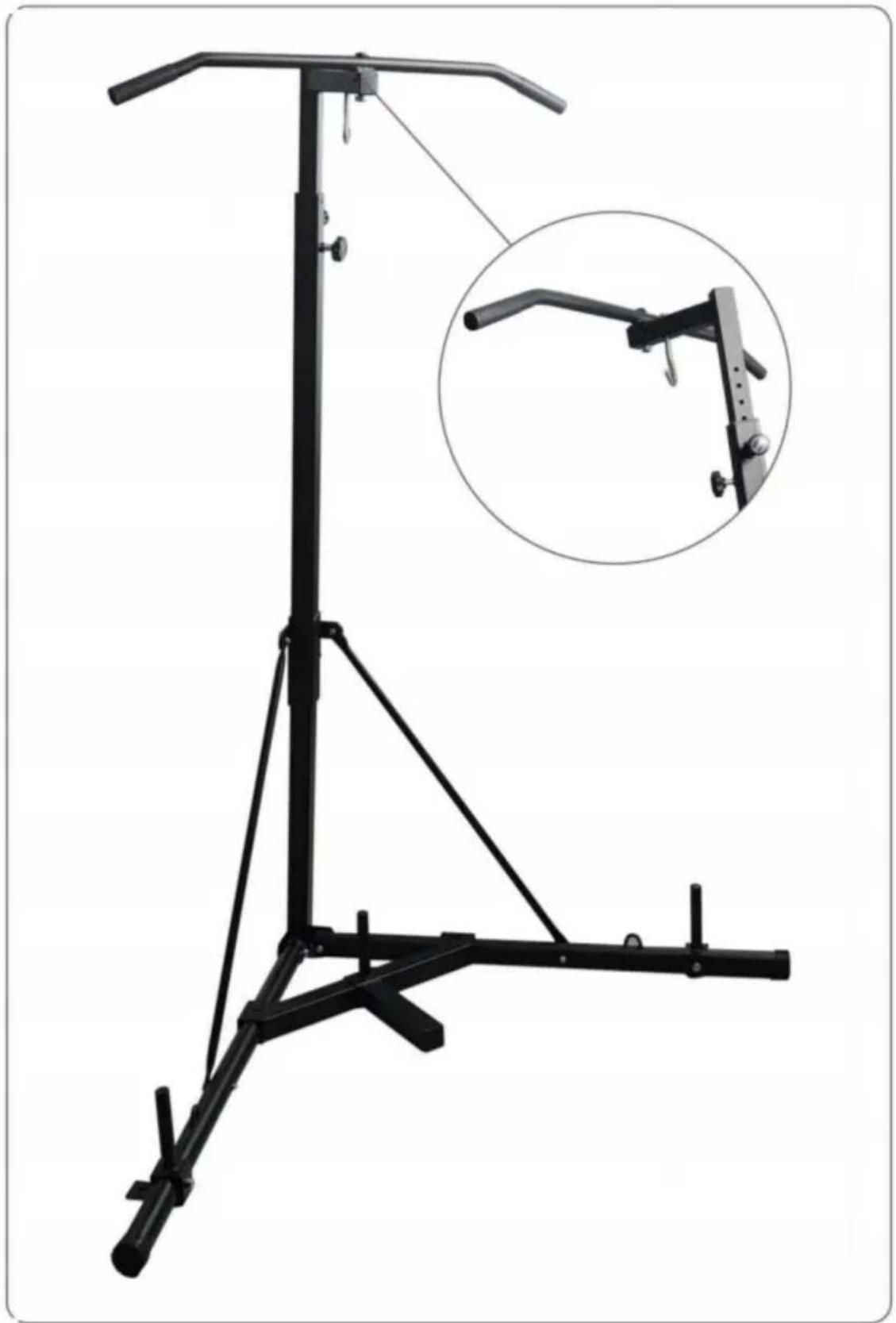

Mechanical support structure with a magnified inset showing a bracket assembly (no text or symbols visible)

Cleaning and Maintenance

• Use a soft, clean cloth that will not scratch the surface when dustir
• This item could be cleaned with soap and water.

Be sure to avoid harsh solvents and abrasives.

- Periodically (every 90 days) make sure the screws are fully tightened

Manufacturer: NANTONG DINGFENG FITNESS EQUIPMENT CO.,LTI Address: NO.30 XINGYE ROAD,RUDONG COUNTY,NANTONG CITY,JIANGSU PROVINCE, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWC NSW 212 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anar Place, Rancho Cucamonga, CA 91730

REPE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

REPU

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
