USER MANUAL 8mmX4.2m Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TOW CHAIN

Model: 10mmX0.87m; 10mmX3m; 8mmX3m; 8mmX4.2m; 8mmX3m-2; 10mmX3m-2;

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

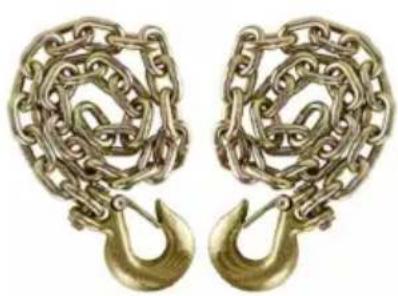

TOW CHAIN

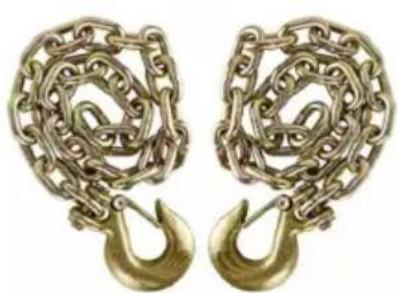

Pair of ornate metal chain linkages with hook handles, no text or symbols visible

10mmX0.87m

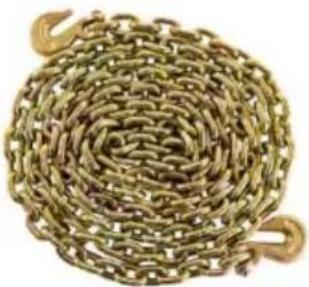

Close-up of a woven basket made of gold chains with two curved handles (no text or symbols visible)

Circular woven made of woven material with two hanging hook clips (no text or symbols visible)

8mmX3m-2

10mmX3m-2

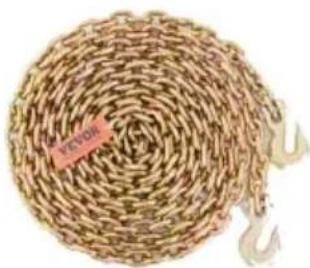

Circular woven rope with two hook clips attached, no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

WARNING:

1. Read this material before using this product. Failure to do so can serious injury.
2. The bridle chain sling must be used flexibly, and it is strictly prohibit use it compulsorily when individual connections are inflexible.
3. Do not exceed WLL (working load limit) for bridle chain sling. Not approved for overhead lifting.
4. After use, please dry before storage to avoid rusting of bolts affected use.
5. Procedures not specifically explained in this manual must be performed only by a qualified technician. To prevent serious injury from tool failure, do not use When it is damaged:

1) Please check the overall condition of the product before each us. Does the opening of the hook widen?

Is the bridle chain deformed?

Whether there are cracks in all parts.

Before each use, check whether the bridle chain works properly before actual use. If the bridle chain doesn't work properly, please follow the inspection instructions to see if the problem occurs.

2) To prevent serious injury, be carefully when troubleshooting the fair bridle chain, solve all problems before use. If the solution provided troubleshooting guide cannot be solved problem, please ask qualified technicians to check the bridle chain before use.

3) Make sure that the bridle chain is safe enough to continue to wish that the bridle chain can bring you convenience at work.

CAUTION:

1. Carefully read instructions and procedures for safe operations.

2. Carefully INSPECTIONS:

1) Before each use: Each time the bridle chain is used, a visual

inspection should be carried out to determine whether there are abnormal conditions, such as cracking, bending, deformation, etc.

2) After each use: After each use, if the bridle chain is strained abnormally, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.

Suggestions for Safe Use of The Bridle Chain

• Do not knot the chain when using the bridle chain.
• When using the bridle chain, make sure that the bridle chain is stra without folding and twisting.
• Due to the shipping(handing) or transportation, the bridle chain may have knots at the connection between the ring and the hook. P smooth the them before use.
• NO one is allowed to stand below when hoisting goods by bridle
• When using the bridle chain, please confirm whether the goods car lift with the chain and whether the hardness of the chain will da your goods.

Save This Manual

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	10mmX0.87m	10mmX3m
Working Load Limi	7100Lbs (G80)	7100Lbs (G80)
Breaking	30000lbs(Chain)	30000lbs(Chain)
Chain Size	10mm	10mm
Chain Length	88cm	315cm
Number of hooks	Strap latch, 1/Each Chair	Grab Hook, 2/Each Chair
Material	Alloy Steel(Galvanization)	Alloy Steel(Galvanization)
Package Content	Tow Chain*2+User Manual*1	Tow Chain*1+User Manual*1
Model	8mmX3m	8mmX4.2m
Working Load Limi	4900Lbs (G80)	4900Lbs (G80)
Breaking	19600lbslbs(Chain)	19600lbslbs(Chain)
Chain Size	8mm	8mm
Chain Length	315cm	430cm
Number of hooks	Grab Hook, 2/Each Chair	Grab Hook, 2/Each Chair
Material	Alloy Steel(Galvanization)	Alloy Steel(Galvanization)
Package Content	Tow Chain*1+User Manual*1	Tow Chain*1+User Manual*1

Model	8mmX3m-2	10mmX3m-2
Working Load Limi	4900Lbs (G80)	7100Lbs (G80)
Breaking	19600lbs(Chain)	30000lbs(Chain)
Chain Size	8mm	10mm
Chain Length	315cm	315cm
Number of hooks	Grab Hook, 2/Each Chair	Grab Hook, 2/Each Chair
Material	Alloy Steel(Galvanization)	Alloy Steel(Galvanization)
Package Content	Tow Chain*2+User Manual*1	Tow Chain*2+User Manual*1

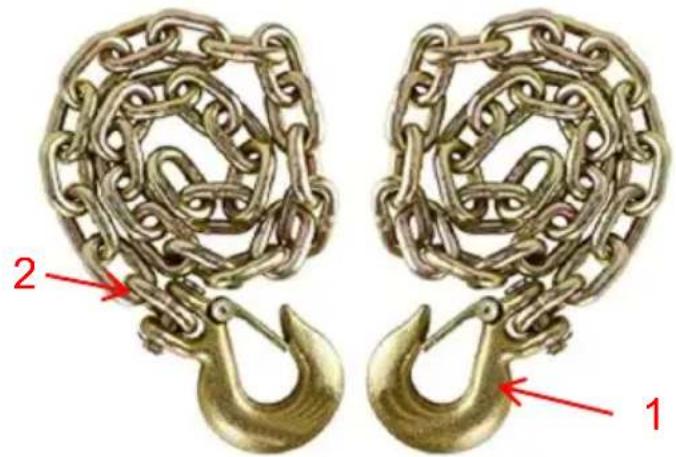

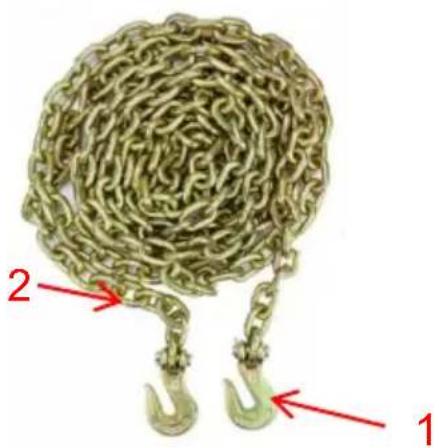

STRUCTURE DIAGRAM

Two metallic chain link hooks with red arrows pointing to each hook (no text or symbols present)

Close-up of a knitted chain knot with two hanging hooks, labeled 1 and 2 (no text or symbols on the knot itself)

1. Hook 2. Chain

INSTRUCTIONS

This product is often used with ratchet binder. The following examples illustrate.

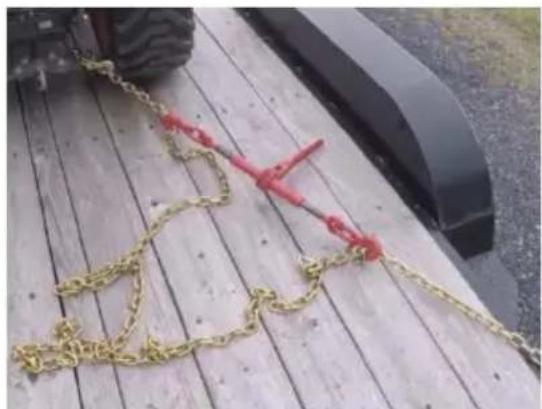

1.Used for binding.

Close-up of a yellow chain-link fence and red rope on a wooden deck, next to a black vehicle (no visible text or symbols)

1. The tow chain hooks to the anchor point, as shown below.

Close-up of a metallic chain link securing a car wheel (no visible text or symbols)

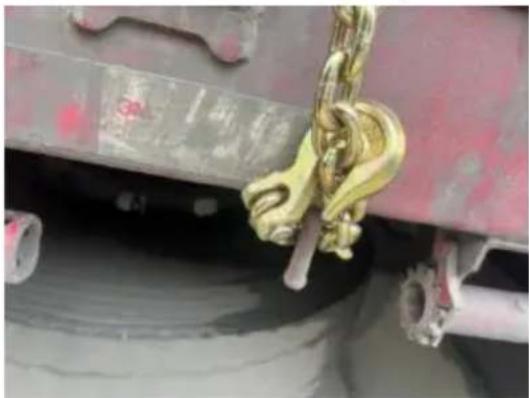

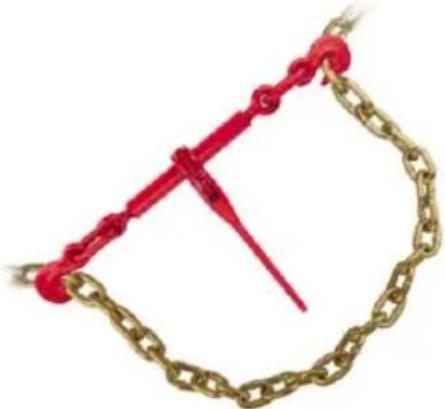

3.The ratchet binder hooks the tow chain, as shown below.

Red chain-link fence with a diagonal pole, attached to a golden chain (no text or symbols)

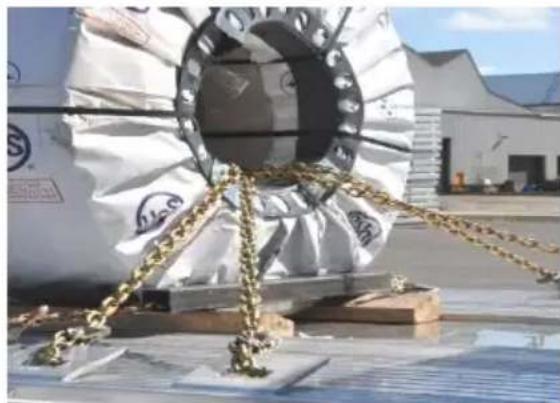

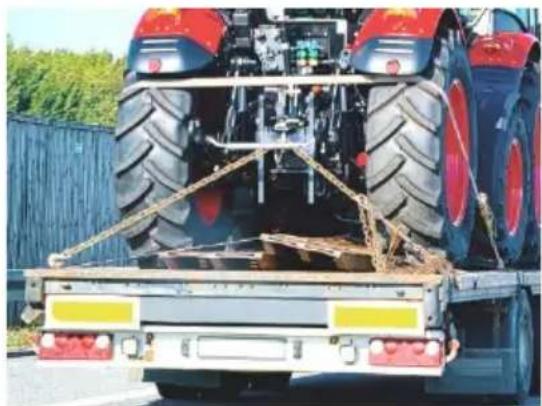

1. It is also used for binding heavy items, such as cargo binding, track trailer safety connection. Suitable for truck transport, trailer traction, far and other scenarios.

Large industrial pipe clamp with chain links mounted on a metal frame, set against a backdrop of industrial buildings (no visible text or symbols)

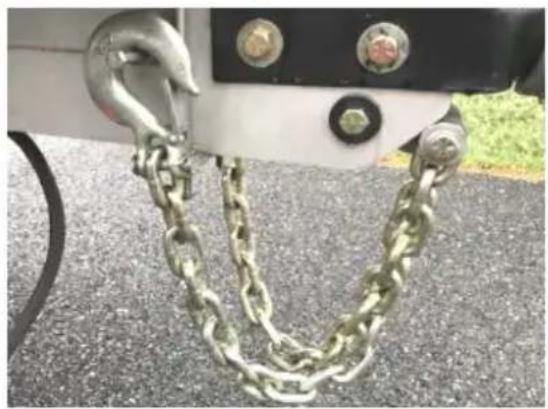

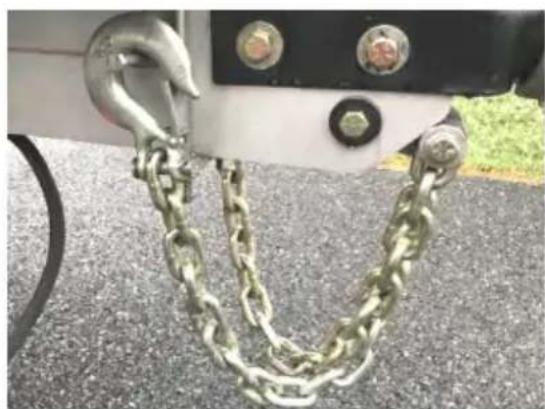

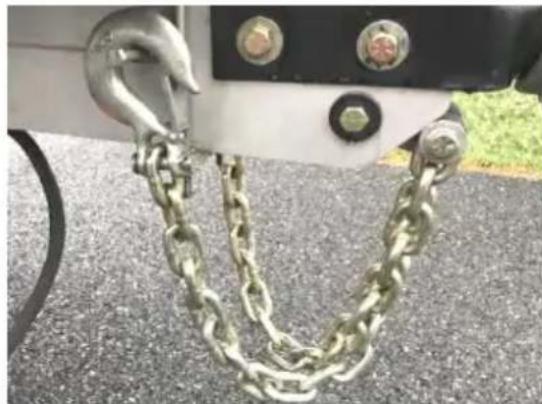

Close-up of a metal chain link attached to a vehicle's side panel, showing chains and bolts (no text or symbols visible)

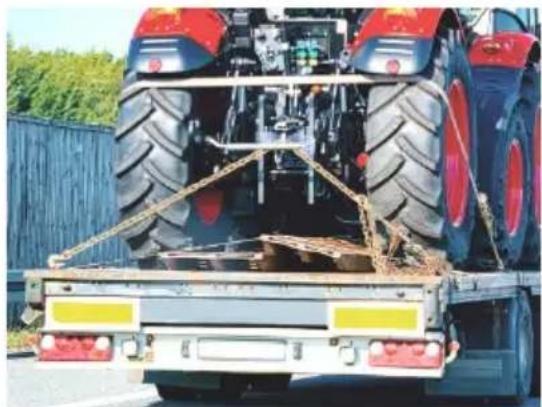

Front view of a red and blue tractor on a flatbed trailer, loaded with cargo (no visible text or symbols)

MAINTENANCE

• Do not exceed WLL (working load limit) .
  ● After use, Please clean and dry the product and store in a dry ventilated place.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TOW CHAIN

Pair of ornate metal chain linkages with hook handles, no text or symbols visible

10mm×0.87m

Close-up of a woven basket made of gold chains, no text or symbols visible

Circular woven basket made of woven material with two metal hook handles (no text or symbols visible)

8mmX3m-2

10mmX3m-2

Circular woven basket made of woven fibers with a label and hook at the bottom (no readable text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

AVERTISSEMENT:

Close-up of a yellow chain-link fence and red knot on a wooden deck next to a black vehicle (no text or symbols visible)

Close-up of a mechanical component with a golden ornamental clasp securing a metallic rod (no visible text or symbols)

Red chain-link fence with a diagonal pole, attached to a golden chain (no text or symbols)

Exterior view of a large industrial machine with metal components and chains, no visible text or symbols

Close-up of a metallic chain link attached to a vehicle's side panel, showing chains and mounting fixtures (no text or symbols visible)

Front view of a red and blue tractor on a flatbed trailer, with no visible text or symbols.

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TOW CHAIN

Pair of ornate metal chain linkages with hook handles, no text or symbols visible

10mm×0.87m

Close-up of a woven basket made of gold chains, no text or symbols visible

Circular woven basket made of woven material with two metal hook handles (no text or symbols visible)

8mmX3m-2

10mmX3m-2

Circular woven basket made of woven fibers with a label and hook at the bottom (no readable text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

WARNUNG:

Three views of a metal chain knot hook with labeled parts (no text or symbols present)

1. Haken 2.Kette

INSTRUCTIONS

Close-up of a red and yellow rope tied on a wooden deck next to a black vehicle (no visible text or symbols)

Close-up of a car's front wheel and suspension bracket with visible metal clamps (no text or symbols)

Red chain-linketer attached to a golden chain ring (no text or symbols visible)

Large metallic mechanical component with chain links, mounted on a wooden base, outdoors near industrial buildings (no visible text or symbols)

Close-up of a chain link attached to a vehicle's side panel, showing chains and bolts (no text or symbols visible)

Front view of a red tractor on a flatbed trailer, with no visible text or symbols.

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TOW CHAIN

Pair of ornate metal chain linkages with hooks, no text or symbols visible

10mmX0.87m

Close-up of a woven basket made of gold chains, no text or symbols visible

Circular woven basket made of woven material with two metal hook handles (no text or symbols visible)

8mmX3m-2

10mmX3m-2

Circular woven pattern made of brown and beige fibers, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

AVVERTIMENTO:

Close-up of a red and gold chain tied on a wooden deck next to a black vehicle (no visible text or symbols)

Close-up of a mechanical component with a golden ornamental ligament attached to a red vehicle (no visible text or symbols)

Red chain-linketer attached to a golden chain ring (no text or symbols visible)

Large metallic mechanical component with chain links, mounted on a wooden base, outdoors near industrial buildings (no visible text or symbols)

Close-up of a metallic chain link attached to a vehicle's side panel, showing chains and bolts (no text or symbols visible)

Front view of a red tractor on a flatbed trailer, with no visible text or symbols.

MAINTENANCE

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TOW CHAIN

Pair of ornate metal chain linkages with hook handles, no text or symbols visible

10mm×0.87m

Close-up of a woven basket made of gold chains, no text or symbols visible

Circular woven basket made of woven material with two metal hook handles (no text or symbols visible)

8mmX3m-2

10mmX3m-2

Circular woven basket made of woven fibers with a label and hook at the bottom (no readable text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

ADVERTENCIA:

Close-up of a red and gold chain tied on a wooden deck next to a black vehicle (no visible text or symbols)

Close-up of a mechanical component with a golden ornamental ligament attached to a red vehicle (no visible text or symbols)

Red chain link with a central fulcrum and golden chain ring, no text or symbols present

Large industrial machine with metal clamps and chains attached to a pallet, no visible text or symbols

Close-up of a metallic chain link attached to a vehicle's side panel, showing chains and bolts (no text or symbols visible)

Front view of a red tractor on a flatbed trailer, with no visible text or symbols.

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TOW CHAIN

Pair of ornate metal chain linkages with hooks, no text or symbols visible

10mmX0.87m

Close-up of a woven basket made of gold chains, no text or symbols visible

Circular woven basket made of woven material with two metal hook handles (no text or symbols visible)

8mmX3m-2

10mmX3m-2

Circular woven pattern made of brown and beige fibers, no text or symbols visible

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

OSTRZEŻENIE:

Three views of a metal chain link hook with hooks, labeled 1, 2, and numbered 1 (no text or symbols on the hook itself)

1. Hak 2.Lańcuch

INSTRUCTIONS

Close-up of a red and yellow chain tied on a wooden deck next to a black vehicle (no visible text or symbols)

Close-up of a metallic mechanical component with a golden clamp securing a pipe (no visible text or symbols)

Red chain-linketer attached to a golden chain ring (no text or symbols visible)

Large industrial mechanical component with metal rings and chains, displayed outdoors near a warehouse (no visible text or symbols)

Close-up of a metallic chain link attached to a vehicle's side panel, showing chains and bolts (no text or symbols visible)

Front view of a red tractor on a flatbed trailer, with no visible text or symbols.

MAINTENANCE

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

SLEEPKETTING

Model: 10 mm x 0,87 m ; 10 mm x 3 m ; 8 mm x 8 mm x 4,2 m ; 8 mm x 3 m-2 ; 10 mm x 3

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TOW CHAIN

Pair of ornate metal chain linkages with hook handles, no text or symbols visible

10mm×0.87m

Close-up of a woven basket made of gold chains, no text or symbols visible

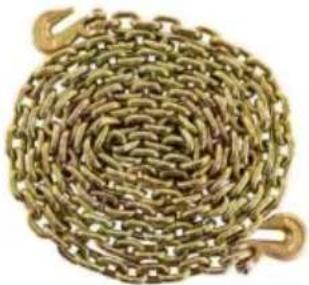

Circular woven basket made of woven material with two metal hook handles (no text or symbols visible)

8mmX3m-2

10mmX3m-2

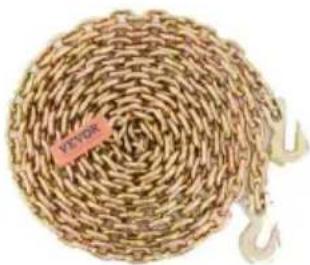

Circular woven basket made of woven fibers with a label and hook at the bottom (no readable text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your data on our product.

WAARSCHUWING:

Close-up of a wooden deck with yellow chains and red ropes, next to a black vehicle (no visible text or symbols)

Close-up of a mechanical component with a golden spring and attached rod, mounted on a red vehicle (no visible text or symbols)

Red chain-linketer attached to a golden chain ring (no text or symbols visible)

Large industrial pipe support structure with metal clamps and chains, no visible text or symbols

Close-up of a metal chain link attached to a vehicle's head panel, with no visible text or symbols.

Front view of a red and blue tractor on a flatbed trailer, with no visible text or symbols.

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

TOW CHAIN

Pair of ornate metal chain linkages with hook handles, no text or symbols visible

10mm×0.87m

Close-up of a woven basket made of gold chains, no text or symbols visible

Circular woven basket made of woven material with two metal hook handles (no text or symbols visible)

8mmX3m-2

10mmX3m-2

Circular woven basket made of brown and beige fibers with a small label and hook at the bottom (no readable text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

WARNING:

Close-up of a red and gold chain tied on a wooden deck next to a black vehicle (no visible text or symbols)

Close-up of a metallic chain link attached to a vehicle's wheel, showing no text or symbols

1. Spärrpärmen hakar fast dragkedjan, som visas nedan.

Red chain-linketer attached to a golden chain ring (no text or symbols visible)

Large metallic cylindrical component mounted on a wooden base with chain links, set against a backdrop of white sacks and industrial buildings (no visible text or symbols)

Close-up of a metallic chain link attached to a vehicle's head panel, showing chains and mounting bolts (no text or symbols visible)

Front view of a red and blue tractor on a flatbed trailer, with no visible text or symbols.

MAINTENANCE

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE
