Product Type	Towing Chain (Chain Sling)
Brand	Vevor
Model	8mmX3m
Total Length	315 cm (3.15 m)
Chain Diameter	8 mm
Working Load Limit (WLL)	4900 lb (G80)
Breaking Load	19,600 lb
Material	Galvanized Alloy Steel
Number of Hooks	1 Grab Hook
Hook Type	Grab Hook with Safety Latch
Primary Use	Cargo Securing, Towing, Tractor-Trailer Safety Connection
Compatibility	Usable with Ratchet Binder
Standard	Grade 80 (G80)
Not Approved For	Overhead Lifting
Pre-Use Inspection Instructions	Check for cracks, deformations, hook widening
Post-Use Maintenance	Clean and dry, store in a dry and ventilated place
Package Contents	1 Towing Chain, 1 User Manual
Technical Support	www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer (Example)	Sanven Technology Ltd. (United States)

Frequently Asked Questions - 8mmX3m Vevor

What is the maximum working load of this towing chain?

The Working Load Limit (WLL) is 4900 lb (approximately 2222 kg) according to G80 standard. Never exceed this value.

Can I use this chain for overhead lifting?

No, this chain is not approved for overhead lifting. It is designed only for ground-level securing and towing.

How to inspect the chain before use?

Before each use, check for no cracks, deformations of the chain or hook, and if the hook opening is widened. If a defect is found, do not use.

What type of accessory can be used with this chain?

This chain is designed to be used with a ratchet binder for cargo securing or towing.

How to maintain the chain after use?

After use, clean the chain and dry it thoroughly to prevent rust. Store it in a dry and ventilated place.

What is the material of the chain?

The chain is made of galvanized alloy steel, which provides strength and corrosion protection.

What does the package contain?

The package contains 1 towing chain (model 8mmX3m) and 1 user manual.

Can I tie the chain to shorten the length?

No, it is strictly forbidden to tie the chain. This reduces its strength and can cause dangerous breakage.

Where to find technical support for this product?

Technical support is available on the website www.vevor.com/support for any questions regarding use or warranty.

What is the breaking load of this chain?

The breaking load is 19,600 lb (approximately 8890 kg), four times the working load.

USER MANUAL 8mmX3m Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

TOW CHAIN

Model: 10mmX0.87m; 10mmX3m; 8mmX3m; 8mmX4.2m; 8mmX3m-2; 10mmX3m-2;

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

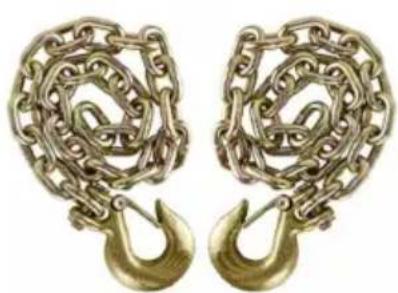

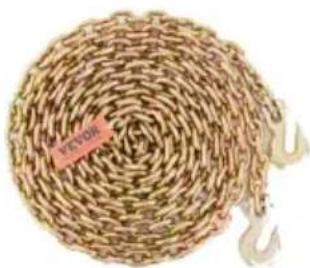

TOW CHAIN

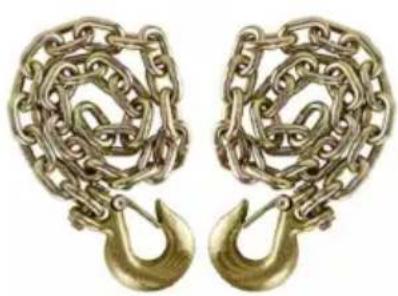

10mmX0.87m

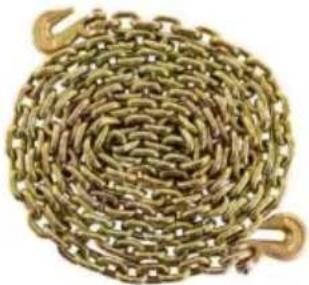

8mmX3m-2

10mmX3m-2

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WARNING:

1. Read this material before using this product. Failure to do so can result in serious injury.
2. The bridle chain sling must be used flexibly, and it is strictly prohibited to use it forcibly when individual connections are inflexible.
3. Do not exceed the WLL (working load limit) for the bridle chain sling. Not approved for overhead lifting.
4. After use, dry it before storage to avoid rusting of bolts, which could affect use.
5. Procedures not specifically explained in this manual must be performed only by a qualified technician. To prevent serious injury from tool failure, do not use the product when it is damaged:

1) Check the overall condition of the product before each use. Does the opening of the hook widen?

Is the bridle chain deformed?

Are there cracks in all parts?

Before each use, check whether the bridle chain works properly before actual use. If the bridle chain does not work properly, follow the inspection instructions to see if the problem occurs.

2) To prevent serious injury, be careful when troubleshooting the bridle chain; solve all problems before use. If the solution provided in the troubleshooting guide cannot solve the problem, ask a qualified technician to check the bridle chain before use.

3) Make sure that the bridle chain is safe enough to continue to use. We hope that the bridle chain can bring you convenience at work.

CAUTION:

1. Carefully read instructions and procedures for safe operations.
2. Carefully INSPECTIONS:

1) Before each use: Each time the bridle chain is used, a visual

inspection should be carried out to determine whether there are abnormal conditions, such as cracking, bending, deformation, etc.

2) After each use: After each use, if the bridle chain is strained abnormally, the manufacturer or the supplier's authorized maintenance personnel should be advised to check immediately.

Suggestions for Safe Use of the Bridle Chain

• Do not knot the chain when using the bridle chain.
• When using the bridle chain, make sure that the bridle chain is straight without folding and twisting.
• Due to the shipping (handling) or transportation, the bridle chain may have knots at the connection between the ring and the hook. Please smooth them before use. ● No one is allowed to stand below when hoisting goods by bridle
• When using the bridle chain, please confirm whether the goods can lift with the chain and whether the hardness of the chain will damage your goods.

Save This Manual

MODEL AND PARAMETERS

NOTE: Please match your purchase.

Model	10mmX0.87m	10mmX3m
Working Load Limi	7100Lbs (G80)	7100Lbs (G80)
Breaking	30000lbs(Chain)	30000lbs(Chain)
Chain Size	10mm	10mm
Chain Length	88cm	315cm
Number of hooks	Strap latch, 1/Each Chair	Grab Hook, 2/Each Chair
Material	Alloy Steel(Galvanization)	Alloy Steel(Galvanization)
Package Content	Tow Chain*2+User Manual*1	Tow Chain*1+User Manual*1
Model	8mmX3m	8mmX4.2m
Working Load Limi	4900Lbs (G80)	4900Lbs (G80)
Breaking	19600lbslbs(Chain)	19600lbslbs(Chain)
Chain Size	8mm	8mm
Chain Length	315cm	430cm
Number of hooks	Grab Hook, 2/Each Chair	Grab Hook, 2/Each Chair
Material	Alloy Steel(Galvanization)	Alloy Steel(Galvanization)
Package Content	Tow Chain*1+User Manual*1	Tow Chain*1+User Manual*1

Model	8mmX3m-2	10mmX3m-2
Working Load Limi	4900Lbs (G80)	7100Lbs (G80)
Breaking	19600lbs(Chain)	30000lbs(Chain)
Chain Size	8mm	10mm
Chain Length	315cm	315cm
Number of hooks	Grab Hook, 2/Each Chair	Grab Hook, 2/Each Chair
Material	Alloy Steel(Galvanization)	Alloy Steel(Galvanization)
Package Content	Tow Chain*2+User Manual*1	Tow Chain*2+User Manual*1

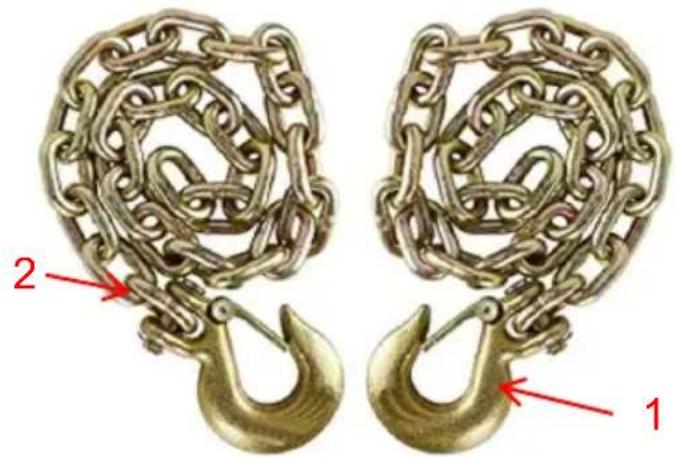

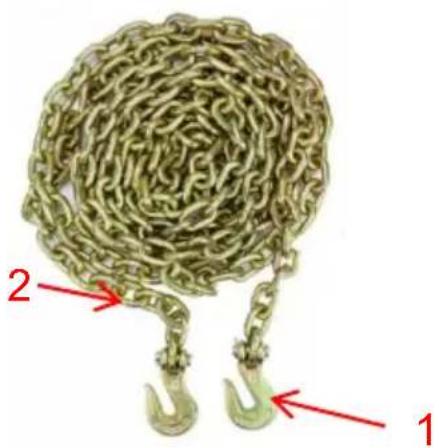

STRUCTURE DIAGRAM

1. Hook 2. Chain

INSTRUCTIONS

This product is often used with ratchet binders. The following examples illustrate.

1. Used for binding.

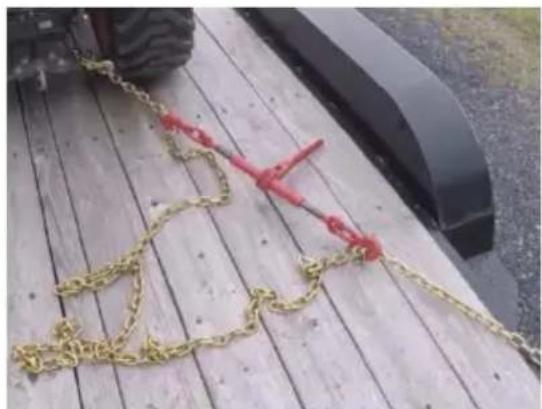

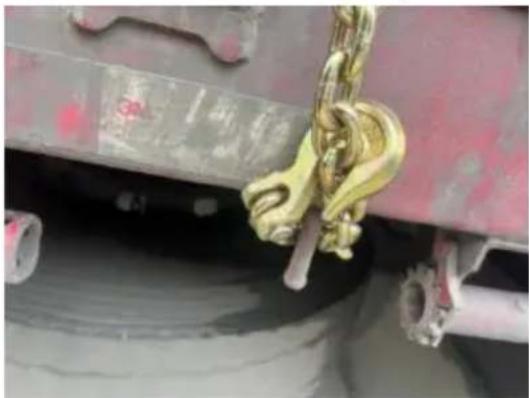

1. The tow chain hooks to the anchor point, as shown below.

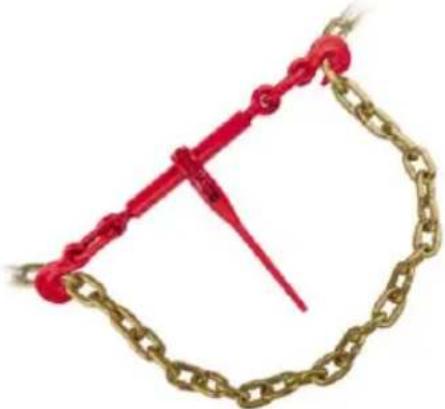

3. The ratchet binder hooks the tow chain, as shown below.

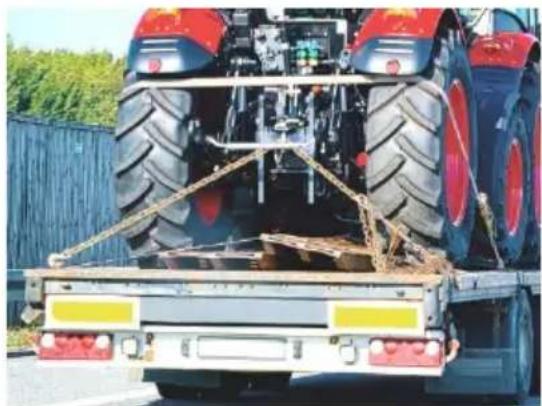

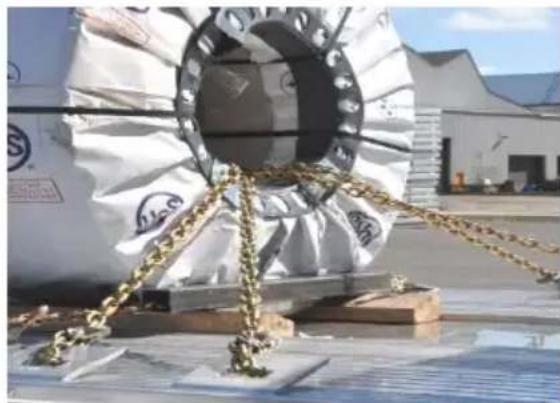

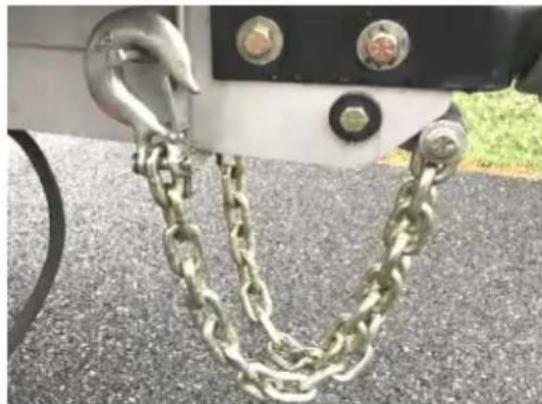

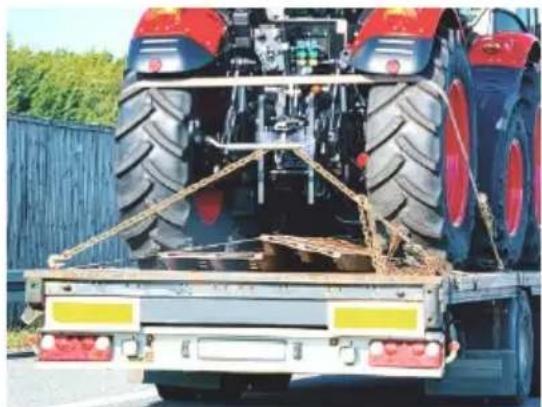

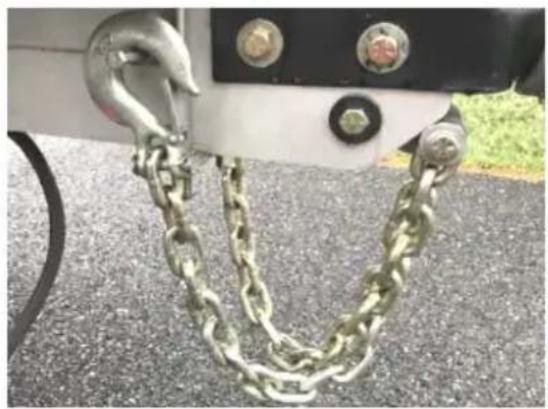

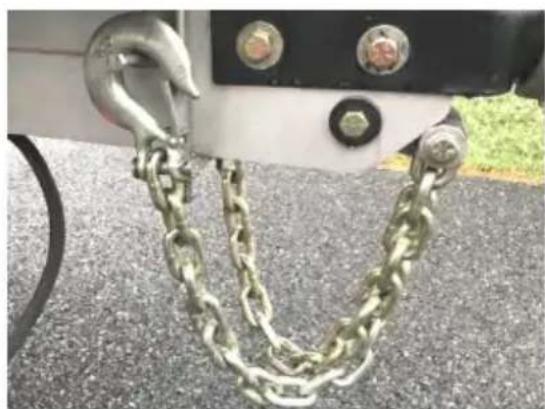

1. It is also used for binding heavy items, such as cargo binding, track trailer safety connection. Suitable for truck transport, trailer traction, and other scenarios.

MAINTENANCE

• Do not exceed WLL (working load limit). ● After use, please clean and dry the product and store in a dry, ventilated place.

Manufacturer: Shanghai Muxin Muye Youxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, Baoshanqu, Shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730
