This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Thank you very much for choosing this Punching-Bag-Stand. Please re all of the instructions before using it. The information will help you at the best possible results.

INTRODUCTION

SAVE THESE INSTRUCTIONS

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this

product are fully aware of all warnings and precautions.

• Children or persons with disabilities must be closely supervised when using the boxing ring.
• This product is used only as intended. Do not use heavy bags that weigh more than 50 kg.
• Do not drop or insert anything into any hole.
• Boxing stands are for family use only. Do not use this product for commercial, rental, school or institution.
• Do not use outside.
• Keep the product indoors, away from moisture and dust. Choose a surface with a mat underneath it to protect the floor or carpet. Make there is enough space to install, disassemble, and use this product.
• Keep hands and feet away from moving parts.

Prohibition symbol of a walking stick crossed out, enclosed in a circle (no text or numbers present)

At NO time should pets or children under the age of 12 be closer to the Boxing Stand than 3 m (10 feet). At NO time should children under the age of 12 use the Boxing Stand. Children over the age of 12 should not use the Boxing Stand without adult supervision.

Model: ssshksdj-C

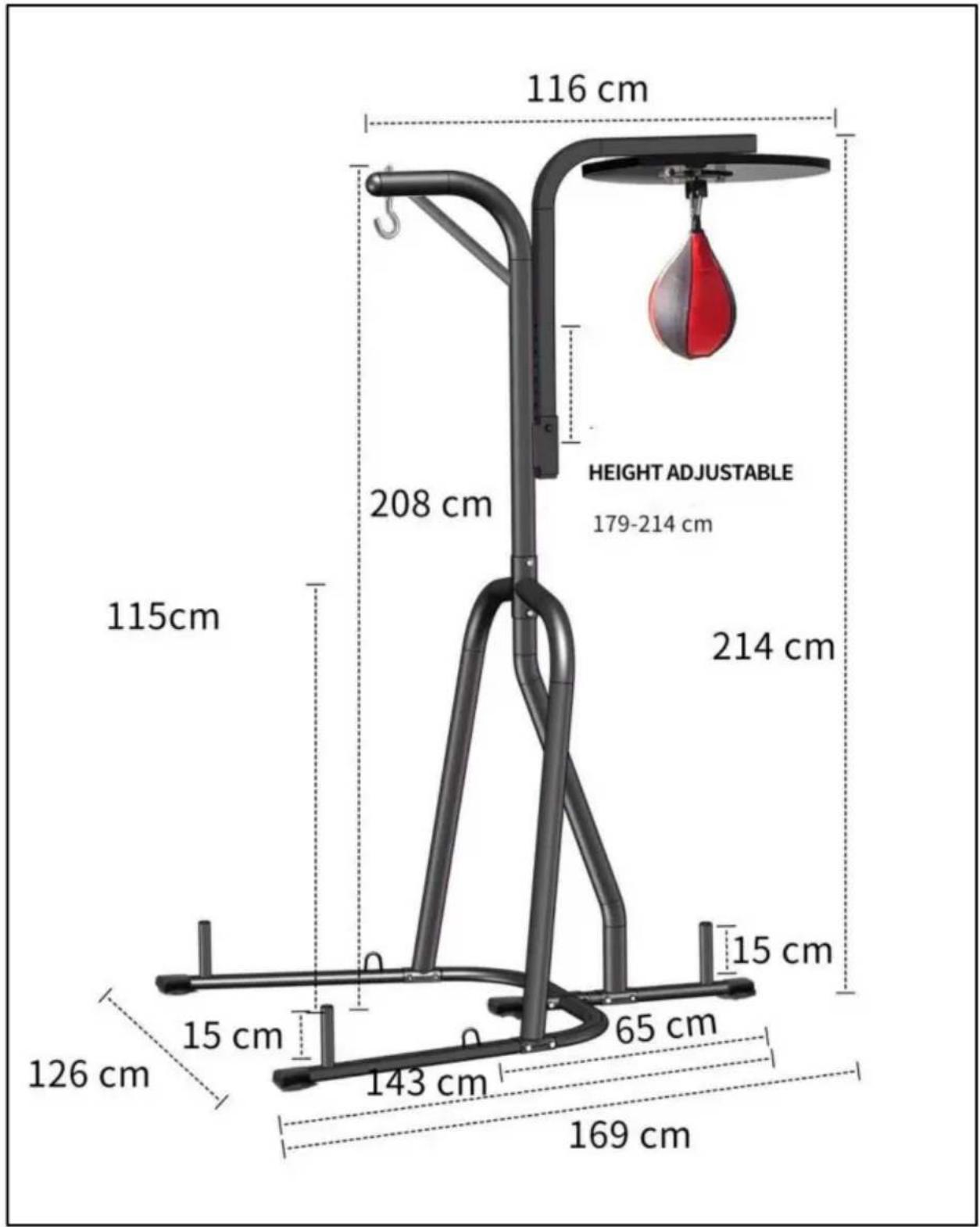

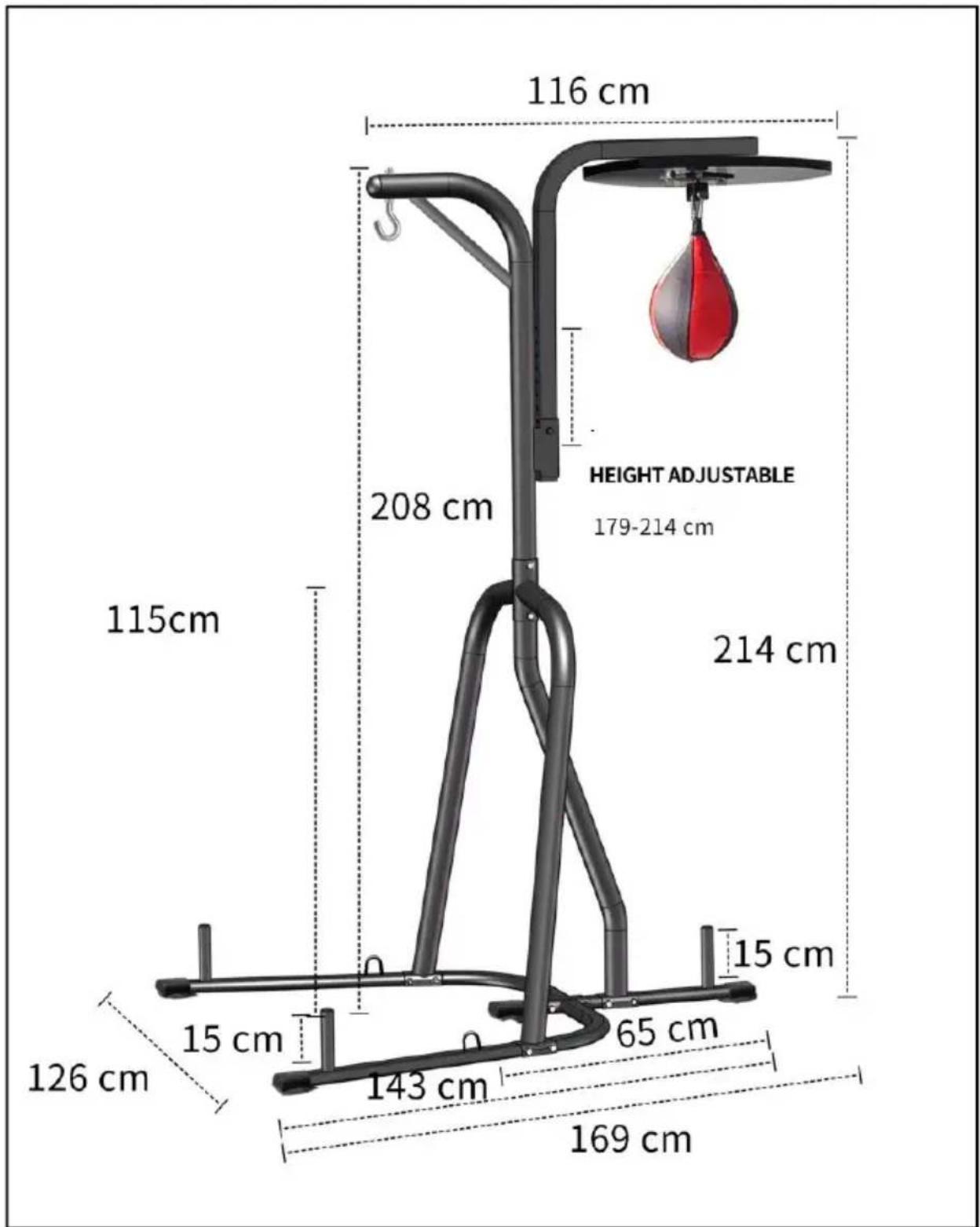

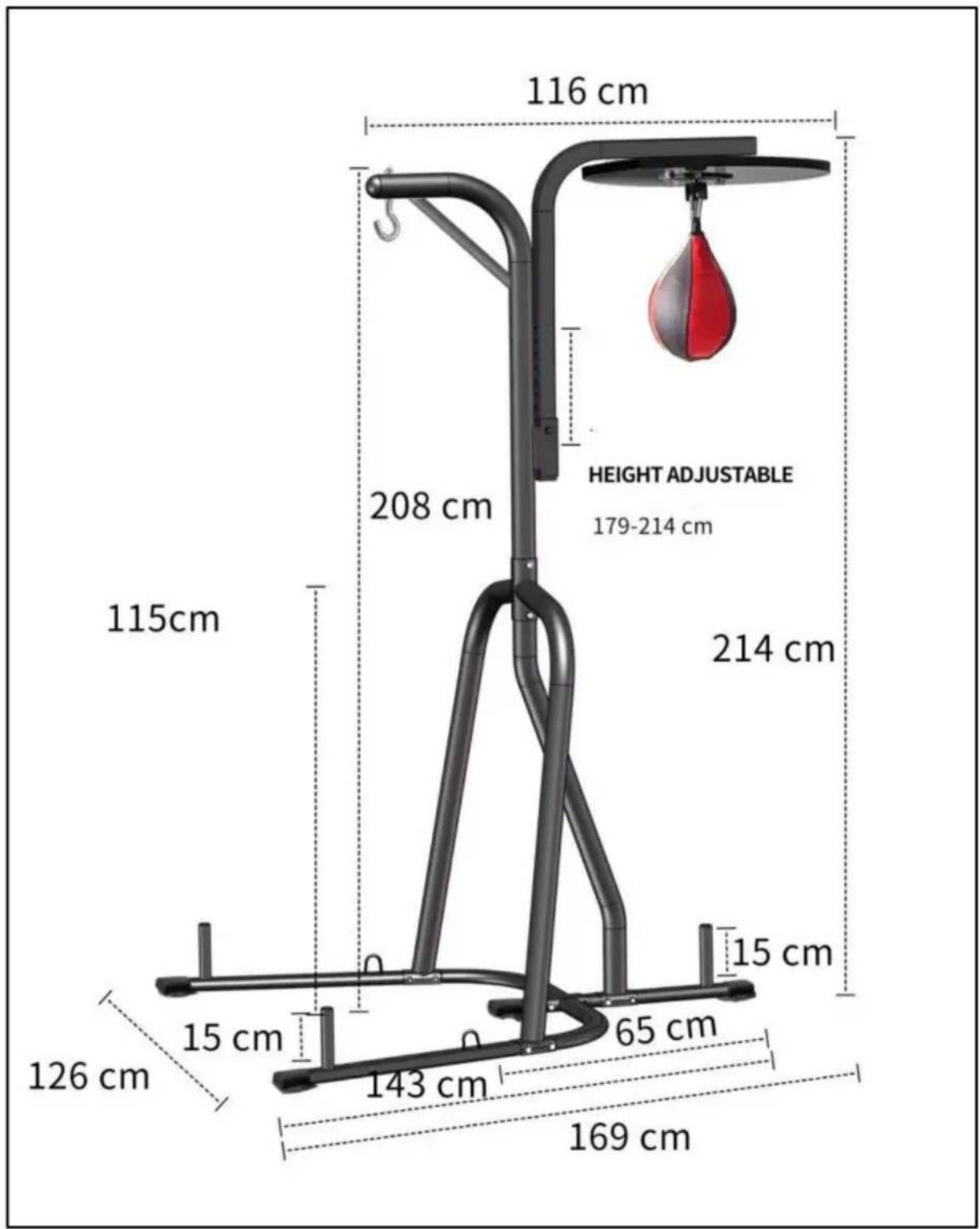

116 cm 208 cm HEIGHT ADJUSTABLE 179-214 cm 115cm 214 cm 15 cm 15 cm 65 cm 143 cm 126 cm 169 cm

PART LIST

NO.	Part Name QTY NO.	Part Name	Name QTY
1.	Bottom Main Pipe 1 17.	Bolt M8	x15 4
2.	Lower Column Pipe 1	18. Flat	Washer	M8 6
3.	Upper Column Pipe	1		19.	Sandbag frame
4.	Support Tube	2		20.	Wood Platform
5.	Left Foot	1 21.	Speed Ball	Ball Hook	1
6.	Right Foot	1 22.	Speed Ball	Ball	1
7.	Plate Tube	3 23.	Quick Pin	1
8.	Bolt M10x100	8 24.	Bolt M8 x 75 2
9.	Bolt M10x20	3 25.	Bolt M6 x 80 2
10.	M10 Nut	11		26. Bolt M6 x 30 2
11.	Flat Washer M10	24		27. Flat Washer M6 4
12.	Hook	1 28.	M6 Nut	4
13.	Wrench 17/14	1		29.	M8 Nut
14.	Foot Cap	4		30.	Wrench 17/13
15.	Bolt M10x80	2		31.	Wrench 12/10
16.	Cable Hook	2 32.	Cross screwdriver	1

1^1	2.^1	3.^1	4.^2
5.x1	6.^1	7[x3]	8.x8
9.x3	10.	11. 12.[177B]x24x11	[xDY2]x1
13.17x14 x1	14.x4	15.x2	16.x2
17. 18.x4	[3227]x6	19.x1	20.x1
21.x1	22.[3708]x1	23.x1	24.[SWY]x2
25[x2]	26[x2]	27.[2870]x4	28.[400K]x4
29.x2	30. 31.[17x13 x1	[WC76]12x10 x1	32.x1

ASSEMBLY

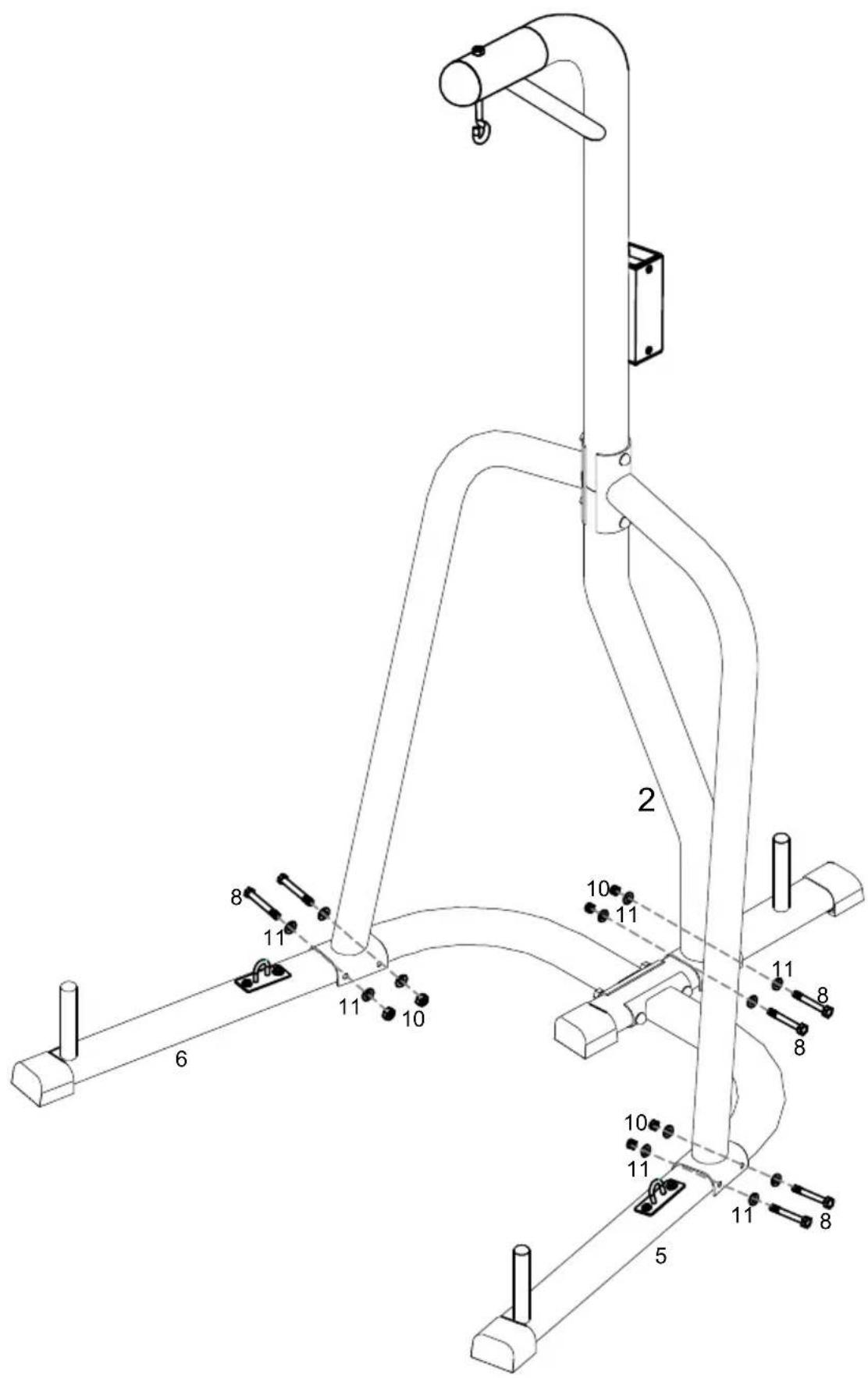

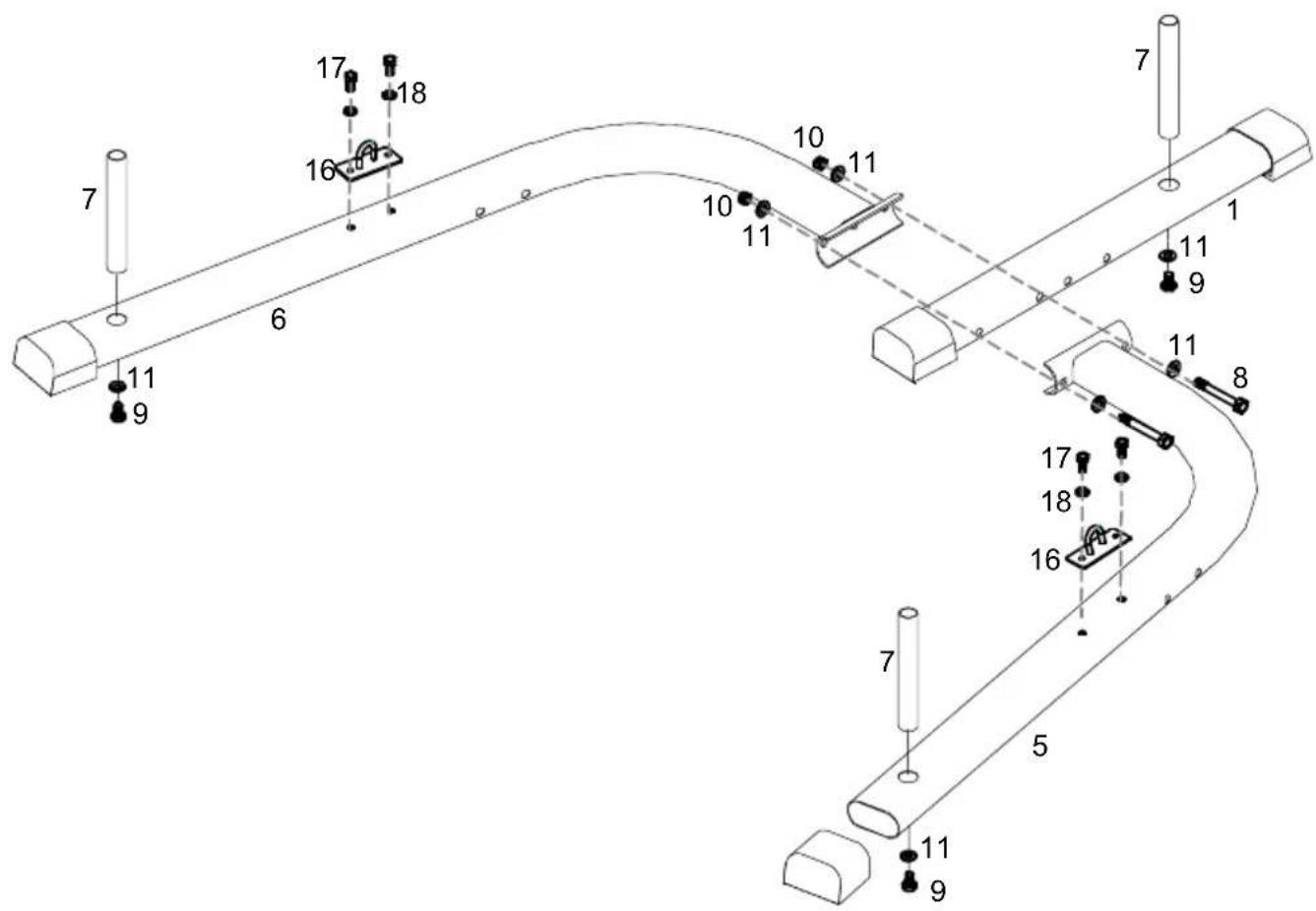

Step1: First install the base according to the drawing.

Technical diagram of a mechanical assembly with numbered components and labeled parts

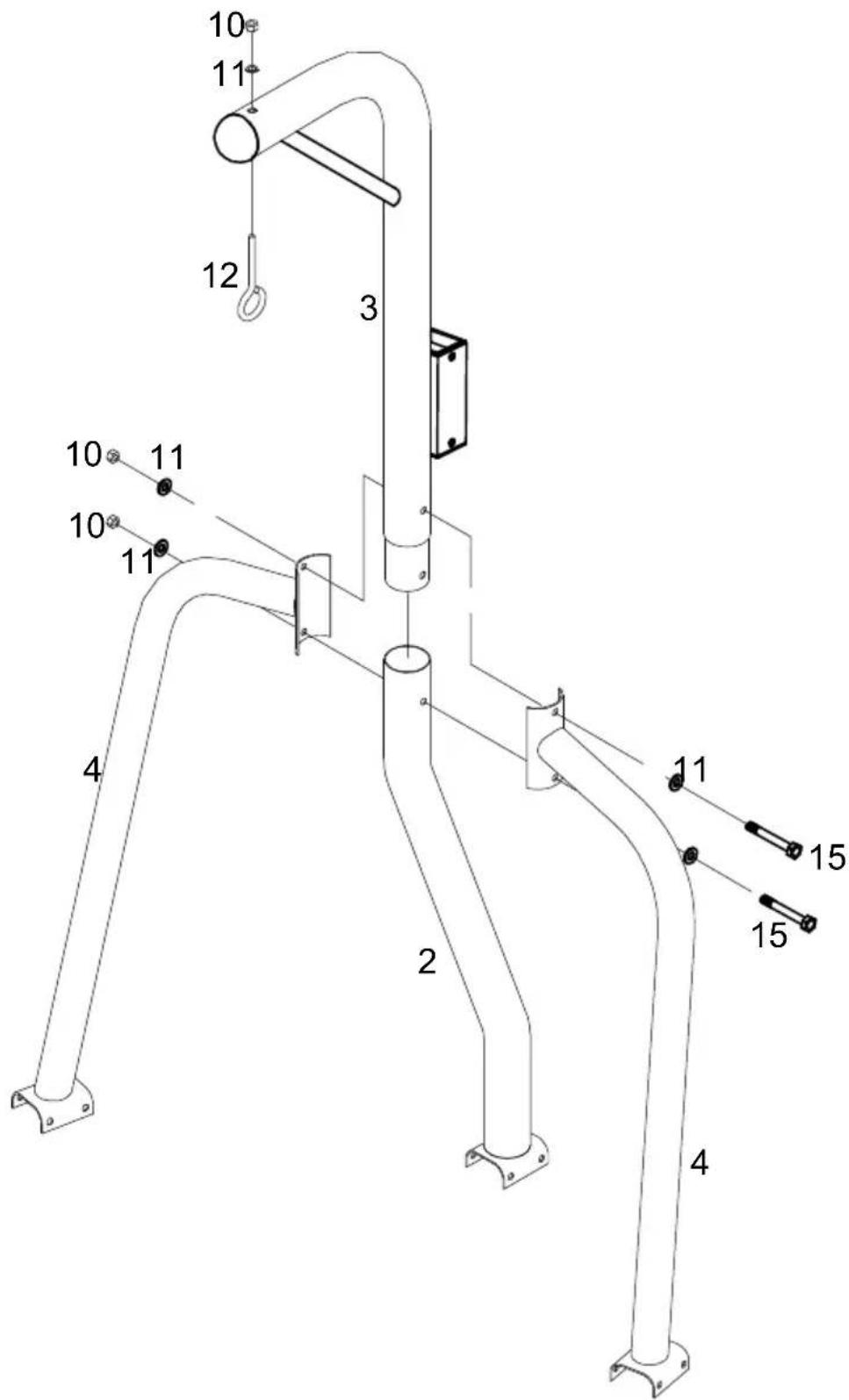

Step 2: Install the columns according to the drawing.

10 11 12 3 10 11 10 11 4 2 11 15 15 4

Step 3: Assemble all assembled parts according to the drawing.

Technical diagram of a mechanical device with numbered components and labeled parts

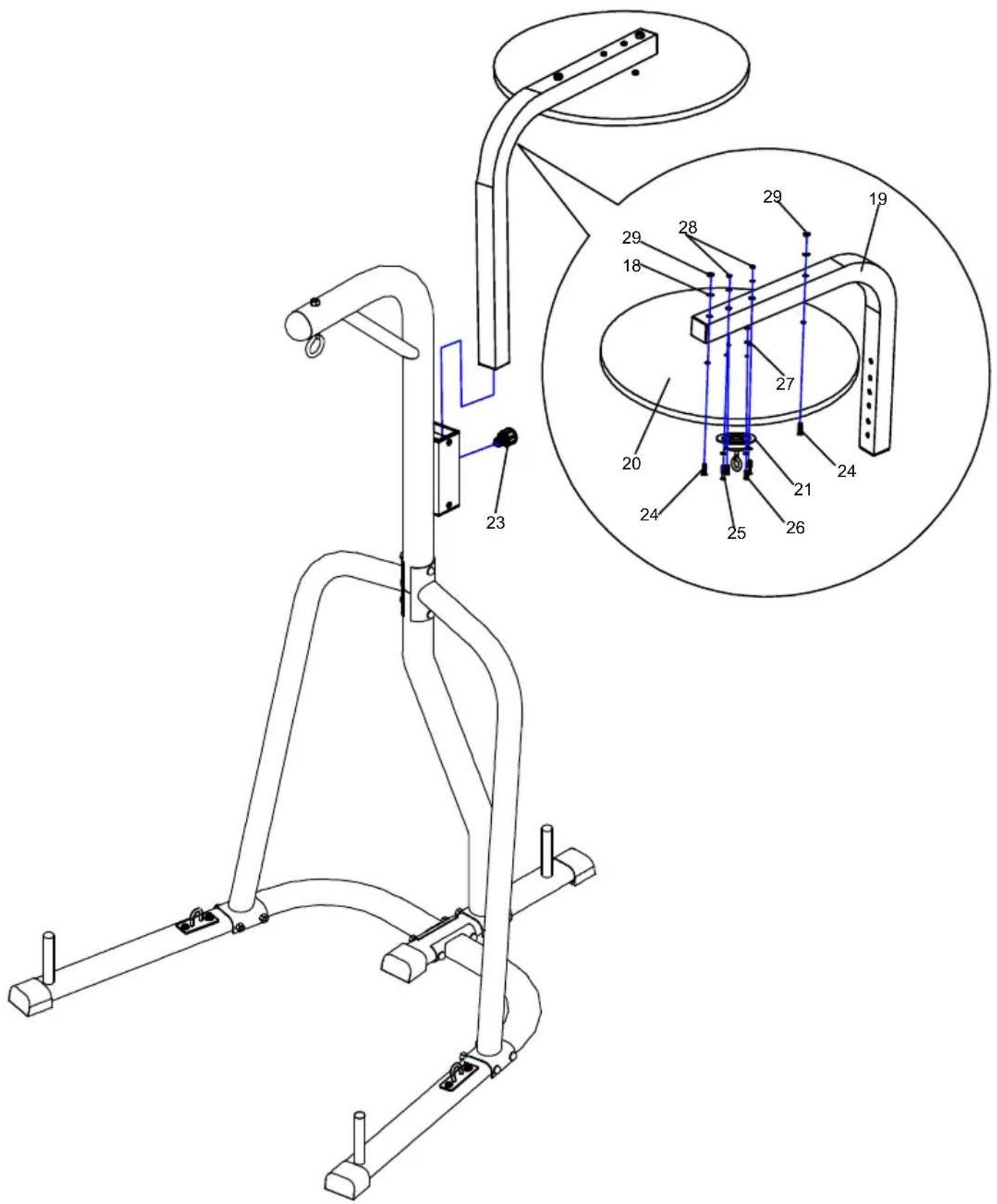

Step 4: Install boxing ball components as shown(Finished)

Technical diagram of a stationary exercise machine with numbered components and an inset view showing internal structure details.

Cleaning and Maintenance

• Use a soft, clean cloth that will not scratch the surface when dustir
• This item could be cleaned with soap and water.

Be sure to avoid harsh solvents and abrasives.

- Periodically (every 90 days) make sure the screws are fully tightened

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPE

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

REPU

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
