JZYYXCL5LBL2 - Kitchen utensil Vevor - Free user manual and instructions

Product Type	Round chafing dish (hot plate for keeping warm)
Model	JZYYXCL5LBL2 (compatible with JZYYXCL5LGG2 and JZYYXCL5LGG4)
Brand	Vevor
Power Source	Solid fuel (gel or pellets)
Number of Burners	1 (central fuel reservoir)
Frame Material	Stainless steel
Water Pan and Food Pan Material	Stainless steel
Water Pan Capacity	Approximately 2 liters (estimate)
Main Function	Keep food warm by bain-marie (steam heated by fuel)
Recommended Use	Buffets, receptions, outdoor events
Cleaning the Frame and Lid	Warm soapy water, avoid abrasives
Cleaning the Water Pan and Food Pan	Commercial dishwasher safe
Fire Safety	Do not use gasoline, alcohol, or other flammable liquids. Do not blow on burning fuel. Close the metal lid to extinguish.
Usage Precautions	Wear protective gloves. Monitor burning fuel. Do not add fuel while the container is hot.
Included Parts	Frame (1), fuel reservoir (1), water pan (1), food pan (1), lid (1), handles, fuel holder, gift screwdriver
Technical Support and Warranty	www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Co., Ltd. (Shanghai, China)
EU Representative	YH Consulting Limited, 60329 Frankfurt am Main, Germany
Australia Importer	SIHAO PTY LTD, Eastwood NSW 2122
USA Importer	Sanven Technology Ltd., Rancho Cucamonga, CA 91730

Frequently Asked Questions - JZYYXCL5LBL2 Vevor

How to use the Vevor JZYYXCL5LBL2 chafing dish?

Place the frame on a firm surface, install the fuel holder, place the water pan filled with hot water (for faster heating). Light the solid fuel in the reservoir, then place the food pan with food into the water pan. Cover with the lid to maintain heat. To extinguish, close the metal lid of the fuel reservoir. Never blow on the flames.

What type of fuel to use?

Only solid fuel (gel or pellets) designed for chafing dishes can be used. Never use gasoline, alcohol, or any other flammable liquids, as this poses a serious fire risk.

How long does a typical fuel last?

The duration depends on the fuel. Generally, a standard pellet or gel burns for about 1 to 2 hours. Regularly monitor the fuel and only add more once it is extinguished and cooled.

Can I clean the parts in the dishwasher?

Yes, the water pan and food pan can be cleaned in a commercial dishwasher. The frame and lid should be hand washed with warm soapy water and a soft cloth. Do not use abrasive products or scouring pads.

Is the chafing dish suitable for outdoor use?

Yes, it can be used outdoors, but it must be placed on a stable surface, sheltered from wind. Always monitor the fuel and keep children and pets away.

How to safely extinguish the fuel?

Simply close the metal lid of the fuel reservoir. The lack of oxygen will smother the flames. Never blow on the flames as this could scatter hot particles and cause burns.

Can I add fuel while the fire is burning?

No, wait until the fuel is completely extinguished and the reservoir has cooled before adding new fuel. Adding fuel onto flames can cause burns or a fire.

What are the important safety precautions?

Read all instructions before use. Wear protective gloves when handling hot parts. Never leave the appliance unattended. Do not allow children or unsupervised persons to use it. Keep pets away.

How to get spare parts or technical support?

Visit Vevor's technical support site at www.vevor.com/support for any questions, spare parts, or warranty requests.

Can the chafing dish be used to cook food?

This product is designed to keep already cooked food warm using a bain-marie. It is not effective for cooking raw food.

USER MANUAL JZYYXCL5LBL2 Vevor

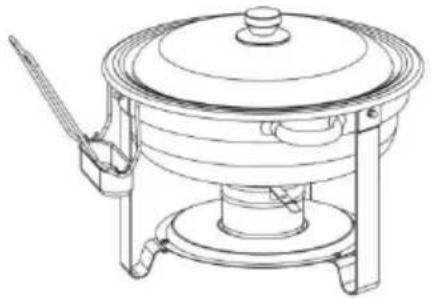

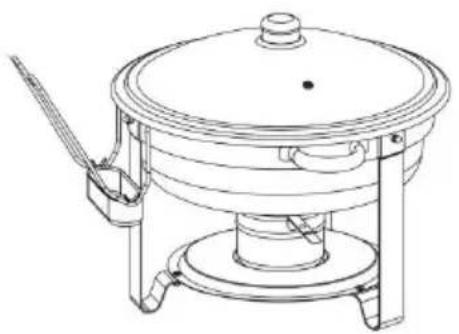

ROUND CHAFING DISH

MODEL: JZYYXCL5LGG2 / JZYYXCL5LGG4 / JZYYXCL5LBL2 / JZYYXCL5LBL4

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

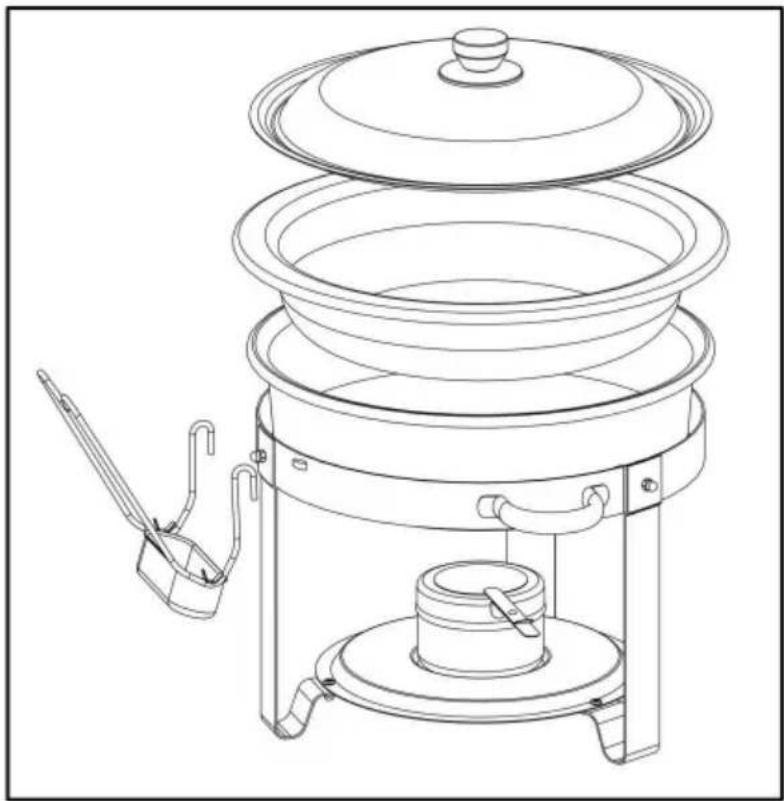

MODEL: JZYYXCL5LGG2 / JZYYXCL5LGG4

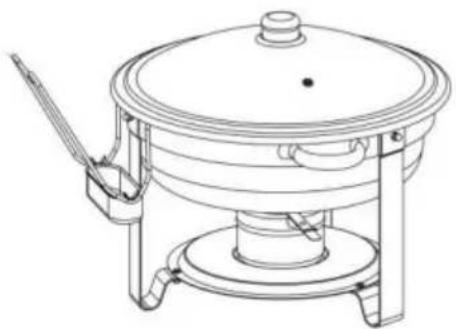

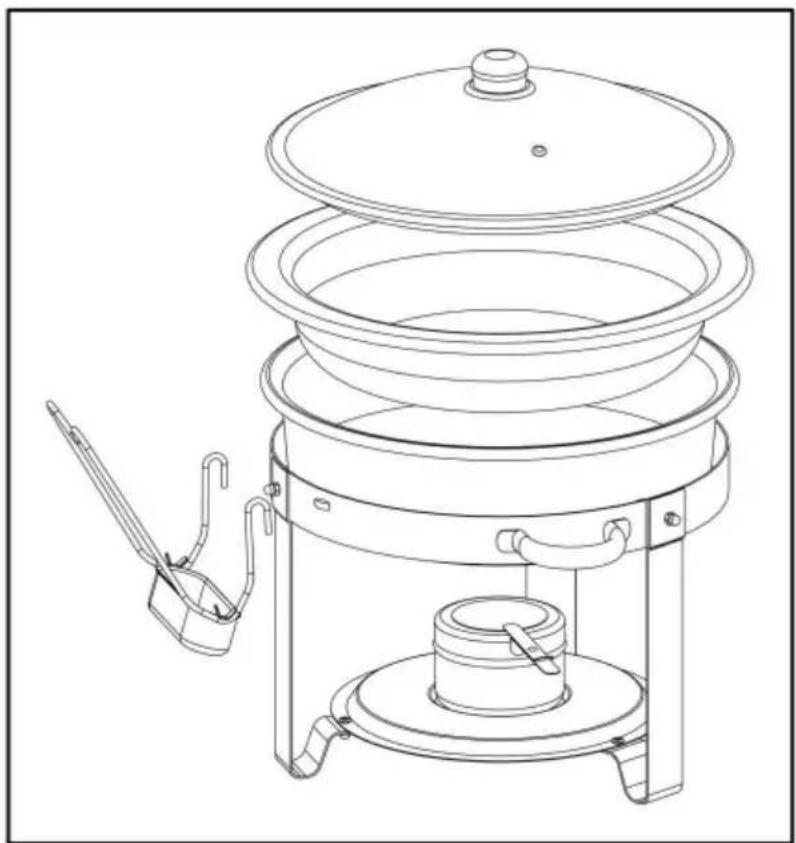

MODEL: JZYYXCL5LBL2 / JZYYXCL5LBL4

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructio manual carefully.
	Wear protective gloves.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to ensure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on the page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance, and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the users will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please consult a doctor.

Please read ALL the instructions before using your product.

1. Children and minors cannot use this product.
2. Only solid fuel can be used as heating fuel. Do not use gasoline, alcohol
3. Please use the ignition torch to ignite the fuel.
4. When the fuel is burning, special personnel shall be assigned to watch on prevent it from being hit or toppled.
5. Close the metal cover of the container to extinguish the fuel. Do not blow
6. It is not allowed to add new fuel before the burning fuel is extinguished cooled.
7. Remember to clean the food tray and fuel container after each use.
8. Do not clean with corrosive solvents such as strong acid and alkali
9. Please wear gloves when handling the product.
10. Do not apply this unit to any other purposes than the indicated usage.
11. Before first use, please clean the product.
12. The product cannot be burned dry

WARNING: This appliance is not intended for use by young or infir persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

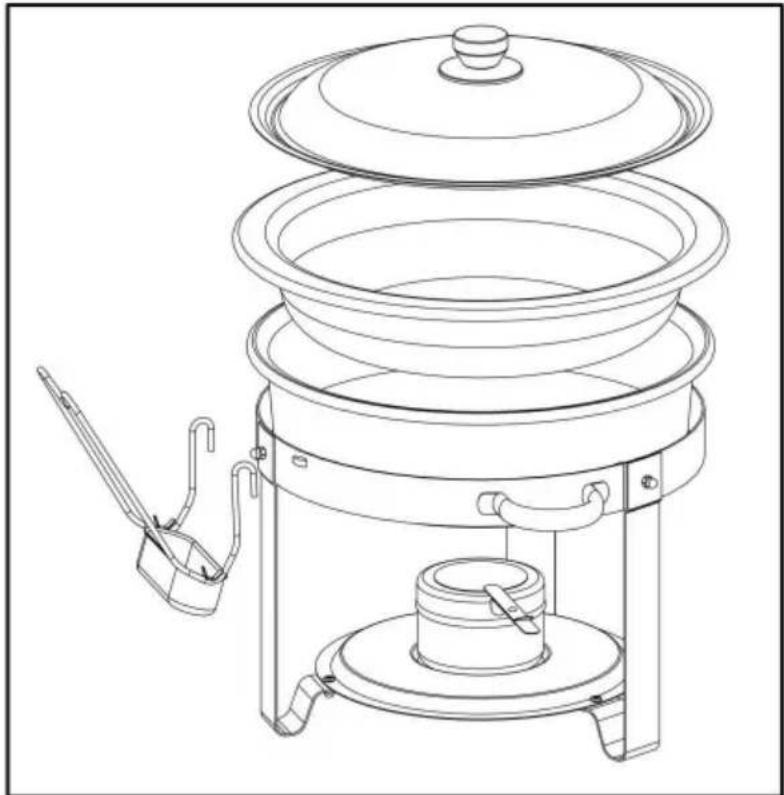

PRODUCT COMPONENTS

NO.	Part List	Qty
1		X1
2		X3
3		X1
4		X1
5		X1
6		X1
7		X1

NO.	Part List	Qty
8		X1
9		X1
10		X1
11		X6
12		X6
13		X1
14		X1

NOTE:

1. For the convenience of installation, we will give away a screwdriver as a
2. The quantity of parts shown in the manual is the actual usage and the parts are spare parts.
3. Each set of products uses consistent parts and assembly methods.

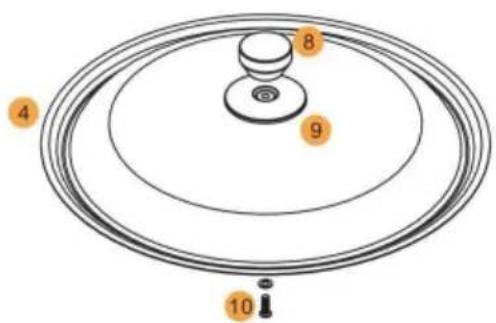

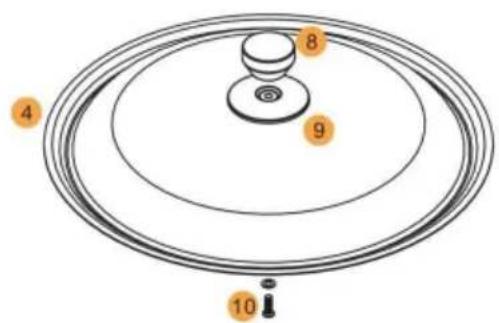

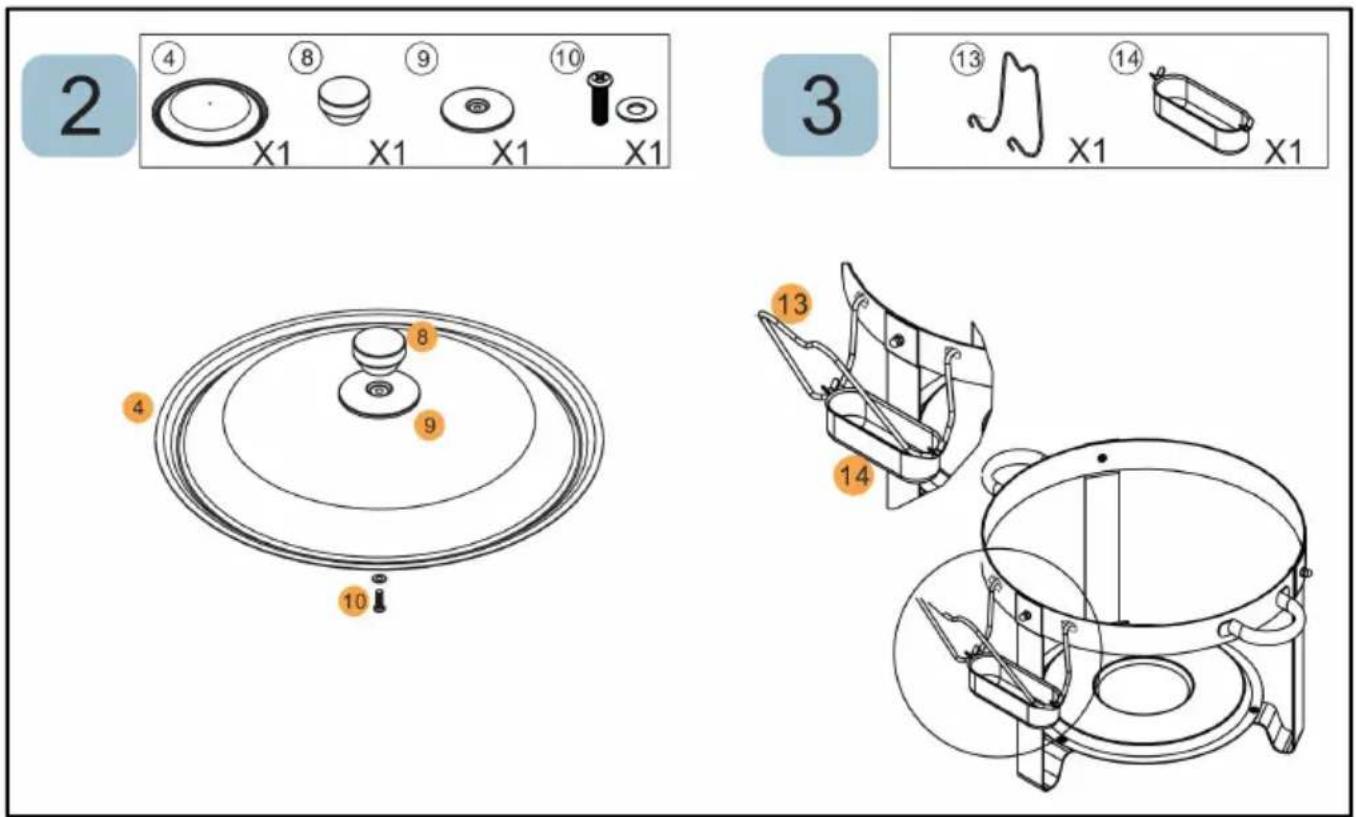

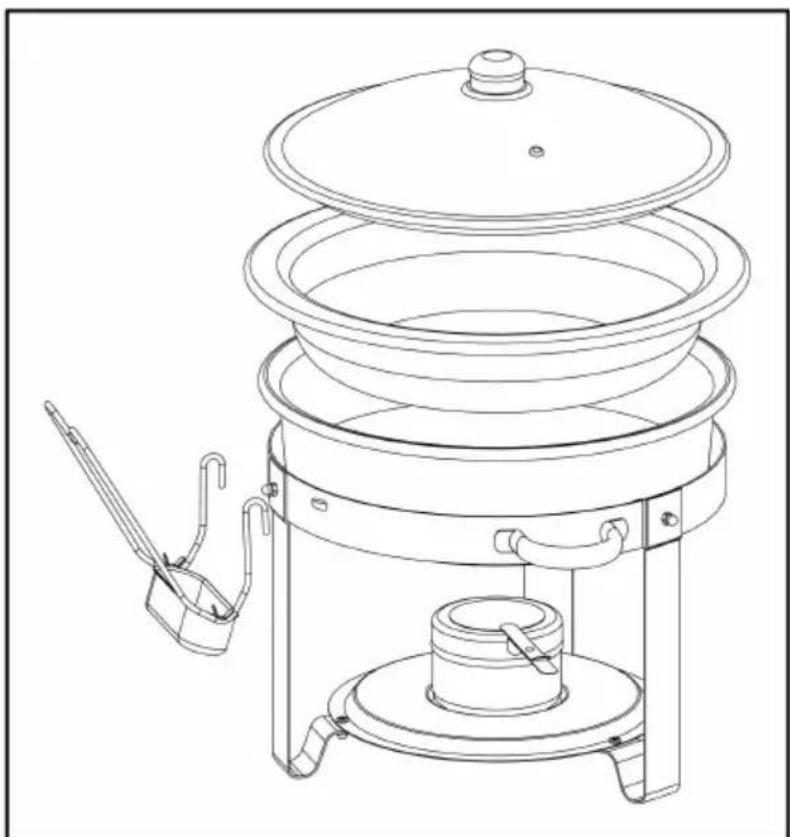

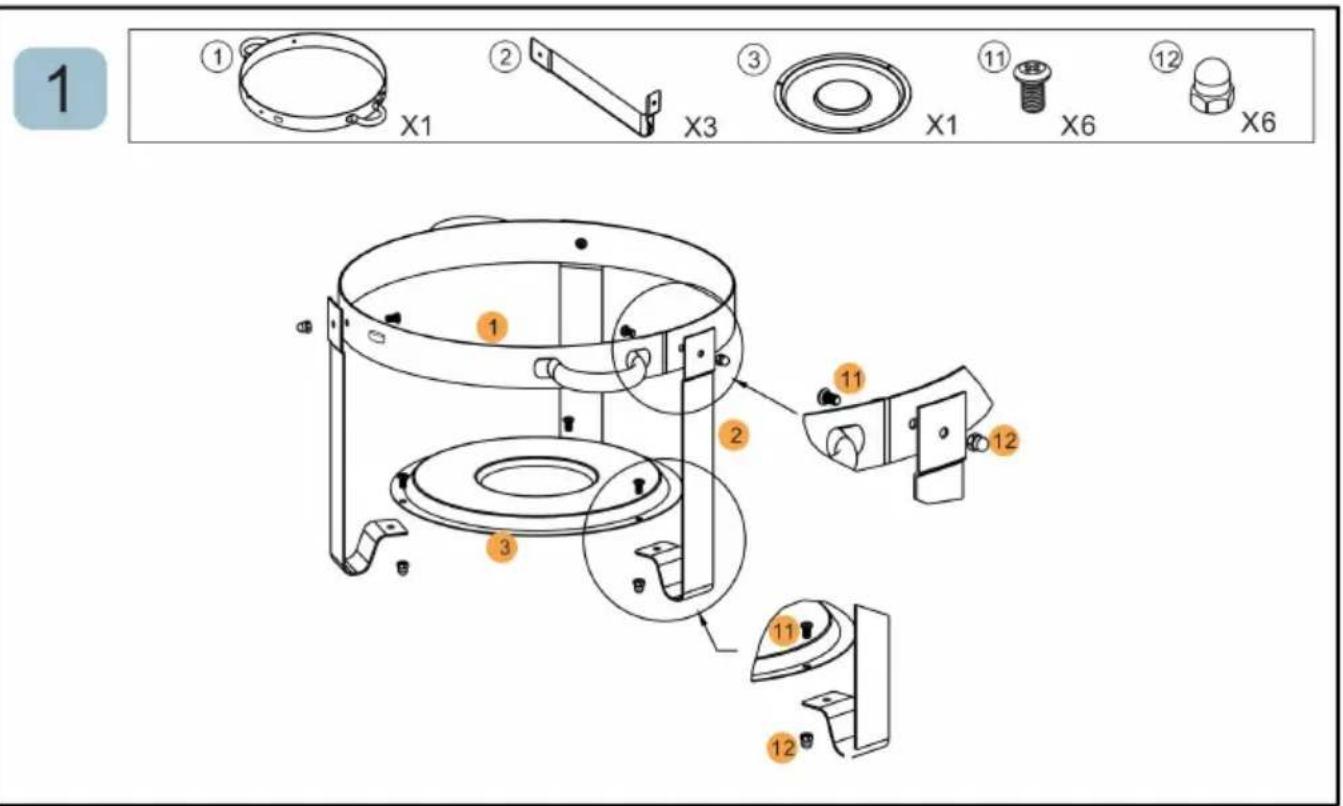

ASSEMBLE

NOTE: Pay attention to the direction of the handle tilting upwards.

MODEL: JZYYXCL5LBL2 / JZYYXCL5LBL4

NOTE: Pay attention to the direction of the handle tilting upwards.

OPERATING INSTRUCTIONS

Before using the appliance for the first time: Peel off promotional and package materials, and check that the cooking plates are clean and dust-free. If necessary, wipe them over with a damp cloth. Spread over with an absorbent kitchen towel and wipe off any excess oil.

1. Take all the components out of the box and unwrap.
2. Place the frame on a firm surface (see diagram for included parts).
3. Place the fuel holder at the center of the base carefully.
4. Put the water pan into the frame and fill with water (fill in hot water for heating).
5. Remove the cover from the fuel holder, and ignite the fuel to heat the water (steam from the heated water will keep the food hot).
6. Place food in the food pan and set this pan into the water pan. The food should be suspended above the water. Then, place the cover over the food pan.
7. Replace the cover over the fuel holder to extinguish the burning fuel—DO NOT BLOW IT OUT.

NOTE:

1. Always use a scald-proof pad when touching the fuel holder. Fuel, fuel hot and its cover can get extremely hot.
2. For the best heating efficiency, please keep the lid closed when heating, and check the water level periodically, since the hot water will evaporate into steam.

CLEANING, MAINTENANCE, STORAGE

1. The frame and cover may be cleaned with warm, soapy water. Never use abrasive materials or scouring pads. Thoroughly wipe off the mild instead of immersing the frame into water. If needed, you can polish it with stainless steel cleaner or glass cleaner without ammonia.
2. Parts that can be cleaned in a commercial dishwasher: Food Pan and Wa Pan.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support
