Product Type	Round Chafing Dish / Table Warmer
Brand	Vevor
Model	JZYYXCL5LGG4 (also compatible with JZYYXCL5LGG2, JZYYXCL5LBL2, JZYYXCL5LBL4)
Power Source	Solid fuel (fuel pellets, gel or solid type)
Main Material	Stainless steel
Number of Pieces	14 pieces (frame, water pan, food pan, lid, fuel holder, tank lid, handles, screws, screwdriver)
Usage	Keep food warm using a water bath
Water Pan Capacity	Fill with hot water as needed (no specific capacity provided)
Temperature	Heating by solid fuel flame
Safety	Do not use liquid fuel, do not blow to extinguish, close the lid, wear gloves, monitor continuously during use
Maintenance	Clean with warm soapy water, avoid abrasive products, food pan and water pan dishwasher safe
Dishwasher Safe Parts	Food pan and water pan
Accessories Included	Screwdriver included for assembly
Technical Support	www.vevor.com/support for assistance and electronic warranty certificate
Warranty	Electronic warranty via www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China
Importer (Australia)	SIHAO PTY LTD, NSW 2122
Importer (USA)	Sanven Technology Ltd., Suite 250, 9166 Anaheim Pl., Rancho Cucamonga, CA 91730
UK Representative	YH CONSULTING LIMITED, 60329 Frankfurt am Main

Frequently Asked Questions - JZYYXCL5LGG4 Vevor

What type of fuel should I use with the Vevor chafing dish?

Only use solid fuel (gel pellets or other solid fuels). Never use gasoline, alcohol, or any other liquid fuel.

How do I light and extinguish the chafing dish?

Light the fuel using a lighting torch. To extinguish, tightly close the metal lid of the fuel reservoir. Do not blow on the flame.

Can I add fuel while the fire is burning?

No, it is forbidden to add fuel until the fire is completely out and the reservoir has cooled. Wait until everything is cold before refueling.

How to clean the chafing dish?

Clean the frame and lid with warm soapy water and a soft cloth. Do not use abrasive pads. The food pan and water pan can go in the dishwasher.

Can the chafing dish be used unattended?

No, constant adult supervision is required while the fuel is burning. Keep children and pets away.

What should I do if the chafing dish tips over?

In case of tipping, move away immediately and use a fire extinguisher or fire blanket. Do not attempt to catch the unit. Wear protective gloves.

How to assemble the chafing dish?

Follow the steps in the manual: place the frame on a stable surface, install the fuel holder in the center, then the water pan, food pan, and lid. A screwdriver is provided to facilitate attaching the handles. Ensure the handles are angled upward.

Can the chafing dish be used outdoors?

Yes, it can be used outdoors, but place it on a stable surface and sheltered from wind. Avoid flammable surfaces and monitor continuously.

Where to find the warranty certificate?

The electronic warranty certificate is available at www.vevor.com/support. You can also find technical support there.

How much water should I put in the pan?

Fill the water pan with water (preferably hot) to a level that does not overflow when inserting the food pan. The food pan should rest on the edges of the water pan, without touching the water directly.

USER MANUAL JZYYXCL5LGG4 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

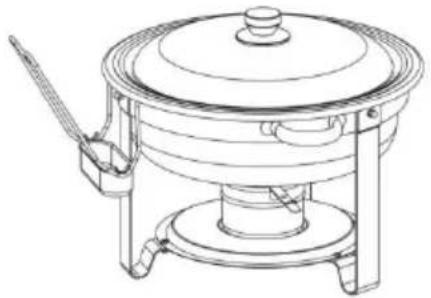

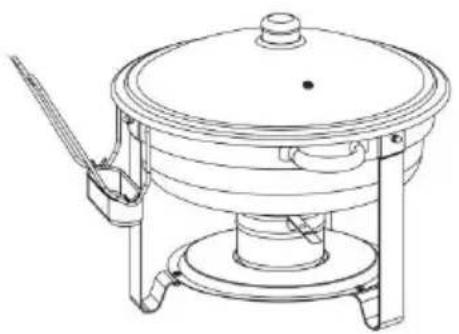

ROUND CHAFING DISH

MODEL: JZYYXCL5LGG2 / JZYYXCL5LGG4 / JZYYXCL5LBL2 / JZYYXCL5LBL4

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

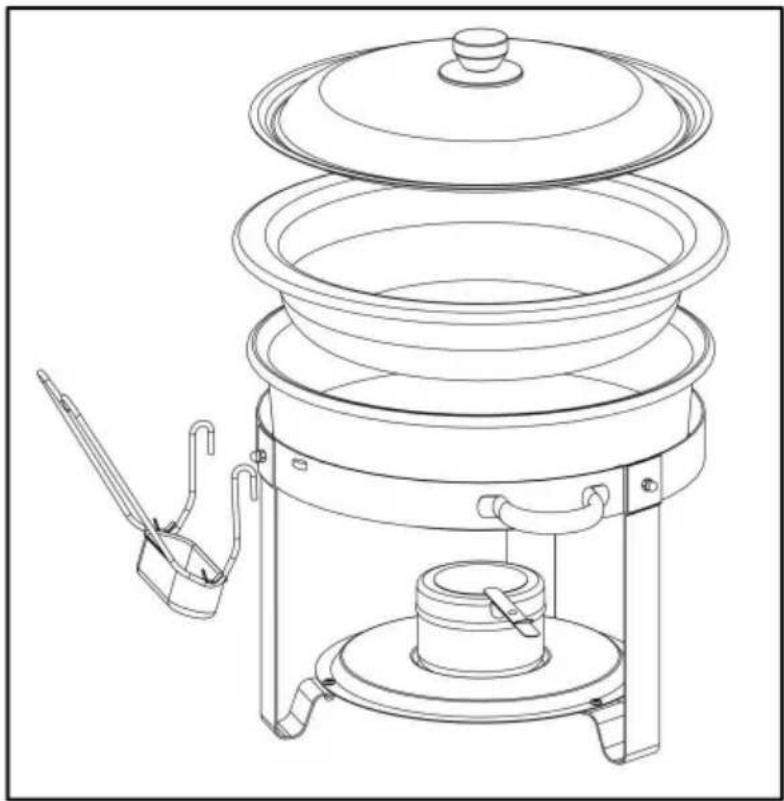

MODEL: JZYYXCL5LGG2 / JZYYXCL5LGG4

Line drawing of a traditional steam cooker with lid, side legs, and handle (no text or symbols)

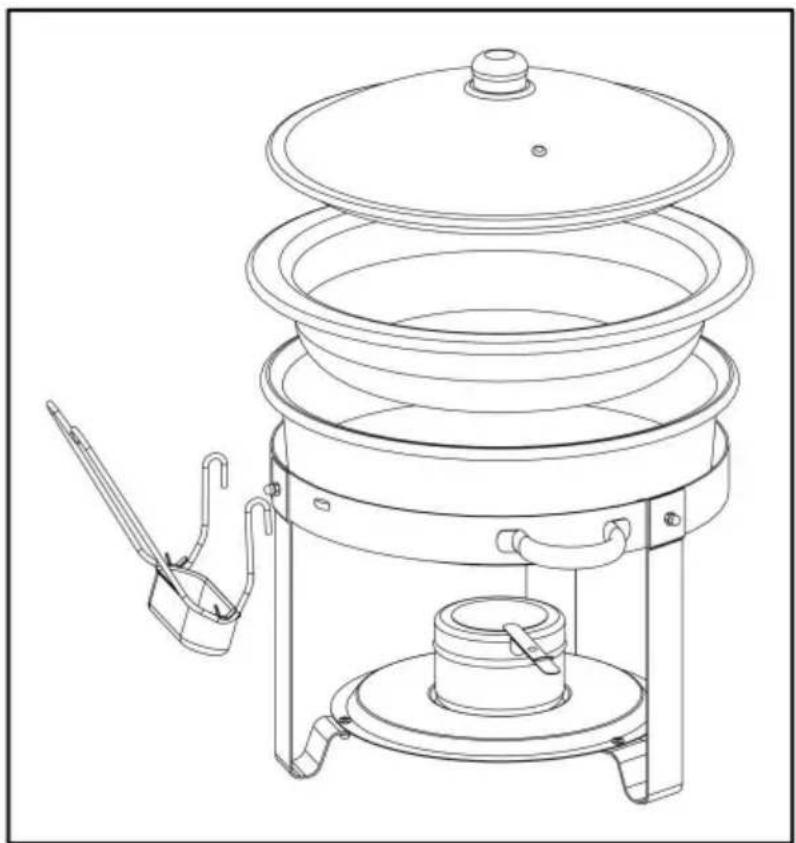

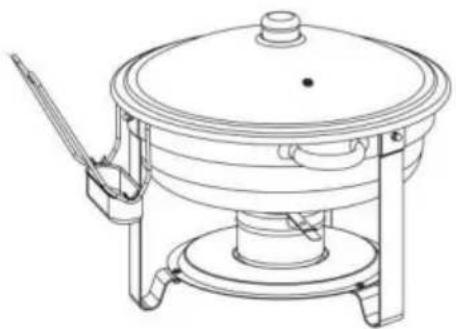

MODEL: JZYYXCL5LBL2 / JZYYXCL5LBL4

Line drawing of a portable stove or cooker with lid, base, and handle (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructio manual carefully.
	Wear protective gloves.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since believe that the uses will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please add a doctor.

Please read ALL the instructions before using your product.

1. Children and minors cannot use this product.
2. Only solid fuel can be used as heating fuel. Do not use gasoline, alcohol
3. Please use the ignition torch to ignite the fuel.
4. When the fuel is burning, special personnel shall be assigned to watch on prevent it from being hit or toppled.
5. Close the metal cover of the container to extinguish the fuel. Do not blow
6. It is not allowed to add new fuel before the burning fuel is extinguished cooled.
7. Remember to clean the food tray and fuel container after each use.
8. Do not clean with corrosive solvents such as strong acid and alkali
9. Please wear gloves when handling the product.
10. Do not apply this unit to any other purposes than the indicated usage.
11. Before first use, please clean the product.
12. The product cannot be burned dry

WARNING: This appliance is not intended for use by young or infir persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.

PRODUCT COMPONENTS

NO.	Part List	Qty
1		X1
2		X3
3		X1
4		X1
5		X1
6		X1
7		X1

NO.	Part List	Qty
8		X1
9		X1
10		X1
11		X6
12		X6
13		X1
14		X1

NOTE:

1. For the convenience of installation, we will give away a screwdriver as a
2. The quantity of parts shown in the manual is the actual usage and the parts are spare parts.
3. Each set of products uses consistent parts and assembly methods.

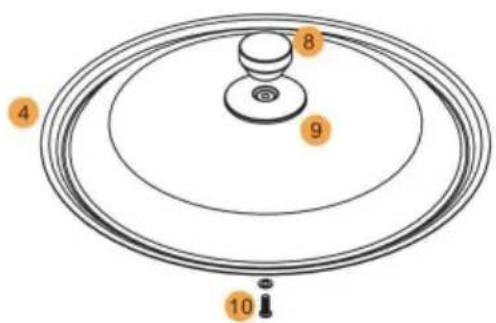

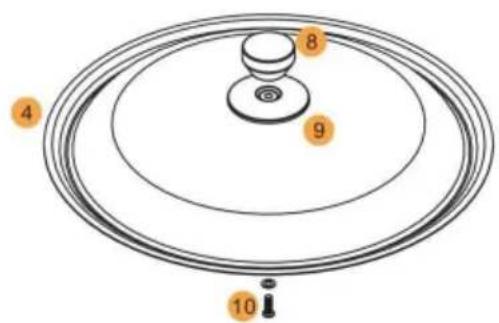

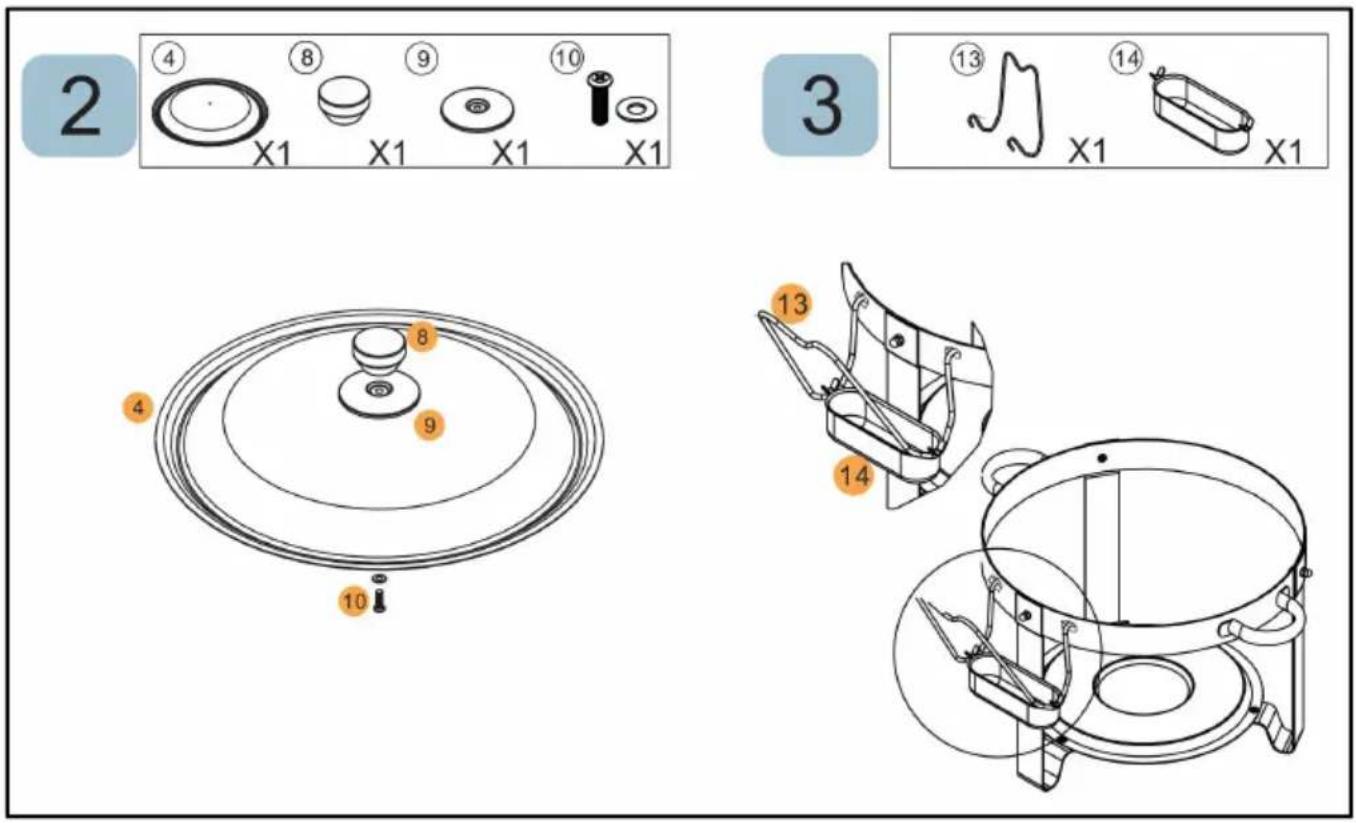

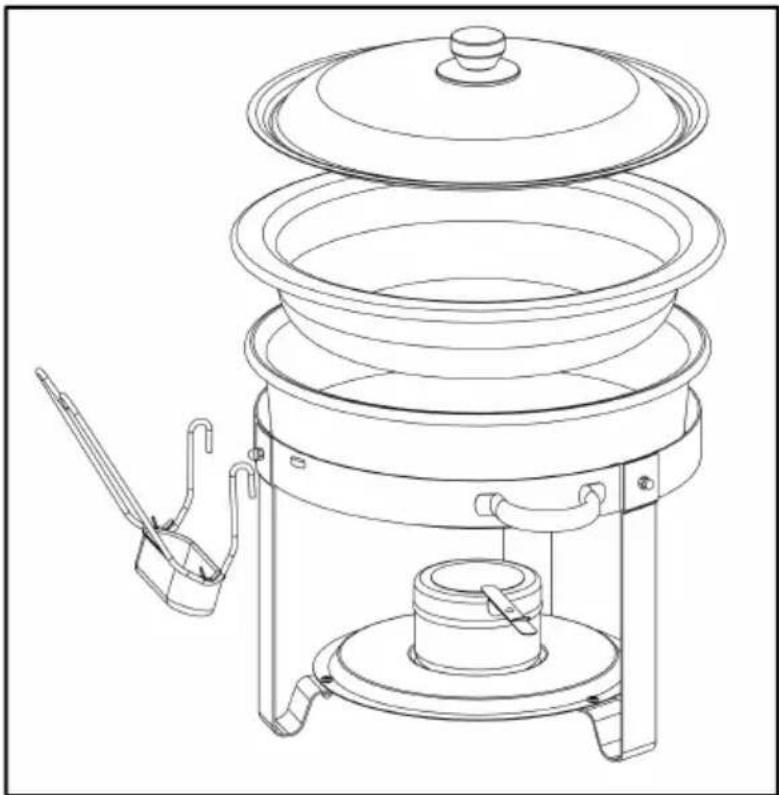

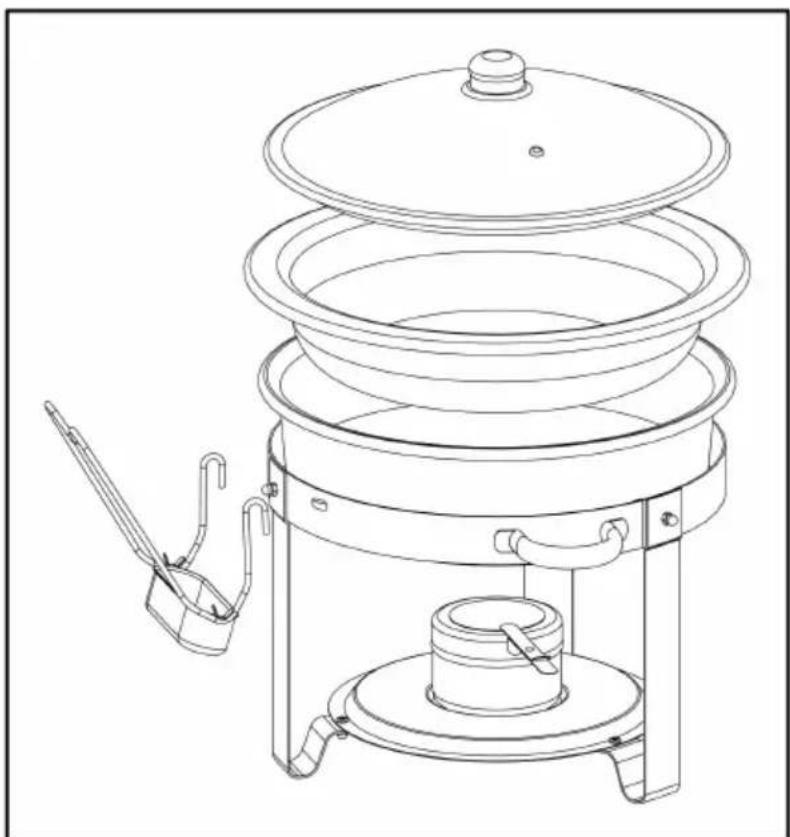

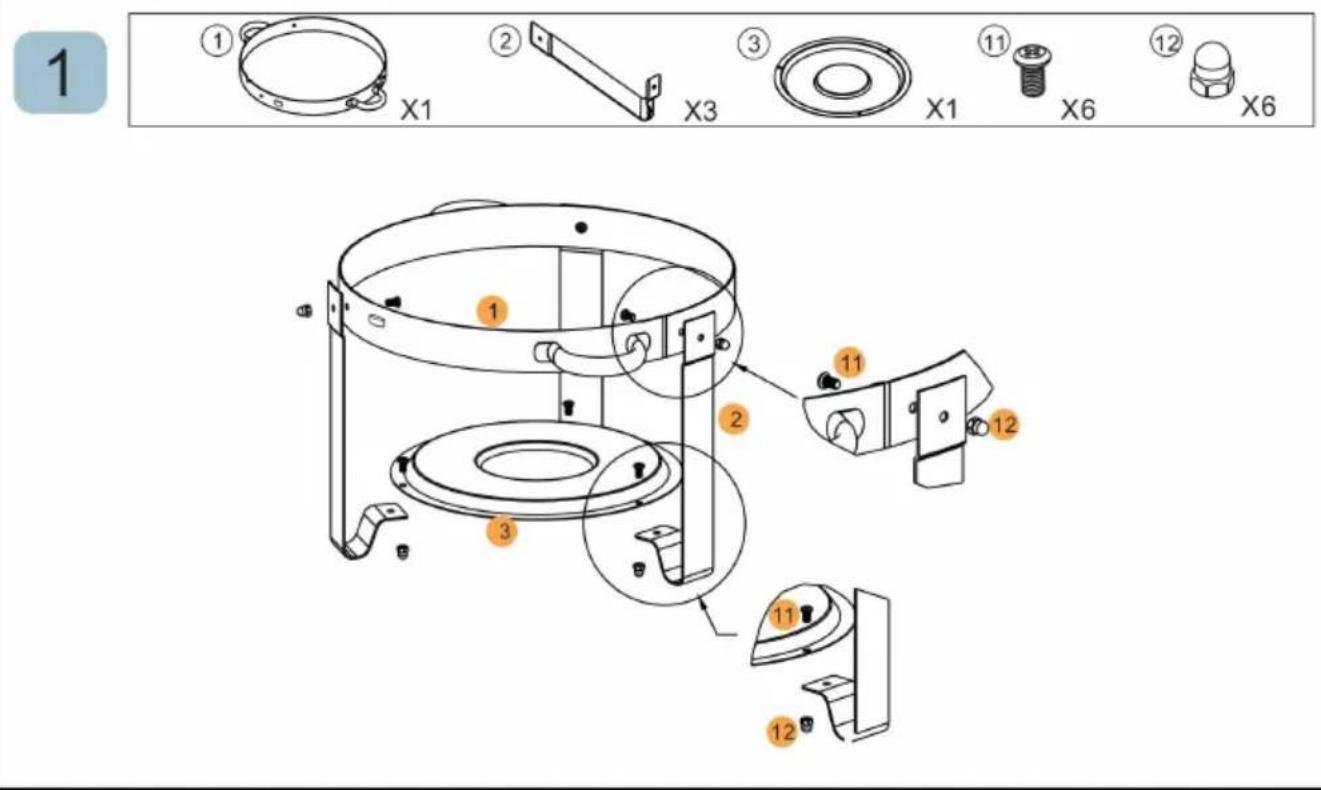

ASSEMBLE

NOTE: Pay attention to the direction of the handle tilting upwards.

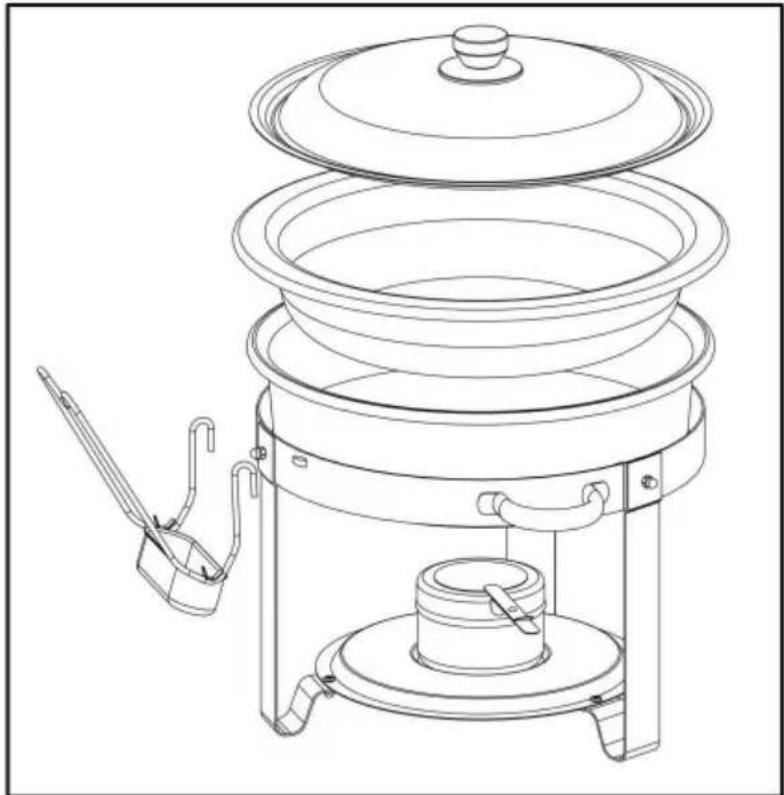

MODEL: JZYYXCL5LGG2 / JZYYXCL5LGG4

Line drawing of a multi-tiered coater with lid, handle, and base (no text or symbols)

MODEL: JZYYXCL5LBL2 / JZYYXCL5LBL4

Line drawing of a multi-tiered cooking pot with a lid and side arm, no text or symbols present

NOTE: Pay attention to the direction of the handle tilting upwards.

OPERATING INSTRUCTIONS

Before using the appliance for the first time: Peel off promotional and package materials, and check that the cooking plates are clean and dust-free. If necessary wipe them over with a damp cloth. Spread over with an absorbent kitchen to and wipe off any excess oil.

1. Take all the components out of the box and unwrap.
2. Place the frame on a firm surface (see diagram for included parts).
3. Place the fuel holder at the center of the base carefully.
4. Put the water pan into the frame and fill with water (fill in hot water for heating).
5. Remove the cover from the fuel holder, and ignite the fuel to heat the w (steam from the heated water will keep the food hot).
6. Place food in the food pan and set this pan into the water pan. The food be suspended above the water. Then, place the cover over the food pan.
7. Replace the cover over the fuel holder to extinguish the burning fuel—DO BLOW IT OUT.

NOTE:

1. Always use a scald-proof pad when touching the fuel holder. Fuel, fuel hot and its cover can get extremely hot.
2. For the best heating efficiency, please keep the lid closed when heating, and check the water level periodically, since the hot water will evaporate into steam.

CLEANING MAINTENANCE STORAGE

1. The frame and cover may be cleaned with warm, soapy water. Never use abrasive materials or scouring pads. Thoroughly wipe off the mild instead of immersing the frame into water. If needed, you can polish it with stainless steel cleaner or glass cleaner without ammonia.

2. Parts that can be cleaned in a commercial dishwasher: Food Pan and Wa Pan.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
