USER MANUAL YG19-914B-101 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
DECKING BALUSTER
MODEL:YG19-660B-101/YG19-914B-101/
YG19-813B-101/YG19-660B-51/
YG19-813B-51/YG19-914B-51
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.
MODEL:YG19-660B-101/YG19-914B-101/YG19-813B-101/ YG19-660B-51/YG19-813B-51/YG19-914B-51
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
WARNING:
1.Do not allow children to climb on the unit.
2. Keep children and pets away during assembly.
SAFETY INSTRUCTIONS
- Please assemble the product in strict accordance with the instruction Incorrect assembly could be hazardous.
- Please wear safety goggles and work gloves properly during assembly
3.Do not try to assemble the product when feeling tired or when unco influence of alcohol, drugs or medication.
4.Load bearing capacity and other product parameters are applied to properly and completely assembled product only. - Separate and count all parts and hardware.
6.Prepare the following tool: Philips Head Screwdriver.
7.If using power tools, please be careful to slow down and stop when needed.
8.Two people are required for assembly.
9.Follow the intended uses only. - The product is made of metal aluminum. After installation, please not intentionally impact to avoid damage to the wooden fence.
PARAMETER LIST

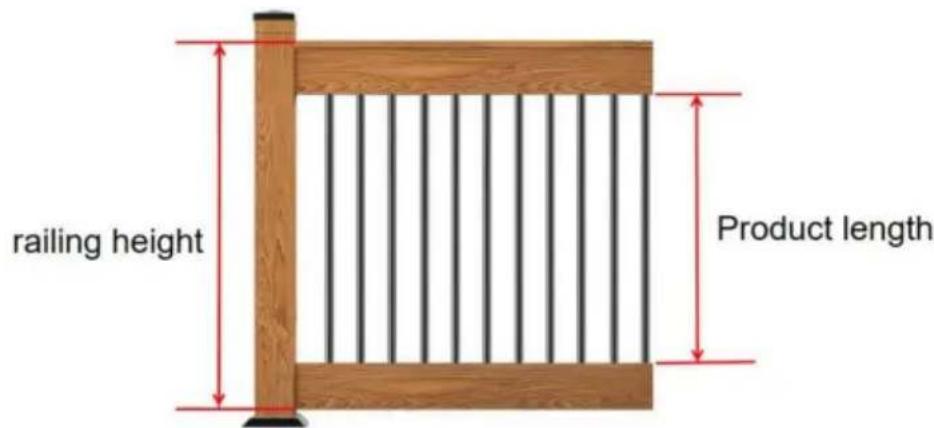

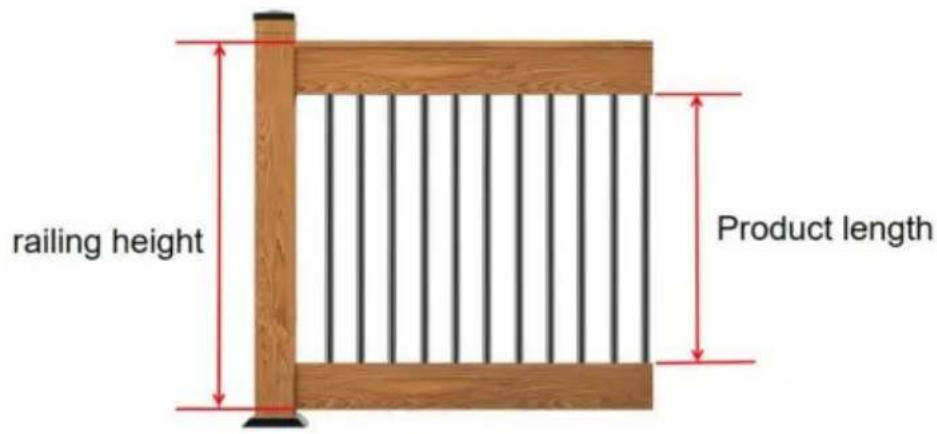

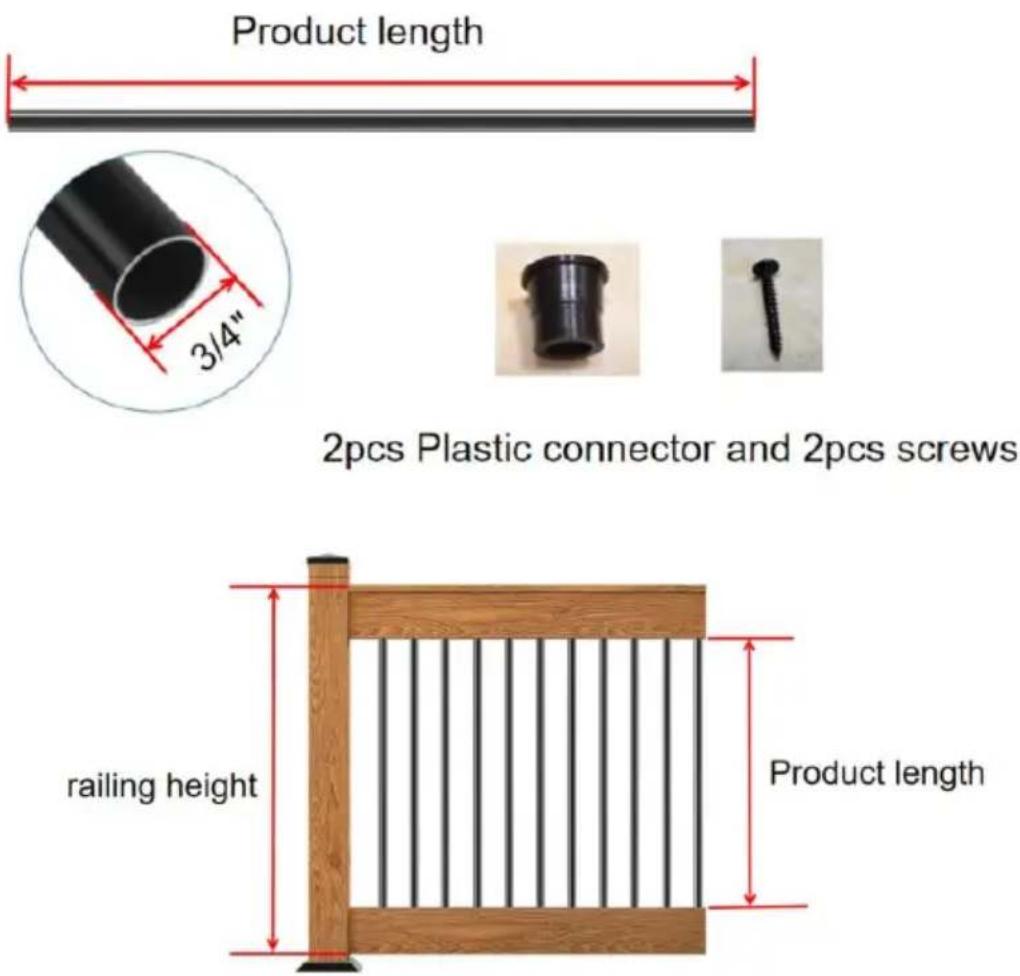

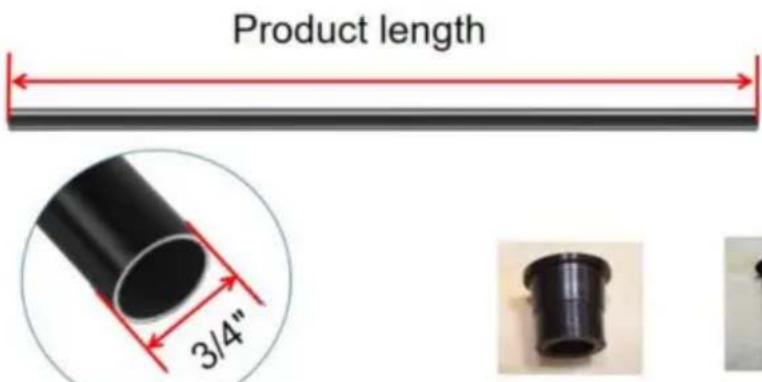

| Model | Number of kits | Product outer diameter | Product length | railing height | M5*30 Screw | Plastic connector |
| YG19-66 0B-101 | 101pcs | Ø3/4" | 26inch | 36inch | 202pcs | 202pcs |
| YG19-91 4B-101 | 101pcs | Ø3/4" | 36inch | 48inch | 202pcs | 202pcs |
| YG19-81 3B-101 | 101pcs | Ø3/4" | 32inch | 42inch | 202pcs | 202pcs |
| YG19-66 0B-51 | 51pcs | Ø3/4" | 26inch | 36inch | 102pcs | 102pcs |
| YG19-81 3B-51 | 51pcs | Ø3/4" | 32inch | 42inch | 102pcs | 102pcs |
| YG19-91 4B-51 | 51pcs | Ø3/4" | 36inch | 48inch | 102pcs | 102pcs |

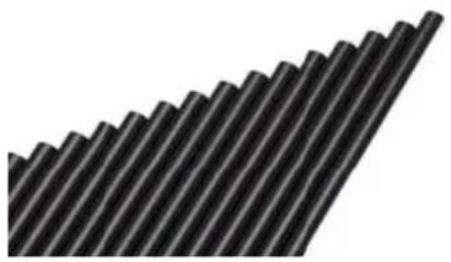

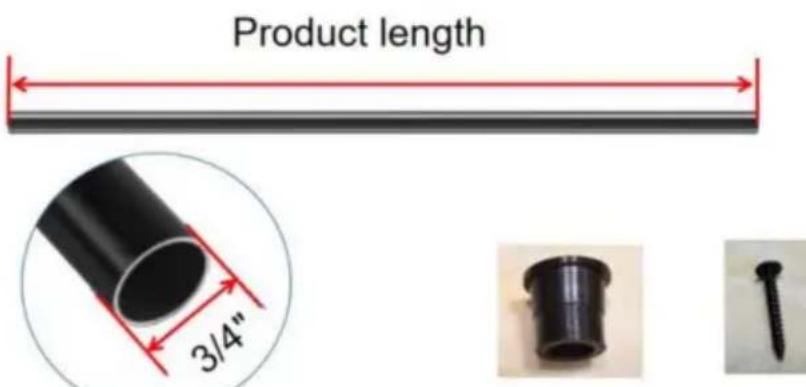

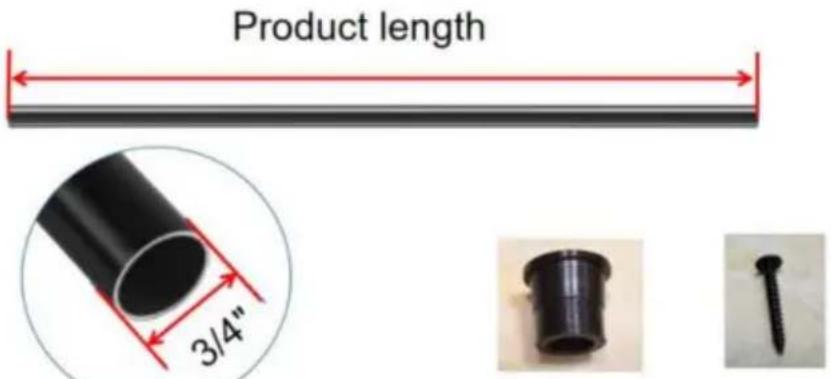

Each Decking Baluster requires 2 connectors and 2 screw mounting; The package only includes Decking Baluster, M5*30 Screw and Plastic connector, Please purchase the other installation parts by yourself. Decking Baluster, is applicable to the installation on the horizontal rail

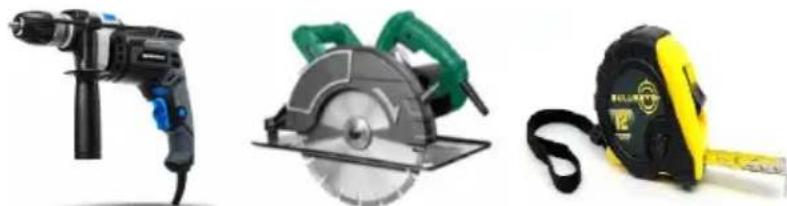

You need to prepare the electric drill, Circular Saw, and the tape mea by yourself before installation.
Installation Guide

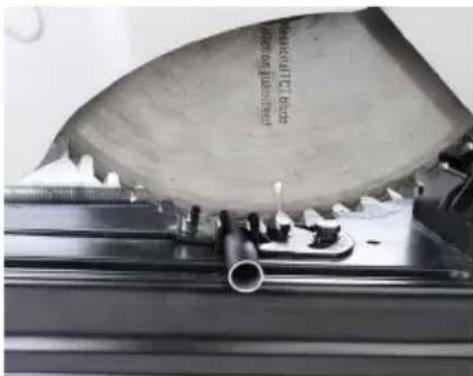

1.Process the Decking Baluster according to the height of the railing.

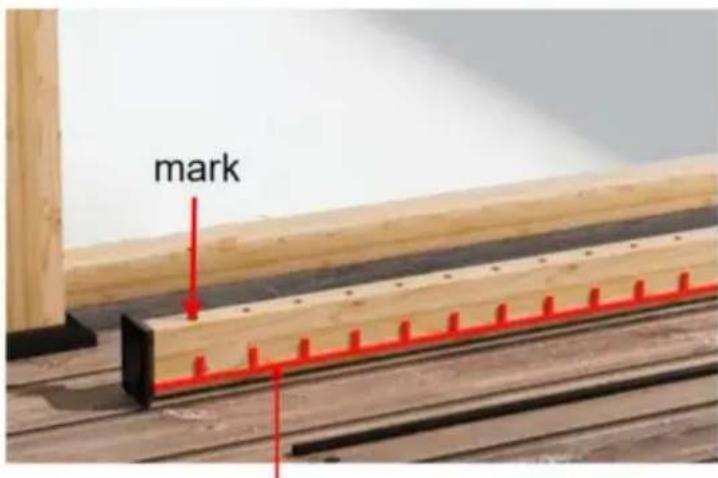

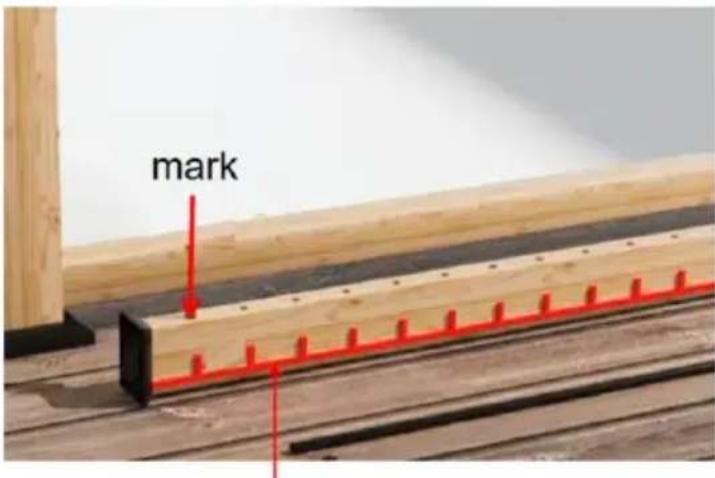

- Draw the installation mark on the railing, the center distance of the markers is 4.5 inches, the marking distance between the top railing and bottom railing is the same;
Two markers are 4.5 inches apart

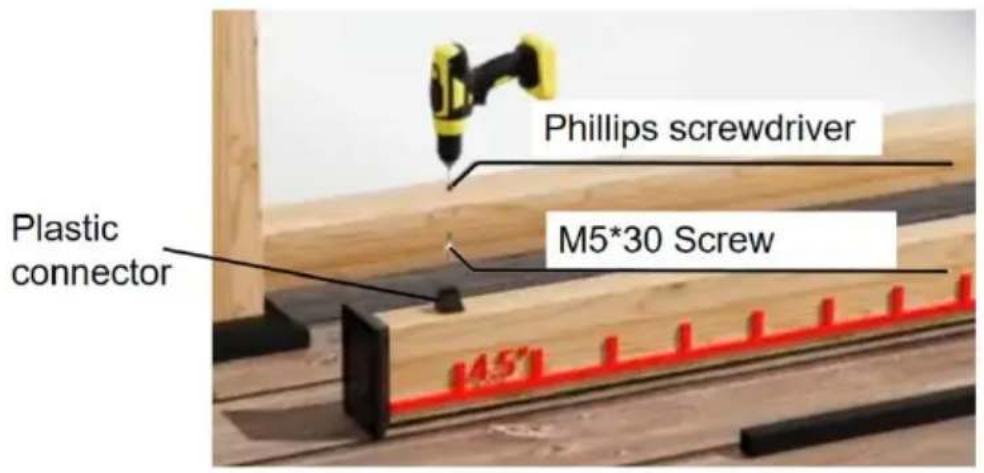

- On the marked mark, screw the plastic connector to the railing.

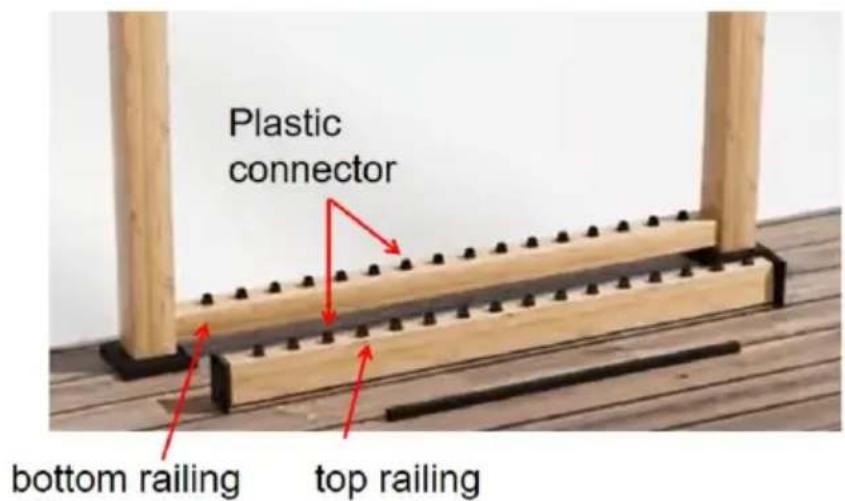

4.Install all connectors on the top and bottom rails

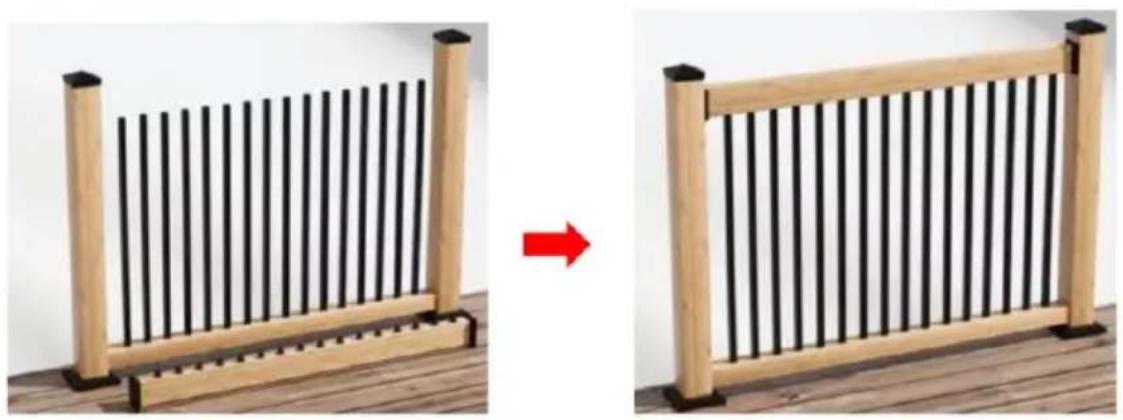

5.Insert the inner hole of Decking Baluster into the plastic connector insert the plastic connector of the top track into the inner hole of De Baluster

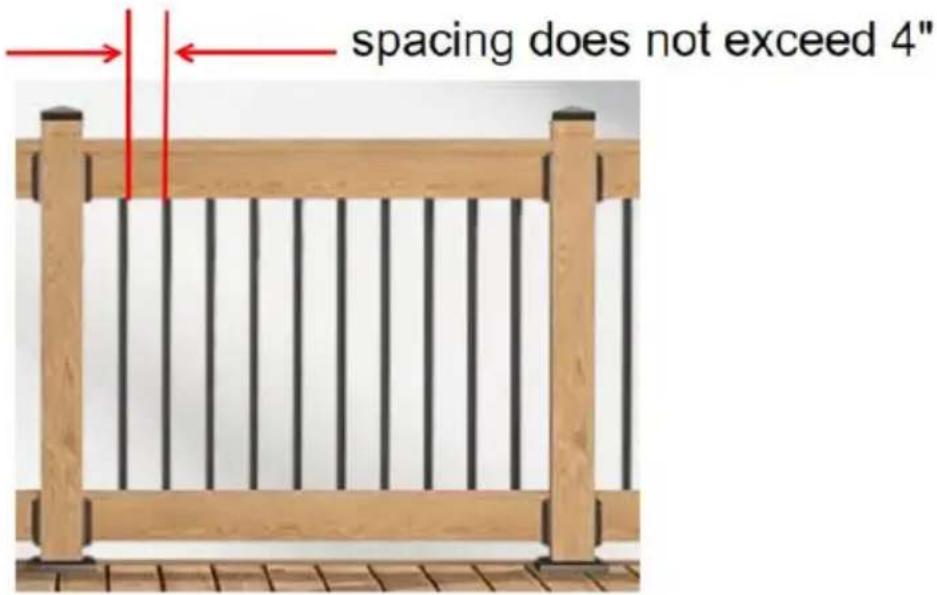

6.Fix the top railing to the left and right railing columns and complete installation;After installation, the two Decking Baluster's are less than 4 inches
