DECKING BALUSTER

MODEL:YG19-660B-101/YG19-914B-101/

YG19-813B-101/YG19-660B-51/

YG19-813B-51/YG19-914B-51

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:YG19-660B-101/YG19-914B-101/YG19-813B-101/YG19-660B-51/YG19-813B-51/YG19-914B-51

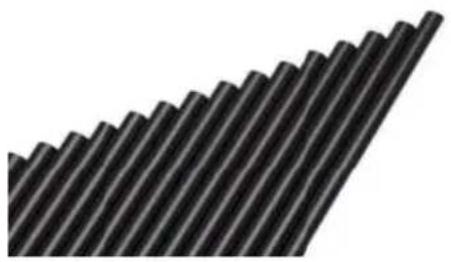

Close-up of a diagonal striped pattern resembling corrugated metal or fabric (no text or symbols)

Close-up of a black plastic object with a metallic screw attached, enclosed in a circular frame (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

WARNING:

1. Do not allow children to climb on the unit.
2. Keep children and pets away during assembly.

SAFETY INSTRUCTIONS

1. Please assemble the product in strict accordance with the instruction Incorrect assembly could be hazardous.
2. Please wear safety goggles and work gloves properly during assemb
3. Do not try to assemble the product when feeling tired or when unc influence of alcohol, drugs or medication.
4. Load bearing capacity and other product parameters are applied to properly and completely assembled product only.
5. Separate and count all parts and hardware.
6. Prepare the following tool: Philips Head Screwdriver.
7. If using power tools, please be careful to slow down and stop when needed.
8. Two people are required for assembly.
9. Follow the intended uses only.
10. The product is made of metal aluminum. After installation, please not intentionally impact to avoid damage to the wooden fence.

PARAMETER LIST

Model	Number of kits	Product outer diameter	Product length	railing height	M5*30 Screw	Plastic connector
YG19-66 0B-101	101pcs	∅3/4"	26inch	36inch	202pcs	202pcs
YG19-91 4B-101	101pcs	∅3/4"	36inch	48inch	202pcs	202pcs
YG19-813B-101	101pcs	∅3/4"	32inch	42inch	202pcs	202pcs
YG19-660B-51	51pcs	∅3/4"	26inch	36inch	102pcs	102pcs
YG19-813B-51	51pcs	∅3/4"	32inch	42inch	102pcs	102pcs
YG19-914B-51	51pcs	∅3/4"	36inch	48inch	102pcs	102pcs

Each Decking Baluster requires 2 connectors and 2 screw mounting; The package only includes Decking Baluster, M5*30 Screw and Plastic connector, Please purchase the other installation parts by yourself. Decking Baluster, is applicable to the installation on the horizontal rail

Product length 3/4"

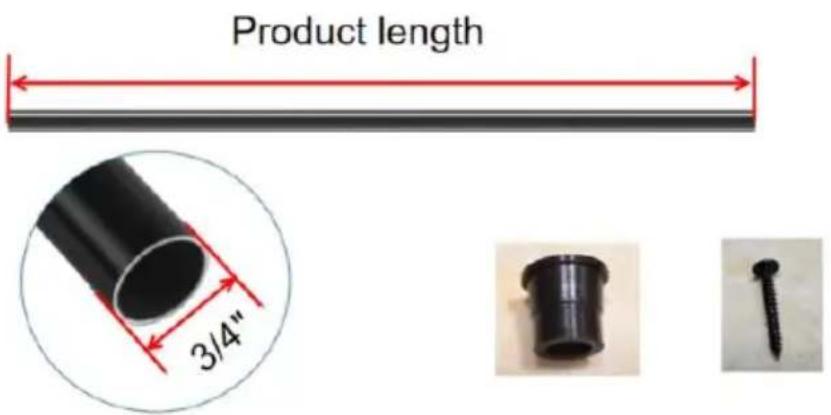

2pcs Plastic connector and 2pcs screws

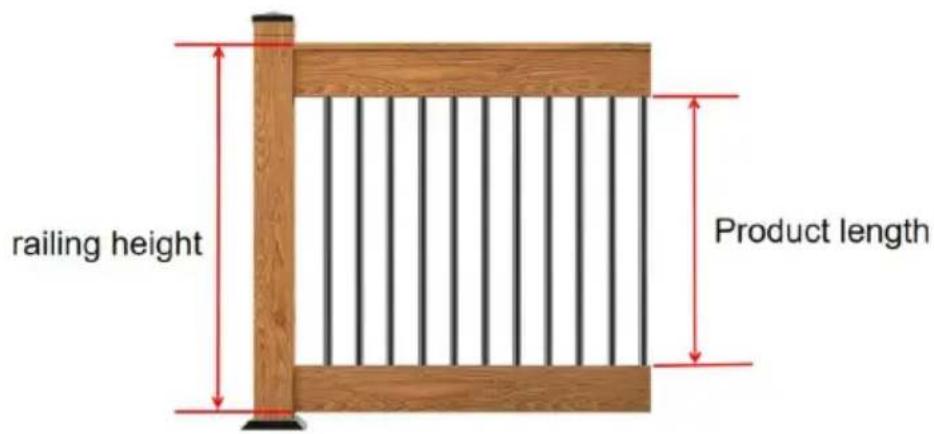

railing height Product length

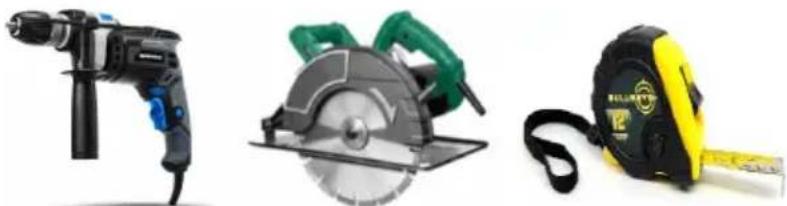

You need to prepare the electric drill, Circular Saw, and the tape mea by yourself before installation.

Three industrial tools: a pushaxe, a circular cutter cutter, and a tape measure (no text or symbols visible)

Installation Guide

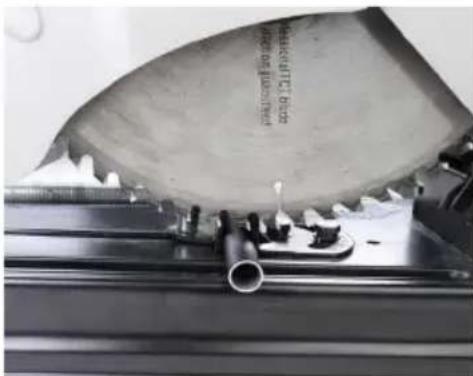

1. Process the Decking Baluster according to the height of the railing.

ABRICHIC BOD FOR THE INDUSTRIAL

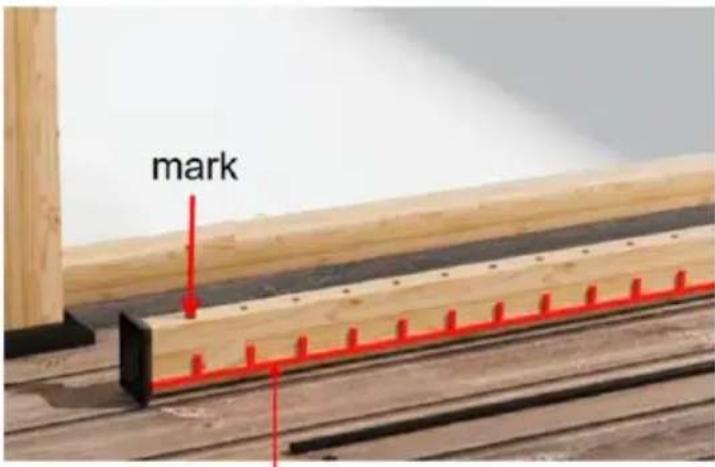

1. Draw the installation mark on the railing, the center distance of the markers is 4.5 inches, the marking distance between the top railing a bottom railing is the same;

mark

Two markers are 4.5 inches apart

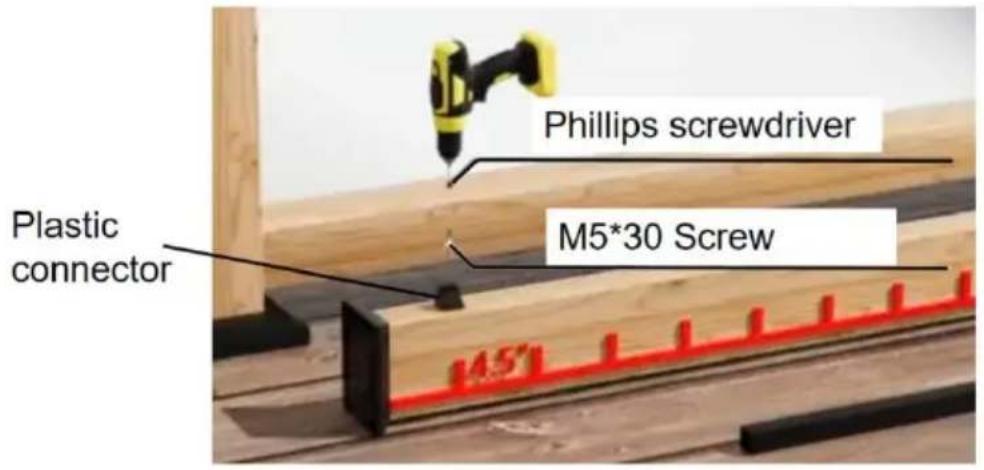

1. On the marked mark, screw the plastic connector to the railing.

Phillips screwdriver M5*30 Screw Plastic connector

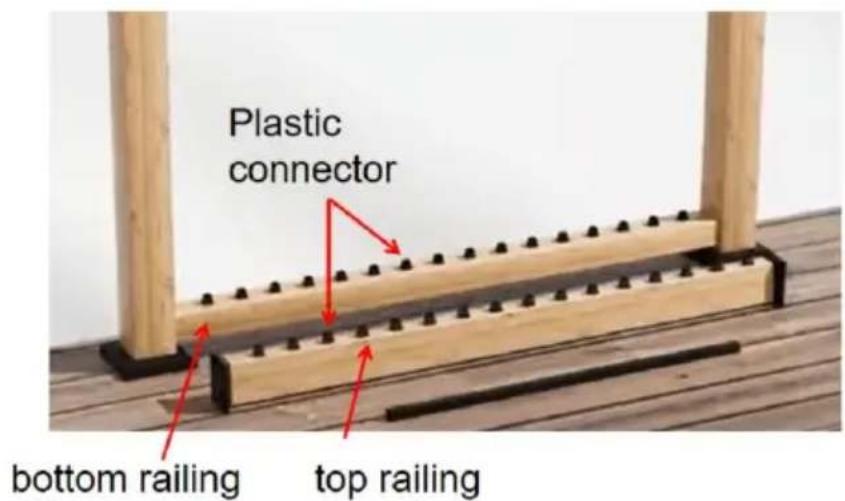

1. Install all connectors on the top and bottom rails

Plastic connector bottom railing top railing

1. Insert the inner hole of Decking Baluster into the plastic connector insert the plastic connector of the top track into the inner hole of De Baluster

Two wooden deck railings with black vertical bars, one showing a red arrow indicating change (no text or symbols)

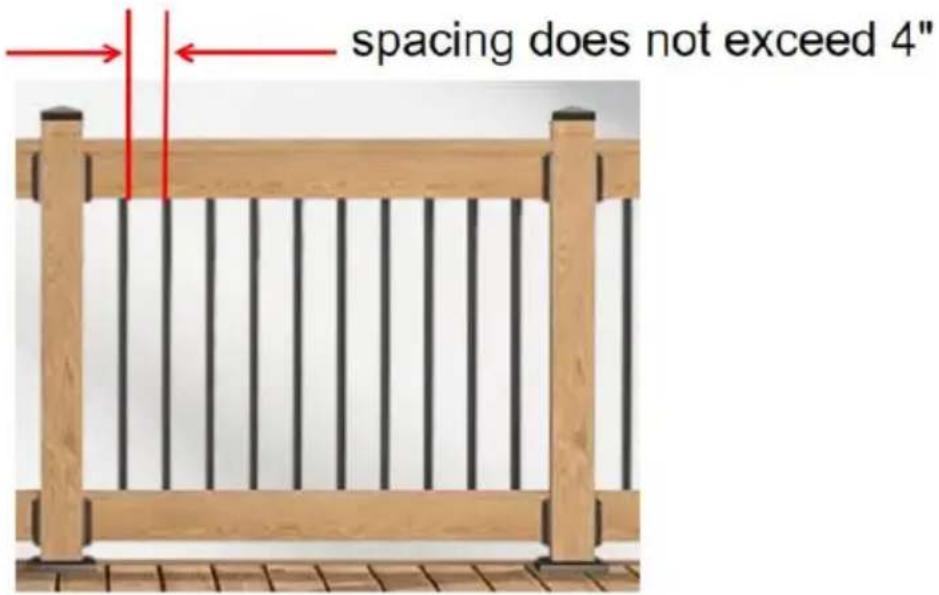

1. Fix the top railing to the left and right railing columns and complete installation; After installation, the two Decking Baluster's are less than 4 inches

spacing does not exceed 4"

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
