Product Type	Rollator Walker
Brand	Vevor
Model	FBL427112
Color	Blue, Black, Red (depending on availability)
Front wheels	9.5 inches (≈241 mm), swivel 360°
Rear wheels	8 inches (≈203 mm), with parking brake
Maximum load capacity	300 lb (136 kg)
Seat width	240 mm
Inner seat width	450 mm
Seat height	550 mm
Handle height adjustment range	825-900 mm
Main features	Parking brake, automatic brake, foldable, storage bag under seat, seat rest
Safety	Locking brakes, rear wheels lockable in parking, accompanied use recommended
Maintenance and cleaning	Clean with clear water, dry immediately; repair scratches with anti-rust material
Warranty	1 year against manufacturing defects (excluding wear parts)
Technical support	www.vevor.com/support

Frequently Asked Questions - FBL427112 Vevor

How to adjust the handle height?

Turn the key 90 degrees counterclockwise to unlock, adjust to the desired height according to the scale, then turn clockwise to lock.

How to use the parking brake?

Turn the key clockwise to lock the rear wheels and counterclockwise to unlock. Make sure the brakes are engaged when stationary, especially on slopes.

How to fold the walker for storage?

Pull the handle in the center of the fabric upward to fold and retract the walker. Make sure the seat plate folding mechanism is unlocked beforehand.

What is the maximum load capacity?

The maximum load capacity is 300 lb (approximately 136 kg). Do not exceed this limit to avoid any risk of breakage.

Can I use this walker alone?

It is recommended to be accompanied by a family member or friend when using it, especially at the beginning, to avoid falls.

How to clean and maintain the walker?

Wash the product with clean water and dry it immediately. If the surface coating is scratched or peeling, use anti-rust repair material to prevent corrosion.

Is the seat comfortable for resting?

Yes, the walker has an auxiliary seat cushion. Activate the automatic brake before sitting. The seat is 240 mm wide and 450 mm inner width, with a height of 550 mm.

Is there storage space?

Yes, a zippered storage bag is located under the seat cushion. It allows you to carry small objects or essential items.

What is the warranty period?

The walker is warranted for one year against manufacturing and material defects from the date of shipment. Wear parts are not covered.

Where can I get help or a replacement part?

Contact after-sales service via www.vevor.com/support. For any questions or problems, please send an email; service is available 24/7.

USER MANUAL FBL427112 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ROLLING WALKER

MODEL:FBL427112

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

MODEL: FBL427112

Line drawing of a four-wheeled baby stroller with adjustable arms and wheels (no text or symbols)

The product color is for reference only and is mainly promoted on the website

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Preface

First of all, let us express our heartfelt thanks to our customers who purchased our equipment This manual is for customer service to make better Written with this equipment.Hope the company's products and services to bring you the canal courtesy.

Pay attention

This product must be used in strict accordance with the use method manual, misuse of any other methods caused by misuse The Compar does not give any guarantee of any kind, including (but not limited to) marketability offered to the Company for a particular purpose Implied warranties with fitness.

The company accepts no liability. The Company shall not be liable for errors contained in this material, or for any accidental or consequential damages resulting from the provision, actual performance or use of the manual.

This manual contains proprietary information protected by patent law. A rights reserved. Without the written consent of the Company, this man not allowed to be photocopied, copied, or translated any part into and language.

The content contained in the manual may be changed without the us notice.

Manufacturer's liability

The Company shall be held responsible for the safety and reliability of performance of the equipment only if the assembly operation, returning improvement and maintenance are carried out by personnel approved the Company, the electrical equipment concerned conforms to national standards, and the equipment is used in accordance with the operating instructions.

Guarantee

Manufacturing process and raw materials: The Company guarantees that the Equipment(except parts) are in regular use and repair condition, fr

manufacturing process and raw materials faults for one year from the of shipment. None of our inspections is perfect.

PRECAUTIONS

Precautions for use

Warning:

1. If the equipment feels loose, falls or is damaged, please contact the comp in time;
2. Keep work area clean and well lit. Cluttered or dark areas invite accidents
3. Keep children and bystanders away while operating, distractions will cause y to lose control.
4. During normal use, please use with the accompaniment of family or friends.
5. Reasonably use according to one's own situation, and do not overuse when body is not in a timely manner.
6. BEFORE USE, PLEASE CONFIRM WHETHER THE COMPONENTS ARE COMPLETE, WHETHER THE BRAKE IS SENSITIVE, AND ASSEMBLE THE ENTIRE PRODUCT IN STRICT ACCORDANCE WITH THE INSTRUCTIONS.
   7.CLEANING PRODUCTS NEED TO BE WASHED WITH WATER AND DRY TIME. IF THE SURFACE COATING OF THE PRODUCT HAS SCRATCHES A FALLS OFF, REPAIR MATERIALS NEED TO BE USED IN TIME TO ACHIE\ THE BEST ANTI-RUST EFFECT.
7. PLEASE ENSURE THAT THE REAR WHEEL OF THE PRODUCT IS LOCK TO AVOID SLIDING WHEN THE USER STAYS IN THE SLOPING ENVIRONMENT.
8. PLEASE ENSURE THAT THE FOLDING MECHANISM OF THE SEAT PLATI IS LOCKED WHEN USING THIS PRODUCT.

SAVE THESE INSTRUCTIONS

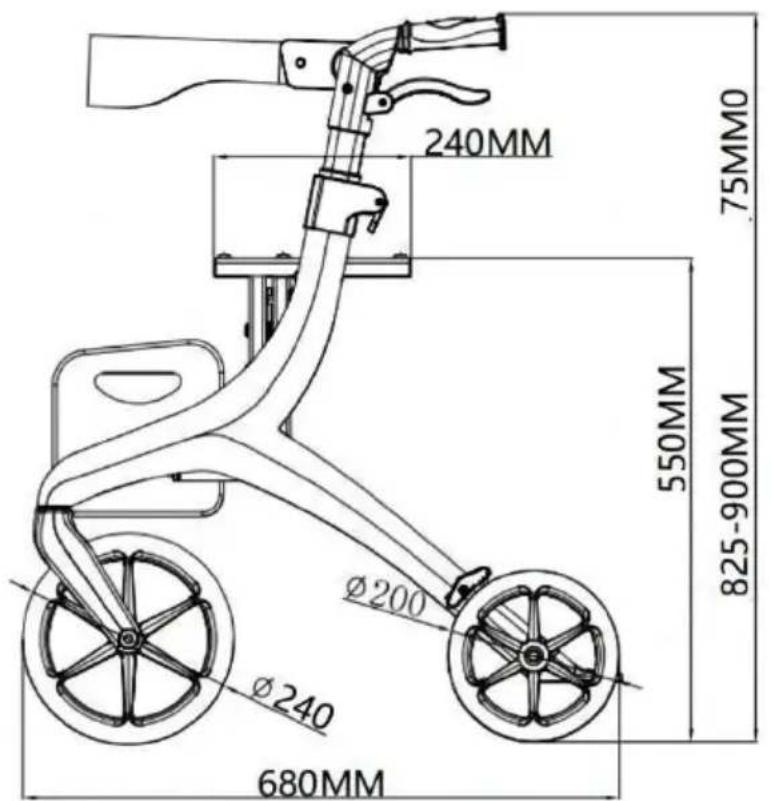

PRODUCT PARAMETERS

Product Name	Rolling Walker
model	FBL427112
colour	Blue/Black/Red
Wheel size	Front 9.5in/Back 8in
Load bearing capacity/lb	300
INNER SEAT WIDTH	450MM
SEAT WIDTH	240MM
HEIGHT OF THE SEAT PLATE FROM THE GROUND	550MM
ELEVATION RANGE	75MM

INSTALLATION STEPS

THE REFERENCE INSTRUCTION MANUAL IS AS FOLLOW.

(DIFFERENT MODULE'S OUT-LOOK IS NOT BE SAME, BUT THE USA METHOD ARE SAME.)

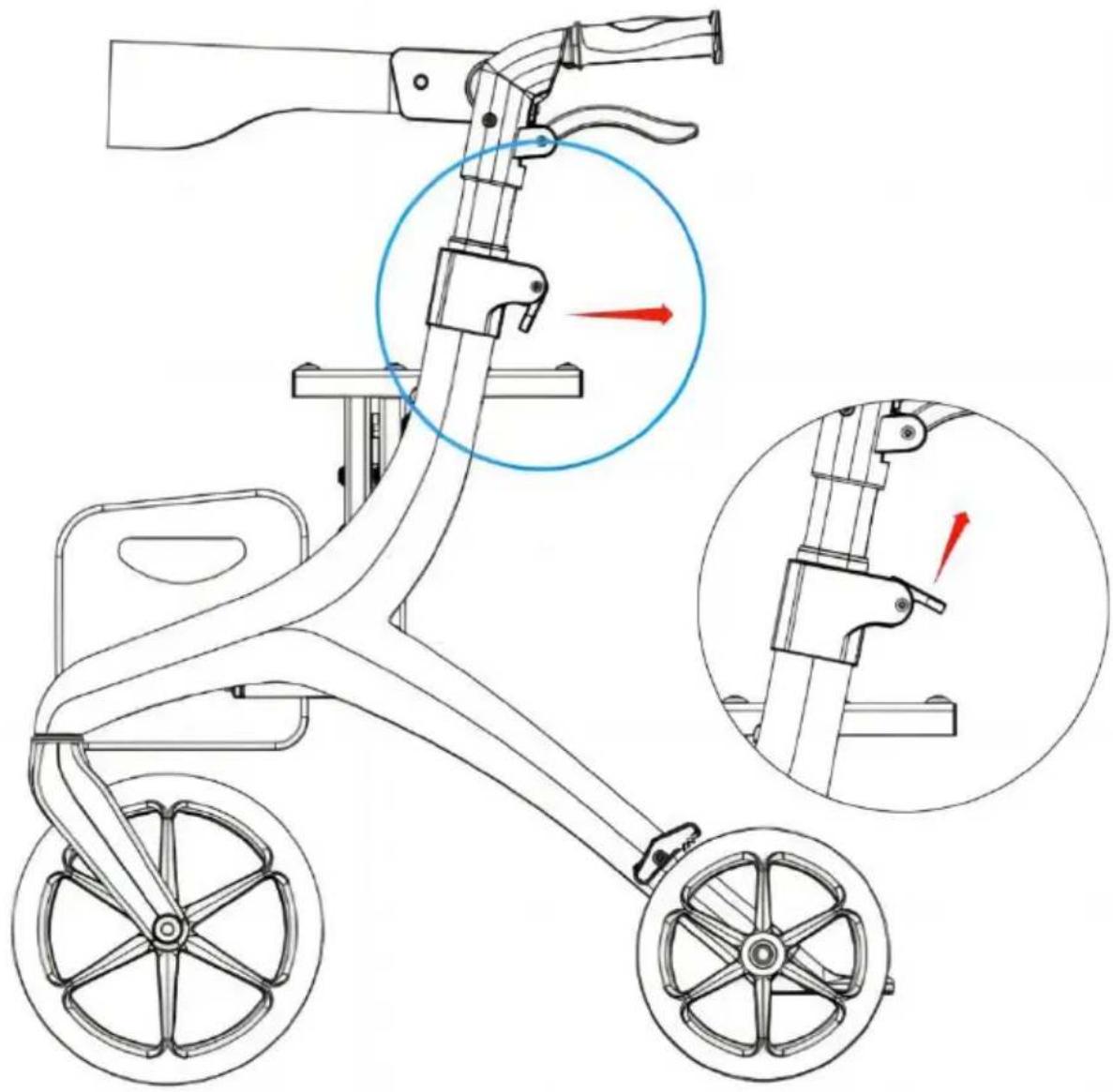

1. Handrail height adjustment instructions;

As shown in the figure, turn the wrench 90 degrees counterclockwise unlock the

upgrade mechanism. Adjust according to the adjustment scale to the required height

and press clockwise back to the original position to lock.

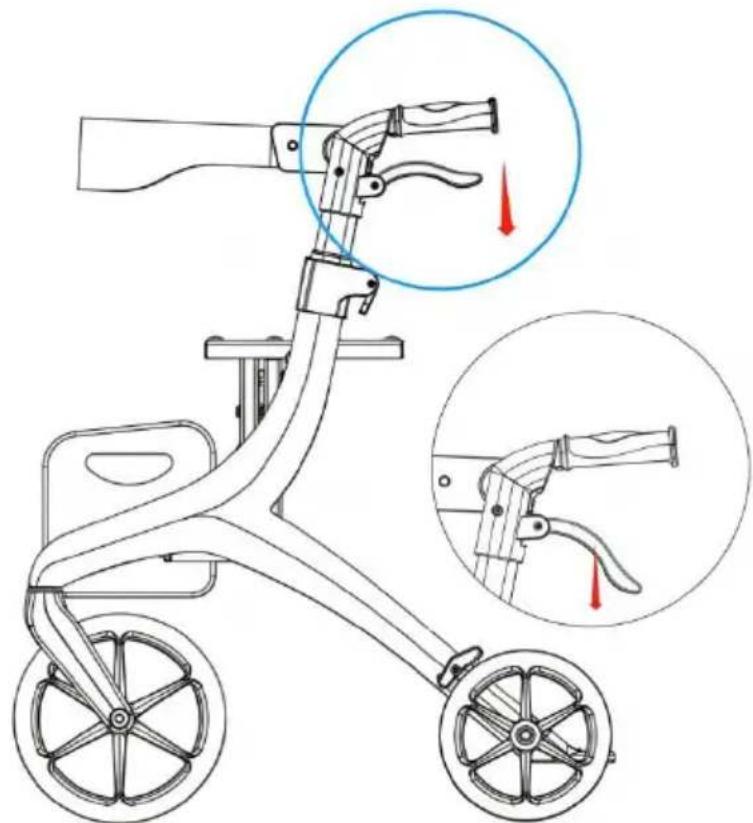

1. Parking function description;

As shown in the figure, turn the wrench clockwise down to realize the

parking lock

function, and turn counterclockwise upward to unlock;

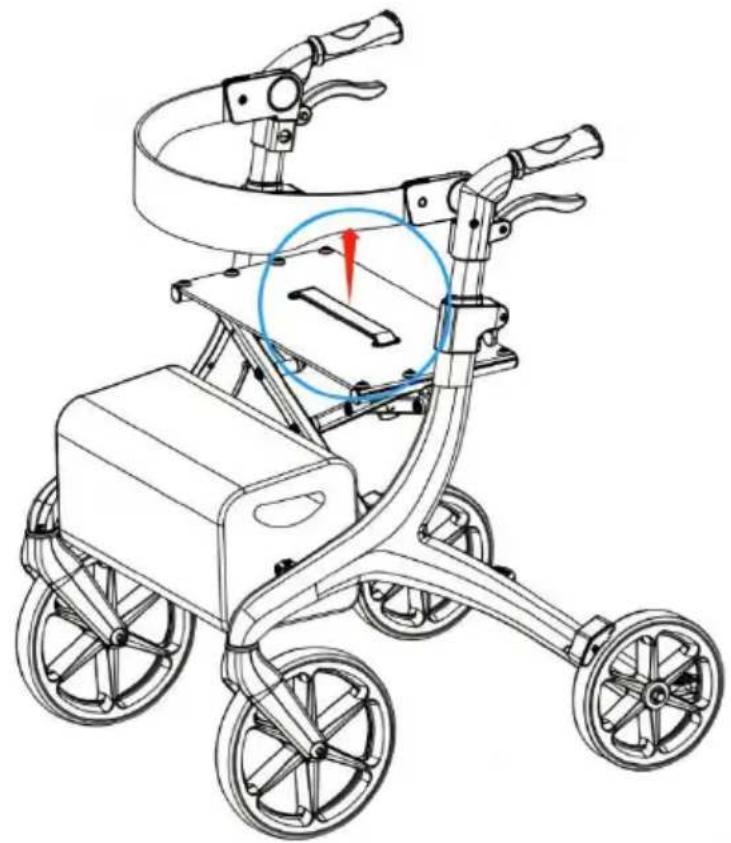

1. Closing function description;

As shown in the figure, pull the handle in the center of the seat cl upward to

realize the folding and retracting function;

Line drawing of a four-wheeled baby stroller with a highlighted seat and arrow indicator (no text or symbols)

THIS PRODUCT IS A NEW GENERATION OF ROLLATOR DEVELOPED BY OUR COMPANY.

ASSIST THE ELDERLY, LOWER LIMB WEAKNESS, MOBILITY AND OTHER PEOPLE

WALKING, REST. IN ORDER TO ENSURE SAFETY AND AVOID PROBLEMS DURING USE,

PLEASE BE SURE TO READ THIS MANUAL CAREFULLY BEFORE USE.

CHECK ALL FUNCTIONS IF ALL PARTS WORK WELL.

PRESS THE REAR WHEEL BRAKE AND TRY TO PUSH IT TO CH WHETHER THE

BRAKE SWITCH IS EFFECTIVE;

UNLOCK THE REAR WHEEL BRAKE, PUSH THE PRODUCT TO M CHECK

WHETHER THE MOVEMENT IS SMOOTH;

UNLOCK THE LIFTING LIMIT SWITCH, ADJUST THE HEIGHT UP A DOWN, AND TEST

WHETHER THE HEIGHT ADJUSTMENT IS SMOOTH;

About this item

1. Stable & Not Easy to Tip Over: 8" front rear wheels, 360° swivel wheels for easy maneuvering, sturdy enough for indoor and outdoor smooth ride.
2. Convenient to Go Outside: Zippered carrying pouch, keep all your important items instantly within reach, free your hands to fully enjoy a life.
3. Nice Service: 100% tested before leaving the factory and 24-hour friendly email customer service.
4. This product comes with self braking and auxiliary seat cushion functions. When the operator needs to rest, they can turn on the sel braking and sit on the seat cushion to rest.
5. There is a portable storage bag under the product cushion, which convenient for storing some miscellaneous items and purchasing some daily necessities for storage.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd.

Suite 250,9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

MODEL: FBL427112

Line drawing of a four-wheeled baby stroller with adjustable arms and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Przedmowa

Line drawing of a four-wheeled baby stroller with a highlighted seat and arrow indicator (no text or symbols)

PRODUKT TEN JEST NOWA GENERACJA WAŁKA OPRACOWANĄ PRZEZ NASZA FIRME.

WSPOMAGAJ OSÓB STARSZYCH, Osłabionych KOŃCZYN DOLNYCH, RUCHOWNYCH I INNYCH OSÓB

SPACER, ODPOCZYNEK. ABY ZAPEWNIĆ BEZPIECZEŃSTWO I UNIKNAĆ PROBLEMÓW PODCZAS UŻYTKOWANIA,

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 21

Australia

Import do USA: Sanven Technology Ltd.

Apartament 250, 9166 Anaheim Place, Rancho Cucamonga, Kalifornia 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

MODELL: FBL427112

Line drawing of a four-wheeled baby stroller with adjustable arms and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Vorwort

Line drawing of a four-wheeled baby stroller with a highlighted seat and arrow indicator (no text or symbols)

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

MODÈLE : FBL427112

Line drawing of a four-wheeled baby stroller with adjustable arms and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Préface

Line drawing of a four-wheeled baby stroller with a highlighted seat and arrow indicator (no text or symbols)

CE PRODUIT EST UNE NOUVELLE GÉNÉRATION DE ROLLATOR DÉVELOPPÉ PAR NOTRE SOCIÉTÉ.

AIDER LES PERSONNES ÂGÉES, LES FAIBLESSES DES MEMBRE INFÉRIEURS, LA MOBILITÉ ET AUTRES PERSONNES

MARCHE, REPOS. AFIN D'ASSURER LA SÉCURITÉ ET D'ÉVITER L PROBLÈMES LORS DE L'UTILISATION,

VEUILLEZ ASSURER DE LIRE ATTENTIVEMENT CE MANUEL AVAN UTILISATION.

VÉRIFIEZ TOUTES LES FONCTIONS SI TOUTES LES PIÈCES FONCTIONNENT BIEN.

APPUYEZ SUR LE FREIN DE LA ROUE ARRIÈRE ET ESSAYEZ DI POUSSER POUR VÉRIFIER SI LE

L'INTERRUPTEUR DE FREIN EST EFFICACE ;

DÉBLOQUEZ LE FREIN DE LA ROUE ARRIÈRE, POUSSEZ LE PRODUIT POUR LE DÉPLACER, VÉRIFIEZ

SI LE MOUVEMENT EST DOUX ;

DÉVERROUILLEZ L'INTERRUPTEUR DE FIN DE COURSE DE LEVAC

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

MODEL: FBL427112

Line drawing of a four-wheeled baby stroller with adjustable arms and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Voorwoord

Line drawing of a four-wheeled baby stroller with a highlighted seat and arrow indicator (no text or symbols)

DIT PRODUCT IS EEN NIEUWE GENERATIE ROLLATOREN, ONTWIKKELD DOOR ONS BEDRIJF.

HULP OUDEREN, ZWAKTE VAN DE ONDERLEDDEN, MOBILITEIT EI ANDERE MENSEN

WANDELEN, RUST. OM DE VEILIGHEID TE GARANDEREN EN PROBLEMEN TIJDENS HET GEBRUIK TE VOORKOMEN, LEES DEZE HANDLEIDING ZORGVULDIG DOOR VOOR GEBRUIK.

CONTROLEER ALLE FUNCTIES OF ALLE ONDERDELEN GOED WERKEN.

DRUK OP DE ACHTERWIELREM EN PROBEER HEM TE DUWEN C TE CONTROLEREN OF DE

REMSCHAKELAAR IS EFFECTIEF;

ONTDEK DE ACHTERWIELREM, DUW HET PRODUCT OM TE BEWEGEN, CONTROLEER

OF DE BEWEGING VLOEIEND IS;

ONTDEK DE HEF-EINDSCHAKELAAR, PAS DE HOOGTE OP EN NE AAN, EN TEST

OF DE HOOGTE-AANPASSING SOEPEL GAAT;

Over dit artikel

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

VEVOR®

TOUGH TOOLS, HALF PRICE

Technisch Ondersteuning en e-garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

MODELL: FBL427112

Line drawing of a four-wheeled baby stroller with adjustable arms and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Förord

2. Parkeringsfunktionsbeskrivning;

Line drawing of a four-wheeled baby stroller with a blue circular arrow highlighting the component (no text or symbols present)

DENNA PRODUKT ÄR EN NY GENERATION ROLLATOR UTVECKLA AV VÄRT FÖRETAG.

HJÄLP ÄLDRE, Svaghet i UNDERLEMMER, RÖRLIGHET OCH ANDR PERSONER

GÅ, VILA. FÖR ATT FÖRSÄKRA SÄKERHET OCH UNDVIKA

LÅS UPP LYFTGRÄNSBRYTARE, JUSTERA HÖJDEN UPP OCH NEF OCH TESTA

OM HÖJDJUSTERINGEN ÄR JÄTT;

Om denna artikel

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

MODELO: FBL427112

Line drawing of a four-wheeled baby stroller with adjustable arms and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Prefacio

Line drawing of a four-wheeled baby stroller with a highlighted seat and arrow indicating motion (no text or symbols)

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive "Save Half", "Half Price" or any other similar expressions used by represents an estimate of savings you might benefit from buying cer with us compared to the major top brands and does not necessarily cover all categories of tools offered by us. You are kindly reminded carefully when you are placing an order with us if you are actually in comparison with the top major brands.

MODELLO: FBL427112

Line drawing of a four-wheeled baby stroller with adjustable arms and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INSTRUCTIONS

Prefazione

Technical line drawing of a bicycle tricycle with attached steering wheel and hand handle, showing mechanical components and motion indicators (no text or symbols)

Line drawing of a four-wheeled baby stroller with a highlighted seat and arrow indicator (no text or symbols)

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021,76351

Unit 5 Albert Edward House, The

Pavilions Preston, United Kingdom

VEVOR®

TOUGH TOOLS, HALF PRICE
