USER MANUAL HY-B8006B Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support

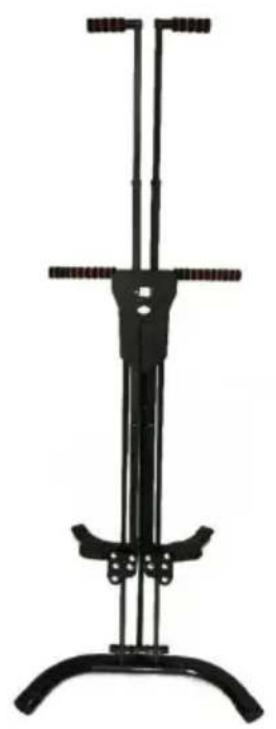

CLIMBER EXERCISE MACHINE
MODEL: HY-B8006B
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.
MODEL: HY-B8006B
Have product questions? Need technical support? Please feel free to contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.
![]() | Warning-To reduce the risk of injury, user must read instructic manual carefully. |
![]() | CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accessor marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices |
![]() | Compliance is a EC & UK security certification. |
SAFETY WARNINGS AND PRECAUTIONS
Thank you for using this product. In order to make sure that you can operate machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please read the precautions and safety rules on page to ensure your safe use. This manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since believe that the uses will comply with these codes. Before starting a training program or engaging in strenuous endurance activity on the device, please call a doctor.
Please read ALL the instructions before using your product.
- Do not let children and minors and pet get close to or touch the product leave it unattended while in use.
- Do not apply this unit to any other purposes than the indicated usage.
- DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
-
Pet urine and feces can damage the product, please keep away.
-
Before using this product, consult with your physician or therapist to discuss appropriate exercise program.
- If you experience any pain or difficulty with this equipment, stop using immediately and consult your healthcare provider.
- Always inspect the product for any damage before each use.
- To prevent muscle fatigue or injury, do not use this exercise equipment for extended periods of time at once.
- Improper use of this climbing rope and excessive or incorrect training can to serious injuries.
- Before use, the product's feet must be leveled and the product must be on a level surface.
- Keep your body balanced on the product and do not make large movement
- If you suffer from heart disease, high blood pressure or any other disease condition, consult your physician or therapist before beginning any workout.
- Perform two exercises slowly and in a controlled manner, If you feel diza short of breath, please stop and rest as needed. If the problem persists, do this equipment and consult your doctor.
- Use this product only as intended and demonstrated in these instructions workout!
- Please take warm-up exercise before using the equipment. Be aware of physical ability and condition. Do not overuse.
- Use the equipment on a solid, flat level surface. The feet end caps on tl stepper is anti-skid, won't have damage to the floor. But you can also place stepper over a mat if you want.
- Before exercise, please carefully examine the equipment make sure it is good condition. If any defect, adjust and repair it before use. Ensure to wea proper outfit while using this equipment to avoid any possible dangerous circumstances.
- Please put your heels on the pedal. Don't jump during exercise.
- The exerciser is intended for home use only.
-
Keep the exerciser indoors, away from moisture and dust. Place on a level surface, it is suggested to use a mat underneath to protect the floor or carpet. Make sure there is enough clearance around the exerciser to mount, dismour use it.
-
The exerciser should not be used by persons weighing more than 260 II (118KG).
-
Wear appropriate clothes while exercising. Do not wear loose clothes that could become caught in the exerciser. In addition, wear athletic shoes for foot protection while exercising.
-
Use the exerciser only as described in the manual.
-
Always keep your back straight while using the exerciser, do not arch you back.
-
If you feel pain or dizziness at any time while exercising, stop immediate begin cooling down.
-
Regularly lubricate the machine with lubricating oil.
-
WARNING: This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they use the appliance safely. Young children should be supervised to ensure that they do not play with the product. Pets should stay away from the product.
-
WARNING: Not all exercises are suitable for everyone, To reduce the risk of injury, consult with your physician before using this exercise equipment and beginning this or any other exercise program. This product is not intended to diagnose any medical condition, or to replace the advice or treatment recommended by your healthcare professional.
-
WARNING: PLEASE KEEP A SAFE DISTANCE OF ONE METER ALL AROUNDTHE EQUIPMENT DURING EXERCISE
-
WARNING: If there is a physical defects or movement disorders. Please consult the physician and trainer before exercise. Please read the manual carefully before use. We will not responsible for personal injury damage to the equipment which is caused by improper use.
-
Do not use this product after taking drugs, drinking, eating, or in a bad mental state, etc.
-
Indoor use only! The product should not come into contact with wait. Only one person can use!
-
Wear appropriate clothes while exercising. Do not wear loose clothes could become caught in the product.


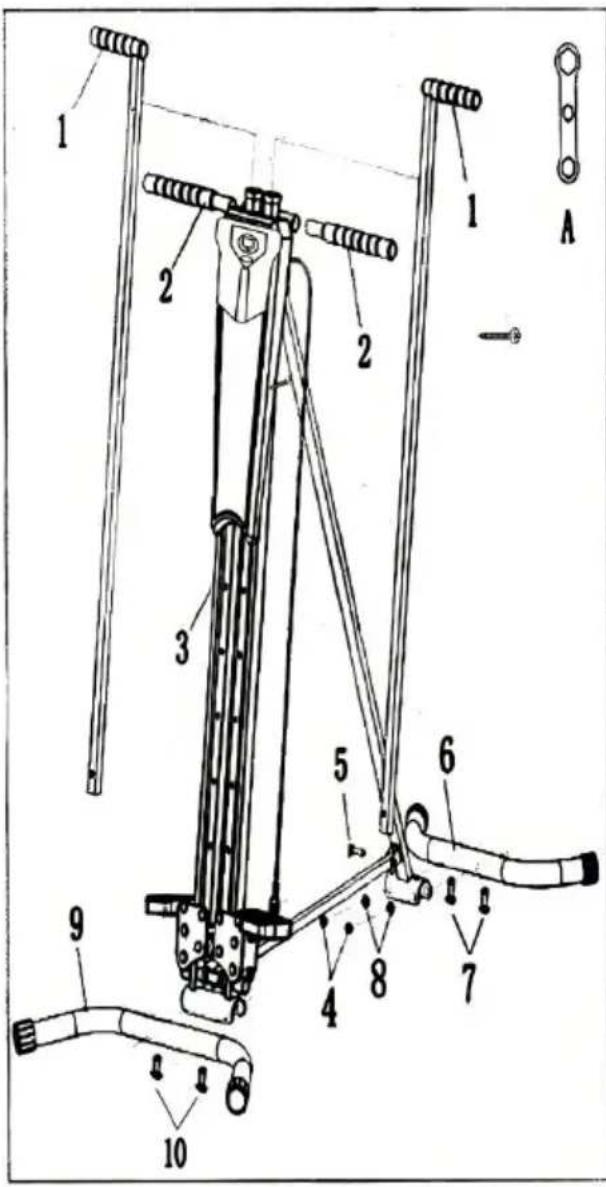

Technical diagram of a mechanical device with numbered components and labeled parts| NO | Parts | QTY |
| 1 | ![]() | 2 |
| 2 | ![]() | 2 |
| 3 | ![]() | 1 |
| 4 | ![]() | 5 |
| 5 | ![]() | 1 |
| 6 | ![]() | 1 |
| 7 | ![]() | 2 |
| 8 | ![]() | 5 |
| 9 | ![]() | 1 |
| 10 | ![]() | 2 |
| 11 | ![]() | 1 |
| 12 | ![]() | 1 |
TIPS: Regularly lubricate the machine with lubricating oil.
Attention: The exerciser should not be used by persons weighing more than 260 lbs (118KG).

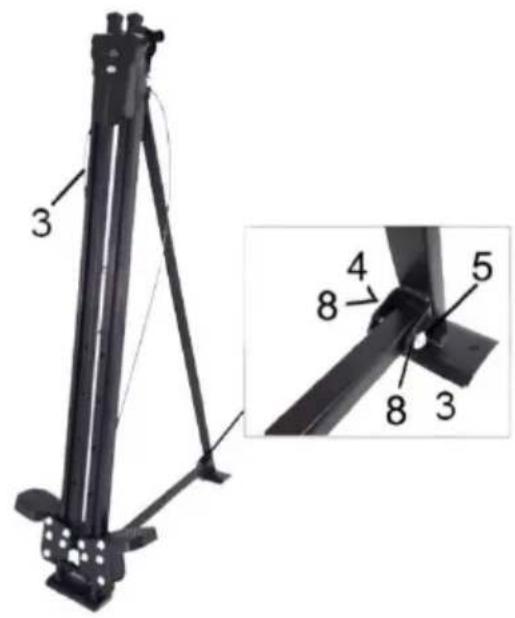

STEP 1


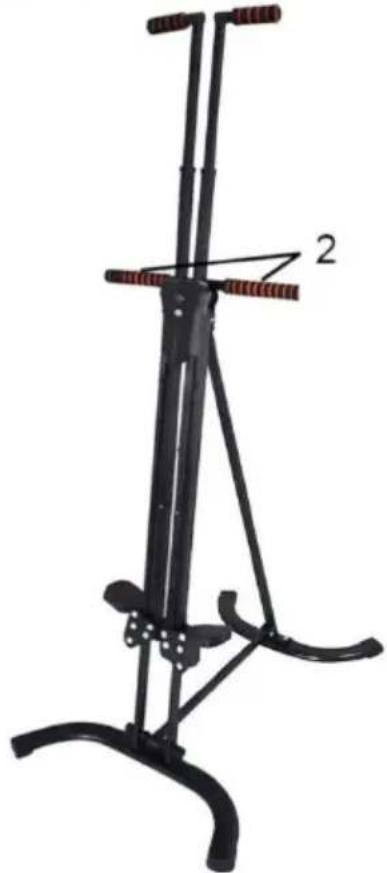

STEP 2 7 8 4 6 9 10 4 8STEP 3


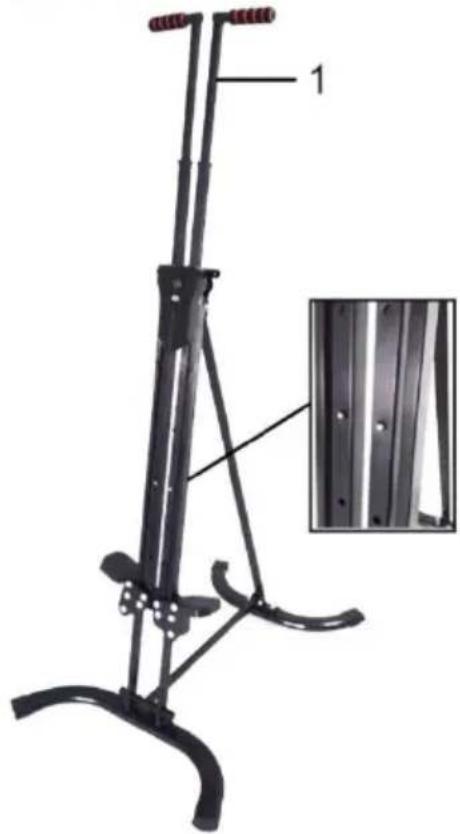

1STEP 4


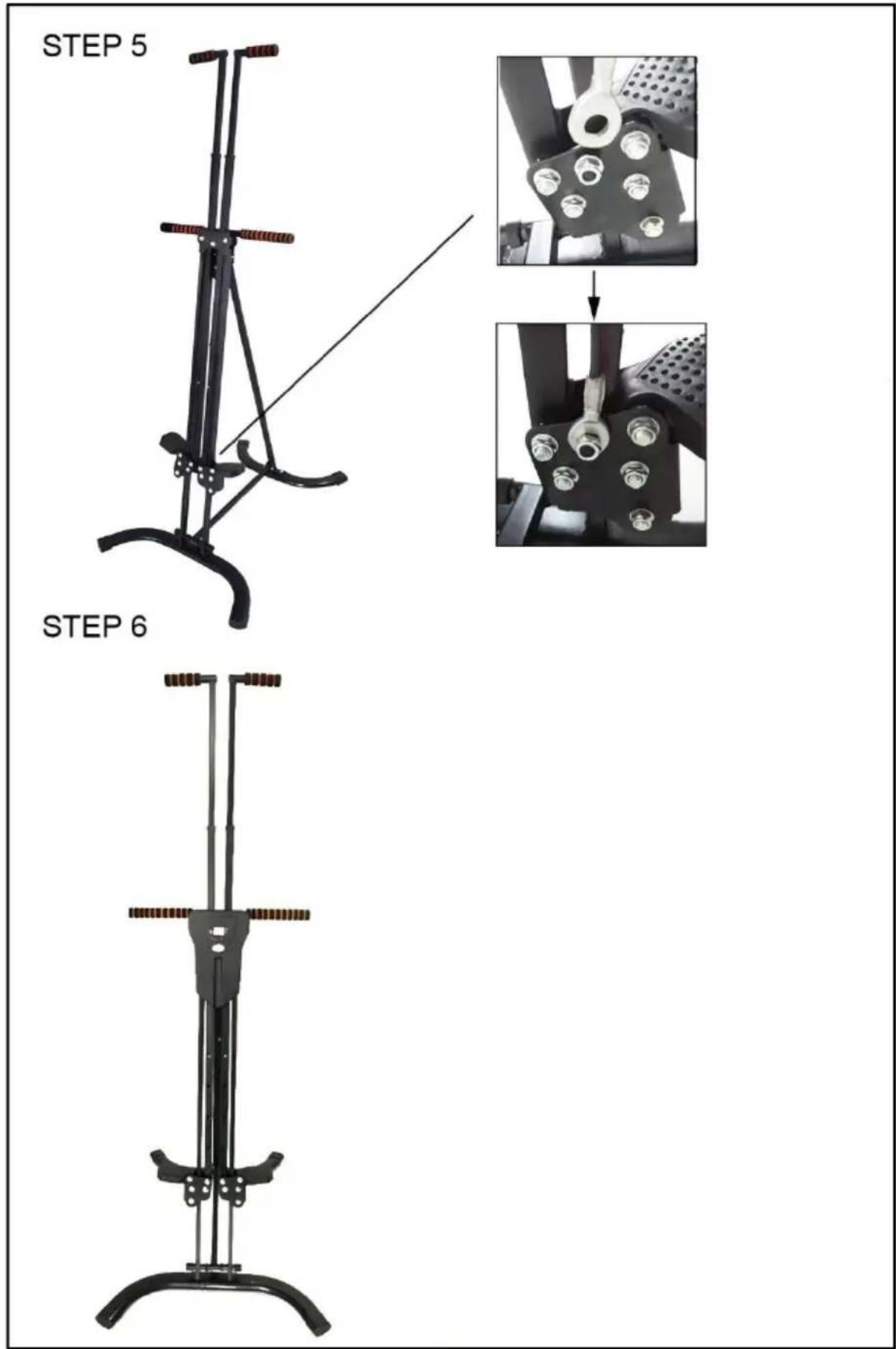

STEP 5 STEP 6Attention: Double check that all bolts, nuts and screws are securely tightened before use.
OPERATING INSTRUCTIONS
Before using the appliance for the first time, peel off any promotional and packaging materials and check that the product is clean and dust-free. Please dispose of all plastic bags carefully and keep them away from children and
Attention: Before use, the product's feet must be leveled and the product must be placed on a level surface.
Attention: Please check whether the product is damaged before use.
Attention: Before use, install the battery! The battery will need to be rep when an incorrect display appears on the LCD.

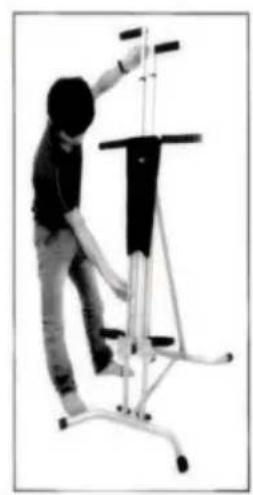

- Choose the gear you want to train in.
- During training, grip the handrails tightly with both hands, step on the ped and move your hands with the pedals.
1. Function:
• TIME 0:00\~99.59
- COUNT 0\~9999
• T-COUNT 0\~9999
- CAL 0.0\~9999
2. Operation guide:
- MODE Press this button can select function and mode under LOCK mode, circularly show following programs: COUNT-TIME-T-COUNT-CAL-COUNT Long press this button, the data will be cleared (except T-COUNT)
IMPORTANT: The calculation of calories burned is an estimation and should be considered medically reliable. We suggest consulting your doctor or dieticia adapt your diet and energy consumption depending on your physical condition and the sporting activities you intend to be involved in. We also recommend you consult your doctor prior to beginning any new exercise.
INSERTING THE BATTERY
- Install a LR 44 battery firstly.
- Please change the battery if the signal is unclear after a long-time use.
- Do not place under direct sunlight for a long period of time.
CLEANING AND STORAGE
- Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh packet to keep the product dry
- Children are not allowed to wipe the product to avoid tipping and falling
- After disassembling the product, please assemble the parts and accessories
