Product Type	Milk tea machine (shaker)
Brand	Vevor
Model	LJY120-2 (also compatible with LJY120-1 and LJY120-2-1L)
Dimensions (L x W x H)	Approx. 30 x 25 x 35 cm (estimate)
Weight	Approx. 5 kg (estimate)
Power Supply	110 V or 220 V (internal selector) – please check settings before use
Power	Approx. 100 W (estimate)
Main Function	Shake and mix beverages (milk tea, cocktails, etc.)
Timer Range	1 to 120 seconds (adjustable)
Main Material	Stainless steel and ABS plastic
Cup Capacity	Up to 1 L (1L model) – adaptable with cup holder
Safety	Emergency switch, auto-stop at end of cycle
Maintenance and Cleaning	Wipe after use, do not immerse in water
Spare Parts Available	Belt, timer, switch, shrapnel
Repairability	Yes, access via rear panel for wiring and belt
Warranty	Electronic warranty certificate available at www.vevor.com/support
Country of Origin	Made in China

Frequently Asked Questions - LJY120-2 Vevor

How to set the timer on my Vevor LJY120-2?

Press the adjustment button (aaa) to set the time from 1 to 120 seconds. By default, it is set to 15 seconds.

What to do if the machine does not start after pressing the button?

First check the emergency switch: it must be off. Then check the plug and power cord. If the problem persists, open the rear panel to check the internal wiring.

How to clean my Vevor milk tea machine?

Turn off the power and unplug the machine. Wipe the body with a damp cloth. Never immerse the machine in water or other liquids.

Can I use both 110 V and 220 V power on the same machine?

Yes, the machine can operate on 110 V or 220 V. Before first use, adjust the shrapnel to the appropriate position for your local voltage.

The timer lights up but the machine does not work, what to do?

This may be due to loose wiring inside or a loose belt. Open the rear panel to reconnect the cables or tighten/replace the belt.

How to stop the machine during a cycle?

Press the start button again to stop the machine immediately. You can also use the emergency switch if necessary.

The machine makes an abnormal noise during operation, what can I do?

Check that the machine is placed on a stable and level surface. Make sure the shrapnel is tight and in contact with the cup. If the noise persists, contact technical support.

What types of cups can I use?

Use cups that fit the cup holder. The machine is designed for cups up to 1 L (1L model). Make sure the cup is properly placed and pushed forward before starting.

Where can I find spare parts for my LJY120-2?

Spare parts are available from the manufacturer or its service agent. Use only original parts. Contact support at www.vevor.com/support.

How to get the complete user manual?

The complete manual is available for free download on notice-facile.com. You can also request a translated version by providing your email address on the product page.

USER MANUAL LJY120-2 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

MILK TEA SHAKER MACHINE

MODEL: LJY120-1, LJY120-2, LJY120-2-1L

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MILK TEA SHAKER MACHINI

MODEL:LJY120-1, LJY120-2, LJY120-2-1L

Laboratory equipment with two stainless steel containers and a control panel (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to acollection point for recycling electric electronic devices.

Important

1. Please read this manual carefully before using this product, and re the

instructions for future reference.

1. Do not immerse in water or other liquid, nor 4rinse by dragon was directly.

Warning

1. Before connecting the power, please check the power supply voltage equal to

the supply voltage which marked on the product or not.

1. This product is not intended for use by those persons (including children):

Deterioration of the body function or mental ability, or lack of experience and

knowledge. They need someone to supervise, or to instruct the opera before use.

1. When the machine is running, do not close, to avoid danger.
2. If the supply cord is damaged, it must be replaced by a special or assembly available from the manufacturer or its service agent.
3. Never dip machine into any liquid and sharp edges. Do not use the appliance with wet hands. If the appliance is humid or wet, unplug it immediately.
4. Keep your finger away from moving parts and fitted tools . Never put fingers etc in hinge mechanism.
5. Use only original spare parts.
6. In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
7. Do not interfere with any safety switches.
8. Place the machine on a smooth, flat and stable working surface.

Security and maintenance

1. The voltage could be 110V or 220V, Please adjust the Shrapnel to appropriate location before using.
2. This product with the plug wire is three core wires, one of which i ground

wire, so please make sure the socket have ground wire to avoid ele shock.

The ways of cleaning

1. When cleaning, please turn off the power and pull the plug.
2. After use, please clean and wipe the body immediately.

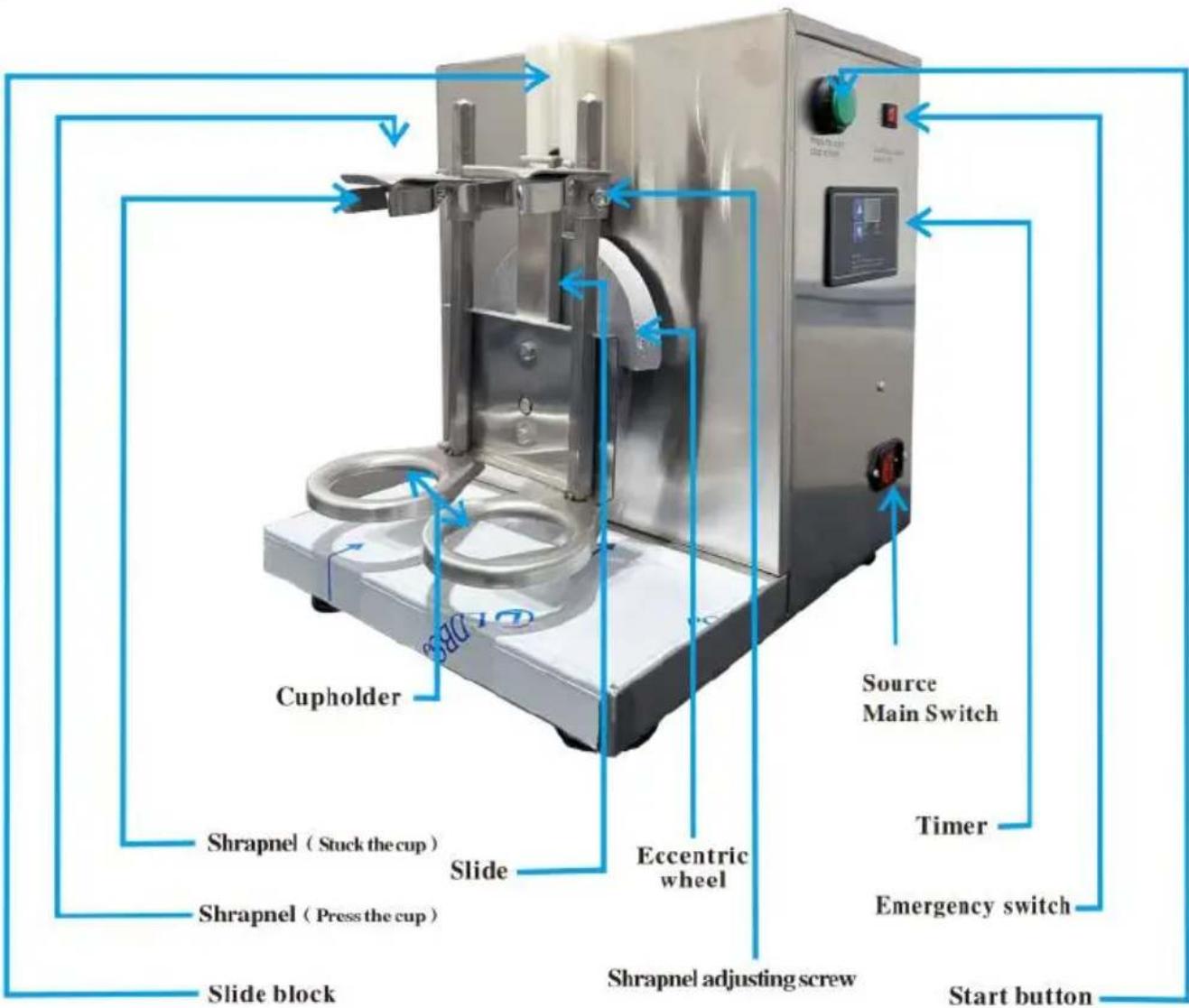

Parts description

The parts' names for single and double cups are the same images are for reference only; please subject to the act product.

Operating Instructions Adjustment and placed the cup

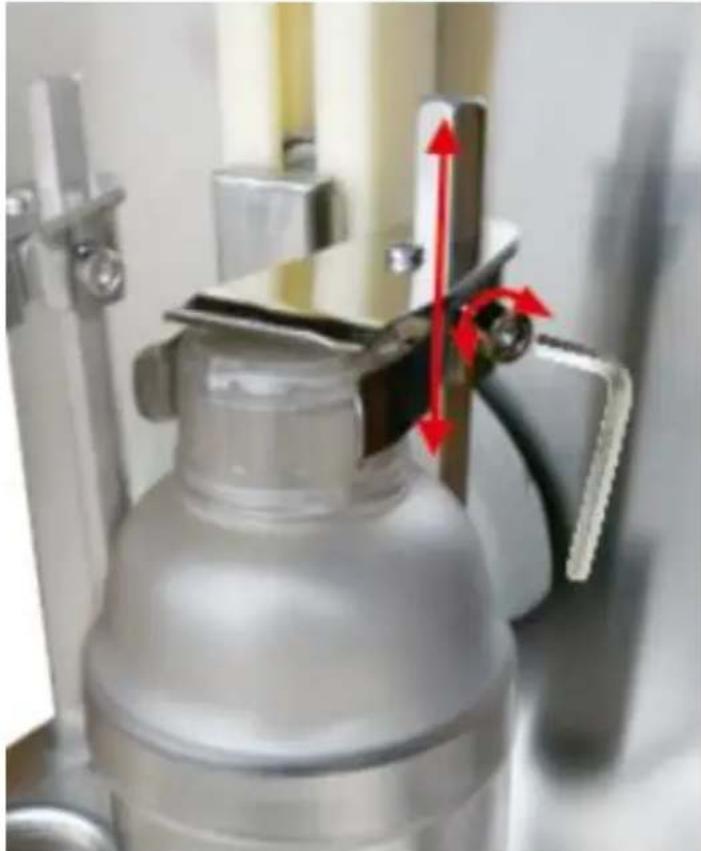

A: Adjust the shrapnel to a appropriate location by using M6 L-type wrench (The cup put on the cup holder, then push the cup (with the forward , if the shrapnel can press the cup tightly, then the shrapnel

the appropriate location)

Close-up of a laboratory gas collection bottle with red directional arrows indicating flow or movement (no text or symbols visible)

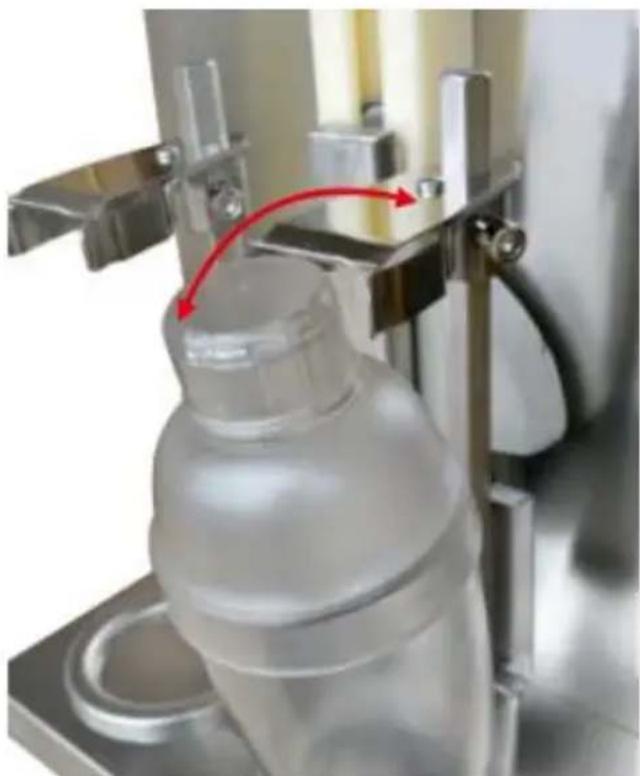

A: When place the cup, place the cup bottom aligned the cupholder

B: Push the cup (with the cap) forward

Close-up of a laboratory apparatus with a transparent plastic bottle and red arrows indicating motion or force (no visible text or symbols)

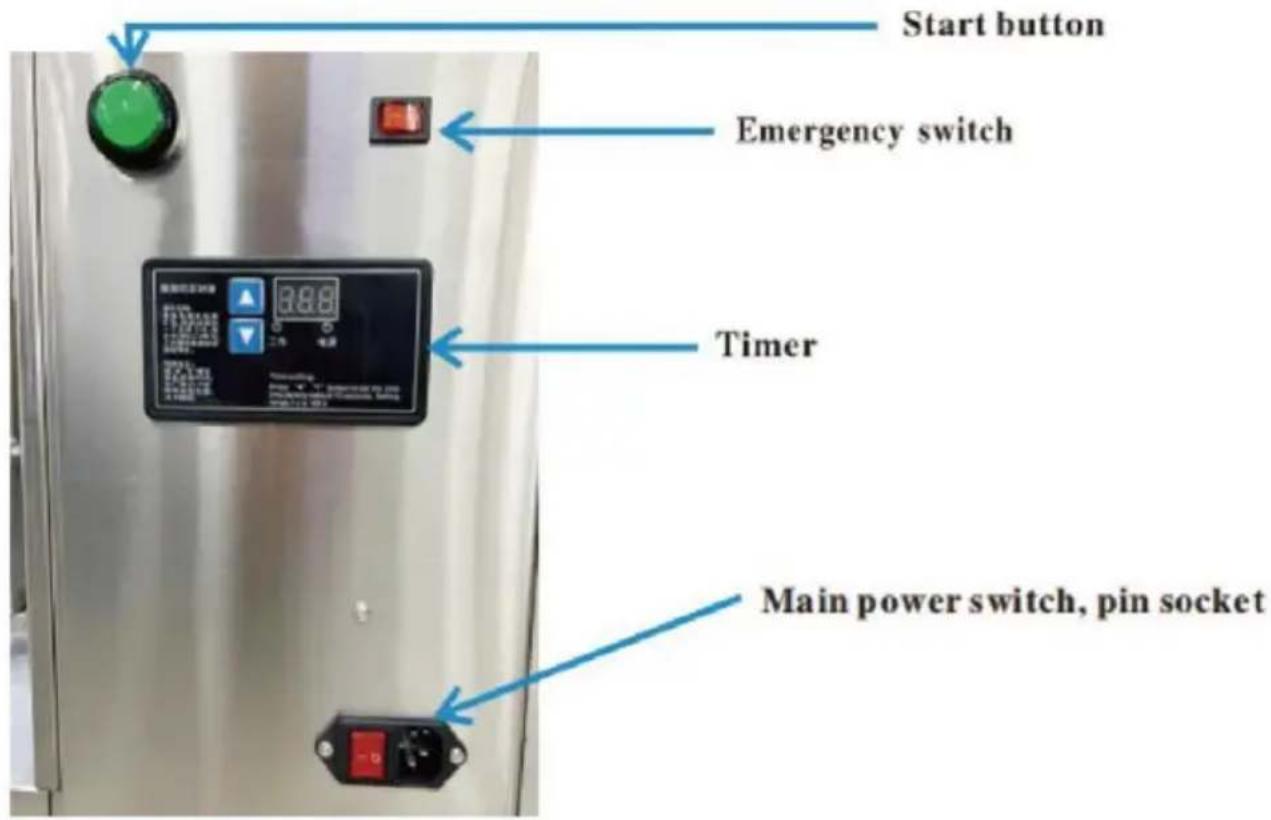

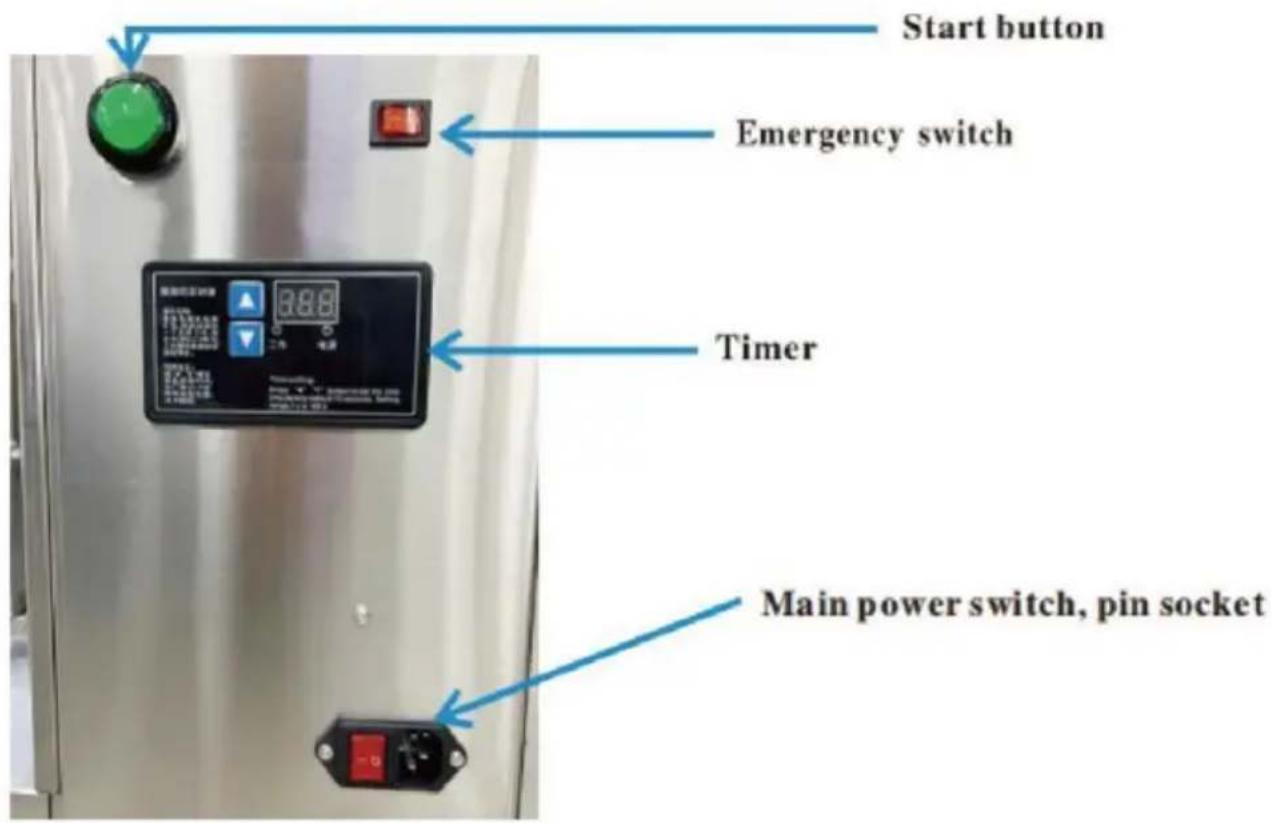

Start and stop

1. After turning on the power supply, the power light is on, and the indicator

shows the stop time. (Factory default 15 seconds)

1. Put the cup (with liquid and cover the lid) on the cup holder, put toward the machine.
2. The machine start working after pressing the start button, and it will when counting down to 000. Please press the start button once again want to stop the machine during working.

Press (aaa) button to set the stop time, time setting range 1-120 s. Please keep the emergency switch OFF in the normal working condition. Warning: Please check the emergency switch for the first time. The emergency switch should be OFF, (If the machine start working after turning on the power supply, please turn off the emergency switch)

Note: please check the emergency switch for the first use of the ma The emergency switch should be in the OFF state.(if the machine sta work when it is on the power supply, please turn off the emergency

Fault Analysis and Treatment

Cases	Cause of issue	Check the contents	Approach	Remark
After pressed the start button.the machine did not work	Power problems	Check the power	Replacing the power outlet	Electrician Repair If necessary
	Plug and socket Connection is bad	Check the plug i loose or not	Replace the plug wire or socket
After pressed the start button.the timer lights but the machine did not work	The wiring was loose inside the machine	Open the machine rear plate to check the wiring.	Reconnect the loose wire
	The belts was loose	Open the machine rear plate to check the wiring	Tighten the belt or replace the belt
After pressed the start button. The machine work but can not stop working.	The Timer bad	Timer	Replace the Timer
Machine working noise	Machine was put instability	Check whether the table and the machine is flat	Replace the table
	Shrapnel loose	Shrapnel should be in close conta with the cup	Adjust the shrapnel
Cup was thrown off	Shrapnel loose	Check the shrapnel.	Tighten or replace the shrapnel
