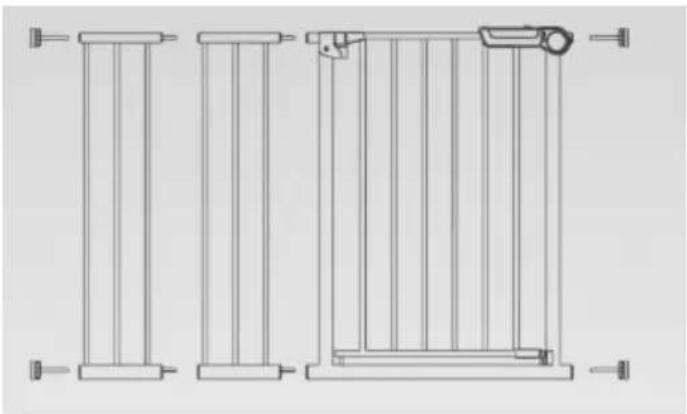

Technical line drawing of a multi-panel safety guard system with vertical bars and a lock mechanism (no text or symbols)

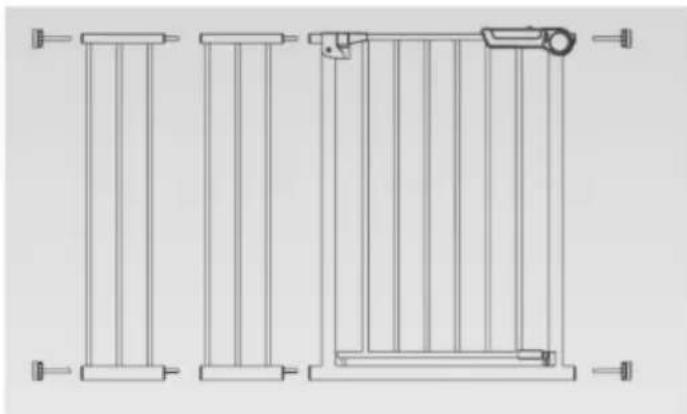

YFB1002W / YFB1002B

Technical line drawing of a three-panel mechanical bracket assembly (no text or symbols)

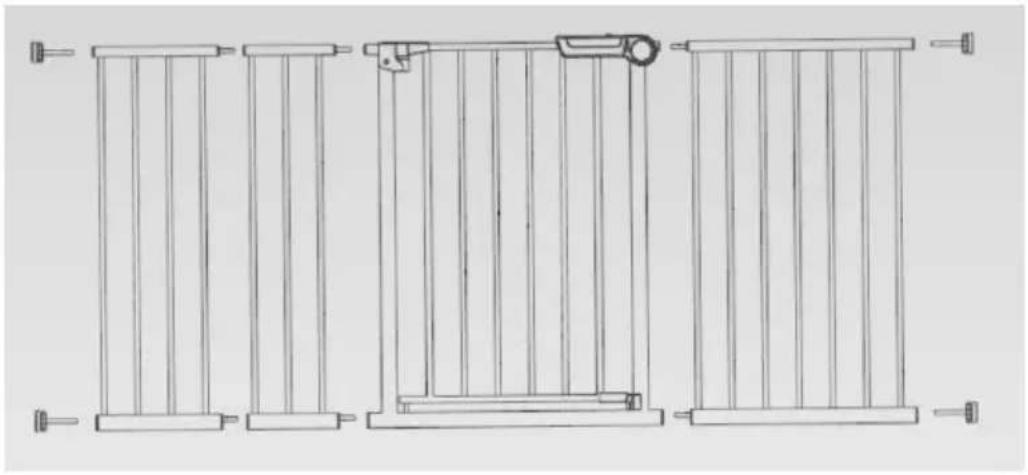

YFB1003W / YFB1003B

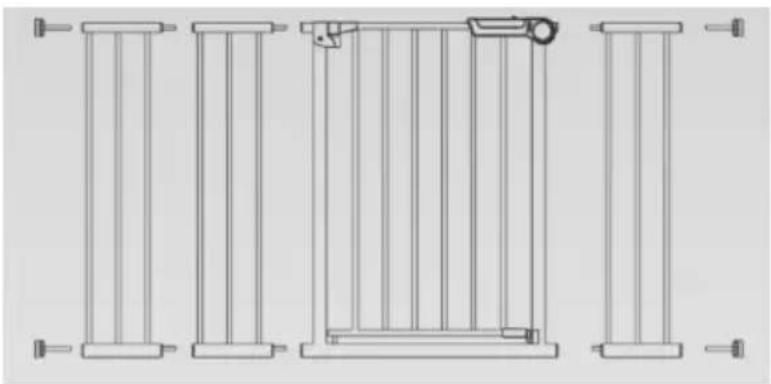

Technical line drawing of a vertical panel structure with mounting brackets and a central lock mechanism (no text or symbols)

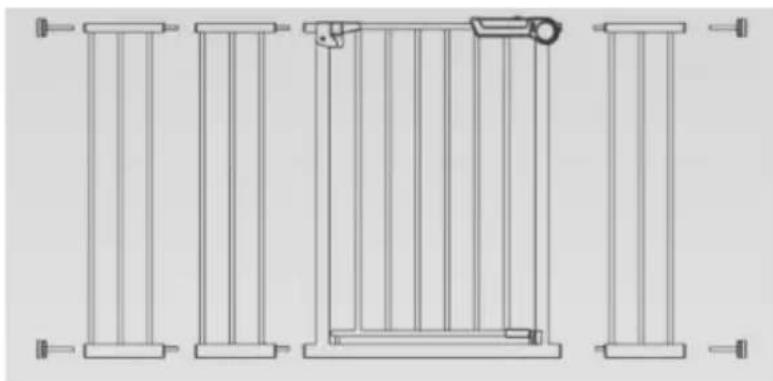

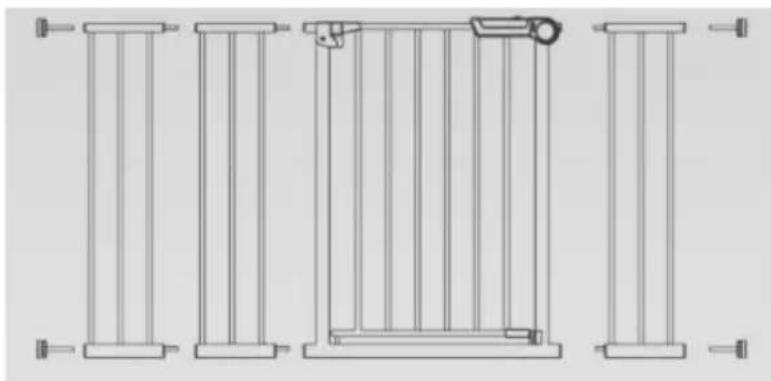

YFB1004W / YFB1004B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

INSTRUCTIONS

Thank you very much for choosing this Safety gate.

Please read all of the instructions before using it.

The information will help you achieve the best possible results.

Model and Parameters

Model	YFB1002W	YFB1002B	YFB1003W	YFB1003B	YFB1004W	YFB1004B
Width	60.6-63.3inch(154-161cm)		26-40inch (65-101.6cm)		26-48inch (65-121.9cm)
Height	30inch (76.2cm)		36inch (91.4cm)
Colour	White	Black	White	Black	White	Black

ASSEMBLY AND USE

Notice: screw in Mounting Cups when using gate on stairs

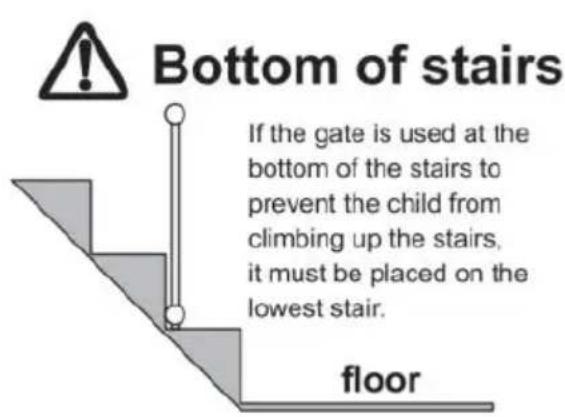

Bottom of stairs If the gate is used at the bottom of the stairs to prevent the child from climbing up the stairs, it must be placed on the lowest stair. floor

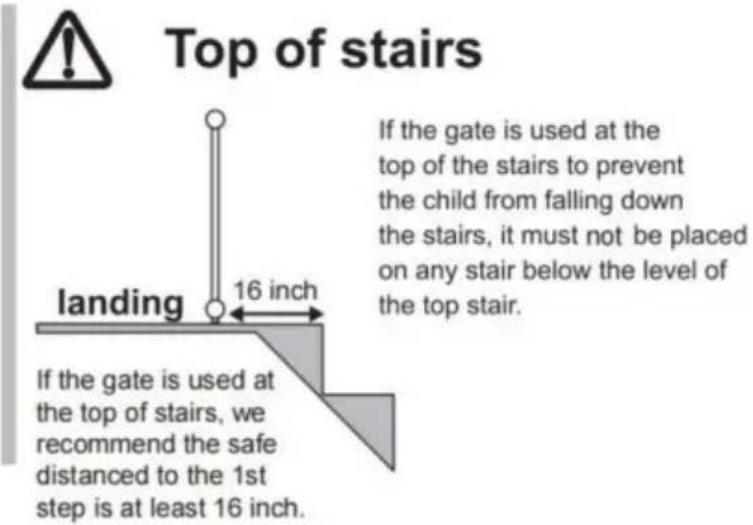

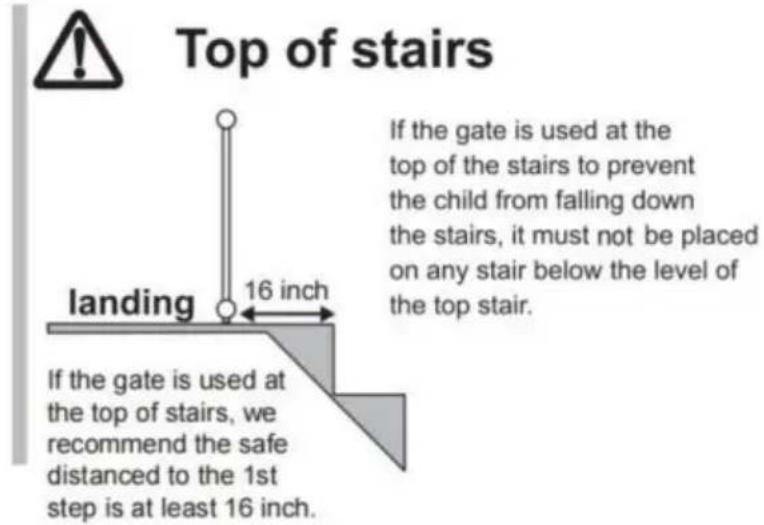

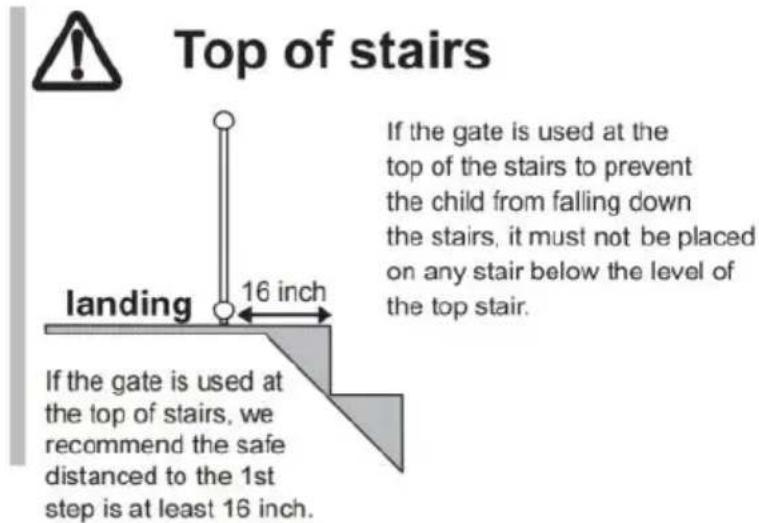

Top of stairs If the gate is used at the top of the stairs to prevent the child from falling down the stairs, it must not be placed on any stair below the level of the top stair. landing 16 inch If the gate is used at the top of stairs, we recommend the safe distanced to the 1st step is at least 16 inch.

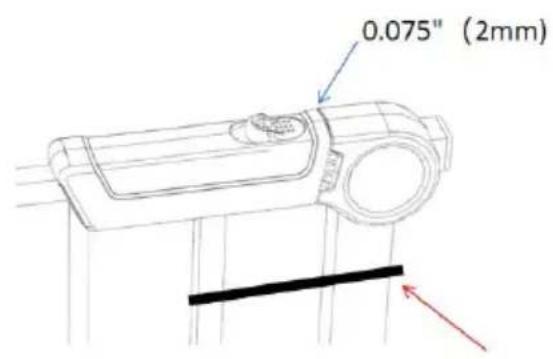

The door gap is NOT a defect! after installation, it will be shortened to 0.075" (2mm)

0.075" (2mm)

DO NOT CUT THE BELT before

the installation is completed.

Before Using Product

1. Component Diagram

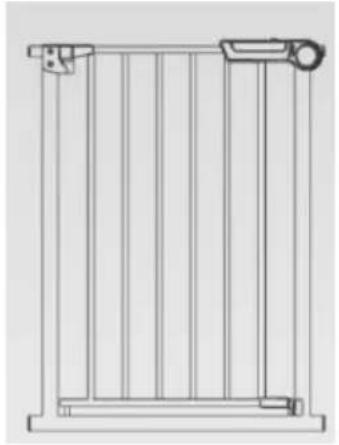

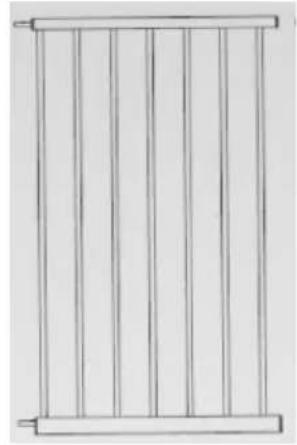

A:door	B: 7" Extension	C: 10" Extension	D: 18" Extension
E: Screw Rod	F: Wall Cup	G: 1" Screw	H: Fixing

1. Please check whether the components of the purchased product mode are complete according to the following table.

Model No.	Components
YFB1002W	A*1+B*1+C*1+D*1+E*4+F*4+G*4+H*3
YFB1002B	A*1+B*1+C*1+D*1+E*4+F*4+G*4+H*3
YFB1003W	A*1+B*2+E*4+F*4+G*4+H*2
YFB1003B	A*1+B*2+E*4+F*4+G*4+H*2
YFB1004W	A*1+B*3+E*4+F*4+G*4+H*3
YFB1004B	A*1+B*3+E*4+F*4+G*4+H*3

Installation Steps

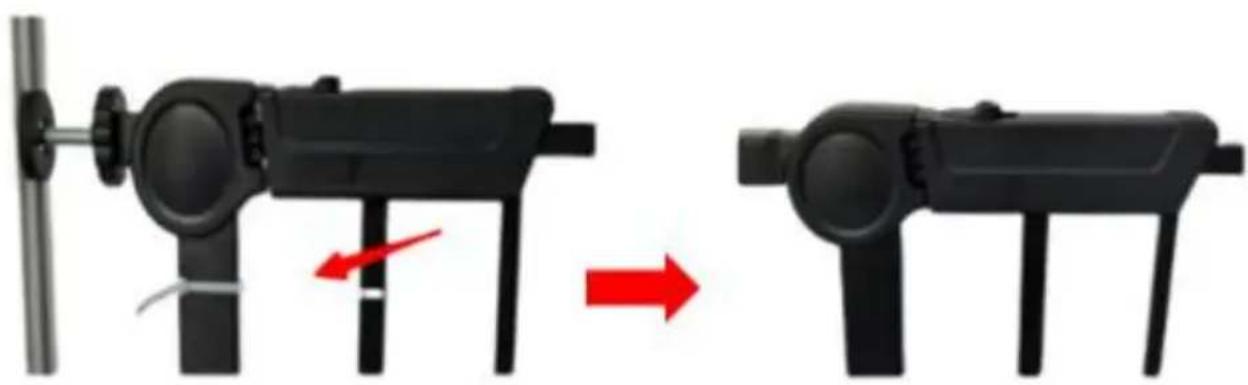

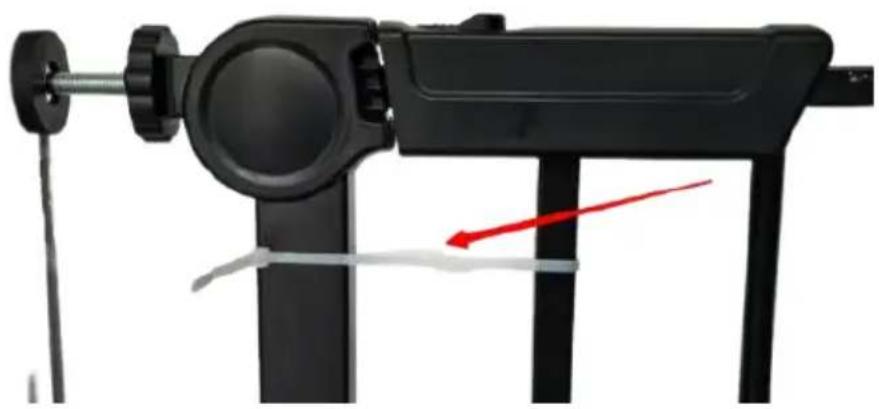

1. Do not cut the cable ties before installation.

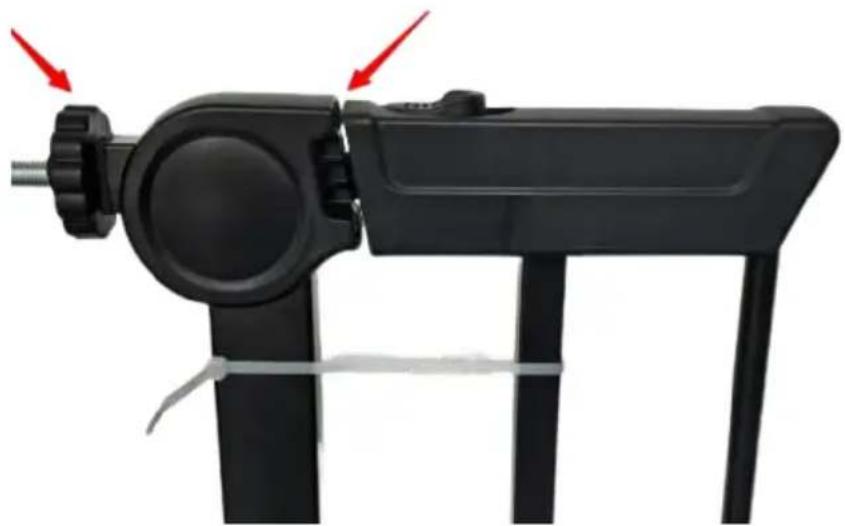

Close-up of a black mechanical device with adjustment knobs and a red arrow indicating motion (no text or symbols)

1. Measure the width of the door, select appropriately sized extension for combined installation, and ensure that the total length of extension installed on the same side of the door does not exceed 20".
2. To reduce sway of the door frame, at the lower end of the connection between the door and the extension, please stick the adhesive paper on the fixing bracket to the ground. Using glue to adhere the fixing bracket the ground will yield better results. You will need to purchase the glue according to the material of your ground surface.

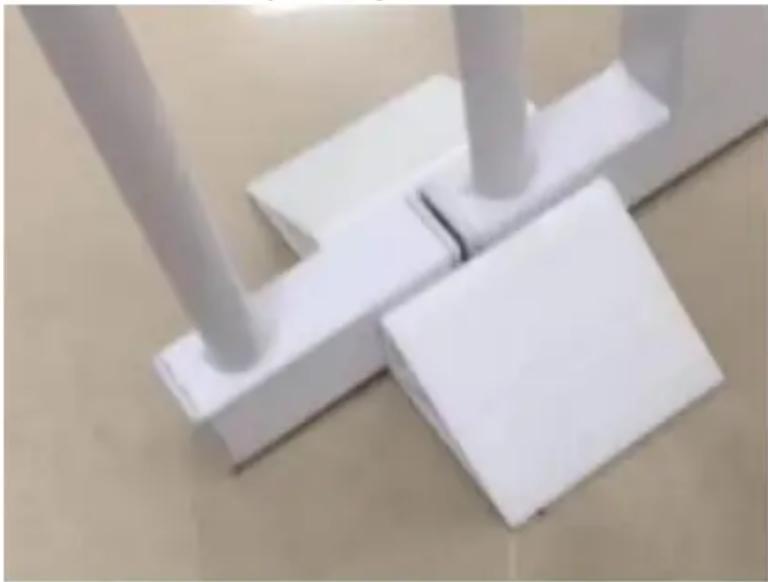

Close-up of white architectural fixtures with vertical posts on a tiled floor (no text or symbols visible)

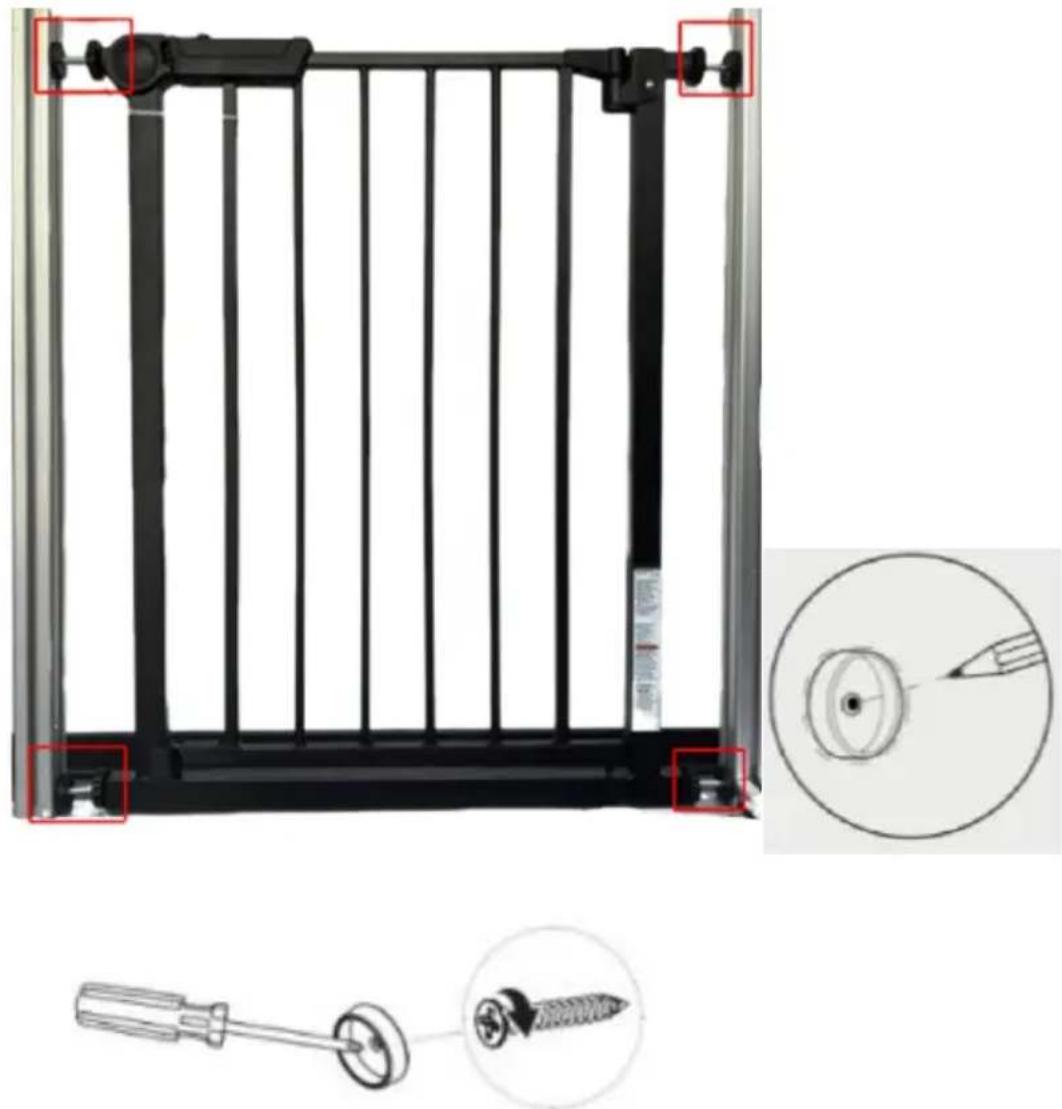

1. When pre-installing the security door, mark the position for the wall cu using a pencil to indicate where to drill the holes. The recommended hol diameter is approximately 2.2" (55mm). If you are concerned about damaging the wall during drilling, you may skip this step. For pressure-fit installation, you can push the wall cups directly against the wall and place the screws inside the wall cups.

Note: The door should be placed on the ground, and the clearance between the door and the ground should be more than 1 centimeter.

Technical diagram of a safety guard frame with a screwdriver and magnified inset showing internal components (no text or symbols)

1. Tighten the bolts clockwise until fully secured. Note: Ensure that the bottom of the door frame is level with the ground. Then, tighten the bolts the bottom fully by turning them clockwise as well. Rotate the bolts until gap of approximately 0.07" is achieved (the optimal gap is 0.075", or 2m

Close-up of a black handheld device with red arrows pointing to the lever mechanism (no text or symbols visible)

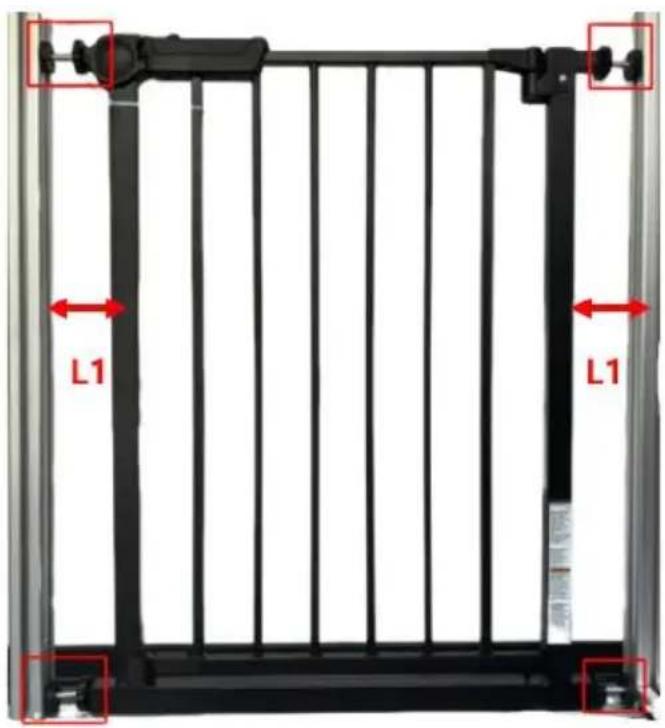

Pay attention to adjusting the size of the left and right door frames to ensure that the gaps on both sides are consistent.

$$ \mathrm{L} 1 = \mathrm{L} 2 \leq 2. 6 \mathrm{in} $$

L1 L1

1. After installation is complete, cut the cable ties.

Test

a. Push the door to check its stability.

b. Open and close the door.

c. Pull the button backward, then lift the gate plate up to open it.

Two black mechanical devices with red arrows indicating a change or transformation, no visible text or symbols.

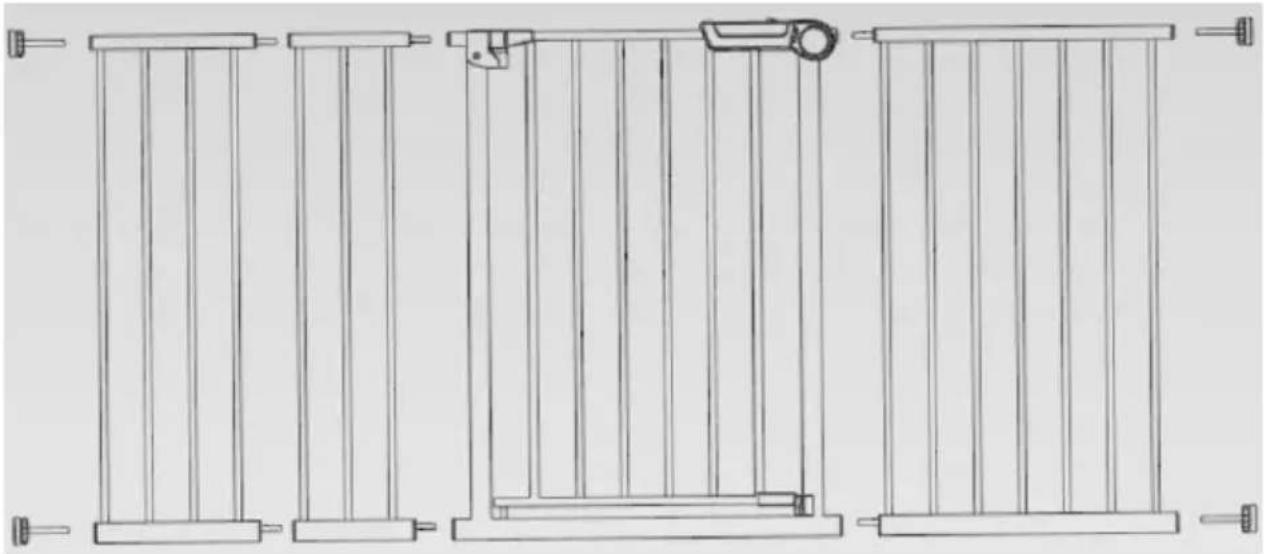

Add Door Threshold Extensions

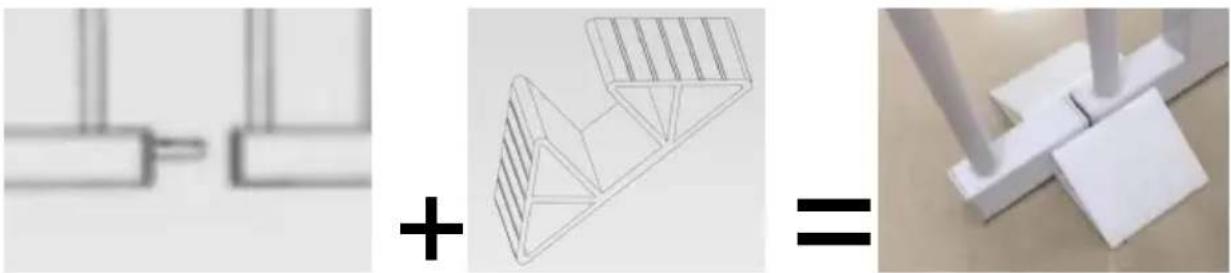

1. Remove the screws at the top and bottom, assemble the door threshc and extensions as shown in the diagram, and reposition the door threshc for proper fit according to the installation requirements. Do not install more than 2 extensions or extensions exceeding 20" on the same side of the door.

Line drawing of a multi-panel fence structure with vertical supports and a hanging lock (no text or symbols)

1. At the bottom connection of the extensions, use an H-shaped stabilizer bracket to enhance stability and prevent swaying. The bottom of the stabilizing bracket has adhesive, which can also be bonded to the ground (for optimal bonding, the ground should be flat and clean).

Technical illustration showing two mechanical assembly configurations: one with a bracket and the other with a base supported by a support post (no text or symbols)

WARNING

• To prevent serious injury or death, securely install the gate or enclosure and use it according to the manufacturer's instructions.
• Never use with a child able to climb over or dislodge the gate or enclo-sure.

• This product will not necessarily prevent all accidents.

• Never leave children unattended.

• Use only with the locking mechanism securely engaged
• Intended for use with children from 8 months through 24 months of age.
• Stop using the gate if any parts are missing or become damaged.
• Children may die or been seriously injured when gates are not securely installed
• ALWAYS install and use gates as directed using all required parts.
• Periodically check all fasteners to be sure they are tight and secure.
• Adult Assembly Required.
• The surfaces that the gate is to be fixed to must be suitable for the purpose must be structurally sound.
• Indoor use only. It is not to be exposed to outdoor elements.
• Install this gate away from heaters and other sources of heat.
• STOP using it when a child can climb over or dislodge the gate.
• You MUST install [wall cups] to keep the gate in place. Without [wall cups], the child can push out and escape.
• NEVER use it to keep the child away from a pool.
