USER MANUAL YFB1005B Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
Safety gate
YFB1005W、YFB1005B
We continue to be committed to provide you tools with competitive price.
"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually sa half in comparison with the top major brands.
Have product questions? Need technical support? Please feel free to contact us: Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.
INSTRUCTIONS
Thank you very much for choosing this dog gate.
Please read all of the instructions before using it.
The information will help you achieve the best possible results.
Model and Parameters
| Model | YFB1005W | YFB1005B |
| Width | 29.5-43in (75-109.2cm) | |
| Height | 28in (71.1cm) | |
| Colour | White | Black |
ASSEMBLY AND USE

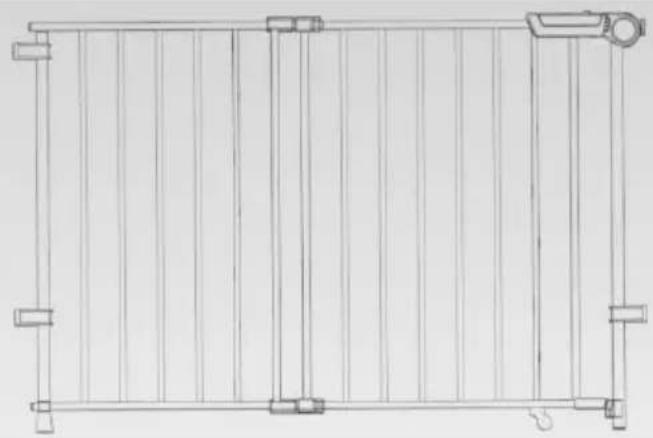

- Component Diagram Please check to make sure you have the following parts
| A: door*1 | B: 1” screw *8 |
![]() | ![]() |
Installation Steps

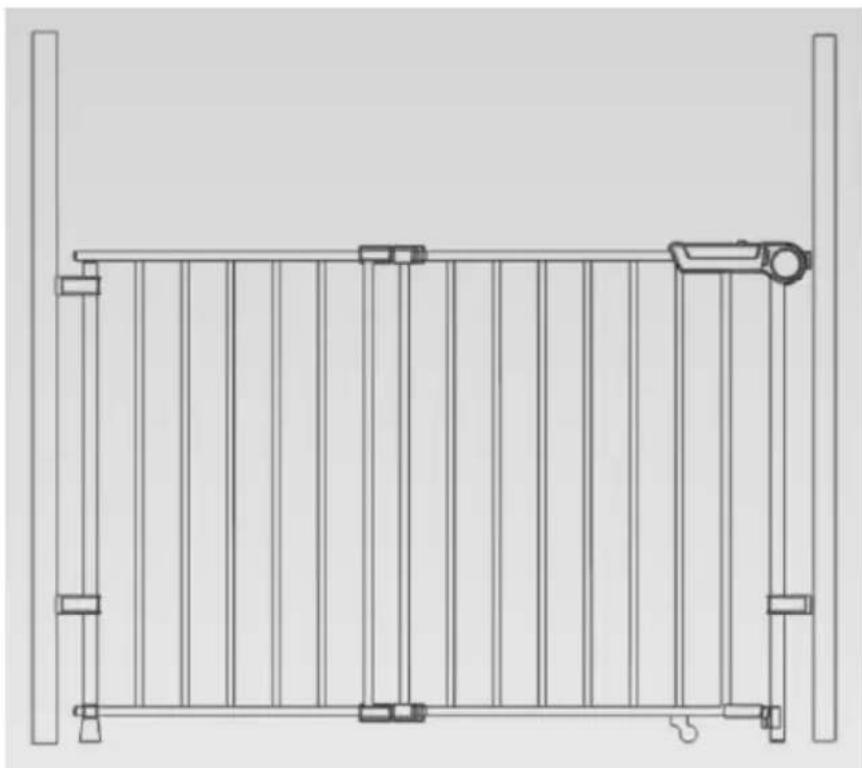

- Please ensure that the wall or column is perpendicular to the ground, and that the ground is level.

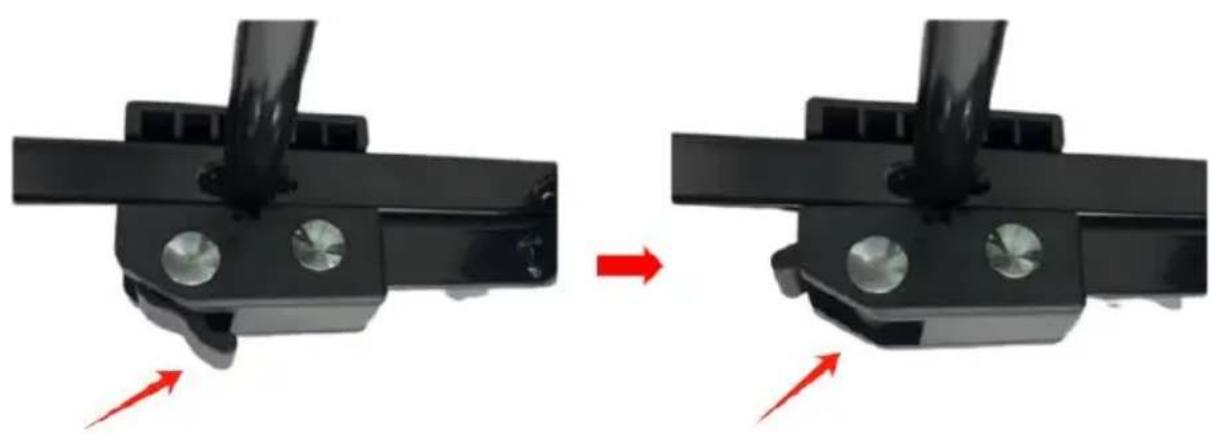

- Open the operating levers, adjust the width of the door barrier to the appropriate size, and then close the operating levers (a total of 4, both upper and lower).


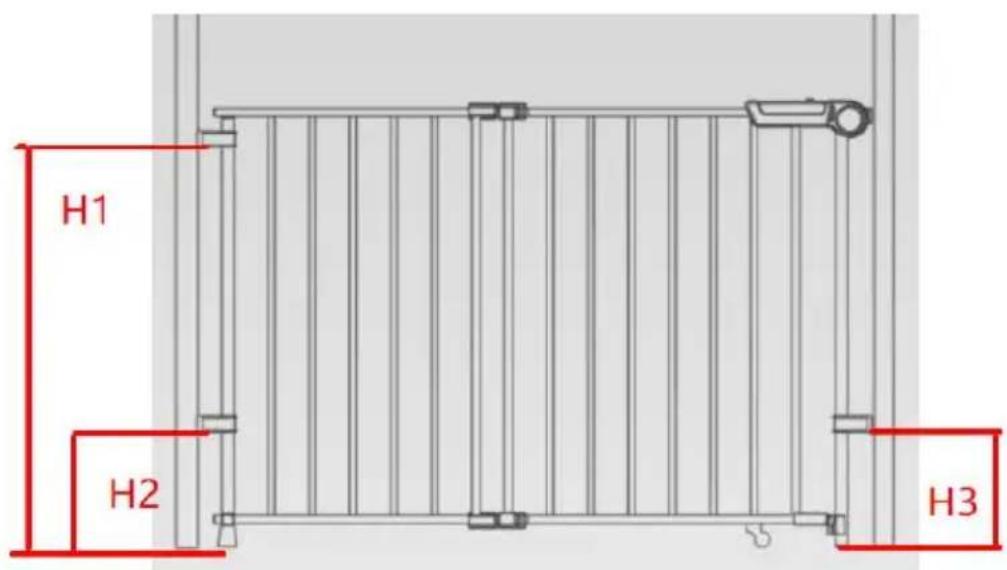

- Secure the four plastic mounting brackets to the wall or column with screws, ensuring the surface is at least 2in (50.8mm)wide. The height of bracket A should be such that the tube is level with the ground. For the installation height of the other three brackets, the following recommendations are suggested:
H1≈25.6in (650mm) H2=H3≈3.9in(100mm)


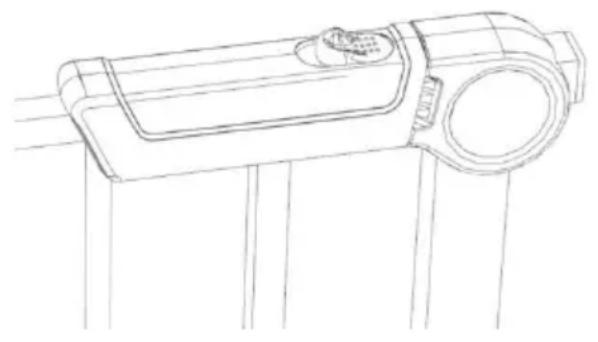

- Press and hold the switch while pulling it backwards, simultaneously lifting the locking lever upwards. This action will retract the latch bolt from the frame of the security door and simultaneously unlock the latch at the bottom of the door, allowing the door to be pushed or pulled open.
- To prevent serious injury or death, securely install the gate or enclosure and u it according to the manufacturer's instructions.
- Never use with a child able to climb over or dislodge the gate or enclo-sure.
- This product will not necessarily prevent all accidents.
- Never leave children unattended.
- Use only with the locking mechanism securely engaged
- Intended for use with children from 8 months through 24 months of age.
- Stop using the gate if any parts are missing or become damaged.
- Children may die or been seriously injured when gates are not securely installed
- ALWAYS install and use gates as directed using all required parts.
- Periodically check all fasteners to be sure they are tight and secure.
- Adult Assembly Required.
- The surfaces that the gate is to be fixed to must be suitable for the purpose must be structurally sound.
- Indoor use only. It is not to be exposed to outdoor elements.
- Install this gate away from heaters and other sources of heat.
- STOP using it when a child can climb over or dislodge the gate.
- You MUST install [wall cups] to keep the gate in place. Without [wall cups], the child can push out and escape.
- NEVER use it to keep the child away from a pool.
