Product Type	Fire ring with grate and poker
Brand	Vevor
Model	VOLD-39-10-1.5
Color	Black
Outer Diameter	45 inches (114.3 cm)
Inner Diameter	39 inches (99.1 cm)
Height	10 inches (25.4 cm)
Thickness	1.5 mm (model 1.5)
Material	Steel
Usage	Outdoor only
Main Functions	Fire pit, grilling
Package Contents	Fire ring, grate, poker, bolts
Assembly Instructions	Assemble sections with bolts, place the arrow piece at the bottom
Safety Precautions	Do not use indoors, on grass, wood, or under a roof. Keep away from flammable materials
Maintenance and Cleaning	Let cool completely, clean ashes, store in a sheltered place
Repairability	Spare parts not specified; contact the manufacturer
Country of Origin	China (manufactured for Vevor)
Warranty	Not specified
Weight	Approximately 20 kg (estimate)

Frequently Asked Questions - VOLD-39-10-1.5 Vevor

How to assemble the Vevor VOLD-39-10-1.5 fire ring?

Assemble the sections using the provided bolts. Place the piece with the arrow label underneath, with the right part lower than the left. Make sure the ring is level and tightly fastened.

Can I use this fire ring on a wooden deck?

No, it is forbidden to use the fire ring on lawns, wooden decks, concrete, or asphalt. Use it only on stone, earth, or sand.

What type of wood is recommended?

Avoid softwoods like pine or cedar that throw sparks. Use dried hardwood for cleaner burning.

Can I use flammable liquid to start the fire?

No, never use gasoline, alcohol, diesel, kerosene, or charcoal lighter. Use natural fire starters or paper.

How to install the cooking grate?

Insert the grate inside the ring, turn the handle onto the nut, then tighten the nut to secure the handle. Do not shake to avoid burns.

Is this fire ring safe for use with children?

No, the appliance is for adults only. Keep children and pets away during use. Always supervise the fire.

How to clean the fire ring after use?

Let the fire go out completely and cool. Remove ashes and clean surfaces with a brush. Store in a dry place protected from rain.

Can I move the fire ring while the fire is lit?

No, never attempt to move the ring when it is hot or the fire is lit. Wait until it is completely cooled.

What are the exact dimensions of the VOLD-39-10-1.5 model?

Outer diameter: 45 inches (114 cm), inner diameter: 39 inches (99 cm), height: 10 inches (25 cm). Steel thickness: 1.5 mm.

Where can I find spare parts?

Spare parts are not listed. Contact Vevor customer service via the provided addresses (Shuangchenglu, Shanghai) for assistance.

USER MANUAL VOLD-39-10-1.5 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

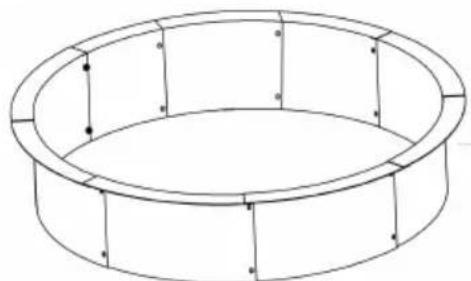

FIRE RING

MODEL:

VOLD-30-10 VOLD-36-10 VOLD-39-10-2.5 VOLD-31-8.5

VOLD-36-8.5 VOLD-39-10-1.5 VOLD-31-8.5-Y VOLD-36-8.5-Y

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VOLD-30-10

VOLD-31-8.5

VOLD-36-10

VOLD-36-8.5

VOLD-39-10-2.5

VOLD-39-10-1.5

VOLD-31-8.5-Y

VOLD-36-8.5-Y

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves the right to interpret the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

INTRODUCTION

WARNING:

PLEASE READ AND UNDERSTAND ALL SAFETY RULES BEFORE ASSEMBLY AND USE OF THE FIRE RING.

• Caution: For Outdoor Use Only.
• Use the fire ring on stone, dirt, or sand only.
• For adult use only - do not allow children to use the fire ring.
• Do not use on lawns, wooden decks, concrete, or asphalt.
• Do not use fire ring indoors or under a patio roof.
• Do not use in windy conditions.
• Do not leave fire unattended at any time.
• Do not burn trash, leaves, paper, cardboard, or plywood in fire ring.
• Do not use under low-hanging tree branches, trellis, and overhangs of any kind, including covered porches.
• Do not use flammable liquids such as gasoline, alcohol, diesel fuel, kerosene, or charcoal lighter to light or relight fires.
• Care should be taken to make sure all combustible material is far enough away from the fire ring to not ignite.
• Always use in accordance with all applicable local and state fire codes.
• Failure to follow these instructions could result in a hazardous fire, causing property damage or physical injury.

WARNING! FOR YOUR SAFETY:

• Avoid using softwoods such as pine or cedar, because they are likely to throw sparks. The use of seasoned hardwood is recommended.
• Do not allow children to use the fire ring. Keep children and pets away from the fire ring while it is in use.
• Exercise the same precautions you would with any open fire.
• Do not wear flammable or loose clothing when tending an open fire.
• Avoid touching surfaces, as they will be extremely hot.
• Assure fire is completely extinguished before leaving fire ring.
• Any modifications to this appliance may be dangerous and are not permitted.

PRODUCT PARAMETERS

Model	Colour	Outer Diameter	Inside Diameter	Height
VOLD-30-10	Black	36"	30"	10"
VOLD-36-10	Black	40"	36"	10"
VOLD-39-10-2.5	Black	45"	39"	10"
VOLD-31-8.5	Black	35"	31"	8.5"
VOLD-36-8.5	Black	40"	36"	8.5"
VOLD-39-10-1.5	Black	45"	39"	10"
VOLD-31-8.5-Y	Black	35"	31"	8.5"
VOLD-36-8.5-Y	Black	40"	36"	8.5"

PART LIST

When unpacking this product, ensure the parts listed below are included and carefully inspect for any damage that may have occurred during transit. Do not attempt to assemble or use the product if any part is missing or damaged.

	Pieces A	Pieces B	Screw	Nut Cap	Gloves	Grill	Handle	Poker
VOLD-30-10	7pcs	/	14pcs	14pcs	2pcs	/	/	/
VOLD-36-10	8pcs	/	16pcs	16pcs	2pcs	/	/	/
VOLD-39-10-2.5	9pcs	/	18pcs	18pcs	2pcs	/	/	/
VOLD-31-8.5	7pcs	/	14pcs	14pcs	2pcs	/	/	/
VOLD-36-8.5	8pcs	/	16pcs	16pcs	2pcs	/	/	/
VOLD-39-10-1.5	9pcs	/	18pcs	18pcs	2pcs	/	/	/
VOLD-31-8.5-Y	6pcs	1pcs	14pcs	14pcs	2pcs	1pcs	1pcs	1pcs
VOLD-36-8.5-Y	7pcs	1pcs	16pcs	16pcs	2pcs	1pcs	1pcs	1pcs

INSTALLATION METHODS

Excluding Grill style

Step 1:

Decide on location for the fire ring. Make sure the fire ring is at a safe distance from all combustible materials. Using a rake, level the area if necessary and remove any dry grass or overhanging tree branches.

Step 2:

Using the bolts provided, assemble the pieces of the fire ring together to form a ring. (Place the part with arrow labels below. The right part is different from the left part when you assemble it). Make sure the ring is secure and in the right position.

Step 3:

Stack firewood into fire ring and light the fire.

Helpful Hints:

• Do not attempt to move the fire ring once the fire is started.
• Do not place the fire ring in an area where it could be easily knocked over.
• For best results, stack firewood in a pyramid shape for burning.

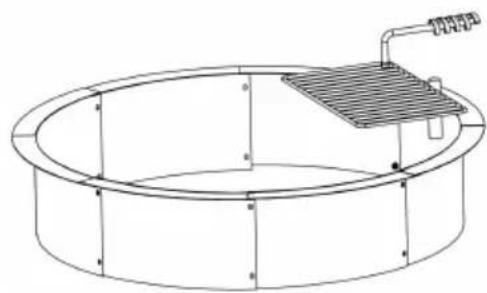

Including Grill style
Step 1: Identify the two parts of the picture.Dec on location for the fire ring. Make sure fire ring is a safe distance from all combustible materials. Using a rake, lev the area if necessary and remove any grass or overhanging tree branches.
Step 2: Using the bolts provided, assemble the pieces of the fire ring together to form ring.(Place the part with arrow labels by The right part is lower than the left pa when you assemble it). Make sure th is level, tight and in the right position.
Step 3: Insert the grill inside the fire ring, twist handle on the nut of the grill net, twis handle to the outward Angle, tighten th on the handle, and fix the Angle, do shake, to prevent burns.
Step 4: Assembling fire Poker.

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Assistance and E-Warranty Certificate www.vevor.com/support

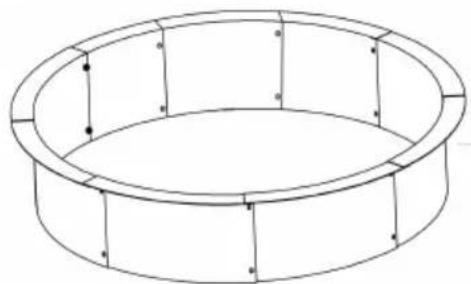

FOUR RING
