ELECTRONIC DRUM SET USER MANUAL

MODEL: MD200C-P, MD200D-P

We continue to be committed to provide you tools with competitive price.

"Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: MD200C-P, MD200D-P

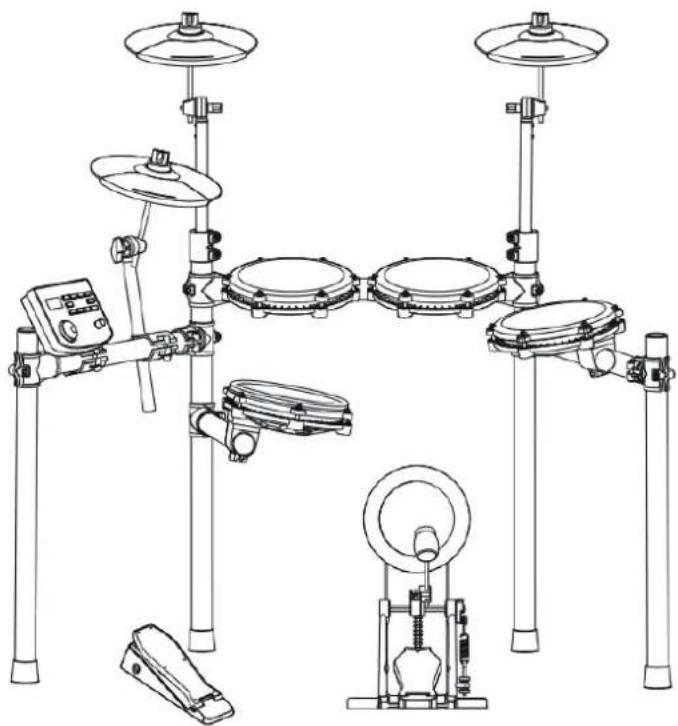

Technical line drawing of a four-mach drum set with control panel and mechanical components (no text or labels)

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Thank you for choosing our electronic drum. Elegant and delicate electronic drum is the perfect combination of modern new electronic technology.

Before using this product, you must read the instructions in detail.

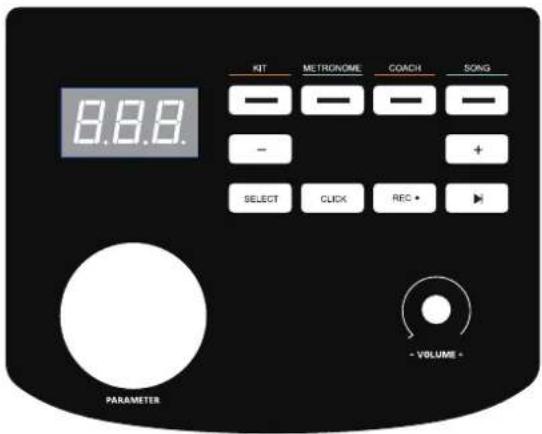

KIT METRONDIME COACH SONG 8.8.8. SELECT CLICK REC + VOLUME * PARAMETER

• 32 sets of drums, 480 timbres
• 30 songs
• Support the adjustment of sensitivity parameters of each drum
• Three teaching modes
• Speed control: 30 \~ 250 beats / min
• Metronome: 1-9 types
• Other functions: parameter storage, reset and recording;
- three digit led display;
- interface: power supply dc, usbmidi, earphone, audio input, audio output

edge surface

stop the sound wave by grabbing the cymbal

Pedal cymbal combination

REMARK!

- This product is an electro-acoustic instrument product. It is normal that there is a little current sound in the speaker or earphone after power-on. Keep away from "radio, TV, antenna receiver, router, refrigerator, TV, motor and other RF electrical interference sources" during using.

CONTENTS

FUNCTION INTRODUCTION 1

CONTENTS 2

INSTALLATION GUIDE 3

CHECK THE ATTACHED ITEMS 3

LRON PIPE HOLDER 4

TYMPANIC INTUBATION 4

MOUNTING STAND 5

INSTALL THE DRUM MODULE 5

INSTALL HITTING PARTS AND SOUND MODULE 6

INSTALL THE KICK DRUM 7

INSTALL THE HAMMER BAR 7

THE KICK DRUM IS FIXED WITH THE STEP HAMMER ----7

PLUG IN THE STRIKING PART CONNECTION CABLE----7

ILLUSTRATION OF SOUND MODULE PORT 8

POWER CORD CONNECTION 8

USB MIDI PORT 8

AUDIO OUTPUT PORT 8

AUDIO INPUT PORT 8

EARPHONE PORT 8

INCREASE PORT 8

BT MODE 8

OPERATION GUIDE 9

POWER 9

DRUM KIT SELECTION 9

METRONOME 9

PRACTICE FUNCTION 9

COACH MODE 9

DEMO SONGS 10

DRUM PARAMETERS 10

RECORDING FUNCTION 10

SAVE / RESET 10

USB MIDI 11

APPENDIX 11

TIMBRE 11

PRESET DRUM KITS 11

USER DEFINED DRUM KITS 11

DEMO STRATION SONG 11

PRODUCT MAINTENANCE 12

SAFETY PRECAUTIONS----13

REMARK!

• Please follow the instructions and read the "safety precautions" in the User Manual carefully before using.
• This product must be installed by adult, please do not let the minor install it independently.

01

Check the attached items

- After opening the package, please check whether it contains all the items immediately. If there are any omissions, please contact your dealer.

Sound module

Module bracket

Cymbal *3

Tom (3pcs)

Snare

2PCS 2PCS 6PCS

KickFront bracketConnecting bracketRear supKick pedal

Cymbal arm (3pcs)

Hi hat pedal

Bolt driver

Signal Connection cable Power adapterDrum key
Drum stick Stick hammer

02 Iron pipe holder

- The stand is located in a small individual package inside the box.

A

Simple line drawing of a cylindrical mechanical component with a flanged end (no text or symbols)

The image is too blurry to recognize any text content.

Simple line drawing of a cylindrical mechanical component with two rings attached (no text or symbols)

C

Pure mechanical diagram of a rod with mounting bracket and mounting bracket (no text or symbols)

D

Simple line drawing of a straight cylindrical rod (no text or symbols)

E

Simple line drawing of a mechanical lever or rod with a handle and mounting bracket (no text or symbols)

F

Simple line drawing of a cylindrical rod (no text or symbols)

G

Simple line drawing of a cylindrical object with no text or symbols

03 Tympanic intubation

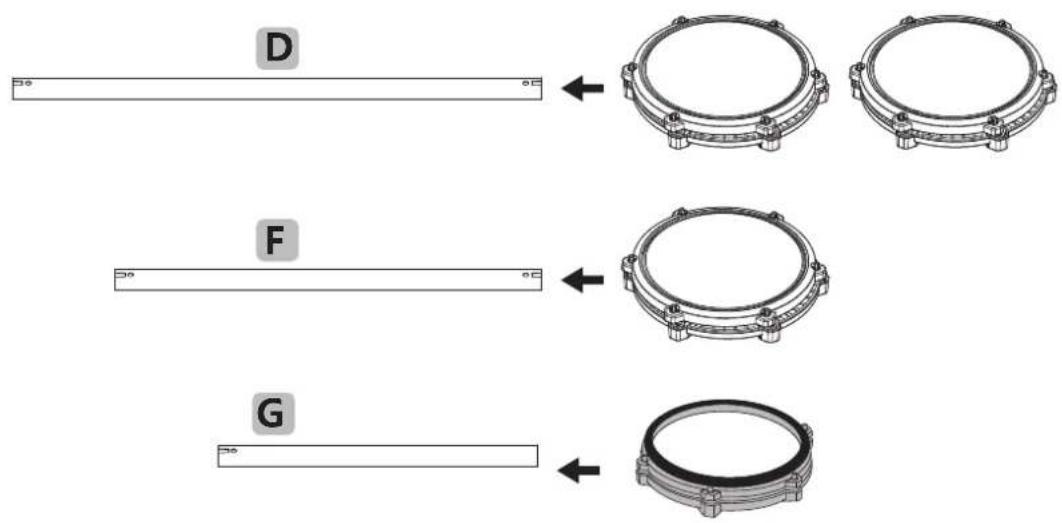

Install the drum on the drum support bar.

D F G

04

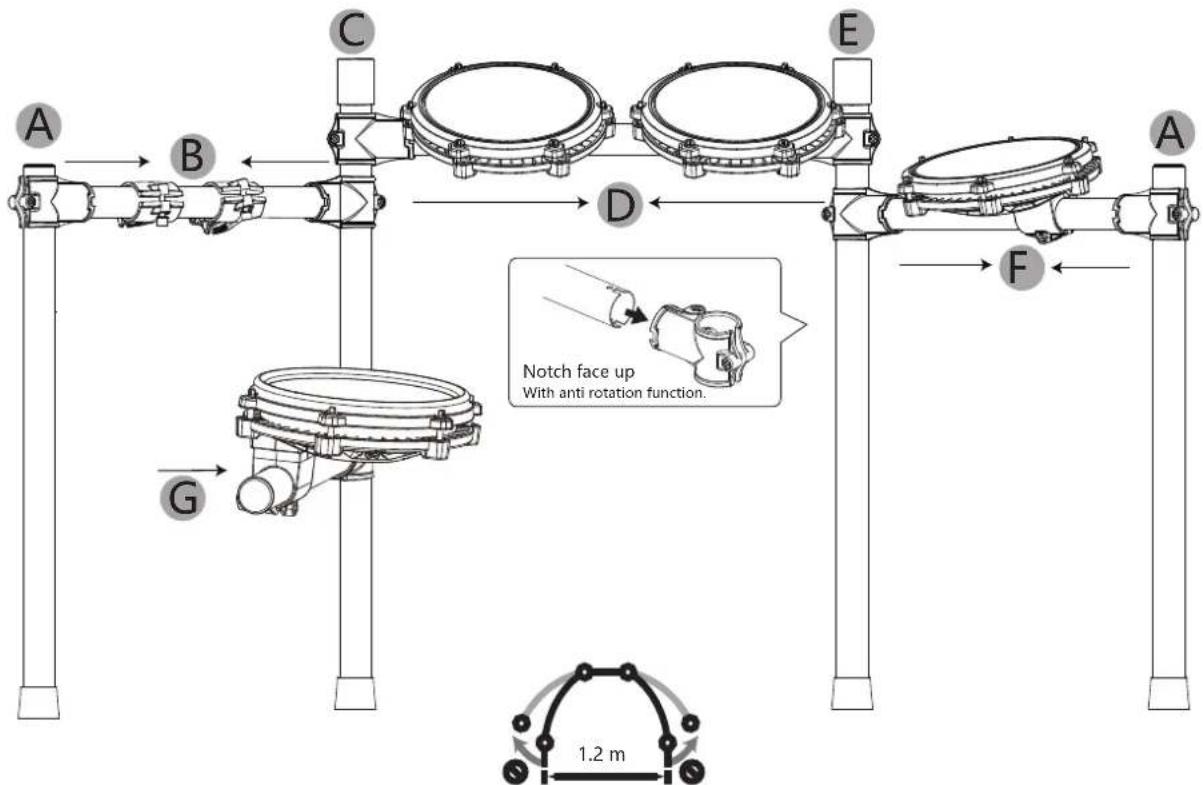

Mounting stand

• During the installation, tighten the screws and please be careful to pinch your fingers.
• Assemble the bracket as the specified direction

A B C D E F G Notch face up With anti rotation function. 1.2 m

For safety reasons, the expansion width of the support should not be greater than 1.2 meters.

05

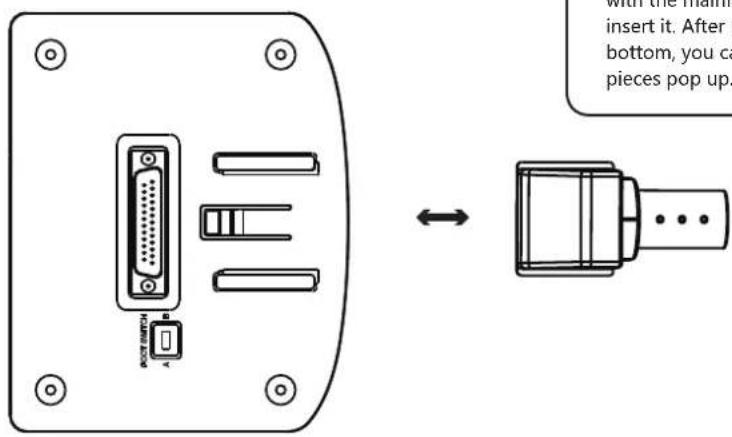

Install the Drum module

- Please insert it in place during in stalling.

with the main insert it. After i bottom, you ca pieces pop up.

Align the mainframe drum module with the mainframe box track and insert it. After inserting it to the bottom, you can hear the snap pieces pop up.

06

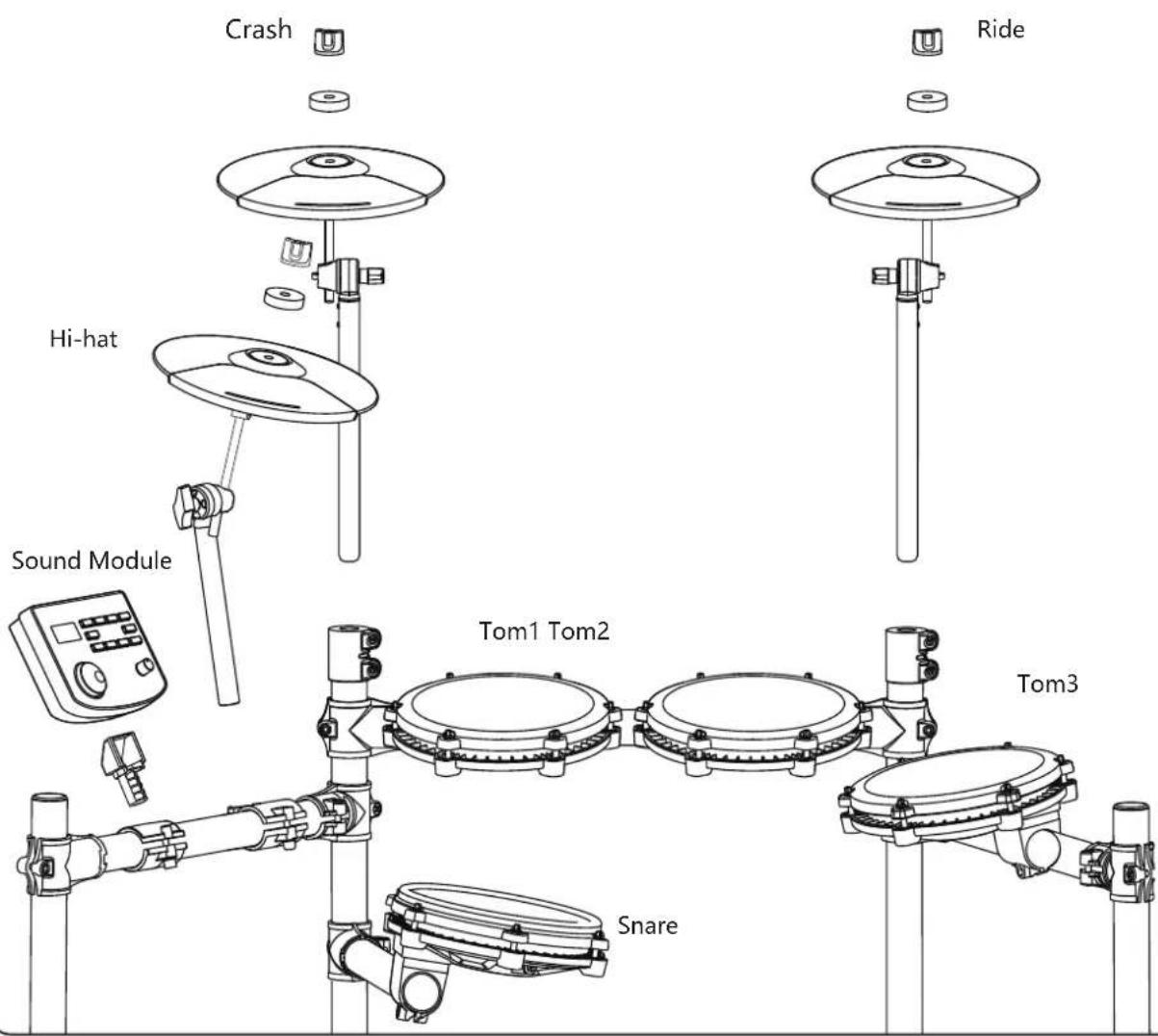

Install hitting parts and sound module

• Tighten the screws after the drum is inserted to avoid loosening.
• Be sure not to tighten the cymbal too tightly, leave some space for them to snake up and down.

Withdraw the nuts and circle cushions of the three cymbal arm, put the three cymbals into the corresponding arm, and screw on the nuts. Put 3 drums and 1 drum into the corresponding support rod respectively, and tighten the screws. Note: the functions of each cymbal, Tom drum and snare drum are different, so it is necessary to refer to the accessory identification for correct installation!

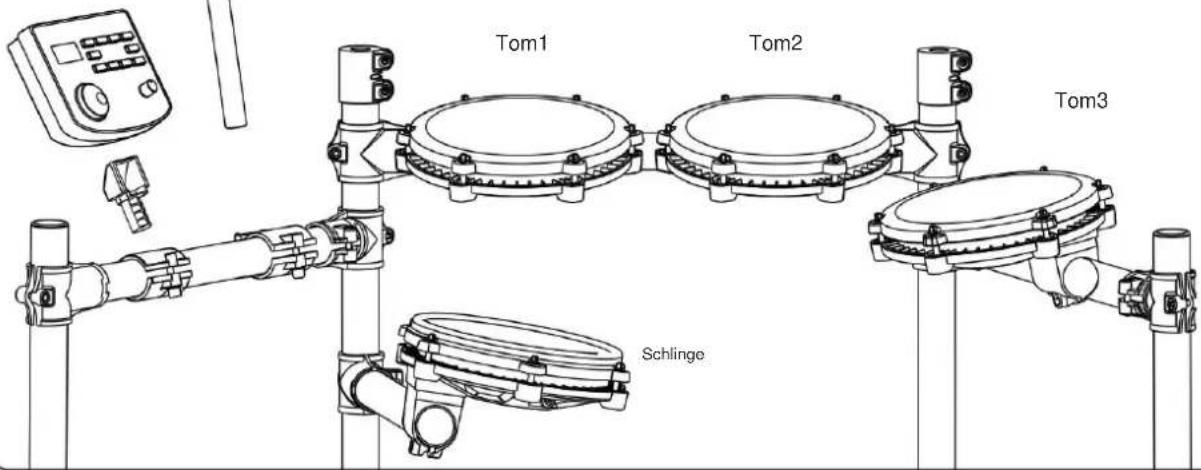

Crash Ride Hi-hat Sound Module Tom1 Tom2 Tom3 Snare

07

Install the kick drum

- when installing, please tighten the screws and be careful not to pinch your fingers.

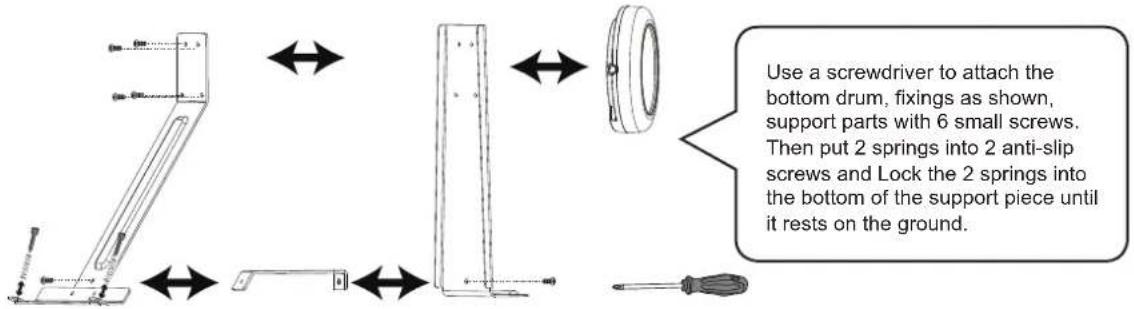

Use a screwdriver to attach the bottom drum, fixings as shown, support parts with 6 small screws. Then put 2 springs into 2 anti-slip screws and Lock the 2 springs into the bottom of the support piece until it rests on the ground.

08

Install the hammer bar

- the pole should be inserted in lace and the screws should be tightened to avoid loosening.

Insert the hammer rod into the round hole as shown in the figure, rotate the wool hammer to align it with the drum surface, and then tighten it with the drum key.

the round hole ate the wool drum surface,

Insert the fixed iron bar into the hole as shown in the figure.

09

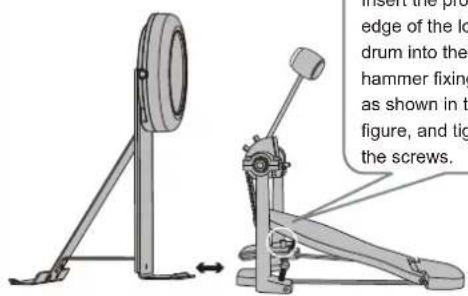

The kick drum is fixed with the step hammer

- the bottom drum and the step hammer should be fixed and tightened to avoid falling off.

Insert the pro edge of the lo drum into the hammer fixing as shown in t figure, and tig the screws.

10

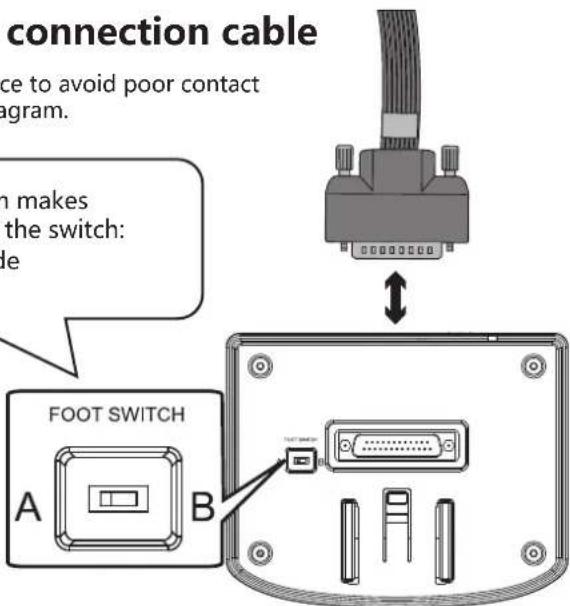

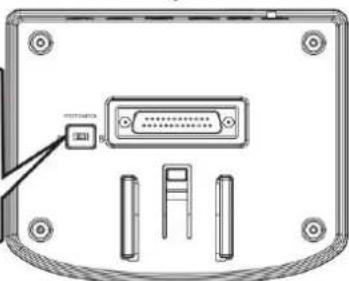

Plug in the striking part connection cable

- Please insert the connection cable in place to avoid poor contact and insert it correctly as shown in the diagram.

Please check whether the bottom drum makes sound, If there is no sound, please turn the switch: Switch in A: mechanical kick drum mode Switch in B: pedal mode.

connection cable face to avoid poor contact agram. n makes the switch: de FOOT SWITCH A B

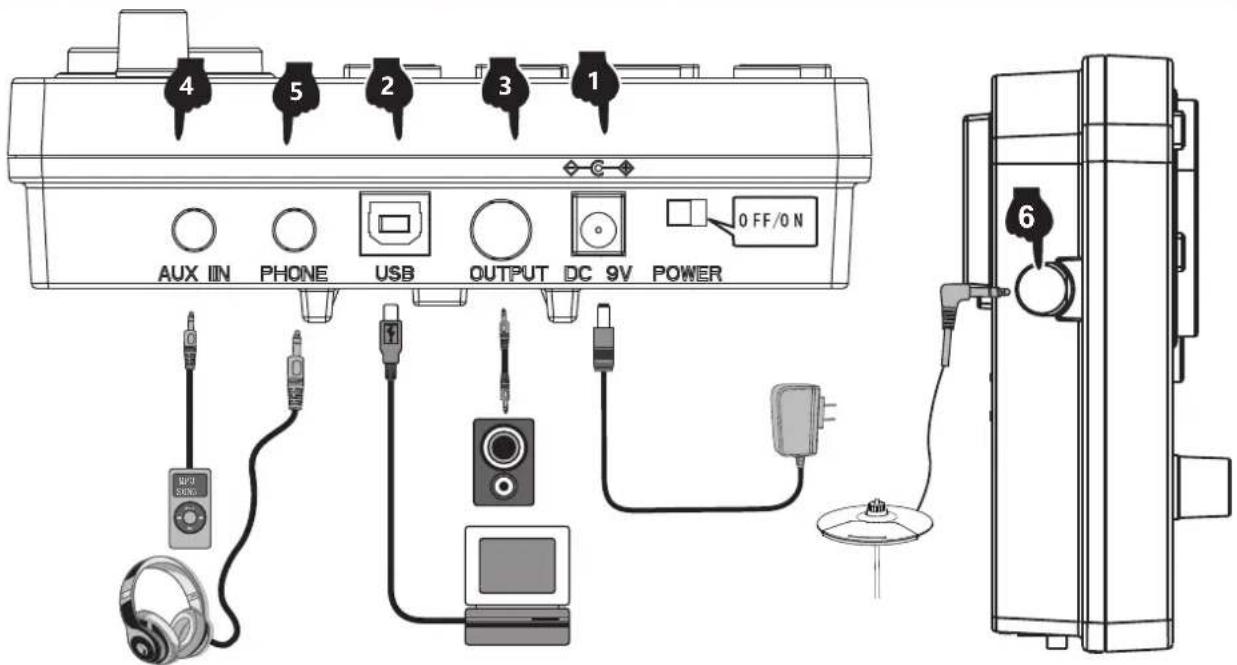

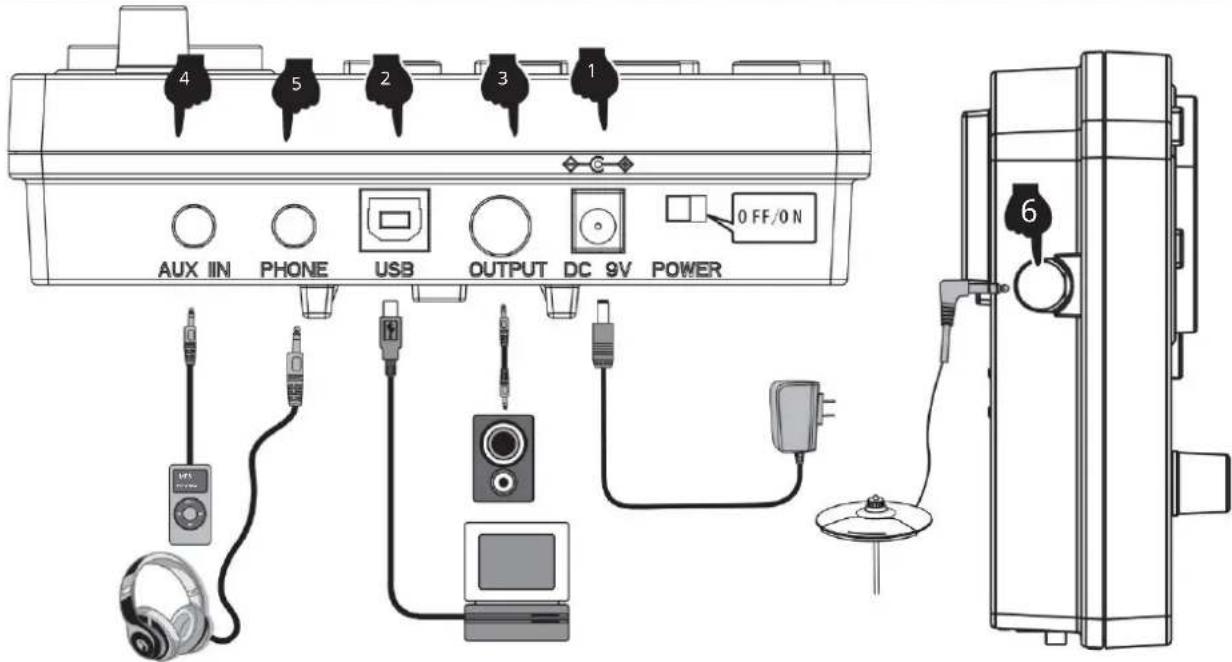

ILLUSTRATION OF SOUND MODULE PORT

4 5 2 3 1 C AUX IIN PHONE USB OUTPUT DC 9V POWER OFF/ON 6 MPU SENG

1 POWER CORD CONNECTION

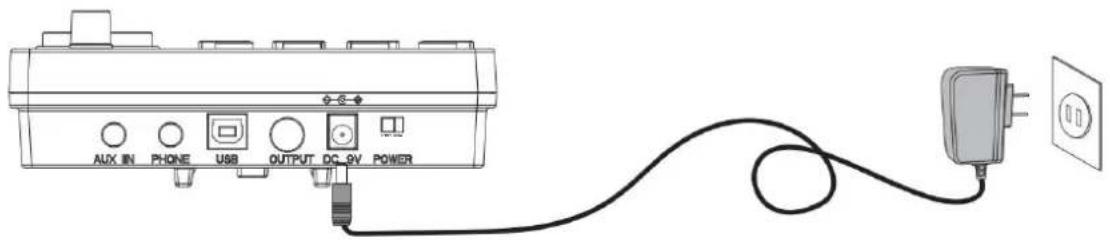

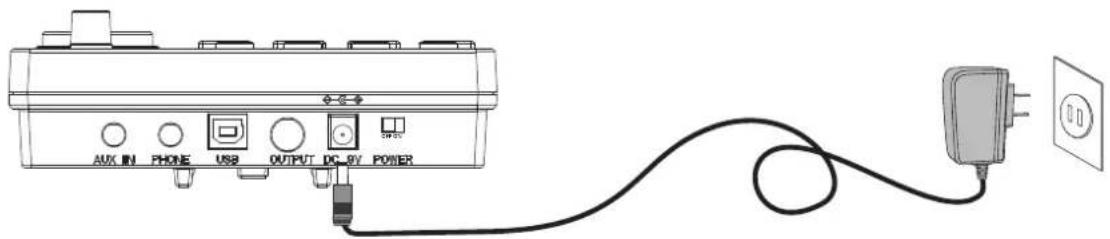

1. When in use, connect the power terminal according to the diagram, insert the power outlet of the sound module at one end and 100-240V household power outlet at the other end. (Fig. 1)

2. If you do not use this product for a long time, please pull out the power plug and keep it properly.

2 USB MIDI PORT

The use of electronic drum MIDI USB interface can interact with music devices with MIDI.

1. Through the pre-installed Music software on computers and mobile phones, we can learn to play, compose music, store and other functions. (Fig. 2)

2. When connected to a computer or mobile phone, the audio output of the device needs to be connected to the audio input socket of the module box in order to synchronize the sound effects on the device. (Fig. 5)

3 AUDIO OUTPUT PORT

Audio output port can be connected with active speaker (special electronic drum speaker) and large audio equipment. (Fig. 3)

4 AUDIO INPUT PORT

Audio input port can connect the sound source playback device to the module box for playback (such as MP3. mobile phone and other audio signal input). (Fig. 4)

5 EARPHONE PORT

Connecting headphones monitors the details of percussion and does not disturb others when playing without connecting speakers. (Fig. 5)

6 INCREASE PORT

This port allows you to add a cymbal for easy expansion. (Figure 6)

1 POWER

Insert the DC plug into the DC 9V port on the top of the control unit. Slide the POWER switch to the right (viewed from the front) to power up the drum kit. To turn the drum kit off slide the switch to the left.

2 DRUM KIT SELECTION

Press the KIT button to show the current drum kit. Turn the parameter wheel or use the <- /+ > buttons to select the desired drum kit. There are 32 drum kits to choose from - see drum kit list on page 11.

3 METRONOME

1. Press the METRONOME button to enter the metronome mode.
2. The screen will display the speed value(120 BPM default speed). Turn the parameter wheel or use the +/- buttons to change the metronome speed. Press the CLICK button to start the metronome.
3. Press the SELECT button in metronome mode, and the screen will jump to the metronome parameter adjustment interface. You can press the +/- buttons to select the parameter you want to adjust:

A. r (beat type:2,4,8,16)
B. b (beat number: 01-09)
C. L(metronome volume: 00 (off) -31), and then turn the parameter wheel to adjust the parameter settings.

1. Once the parameters have been adjusted, press the SELECT button to confirm and exit the parameter interface. Then use the CLICK button to start and stop the metronome as desired.

4 PRACTICE FUNCTION

The "coach" coach mode of this product can help establish speed, accuracy and endurance, and help cultivate the practice function of a better sense of rhythm. Make progress under the supervision of the "coach" coach mode! Press the "coach" button to enter the coach mode. In this mode, there are three practice modes. Select the practice mode through the data wheel or < + > < - > button.

1. Exercise mode 1: C-1 beat detection exercise: beat the drum at a fixed speed to train the accuracy of the blow.
2. Practice mode 2: C-2 silent strike mode: the metronome will sound one section and mute one section to train the strike accuracy without metronome prompt. It is an advanced version of practice mode 1.
3. Practice mode 3: C-3 speed strike practice, the metronome will automatically change the speed, increase from the slowest express to the fastest, and then reduce from the slowest express to the slowest speed, so as to practice the strike endurance.

5 COACH MODE

1. The "coach" training mode of this product can help establish speed, accuracy and endurance. Press the COACH button to enter the coach mode. In this mode, there are three practice modes. Use the parameter wheel to select which practice mode.

A. Exercise mode 1:C-1 beat detection exercise- beat the drum at a fixed speed to train the accuracy of the blow.
B. Practice mode 2:C-2 silent strike mode-the metronome will sound one section and mute one section to train when there is no beat.
C. Practice mode 3:C-3 speed strike practice-the metronome will automatically change the speed from the slowest to the fastest and then the fastest to the slowest.

1. Once the coaching mode has been chosen, press the CLICK button. The metronome beats will start and you can play along on the drum for practice.

2. After four preliminary beats, the display will show:

(too slow)

(good)

(too fast)

1. Once you have completed the coaching mode a score will be displayed from 0-100 evaluating the accuracy of the exercise.

C-1 mode: Press the SELECT button to enter the parameter setting interface. You can adjust the number of practice sessions as required (01-32). The number of sessions to practice determines the length of this exercise.
C-2 mode: Press the SELECT button to enter the parameter setting interface. You can adjust the number of practice sessions as required(04-32). The number of sessions to practice determines the length of this exercise.
C-3 mode: Press the SELECT button to enter the parameter setting interface. You can adjust the rate at which the BPM changes (01-09 BPM).
5. Press the CLICK button again to end the coach mode.

6 DEMO SONGS

1. Press the SONG button to enter the demo mode, there are 30 demos to choose from. The screen will display the current demo song number (01 -30).
2. Press the< ▶button to start playina the demo songs. To stop playing press the < ▶button again.
3. Turn the parameter wheel or press the +/- buttons to select a demo song.
4. Press the sELECT button in song mode to jump to the song parameter setting interface. You can turn the drum sound on or off by turning the parameter wheel (the drum sound is on by default).
5. Press the SELECT button to confirm and exit the parameter interface.

7 DRUM PARAMETERS

1. Press the KIT button and the screen will display 01 (drum kit number). Press SELECT to enter the drum parameter adjustment mode.
2. Tap the drum you want to adjust, and then press the +/- buttons to select the parameter for adjustment.Sensitivity

A. S(01-06). Trigger threshold t(01 - 32). Crosstalk threshold c (01 -32)
B. Repeated trigger r(01-32) Drum Force V(01-03). Drum volume L (00 - 31).

1. Change the parameters by rotating the parameter wheel and long press the - button to save. The screen with display SAV to indicate the parameter adjustment has been saved successfully.
2. To restore the drum parameters back to factory settings long press the + button until the screen displays RES.
3. PLEASE NOTE: The parameters for the 3 tom drums can not be set individually.

1. Press the button when the indicator light is in the "KIT" and "CLICK" states, and the screen displays the words "REC" in the breathing flashing state, entering the recording preparation state.
2. Tap any drum and the metronome sounds. At this time, the screen displays "---" in the flashing state of breathing and starts recording.
3. Press the < REC > key or < PLAY > key again, the recording stops and "A-1" is displayed on the screen.
4. Press < ➤ to start playing the current recording, and press again to stop playback.
5. If you enter the recording preparation state again without any knocking, the "A-1" recorded last time is played back.

9 SAVE / RESET

1. To save parameters long press the <-> button and the screen will display SAV.
2. To reset parameters long press the <+> button and the screen will display RES res.

10 USB MIDI

To use the drum kits MID function plug aUSB-B data cable (not included with this drum kit) into the control unit and connect to PC/Smartphone.

Timbre

Kick.

[Non-Text]

1. Pop Kick

2. Fuck Kick

3. Hard Kick

4. Original Kick

5. PopRock Kick

6. Rock Kick

7. Metal Kick

8. PowerMetal Kick

9. SpeedMetal Kick

10. PopJazz Kick

11. Jazz Kick

12.808

13.909

1. Songo Kick

2. Standard Kick

3. Acoustic Kick

4. Seesion Kick

5. Modern Kick

6. Blues Kick

7. Classic Kick

8. Synthgaze Kick

9. Freak Kick

10. Sticks Kick

11. Grunge Kick

25.70's Kick

26.80's Kick

1. Popular Kick

2. Slam Kick

3. Attack Kick

4. Old Kick

5. Fairfax Kick

6. Military Kick

Snare

1. Pop Snare

2. Fuck Snare

3. Hard Snare

4. Original Snare

5. PopRock Snare

6. Rock Snare

7. Metal Snare

8. PowerMetal Snare

9. SpeedMetal Snare

10. Pop Jazz Snare

11. Jazz Snare

44.808

45.909

1. Songo Snare

2. Standard Snare

3. Acoustic Snare

4. Seesion Snare

5. Modern Snare

6. Blues Snare

7. Classic Snare

8. Synthgaze Snare

9. Freak Snare

10. Sticks Snare

11. Grunge Snare

57.70's Snare

58.80's Snare

1. Popular Snare

2. Slam Snare

3. Attack Snare

4. Old Snare

5. Fairfax Snare

6. Military Snare

7. Pop Snare Rim

66 . Fuck Snare Rim

1. Hard Snare Rim

2. Original Snare Rim

3. PopRock Snare Rim

4. Rock Snare Rim

5. Metal Snare Rim

6. PowerMetal Snare Rim

7. SpeedMetal Snare Rim

8. PopJazz Snare Rim

75 . Jazz Snare Rim

76.808

77,909

1. Songo Snare Rim

2. Standard Snare Rim

80 . Acoustic Snare Rim

1. Seesion Snare Rim

2. Modern Snare Rim

3. Blues Snare Rim

4. Classic Snare Rim

5. Synthgaze Snare Rim

6. Freak Snare Rim

7. Sticks Snare Rim

8. Grunge Snare Rim

89.70's Snare Rim

90.80's Snare Rim

1. Popular Snare Rim

2. Slam Snare Rim

3. Attack Snare Rim

4. Old Snare Rim

95 . Fairfax Snare Rim

1. Military Snare Rim

Tom

1. Pop Tom1

98 . Fuck Tom1

1. Hard Tom1

2. Original Tom1

3. PopRock Tom1

4. Rock Tom1

5. Metal Tom1

6. PowerMetal Tom1

7. SpeedMetal Tom1

8. PopJazz Tom1

9. Jazz Tom1

108.808

109.909

1. Songo Tom1

2. Standard Tom1

3. Acoustic Tom1

4. Seesion Tom1

5. Modern Tom1

6. Blues Tom1

7. Classic Tom1

8. Synthgaze Tom1

9. Freak Tom1

10. Sticks Tom1

11. Grunge Tom1

121.70's Tom1

122.80's Tom1

1. Popular Tom1

2. Slam Tom1

3. Attack Tom1

4. Old Tom1

5. Fairfax Tom1

6. Military Tom1

7. Pop Tom2

130 . Fuck Tom2

1. Hard Tom2

2. Original Tom2

3. PopRock Tom2

4. Rock Tom2

5. Metal Tom2

6. PowerMetal Tom2

7. SpeedMetal Tom2

8. PopJazz Tom2

9. Jazz Tom2

140.808

141.909

1. Songo Tom2

2. Standard Tom2

3. Acoustic Tom2

4. Seesion Tom2

5. Modern Tom2

6. Blues Tom2

7. Classic Tom2

8. Synthgaze Tom2

150 . Freak Tom2

1. Sticks Tom2

2. Grunge Tom2

153.70's Tom2

154.80's Tom2

1. Popular Tom2

2. Slam Tom2

3. Attack Tom2

4. Old Tom2

5. Fairfax Tom2

6. Military Tom2

7. Pop Tom3

162 . Fuck Tom3

1. Hard Tom3

2. Original Tom3

3. PopRock Tom3

4. Rock Tom3

5. Metal Tom3

6. PowerMetal Tom3

7. SpeedMetal Tom3

8. PopJazz Tom3

9. Jazz Tom3

172.808

173.909

1. Songo Tom3

2. Standard Tom3

3. Acoustic Tom3

4. Seesion Tom3

5. Modern Tom3

6. Blues Tom3

7. Classic Tom3

8. Synthgaze Tom3

182 . Freak Tom3

1. Sticks Tom3

2. Grunge Tom3

185.70's Tom3

186.80's Tom3

1. Popular Tom3

2. Slam Tom3

3. Attack Tom3

4. Old Tom3

5. Fairfax Tom3

6. Military Tom3

Crash .

194 . Fuck Crash1

1. Hard Crash

2. Original Crash1

3. PopRock Crash1

4. Rock Crash1

5. Metal Crash

6. PowerMetal Crash1

201 . SpeedMetal Crash1

1. PopJazz Crash1

203.Jazz Crash1

204.808

205.909

1. Songo Crash1

2. Standard Crash1

208 . Acoustic Crash1

1. Seesion Crash1

2. Modern Crash1

3. Blues Crash1

4. Classic Crash1

5. Synthgaze Crash1

214 . Freak Crash1

1. Sticks Crash1

216 . Grunge Crash1

217.70's Crash1

218.80's Crash1

1. Popular Crash1

2. Slam Crash1

3. Attack Crash1

4. Old Crash1

223 . Fairfax Crash1

1. Military Crash1

2. Pop Crash1 Rim

226 . Fuck Crash1 Rim

1. Hard Crash1 Rim

2. Original Crash1 Rim

3. PopRock Crash1 Rim

4. Rock Crash1 Rim

5. Metal Crash1 Rim

6. PowerMetal Crash1 Rim

233 . SpeedMetal Crash1 Rim

1. PopJazz Crash1 Rim

235.Jazz Crash1 Rim

236.808

237.909

1. Songo Crash1 Rim

2. Standard Crash1 Rim

240 . Acoustic Crash1 Rim

1. Seesion Crash1 Rim

2. Modern Crash1 Rim

243 . Blues Crash1 Rin

1. Classic Crash1 Rim

2. Synthgaze Crash1 Rim

246 . Freak Crash1 Rim

1. Sticks Crash1 Rim

248 . Grunge Crash1 Rim

249.70's Crash1 Rim

250.80's Crash1 Rim

1. Popular Crash1 Rim

2. Slam Crash1 Rim

3. Attack Crash1 Rim

4. Old Crash1 Rim

255 . Fairfax Crash1 Rim

1. Military Crash1 Rim

Ride

1. Pop Ride

258 . Fuck Ride

1. Hard Ride

2. Original Ride

3. PopRock Ride

4. Rock Ride

263 . Metal Ride

1. PowerMetal Ride

2. SpeedMetal Ride

3. PopJazz Ride

4. Jazz Ride

268.808

269,909

1. Songo Ride

2. Standard Ride

3. Acoustic Ride

4. Seesion Ride

274 Modern Ride

1. Blues Ride

2. Classic Ride

3. Synthgaze Ride

278 . Freak Ride

1. Sticks Ride

2. Grunge Ride

281.70's Ride

282.80's Ride

1. Popular Ride

2. Slam Ride

3. Attack Ride

4. Old Ride

287 . Fairfax Ride

1. Military Ride

2. Pop Ride Rim

290 . Fuck Ride Rim

291 . Hard Ride Rim

1. Original Ride Rim

2. PopRock Ride Rim

3. Rock Ride Rim

4. Metal Ride Rim

5. PowerMetal Ride Rim

6. SpeedMetal Ride Rim

7. PopJazz Ride Rim

299 . Jazz Ride Rim

300.808

301.909

APPENDIX

400 . Acoustic Hi-Hat Pedal		433 . Seesion Crash2	450 . Fuck Crash2 Rim	467 . Blues Crash2 Rim
401 . Seesion Hi-Hat Pedal	417 . Pop Crash2	434 . Modern Crash2	451 . Hard Crash2 Rim	468 . Classic Crash2 Rim
402 . Modern Hi-Hat Pedal	418 . Fuck Crash2	435 . Blues Crash2	452 . Original Crash2 Rim	469 . Synthgaze Crash2 Rim
403 . Blues Hi-Hat Pedal	419 . Hard Crash2	436 . Classic Crash2	453 . PopRock Crash2 Rim	470 . Freak Crash2 Rim
404 . Classic Hi-Hat Pedal	420 . Original Crash2	437 . Synthgaze Crash2	454 . Rock Crash2 Rim	471 . Sticks Crash2 Rim
405 . Synthgaze Hi-Hat Pedal	421 . PopRock Crash2	438 . Freak Crash2	455 . Metal Crash2 Rim	472 . Grunge Crash2 Rim
406 . Freak Hi-Hat Pedal	422 . Rock Crash2	439 . Sticks Crash2	456 . PowerMetal Crash2 Rim	473 . 70's Crash2 Rim
407 . Sticks Hi-Hat Pedal	423. Metal Crash2	440 . Grunge Crash2	457 . SpeedMetal Crash2 Rim	474 . 80's Crash2 Rim
408 . Grunge Hi-Hat Pedal	424 . PowerMetal Crash2	441 . 70's Crash2	458 . PopJazz Crash2 Rim	475 . Popular Crash2 Rim
409 . 70's Hi-Hat Pedal	425 . SpeedMetal Crash2	442 . 80's Crash2	459 . Jazz Crash2 Rim	476 . Slam Crash2 Rim
410 . 80's Hi-Hat Pedal	426 . PopJazz Crash2	443 . Popular Crash2	460 . 808	477 . Attack Crash2 Rim
411 . Popular Hi-Hat Pedal	427 . Jazz Crash2	444 . Slam Crash2	461 . 909	478 . Old Crash2 Rim
412 . Slam Hi-Hat Pedal	428 . 808	445 . Attack Crash2	462 . Songo Crash2 Rim	479 . Fairfax Crash2 Rim
413 . Attack Hi-Hat Pedal	429 . 909	446 . Old Crash2	463 . Standard Crash2 Rim	480 . Military Crash2 Rim
414 . Old Hi-Hat Pedal	430 . Songo Crash2	447 . Fairfax Crash2	464 . Acoustic Crash2 Rim
415 . Fairfax Hi-Hat Pedal	431 . Standard Crash2	448 . Military Crash2	465 . Seesion Crash2 Rim
416 . Military Hi-Hat Pedal	432 . Acoustic Crash2	449 . Pop Crash2 Rim	466 . Modem Crash2 Rim

Drum combination timbre

01	Pop	09	SpeedMetal	17	Seesion	25	70's
02	Fuck	10	PopJazz	18	Modern	26	80's
03	Hard	11	Jazz	19	Blues	27	Popular
04	Original	12	808	20	Classic	28	Slam
05	PopRock	13	909	21	Synthgaze	29	Attack
06	Rock	14	Songo	22	Freak	30	Old
07	Metal	15	Standard	23	Sticks	31	Fairfax
08	PowerMetal	16	Acoustic	24	Grunge	32	Military

Demonstration music

Song 001	Song 007	Song 013	Song 019	Song 025
Song 002	Song 008	Song 014	Song 020	Song 026
Song 003	Song 009	Song 015	Song 021	Song 027
Song 004	Song 010	Song 016	Song 022	Song 028
Song 005	Song 011	Song 017	Song 023	Song 029
Song 006	Song 012	Song 018	Song 024	Song 030

PRODUCT MAINTENANCE

Careful maintenance and protection of this product plays a very important role in prolonging the service life of the product and reducing faults.

1 Avoid heat, moisture or direct sunlight

Do not over expose the product to direct sunlight, or place it near the air conditioner or extremely hot place.

2 Do not use near TV or radio

This product may cause video or audio interference to the reception of TV and radio. If this happens, remove the product from the TV or radio.

PRODUCT MAINTENANCE

3 Do not use paint, thinner or similar chemicals for cleaning

Please use a soft and dirt free cleaning cloth dipped in a small amount of water or special detergent to clean the surface stains of this product.

4 Do not shake to avoid collision

The product should be handled with care when moving. Violent vibration and collision are strictly prohibited to avoid damage to the shell or internal electronic components.

SAFETY PRECAUTIONS

POWER SUPPLY

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (€) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.
12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scalp or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPE

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

REPU

YH CONSULTING LIMITED.

K/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a four-mach drum set with control knobs and a rotary dial (no text or labels)

www.vevor.com/support

INTRODUCTION DES FONCTIONS

bord surface

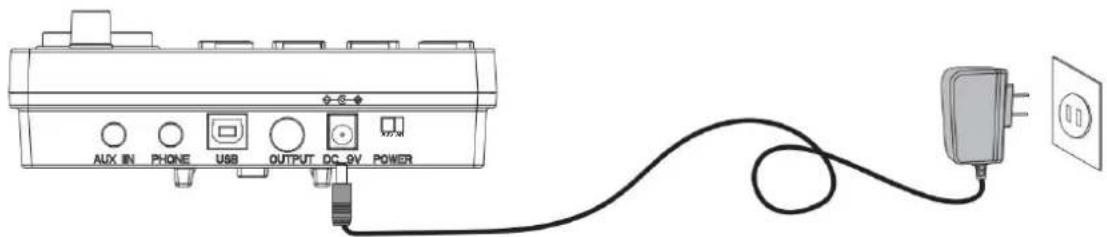

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

C/O YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a four-mach drum set with control knobs and a rotary dial (no text or labels)

Line drawing of a cylindrical mechanical component with a flanged end and central bracket (no text or symbols)

Simple line drawing of a cylindrical mechanical component with two protruding pins (no text or symbols)

Pure mechanical diagram of a rod with mounting bracket and mounting bracket (no text or symbols)

Simple line drawing of a cylindrical rod (no text or symbols)

G

[Unreadable]
F

Simple line drawing of a mechanical lever or rod with two hanging weights (no text or symbols)

Simple line drawing of a cylindrical rod or rod (no text or symbols)

Simple line drawing of a test tube (no text or symbols)

03

Trommelfellintubation

Line drawing of a mechanical device with a circular top and cylindrical shaft (no text or symbols)

Tom1 Tom2 Tom3 Schlinge

FOOT SWITCH A B

Illustration of a gray electronic component with multiple connectors and a coiled cable (no text or symbols visible)

4 5 2 3 1 AUX IIN PHONE USB OUTPUT DC 9V POWER OFF/ON 6 HDD HD P U O P P P P P P P P P P P P P P P P P P P P P P P P P P P P

1. Hector Toff

2. Original Kick 5.

PopRock Kick 6. Rock

Kick

1. Metallkick

2. PowerMetal Kick

3. SpeedMetal Kick 10

Pop Jazz Kick 11

Jazz Kick

12.80B

1. 909

2. Songo-Kick 15.

Standard-Kick

1. Akustlecher Kick

2. Session Kick

3. Modern Kick

4. Blues Kick

5. Klassischer Kick

6. Synthoaze Kick 22.

Freak Kick

1. Akustisches Hi-Hat-Pedal

2. Section Hi-Hat-Pedal

3. Modern Hi-Hat Pedal

4. Blues Hi-Hat-Podel 404.

Synthgaze Hi-Hat-Peda

1. Freak Hi-Hat-Pedal

2. Slicks Hi Hat Pedal

3. Grunge Hi-Hat-Pedal

409.70er Hi-Hat-Pedal

410.80er Hi-Hat-Pedal

1. Belobtes Hi-Hat-Pcdal

2. Slam Hi Hat Pedal

3. Attack HI-Hat-Fodal

4. Altes Hi-Hat-Pedal

5. Fairfax Hi-Hal-Pedal

6. Militärisches Hi-Hat-Pocal

7. Pop Crash2

8. Schei9 auf Crash2

9. Harler Absturz2

10. Original Crash2

11. PopRock Crash2

12. Folsturz2

13. Metall Crash2

14. PowerMetal Crash2

15. SpeedMetal Crash2

16. PopJazz Crash2

17. Jazz Crash2

428.606

429.909

1. Songo Absturz2

2. Standard-Crash2

3. Alustischer Crash2

4. Seesion Crash2

5. Moderner Abeturz2

6. Blues Crash2

7. Klassischer Crash2

8. Synthgaze Crash2

9. Freak Crash2

10. Stöcke Crash2

11. Grunge Crash2

441.70er Crash2

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC-9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

BATTERIA ELETTRONICA

MANUALE D'USO

MODELLO: MD200C-P, MD200D-P

Technical line drawing of a four-mach drum set with control knobs and a rotary dial (no text or labels)

www.vevor.com/support

1. Tom Se and

2. Bastoni Tem 1

3. Grunge Tom1

4. Tomi degli armi 70

5. Tom died and 150

6. Tax provisions

2.1.1 陈志明

1. Smith Tom

2. Allacca Tem1

3. Vascie Tom1

4. Fairfax Tom1

5. Tom paper 1, 129

Ray Tom?

1. Foevis Tom

(3) 陈文生

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing.

(no text)

12.1. Ambusa Tons

The following table is presented in the image.

1. Tems dogi anni 80

2. Popolare Tom3

3. Slam Tom3

4. Attacca Tom3

5. Varchia Trans

(1) 本说明仅供参考。

13.1.1018X TOM5

1. Tom millave3

Incidente.

1. Pop Crash1

2. Fanculo Cra

3. Grave incidental

4. Czech originals1 197

PopRock Crash1

1. Schiarto di roce1

2. Crash metalico1

3. PowerMetal Crash1

4. SpeedMetal Crash1 202.

Poplazz Crash1 203. Jazz

Crash1

204 8018

207-116

202.202

1. Songo Crash1 207.

Greeh standardt

1. Crash aculeco1

2. Session Crash!

3. Crash madamo1

211 Blues Crash1

[12] Greek classification

[Non-Text]

1. Syringaze Crash1 214.

Strano incidente1

1. Basioni Crash1

2. Gounce Crash1 217

Cash degli anni 701

2/8 Cash down adj 190i

[Non-Text]

1. Poplarine Chem 220

Slam Crash

223 Incidento, Fairfax

ESE - Cite in Green Metal

2017.3.15 in April

200, Caro + Opioziz

APPENDIX

1. Pedale acustico per charleston

2. Podale H: Hat Session

3. Moderno pedale del charlesion

405 Pedala charleston bues

404 Pedale charleston classic

1. Pedale charleston Synthgaze

2. Freak pedale cel charielson

3. Barchette pedala charicstan

4. Pedale charleston grunge

5. Pedale charleston arm

70 410. Podala charleston

erri 80 411. Popolare podale

charleston 412. Pecala

charleston Slam 413. Pedale Hi

Het d'allsoco 414. Vecchio

podala dal charlaston 415. Podala

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

Importato in AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a four-mach drum set with control knobs and a rotary dial (no text or labels)

www.vevor.com/support

Simple line drawing of a cylindrical mechanical component with a flanged end and a central bracket (no text or symbols)

Simple line drawing of a cylindrical mechanical component with two protruding pins (no text or symbols)

Pure mechanical diagram of a rod with mounting bracket and mounting bracket (no text or symbols)

Simple line drawing of a cylindrical rod (no text or symbols)

图3

Y
F

Simple line drawing of a mechanical lever or rod with no text or symbols

Simple line drawing of a cylindrical rod or rod (no text or symbols)

Simple line drawing of a test tube (no text or symbols)

03

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

Importado a AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importado a EE. UU.: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPRESENTANTE DE LA CE

C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines upon Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical line drawing of a four-mach drum set with control knobs and a dial (no text or labels)

Line drawing of a cylindrical mechanical component with a flanged end and central bracket (no text or symbols)

Simple line drawing of a cylindrical mechanical component with two flanged ends (no text or symbols)

Pure mechanical diagram of a rod with mounting flanges and mounting bracket (no text or symbols)

Simple line drawing of a cylindrical rod (no text or symbols)

G

I
F

Simple line drawing of a mechanical lever or rod with no text or symbols

Simple line drawing of a cylindrical rod or rod (no text or symbols)

Simple line drawing of a test tube (no text or symbols)

Illustration of a gray electronic component with multiple connectors and a coiled cable (no text or symbols visible)

A

FOOT SWITCH

B

Back view of a computer interface showing an EDA port, cable connector, and two connectors (no text or symbols visible)

ILUSTRACJA PORTU MODUŁU DŹWIĘKOWEGO

4 5 2 3 1 AUX IIN PHONE USB OUTPUT DC 9V POWER OFF/ON 6

1 POŁĄCZENIE KABLA ZASILAJĄCEGO

hat 405, Pcdal Hi-Hat Synthgaze

1. Freak Hi-Hat pedal

2. Kije pedalu Hi-Hat 408.

Pedal hi-hatu grunge 409

Pedal Hi-Hat z lat 70. 410.

Podal Hi-Hat z lat 80, 411.

Popularny pedal Hi-Hat 412.

Pedal Hi-Hat 413. Pedal

ataku Hi-Hat 414. Stary pedal

hi-hatu 415. Pedal Fairfax

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place. Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones. Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

Import do AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW

2122 Australii

Import do USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPREZENT KE

C/O YH Consulting Limited Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

ELEKTRONISCH DRUMSET HANDLEIDING

MODEL: MD200C-P, MD200D-FP

Technical line drawing of a four-mach drum set with control knobs and a rotary dial (no text or labels)

HULP NODIG? NEEM CONTACT MET ONS OP!

OPSLAAN / RESETTEN 10

USB-MIDI 11

BIJLAGE 11

TIMBRE 11

VOORAF INGESTELDE DRUMKITS 11

DOOR GEBRUIKER GEDEFINIEERDE DRUMKITS 11

DEMOSTRATIE NUMMER 11

PRODUCTONDERHOUD 12

VEILIGHEIDSMAATREGELEN---- 13

INSTALLATIE GIDS

OPMERKING!

Simple line drawing of a cylindrical mechanical component with a flanged end (no text or symbols)

Simple line drawing of a cylindrical mechanical component with two protruding pins (no text or symbols)

Pure mechanical diagram of a rod with mounting bracket and mounting bracket (no text or symbols)

Simple line drawing of a cylindrical rod (no text or symbols)

G

EN
F

Simple line drawing of a long rod with two square ends and a small looped end (no text or symbols)

Simple line drawing of a cylindrical rod or rod (no text or symbols)

Simple line drawing of a test tube (no text or symbols)

03

Trommelintubatie

9 OPSLAAN / RESETTEN

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place.

Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones.

Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

ELEKTRONISKT TRUMSET

ANVÄNDARMANUAL

MODELL: MD200C-P,MD200D-P

Technical line drawing of a four-mach drum set with control panel and mechanical components (no text or labels)

Pedal cymbal kombination

ANMÄRKNING!

INSTALLATIONSGUIDE 3

KONTROLLERA BILAGADE ARTIKLAR 3

LRON RÖRHÅLLARE 4

TYMPANISK INTUBATION 4

MONTERINGSSTÄLL 5

Simple line drawing of a cylindrical mechanical component with a flanged end and a central bracket (no text or symbols)

Simple line drawing of a cylindrical mechanical component with two protruding pins (no text or symbols)

Pure mechanical diagram of a rod with mounting bracket and mounting bracket (no text or symbols)

Simple line drawing of a cylindrical rod (no text or symbols)

G

CDI
F

Simple line drawing of a mechanical lever or rod with no text or symbols

Simple line drawing of a cylindrical rod or rod (no text or symbols)

Simple line drawing of a test tube (no text or symbols)

03 Tympanisk intubation

1. Syntingaze HI-Hat Pedal

2. Freak Hi-Hat Podal

3. Sticks Hi-Hal Pedal

4. Grunge Hi-Hat Pedal

409, 70-tals Hi-Hat Pedal

1. 80-tals Hi-Hat Pedel

2. Popular Hi-Hat Podal 412

Slam Hi Hat Pedal 413.

Attack Hi-Haf Pedal 414.

Gammal Hi-Hat Pedal

1. Fairfax Hi-Hat Pedal

2. Militar Hi-Hat-podal

3. Pookrasch 2

4. Fuck Crash2

5. Hard krasch 2

6. Original Crash2

7. PopRock Crash2

8. Rock Crash2

9. Metal Crash2

10. PowerMetal Crash2

11. SpeedMetal Crash2

12. Pop Jazz Crash2

13. Jazzkrasch 2

425.80B

429.909

1. Songo Crash2

2. Standard Crash2

432, Akustisk krasch 2

1. Sesion Crash2

2. Modern Crash2

3. Blues Crash2

4. Klassisk Crash2

5. Synthgaze Crash2

6. Freak Crash2

7. Slicks Crash2

8. Grungekrasch 2

441.70-lalskrasch2

1. 80-talskrasch2

2. Popular Crash2

3. Slam Crash2

4. Attack Crash2

5. Gamma Crash2

6. Fairtax Crash2

7. Militär krasch 2

8. Pop Crash2 Rim

9. Fuck Crash2 Rim

10. Hard Crash2 fälg

11. Original Crash2 fällg

12. PopRock Crash2 Rhyme

13. Rock Crash2 fãlg

14. Metal Crash2 fãig

15. PowerMetal Crash2 fälg

16. SpeedMetal Crash2 fãlg

17. PopJazz Crash2 Rim

18. Jazz Crash2 falg

460.808

461.909

1. Songo Crash2 Rim

2. Standard Crash2-falg

3. Acoustic Crash2 falg

4. Seesion Crash2 fãlg

5. Modern Crash2-falg

6. Blues Crash2 Rim

7. Klassisk Crash2 fällg

8. Syntngaze Crash2 Rim

9. Freak Crash2 fällg

10. Sticks Crash2 Rim

11. Grunge Crash2 Rim

12. 70-tals Crash2 Flim

13. Crash2 Rim tin 80-talet

14. Populära Crash2 Rim

15. Slam Crash2 falg

16. Attack Crash2 Rim

17. Gamma Crash2-tälg

18. Fairfax Crash2 Fälg

19. Military Crash2 Rim

Krasch 2

Drum combination timbre

01 Pop	09 SpeedMetal	17 Sesion	25 70-talet
02 Fan	10 PopJazz	18 Modern	26 80-talet
03 Svårt	11 Jazz	19 Blues	27 Populär
04 Original	12 808	20 Klassisk	28 Slam
05 Poprock	13 909	21 Synthgaze	29 Attack
06 Rock	14 Songo	22 Freak	30 gammal
07 Metall	15 Standard	23 pinnar	31 Fairfax
08 PowerMetal	16 Akustisk	24 Grunge	32 Militär

Demonstration music

This product can be powered by standard indoor wall sockets. Please only use the power cord specified in this product. When not in use, please turn off the power supply. When not in use for a long time, pull out the power cord and keep it properly.

AUX IN PHONE USB OUTPUT DC 9V POWER

SIGN

To ensure that you use this product safely and correctly, to prevent harm to users and others and financial damage, this manual and products are marked with a series of safety signs. The various signs and their meanings are as follows:

WARNING

This sign indicates that there is a potential risk of death or serious injury if this mark is ignored and the product is mishandled.

BE CAREFUL

This sign indicates that there is a potential danger of injury to personnel or other financial damage if this sign is ignored and the product is operated incorrectly.

EXAMPLE OF LOGO

This triangle sign ( ) indicates what users should pay attention to. (The left example is careful shocks)

A circular sign (⊗) with an oblique line indicates prohibitions. The icons in or beside the logo indicate the contents specifically prohibited. (The example on the left is no disassembly)

The round black bottom sign (✗) indicates what must be observed. The diagrams in this sign indicate the contents of the specific matters that must be observed. (The example on the left is that the power plug must be pulled out of the socket)

SAFETY PRECAUTIONS

WARNING

Smoke, odor, overheating

When the product smokes, smells or overheats, there is a danger of fire and electric shock when it is used continually. In case of the above situation, the following operations should be performed immediately:

1. Turn off the power supply.
2. Pull the plug out of the power outlet.
3. Contact your dealer.

Power cord

1. The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

2. The special power cord designated for this product must be used.

3. The AC power supply with output voltage within the rated voltage range for household use must be used.

4. Do not overload power sockets and extension lines.

5. The improper treatment of power line will lead to its damage or breakage, which will cause fire and electric shock hazards. The following precautions must be observed:

6. Do not place or heat heavy objects on power lines.

7. Do not attempt to alter or bend the power cord too much.
8. Do not twist or pull the power cord.

9. If the power cord or plug is damaged, please replace the same type of power cord.

10. Do not touch the power cord and plug with wet hands, otherwise there is a danger of electric shock.

11. Please use the power cord where the water will not splash. Water is in danger of causing fire and electric shock.

12. Never place vases or any other container containing water on this product. Water is dangerous of causing fire and electric shock.
13. Do not allow minors to unplug and touch power lines or connection boards. Minors have no common sense of electricity safety, which may cause electric shock.

BE CAREFUL

The improper use of power cord may cause fire and electric shock. The following precautions must be observed:

• Never put the power cord near the oven or other heat source.
• Do not pull the cable when pulling out of the power socket. The main body of the plug must be grasped.
• The power cord plug must be inserted in the socket to the end.
• Make sure the power supply is off before connecting or disconnecting it.
• When thunderstorms occur or before traveling or other long-term departure, disconnect the power cord from the wall outlet.
• At least once a year, remove the power cord from the wall outlet and clean the dust accumulated around the plug.

Do not burn this product

Do not put this product in the fire, otherwise it will lead to product combustion and explosion of internal electronic components, which will cause fire and personnel injury.

Water and foreign bodies

Water, other liquids and (metal sheets, etc.) entering this product are in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, unplug it from the wall outlet.
3. Contact your distributor.

Disassembly and transformation

Do not disassemble or transform the product in any way, otherwise there is a risk of electric shock, scald or other personal injury. All internal inspection, adjustment and maintenance operations should be entrusted to your distributor.

SAFETY PRECAUTIONS

Falling or colliding

If the product falls or is damaged by strong impact, it will be in danger of causing fire and electric shock. In case of the above situation, the following operations shall be performed immediately:

1. Turn off the power supply.
2. If you are using a power cord for power supply, you need to unplug it from the wall outlet.
3. Contact your distributor.

Plastic bag

Do not let anyone put plastic bags for this product on his head or in his mouth. Otherwise, there is a risk of asphyxia. Families with young children should pay special attention to it.

Keep a distance from the product and the bracket

Climbing the bracket is dangerous of overturning or damage. Families with young children should pay special attention to it.

Put

Avoid placing the product on an uneven surface or any other unstable place.

Otherwise, it will cause the product to fall down, which will lead to the risk of injury.

Product Mobility

Before moving this product, you must unplug the power cord plug from the wall outlet and pull out all other cables and connecting wires. Otherwise, it will lead to damage of power or connection wires, resulting in fire and electric shock.

clean

Before cleaning this product, you must unplug the power cord plug from the wall outlet, otherwise there is a risk of fire and electric shock.

Jack

The socket of this product can only be connected to the designated equipment and devices. Connecting non-designated equipment or devices is dangerous of causing fire and electric shock.

Location selection

It should be avoided to place the product in the following places, otherwise there is a risk of fire and electric shock.

• High temperature or dusty places.
- Kitchen or other places with lampblack.
- Where the product is exposed to direct sunlight, or any other place where the product will produce high temperature.

Volume

Don't play music long and loud. Pay special attention when using headphones.

Excessive volume can damage your hearing.

Heavy

Do not place heavy objects on this product. Otherwise, the top of the product will be overweight, causing the product to overturn or drop objects on it, which will lead to the risk of injury.

Correct assembly of scaffolds

The incorrect assembly of the bracket may overturn, causing the product to fall off and posing a risk of injury to personnel. Therefore, it must be assembled according to the instructions in the attached installation guide to ensure that the product is properly mounted on its bracket.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support
